CREASE Recovery Tester

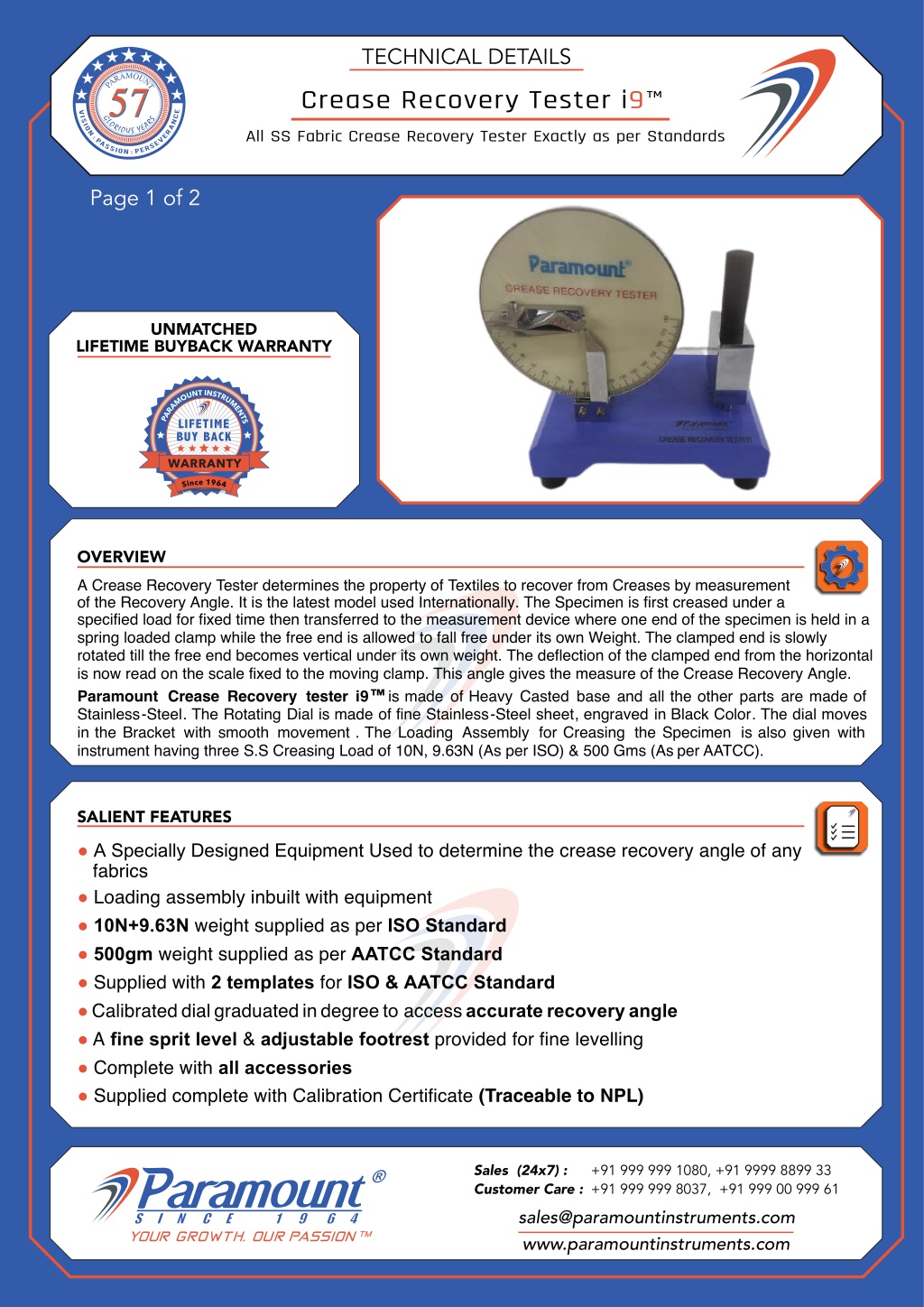

1. TECHNICAL DETAILS Crease Recovery Tester i9™ All SS Fabric Crease Recovery Tester Exactly as per Standards Page 1 of 2 UNMATCHED LIFETIME BUYBACK WARRANTY OVERVIEW A Crease Recovery Tester determines the property of Textiles to recover from Creases by measurement of the Recovery Angle. It is the latest model used Internationally. The Specimen is first creased under a specified load for fixed time then transferred to the measurement device where one end of the specimen is held in a spring loaded clamp while the free end is allowed to fall free under its own Weight. The clamped end is slowly rotated till the free end becomes vertical under its own weight. The deflection of the clamped end from the horizontal is now read on the scale fixed to the moving clamp. This angle gives the measure of the CreaseRecovery Angle. Paramount Crease Recovery tester i9™ is made of Heavy Casted base and all the other parts are made Stainless-Steel. The Rotating Dial is made of fine Stainless-Steel sheet, engraved in Black Color. The dial moves in the Bracket withsmooth movement . The Loading Assemblyfor Creasing the Specimen is also given with instrument having three S.S Creasing Load of 10N, 9.63N (As per ISO) & 500 Gms(As per AATCC). of SALIENT FEATURES ●A Specially Designed Equipment Used fabrics ● Loading assembly ● 10N+9.63N weight ● 500gm weight supplied ● Supplied with 2 templates ● Calibrated dial graduated ● A fine sprit level & ● Complete with all accessories ● Supplied complete to determine the crease recovery angle of any inbuilt with equipment per ISO AATCC ISO & to access footrest Standard Standard AATCC provided supplied as as per for degree Standard accurate in recovery levelling angle adjustable for fine Certificate (Traceable with Calibration to NPL) Sales (24x7) : +91 999 999 1080, +91 9999 8899 33 Customer Care : +91 999 999 8037, +91 999 00 999 61 sales@paramountinstruments.com www.paramountinstruments.com

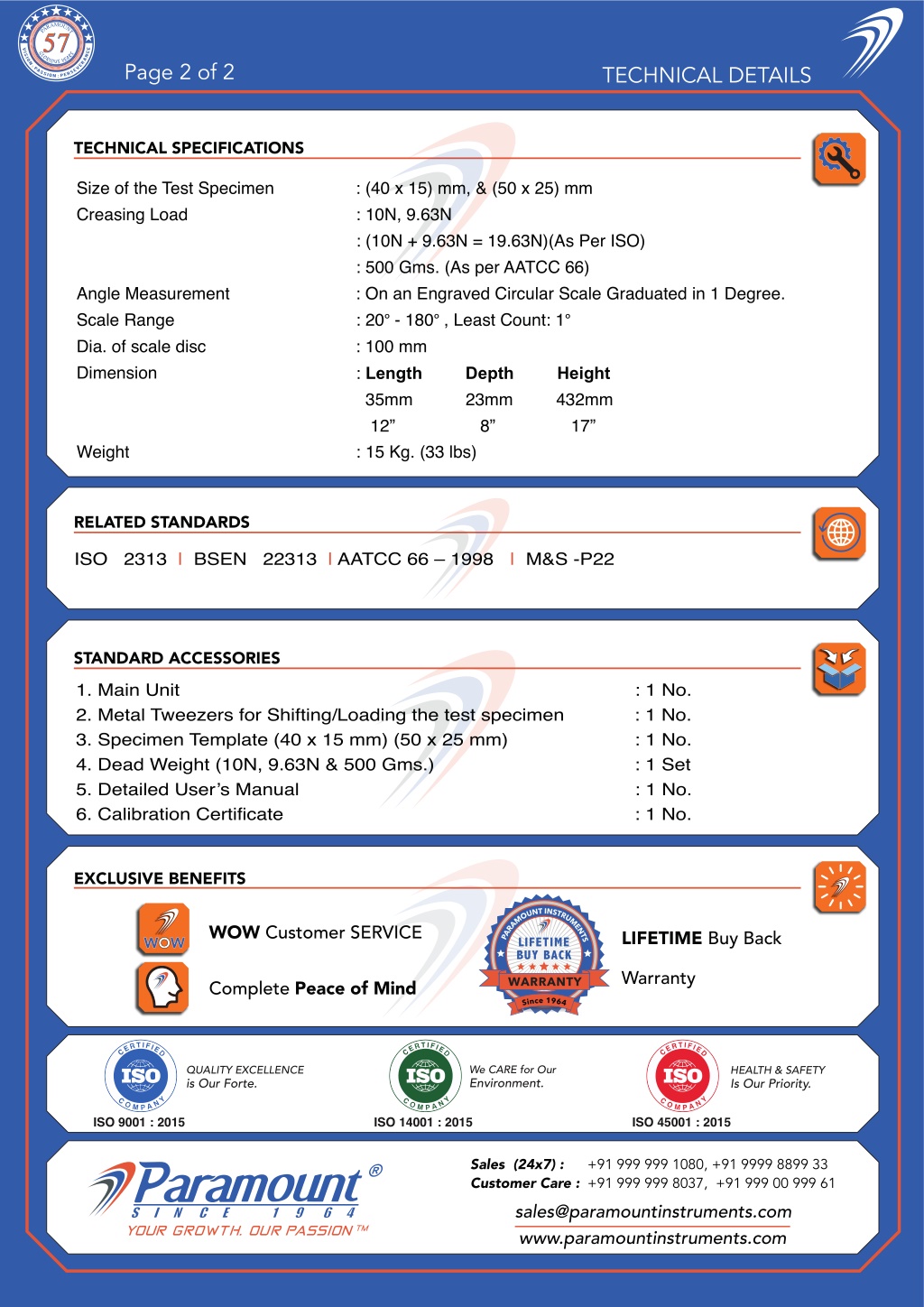

2. Page 2 of 2 TECHNICAL DETAILS TECHNICAL SPECIFICATIONS Size of the Test Specimen : (40 x 15) mm, & (50 x 25) mm Creasing Load : 10N, 9.63N : (10N + 9.63N = 19.63N)(As Per ISO) : 500 Gms. (As per AATCC 66) Angle Measurement : On an Engraved Circular Scale Graduated in 1 Degree. Scale Range : 20° - 180° , Least Count: 1° Dia. of scale disc : 100 mm : Length Depth Height 35mm 23mm 432mm 12” 8” 17” Dimension Weight : 15 Kg. (33 lbs) RELATED STANDARDS ISO 2313 | BSEN 22313 | AATCC 66 – 1998 | M&S -P22 STANDARD ACCESSORIES 1. Main Unit 2. Metal Tweezers for Shifting/Loading the test specimen 3. Specimen Template (40 x 15 mm) (50 x 25 mm) 4. Dead Weight (10N, 9.63N & 500 Gms.) 5. Detailed User’s Manual 6. Calibration Certificate : 1 No. : 1 No. : 1 No. : 1 Set : 1 No. : 1 No. EXCLUSIVE BENEFITS WOW Customer SERVICE LIFETIME Buy Back Warranty Complete Peace of Mind We CARE for Our Environment. QUALITY EXCELLENCE is Our Forte. HEALTH & SAFETY Is Our Priority. ISO 9001 : 2015 ISO 14001 : 2015 ISO 45001 : 2015 Sales (24x7) : +91 999 999 1080, +91 9999 8899 33 Customer Care : +91 999 999 8037, +91 999 00 999 61 sales@paramountinstruments.com www.paramountinstruments.com
