stale safe security properties for secure information sharing

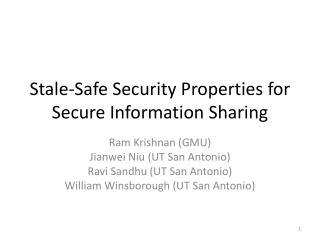

Stale-Safe Security Properties for Secure Information Sharing

Ram Krishnan (GMU)

Jianwei Niu (UT San Antonio)

Ravi Sandhu (UT San Antonio)

William Winsborough (UT San Antonio)

presentation outline
Presentation Outline
  • Concept
    • Stale-Safety
    • Group-Based Secure Information Sharing (g-SIS)
  • Staleness in g-SIS
  • Formal Specification using Linear Temporal Logic
    • Weak Stale-Safe Security Property
    • Strong Stale-Safe Security Property
  • Modeling g-SIS
  • Verification of g-SIS Stale-Safety using Model Checking
concept of stale safety
Concept of Stale-Safety

Update

AIP: Authorization Information Point

AIP

AIP

AIP

AIP

ADP: Authorization Decision Point

ADP

ADP

ADP

AEP:

Authorization Enforcement Point

AEP

group based secure information sharing g sis
Group-Based Secure Information Sharing (g-SIS)
  • Share sensitive information within a group
  • Allows offline access
  • Assumes a Trusted Reference Monitor (TRM)
    • Resides on group subject’s access machine
    • Enforces group policy
    • Synchronizes attributes periodically with server
  • Objects available via Super-Distribution
g sis
g-SIS

Subject Attributes

Join-TS

Leave-TS

Time of Join

NULL

Time of Join

Time of Leave

Object

Attributes

Add-TS

Remove-TS

Time of Add

Time of Remove

Time of Add

NULL

Join

Add

Never Group Subject

Current Group Subject

Past Group Subject

Never Group Object

Current Group Object

Past Group Object

Join

Leave

Add

Remove

Authz (s,o,r) Add-TS(o) > Join-TS(s) &

Leave-TS(s) = NULL &

Remove-TS(o) = NULL

g sis architecture
g-SIS Architecture

CC: Control Center

GA: Group Administrator

3.2 Set

Leave-TS (s)

4.2 Add o to ORL

CC

4.1 Object

Remove (o)

5.1 Request Refresh

5.2 Update Attributes

3.1 Subject

Leave (s)

1. Read

Objects

Group Subjects

GA

TRM

TRM

TRM

  • Subject Attributes: {id, Join-TS, Leave-TS,
  • ORL, gKey}
    • ORL: Object Revocation List
    • gKey: Group Key

Object Attributes: {id, Add-TS}

Refresh Time (RT): TRM contacts CC to update attributes

staleness in g sis
Staleness in g-SIS

RT: Refresh Time

Was never authorized

Request (s, o2, r)

Add (o1)

Join (s)

Add (o2)

RT1

RT2

RT3

RT4

RT0

Request (s, o1, r)

Leave (s)

Was authorized at recent RT

Authz (s,o,r) Add-TS(o) > Join-TS(s) &

Leave-TS(s) = NULL & o NotIn ORL

linear temporal logic
Linear Temporal Logic
  • Precise, Concise expression of state sequence properties
    • Uses temporal operators and logical connectives
    • Enables automated verification of properties
  • Future Operators
    • p: formula p holds in current and all future states
  • Past Operators
    • p S q (p Since q): means q held sometime in the past and p held since that state to the current
    • p (previous): means p held in the previous state
stale safe security properties
Stale-Safe Security Properties
  • Weak Stale-Safety
    • Allows (safe) authorization decision to made without contacting the CC
    • Achieved by requiring that authorization was TRUE at the most recent refresh time
  • Strong Stale-Safety
    • Need to obtain up to date authorization information from CC after a request is received
    • If CC is not available decision cannot be made
properties
Properties

Stale-unsafe Decision

RT

Perform

Join

Add

Authz

Request

Perform

Request

Perform

Formula

Formula

Weak Stale-Safety:

Strong Stale-Safety:

stale unsafe trm
Stale-Unsafe TRM

Transition Notation:

e[c] / a

e : Event

c : Condition

a : Action

idle

Request

[Authz& !timeout]

Request [timeout]

/refreshReq

[Authz & !timeout]

/Perform

[!Authz]

/Reject

/refresh

[timeout]

/refreshReq

authorized

refreshing

[Authz]

/refresh

Authz Add-TS > Join-TS &

Leave-TS = NULL &

o NotIn ORL

stale safe trm
Stale-Safe TRM

Transition Notation:

e[c] / A

e : Event

c : Condition

a : Action

idle

Request

[timeout | stale]

/refreshReq

Request [Authz& !timeout & !stale]

[Authz & !timeout]

/Perform

[!Authz & !timeout]

/Reject

[AuthzE]

/Reject

/refresh

[timeout]

/refreshReq

authorized

refreshing

[Authz]

/refresh

stale: Add-TS >= Refresh-TS

Authz Add-TS > Join-TS &

Leave-TS = NULL &

Remove-TS = NULL

stale safety verification
Stale-Safety Verification
  • Model Checkers
    • Cadence: http://www.kenmcmil.com/
    • NuSMV: http://nusmv.irst.itc.it/
  • Language: Symbolic Model Verifier (SMV)
  • Verification of Weak Stale-Safety
    • UnSafe TRM
    • Safe TRM
conclusions
Conclusions
  • Staleness is inherent to distributed systems
    • Impossible to eliminiate time-delayed attributes
    • Possible to limit impact of time-delayed attributes
  • Weak Stale-Safe Property
    • Characterizes safe decisions using time-delayed attributes
  • Strong Stale-Safe Property
    • Characterizes a decision that can be made only with up to date attributes (infeasible in many applications such as g-SIS)
  • Formal Specification using LTL allows automated verification using model checking
formalization of authz
Formalization of Authz

Join

Add

AuthzCC

Case (a)

Join

Add

RT

AuthzTRM

Case (b)

RT

Add

Join

AuthzTRM

Case (a)

Case (b)

stale safe systems
Stale-Safe Systems
  • Strong Stale-Safety
    • Safe for Confidentiality and Integrity systems
    • Main trade-off is usability/practicality
      • E.g. Not applicable for g-SIS
  • Weak Stale-Safety
    • Risky for Integrity systems
      • Maliciously updated objects may be consumed by others before modifications can be undone
      • E.g. Malicious code injected by unauthorized subjects may be executed on a critical system by another subject
