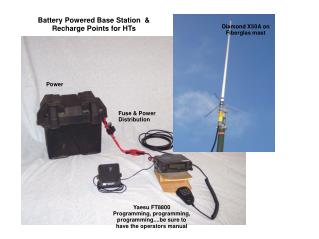

Battery Powered Base Station & Recharge Points for HTs

Diamond X50A on Fiberglas mast

Power

Fuse & Power Distribution

Yaesu FT8800

Programming, programming, programming....be sure to have the operators manual

slide2

Power Distribution Detail

To Yaesu FT8800 Base Station

15 Amp Fuses

Charging Yaesu HT

slide5

Mobile HT on 'Steroids'

Comet Mag Mount Antenna

Power

Fuse & Power Distribution

Mirage BD-35 Dual Band Linear Amplifier....5 Watts in 35 – 45 Watts out

But what about the RF connectors ?

Yaesu HT

slide7

RF Connectors & Personality Connectors

Amplifier requires PL-259 Connections

PL-259 to PL-259 Connector

SMA – SO-239 Pig Tail Adapter

Yaesu HT Uses SMA Connectors

slide8

HT Connected Directly to Mag Mount

PL-259 Connector

SO-239 – SMA Adapter

You can never have too many personality adapters
