Presentation Transcript
active directory

Active Directory

Disaster Recovery

domain controllers
Domain Controllers
  • No PDC, BDC
  • All DCs are equal
    • Some are more equal than others (operations masters)
  • Can demote DC to member server
    • Can change its name this way
  • Can promote member server to DC
active directory files
Active Directory Files
  • Default location %systemroot%\NTDS
    • Ntds.dit — Active Directory database
    • Edb*.log — Transaction log files
    • Edb.chk — Checkpoint file to check data not yet written to database
    • Res*.log — Reserved transaction log files (10MB each to reserve space in case disk fills up)
garbage collection
Garbage Collection
  • Runs periodically
  • Deletes tombstoned objects
  • Defragments database
system state
System State
  • Includes everything that AD depends on, not just database files
    • Database and log files
    • SYSVOL shared folder
    • Registry
    • System startup files
    • Class registration database
    • Certificate Services database
backing up active directory
Backing up Active Directory
  • Accessories/System Tools/Backup
    • Allows backup of system state
  • TSM (to HFS)
    • Backs up system object
      • Includes Active Directory
  • Third party
  • For complete backup, AD on all domain controllers must be backed up
non authoritative restore
Non-Authoritative Restore
  • Restores Active Directory to state before backup was made
  • Updates from other DCs are made via replication as usual
authoritative restore
Authoritative Restore
  • Possible to mark part of Active Directory as authoritative on server where you are restoring it
  • Authoritative parts replicated to other DCs
    • E.g. to restore deleted objects
  • Only part of database can be restored authoritatively
  • Can select subset to be restored authoritatively
    • E.g. to restore deleted OU

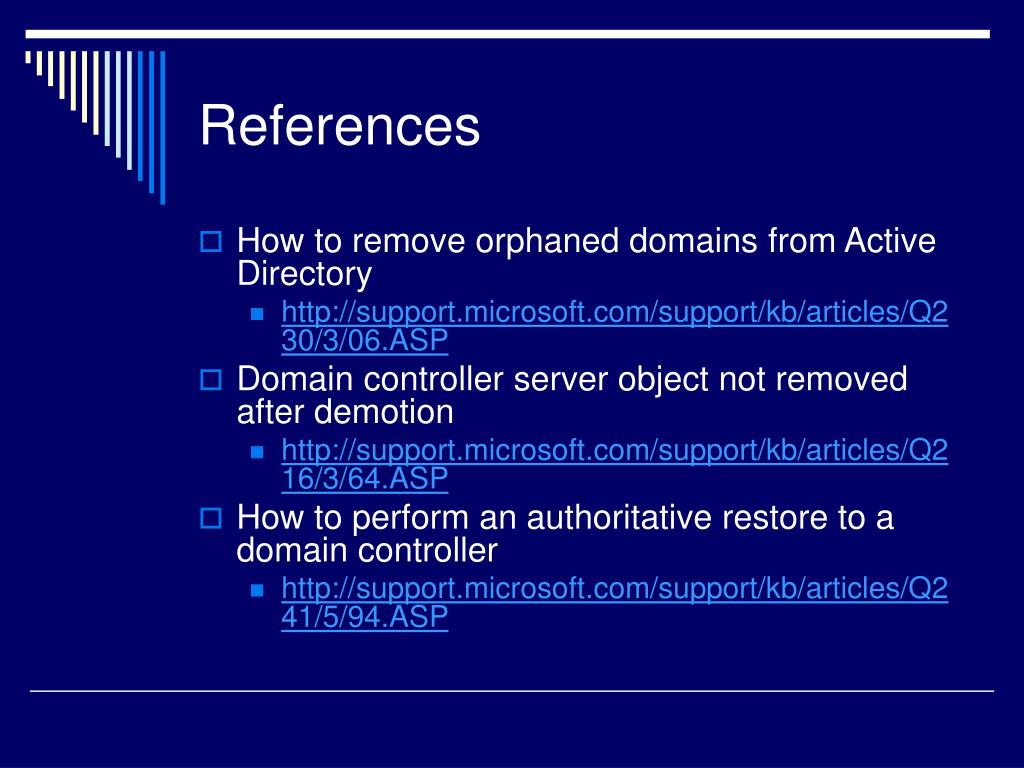

references
References
  • How to remove orphaned domains from Active Directory
    • http://support.microsoft.com/support/kb/articles/Q230/3/06.ASP
  • Domain controller server object not removed after demotion
    • http://support.microsoft.com/support/kb/articles/Q216/3/64.ASP
  • How to perform an authoritative restore to a domain controller
    • http://support.microsoft.com/support/kb/articles/Q241/5/94.ASP

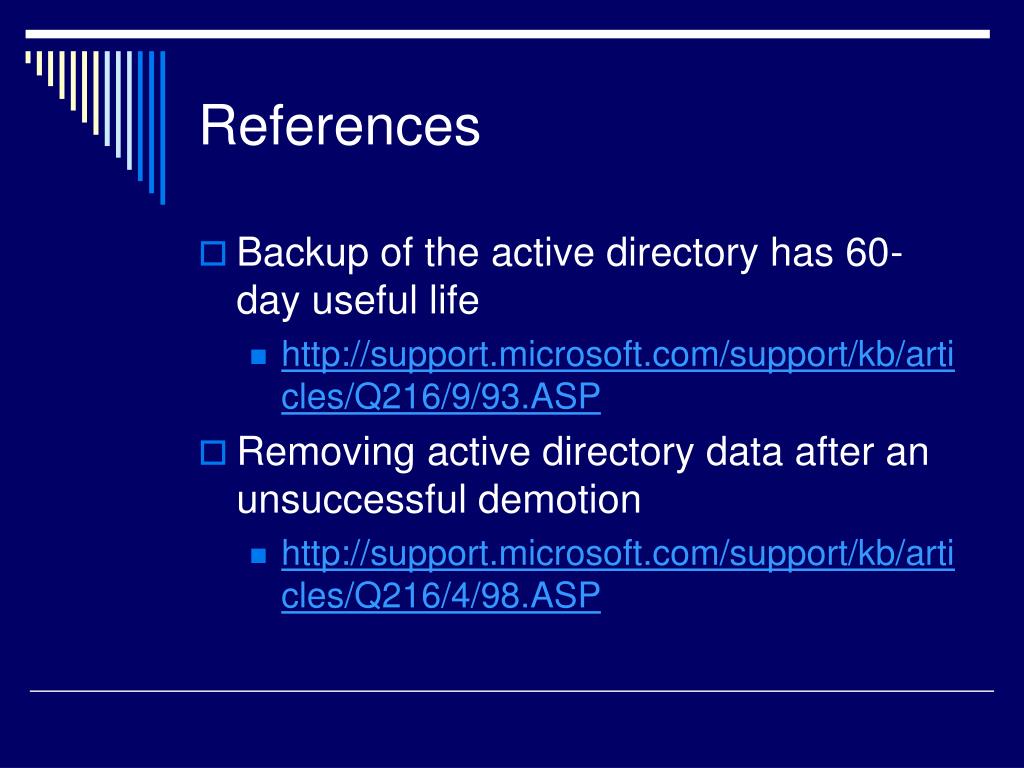

references10
References
  • Backup of the active directory has 60-day useful life
    • http://support.microsoft.com/support/kb/articles/Q216/9/93.ASP
  • Removing active directory data after an unsuccessful demotion
    • http://support.microsoft.com/support/kb/articles/Q216/4/98.ASP
