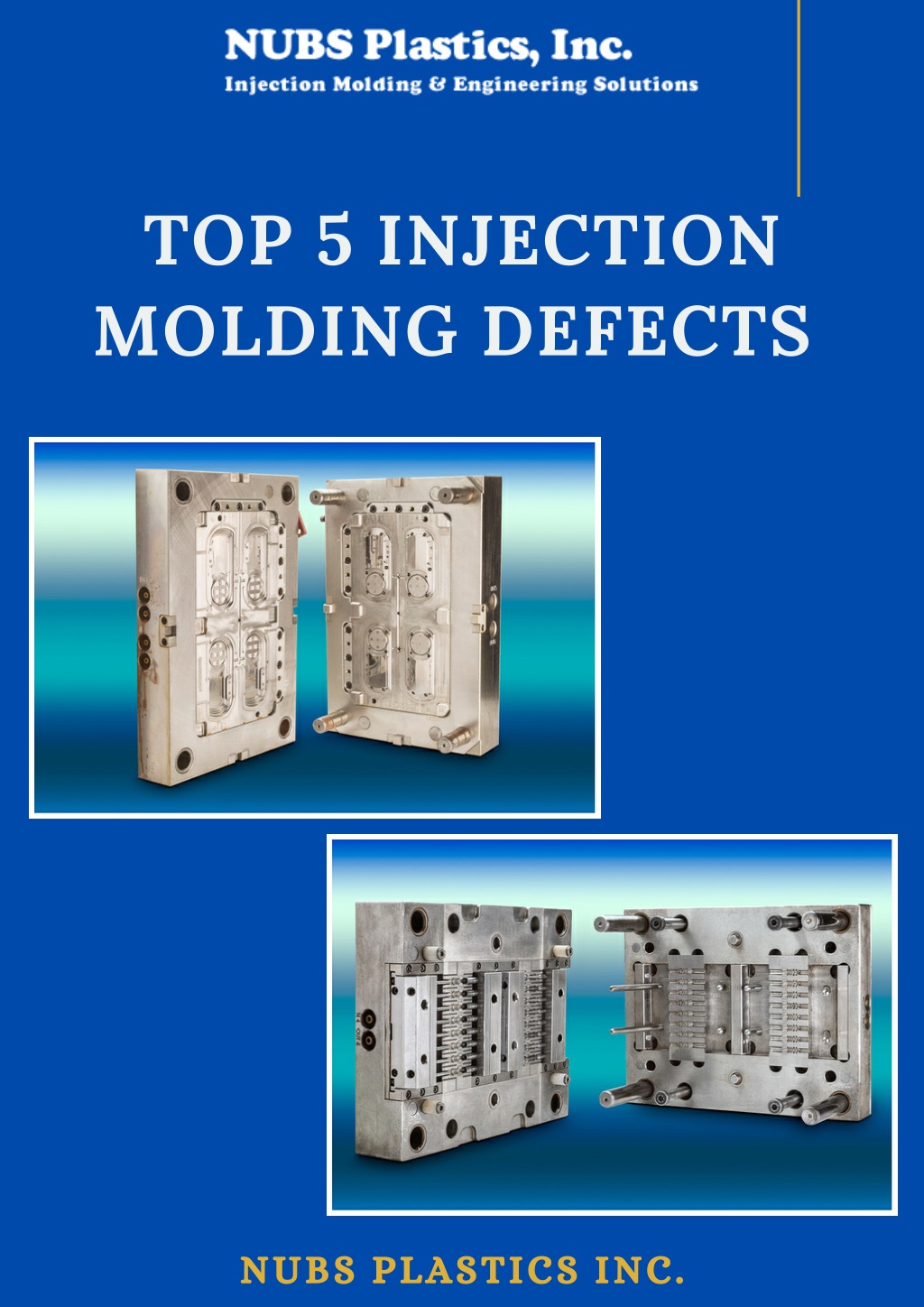

  1. TOP 5 INJECTION MOLDING DEFECTS NUBS PLASTICS INC.

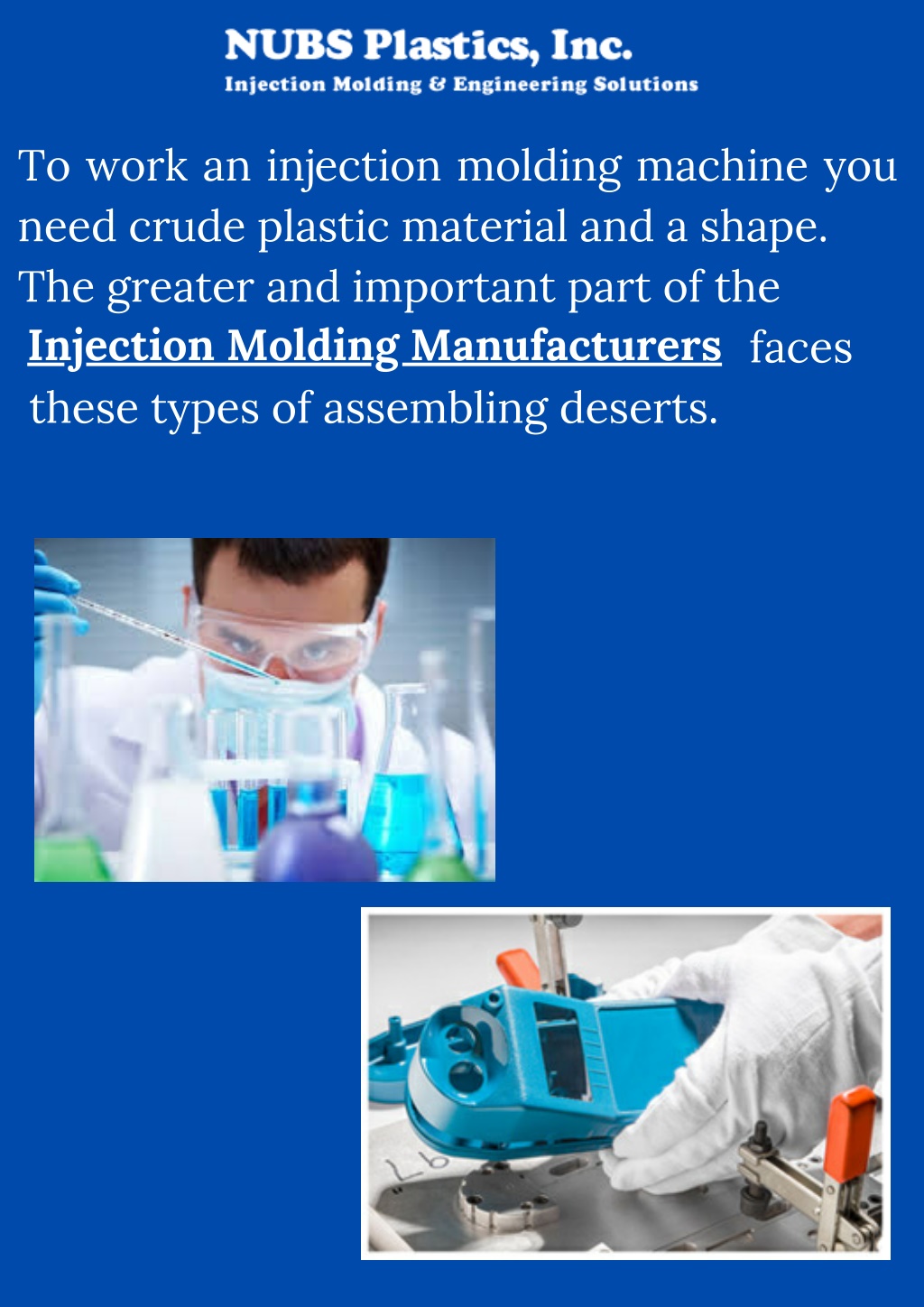

  2. To work an injection molding machine you need crude plastic material and a shape. The greater and important part of the faces these types of assembling deserts. Injection Molding Manufacturers

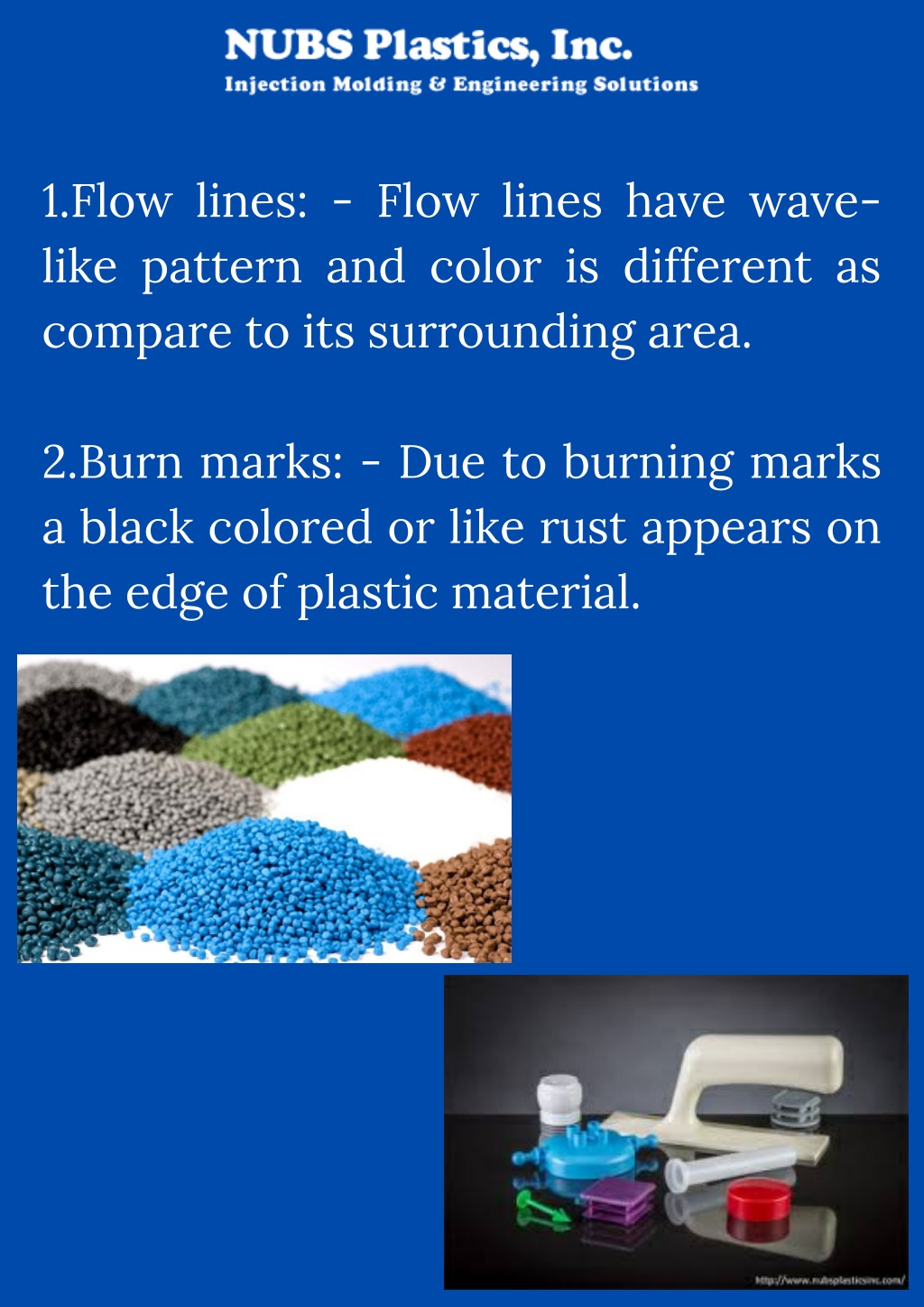

  3. 1.Flow lines: - Flow lines have wave- like pattern and color is different as compare to its surrounding area. 2.Burn marks: - Due to burning marks a black colored or like rust appears on the edge of plastic material.

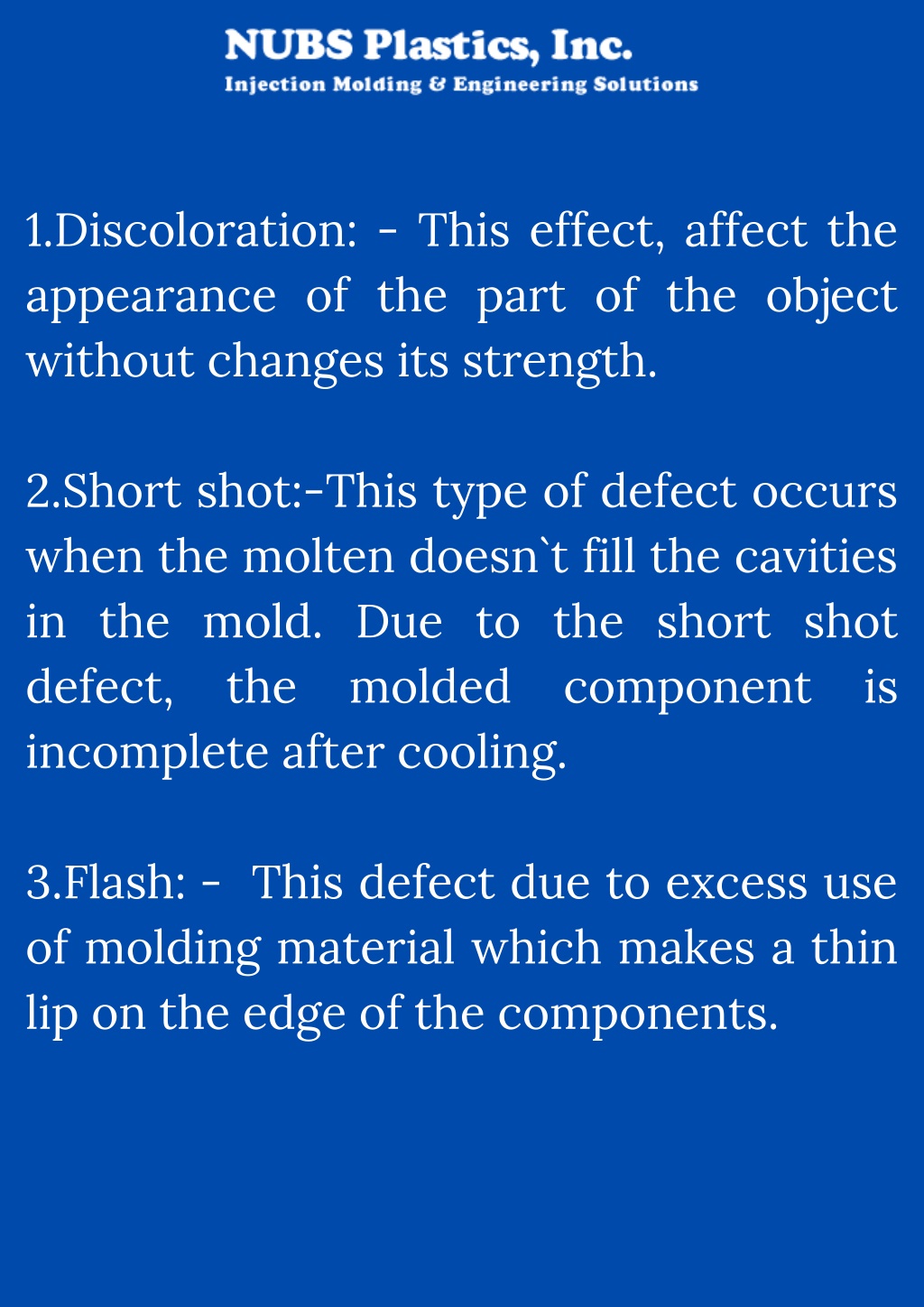

  4. 1.Discoloration: - This effect, affect the appearance of the part of the object without changes its strength. 2.Short shot:-This type of defect occurs when the molten doesn`t fill the cavities in the mold. Due to the short shot defect, the molded component is incomplete after cooling. 3.Flash: - This defect due to excess use of molding material which makes a thin lip on the edge of the components.

  5. Contact Us Address: 991 Park Center Dr, Vista, CA 92081, United States E-Mail : sales@nubsplastics.com Phone No. :+1-760-598-2525 Visit at: www.nubsplasticsinc.com
