What is the Difference Between a Proximity Card and a MIFARE Card?

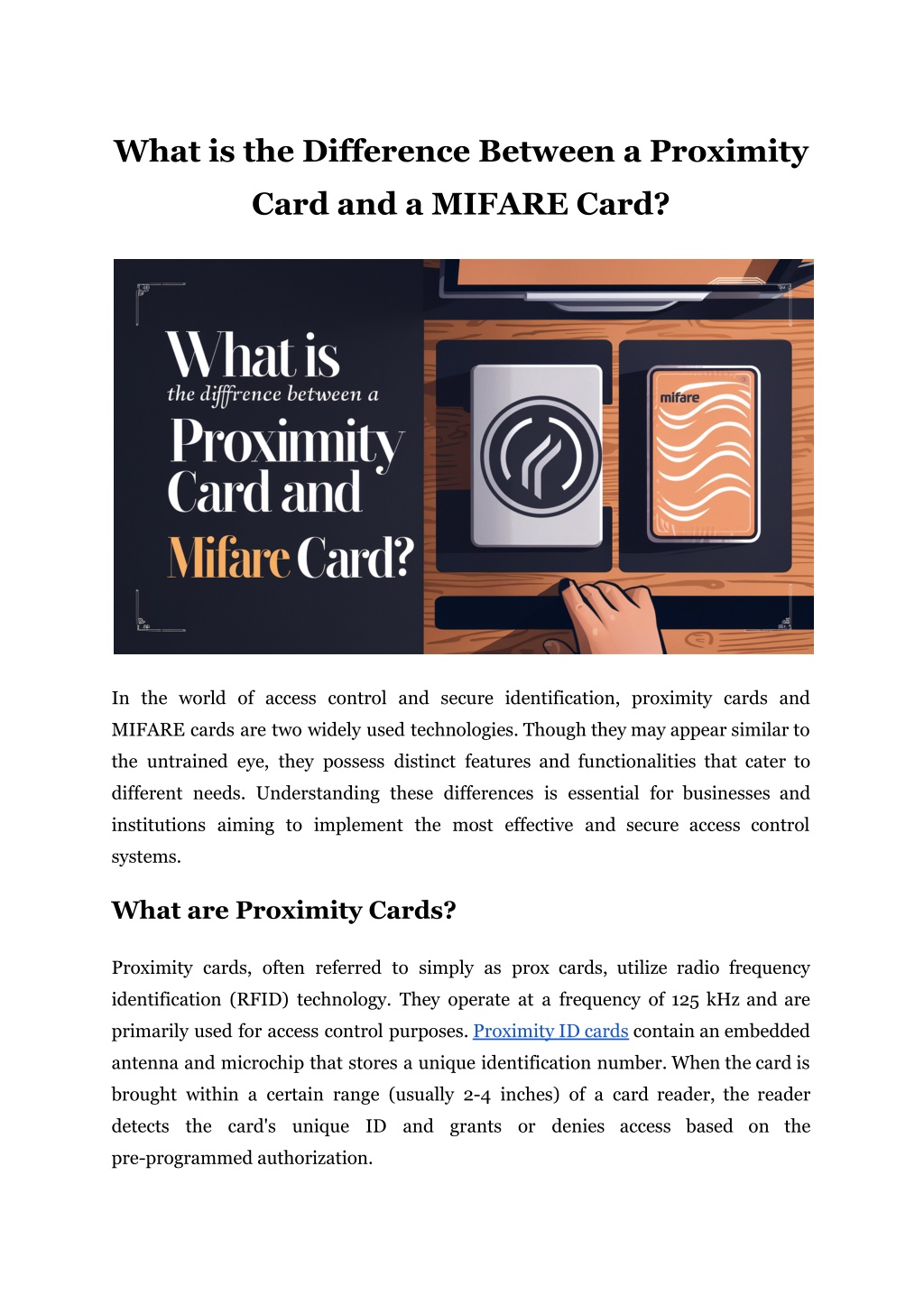

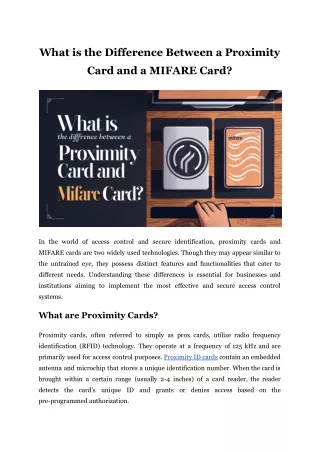

1. What is the Difference Between a Proximity Card and a MIFARE Card? In the world of access control and secure identification, proximity cards and MIFARE cards are two widely used technologies. Though they may appear similar to the untrained eye, they possess distinct features and functionalities that cater to different needs. Understanding these differences is essential for businesses and institutions aiming to implement the most effective and secure access control systems. What are Proximity Cards? Proximity cards, often referred to simply as prox cards, utilize radio frequency identification (RFID) technology. They operate at a frequency of 125 kHz and are primarily used for access control purposes. Proximity ID cards contain an embedded antenna and microchip that stores a unique identification number. When the card is brought within a certain range (usually 2-4 inches) of a card reader, the reader detects the card's unique ID and grants or denies access based on the pre-programmed authorization.

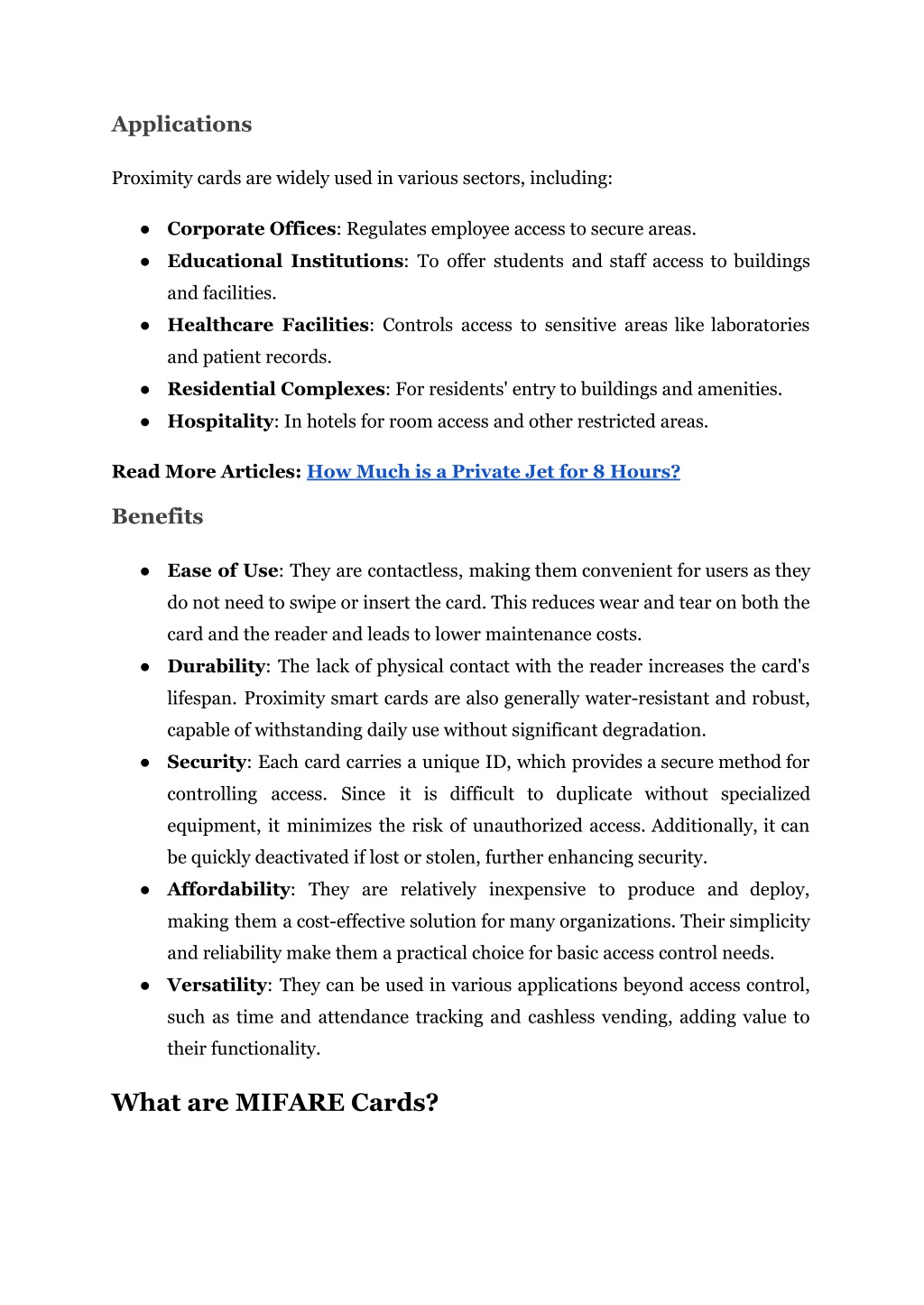

2. Applications Proximity cards are widely used in various sectors, including: ● Corporate Offices: Regulates employee access to secure areas. ● Educational Institutions: To offer students and staff access to buildings and facilities. ● Healthcare Facilities: Controls access to sensitive areas like laboratories and patient records. ● Residential Complexes: For residents' entry to buildings and amenities. ● Hospitality: In hotels for room access and other restricted areas. Read More Articles: How Much is a Private Jet for 8 Hours? Benefits ● Ease of Use: They are contactless, making them convenient for users as they do not need to swipe or insert the card. This reduces wear and tear on both the card and the reader and leads to lower maintenance costs. ● Durability: The lack of physical contact with the reader increases the card's lifespan. Proximity smart cards are also generally water-resistant and robust, capable of withstanding daily use without significant degradation. ● Security: Each card carries a unique ID, which provides a secure method for controlling access. Since it is difficult to duplicate without specialized equipment, it minimizes the risk of unauthorized access. Additionally, it can be quickly deactivated if lost or stolen, further enhancing security. ● Affordability: They are relatively inexpensive to produce and deploy, making them a cost-effective solution for many organizations. Their simplicity and reliability make them a practical choice for basic access control needs. ● Versatility: They can be used in various applications beyond access control, such as time and attendance tracking and cashless vending, adding value to their functionality. What are MIFARE Cards?

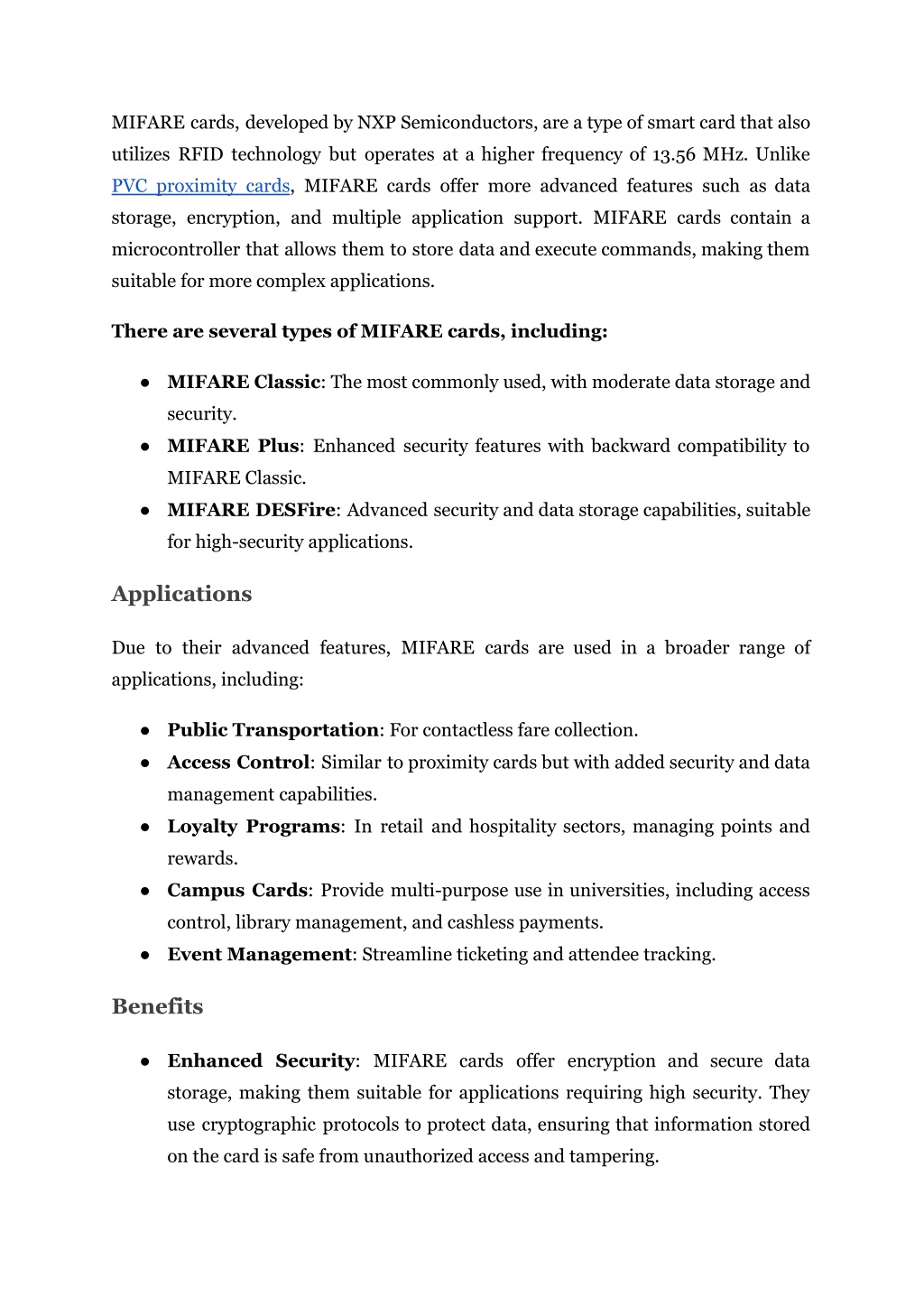

3. MIFARE cards, developed by NXP Semiconductors, are a type of smart card that also utilizes RFID technology but operates at a higher frequency of 13.56 MHz. Unlike PVC proximity cards, MIFARE cards offer more advanced features such as data storage, encryption, and multiple application support. MIFARE cards contain a microcontroller that allows them to store data and execute commands, making them suitable for more complex applications. There are several types of MIFARE cards, including: ● MIFARE Classic: The most commonly used, with moderate data storage and security. ● MIFARE Plus: Enhanced security features with backward compatibility to MIFARE Classic. ● MIFARE DESFire: Advanced security and data storage capabilities, suitable for high-security applications. Applications Due to their advanced features, MIFARE cards are used in a broader range of applications, including: ● Public Transportation: For contactless fare collection. ● Access Control: Similar to proximity cards but with added security and data management capabilities. ● Loyalty Programs: In retail and hospitality sectors, managing points and rewards. ● Campus Cards: Provide multi-purpose use in universities, including access control, library management, and cashless payments. ● Event Management: Streamline ticketing and attendee tracking. Benefits ● Enhanced Security: MIFARE cards offer encryption and secure data storage, making them suitable for applications requiring high security. They use cryptographic protocols to protect data, ensuring that information stored on the card is safe from unauthorized access and tampering.

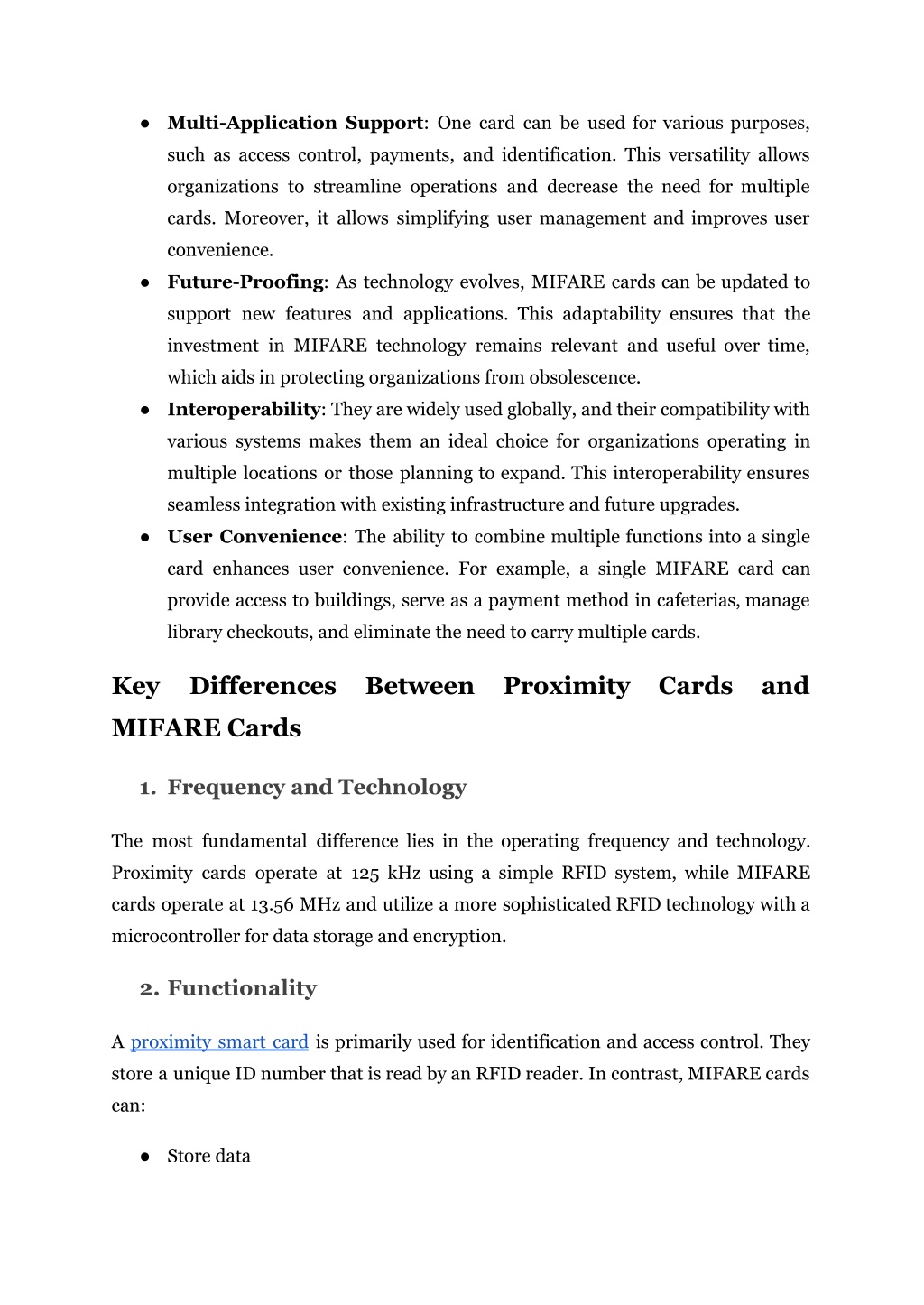

4. ● Multi-Application Support: One card can be used for various purposes, such as access control, payments, and identification. This versatility allows organizations to streamline operations and decrease the need for multiple cards. Moreover, it allows simplifying user management and improves user convenience. ● Future-Proofing: As technology evolves, MIFARE cards can be updated to support new features and applications. This adaptability ensures that the investment in MIFARE technology remains relevant and useful over time, which aids in protecting organizations from obsolescence. ● Interoperability: They are widely used globally, and their compatibility with various systems makes them an ideal choice for organizations operating in multiple locations or those planning to expand. This interoperability ensures seamless integration with existing infrastructure and future upgrades. ● User Convenience: The ability to combine multiple functions into a single card enhances user convenience. For example, a single MIFARE card can provide access to buildings, serve as a payment method in cafeterias, manage library checkouts, and eliminate the need to carry multiple cards. Key Differences Between Proximity Cards and MIFARE Cards 1. Frequency and Technology The most fundamental difference lies in the operating frequency and technology. Proximity cards operate at 125 kHz using a simple RFID system, while MIFARE cards operate at 13.56 MHz and utilize a more sophisticated RFID technology with a microcontroller for data storage and encryption. 2. Functionality A proximity smart card is primarily used for identification and access control. They store a unique ID number that is read by an RFID reader. In contrast, MIFARE cards can: ● Store data

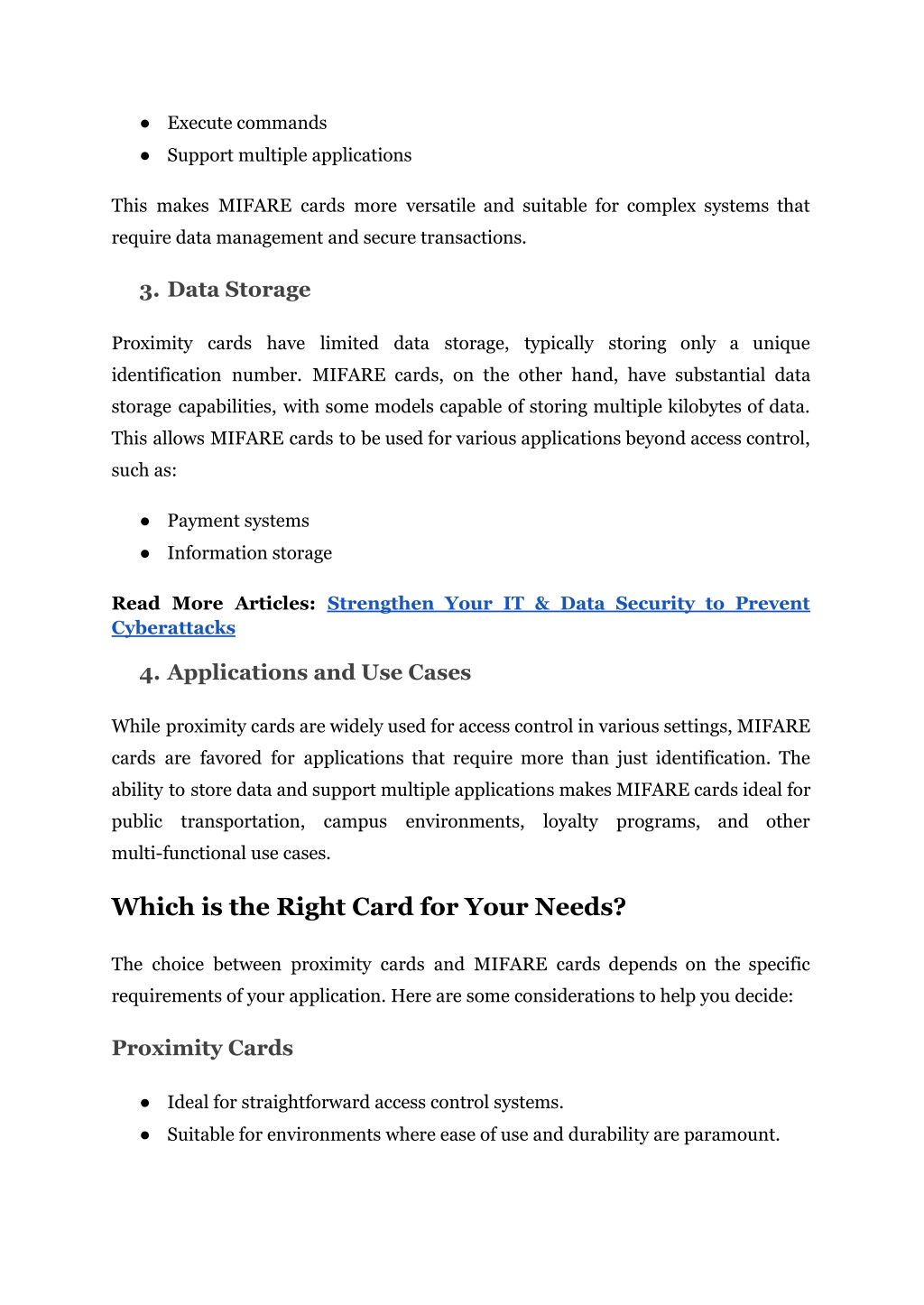

5. ● Execute commands ● Support multiple applications This makes MIFARE cards more versatile and suitable for complex systems that require data management and secure transactions. 3. Data Storage Proximity cards have limited data storage, typically storing only a unique identification number. MIFARE cards, on the other hand, have substantial data storage capabilities, with some models capable of storing multiple kilobytes of data. This allows MIFARE cards to be used for various applications beyond access control, such as: ● Payment systems ● Information storage Read More Articles: Strengthen Your IT & Data Security to Prevent Cyberattacks 4. Applications and Use Cases While proximity cards are widely used for access control in various settings, MIFARE cards are favored for applications that require more than just identification. The ability to store data and support multiple applications makes MIFARE cards ideal for public transportation, campus environments, loyalty programs, and other multi-functional use cases. Which is the Right Card for Your Needs? The choice between proximity cards and MIFARE cards depends on the specific requirements of your application. Here are some considerations to help you decide: Proximity Cards ● Ideal for straightforward access control systems. ● Suitable for environments where ease of use and durability are paramount.

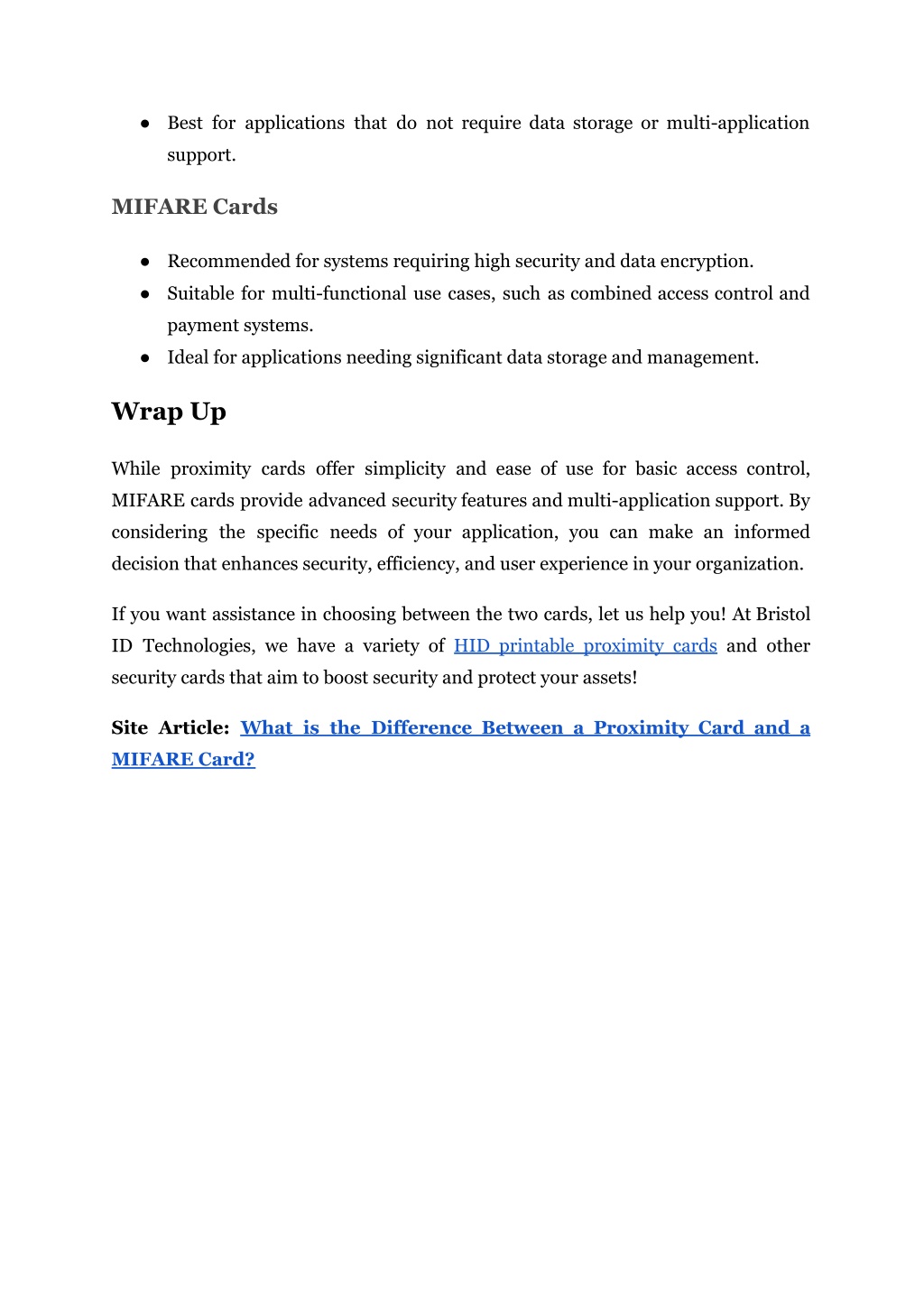

6. ● Best for applications that do not require data storage or multi-application support. MIFARE Cards ● Recommended for systems requiring high security and data encryption. ● Suitable for multi-functional use cases, such as combined access control and payment systems. ● Ideal for applications needing significant data storage and management. Wrap Up While proximity cards offer simplicity and ease of use for basic access control, MIFARE cards provide advanced security features and multi-application support. By considering the specific needs of your application, you can make an informed decision that enhances security, efficiency, and user experience in your organization. If you want assistance in choosing between the two cards, let us help you! At Bristol ID Technologies, we have a variety of HID printable proximity cards and other security cards that aim to boost security and protect your assets! Site Article: What is the Difference Between a Proximity Card and a MIFARE Card?
