Optimal Placement of HVAC Return Air Vents for Efficient Air Circulation

This presentation explores the importance of properly positioning return air vents in HVAC systems to enhance efficiency and indoor air quality. It covers key factors such as space size, supply vent locations, and building layout considerations. The slides also provide best practices, recommended distances, and common placement mistakes to avoid, ensuring effective air circulation in both single-story and multi-story buildings.

Nitin104
Download Presentation

Optimal Placement of HVAC Return Air Vents for Efficient Air Circulation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

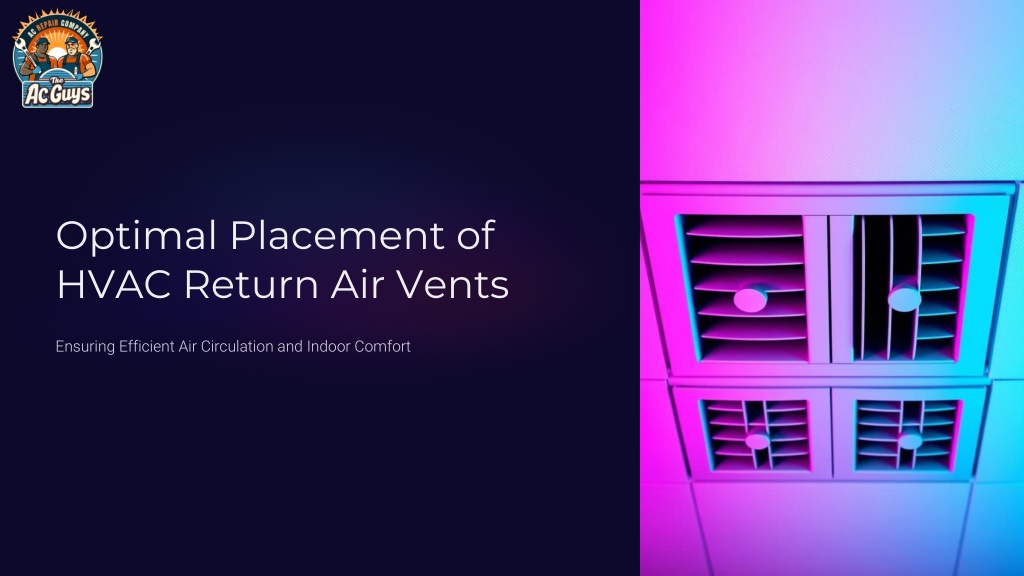

  1. Ensuring Efficient Air Circulation and Indoor Comfort Optimal Placement of HVAC Return Air Vents

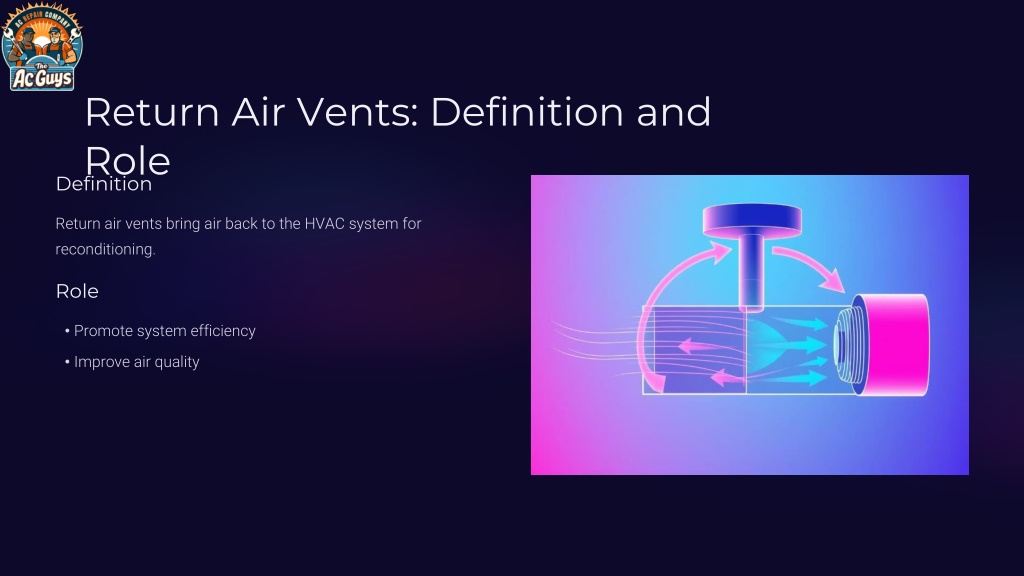

  2. Return air vents bring air back to the HVAC system for reconditioning. • Promote system efficiency • Improve air quality Return Air Vents: Definition and Role Definition Role

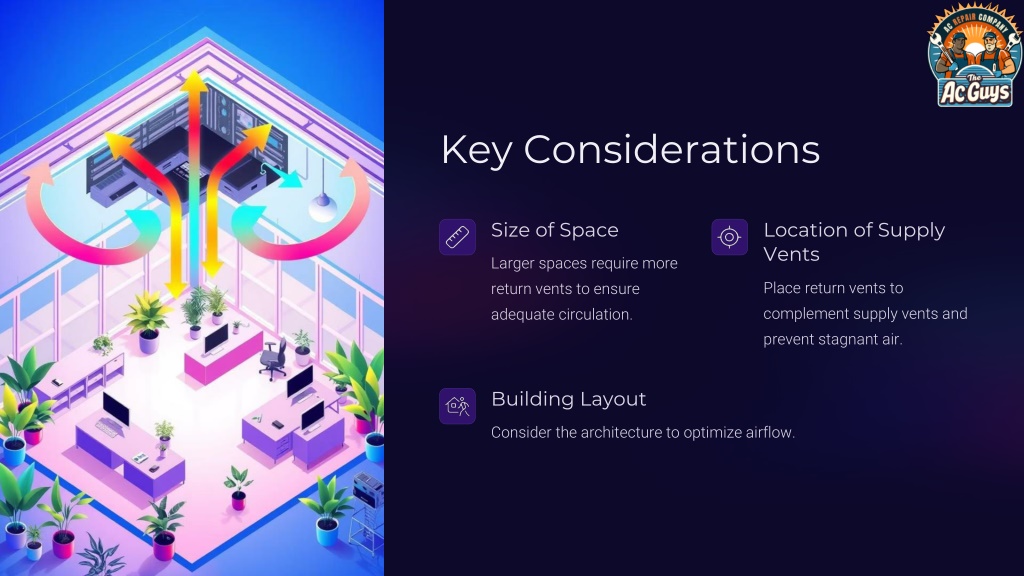

  3. Larger spaces require more return vents to ensure adequate circulation. Place return vents to complement supply vents and prevent stagnant air. Consider the architecture to optimize airflow. Key Considerations Size of Space Location of Supply Vents Building Layout

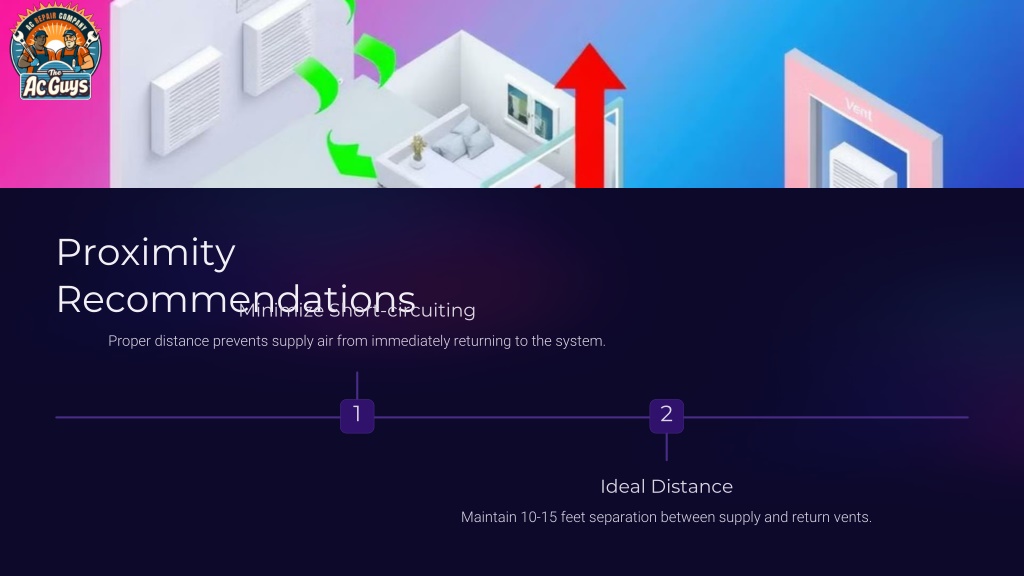

  4. Proper distance prevents supply air from immediately returning to the system. Maintain 10-15 feet separation between supply and return vents. Proximity Recommendations Minimize Short-circuiting Ideal Distance 1 2

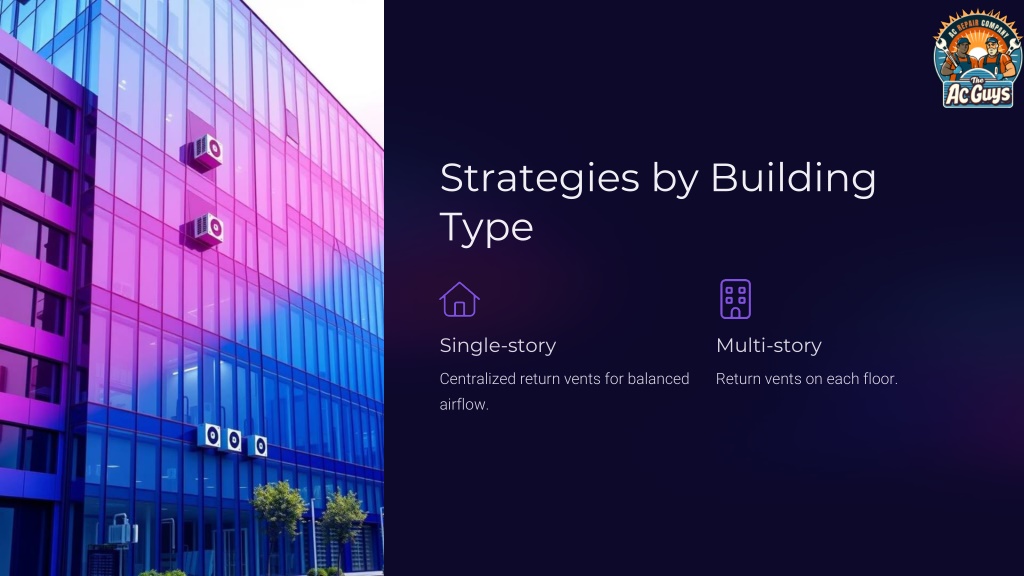

  5. Centralized return vents for balanced airflow. Return vents on each floor. Strategies by Building Type Single-story Multi-story

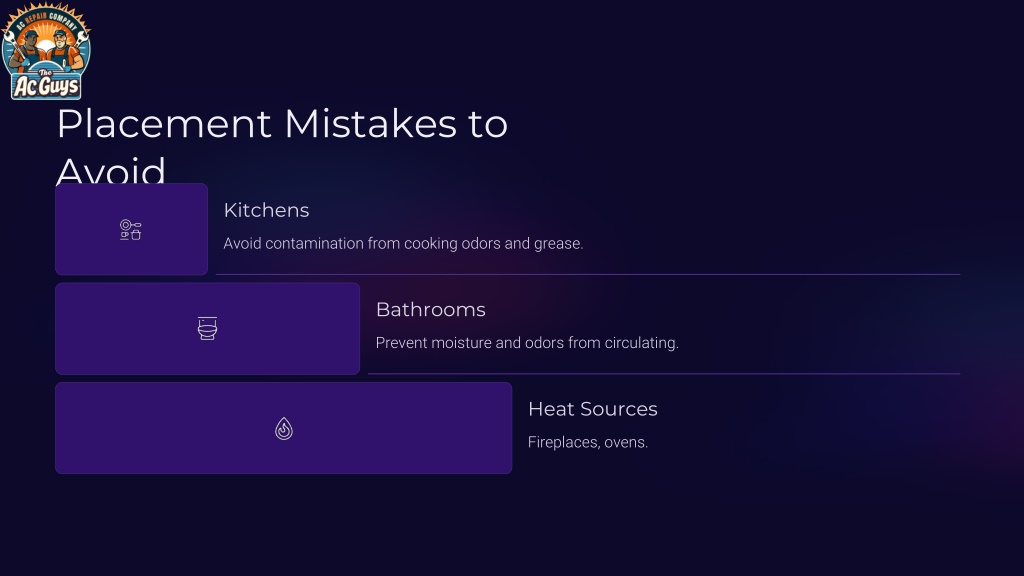

  6. Avoid contamination from cooking odors and grease. Prevent moisture and odors from circulating. Fireplaces, ovens. Placement Mistakes to Avoid Kitchens Bathrooms Heat Sources

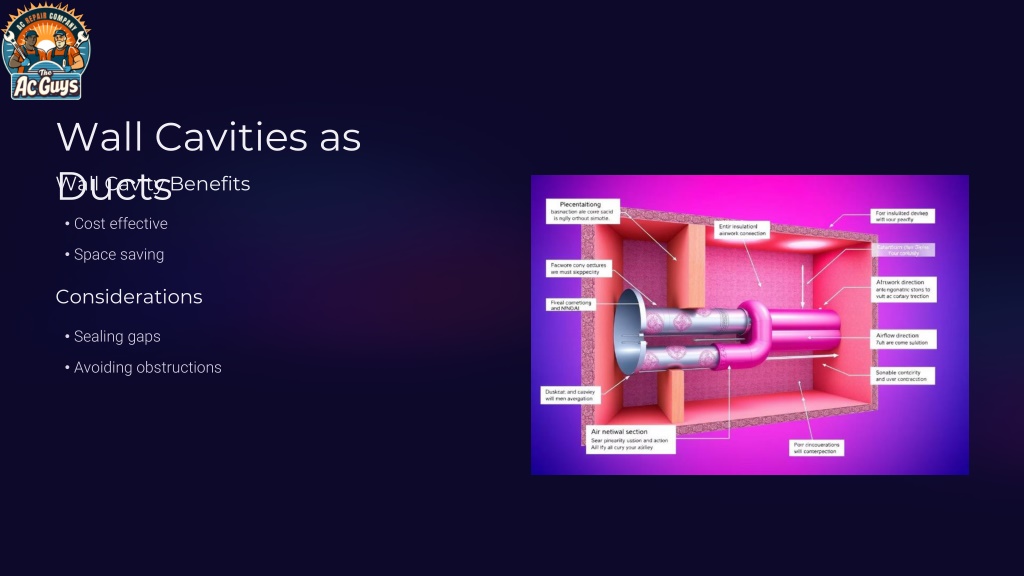

  7. Cost effective • Space saving • Sealing gaps • Avoiding obstructions Wall Cavities as Ducts Wall Cavity Benefits Considerations

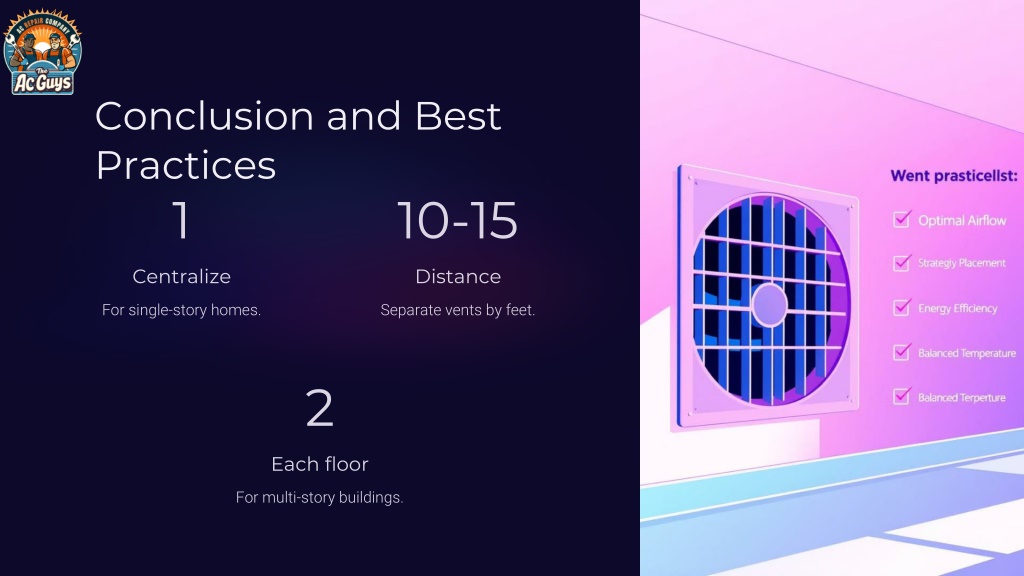

  8. For single-story homes. Separate vents by feet. For multi-story buildings. Conclusion and Best Practices Centralize Distance Each floor 1 10-15 2
