Advanced CCNA Interview Questions and Answers for Networking Professionals

As a networking professional, being well-prepared for job interviews is crucial to showcasing your expertise and landing your dream role. The Cisco Certified Network Associate (CCNA) certification is a widely recognized credential that demonstrates your proficiency in networking fundamentals, routing and switching, and more. However, when it comes to advanced CCNA interview questions, the bar is raised, and you'll need to be ready to delve deeper into your knowledge and problem-solving abilities.<br>

Networkkings
Download Presentation

Advanced CCNA Interview Questions and Answers for Networking Professionals

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

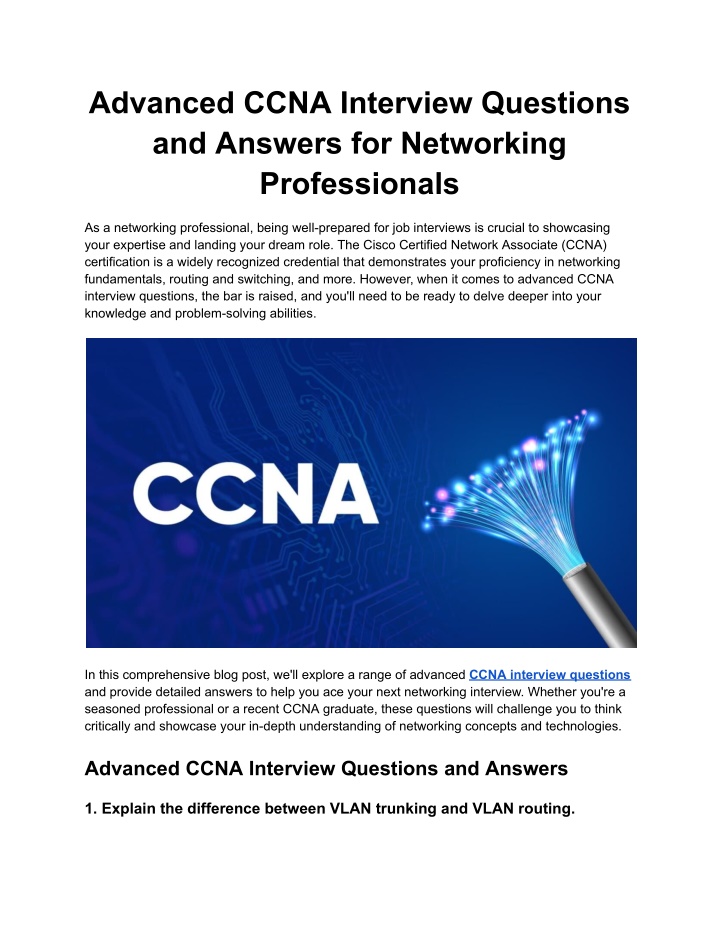

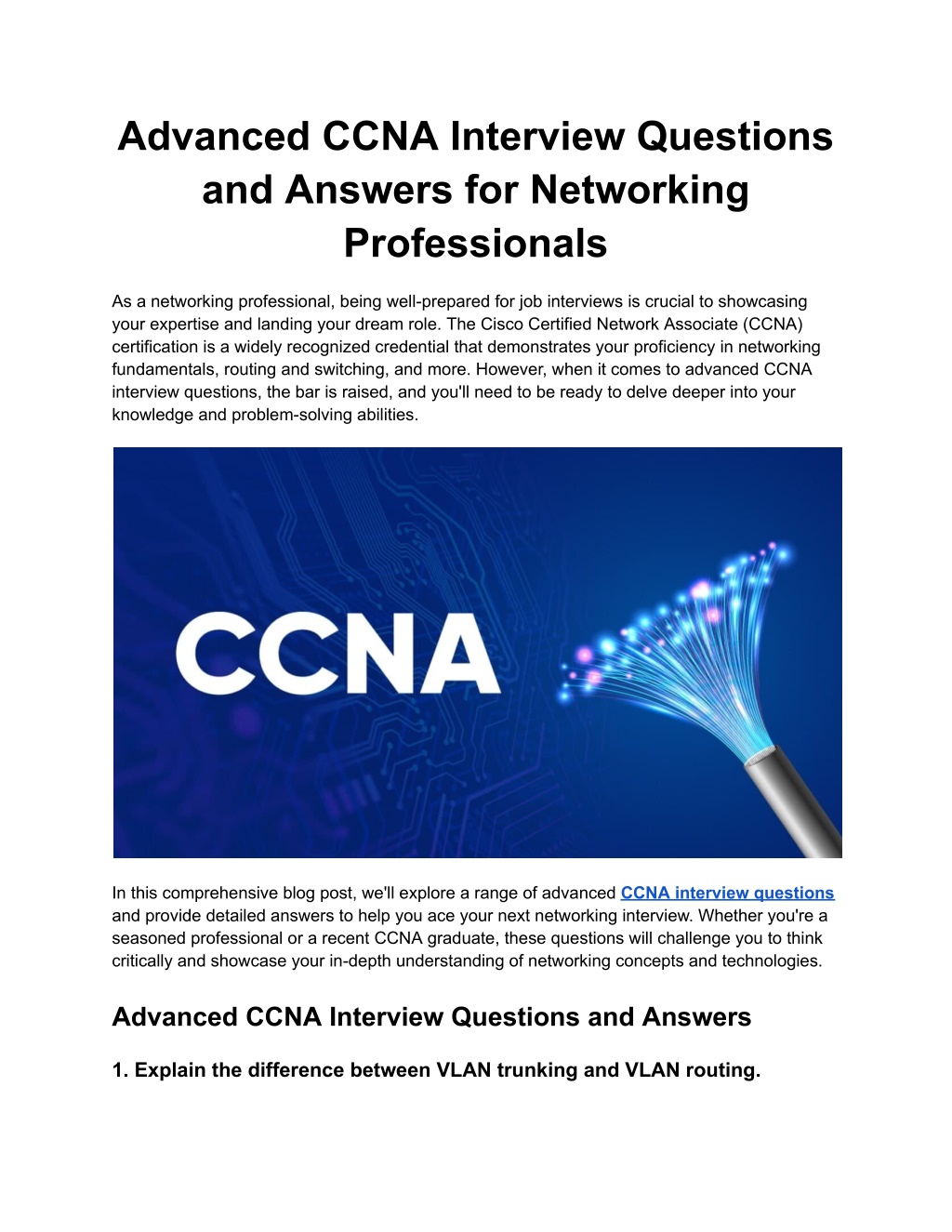

  1. Advanced CCNA Interview Questions and Answers for Networking Professionals As a networking professional, being well-prepared for job interviews is crucial to showcasing your expertise and landing your dream role. The Cisco Certified Network Associate (CCNA) certification is a widely recognized credential that demonstrates your proficiency in networking fundamentals, routing and switching, and more. However, when it comes to advanced CCNA interview questions, the bar is raised, and you'll need to be ready to delve deeper into your knowledge and problem-solving abilities. In this comprehensive blog post, we'll explore a range of advanced CCNA interview questions and provide detailed answers to help you ace your next networking interview. Whether you're a seasoned professional or a recent CCNA graduate, these questions will challenge you to think critically and showcase your in-depth understanding of networking concepts and technologies. Advanced CCNA Interview Questions and Answers 1. Explain the difference between VLAN trunking and VLAN routing.

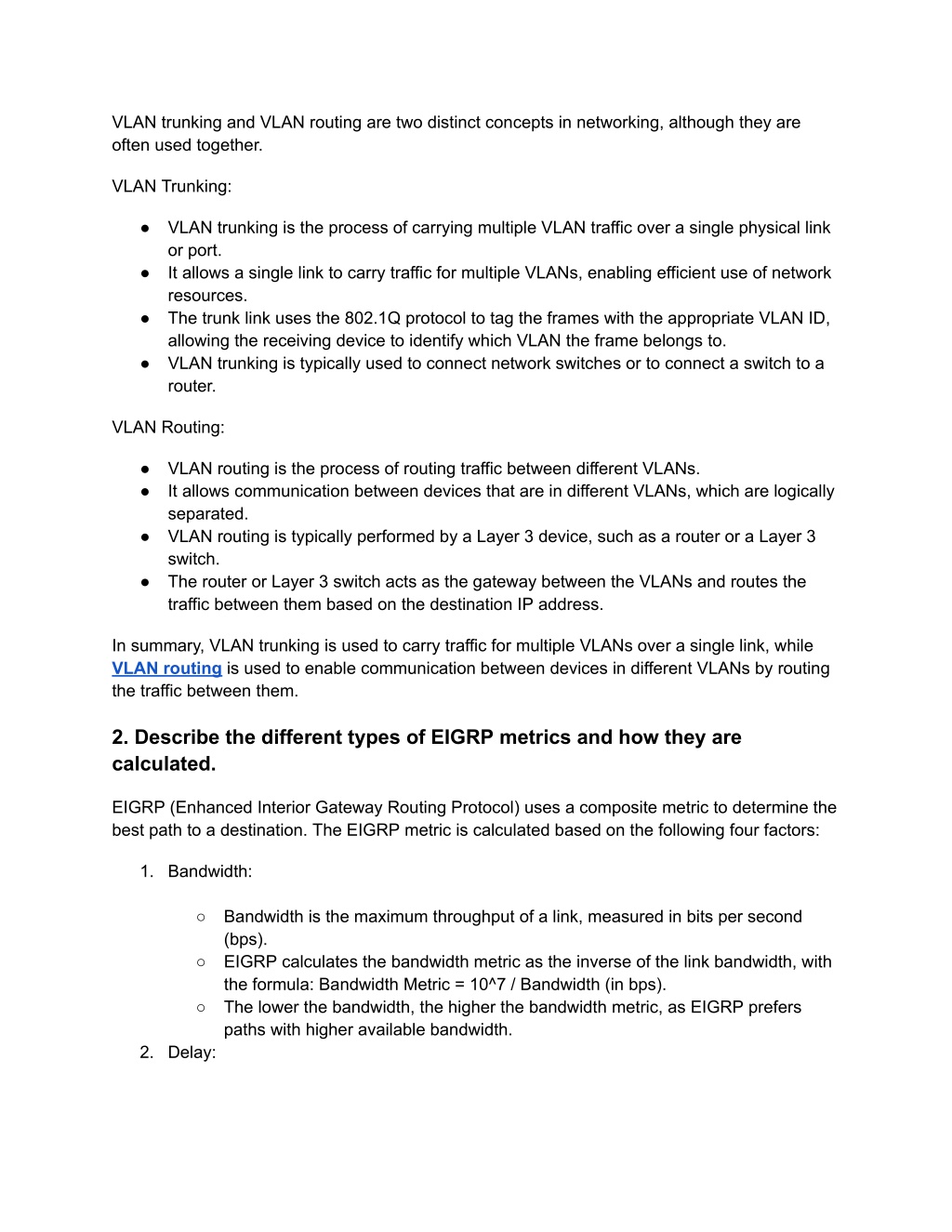

  2. VLAN trunking and VLAN routing are two distinct concepts in networking, although they are often used together. VLAN Trunking: ● VLAN trunking is the process of carrying multiple VLAN traffic over a single physical link or port. ● It allows a single link to carry traffic for multiple VLANs, enabling efficient use of network resources. ● The trunk link uses the 802.1Q protocol to tag the frames with the appropriate VLAN ID, allowing the receiving device to identify which VLAN the frame belongs to. ● VLAN trunking is typically used to connect network switches or to connect a switch to a router. VLAN Routing: ● VLAN routing is the process of routing traffic between different VLANs. ● It allows communication between devices that are in different VLANs, which are logically separated. ● VLAN routing is typically performed by a Layer 3 device, such as a router or a Layer 3 switch. ● The router or Layer 3 switch acts as the gateway between the VLANs and routes the traffic between them based on the destination IP address. In summary, VLAN trunking is used to carry traffic for multiple VLANs over a single link, while VLAN routing is used to enable communication between devices in different VLANs by routing the traffic between them. 2. Describe the different types of EIGRP metrics and how they are calculated. EIGRP (Enhanced Interior Gateway Routing Protocol) uses a composite metric to determine the best path to a destination. The EIGRP metric is calculated based on the following four factors: 1. Bandwidth: ○ Bandwidth is the maximum throughput of a link, measured in bits per second (bps). ○ EIGRP calculates the bandwidth metric as the inverse of the link bandwidth, with the formula: Bandwidth Metric = 10^7 / Bandwidth (in bps). ○ The lower the bandwidth, the higher the bandwidth metric, as EIGRP prefers paths with higher available bandwidth. 2. Delay:

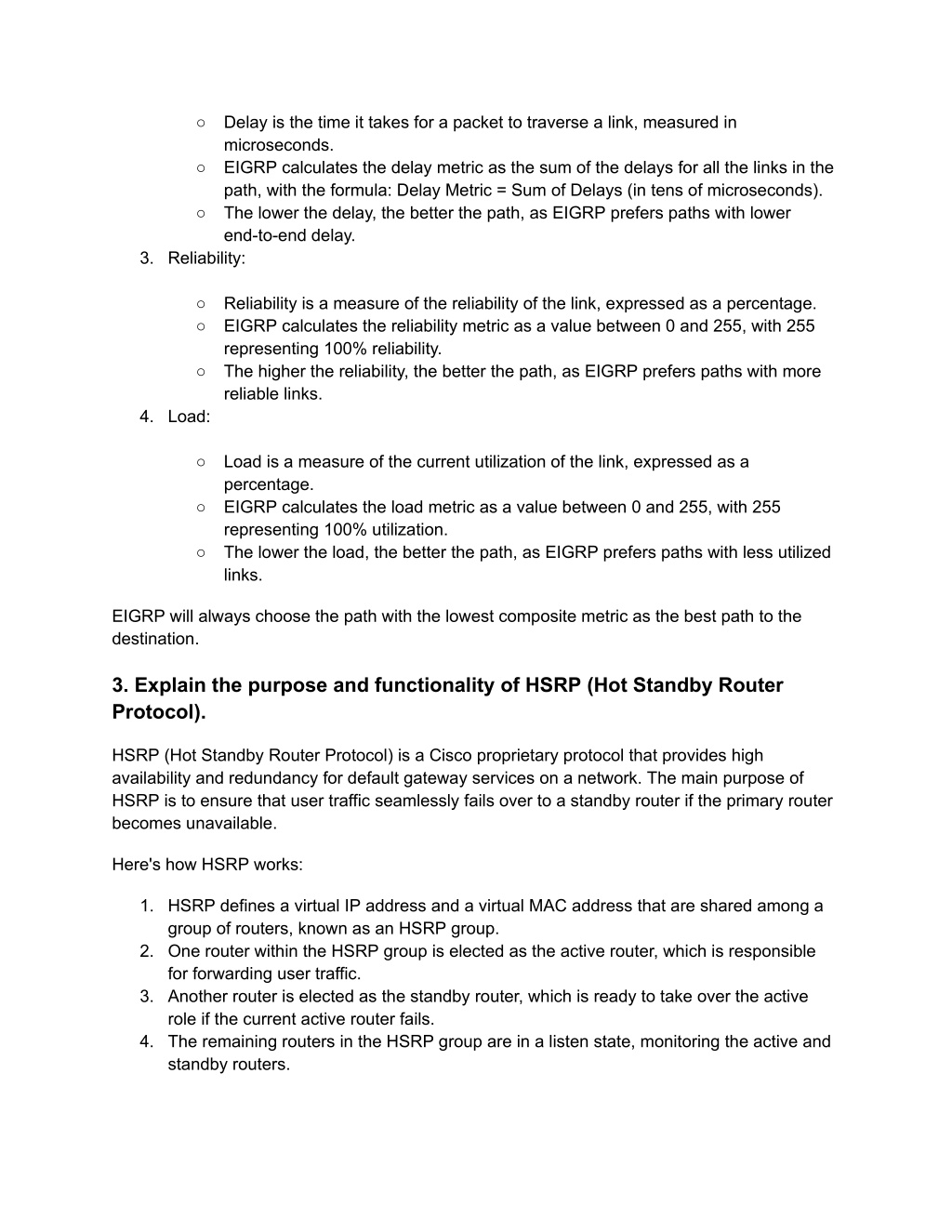

  3. ○ Delay is the time it takes for a packet to traverse a link, measured in microseconds. ○ EIGRP calculates the delay metric as the sum of the delays for all the links in the path, with the formula: Delay Metric = Sum of Delays (in tens of microseconds). ○ The lower the delay, the better the path, as EIGRP prefers paths with lower end-to-end delay. 3. Reliability: ○ Reliability is a measure of the reliability of the link, expressed as a percentage. ○ EIGRP calculates the reliability metric as a value between 0 and 255, with 255 representing 100% reliability. ○ The higher the reliability, the better the path, as EIGRP prefers paths with more reliable links. 4. Load: ○ Load is a measure of the current utilization of the link, expressed as a percentage. ○ EIGRP calculates the load metric as a value between 0 and 255, with 255 representing 100% utilization. ○ The lower the load, the better the path, as EIGRP prefers paths with less utilized links. EIGRP will always choose the path with the lowest composite metric as the best path to the destination. 3. Explain the purpose and functionality of HSRP (Hot Standby Router Protocol). HSRP (Hot Standby Router Protocol) is a Cisco proprietary protocol that provides high availability and redundancy for default gateway services on a network. The main purpose of HSRP is to ensure that user traffic seamlessly fails over to a standby router if the primary router becomes unavailable. Here's how HSRP works: 1. HSRP defines a virtual IP address and a virtual MAC address that are shared among a group of routers, known as an HSRP group. 2. One router within the HSRP group is elected as the active router, which is responsible for forwarding user traffic. 3. Another router is elected as the standby router, which is ready to take over the active role if the current active router fails. 4. The remaining routers in the HSRP group are in a listen state, monitoring the active and standby routers.

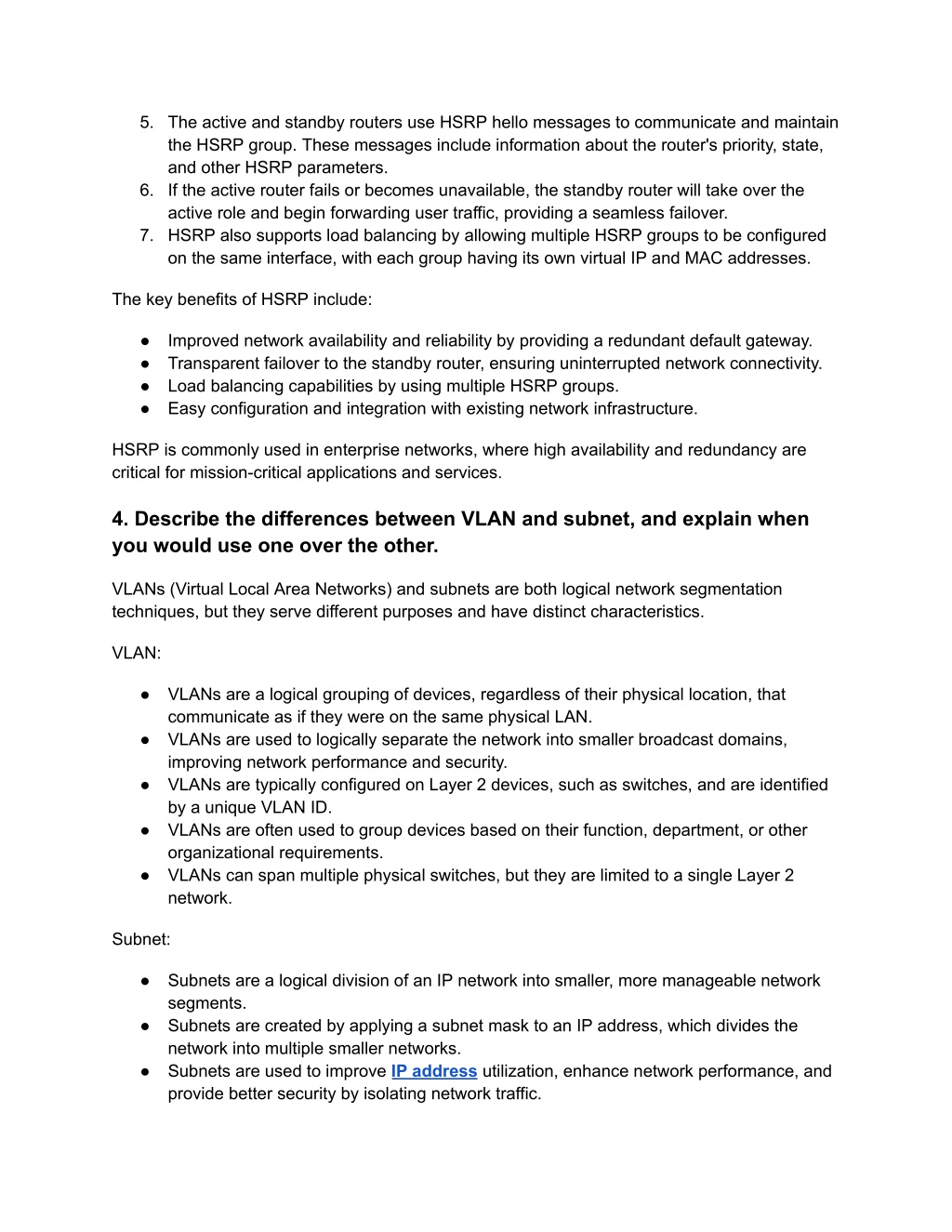

  4. 5. The active and standby routers use HSRP hello messages to communicate and maintain the HSRP group. These messages include information about the router's priority, state, and other HSRP parameters. 6. If the active router fails or becomes unavailable, the standby router will take over the active role and begin forwarding user traffic, providing a seamless failover. 7. HSRP also supports load balancing by allowing multiple HSRP groups to be configured on the same interface, with each group having its own virtual IP and MAC addresses. The key benefits of HSRP include: ● Improved network availability and reliability by providing a redundant default gateway. ● Transparent failover to the standby router, ensuring uninterrupted network connectivity. ● Load balancing capabilities by using multiple HSRP groups. ● Easy configuration and integration with existing network infrastructure. HSRP is commonly used in enterprise networks, where high availability and redundancy are critical for mission-critical applications and services. 4. Describe the differences between VLAN and subnet, and explain when you would use one over the other. VLANs (Virtual Local Area Networks) and subnets are both logical network segmentation techniques, but they serve different purposes and have distinct characteristics. VLAN: ● VLANs are a logical grouping of devices, regardless of their physical location, that communicate as if they were on the same physical LAN. ● VLANs are used to logically separate the network into smaller broadcast domains, improving network performance and security. ● VLANs are typically configured on Layer 2 devices, such as switches, and are identified by a unique VLAN ID. ● VLANs are often used to group devices based on their function, department, or other organizational requirements. ● VLANs can span multiple physical switches, but they are limited to a single Layer 2 network. Subnet: ● Subnets are a logical division of an IP network into smaller, more manageable network segments. ● Subnets are created by applying a subnet mask to an IP address, which divides the network into multiple smaller networks. ● Subnets are used to improveIP address utilization, enhance network performance, and provide better security by isolating network traffic.

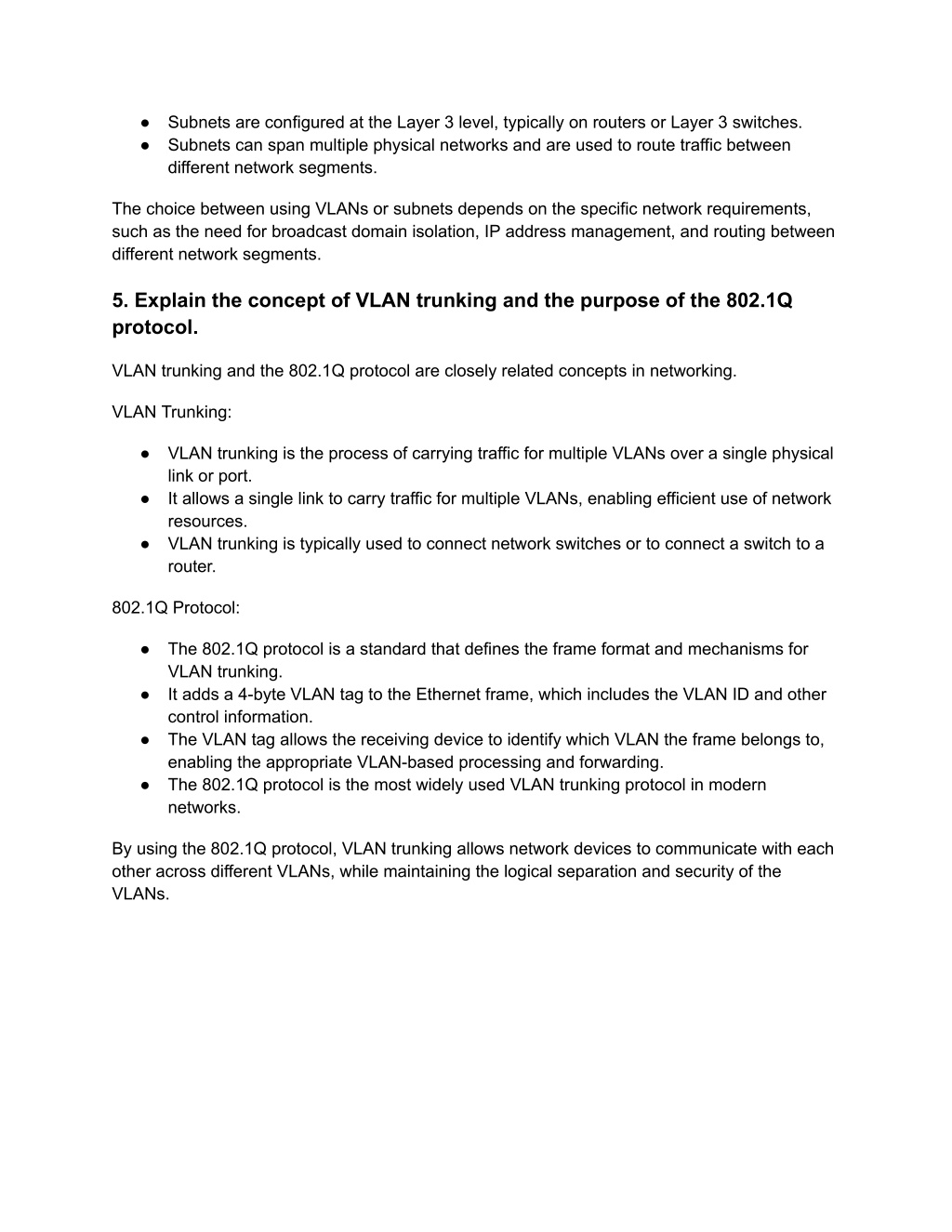

  5. ● Subnets are configured at the Layer 3 level, typically on routers or Layer 3 switches. ● Subnets can span multiple physical networks and are used to route traffic between different network segments. The choice between using VLANs or subnets depends on the specific network requirements, such as the need for broadcast domain isolation, IP address management, and routing between different network segments. 5. Explain the concept of VLAN trunking and the purpose of the 802.1Q protocol. VLAN trunking and the 802.1Q protocol are closely related concepts in networking. VLAN Trunking: ● VLAN trunking is the process of carrying traffic for multiple VLANs over a single physical link or port. ● It allows a single link to carry traffic for multiple VLANs, enabling efficient use of network resources. ● VLAN trunking is typically used to connect network switches or to connect a switch to a router. 802.1Q Protocol: ● The 802.1Q protocol is a standard that defines the frame format and mechanisms for VLAN trunking. ● It adds a 4-byte VLAN tag to the Ethernet frame, which includes the VLAN ID and other control information. ● The VLAN tag allows the receiving device to identify which VLAN the frame belongs to, enabling the appropriate VLAN-based processing and forwarding. ● The 802.1Q protocol is the most widely used VLAN trunking protocol in modern networks. By using the 802.1Q protocol, VLAN trunking allows network devices to communicate with each other across different VLANs, while maintaining the logical separation and security of the VLANs.
