Paper Glass Making Machine

Paper Glass Making Machine - Model NS-1900 produces 90pcs/minute - Tea/Coffee glass, Water Glass, Ice-Cream Tub, Soup Cup & Yogurt Cups, etc.<br>

Nesscoindia
Download Presentation

Paper Glass Making Machine

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

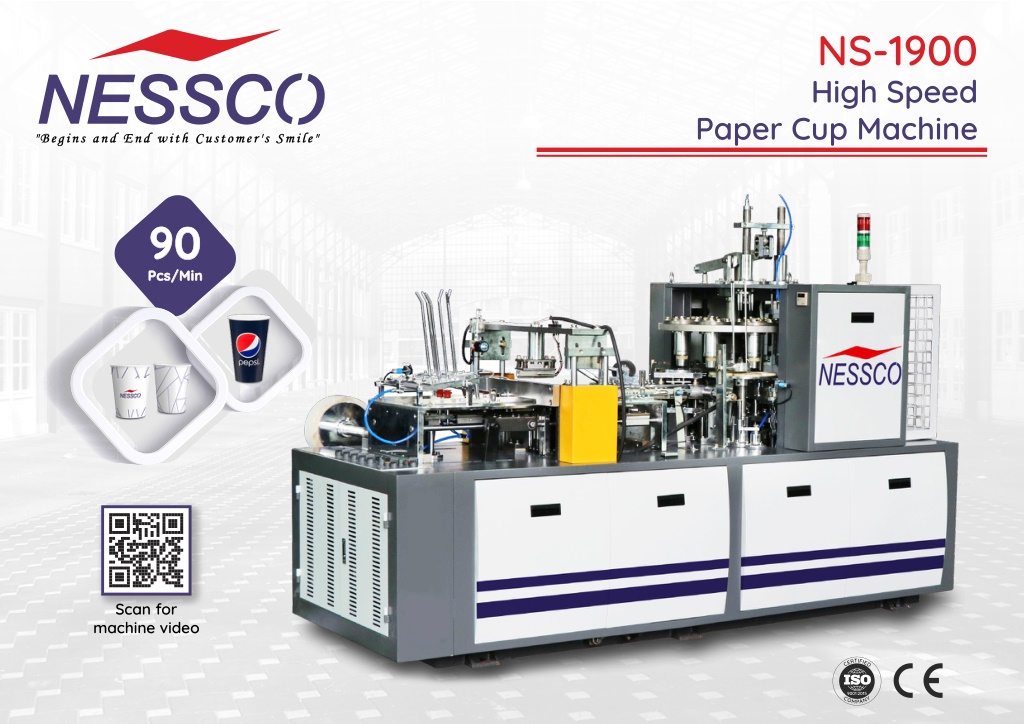

  1. NS-1900 High Speed Paper Cup Machine 90 Pcs/Min Scan for machine video CERTIFIED 9001:2015 COMPANY

  2. Company Overview Nessco India is a manufacturer and supplier of a wide range of Paper Cup Making Machines pairing with the latest technology. We provide High-Speed Paper Cup Machine Series, Paper Plate Making Machine, Face Mask Making Machine, Flexo Printing Machine, Roll Die Cutting Machine, PE Coating Machine, Paper Bag Machine, Paper Straw Machine and other machines in the disposable paper range. As paper cup machine manufactures staying true to our business, we use our own services to continuously build the NESSCO. This is the secret recipe behind our fast growth and that is why we are so confident in the unique benefits that our solution can bring to business around the world. We believe in treating our customers with respect and faith. We grow through creativity, Invention and innovation. We integrated honesty and business ethics with all aspects of business functioning. Our Prime objective is to Assist our clients in a significant manner by offering them a large variety of quality product at low cost.

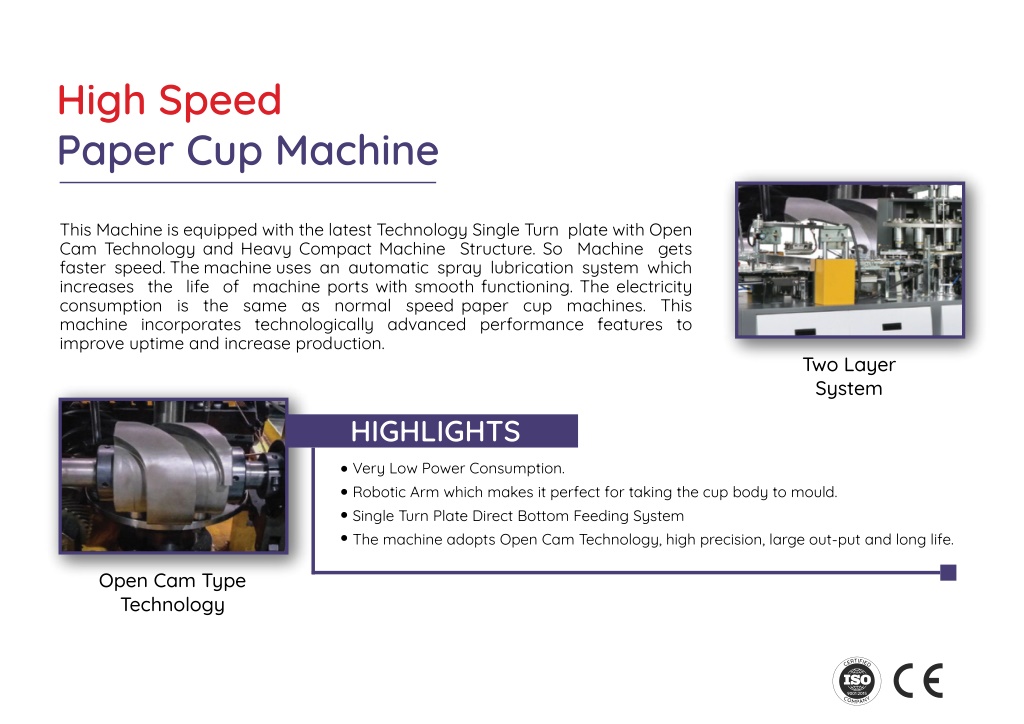

  3. High Speed Paper Cup Machine This Machine is equipped with the latest Technology Single Turn plate with Open Cam Technology and Heavy Compact Machine Structure. So Machine gets faster speed. The machine uses an automatic spray lubrication system which increases the life of machine ports with smooth functioning. The electricity consumption is the same as normal speed paper cup machines. This machine incorporates technologically advanced performance features to improve uptime and increase production. Two Layer System HIGHLIGHTS Very Low Power Consumption. Robotic Arm which makes it perfect for taking the cup body to mould. Single Turn Plate Direct Bottom Feeding System The machine adopts Open Cam Technology, high precision, large out-put and long life. Open Cam Type Technology CERTIFIED 9001:2015 COMPANY

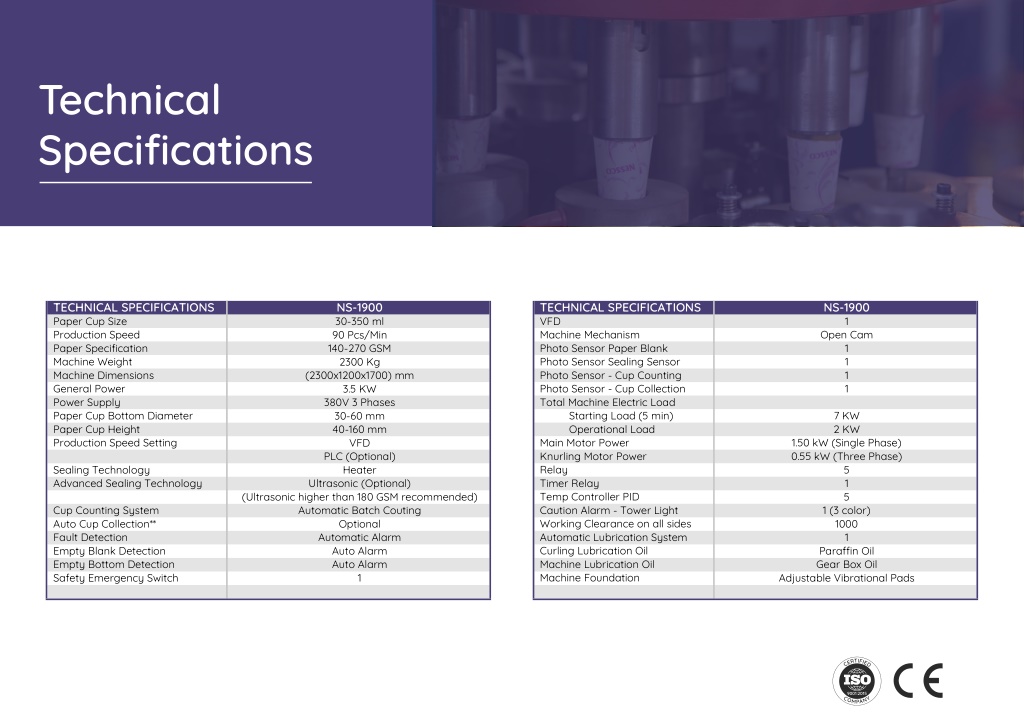

  4. Technical Specifications TECHNICAL SPECIFICATIONS NS-1900 TECHNICAL SPECIFICATIONS NS-1900 VFD Machine Mechanism Photo Sensor Paper Blank Photo Sensor Sealing Sensor Photo Sensor - Cup Counting Photo Sensor - Cup Collection Total Machine Electric Load Starting Load (5 min) Operational Load Main Motor Power Knurling Motor Power Relay Timer Relay Temp Controller PID Caution Alarm - Tower Light Working Clearance on all sides Automatic Lubrication System Curling Lubrication Oil Machine Lubrication Oil Machine Foundation Paper Cup Size Production Speed Paper Specification Machine Weight Machine Dimensions General Power Power Supply Paper Cup Bottom Diameter Paper Cup Height Production Speed Setting 1 30-350 ml 90 Pcs/Min 140-270 GSM 2300 Kg (2300x1200x1700) mm 3.5 KW 380V 3 Phases 30-60 mm 40-160 mm VFD PLC (Optional) Heater Ultrasonic (Optional) Open Cam 1 1 1 1 7 KW 2 KW 1.50 kW (Single Phase) 0.55 kW (Three Phase) 5 1 5 1 (3 color) 1000 1 Paraffin Oil Gear Box Oil Adjustable Vibrational Pads Sealing Technology Advanced Sealing Technology (Ultrasonic higher than 180 GSM recommended) Automatic Batch Couting Optional Automatic Alarm Auto Alarm Auto Alarm 1 Cup Counting System Auto Cup Collection** Fault Detection Empty Blank Detection Empty Bottom Detection Safety Emergency Switch CERTIFIED 9001:2015 COMPANY

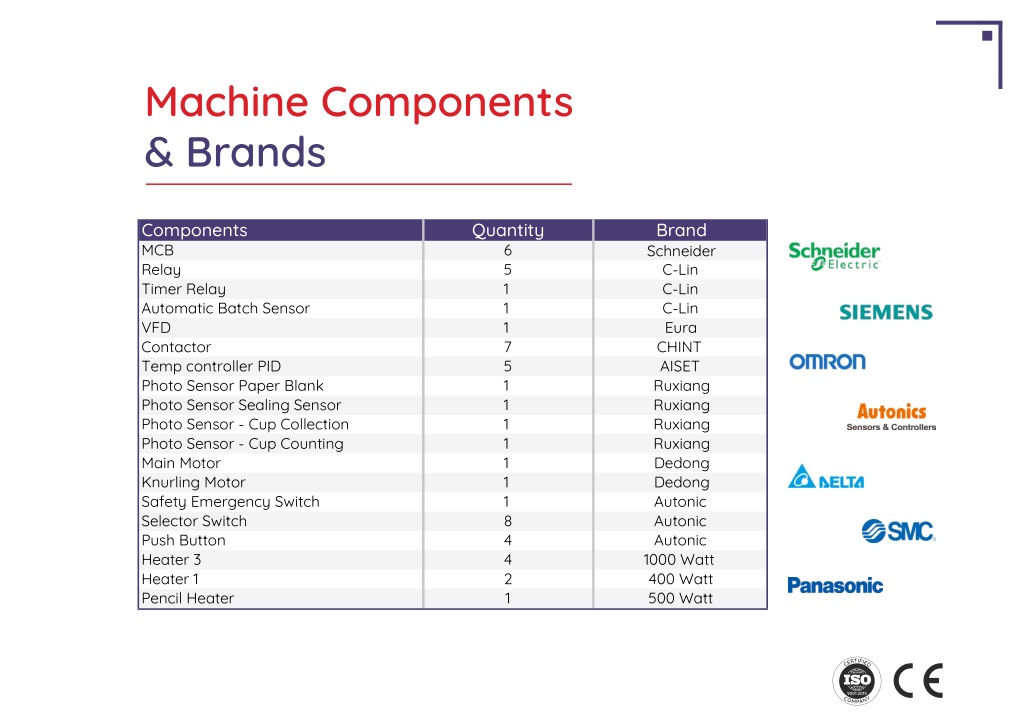

  5. Machine Components & Brands Components MCB Relay Timer Relay Automatic Batch Sensor VFD Contactor Temp controller PID Photo Sensor Paper Blank Photo Sensor Sealing Sensor Photo Sensor - Cup Collection Photo Sensor - Cup Counting Main Motor Knurling Motor Safety Emergency Switch Selector Switch Push Button Heater 3 Heater 1 Pencil Heater Quantity 6 5 1 1 1 7 5 1 1 1 1 1 1 1 8 4 4 2 1 Brand Schneider C-Lin C-Lin C-Lin Eura CHINT AISET Ruxiang Ruxiang Ruxiang Ruxiang Dedong Dedong Autonic Autonic Autonic 1000 Watt 400 Watt 500 Watt CERTIFIED 9001:2015 COMPANY

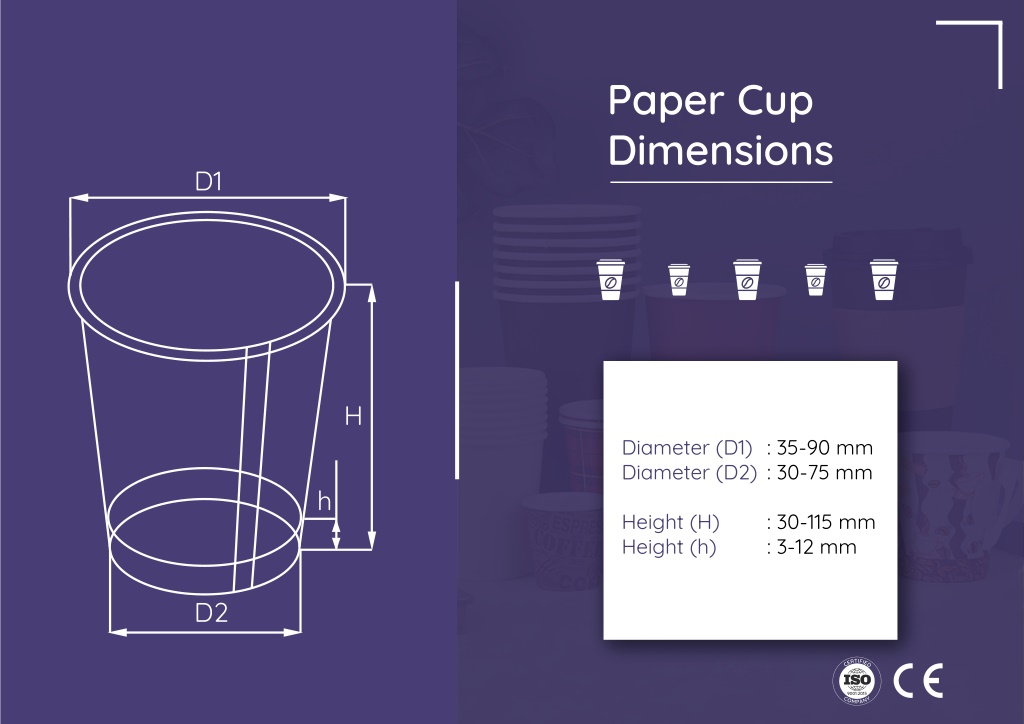

  6. Paper Cup Dimensions D1 H Diameter (D1) Diameter (D2) : 35-90 mm : 30-75 mm h Height (H) Height (h) : 30-115 mm : 3-12 mm D2

  7. Headquaters & Branch Office Reaches OUR CLIENT COMPANIES CERTIFIED 9001:2015 COMPANY

  8. Scan Here: or visit us at www.nesscoindia.com Contact Us www.nesscoindia.com Head Office E-186, Apparel Park, RIICO Industrial Area, Mahal Road, Jaipur - 302022 @nesscopapercupmachine @nesscoindia Branch Office Mumbai Kolkata Bhubaneswar Delhi Bangalore Nessco Paper Cup Machine Nessco India Contact +91 90018 53344, +91 95300 39800 Nessco India @nesscopapercupmachine Email info@nesscoindia.com CERTIFIED 9001:2015 COMPANY
