How To Fix A Broken Spark Module on GE Monogram Range

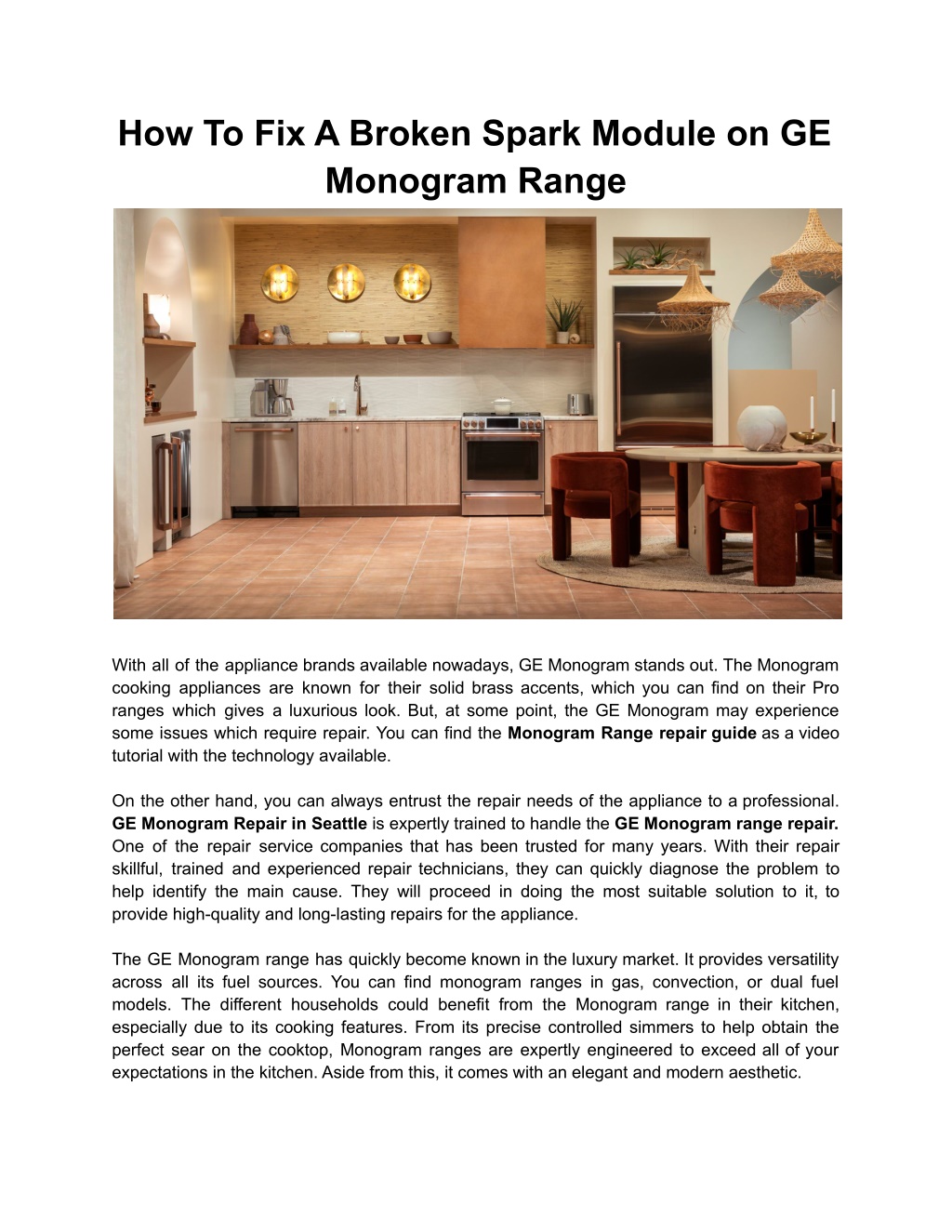

1. How To Fix A Broken Spark Module on GE Monogram Range With all of the appliance brands available nowadays, GE Monogram stands out. The Monogram cooking appliances are known for their solid brass accents, which you can find on their Pro ranges which gives a luxurious look. But, at some point, the GE Monogram may experience some issues which require repair. You can find the Monogram Range repair guide as a video tutorial with the technology available. On the other hand, you can always entrust the repair needs of the appliance to a professional. GE Monogram Repair in Seattle is expertly trained to handle the GE Monogram range repair. One of the repair service companies that has been trusted for many years. With their repair skillful, trained and experienced repair technicians, they can quickly diagnose the problem to help identify the main cause. They will proceed in doing the most suitable solution to it, to provide high-quality and long-lasting repairs for the appliance. The GE Monogram range has quickly become known in the luxury market. It provides versatility across all its fuel sources. You can find monogram ranges in gas, convection, or dual fuel models. The different households could benefit from the Monogram range in their kitchen, especially due to its cooking features. From its precise controlled simmers to help obtain the perfect sear on the cooktop, Monogram ranges are expertly engineered to exceed all of your expectations in the kitchen. Aside from this, it comes with an elegant and modern aesthetic.

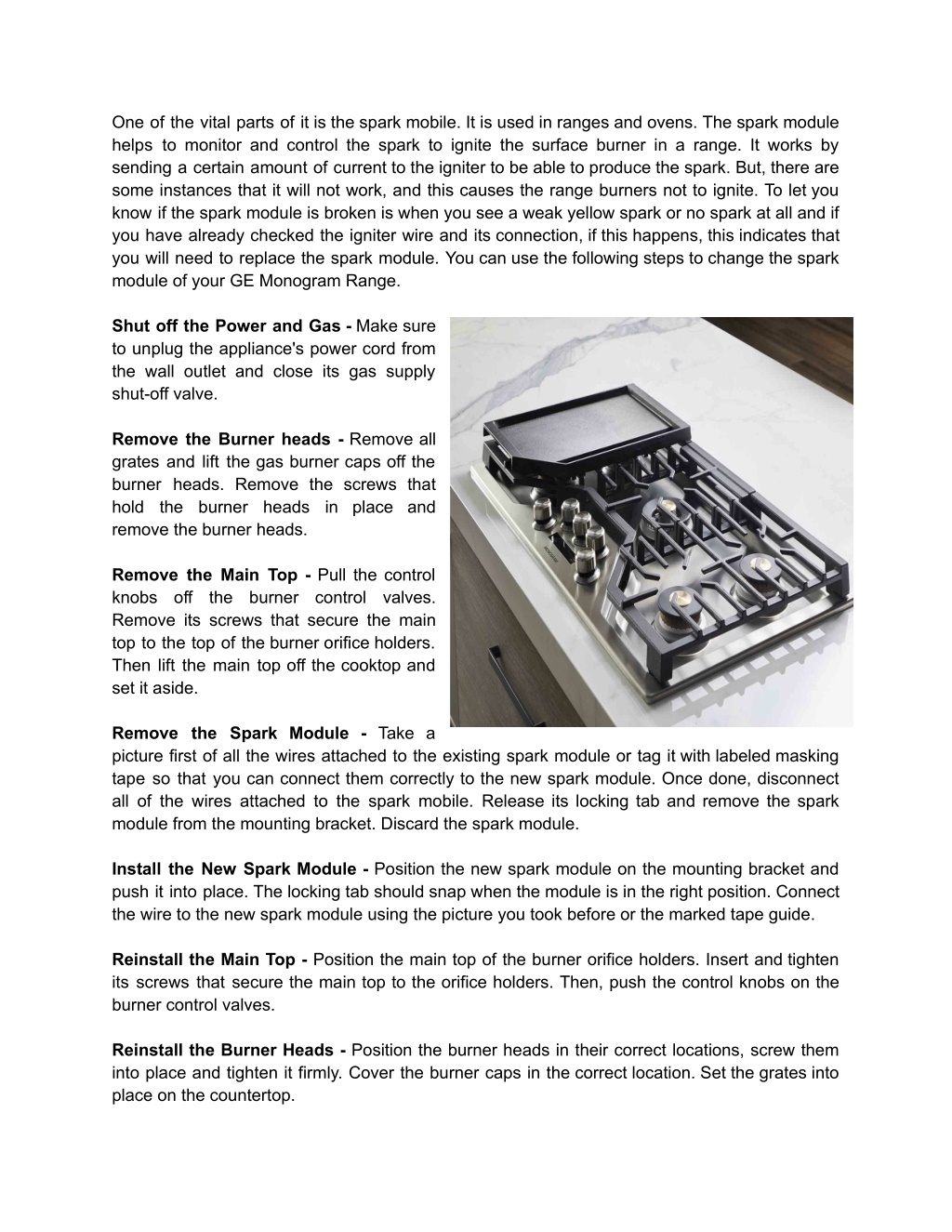

2. One of the vital parts of it is the spark mobile. It is used in ranges and ovens. The spark module helps to monitor and control the spark to ignite the surface burner in a range. It works by sending a certain amount of current to the igniter to be able to produce the spark. But, there are some instances that it will not work, and this causes the range burners not to ignite. To let you know if the spark module is broken is when you see a weak yellow spark or no spark at all and if you have already checked the igniter wire and its connection, if this happens, this indicates that you will need to replace the spark module. You can use the following steps to change the spark module of your GE Monogram Range. Shut off the Power and Gas - Make sure to unplug the appliance's power cord from the wall outlet and close its gas supply shut-off valve. Remove the Burner heads - Remove all grates and lift the gas burner caps off the burner heads. Remove the screws that hold the burner heads in place and remove the burner heads. Remove the Main Top - Pull the control knobs off the burner Remove its screws that secure the main top to the top of the burner orifice holders. Then lift the main top off the cooktop and set it aside. control valves. Remove the Spark Module - Take a picture first of all the wires attached to the existing spark module or tag it with labeled masking tape so that you can connect them correctly to the new spark module. Once done, disconnect all of the wires attached to the spark mobile. Release its locking tab and remove the spark module from the mounting bracket. Discard the spark module. Install the New Spark Module - Position the new spark module on the mounting bracket and push it into place. The locking tab should snap when the module is in the right position. Connect the wire to the new spark module using the picture you took before or the marked tape guide. Reinstall the Main Top - Position the main top of the burner orifice holders. Insert and tighten its screws that secure the main top to the orifice holders. Then, push the control knobs on the burner control valves. Reinstall the Burner Heads - Position the burner heads in their correct locations, screw them into place and tighten it firmly. Cover the burner caps in the correct location. Set the grates into place on the countertop.

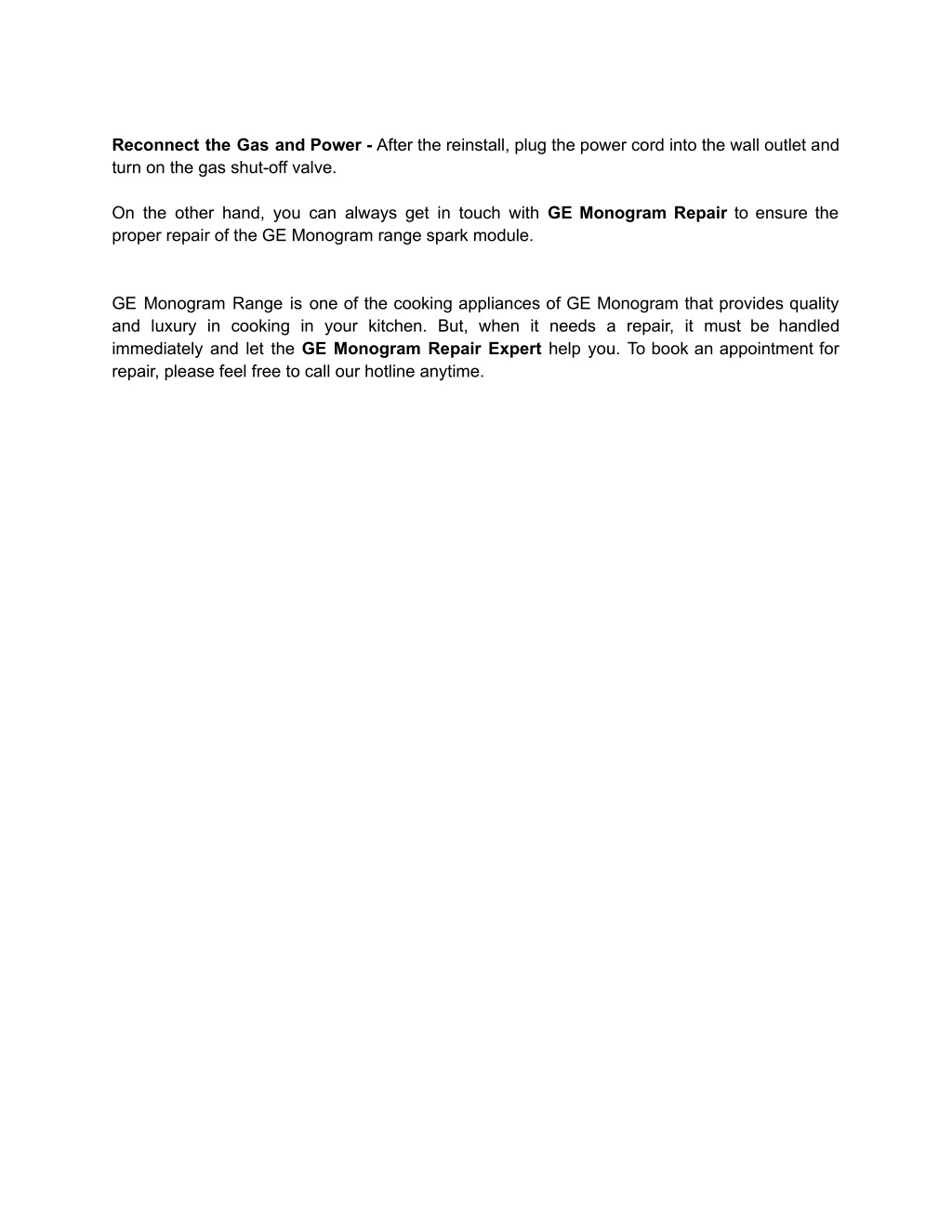

3. Reconnect the Gas and Power - After the reinstall, plug the power cord into the wall outlet and turn on the gas shut-off valve. On the other hand, you can always get in touch with GE Monogram Repair to ensure the proper repair of the GE Monogram range spark module. GE Monogram Range is one of the cooking appliances of GE Monogram that provides quality and luxury in cooking in your kitchen. But, when it needs a repair, it must be handled immediately and let the GE Monogram Repair Expert help you. To book an appointment for repair, please feel free to call our hotline anytime.
