  1. How to Diagnose and Fix Mercedes Fault Codes Efficiently

  2. Introduction

  3. Fault codes in Mercedes-Benz vehicles play a crucial role in diagnosing system malfunctions, enabling timely and efficient repairs.

  4. Properly diagnosing and addressing these codes is essential for maintaining vehicle performance, ensuring safety, and minimizing repair costs.

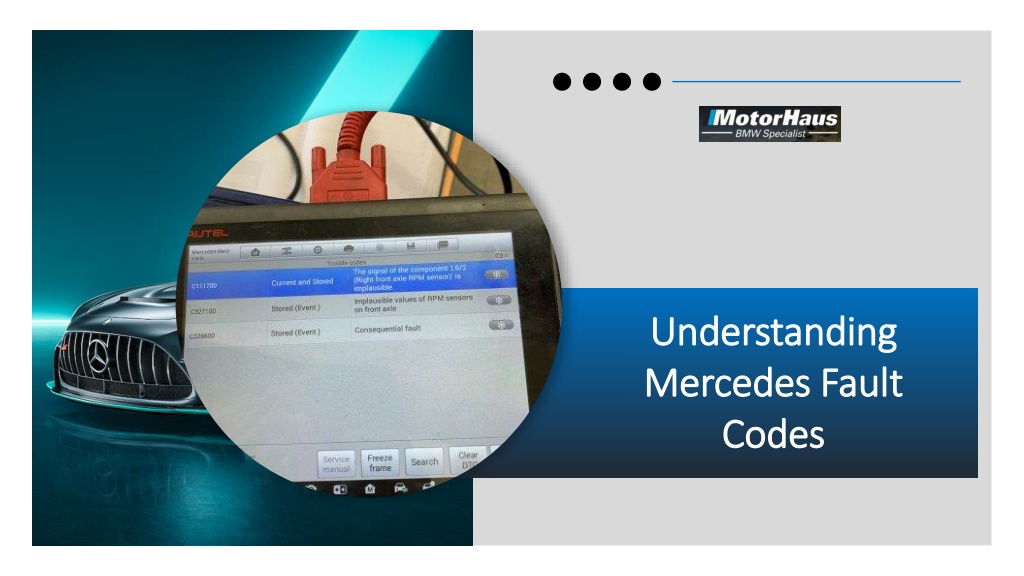

  5. Understanding Mercedes Fault Codes

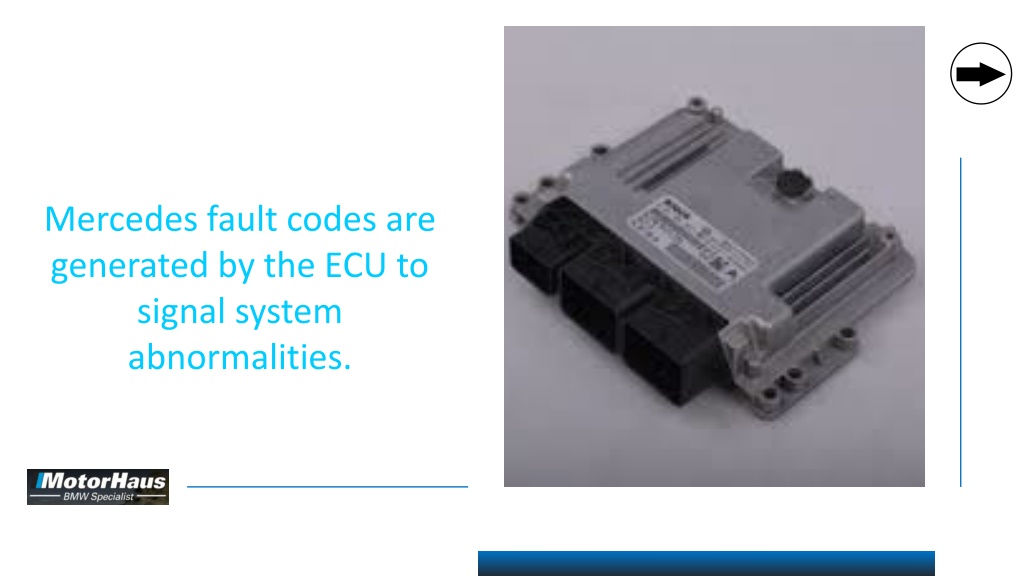

  6. Mercedes fault codes are generated by the ECU to signal system abnormalities.

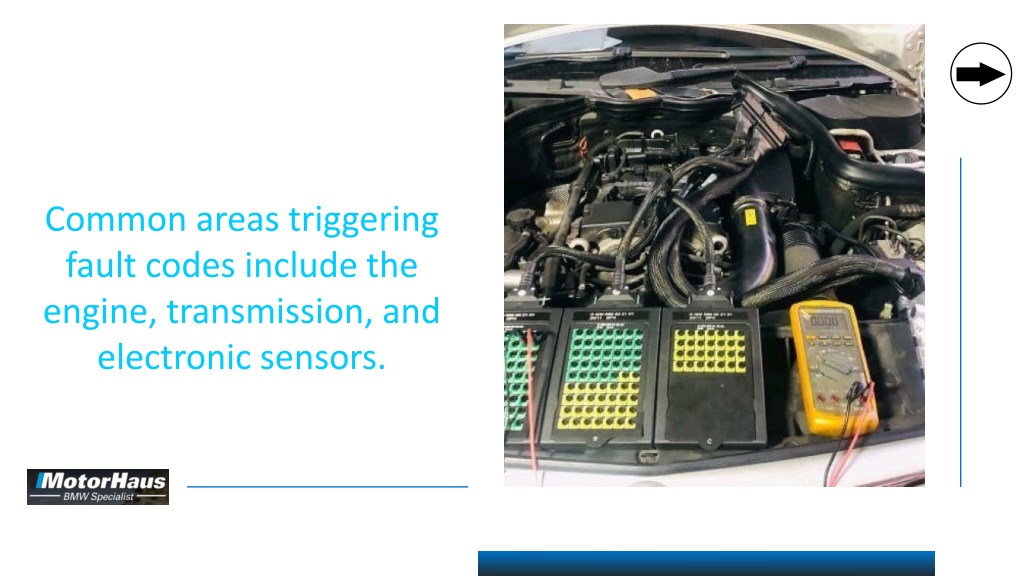

  7. Common areas triggering fault codes include the engine, transmission, and electronic sensors.

  8. Tools for Diagnosing Fault Codes

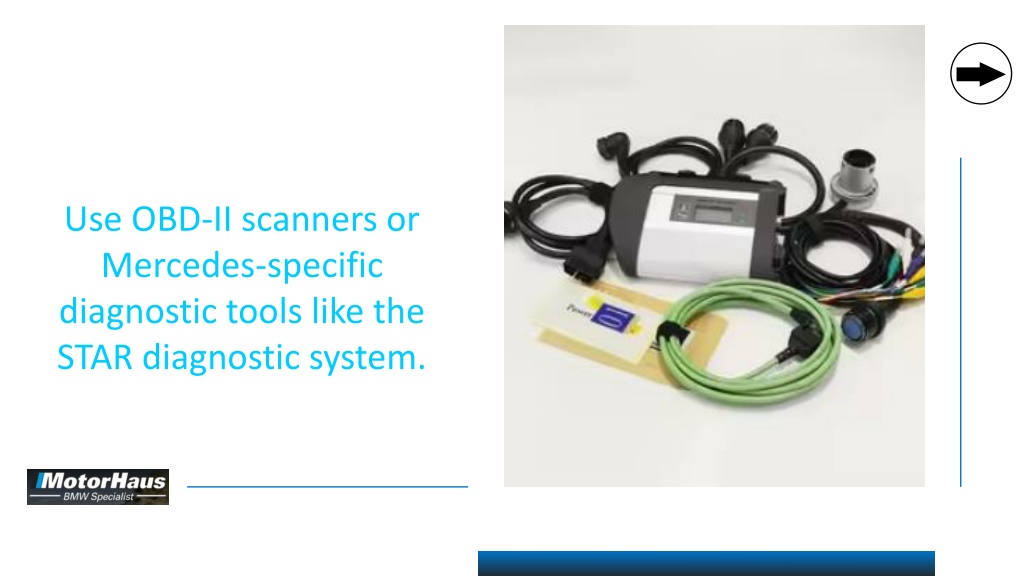

  9. Use OBD-II scanners or Mercedes-specific diagnostic tools like the STAR diagnostic system.

  10. Advanced software tools enable real-time data logging and detailed fault code analysis.

  11. Step-by-Step Diagnosis Process

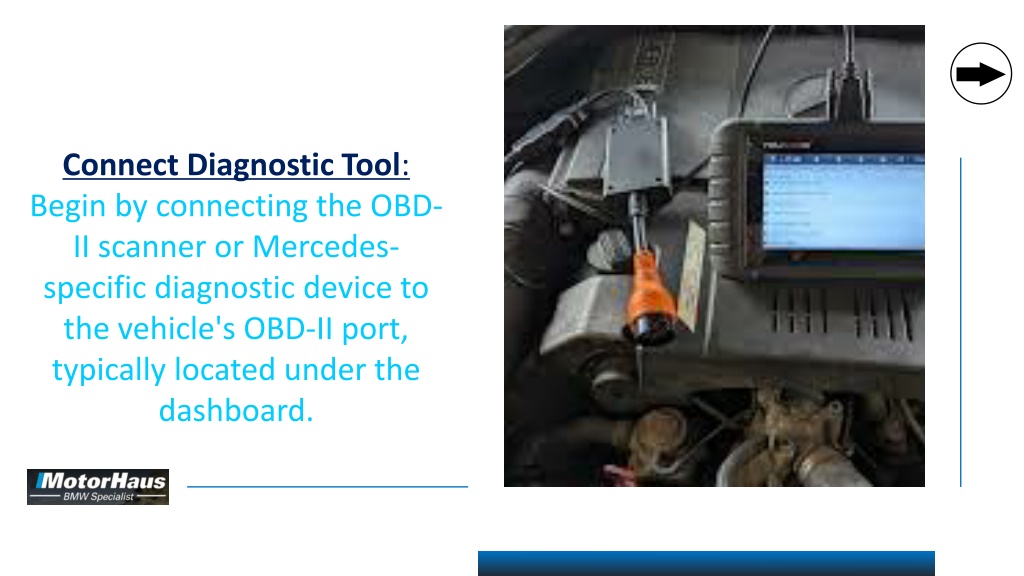

  12. Connect Diagnostic Tool: Begin by connecting the OBD-II scanner or Mercedes-specific diagnostic device to the vehicle's OBD-II port, typically located under the dashboard.

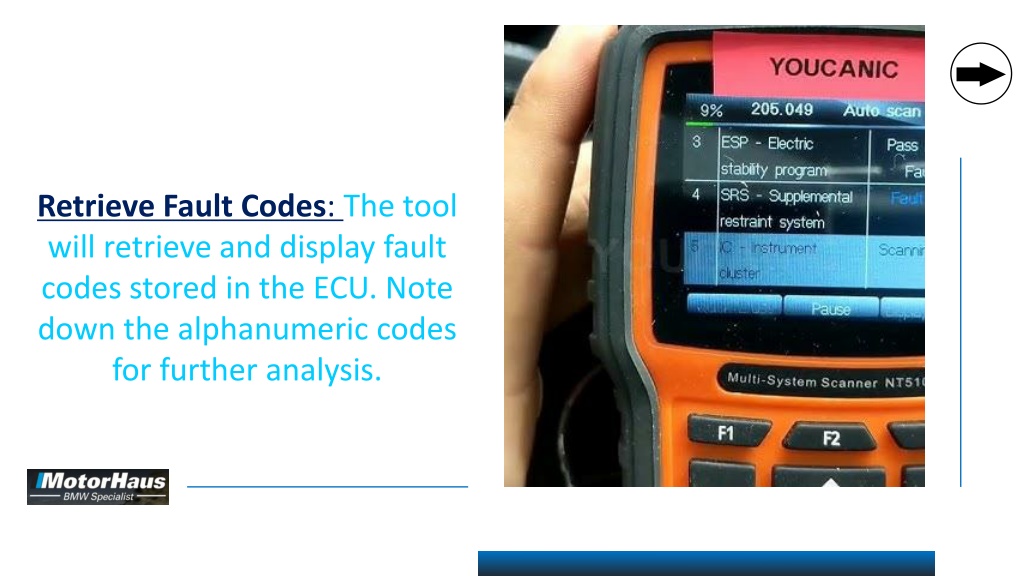

  13. Retrieve Fault Codes: The tool will retrieve and display fault codes stored in the ECU. Note down the alphanumeric codes for further analysis.

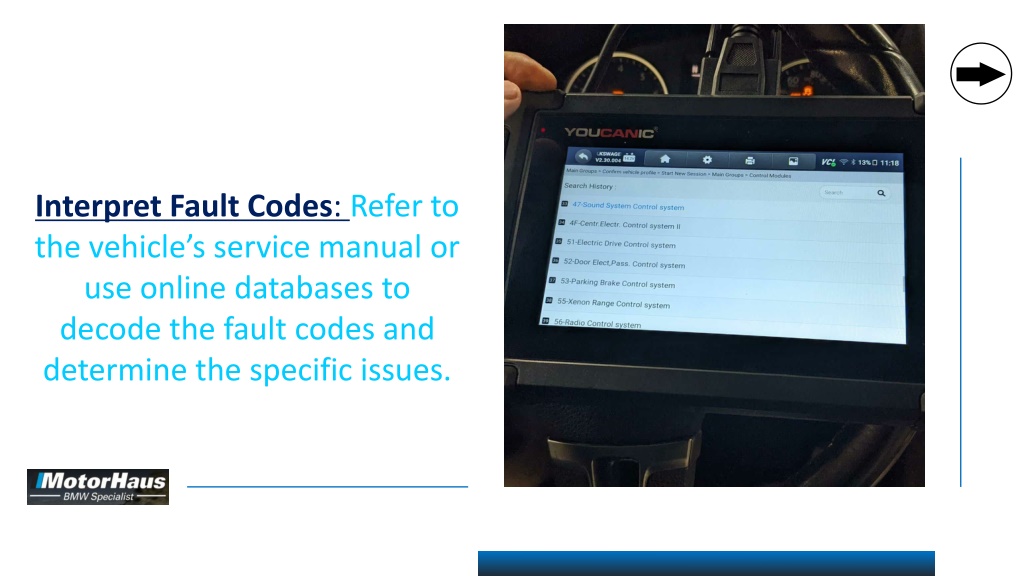

  14. Interpret Fault Codes: Refer to the vehicle’s service manual or use online databases to decode the fault codes and determine the specific issues.

  15. Prioritize Codes: Some fault codes may be more critical than others, affecting safety or performance. Prioritize addressing these codes accordingly.

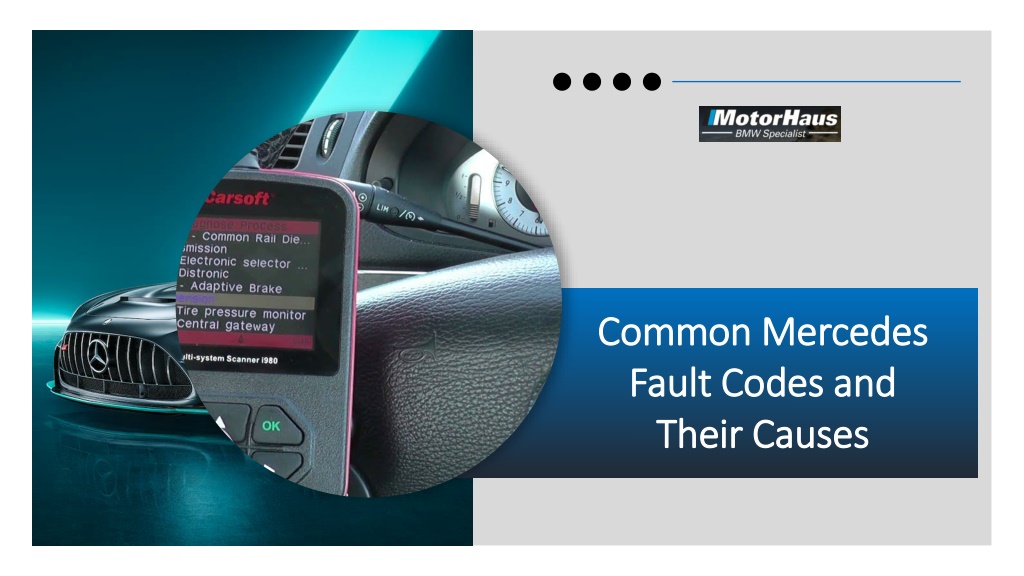

  16. Common Mercedes Fault Codes and Their Causes

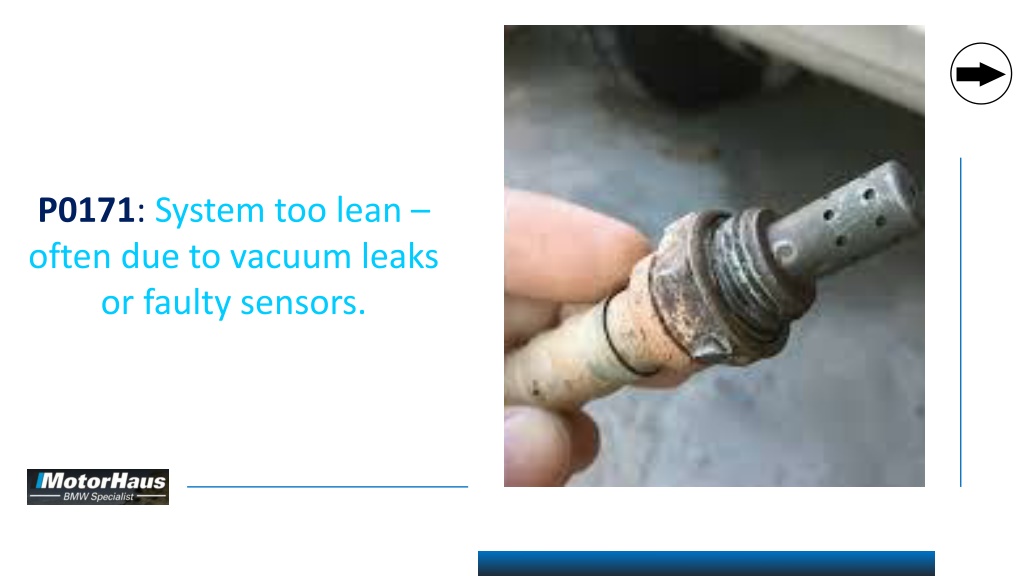

  17. P0171: System too lean – often due to vacuum leaks or faulty sensors.

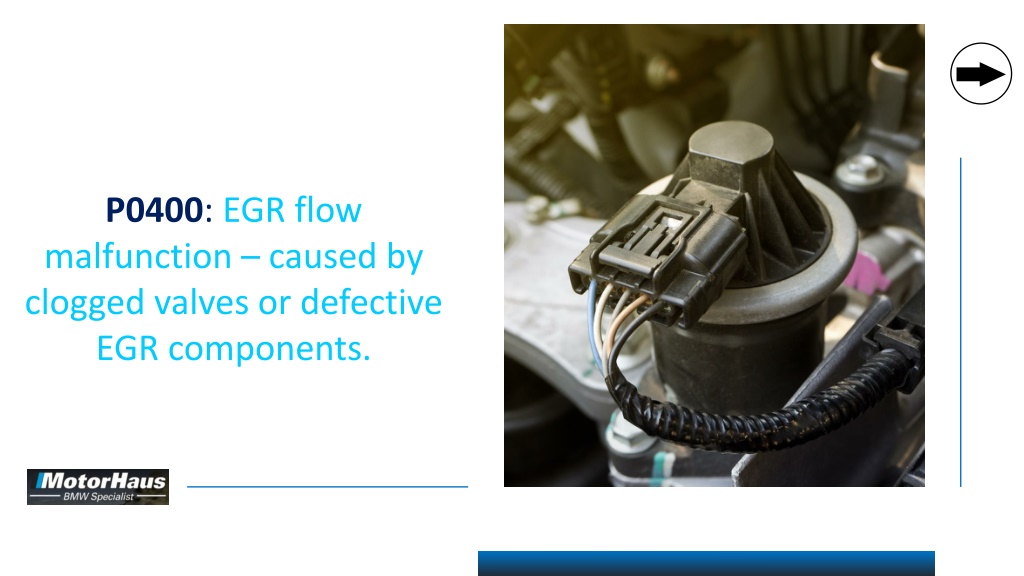

  18. P0400: EGR flow malfunction – caused by clogged valves or defective EGR components.

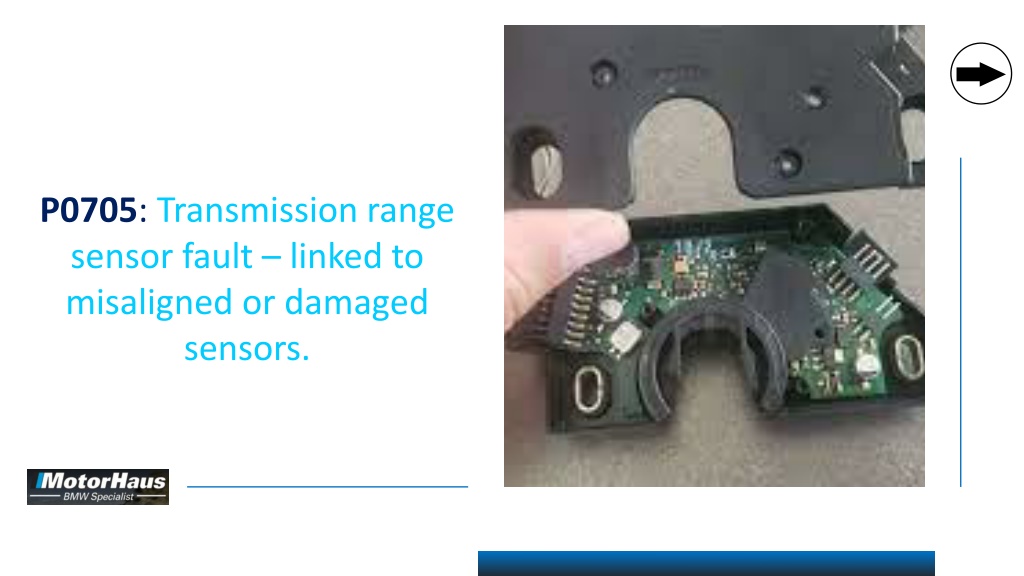

  19. P0705: Transmission range sensor fault – linked to misaligned or damaged sensors.

  20. Fixing Mercedes Fault Codes

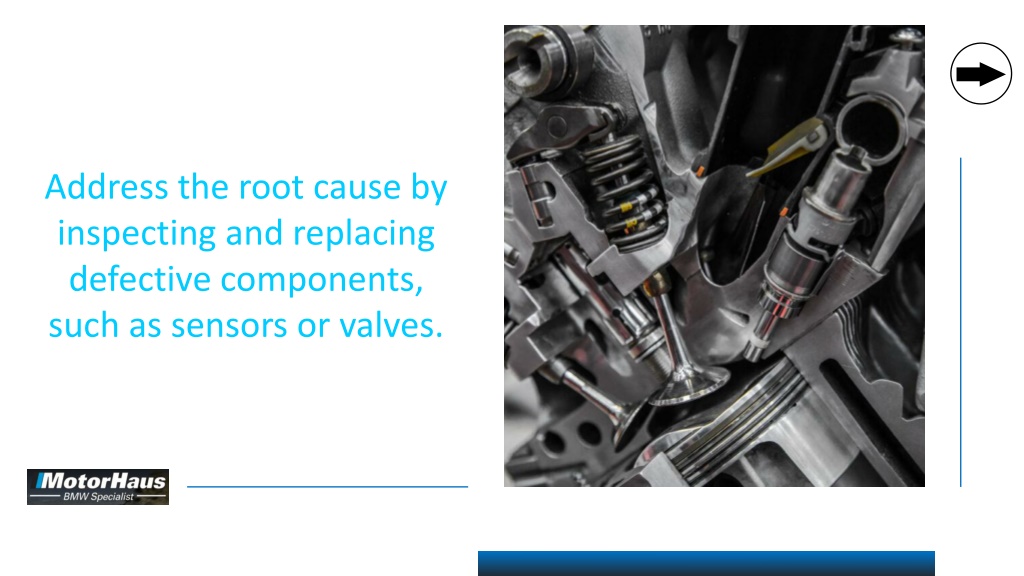

  21. Address the root cause by inspecting and replacing defective components, such as sensors or valves.

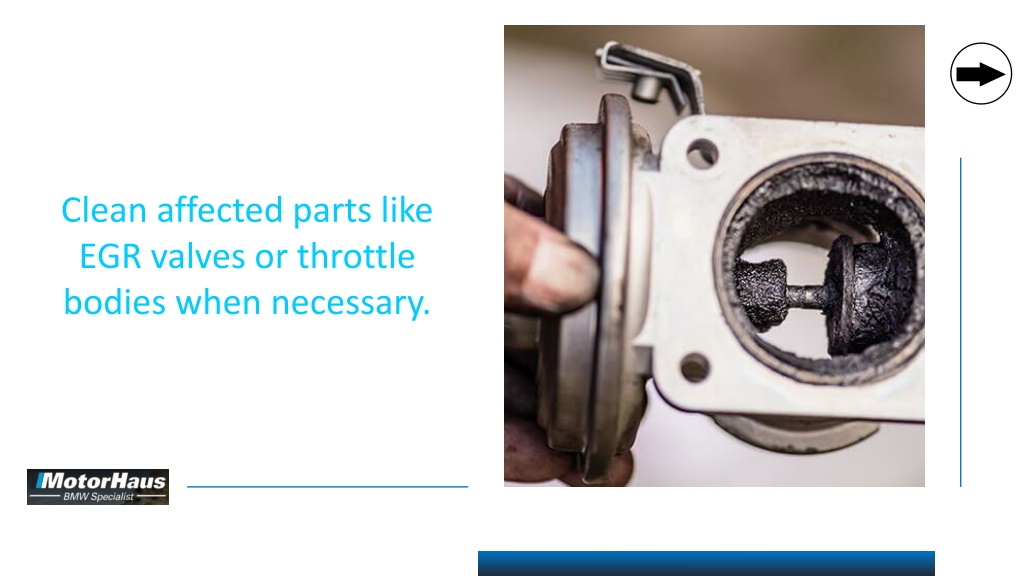

  22. Clean affected parts like EGR valves or throttle bodies when necessary.

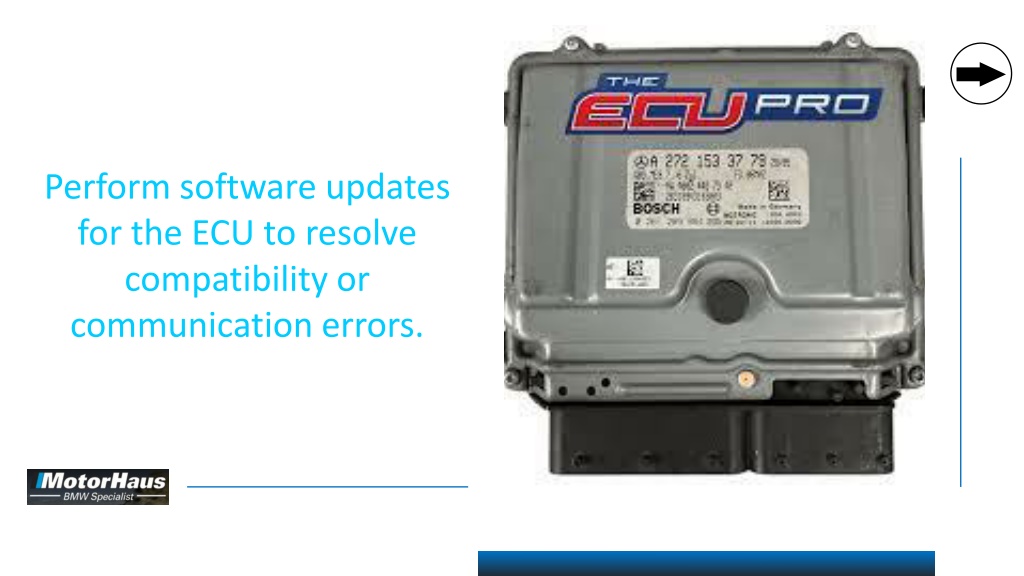

  23. Perform software updates for the ECU to resolve compatibility or communication errors.

  24. When to Seek Professional Help

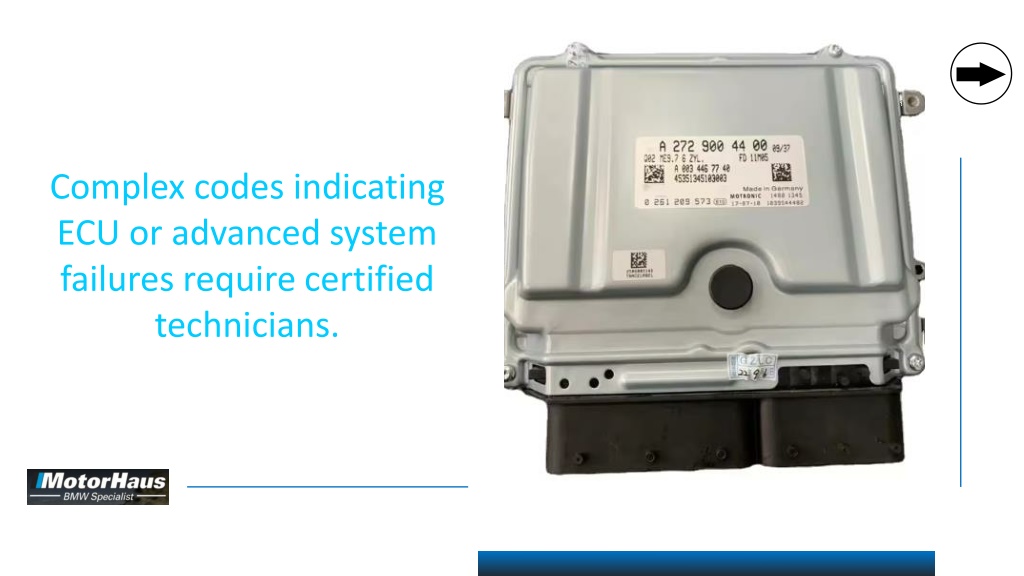

  25. Complex codes indicating ECU or advanced system failures require certified technicians.

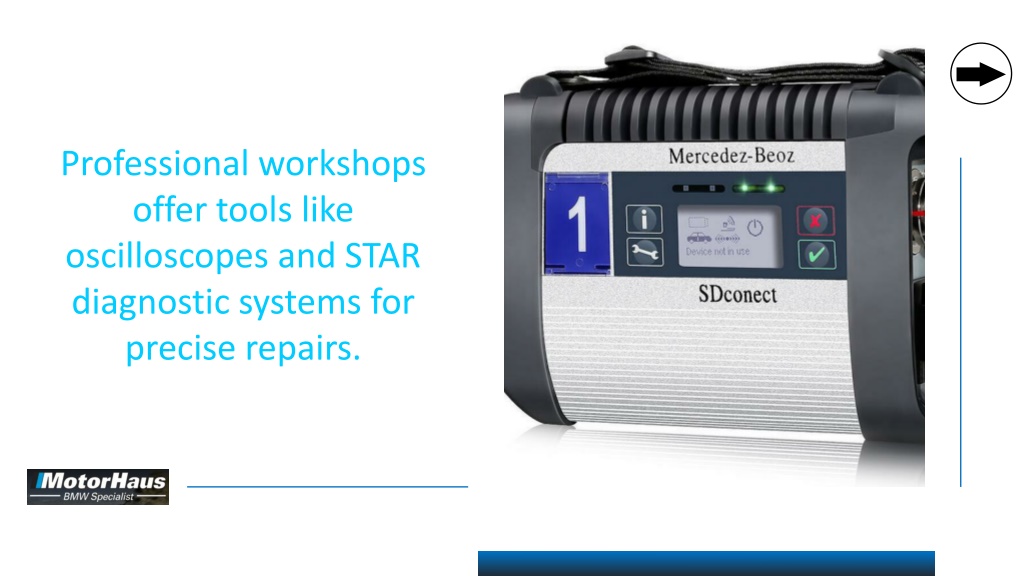

  26. Professional workshops offer tools like oscilloscopes and STAR diagnostic systems for precise repairs.

  27. Conclusion

  28. Efficiently diagnosing and fixing Mercedes fault codes ensures vehicle longevity and performance.

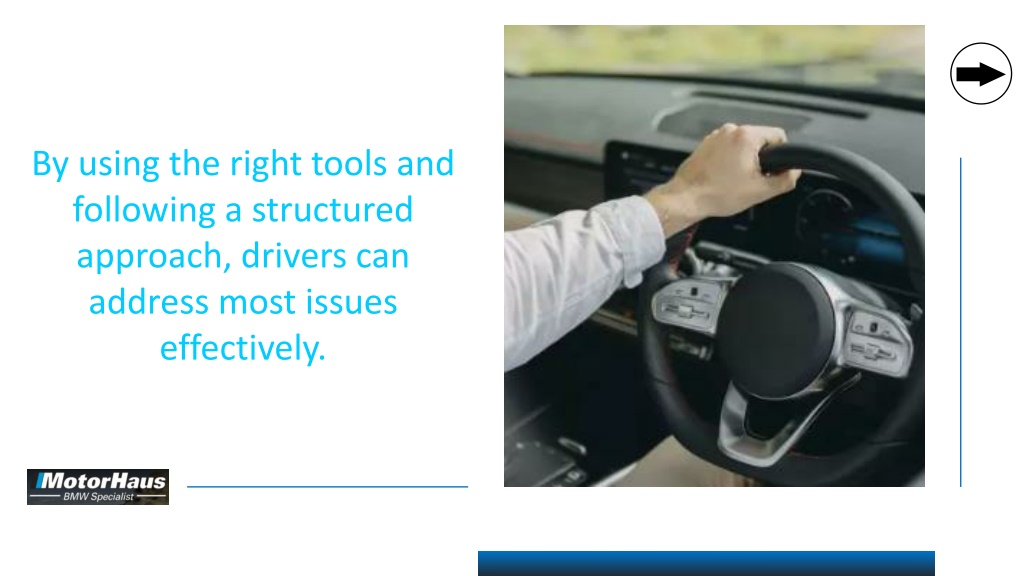

  29. By using the right tools and following a structured approach, drivers can address most issues effectively.

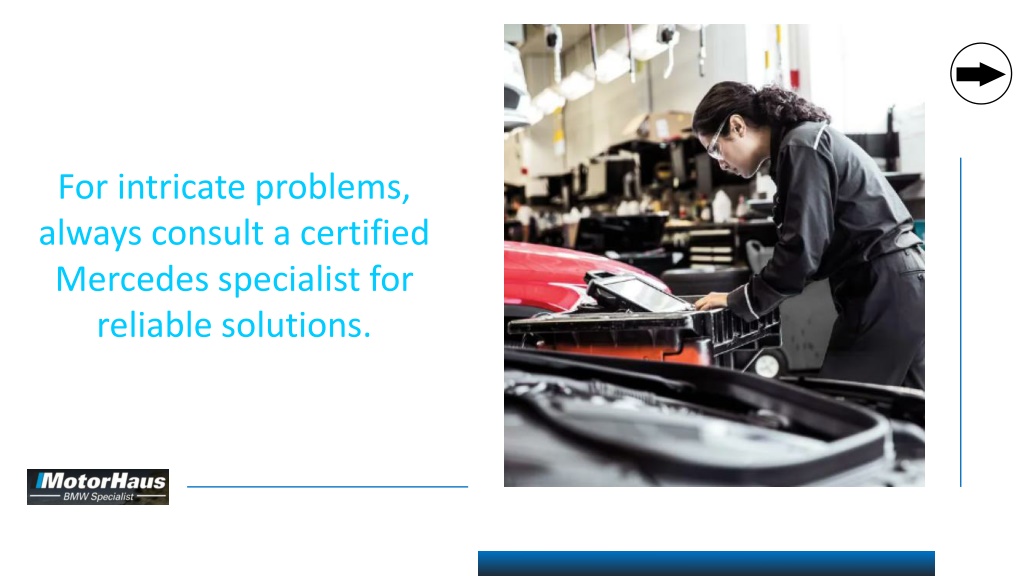

  30. For intricate problems, always consult a certified Mercedes specialist for reliable solutions.
