Airotec Turbo Compact 800 lit specification^

The Mitra Tractor Sprayer Pump provides peak accuracy and performance. This cutting-edge sprayer pump is the ultimate option for consistent and successful crop spraying and is designed to revolutionise your farming experience.<br><br>Unleash the power of technology with the Mitra Tractor Sprayer Pump's cutting-edge features. Experience unrivalled spray precision and coverage, ensuring that every square inch of your field gets the care it deserves. Say goodbye to inefficient utilisation and waste of resources!<br><br>The Mitra Sprayer Pump is designed to withstand the rigours of agricultural operations, e

Mitra789666
Download Presentation

Airotec Turbo Compact 800 lit specification^

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

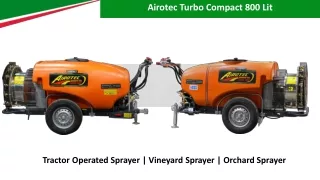

  1. Airotec Turbo Compact 800 Lit Tractor Operated Sprayer | Vineyard Sprayer | Orchard Sprayer

  2. Airotec Turbo Compact 800 Lit Model Name Airotec Turbo Compact 800 Lit Dimesion L-8.17ft, W-3.67ft, H-4.35ft Tractor HP 27 HP & Above Main tank 800 lit Fan 616 mm / 24 inch Blade no. 9 PPG Diaphragm Pump 75 LPM Nozzle (12) 8 M-62/4 M-82 Disc & ATR 0.8/1.0 & ATR 60° Gearbox 2 Speed + Neutral Controller 5 mode manual controller Tyre axle Diameter- 25.6 inch, Width -7.3 inch, Rim size -15 inch, Safety devices Innova rubber coupling & PRV valve

  3. Salient Features • Lowest Turning Radius - : 3-Axistowbar bestfor turningin Low spacingVineyards. • Compact Tank -: HDPE Material 800 lit Compact size tank with Dual water tube level indicator. • Rear Air Conveyer System -: Highestair outputwith perfectair balancingand Lowestpowerconsumption. • Cross Agitation -: High pressure jet for uniform chemical mixing, thus maintain equal chemical concentration throughoutspraying. • Safety Devices -: Innova coupling reduces vibration & and jerk coming from the tractor, Pressure relief valve Automatically opensat40 bar pressuretoprotectthe pumpfrom excessivepressuredamage. • 3- Way Adjustable Tyre:- Trackwidth,Heightand tyrepositionadjustment.
