  1. Understanding BLDC Controllers: A Comprehensive Guide Enabling Electronics Ecosystem

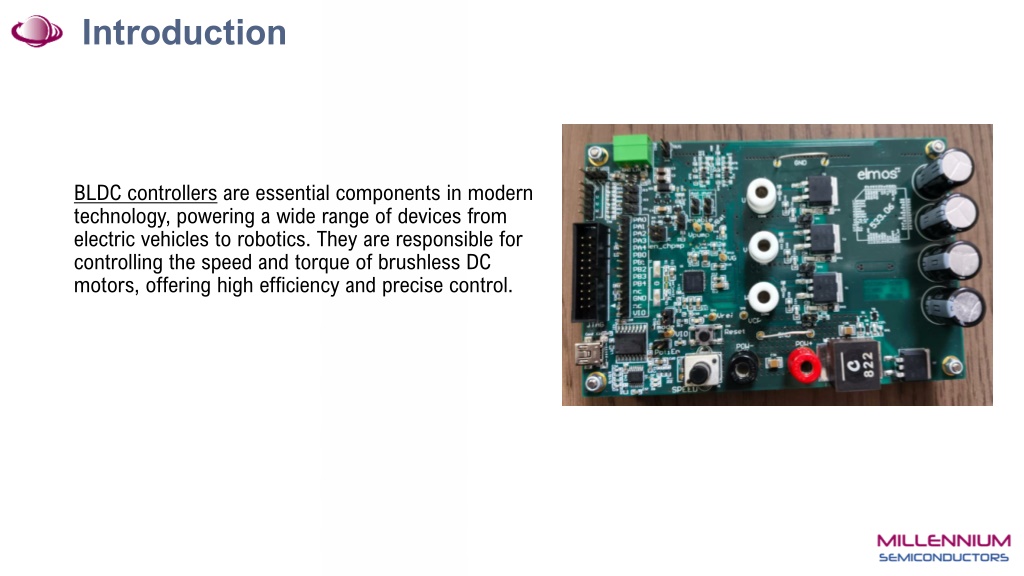

  2. Introduction BLDC controllers are essential components in modern technology, powering a wide range of devices from electric vehicles to robotics. They are responsible for controlling the speed and torque of brushless DC motors, offering high efficiency and precise control.

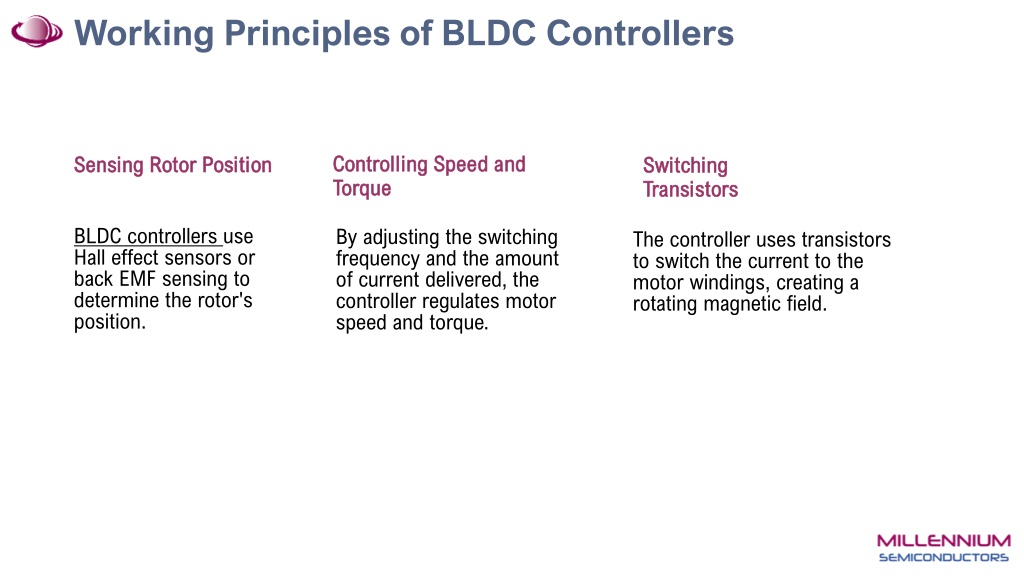

  3. Working Principles of BLDC Controllers Controlling Speed and Torque Sensing Rotor Position Switching Transistors BLDC controllers use Hall effect sensors or back EMF sensing to determine the rotor's position. By adjusting the switching frequency and the amount of current delivered, the controller regulates motor speed and torque. The controller uses transistors to switch the current to the motor windings, creating a rotating magnetic field.

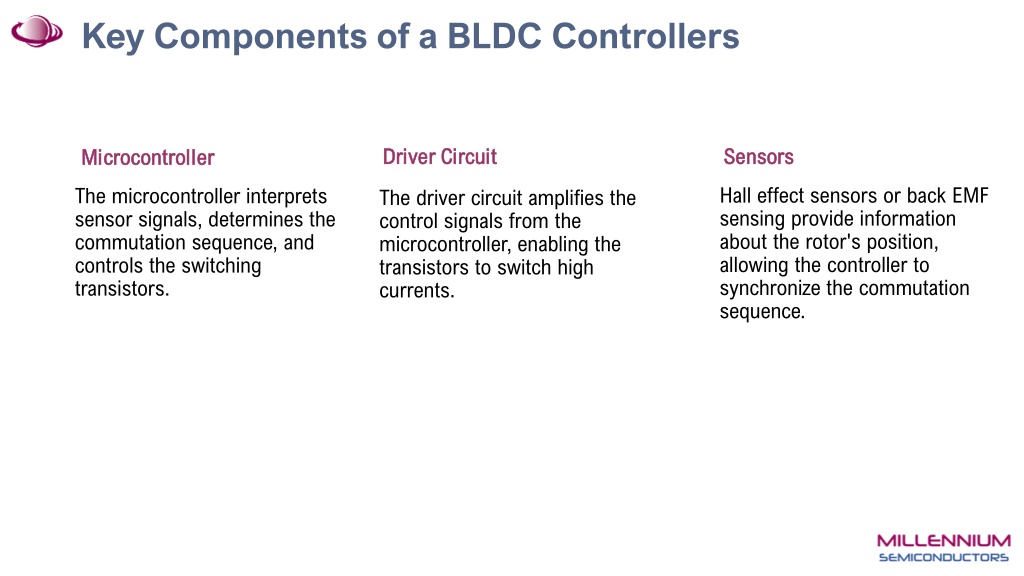

  4. Key Components of a BLDC Controllers Driver Circuit Sensors Microcontroller Hall effect sensors or back EMF sensing provide information about the rotor's position, allowing the controller to synchronize the commutation sequence. The microcontroller interprets sensor signals, determines the commutation sequence, and controls the switching transistors. The driver circuit amplifies the control signals from the microcontroller, enabling the transistors to switch high currents.

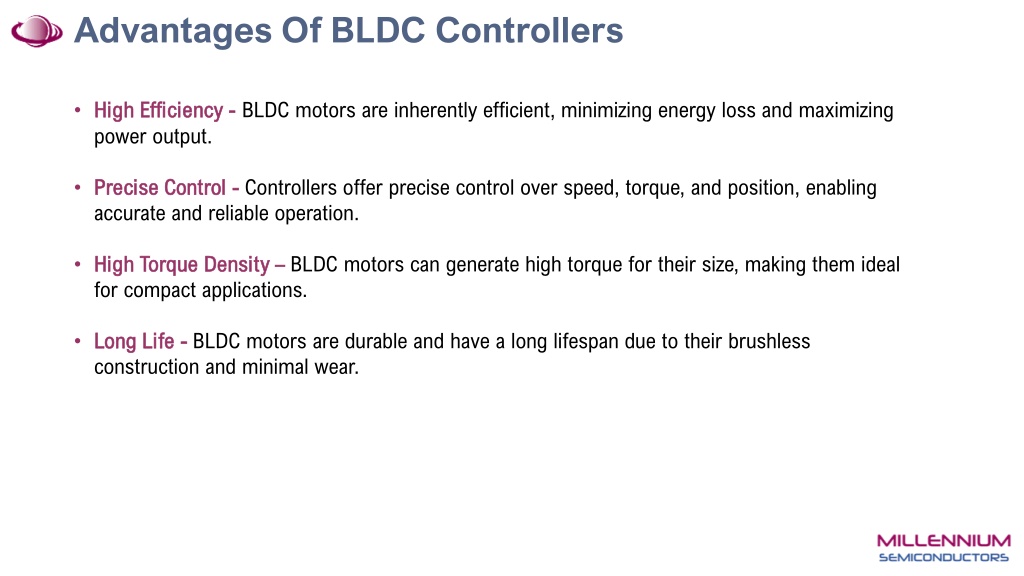

  5. Advantages Of BLDC Controllers • High Efficiency -BLDC motors are inherently efficient, minimizing energy loss and maximizing power output. • Precise Control - Controllers offer precise control over speed, torque, and position, enabling accurate and reliable operation. • High Torque Density – BLDC motors can generate high torque for their size, making them ideal for compact applications. • Long Life - BLDC motors are durable and have a long lifespan due to their brushless construction and minimal wear.

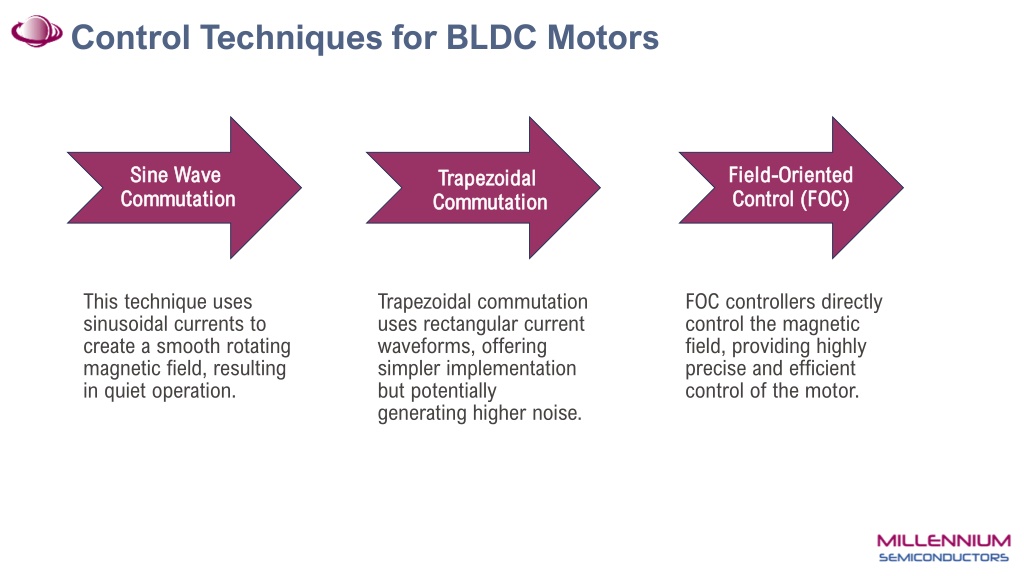

  6. Control Techniques for BLDC Motors Sine Wave Commutation Field-Oriented Control (FOC) Trapezoidal Commutation This technique uses sinusoidal currents to create a smooth rotating magnetic field, resulting in quiet operation. Trapezoidal commutation uses rectangular current waveforms, offering simpler implementation but potentially generating higher noise. FOC controllers directly control the magnetic field, providing highly precise and efficient control of the motor.

  7. Applications of BLDC Controllers Robotics BLDC motors enable precise control and high torque density, making them ideal for robotic applications. Electric Vehicles BLDC motors are widely used in electric vehicles, offering high efficiency and smooth performance. Industrial Machinery BLDC controllers are used in various industrial machines, providing reliable and efficient operation.

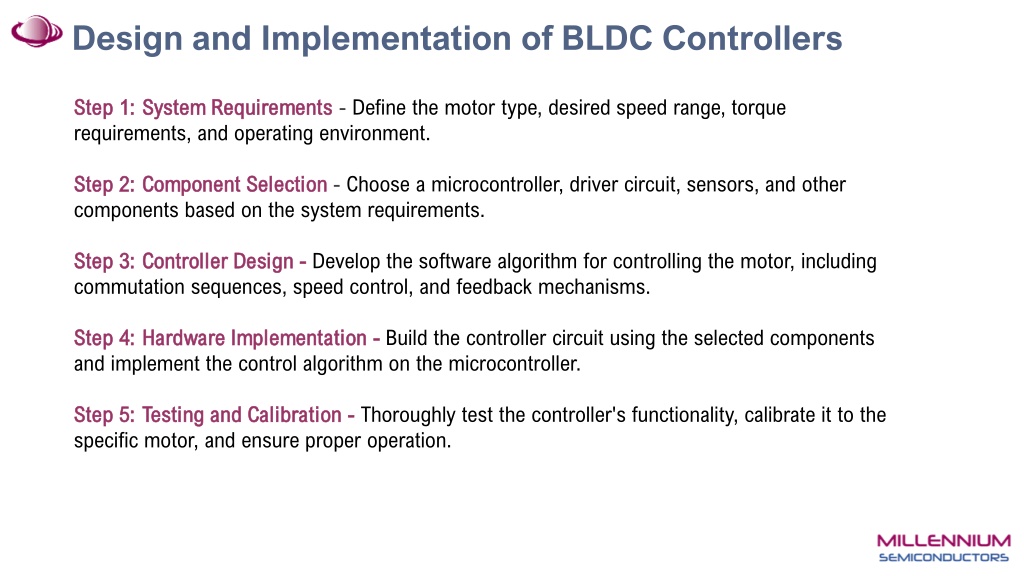

  8. Design and Implementation of BLDC Controllers Step 1: System Requirements- Define the motor type, desired speed range, torque requirements, and operating environment. Step 2: Component Selection - Choose a microcontroller, driver circuit, sensors, and other components based on the system requirements. Step 3: Controller Design - Develop the software algorithm for controlling the motor, including commutation sequences, speed control, and feedback mechanisms. Step 4: Hardware Implementation - Build the controller circuit using the selected components and implement the control algorithm on the microcontroller. Step 5: Testing and Calibration -Thoroughly test the controller's functionality, calibrate it to the specific motor, and ensure proper operation.

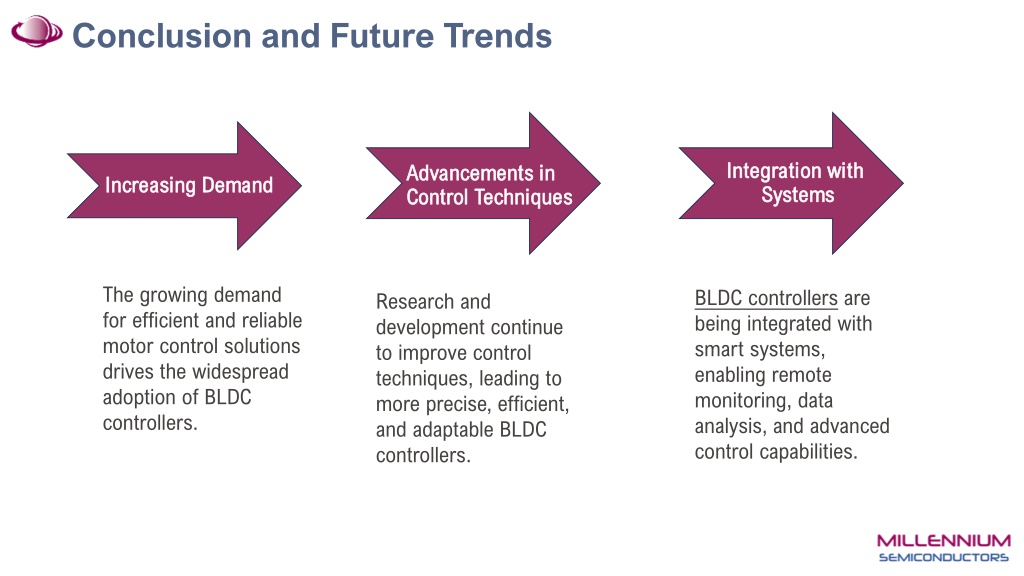

  9. Conclusion and Future Trends Integration with Systems Advancements in Control Techniques Increasing Demand • The growing demand for efficient and reliable motor control solutions drives the widespread adoption of BLDC controllers. • BLDC controllers are being integrated with smart systems, enabling remote monitoring, data analysis, and advanced control capabilities. • Research and development continue to improve control techniques, leading to more precise, efficient, and adaptable BLDC controllers.

  10. We are Authorized distributors • Millennium Semiconductors are an authorized distributors for Elmos, Infineon, Melexis.

  11. +91 20 27484800 info@millenniumsemi.com • www.millenniumsemi.com
