Presentation Transcript
windows xp language interface packs lips localized oss for the masses

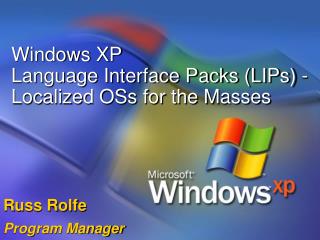

Windows XPLanguage Interface Packs (LIPs) - Localized OSs for the Masses

Russ Rolfe

Program Manager

agenda
Agenda
  • XP international support in general
  • Multilingual User Interface (MUI)
  • Language Interface Packs (LIPs)
  • Resources
  • Questions
windows xp international support
Windows XP International Support
  • 25 fully localized versions of the Operating System
  • All versions of Windows XP are built from a single, Unicode-based, worldwide source…
  • …and share the exact same out-of-the-box multilingual functionality:
    • Input, edit, display in hundreds of languages
    • Support for 120+ locales
  • Text Services Framework (Windows XP)
    • Advanced text input methods for speech, handwriting, etc
slide5
Quiz

Which version of Windows 2000/XP can be used to type Japanese in notepad?

  • The Japanese localized version of the OS
  • Any version of Win2000/XP
  • Only The Multilanguage UI (MUI) version
slide6

More International Support Requested

  • Allow users to choose the language in which they work.
  • Allow IT administrators to support such users independent of location
  • Language is just a setting
mui multilingual user interface what it was originally
MUI (Multilingual User Interface) – What it was originally
  • Introduced in Windows 2000
  • Package of resources that allows other UI languages to be installed on US English
  • Allows multiple UI languages to be use on the same machine
  • Created from localized versions of the OS
  • Windows XP offers 33 MUI languages, includes English
mui version scenario

Big burden to deploy and maintain:

English OS

Arabic OS

Japanese OS

NOW

Windows XP MUI

Version

MUI Version Scenario

PAST

Needed to deploy:

To support:

English users

Arabic users

Japanese users

3 different versions of the operating system

3 different service packs

3 different release schedules

Need to deploy:

Deploy & maintain:

To support:

English users

Arabic users

Japanese users

  • 1 Version
  • 1 Service pack
  • 1 Release schedule
mui meets user request
MUI -- Meets User Request
  • Allows user to switch UI language on single machine
    • Changes system messages, dialogs, menus, help files, etc. display language.
  • Allows different language users to share same machine (bi-lingual, multilingual)
  • Allows users to roam to different machine
mui meets administrators requests
MUI – Meets Administrators Requests
  • Testing, deploying, and supporting one OS worldwide
  • Deploying same SP/hot-fix, 0 delta
  • Provide tech support in a preferred language
localized versions vs mui
Localized Versions vs. MUI
  • The User Interface resources are fully localized.
    • MUI does not localize:
      • INF files
      • UI strings stored in the registry
      • Code-page based components such as Hyperterminal
    • Windows 2000 (90%) – Windows XP (97%)
  • Windows Setup information customized for the specific language/country.
    • Items such as:
      • User locale,
      • Keyboard layout,
      • System locale etc
    • This is a policy setting with the MUI
localized versions vs mui12
Localized Versions vs. MUI
  • Additional country specific device drivers added in the East Asian versions only.
    • Since MUI is English-OS based, localized specific device drivers not available.
  • Support for upgrades
    • Localized Versions -> Localized Windows XP
      • Windows 9X
      • Windows 2000
    • MUI only supports upgrades from English versions.
  • MUI only supported in XP Professional & .NET Server (alsoWindows 2000 Pro & Server)
slide14
Quiz

Which is not true about MUI versions of Windows XP?

  • Help files localized
  • Based on English version Windows
  • Translations are different than localized versions
  • Not required for multilingual input
application compatibility
Application Compatibility
  • Generally, any well-behaved localized application will run on Windows XP
    • World-ready applications (Unicode enabled, etc) will ‘just work’ on any language version of Windows XP
    • Code-page based applications (non-Unicode) require the ‘Language for non-Unicode programs’ setting to match the appropriate language
language for non unicode programs or system locale17
Language for non-Unicode Programs (or System Locale)
  • Required by code-page based applications
  • Per system (not per user), requires reboot to change
  • Limited to one language at a time
    • Cannot easily run a Japanese code-page based order-tracking application along with a Russian code-page database application
    • Not easy for users of different non-Unicode language version applications to share computers
mui aware applications
MUI Aware Applications
  • Office XP
  • Internet Explorer 6.0
  • Develop your own
    • A set of NLS APIs let applications query installed UI languages and current UI language
slide20
Quiz

APIs exists to allow developers to create MUI aware applications.

  • True
  • False
mui meets users and administrators requirements
MUI meets Users and Administrators requirements
  • Allow users to choose the language in which they work.
  • Allow administrators to support such users independent of location
  • Language is just a setting
new international requirement

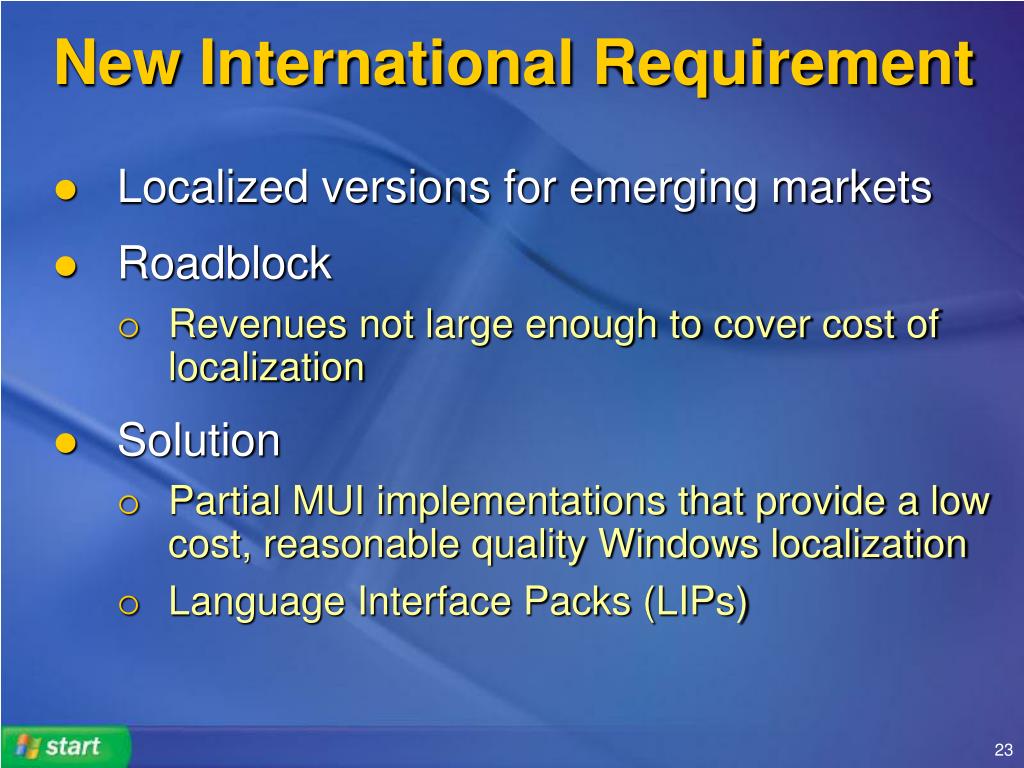

New International Requirement
  • Localized versions for emerging markets
  • Roadblock
    • Revenues not large enough to cover cost of localization
  • Solution
    • Partial MUI implementations that provide a low cost, reasonable quality Windows localization
    • Language Interface Packs (LIPs)
language interface packs lip
Language Interface Packs (LIP)
  • How much to localize?
    • 20-80 rule
  • Which 20% of the UI is used 80% of the time?
    • Desktop Features
      • Start Menu & Submenus Taskbar & Properties
      • Windows Explorer Control Panel
    • Components
      • Internet Explorer Outlook Express
      • Windows Media Player Windows Address Book
    • Other Features
      • Program Manager Task Manager
      • Update Driver Wizard Remote Desktop
      • Screensavers Games
    • Help & Support Center content
      • Main content remains unlocalized.
lip pros and cons
LIP Pros and Cons
  • Pros
    • Less to Localize means:
      • Quicker to market
      • Lower costs
      • Less disk space
  • Cons
    • Not everything localized
slide26
Quiz

Which component is not localized in a Language Interface Pack?

  • Games
  • Network Connections
  • Address Book
  • Remote Desktop
availability
Availability
  • Current Languages Covered
    • Bulgarian Croatian Estonian
    • Latvian Lithuanian Romanian
    • Slovak Slovenian Thai
  • Newly Released
    • Catalan
  • LIP
    • Acquired through regional OEMs
    • On 5th CD of MUI package
  • MUI
    • Sold via Microsoft Open License Program (MOLP), Select, and Enterprise Agreement
    • OEMs
    • Available to developers through MSDN subscription
localized oses for the masses
Localized OSes for the Masses
  • LIP
    • Workable solution for emerging markets
  • MUI
    • Manageable Multilingual UI for users and international organizations
  • Ultimate Goal
    • English is just another language UI
slide29

Resources

  • GlobalDev, portal to internationa lization
    • http://www.microsoft.com/globaldev
  • Developing International Software
    • Chapter on MUI and MUI aware applications
  • E-mail us:
    • Dr. International (drintl@microsoft.com)
