Presentation Transcript
therapeutic agents

THERAPEUTIC AGENTS

Introduction

Recombinant Proteins

Nucleic Acids

therapeutic agents2
Therapeutic Agents

Introduction

  • Before the advent of molecular biotechnology most human proteins were available in only small (limited) quantities.
  • Today hundreds of genes (~1000) for human proteins have been cloned, sequenced, expressed in the host cells and are being tested as therapeutic agents (drugs) in humans.
  • Over 140 biopharmaceuticals on the market; over 400 in clinical trials
  • Biopharmaceuticals include:
    • Proteins (made in bacterial, fungal or mammalian cell culture)
      • erythropoietin (EPO)
      • insulin
      • interferon (Intron A)
      • granulocyte-colony stimulating factor (G-CSF)
      • human growth hormone (HGH, human somatotropin)
      • tissue plasminogen activator (tPA)
    • Monoclonal antibodies (made in mammalian cell culture)
    • Vaccines
      • live and inactivated viruses and bacteria
      • subunit vaccines
      • recombinant vaccines
    • Gene Therapy Products (viral and non-viral)
slide3

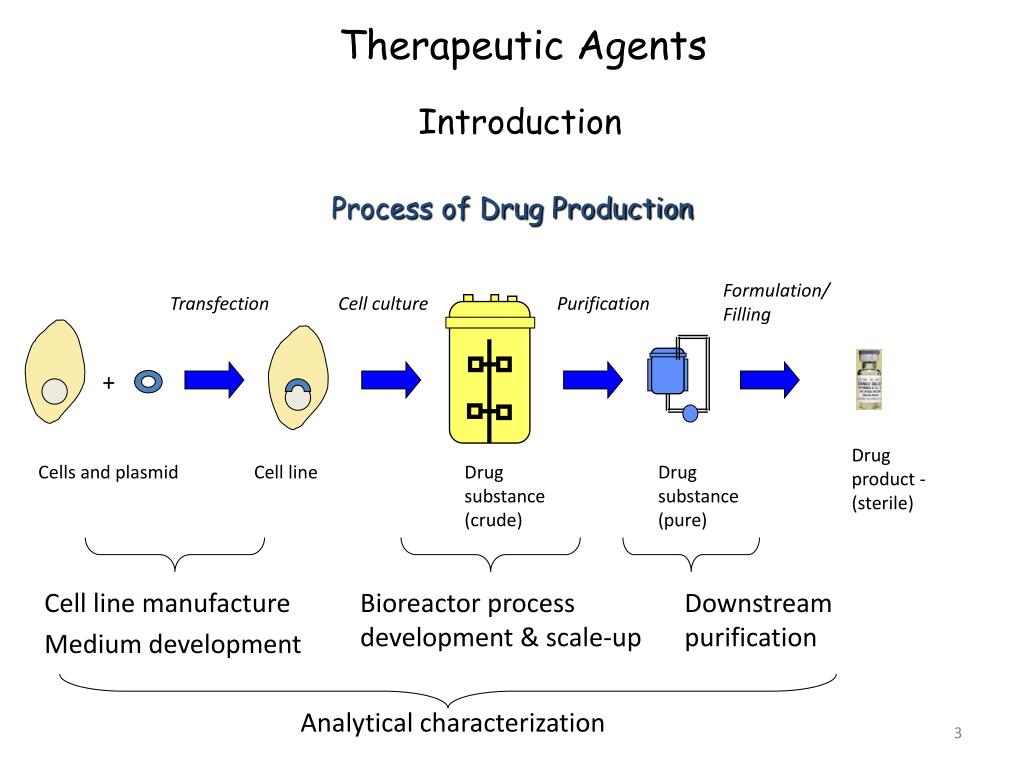

Therapeutic Agents

Introduction

Process of Drug Production

Formulation/

Filling

Transfection

Cell culture

Purification

+

Drug product -

(sterile)

Cells and plasmid

Cell line

Drug substance (crude)

Drug substance (pure)

Cell line manufacture

Medium development

Bioreactor process

development & scale-up

Downstream purification

Analytical characterization

development of the process

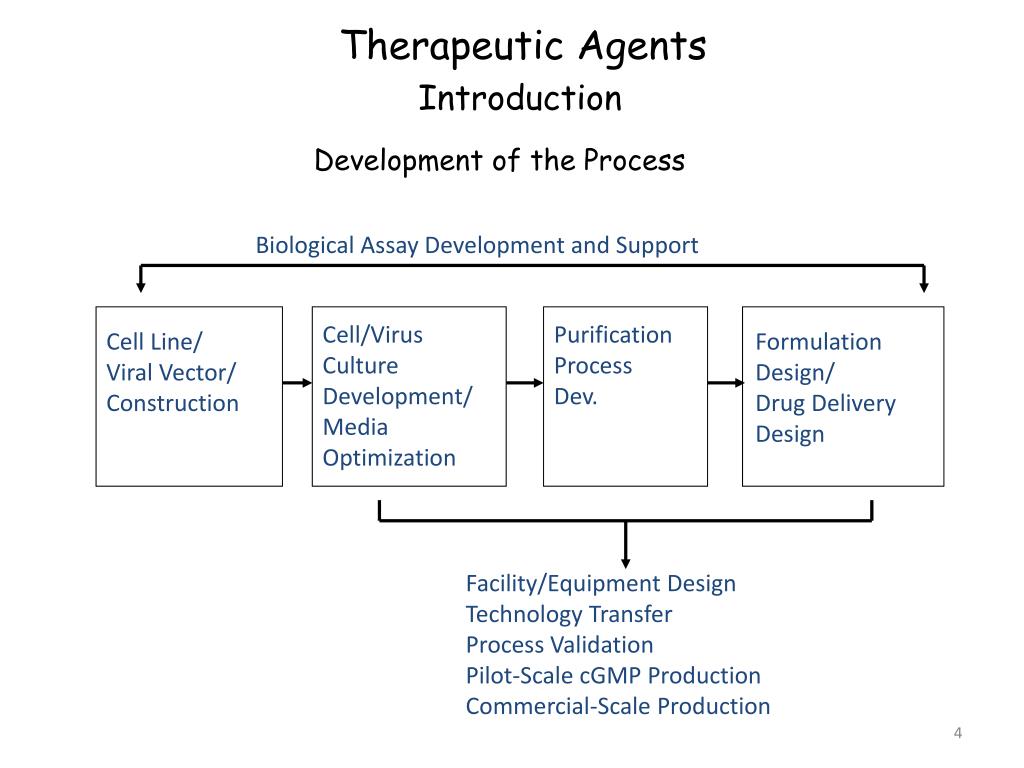

Therapeutic Agents

Development of the Process

Introduction

Biological Assay Development and Support

Cell/Virus

Culture

Development/

Media

Optimization

Purification

Process

Dev.

Cell Line/

Viral Vector/

Construction

Formulation

Design/

Drug Delivery

Design

Facility/Equipment Design

Technology Transfer

Process Validation

Pilot-Scale cGMP Production

Commercial-Scale Production

slide5

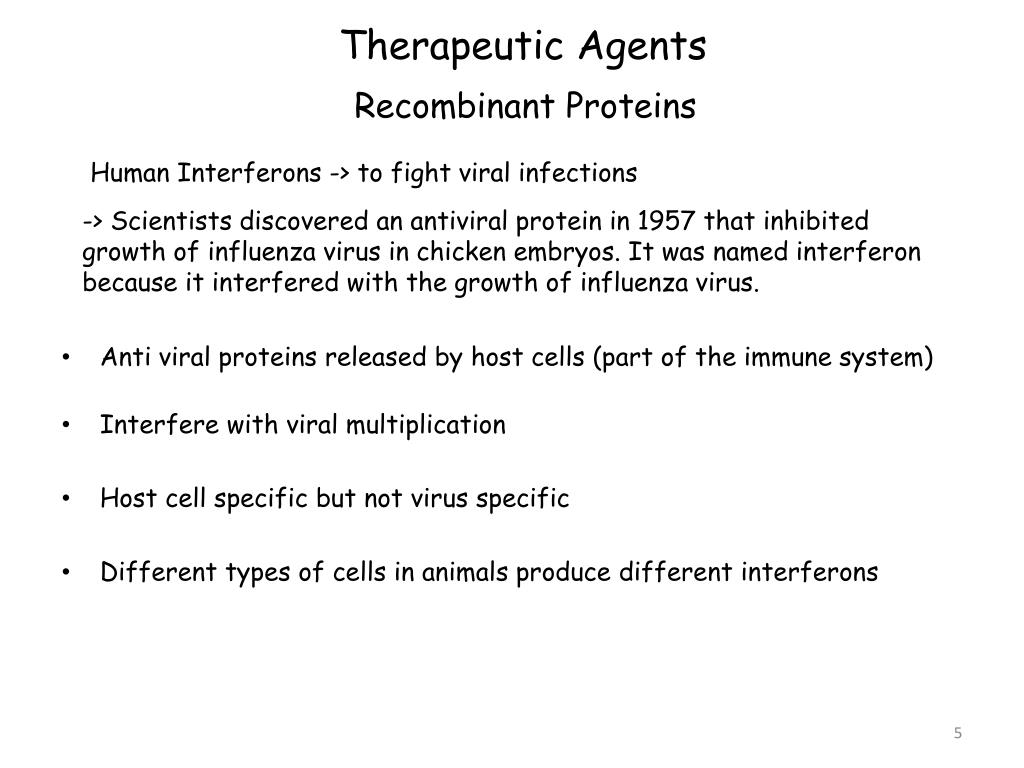

Therapeutic Agents

Recombinant Proteins

Human Interferons -> to fight viral infections

-> Scientists discovered an antiviral protein in 1957 that inhibited growth of influenza virus in chicken embryos. It was named interferon because it interfered with the growth of influenza virus.

  • Anti viral proteins released by host cells (part of the immune system)
  • Interfere with viral multiplication
  • Host cell specific but not virus specific
  • Different types of cells in animals produce different interferons
slide6

Therapeutic Agents

Recombinant Proteins

Human Interferons -> to fight viral infections

  • 3 types of human interferon:
    • alpha interferon (13 genes)
    • beta interferon (2 genes)
    • gamma interferon (1 gene)
  • Alpha & beta usually produced early in viral infections (viruses or viral RNA) - Gamma appears later
  • -> Presence of double-stranded RNA indicates cell is infected
  • -> Viral infected cells release alpha and beta interferons
    • Diffuse to neighboring cells -> Virus can’t replicate

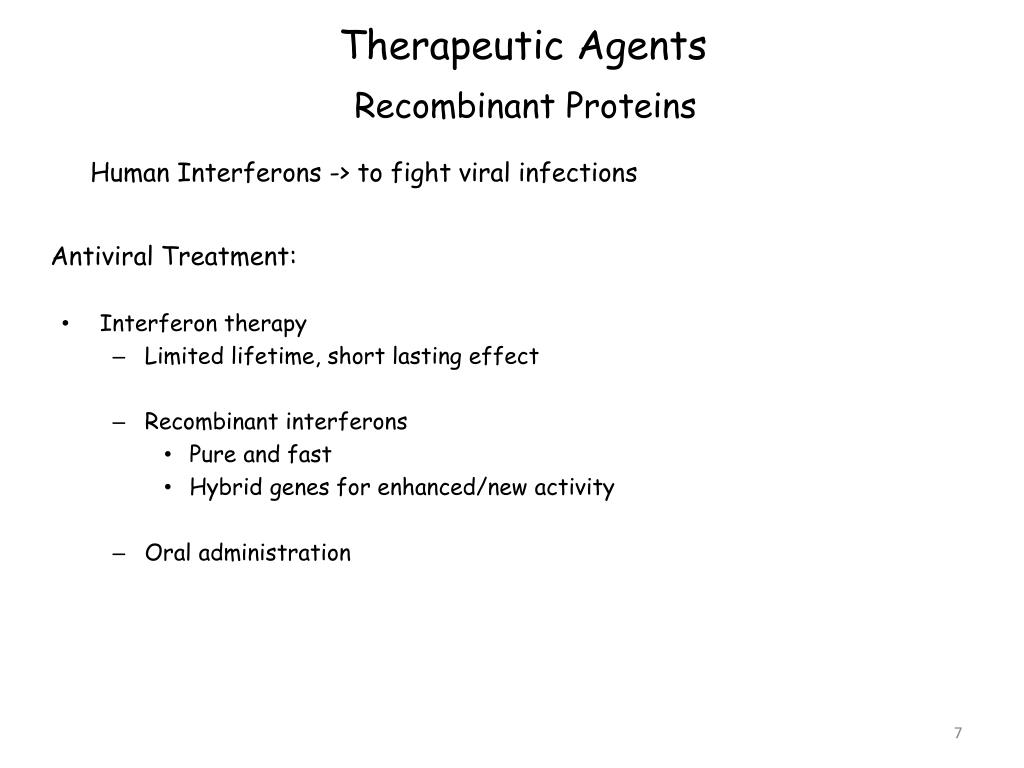

antiviral treatment

Therapeutic Agents

Antiviral Treatment:

Recombinant Proteins

Human Interferons -> to fight viral infections

  • Interferon therapy
    • Limited lifetime, short lasting effect
    • Recombinant interferons
      • Pure and fast
      • Hybrid genes for enhanced/new activity
    • Oral administration
why is oral interferon different

Therapeutic Agents

Why is Oral Interferon Different?

Recombinant Proteins

Human Interferons -> to fight viral infections

Why are Side Effects Common and Severe for Injectable Interferon?

  • Injectable interferon (beta) is approved world-wide (FDA) for the treatment of various cancers and viral diseases.
  • Interferon is a protein readily eliminated from the blood by the kidney. To counteract the kidney’s clearance of interferon from the blood injectable interferon must be given in doses much higher than what occur naturally.
  • Side effects include flu-like symptoms, poor results on liver function tests, and blood cell abnormalities. More serious side effects include depression, epileptic seizures, or liver problems.
  • Low-dose oral interferon is given in doses 10 thousand times less than injectable interferon. Therefore, side effects are dramatically reduced.
  • Oral interferon is human interferon alpha administered in a small tablet (lozenge) to humans or in powder to animals.
  • Oral interferon binds to surface (mucosal) cells in the mouth and throat resulting in stimulation of white blood cells and activates hundreds of genes affecting the immune system in the peripheral blood of man, cattle and mice.
  • Studies show oral interferon is effective against disorders such as cancer, viral diseases and autoimmunity.
mechanism of action

Therapeutic Agents

Mechanism of Action

Recombinant Proteins

Human Interferons -> to fight viral infections

Oral Epithelial Cells

Tonsil

IFNa

Mandibular Lymph Nodes

Activation of Perioral Lymphoid Cells and Peripheral Lymphoid Tissues

Activation of Humoral

Immunity (Antibody)

Activation of Cell Mediated Immunity

Virus

Interferon placed in the mouth binds to receptors in the mucosal lining and initiates systemic effects on the immune system in animals and man. These immunomodulatory effects are safe and effective in helping control viral and autoimmune diseases and cancer.

slide10

Therapeutic Agents

Recombinant Proteins

Human Interferons -> to fight viral infections

Manufacturing Steps for Interferon:

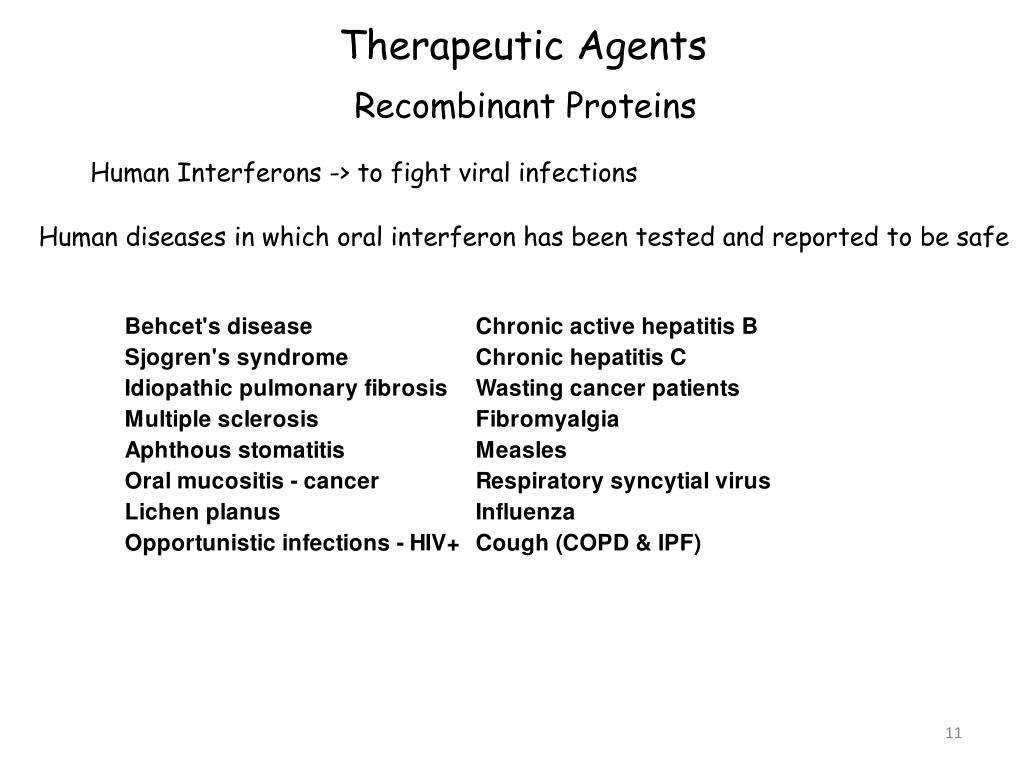

slide11

Therapeutic Agents

Recombinant Proteins

Human Interferons -> to fight viral infections

Human diseases in which oral interferon has been tested and reported to be safe

slide12

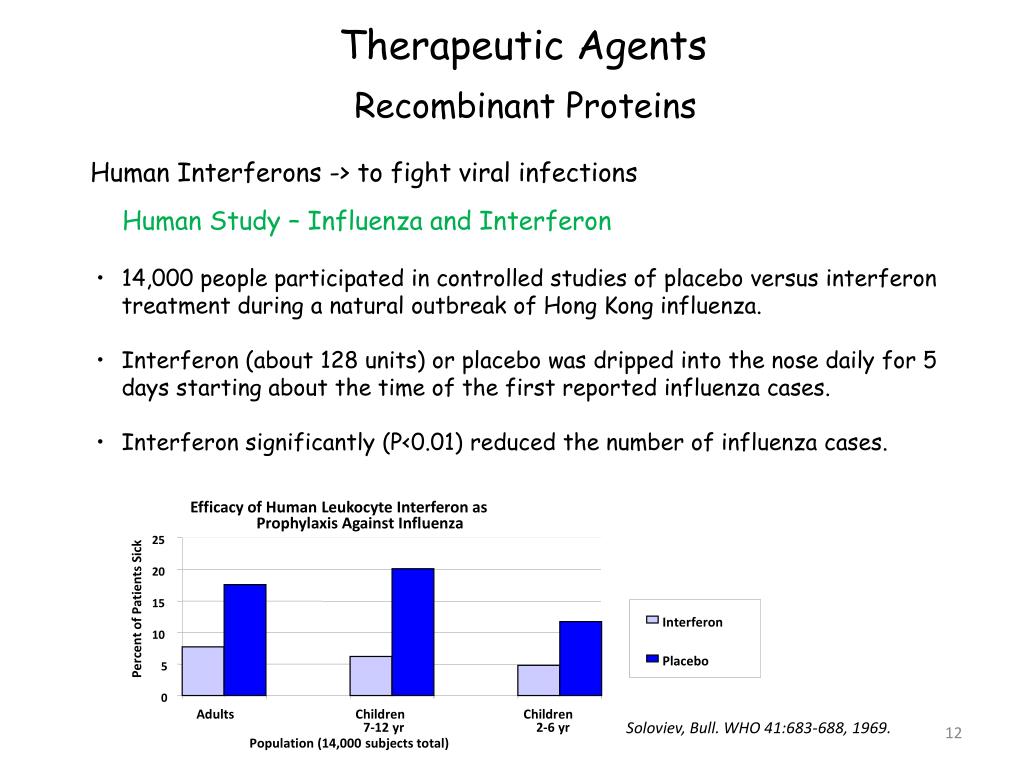

Efficacy of Human Leukocyte Interferon as

Prophylaxis Against Influenza

25

20

15

Percent of Patients Sick

Interferon

10

Placebo

5

0

Adults

Children

Children

7-12 yr

2-6 yr

Population (14,000 subjects total)

Therapeutic Agents

Recombinant Proteins

Human Interferons -> to fight viral infections

Human Study – Influenza and Interferon

  • 14,000 people participated in controlled studies of placebo versus interferon treatment during a natural outbreak of Hong Kong influenza.
  • Interferon (about 128 units) or placebo was dripped into the nose daily for 5 days starting about the time of the first reported influenza cases.
  • Interferon significantly (P<0.01) reduced the number of influenza cases.

Soloviev, Bull. WHO 41:683-688, 1969.

strategies for optimisation of recombinant production

Therapeutic Agents

Strategies for Optimisation of Recombinant Production

Recombinant Proteins

  • Screening libraries of recombinant genes (IFNs, human growth hormone, TNF-a…)
  • Screening of recombinant expression systems (E coli, fungi, Mammalian cells…)
  • Delivery by intestinal bacteria (lactobacilli)
enzymes treating cystic fibrosis

Therapeutic Agents

Enzymes – Treating Cystic Fibrosis

Recombinant Proteins

  • Cystic fibrosis (CF) -> ~30,000 cases in the US and 23,000 in Canada.
  • Europe: it occurs in 1 in 2,500 live birth and 1 in 25 are carriers.
  • Caused by more than 500 different mutations in the cystic fibrosis transmembrane conductance regulator (CFTR) gene.
  • Individuals with CF are highly susceptible to bacterial infection and antibiotic treatment often results in resistant strains.

Symptoms: -> small ducts (special channels) become clogged with

a thick mucus

  • Clogging and infection of lungs
  • plugging of small bile ducts in liver (impedes digestion)
  • plugging of ducts of pancreas (impedes digestion)
  • obstruction of small intestine
  • males are infertile
  • malfunctioning sweat glands
enzymes treating cystic fibrosis15

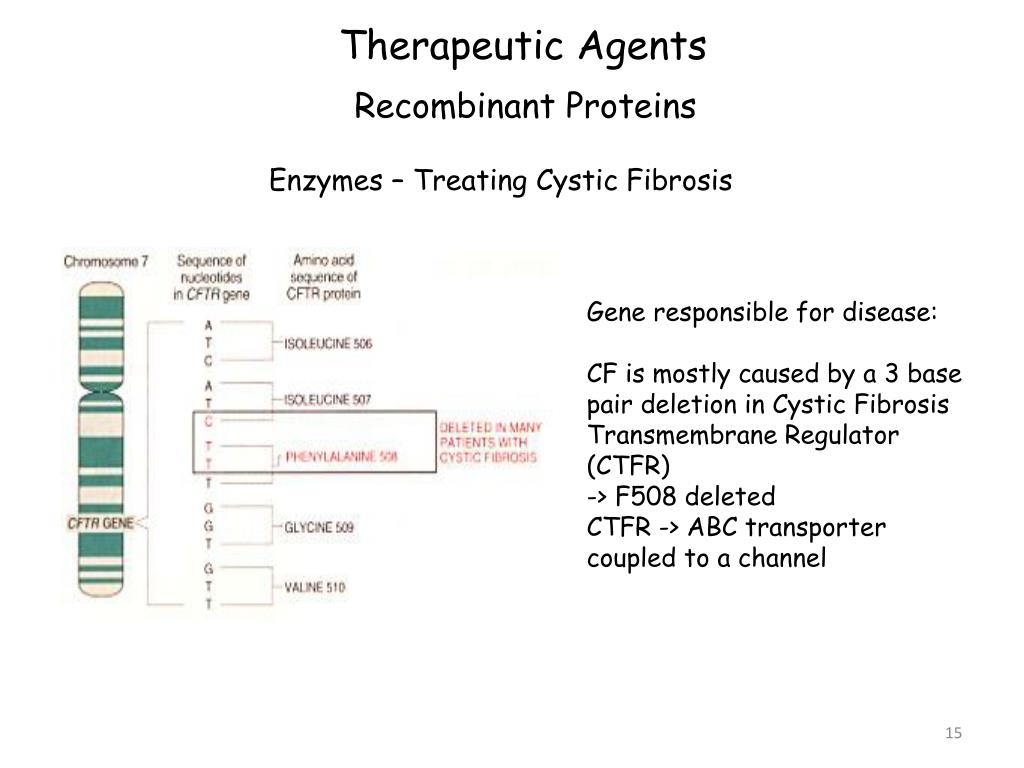

Enzymes – Treating Cystic Fibrosis

Therapeutic Agents

Recombinant Proteins

Gene responsible for disease:CF is mostly caused by a 3 base pair deletion in Cystic Fibrosis Transmembrane Regulator (CTFR)-> F508 deletedCTFR -> ABC transporter coupled to a channel

enzymes treating cystic fibrosis16
Enzymes – Treating Cystic Fibrosis

Therapeutic Agents

Recombinant Proteins

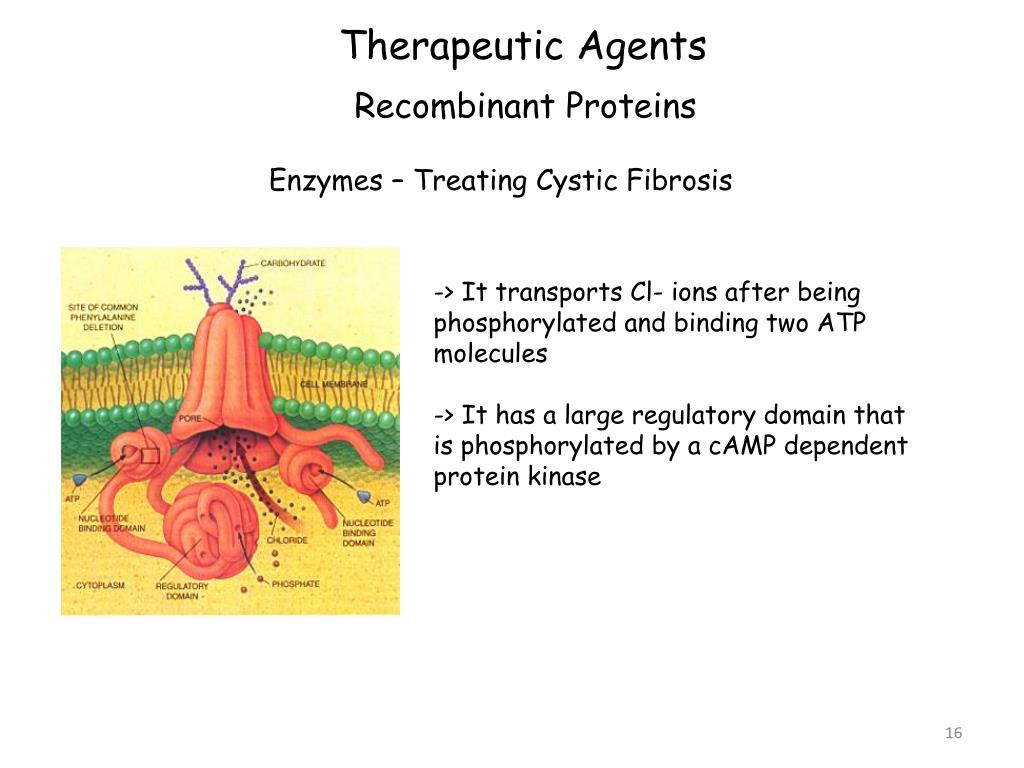

-> It transports Cl- ions after being phosphorylated and binding two ATP molecules

-> It has a large regulatory domain that is phosphorylated by a cAMP dependent protein kinase

enzymes treating cystic fibrosis17

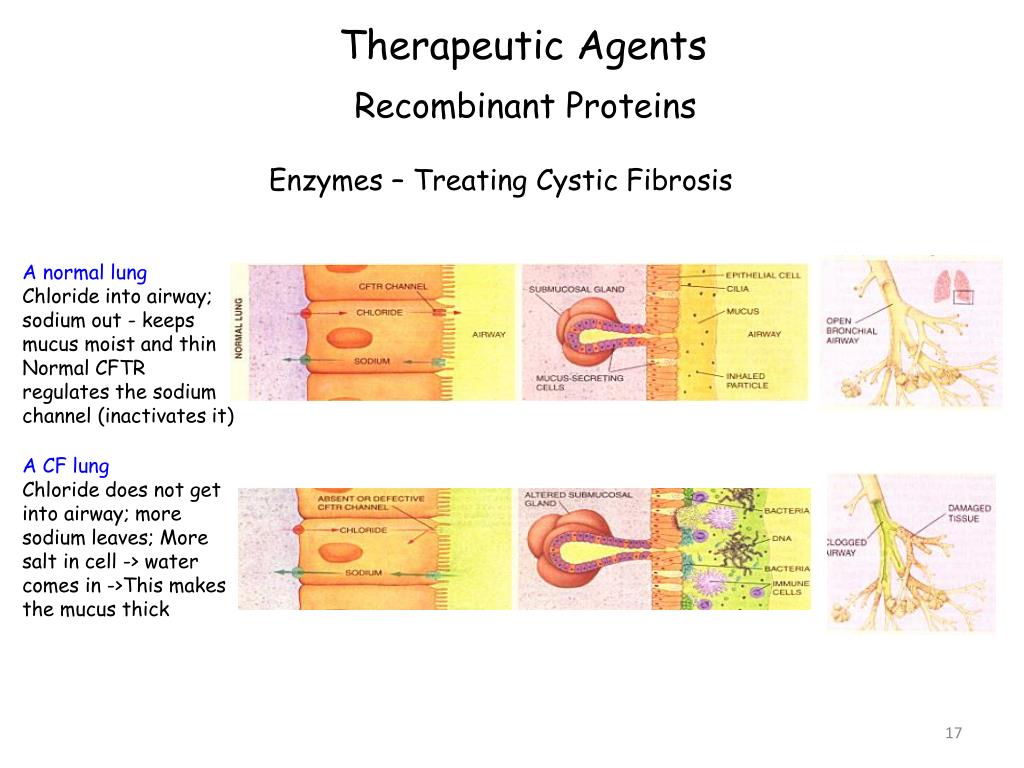

Enzymes – Treating Cystic Fibrosis

Therapeutic Agents

Recombinant Proteins

A normal lung

Chloride into airway; sodium out - keeps mucus moist and thin

Normal CFTR regulates the sodium channel (inactivates it)

A CF lung

Chloride does not get into airway; more sodium leaves; More salt in cell -> water comes in ->This makes the mucus thick

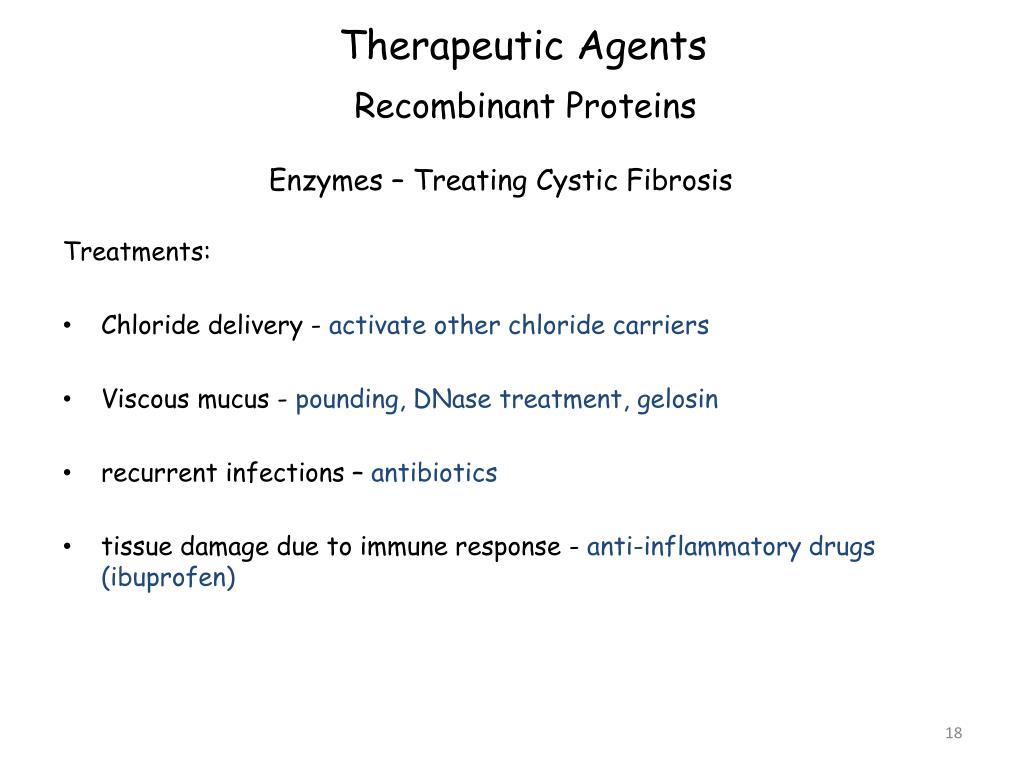

enzymes treating cystic fibrosis18
Enzymes – Treating Cystic Fibrosis

Therapeutic Agents

Recombinant Proteins

Treatments:

  • Chloride delivery - activate other chloride carriers
  • Viscous mucus - pounding, DNase treatment, gelosin
  • recurrent infections – antibiotics
  • tissue damage due to immune response - anti-inflammatory drugs (ibuprofen)
enzymes treating cystic fibrosis19
Enzymes – Treating Cystic Fibrosis

Therapeutic Agents

Recombinant Proteins

DNase 1 (GeneTech)

  • A thick mucus which is a results of:
    • Alignate produced by bacteria
    • DNA from lysed cells
    • Leucocytes which accumulate due to the infection
  • Makes breathing difficult.
  • Scientist at Genentech isolated the gene for DNase1
  • The purified enzyme was delivered as an aerosol to the lung where it hydrolysed the DNA into short oligonucleotides.
  • This decrease the viscosity in the lungs and made breathing easier.

Alginate Lyase

  • Alginate is a polysaccharide polymer that is produced by bacteria.
  • The excretion of alginate by Pseudomonas aeruginosa of patients with CF contributes to the viscosity in the lung.
  • The enzyme alginate lyase can liquefy bacteria alginate.
  • Alginate lyase was isolate from Flavobacterium sp. and cloned into E. coli.

-> Combined with DNase1, alginate lyse is able to reduce the mucus in the lungs of patients with CF.

monoclonal antibodies
Monoclonal Antibodies

Therapeutic Agents

Recombinant Proteins

Clinical Applications

  • Transplantation – muronomab (OKT3) 1986, basiliximab 1998
  • Cardiovascular disease – abciximab 1994
  • Cancer – rituximab 1997, trastuzumab 1998
  • Viral infection – palivizumab 1998
  • Inflammatory diseases – infliximab 1998, etanercept 1999

Side effects:

  • Transfusion reactions (any adverse event which occurs because of a blood transfusion)
  • Infections, immunosuppression
  • Cardiac, respiratory arrest (discontinuation of breathing)
  • Pharmacological toxicity
monoclonal antibodies21
Monoclonal Antibodies

Therapeutic Agents

Recombinant Proteins

Production

  • Monoclonal antibodies results from a clone of a B lymphocyte producing a single antibody which will bind to a specific epitope of an antigen.
  • Monoclonal antibodies are produced:
    • Fusion of a myeloma (B cell which has become cancerous) with a spleen cell that is immunized with a specific antigen.
  • The resulting hybridomas are tested for the production of a monoclonal antibodies.
  • Diluted to one cell cultures
  • Hypoxanthine Guanine Phosphoribosyl Transferase (HGPT) negative myeloma cells
  • Grown in Hypoxanthine Aminopterin Thymidine (HAT) medium
  • Only successful fusion cells grow (rare)

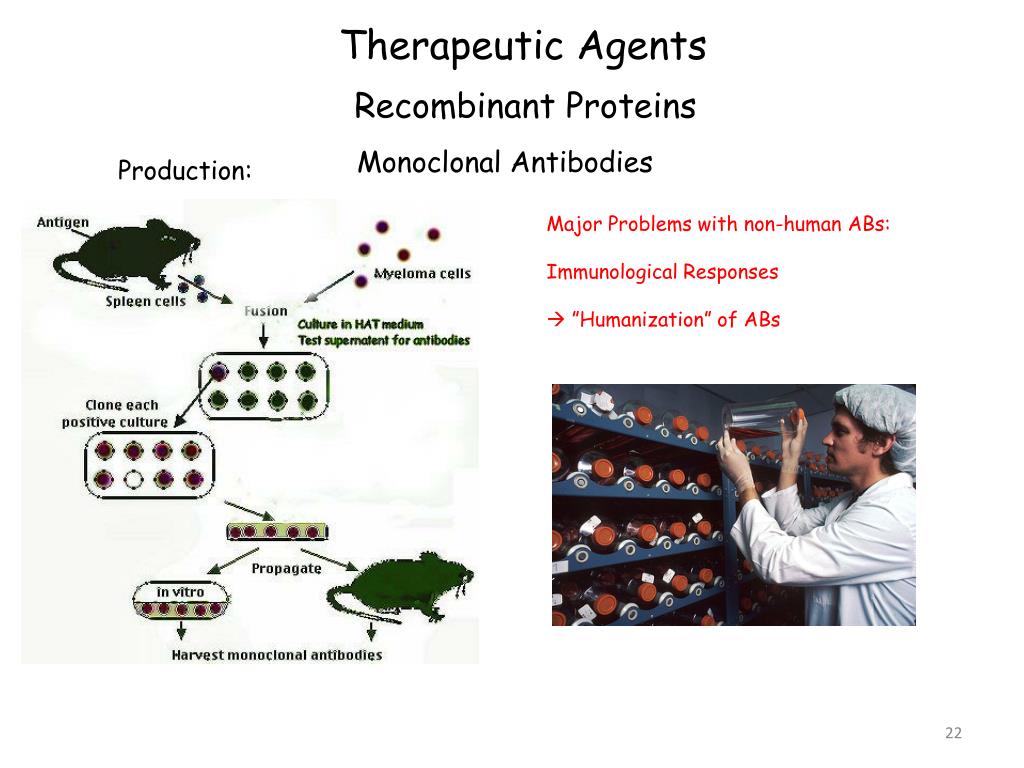

monoclonal antibodies22
Monoclonal Antibodies

Therapeutic Agents

Recombinant Proteins

Production:

Major Problems with non-human ABs:

Immunological Responses

 ”Humanization” of ABs

monoclonal antibodies23
Monoclonal Antibodies

Therapeutic Agents

Recombinant Proteins

Chimeric Ab

Humanized Ab

DNA that encodes the binding portion of monoclonal mouse antibodies and merges it with human antibody-producing DNA.

Use mammaliancell cultures to express this DNA and produce these half-mouse and half-human antibodies. (Bacteria cannot be used for this purpose, since they cannot produce this kind of glycoprotein.) Depending on how big a part of the mouse antibody is used, one talks about chimeric antibodies or humanized antibodies.

65 – 90% human and consist of the mouse variable regions and substituting the mouse Fc region of the antibody with that from human

95% human, and are made by grafting the hypervariable region (or CDR) of the chimeric antibody –which determines Ab specificity

slide24

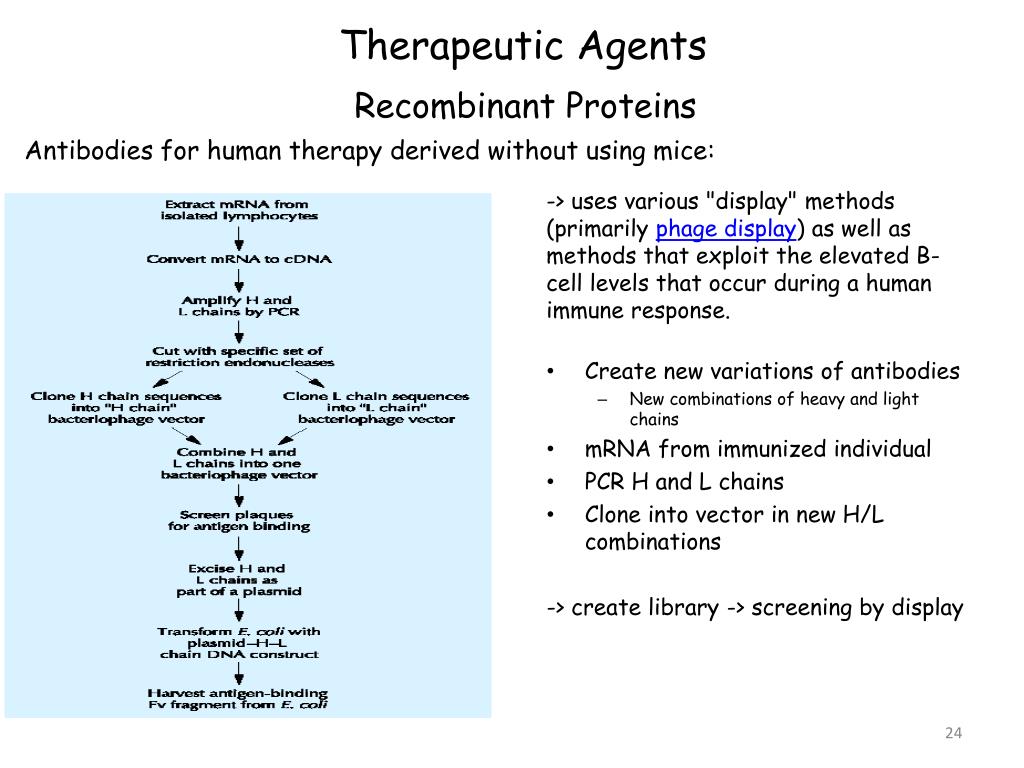

Therapeutic Agents

Recombinant Proteins

Antibodies for human therapy derived without using mice:

-> uses various "display" methods (primarily phage display) as well as methods that exploit the elevated B-cell levels that occur during a human immune response.

  • Create new variations of antibodies
    • New combinations of heavy and light chains
  • mRNA from immunized individual
  • PCR H and L chains
  • Clone into vector in new H/L combinations

-> create library -> screening by display

slide25

Therapeutic Agents

Recombinant Proteins

Antibodies for human therapy derived without using mice:

Screening by Phage display

slide26

Therapeutic Agents

Recombinant Proteins

Antibodies for human therapy derived without using mice:

Single-chain Fixed variable

only one heavy-chain variable domain and one light-chain variable domain covalently linked by peptide

Single-Chain Combinatorial Antibody Library

monoclonal antibodies27
Monoclonal Antibodies

Therapeutic Agents

Recombinant Proteins

Application of single-chain fixed variable-> Immunotoxins

  • Protein toxin connected to Fv region
  • Single-chain or S-S linked Fv region
  • Toxin localized to antigen-expressing cells
monoclonal antibodies28
Monoclonal Antibodies

Therapeutic Agents

Recombinant Proteins

Examples:

Monoclonal antibodies for cancer. ADEPT, antibody directed enzyme prodrug therapy; ADCC, antibody dependent cell-mediated cytotoxicity; CDC, complement dependent cytotoxicity; MAb, monoclonal antibody; scFv, single-chain Fv fragment

monoclonal antibodies29
Monoclonal Antibodies

Therapeutic Agents

Recombinant Proteins

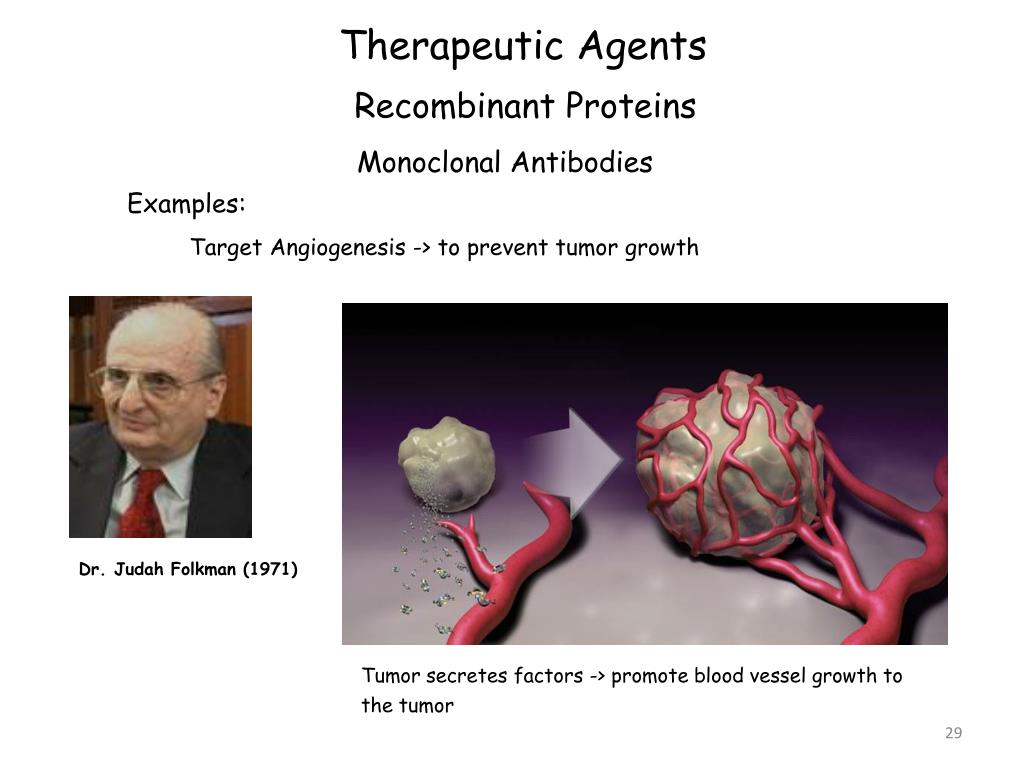

Examples:

Target Angiogenesis -> to prevent tumor growth

Dr. Judah Folkman (1971)

Tumor secretes factors -> promote blood vessel growth to the tumor

monoclonal antibodies30
Monoclonal Antibodies

Therapeutic Agents

Recombinant Proteins

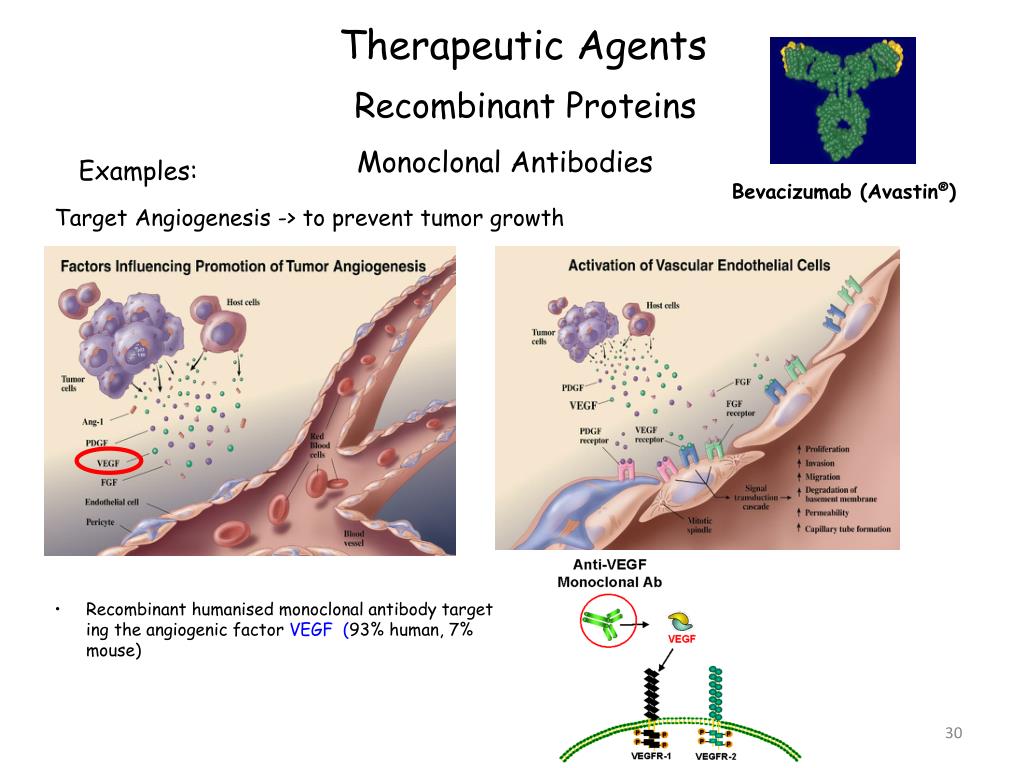

Examples:

Bevacizumab (Avastin®)

Target Angiogenesis -> to prevent tumor growth

  • Recombinant humanised monoclonal antibody targeting the angiogenic factor VEGF (93% human, 7% mouse)
slide31

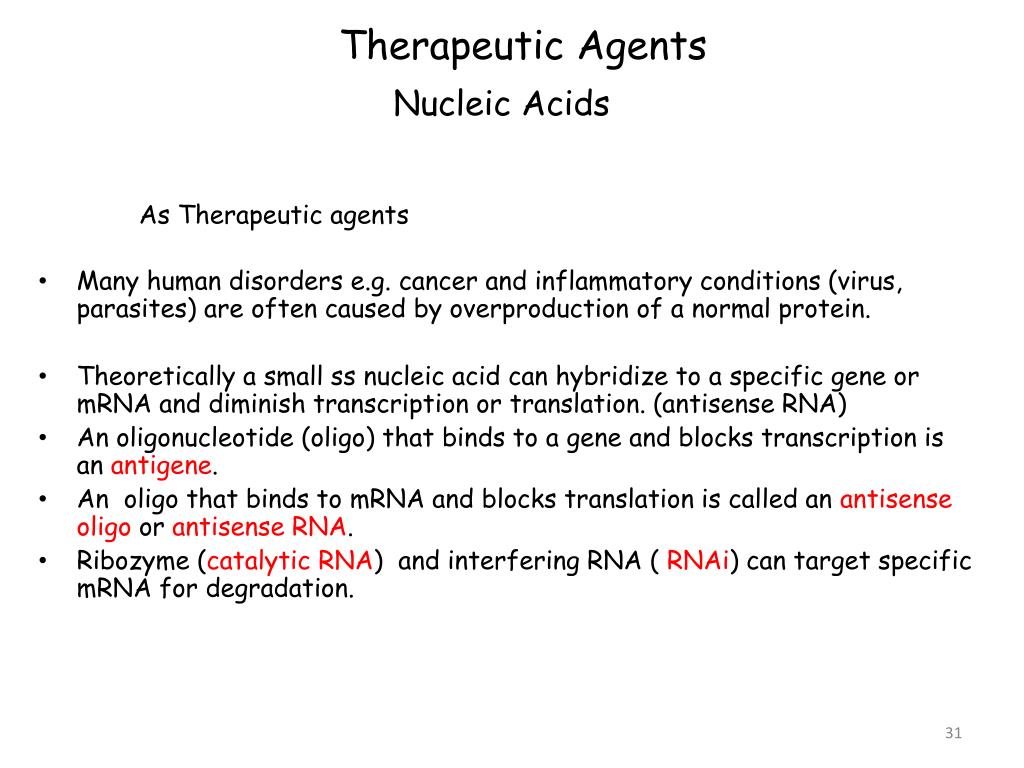

Therapeutic Agents

Nucleic Acids

As Therapeutic agents

  • Many human disorders e.g. cancer and inflammatory conditions (virus, parasites) are often caused by overproduction of a normal protein.
  • Theoretically a small ss nucleic acid can hybridize to a specific gene or mRNA and diminish transcription or translation. (antisense RNA)
  • An oligonucleotide (oligo) that binds to a gene and blocks transcription is an antigene.
  • An oligo that binds to mRNA and blocks translation is called an antisense oligo or antisense RNA.
  • Ribozyme (catalytic RNA) and interfering RNA ( RNAi) can target specific mRNA for degradation.
slide32

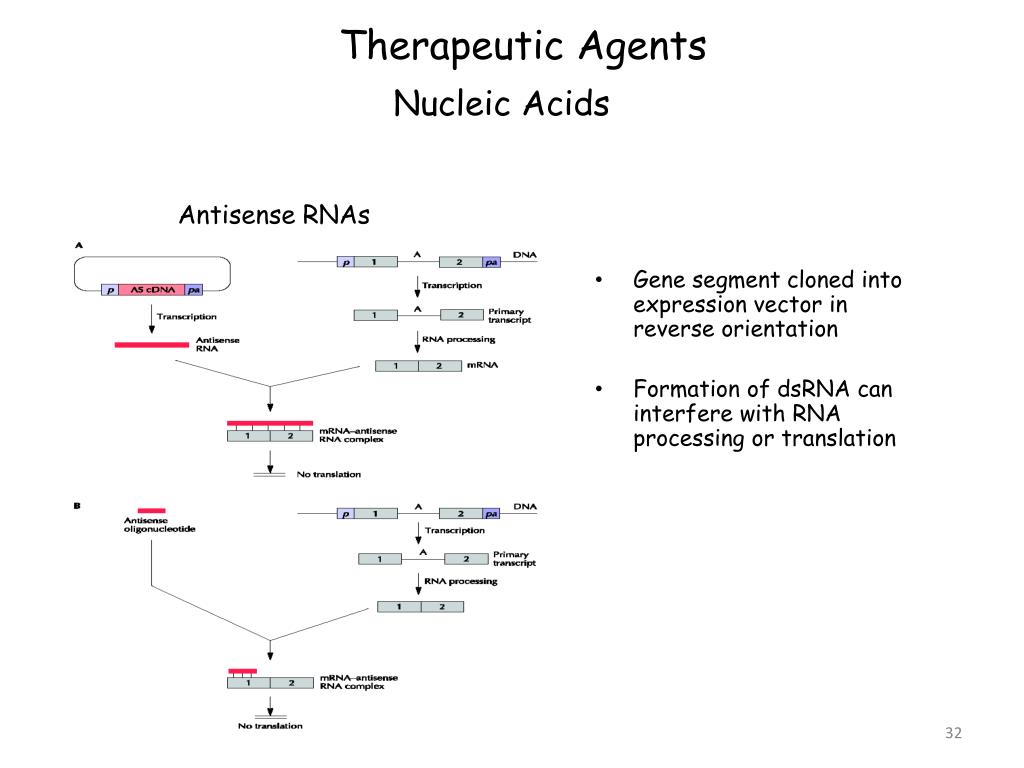

Therapeutic Agents

Nucleic Acids

Antisense RNAs

  • Gene segment cloned into expression vector in reverse orientation
  • Formation of dsRNA can interfere with RNA processing or translation
slide33

Therapeutic Agents

Nucleic Acids

Antisense RNAs -> Applications

  • Episomally based expression vectors with cDNA for insulin-like growth factor 1 (ILGF-1) receptors were constructed in the antisense version.
  • ILGF-1 is prevalent in malignant glioma a common form of brain cancer and prostate carcinoma.
  • Culture of glioma cells when transfected with the antisense version of ILGF-1 in ZnSO4 lost its tumurous properties.
  • A similar treatment of mice which were injected with prostate carcinoma cells caused small or no tumor to develop.
slide34

Therapeutic Agents

Nucleic Acids

Antisense Oligonucleotides

  • Antisense deoxynucleotides can also be used as therapeutic agents.
  • However when injected into the body is deoxynucleotides are susceptible to degradation.
  • To prevent this modified deoxynucleotides are used including phosphorothioate, phosphoramidate and polyamide.
  • Free oligos are usually introduced into to the body encapsulated in a liposome.

Phosphodiester linkage

Phosphorothioate linkage

Phosphoramidite linkage

Polyamide linkage

slide35

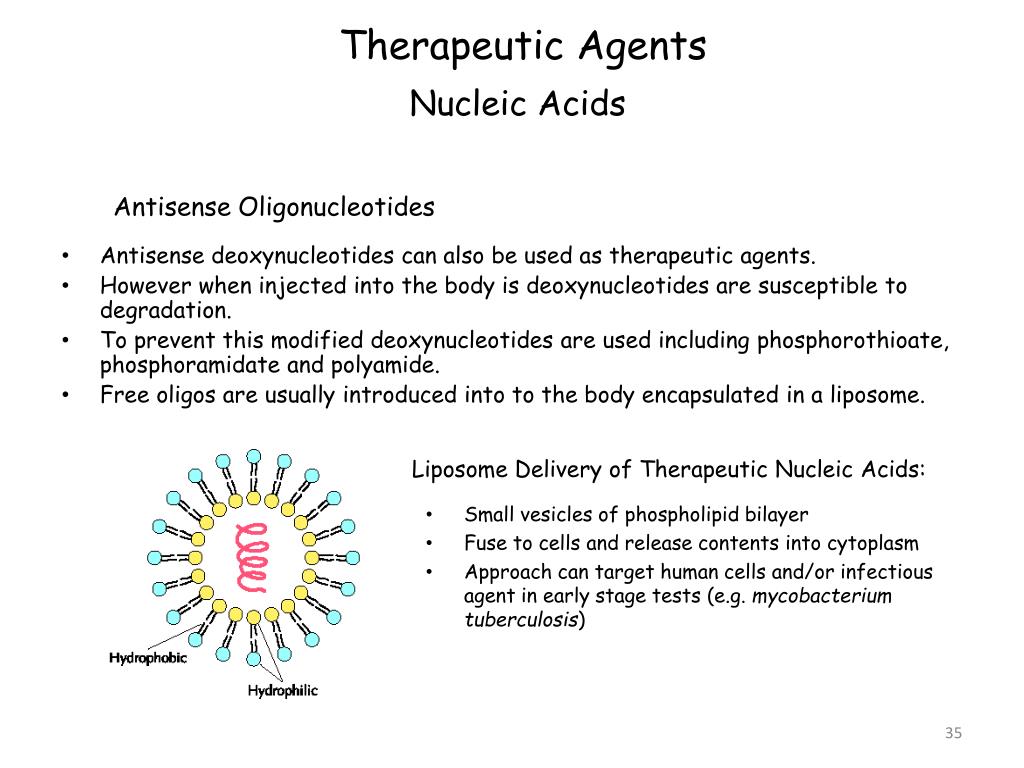

Therapeutic Agents

Nucleic Acids

Antisense Oligonucleotides

  • Antisense deoxynucleotides can also be used as therapeutic agents.
  • However when injected into the body is deoxynucleotides are susceptible to degradation.
  • To prevent this modified deoxynucleotides are used including phosphorothioate, phosphoramidate and polyamide.
  • Free oligos are usually introduced into to the body encapsulated in a liposome.

Liposome Delivery of Therapeutic Nucleic Acids:

  • Small vesicles of phospholipid bilayer
  • Fuse to cells and release contents into cytoplasm
  • Approach can target human cells and/or infectious agent in early stage tests (e.g. mycobacterium tuberculosis)
slide36

Therapeutic Agents

Nucleic Acids

Antisense Oligonucleotides

Treatment of Psoriasis:

  • Psoriasis is uncontrollable epidermal growth.
  • ILGF-1 receptors are implicated (upregulated) in the pathogenesis of psoriasis.
  • 15 nt antisense oligo were transferred into keratinocytes using liposome and the amount of ILGF-1 protein was decreased by 45-65%.
  • When mouse with human psoriasis lesions were injected with anitsense oligi complementary to ILGF-1 receptor mRNA there was significant reduction (58-69%) in epidermal thickness.

Correct Mutation in Splice Site in beta-globin gene (Thalassemia):

  • Synthetic oligonucleotide blocks site of mutation which created mutant “alternative” splice junction
    • Acts at RNA level
slide37

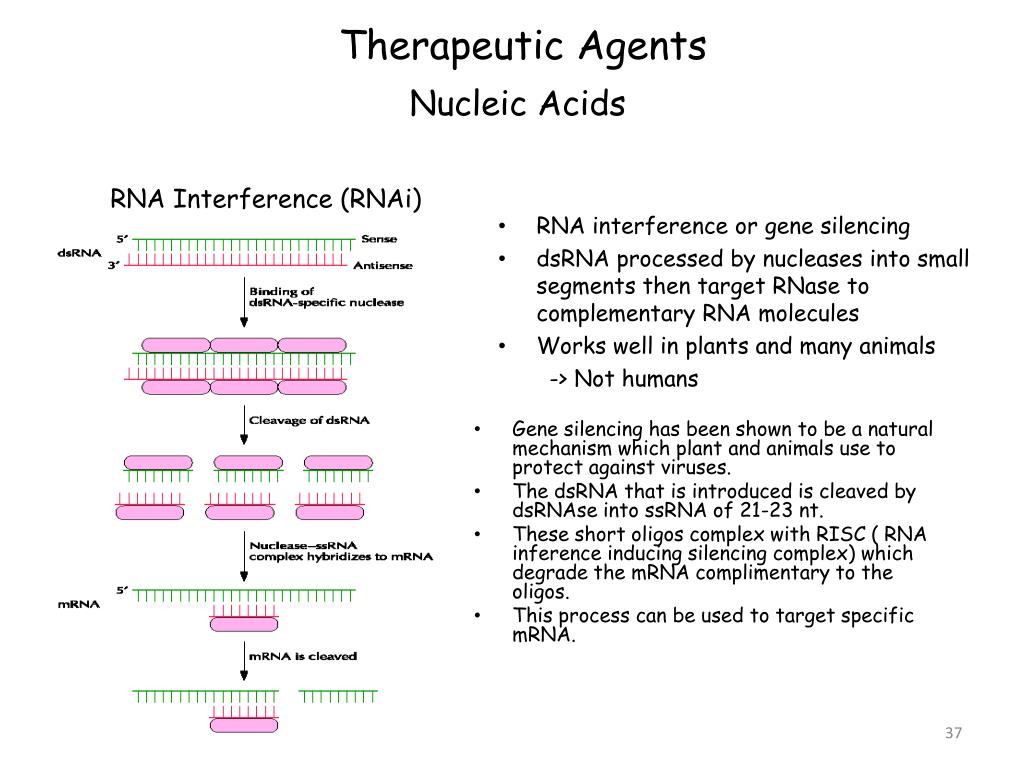

Therapeutic Agents

Nucleic Acids

RNA Interference (RNAi)

  • RNA interference or gene silencing
  • dsRNA processed by nucleases into small segments then target RNase to complementary RNA molecules
  • Works well in plants and many animals

-> Not humans

  • Gene silencing has been shown to be a natural mechanism which plant and animals use to protect against viruses.
  • The dsRNA that is introduced is cleaved by dsRNAse into ssRNA of 21-23 nt.
  • These short oligos complex with RISC ( RNA inference inducing silencing complex) which degrade the mRNA complimentary to the oligos.
  • This process can be used to target specific mRNA.

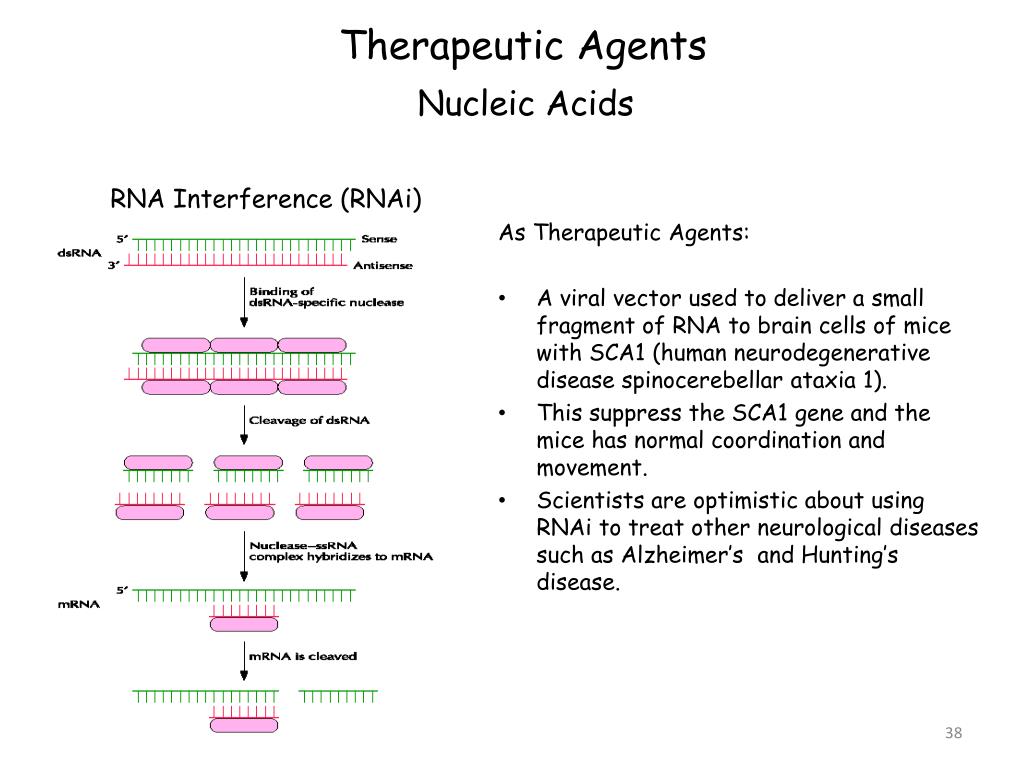

slide38

Therapeutic Agents

Nucleic Acids

RNA Interference (RNAi)

As Therapeutic Agents:

  • A viral vector used to deliver a small fragment of RNA to brain cells of mice with SCA1 (human neurodegenerative disease spinocerebellar ataxia 1).
  • This suppress the SCA1 gene and the mice has normal coordination and movement.
  • Scientists are optimistic about using RNAi to treat other neurological diseases such as Alzheimer’s and Hunting’s disease.
slide39

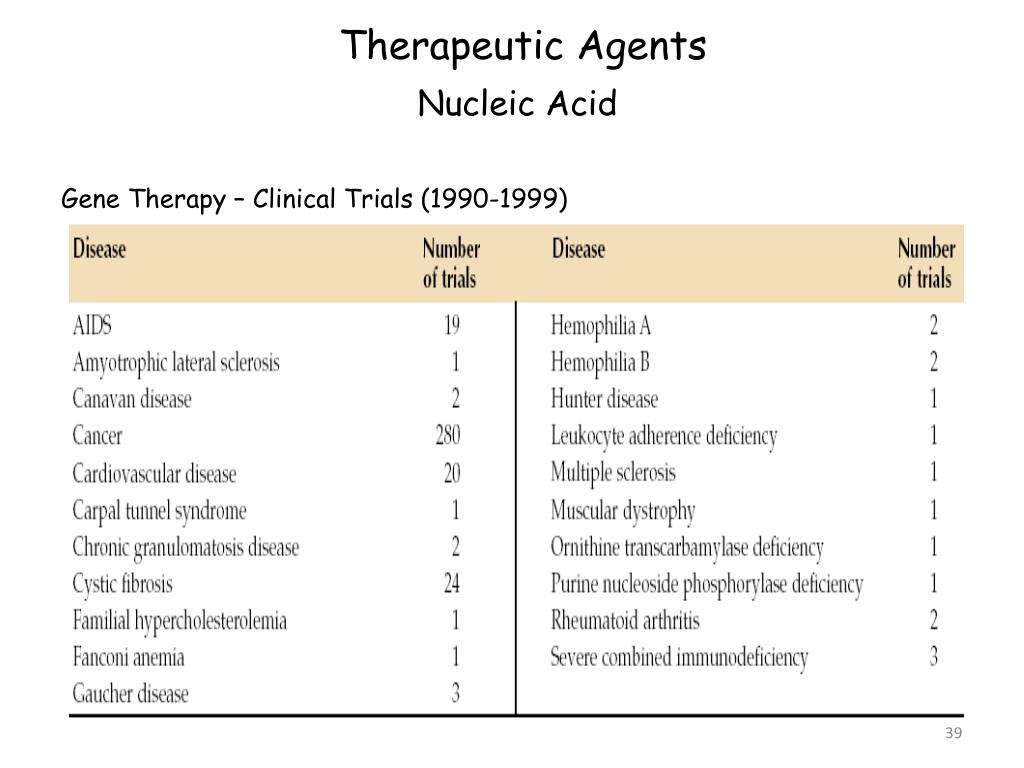

Therapeutic Agents

Nucleic Acid

Gene Therapy – Clinical Trials (1990-1999)

slide40

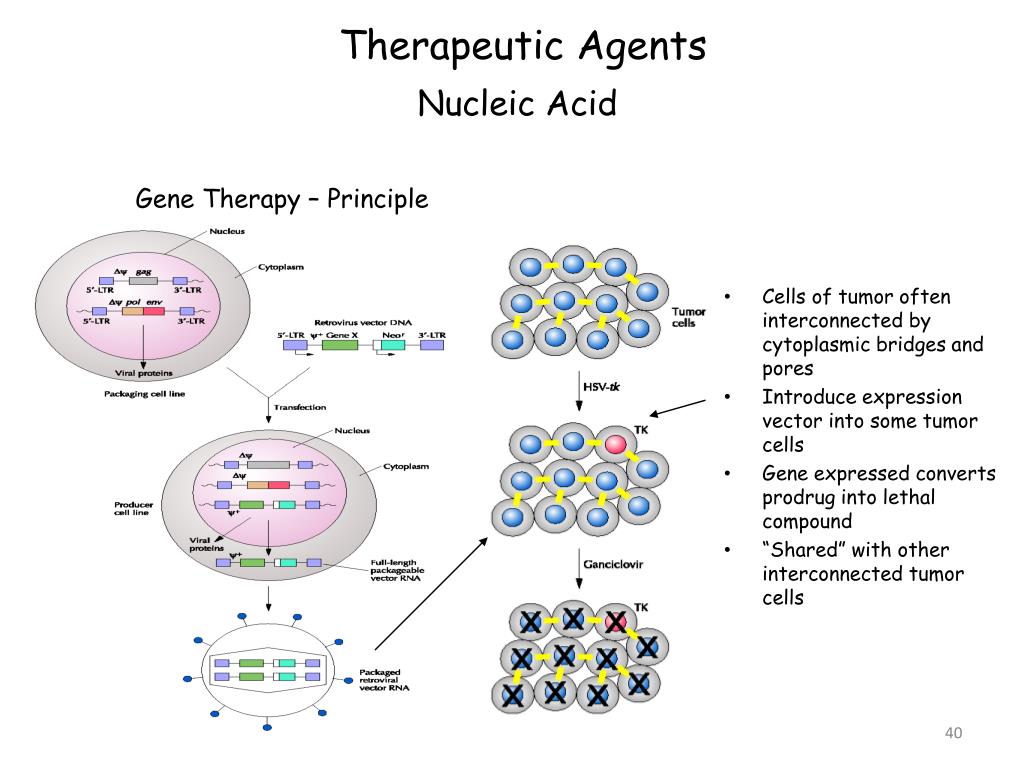

Therapeutic Agents

Nucleic Acid

Gene Therapy – Principle

  • Cells of tumor often interconnected by cytoplasmic bridges and pores
  • Introduce expression vector into some tumor cells
  • Gene expressed converts prodrug into lethal compound
  • “Shared” with other interconnected tumor cells
slide41

Therapeutic Agents

Nucleic Acid

Gene Therapy – Prodrug Activation Systems
