introduction to xquery

Introduction to XQuery

Resources:

Official URL: www.w3.org/TR/xquery

Short intros:

http://www.xml.com/pub/a/2002/10/16/xquery.html

www.brics.dk/~amoeller/XML/querying

Or see Ramakrishnan & Gehrke text

Lecture modified from slides by Dan Suciu

xml vs relational data
{ row: { name: “John”, phone: 3634 },

row: { name: “Sue”, phone: 6343 },

row: { name: “Dick”, phone: 6363 }

}

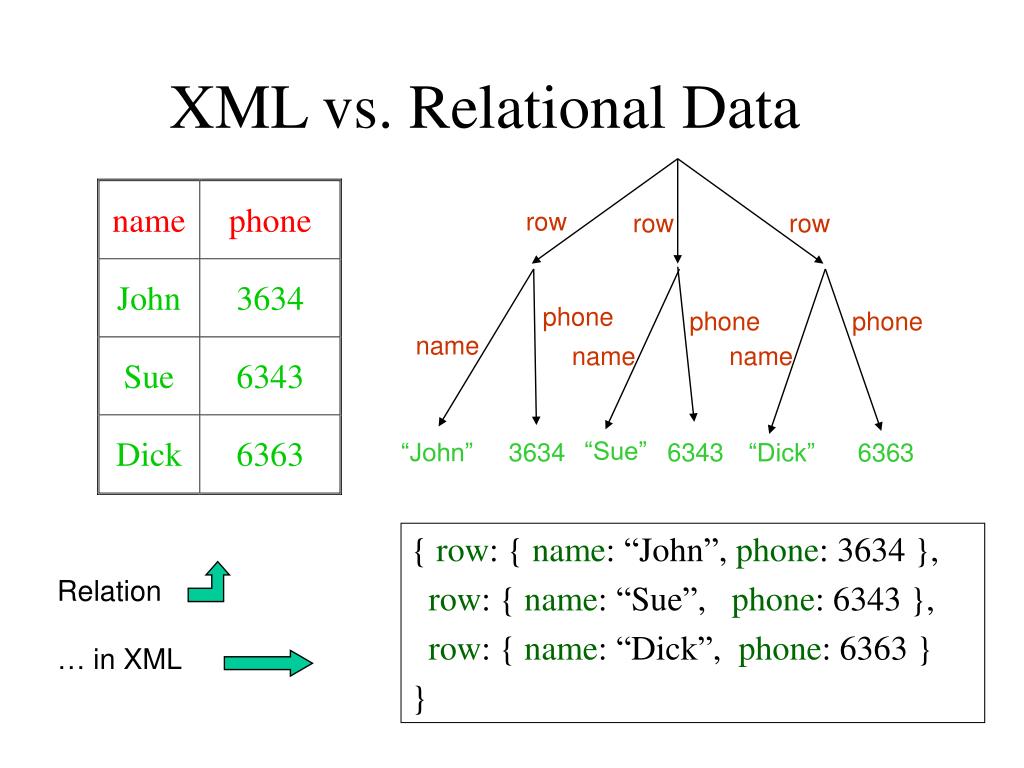

XML vs. Relational Data

row

row

row

phone

phone

phone

name

name

name

“Sue”

“John”

3634

6343

“Dick”

6363

Relation

… in XML

relational to xml data
Relational to XML Data
  • A relation instance is basically a tree with:
    • Unbounded fanout at level 1 (i.e., any # of rows)
    • Fixed fanout at level 2 (i.e., fixed # fields)
  • XML data is essentially an arbitrary tree
    • Unbounded fanout at all nodes/levels
    • Any number of levels
    • Variable # of children at different nodes, variable path lengths
query language for xml
Query Language for XML
  • Must be high-level; “SQL for XML”
  • Must conform to XSchema
    • But also work in absence of schema info
  • Support simple and complex/nested datatypes
  • Support universal and existential quantifiers, aggregation
  • Operations on sequences and hierarchies of doc structures
  • Capability to transform and create XML structures
xquery

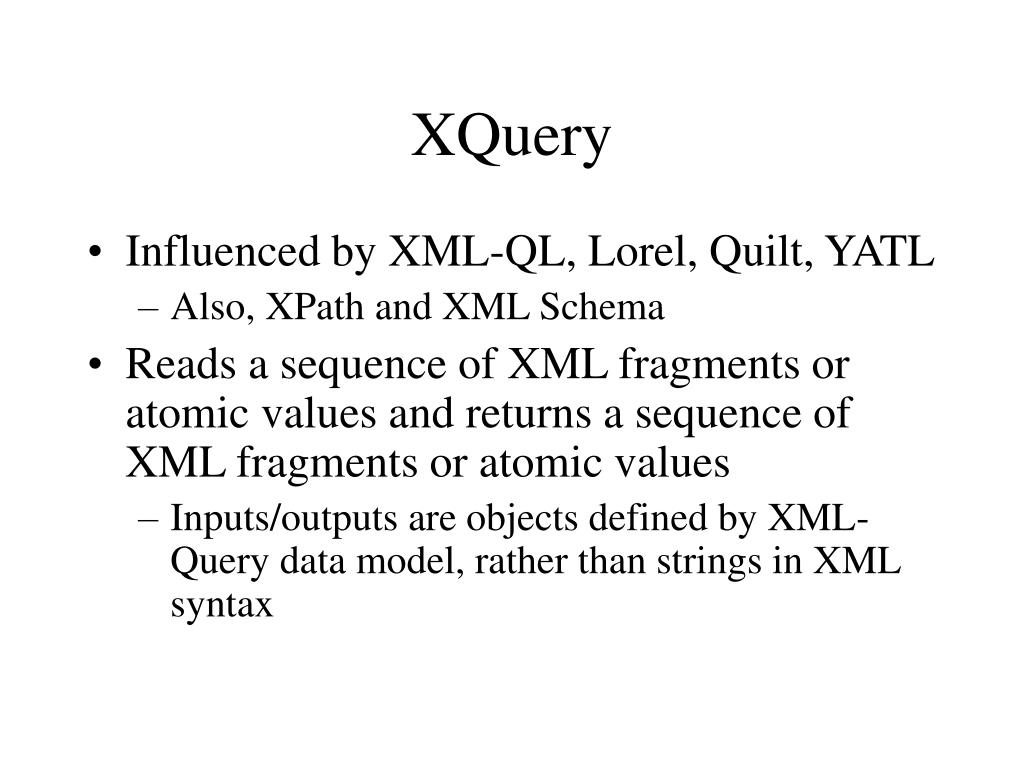

XQuery
  • Influenced by XML-QL, Lorel, Quilt, YATL
    • Also, XPath and XML Schema
  • Reads a sequence of XML fragments or atomic values and returns a sequence of XML fragments or atomic values
    • Inputs/outputs are objects defined by XML-Query data model, rather than strings in XML syntax
overview of xquery
Overview of XQuery
  • Path expressions
  • Element constructors
  • FLWOR (“flower”) expressions
    • Several other kinds of expressions as well, including conditional expressions, list expressions, quantified expressions, etc.
  • Expressions evaluated w.r.t. a context:
    • Context item (current node)
    • Context position (in sequence being processed)
    • Context size (of the sequence being processed)
    • Context also includes namespaces, variables, functions, date, etc.
path expressions
Path Expressions

Examples:

  • Bib/paper
  • Bib/book/publisher
  • Bib/paper/author/lastname

Given an XML document, the value of a path expression p is a set of objects

path expression examples
Path Expression Examples

Bib

&o1

paper

paper

book

Doc =

references

&o12

&o24

&o29

references

references

author

page

author

year

author

title

http

title

title

publisher

author

author

author

&o43

&25

&o44

&o45

&o46

&o52

&96

1997

&o51

&o50

&o49

&o47

&o48

first

last

firstname

lastname

lastname

firstname

&o70

&o71

&243

&206

“Serge”

“Abiteboul”

“Victor”

122

133

“Vianu”

Bib/paper = <&o12,&o29>

Bib/book/publisher = <&o51>

Bib/paper/author/lastname = <&o71,&206>

Note that order of

elements matters!

element construction

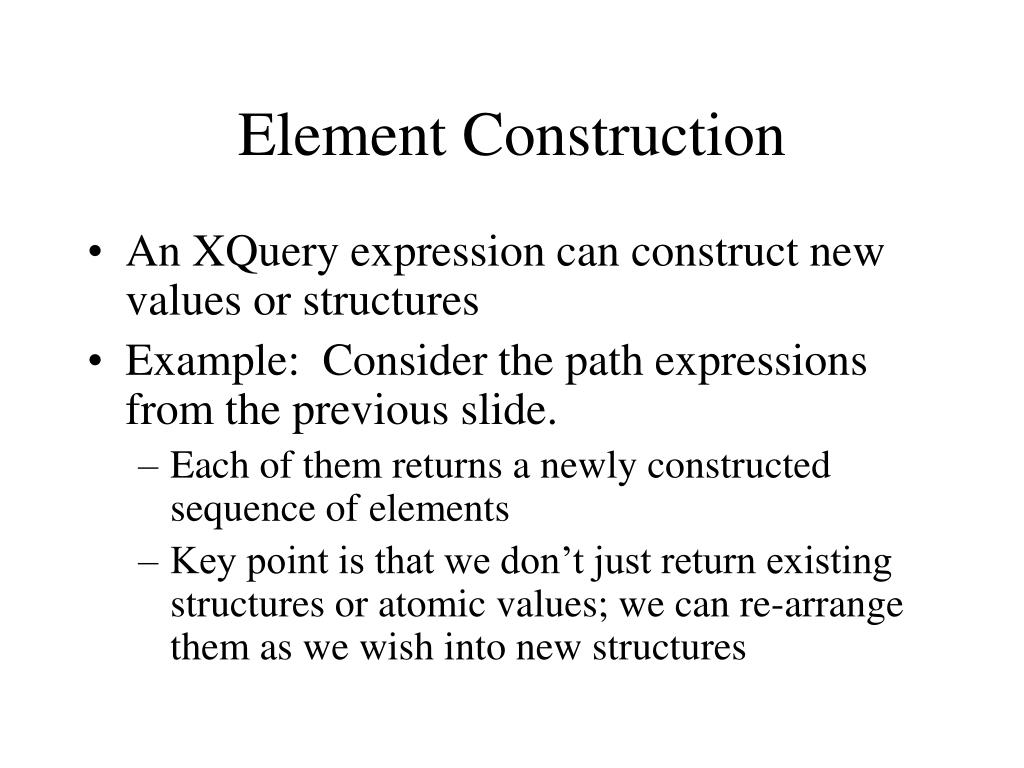

Element Construction
  • An XQuery expression can construct new values or structures
  • Example: Consider the path expressions from the previous slide.
    • Each of them returns a newly constructed sequence of elements
    • Key point is that we don’t just return existing structures or atomic values; we can re-arrange them as we wish into new structures
flwor expressions

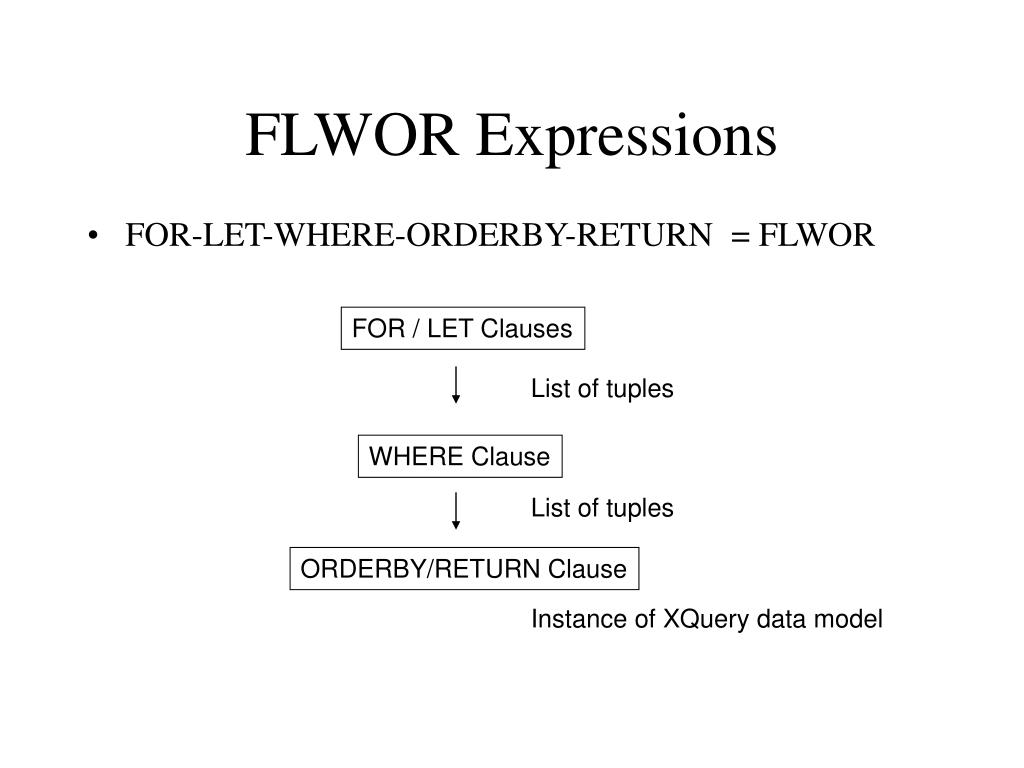

FLWOR Expressions
  • FOR-LET-WHERE-ORDERBY-RETURN = FLWOR

FOR / LET Clauses

List of tuples

WHERE Clause

List of tuples

ORDERBY/RETURN Clause

Instance of XQuery data model

for vs let
FOR vs. LET
  • FOR$xIN list-expr
    • Binds $x in turn to each value in the list expr
  • LET$x = list-expr
    • Binds $x to the entire list expr
    • Useful for common sub-expressions and for aggregations
for vs let example

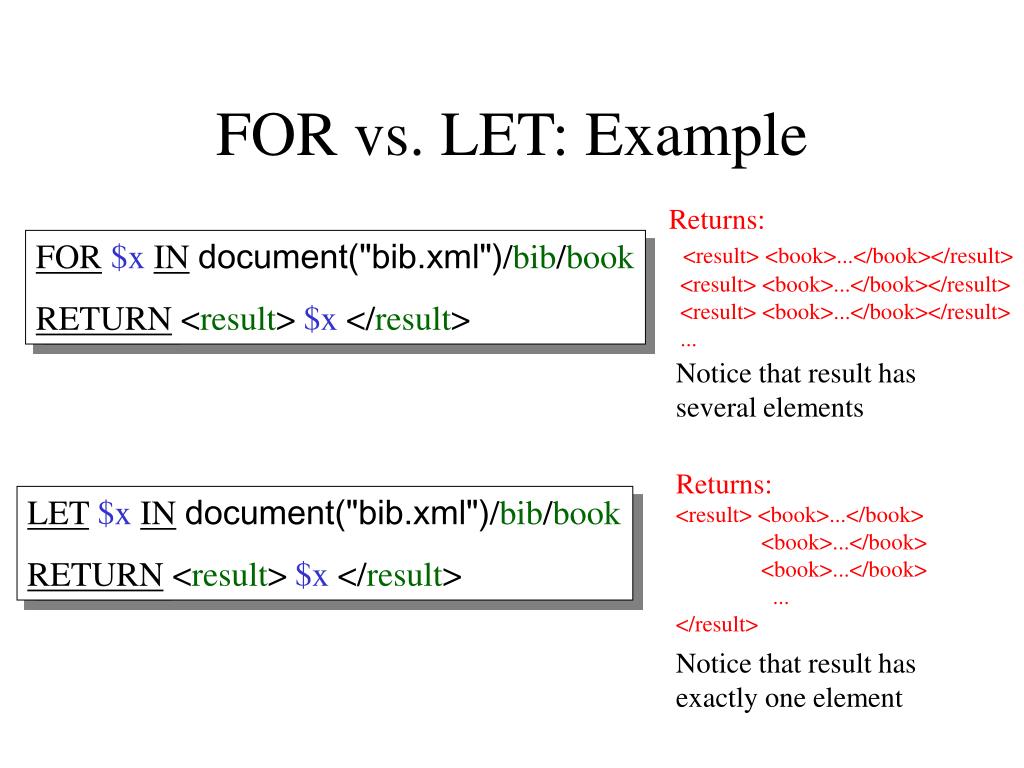

FOR vs. LET: Example

Returns:

<result> <book>...</book></result>

<result> <book>...</book></result>

<result> <book>...</book></result>

...

FOR$xINdocument("bib.xml")/bib/book

RETURN <result> $x </result>

Notice that result has

several elements

Returns:

<result> <book>...</book>

<book>...</book>

<book>...</book>

...

</result>

LET$xINdocument("bib.xml")/bib/book

RETURN <result> $x </result>

Notice that result has

exactly one element

xquery example 1

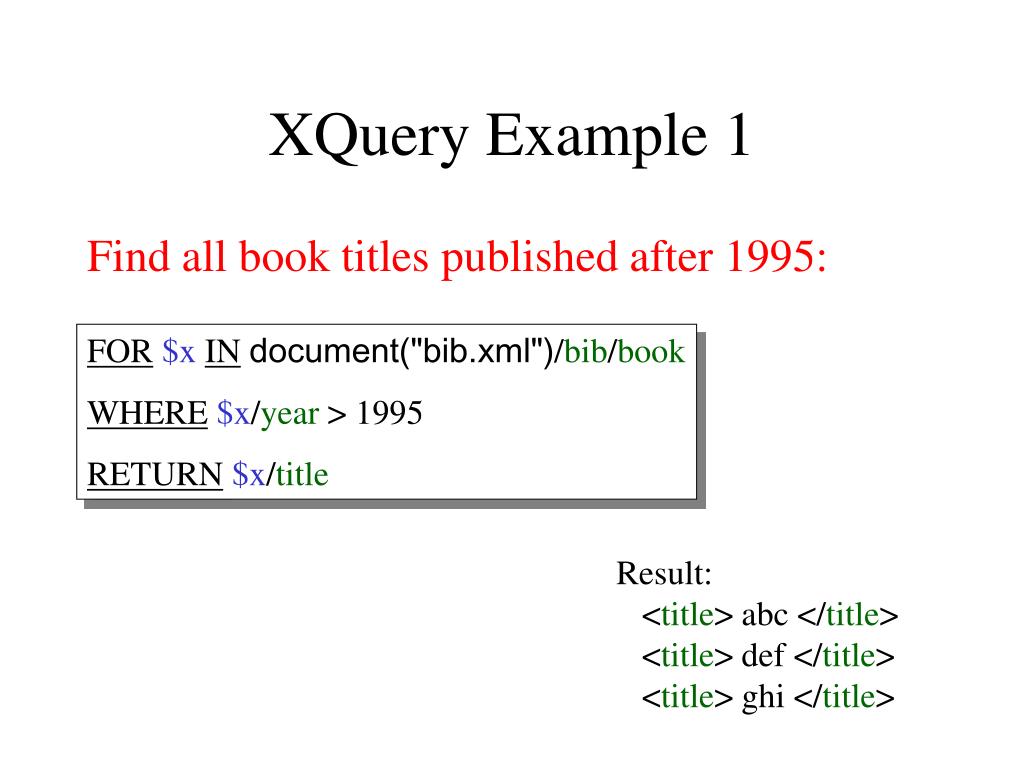

XQuery Example 1

Find all book titles published after 1995:

FOR$xINdocument("bib.xml")/bib/book

WHERE$x/year > 1995

RETURN$x/title

Result:

<title> abc </title>

<title> def </title>

<title> ghi </title>

xquery example 2

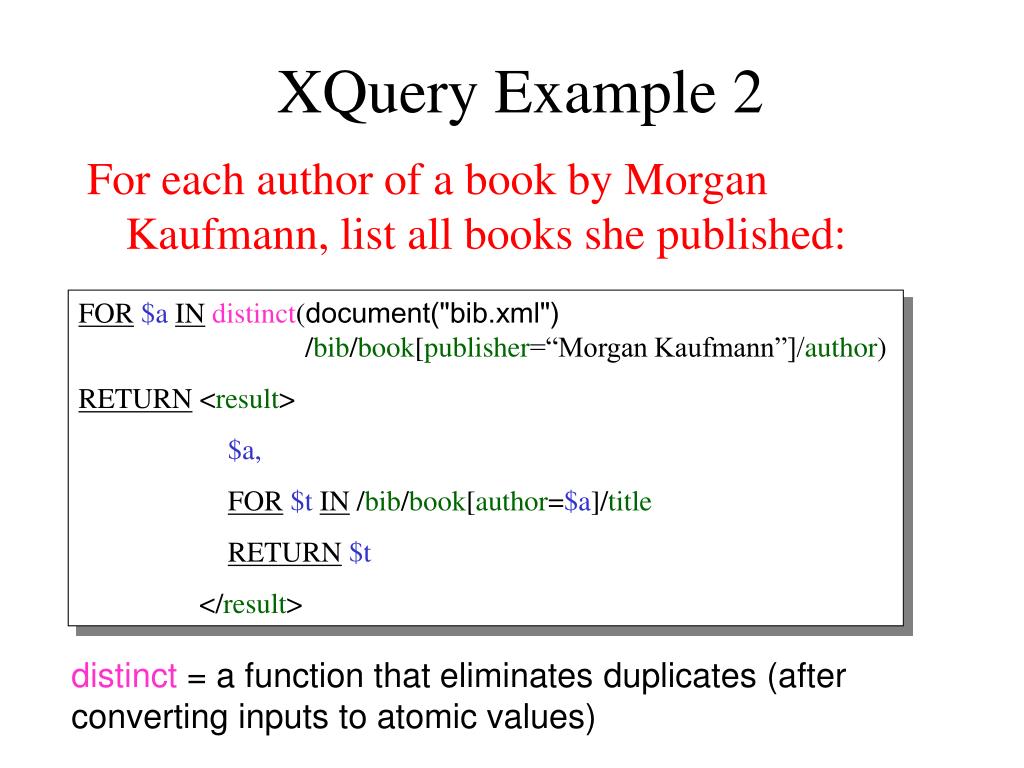

XQuery Example 2

For each author of a book by Morgan Kaufmann, list all books she published:

FOR$aINdistinct(document("bib.xml")/bib/book[publisher=“Morgan Kaufmann”]/author)

RETURN <result>

$a,

FOR$tIN /bib/book[author=$a]/title

RETURN$t

</result>

distinct = a function that eliminates duplicates (after

converting inputs to atomic values)

results for example 2
Results for Example 2

<result>

<author>Jones</author>

<title> abc </title>

<title> def </title>

</result>

<result>

<author> Smith </author>

<title> ghi </title>

</result>

Observe how nested structure of result elements is determined by the nested structure of the query.

xquery example 3
XQuery Example 3

<big_publishers>

FOR$pINdistinct(document("bib.xml")//publisher)

LET$b := document("bib.xml")/book[publisher = $p]

WHEREcount($b) > 100

RETURN$p

</big_publishers>

For each publisher p

  • Let the list of books
  • published by p be b

Count the # books in b, and return p if b > 100

count = (aggregate) function that returns the

number of elements

xquery example 4
XQuery Example 4

Find books whose price is larger than average:

LET$a=avg(document("bib.xml")/bib/book/price)

FOR$b in document("bib.xml")/bib/book

WHERE$b/price > $a

RETURN$b

collections in xquery

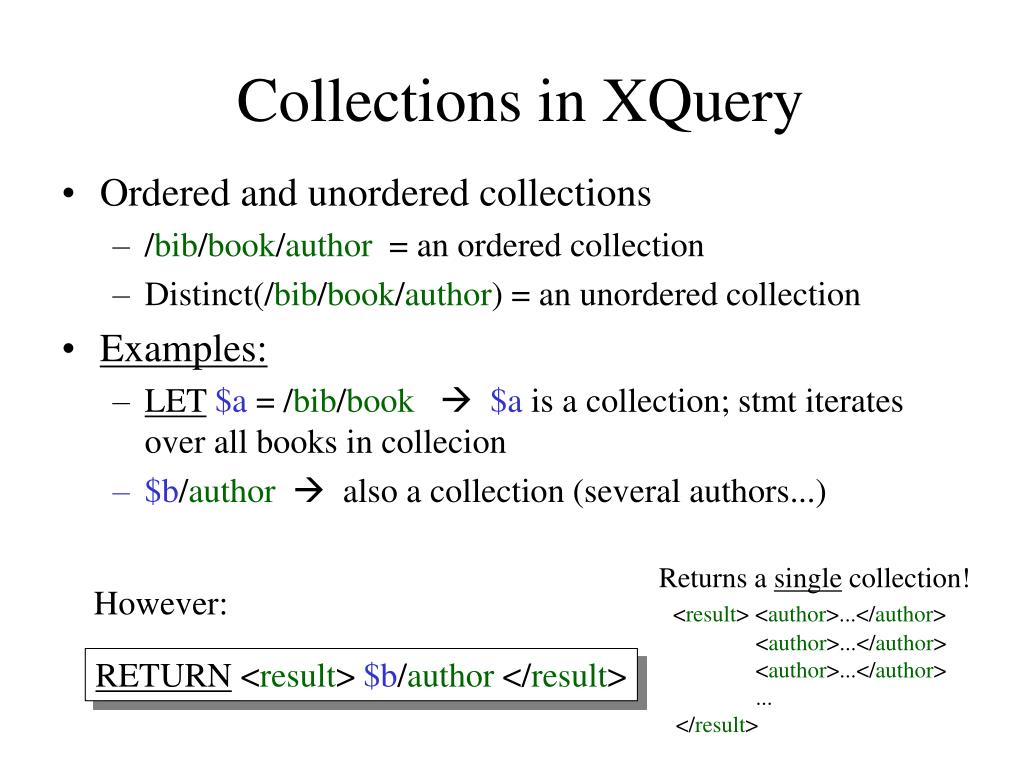

Collections in XQuery
  • Ordered and unordered collections
    • /bib/book/author = an ordered collection
    • Distinct(/bib/book/author) = an unordered collection
  • Examples:
    • LET$a = /bib/book $a is a collection; stmt iterates over all books in collecion
    • $b/author  also a collection (several authors...)

Returns a single collection!

<result> <author>...</author>

<author>...</author>

<author>...</author>

...

</result>

However:

RETURN <result> $b/author </result>

collections in xquery19
Collections in XQuery

What about collections in expressions ?

  • $b/price list of n prices
  • $b/price * 0.7  list of n numbers??
  • $b/price * $b/quantity  list of n x m numbers ??
    • Valid only if the two sequences have at most one element
    • Atomization
  • $book1/author eq "Kennedy" - Value Comparison
  • $book1/author = "Kennedy" - General Comparison
sorting in xquery

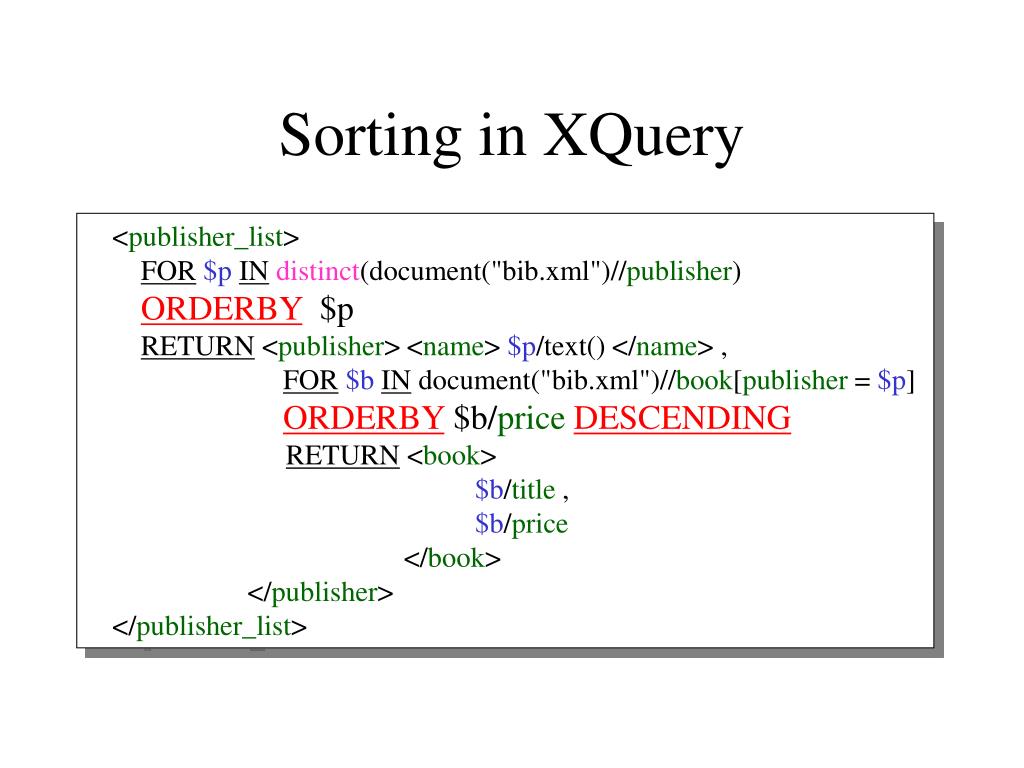

Sorting in XQuery

<publisher_list>

FOR$pINdistinct(document("bib.xml")//publisher)

ORDERBY $p

RETURN <publisher> <name> $p/text() </name> ,

FOR$bIN document("bib.xml")//book[publisher = $p]

ORDERBY$b/priceDESCENDING

RETURN <book>

$b/title ,

$b/price

</book>

</publisher>

</publisher_list>

conditional expressions if then else
Conditional Expressions: If-Then-Else

FOR$h IN //holding

ORDERBY $h/title

RETURN <holding>

$h/title,

IF$h/@type = "Journal"

THEN$h/editor

ELSE$h/author

</holding>

existential quantifiers
Existential Quantifiers

FOR$b IN //book

WHERESOME$p IN $b//paraSATISFIES

contains($p, "sailing")

AND contains($p, "windsurfing")

RETURN$b/title

universal quantifiers
Universal Quantifiers

FOR$b IN //book

WHEREEVERY$p IN $b//paraSATISFIES

contains($p, "sailing")

RETURN$b/title

other stuff in xquery
Other Stuff in XQuery
  • Before and After
    • for dealing with order in the input
  • Filter
    • deletes some edges in the result tree
  • Recursive functions
  • Namespaces
  • References, links …
  • Lots more stuff …
xml schema

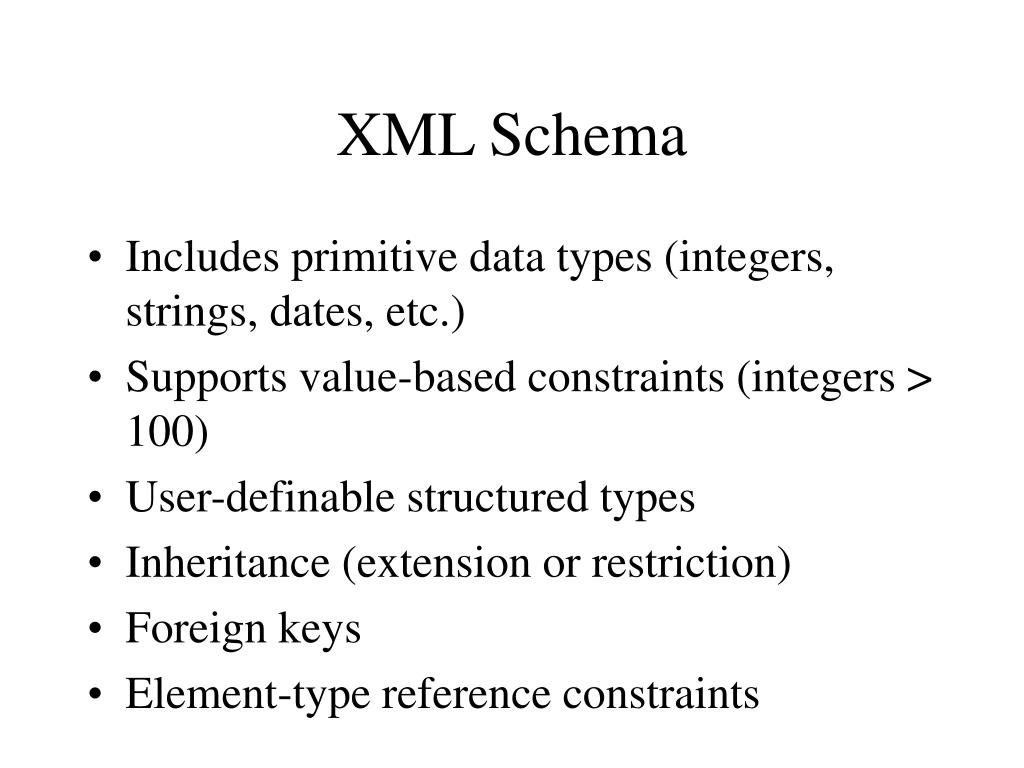

XML Schema
  • Includes primitive data types (integers, strings, dates, etc.)
  • Supports value-based constraints (integers > 100)
  • User-definable structured types
  • Inheritance (extension or restriction)
  • Foreign keys
  • Element-type reference constraints
sample xml schema
Sample XML Schema

<schema version=“1.0” xmlns=“http://www.w3.org/1999/XMLSchema”>

<element name=“author” type=“string” />

<element name=“date” type = “date” />

<element name=“abstract”>

<type>

</type>

</element>

<element name=“paper”>

<type>

<attribute name=“keywords” type=“string”/>

<element ref=“author” minOccurs=“0” maxOccurs=“*” />

<element ref=“date” />

<element ref=“abstract” minOccurs=“0” maxOccurs=“1” />

<element ref=“body” />

</type>

</element>

</schema>

xml query data model
XML-Query Data Model
  • Describes XML data as a tree
  • Node ::= DocNode | ElemNode |ValueNode | AttrNode | NSNode | PINode | CommentNode | InfoItemNode | RefNode

http://www.w3.org/TR/query-datamodel/2/2001

xml query data model29
XML-Query Data Model

Element node (simplified definition):

  • elemNode : (QNameValue, {AttrNode }, [ ElemNode | ValueNode])ElemNode
  • QNameValue = means “a tag name”

Reads: “Give me a tag, a set of attributes, a list of elements/values, and I will return an element”

xml query data model30
XML Query Data Model

Example:

book1= elemNode(book, {price2, currency3}, [title4, author5, author6, author7, year8])

price2 = attrNode(…) /* next */currency3 = attrNode(…)title4 = elemNode(title, string9)…

<bookprice = “55”

currency = “USD”>

<title> Foundations … </title>

<author> Abiteboul </author>

<author> Hull </author>

<author> Vianu </author>

<year> 1995 </year>

</book>
