INFO 630Evaluation of Information SystemsProf. Glenn Booker

Week 1 – Statistics foundation

INFO630 Week 1


Syllabus l.jpg
Syllabus

  • This class focuses on understanding the types of measurements which can support a software development or maintenance project, including many key business metrics

  • We will use the statistics program PASW (was SPSS) to manipulate data and generate graphs early in the course

INFO630 Week 1


Course overview l.jpg
Course overview

  • The course has three main objectives

    • How measurements are made (the statistical foundations); week 1

    • How to choose what to measure (GQ(I)M approach and Ishikawa’s tools); week 4

    • The rest of the course is devoted to understanding different types of measurements used for software development and maintenance

INFO630 Week 1


My background l.jpg

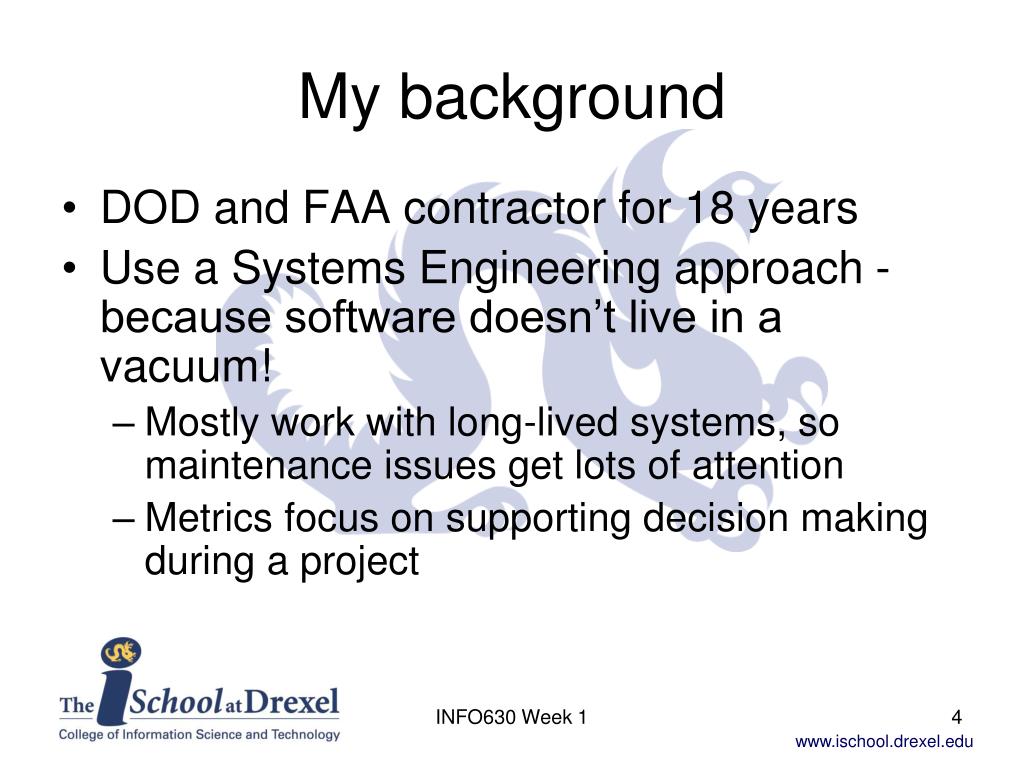

My background

  • DOD and FAA contractor for 18 years

  • Use a Systems Engineering approach - because software doesn’t live in a vacuum!

    • Mostly work with long-lived systems, so maintenance issues get lots of attention

    • Metrics focus on supporting decision making during a project

INFO630 Week 1


Week 1 overview l.jpg
Week 1 overview

  • Identify the need for better measurement in software projects

  • Discuss software life cycles

  • Discuss process and quality models (ISO 9000, CMMI, 6s, etc.)

  • Define measurement scales and basic measures

  • Introduce key statistical concepts: R2, 95% confidence interval, t-statistic

INFO630 Week 1


Software crisis l.jpg
Software Crisis

  • For every six new large-scale software systems put into operation, two others are canceled

  • Average software development project overshoots its schedule by 50%

  • Three quarters of all large scale systems are operating failures that either do not function as intended or are not used at all

INFO630 Week 1


Software crisis7 l.jpg
Software Crisis

  • Most computer code is handcrafted from raw programming languages by artisans using techniques they neither measure or are able to repeat consistently

  • There is a desperate need to evaluate software product and process through measurement and analysis

  • That’s why we have required this course!

INFO630 Week 1


Software life cycles l.jpg
Software Life Cycles

  • Some measurements are based on traditional software development life cycles, such as the waterfall life cycle

  • They can be adapted to other life cycles

INFO630 Week 1


Waterfall life cycle model l.jpg

Conceptual Development

RequirementsAnalysis

Architectural (High Level) Design

Detailed(Low Level)Design

Coding &Unit Test

SystemTesting

Waterfall LifeCycle Model

INFO630 Week 1


Waterfall model l.jpg
Waterfall Model

  • Conceptual Development includes defining the overall purpose of the product, who would use it, and how it relates to other products

  • Requirements Analysis includes definition of WHAT the product must do, such as performance goals, types of functionality, etc.

INFO630 Week 1


Waterfall model11 l.jpg
Waterfall Model

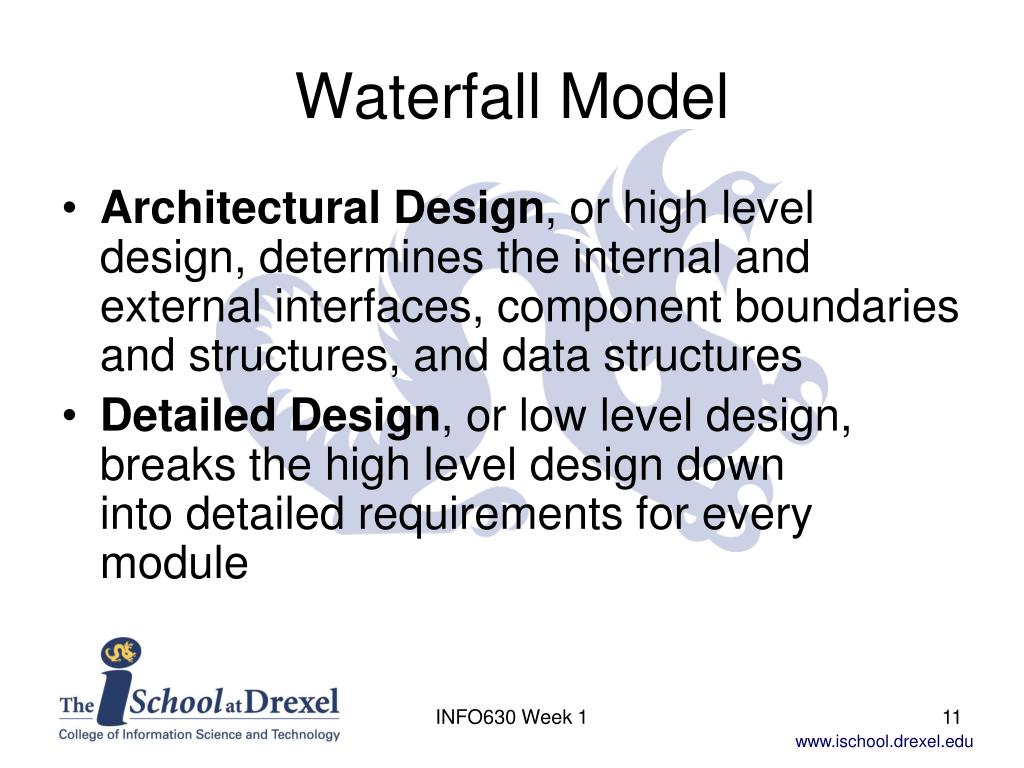

  • Architectural Design, or high level design, determines the internal and external interfaces, component boundaries and structures, and data structures

  • Detailed Design, or low level design, breaks the high level design down into detailed requirements for every module

INFO630 Week 1


Waterfall model12 l.jpg
Waterfall Model

  • Coding is the actual writing of source code, scripts, macros, and other artifacts

  • Unit Testing covers testing the functionality of each module against its requirements

  • System Testing can include “string” or component tests of several related modules, integration testing of several major components, and full scale system testing

INFO630 Week 1


Waterfall model13 l.jpg
Waterfall Model

  • After system testing, there may be early release options, such as alpha and beta testing, before official release of the product

  • Early releases test the ability of your organization to deliver and support the product, respond to customer inquiries, and fix problems

INFO630 Week 1


Prototyping life cycle l.jpg
Prototyping Life Cycle

  • When requirements are very unclear, an iterative prototyping approach can be used to resolve interface and feature requirements before the rest of development is done

    • Do preliminary requirements analysis

    • Iterate Quick Design, Build Prototype, Refine Design until customer is happy

INFO630 Week 1


Prototyping life cycle15 l.jpg
Prototyping Life Cycle

  • Then resume full scale development of the system using some other life cycle model

  • It’s critical to do quick development cycles during prototyping, or else you’re just redeveloping the whole system over and over

  • INFO630 Week 1


    Spiral life cycle l.jpg
    Spiral Life Cycle

    • Used for resolving severe risks before development begins, the spiral life cycle uses more types of techniques than just prototyping to resolve each big risk

      • Then another life cycle is used to develop the system

      • That’s a key point – the spiral life cycle isn’t used by itself!

    INFO630 Week 1


    Iterative life cycle l.jpg
    Iterative Life Cycle

    • Many modern techniques, such as the Rational Unified Process (RUP) advocate an iterative life cycle

    • RUP has four major phases, defined by the maturity of the system rather than traditional life cycle activities

      • Inception, Elaboration, Construction, and Transition

    INFO630 Week 1


    Iterative life cycle18 l.jpg
    Iterative Life Cycle

    • Like the spiral, iterative life cycles are driven by the need to resolve key risks, but here they are resolved all the way to implementation

      • Much more focus on early implementation of the core system, then building on it with each iteration

    INFO630 Week 1


    Cleanroom methodology l.jpg
    Cleanroom Methodology

    • The Cleanroom methodology is a mathematically rigorous approach to software development

      • Uses formal design specification, statistical testing, and no unit testing

      • Produces software with certifiable levels of reliability

      • Very rarely used in the US

    INFO630 Week 1


    Life cycle standards l.jpg
    Life Cycle Standards

    • The IEEE Software Engineering Standards are one source of information on many aspects of software development and maintenance

    • The standard ISO/IEC 12207, “Software Life Cycle Processes” has collected all major life cycle activities into one overall guidance document

    You can download ISO/IEC 12207 – see IEEE instructions on my web site

    INFO630 Week 1


    Who cares l.jpg
    Who cares…

    • …about statistics and measuring software activities?

      • The main models for guiding a software project, ISO 9000 and the Capability Maturity Model Integration (CMMI), both recommend use of statistical process control (SPC) techniques to help predict future performance by an organization

      • Six Sigma is all about SPC

    INFO630 Week 1


    Process maturity models l.jpg

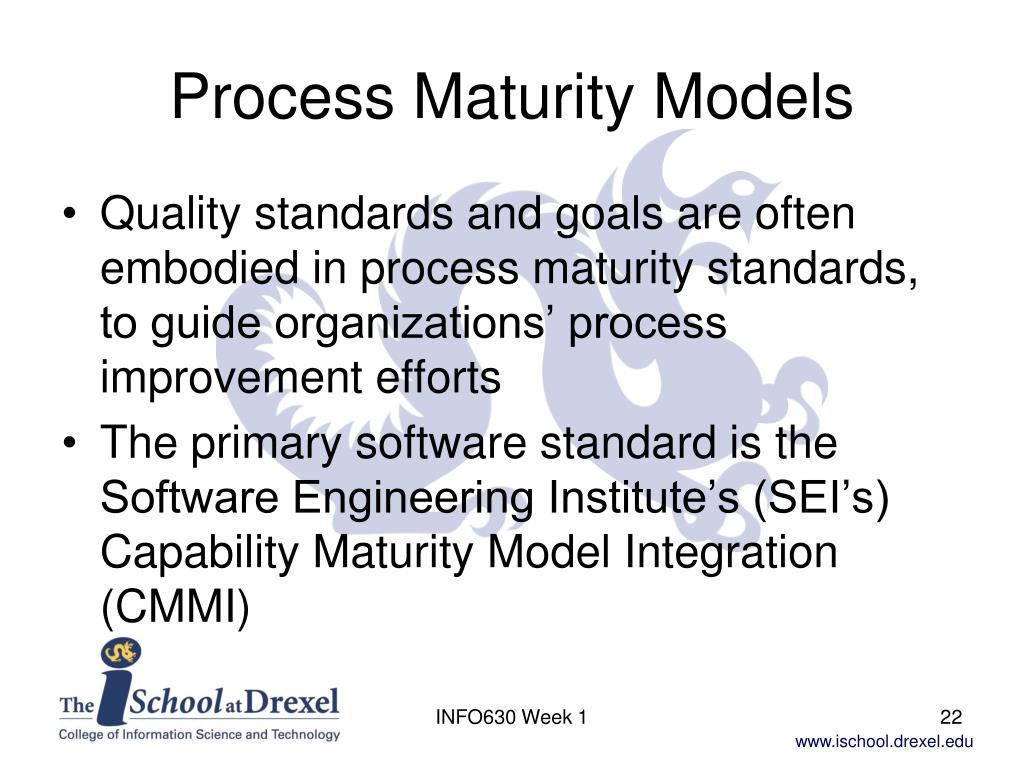

    Process Maturity Models

    • Quality standards and goals are often embodied in process maturity standards, to guide organizations’ process improvement efforts

    • The primary software standard is the Software Engineering Institute’s (SEI’s) Capability Maturity Model Integration (CMMI)

    INFO630 Week 1


    Slide23 l.jpg
    CMMI

    • Describes five maturity levels:

      • 1. Initial; all processes are ad hoc, chaotic, not well defined. Do your own thing.

      • 2. Repeatable; a project follows a set of defined processes for management and conduct of software development

    INFO630 Week 1


    Slide24 l.jpg
    CMMI

    • 3. Defined; every project within the organization follows processes tailored from a common set of templates

    • 4. Managed; statistical control over processes has been achieved

    • 5. Optimizing; defect prevention and application of innovative new process methods are used

    INFO630 Week 1


    Other cmm s l.jpg
    Other CMM’s

    • CMMI is based on the original CMM for Software (SW-CMM)

      • The latter led to many other variations before the models were “integrated” in 2000

    • The index of all SEI reports was ftp://ftp.sei.cmu.edu/public/documents/sei.documents.pdf

      • (File missing as of Sept. 2010)

    INFO630 Week 1


    Malcolm baldrige l.jpg
    Malcolm Baldrige

    • The Malcolm Baldrige National Quality Award (MBNQA) is a US-based quality award created in 1988 by the Department of Commerce

      • Includes a broader scope, such as customer satisfaction, strategic planning, and human resource management

    INFO630 Week 1


    Iso 9000 l.jpg
    ISO 9000

    • The international standard for quality management of an organization is ISO 9000

    • Now applies to almost every type of business, but was first used for manufacturing

      • Hence it includes activities like ‘calibration of tools’

    INFO630 Week 1


    Iso 900028 l.jpg
    ISO 9000

    • ISO 9000 is facility-based, whereas CMMI is organization-based

      • A building gets ISO 9000 certification, but a project or organization gets CMMI

    • Was revised and republished in 2008

      • Previous editions were 1987, 1994, and 2000

      • “ISO 9001:2008 and ISO 14001: 2004 are implemented by over a million organizations in 175 countries.” – from here

    INFO630 Week 1


    Six sigma l.jpg

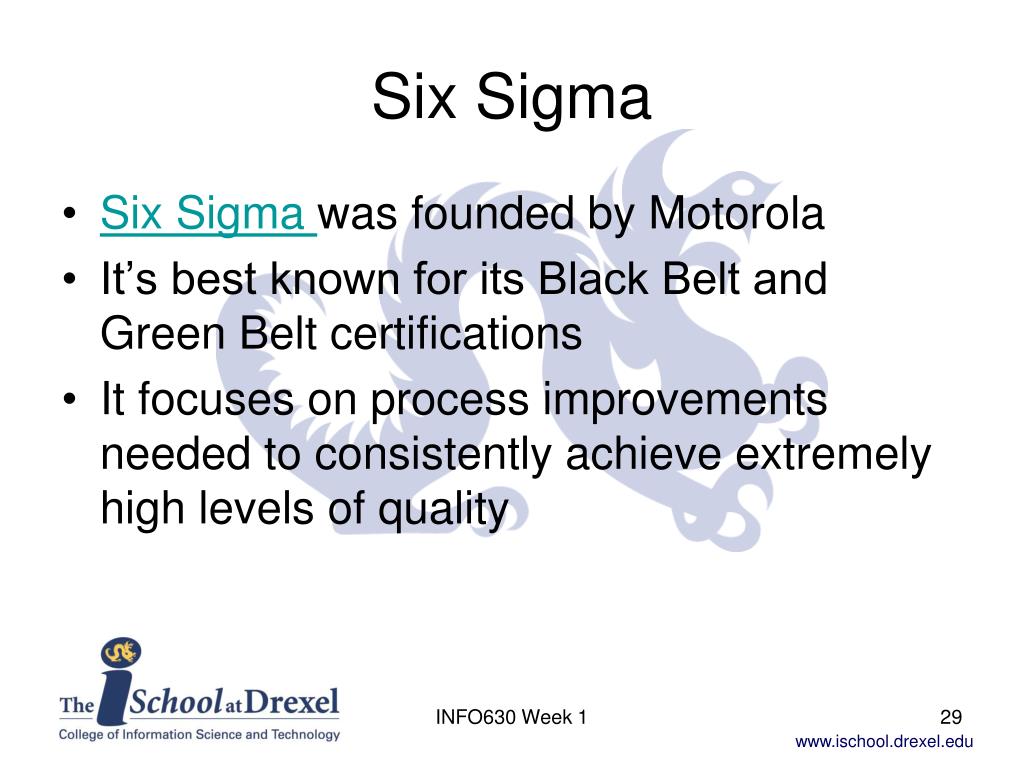

    Six Sigma

    • Six Sigma was founded by Motorola

    • It’s best known for its Black Belt and Green Belt certifications

    • It focuses on process improvements needed to consistently achieve extremely high levels of quality

    INFO630 Week 1


    Enter measurement l.jpg

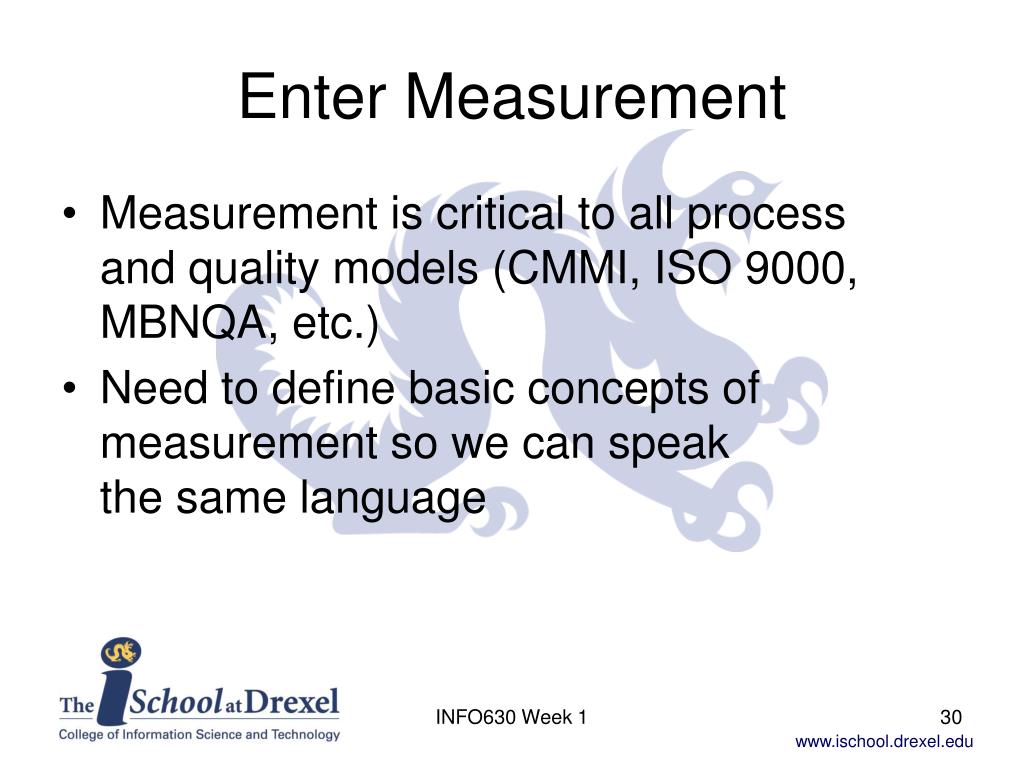

    Enter Measurement

    • Measurement is critical to all process and quality models (CMMI, ISO 9000, MBNQA, etc.)

    • Need to define basic concepts of measurement so we can speak the same language

    INFO630 Week 1


    Engineering in a nutshell l.jpg

    (Software or otherwise)

    Resources (People!)

    Technology and Tools

    Product

    Processes

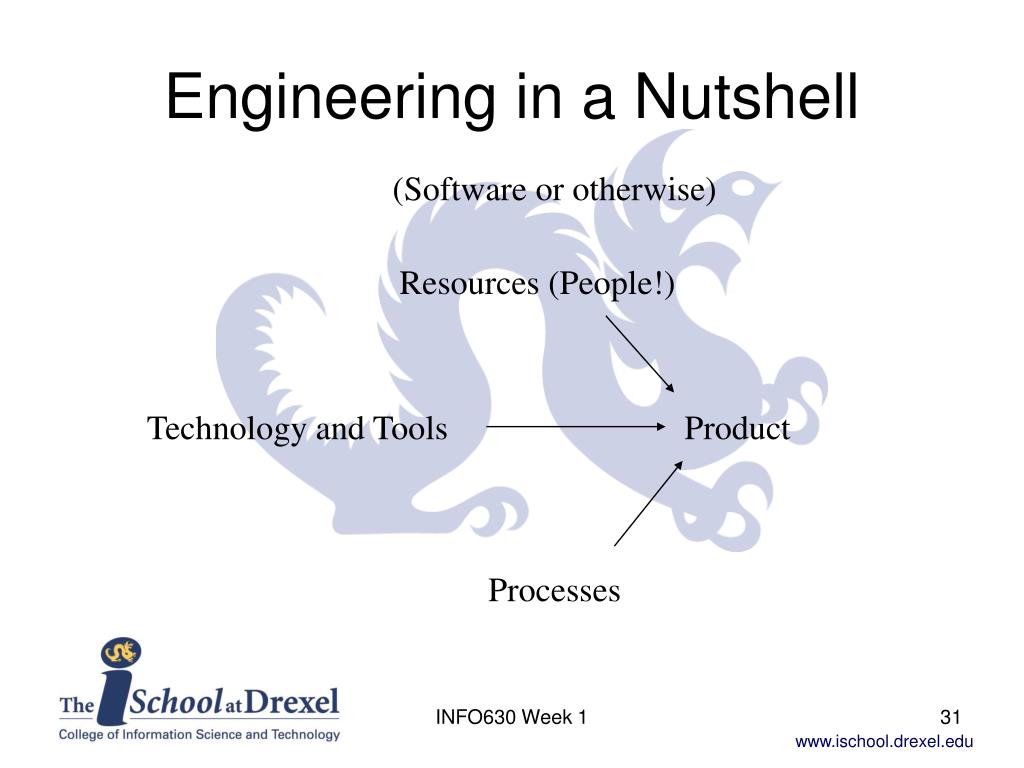

    Engineering in a Nutshell

    INFO630 Week 1


    Engineering in a nutshell32 l.jpg
    Engineering in a Nutshell

    • So in order to create any Product, we need Resources to use Tools in accordance with some Processes

    • Each of these major areas (Product, Resources, Tools, and Processes) can be a focus of measurement

    INFO630 Week 1


    Measurement needs l.jpg
    Measurement Needs

    • Statistical meaning - need long set of measurements for one project, and/or many projects

    • Could use measurement to test specific hypotheses

    • Industry uses of measurement are to help make decisions and track progress

    • Need scales to make measurements!

    INFO630 Week 1


    Measurement scales l.jpg
    Measurement Scales

    • The measurement scales form the French word for black, noir (as in “film noir”)

      • Nominal (least useful)

      • Ordinal

      • Interval

      • Ratio (most useful)

    • ‘NOIR’ is just a mnemonic to remember their sequence

    INFO630 Week 1


    Nominal scale l.jpg
    Nominal Scale

    • A nominal (“name”) scale groups or classifies things into categories, which:

      • Must be jointly exhaustive (cover everything)

      • Must be mutually exclusive (can’t be in two categories at once)

      • Are in any sequence (none better or worse)

    INFO630 Week 1


    Nominal scale36 l.jpg
    Nominal Scale

    • Common examples include

      • Gender, e.g. “This room contains 19 people, of whom 10 are female, and 9 male”

      • Portions of a system, e.g. suspension, drivetrain, body, etc.

      • Colors (5 blue shirts and 3 red shirts)

      • Job titles (though you could argue they’re hierarchical)

    INFO630 Week 1


    Ordinal scale l.jpg
    Ordinal Scale

    • This measurement ranks things in order

    • Sequence is important, but the intervals between ranks is not defined numerically

    • Rank is relative, such as “greater than” or “less than”

      • E.g. grades, CMM Maturity levels, inspection effectiveness ratings

    INFO630 Week 1


    Interval scale l.jpg
    Interval Scale

    • An interval scale measures quantitative differences, not just relative

    • Addition and subtraction are allowed

      • Only examples: common temperature scales (°F or C), or a single date (Feb 15, 1962)

      • Interval scale measurements are very rare!!

    • A zero point, if any, may be arbitrary (90 °F is *not* six times hotter than 15 °F!)

    INFO630 Week 1


    Ratio scale l.jpg
    Ratio Scale

    • A ratio scale is an interval scale with a non-arbitrary zero point

    • Allows division and multiplication

      • E.g. defect rates (defects/KSLOC), test scores, absolute temperature (K or R), anything you can count, lengths, weights, etc.

    • The “best” type of scale to use, whenever feasible

    INFO630 Week 1


    Scale hierarchy l.jpg
    Scale Hierarchy

    • Measurement scales are hierarchical:ratio (best) / interval / ordinal / nominal

    • Lower level scales can always be derived if data is from a higher scale

      • E.g. defect rates (a ratio scale) could be converted to {High, Medium, Low} or {Acceptable, Not Acceptable}, which are ordinal scales

    INFO630 Week 1


    Why are scales important l.jpg
    Why Are Scales Important?

    • The types of statistical analyses which are possible depend on the type of scale used for the measurements

      • In statistics, this is roughly broken into parametric tests (for interval or ratio scaled data) or non-parametric tests (for nominal or ordinal scaled data)

      • Some tests are more specific about the data scale(s) needed, e.g. a test might require ordinal data

    INFO630 Week 1


    Basic measures ratio l.jpg
    Basic Measures - Ratio

    • Used for two exclusive populations

      • Everything fits into one category or the other, never both

    • Ratio = (# of testers) : (# of developers)

    • E.g. tester to developer ratio is 1:4

    INFO630 Week 1


    Proportions and fractions l.jpg
    Proportions and Fractions

    • Used for multiple (> 2) populations

    • Proportion = (Number of this population) / (Total number of population)

    • Sum of all proportions equals unity

      • E.g. survey results

    • Proportions based on integer units; whereas fractions are based on real numbered units

      • E.g. what proportion of students answered A, B, C, or D on an exam question?

    INFO630 Week 1


    Percentage l.jpg
    Percentage

    • A proportion or fraction multiplied by 100 becomes a percentage

    • Only cite percentages when N (total population measured) is above ~30 to 50; always provide N for completeness

      • Why? Statistical methods are meaningless for very small populations

    INFO630 Week 1


    Slide45 l.jpg
    Rate

    • Rate conveys the change in a measurement, such as over time, dx/dt.

      • Rate = (# observed events / # of opportunities)*constant

    • Rate requires exposure to the riskbeing measured

      • E.g. defects per kSLOC = (# defects)/(# of kSLOC)*1000

    INFO630 Week 1


    Data analysis l.jpg
    Data Analysis

    • Raw data is collected, such as the date a particular problem was reported

    • Refined data is extracted from one or more raw data, e.g. the time it took that problem to be resolved

    • Refined data is analyzed to produce derived data, such as the average time to resolve problems

    INFO630 Week 1


    Models l.jpg
    Models

    • Focus on select elements of the problem at hand and ignores irrelevant ones

      • May show how parts of the problem relate to each other

      • May be expressed as equations, mappings, or diagrams, such as

        • Effort = a + b*SLOC

          • where SLOC = source lines of code

        • Effort = a*(SLOC)b

      • May be derived before or after measurement (theory vs. empirical)

    INFO630 Week 1


    Exponential notation l.jpg
    Exponential Notation

    • You might see output of the form +2.78E-12

      • This example means +2.78 * 10-12

      • A negative exponent, e.g. –12, makes it a small number, 10-12 is 0.000000000001

      • The leading number, here +2.78, controls whether it is a positive or negative number

    INFO630 Week 1


    Precision l.jpg
    Precision

    • Keep your final output to a consistent level of precision, e.g. don’t report one number as “12” and another as “11.862512598235678563256091”

    • Pick a reasonable level of precision (“significant digits”) similar to the accuracy of your inputs

    • Wait until the final answer to round off

    INFO630 Week 1


    Graphing l.jpg
    Graphing

    • A typical graph shows Y on the vertical axis, and X on the horizontal axis

      • Y is the dependent variable, and X is the independent variable, since you can pick any value of X and determine its matching value of Y iff (if and only if) Y is a function of X

    • PASW/SPSS will sometimes ask for X and Y, other times independent and dependent variables

    INFO630 Week 1


    Linear regression l.jpg
    Linear Regression

    y

    ^

    y

    y

    ^

    y = a + b*x

    ^

    y = y + e

    Choose the “best” line by minimizing the sum of the squares of the horizontal distances between the empirical points (your data) and the line

    x

    INFO630 Week 1


    What is r squared l.jpg
    What is R Squared?

    Coefficient of determination, R2, is a measure of the goodness of fit of a regression

    R2 ranges from 0 to 1.

    R2 = 1 is a perfect fit (all data points fall on the estimated line)

    R2 = 0 means that the variable(s) have no explanatory power

    Having R2 closer to 1 helps choose which math model is best suited to a problem

    INFO630 Week 1


    Slide53 l.jpg
    R?

    • All by itself, R is the 'correlation coefficient'

      R can be from -1 to +1

      R=+1 means perfect positive correlation (Y goes up as X goes up)

      R=-1 means perfect negative correlation (Y goes down as X goes up)

    • Yes, R and R2 have completely different names

    INFO630 Week 1


    Expressing uncertainty l.jpg
    Expressing Uncertainty

    • We can show the uncertainty in our measurements by putting the standard error after each term

    • A line is given in the form y = b0 + b1*x

    • Show standard errors with y = (b0 +/- seb0) + (b1 +/- seb1)*x

      • See example on next slide

    INFO630 Week 1


    Y 6 2 1 9 1 3 0 42 x l.jpg
    Y = (6.2+/-1.9) + (1.3 +/-0.42) X

    • The numbers in parentheses are the estimated coefficients, plus or minus the standard errors associated with those coefficients

      • In the example the constant parameter (here the y-intercept) was estimated to be 6.2 with a standard error of 1.9

      • The parameter associated with x (here, the slope) was estimated to be 1.3 with a standard error of 0.42

    INFO630 Week 1


    Level of confidence l.jpg
    Level of Confidence

    • Generally, we can say that the actual value of a parameter estimate is in the range of + 2 standard deviations of its estimated value with a 95% level of confidence

      • Thus the value of the constant parameter lies between 2.4 (i.e. 6.2 – 2*1.9) and 10.0 (=6.2 + 2*1.9) with a 95% level of confidence

      • With this level of confidence, the parameter estimate associated with x (slope) lies between .46 and 2.14

    INFO630 Week 1


    Level of confidence57 l.jpg
    Level of Confidence

    • The default level of confidence for statistical testing is 95%

    • Life-and death measurements (e.g. medical testing) use 99%

    • Some wimpy software studies might use level of confidence as low as 80%

      • Anything below 95% confidence is a sign of really weak data, and they’re struggling to find a connection

    INFO630 Week 1


    The t statistic l.jpg
    The “t” Statistic

    • The t-statistic is defined ast = (parameter estimate) / (standard error)

      • If |t| > 2 then the parameter estimate is significantly different from zero at the 95% level of confidence

      • In the example on slide 56:

        t = 6.2/1.9 = 3.26 for the constant term

        t = 1.3/0.42 = 3.1 for the slope

        Hence both terms are significantly different from zero.

      • Note: For very precise work, use |t| > 1.96 instead of 2

    INFO630 Week 1


    What can we ignore l.jpg
    What can we ignore?

    • If a parameter estimate associated with a variable is not significantly different from zero at the 95% level of confidence, then the variable should be omitted from the analysis

    • This is important later for seeing if a curve fit is useful; if the coefficients pass the T-test, they may be used

    INFO630 Week 1


    95 confidence interval l.jpg
    95% Confidence Interval

    • The 95% Confidence Interval (CI) helps limit how much of a data set’s distribution is practically possible

    • Any parameter with a measured mean and non-zero std error could fall in any range of values – though that range may be very unlikely to occur

    • The 95% CI lets us exclude everything outside of [mean +/- 2 std errors] as “too unlikely”

    INFO630 Week 1


    The normal distribution l.jpg
    The Normal Distribution

    • The “normal” or Gaussian distribution is the familiar bell shaped curve

      • It’s the basis for the 95% CI

    • The width of the distribution is measured by the standard deviation s

      • The area under the curve within +/- 1s from the middle covers 68.26% of all events

      • Within +/- 2s covers 95.44%

    INFO630 Week 1


    The normal distribution62 l.jpg
    The Normal Distribution

    • Within +/- 3s covers 99.73%

    • Within +/- 4s covers 99.9937%

    • Within +/- 5s covers 99.999943%

    • Within +/- 6s covers 99.9999998%

  • The Six Sigma quality objective is to have the number of defects under a few parts per million (ppm)

    • 3.4 ppm, for reasons discussed on their site, instead of the value implied above

  • INFO630 Week 1
