dimensional modeling

Dimensional Modeling

CS 543 – Data Warehousing

from requirements to data models
From Requirements to Data Models

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

logical data model
Logical Data Model
  • Logical data design includes identification of all data elements and the structures in which they are connected
    • Data elements
    • Data structures
  • Requirement gathering, and more specifically, information packages lead to the logical data design

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

dimensional modeling1
Dimensional Modeling
  • A logical data design technique to structure the business dimensions and the metrics that are analyzed along these dimensions
  • Dimensional modeling
    • Is intuitive for business
    • Has proven to be efficient for queries and analyses
  • Information packages are the foundation of dimensional modeling

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

fact table
Fact Table

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

dimension tables
Dimension Tables

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

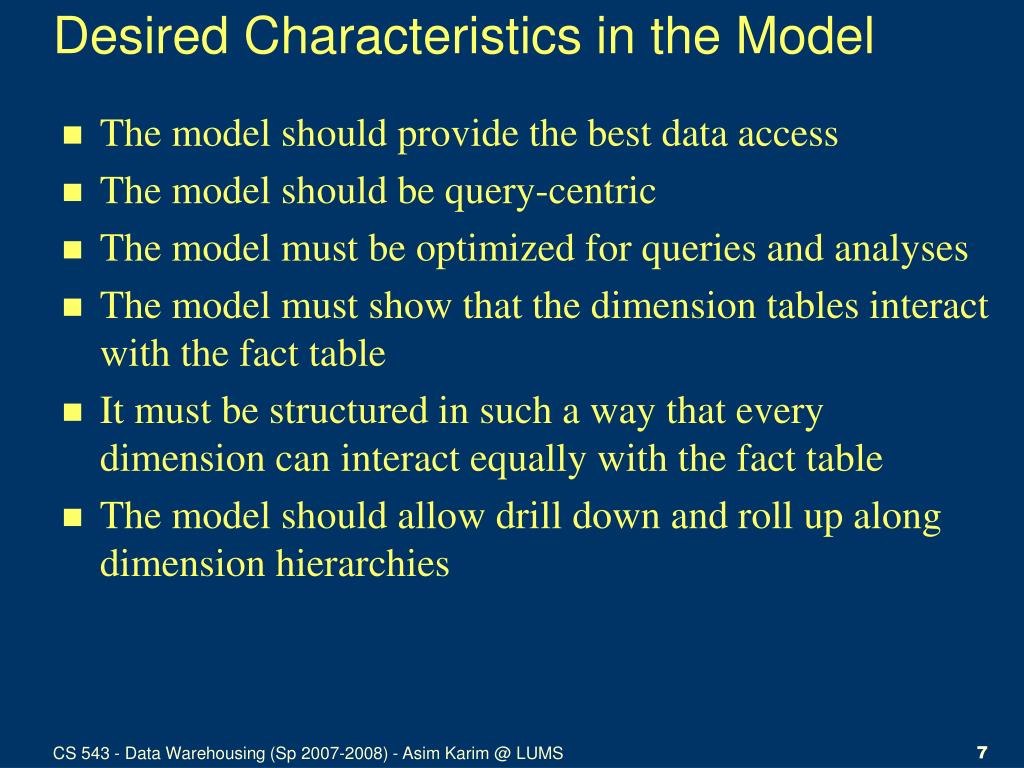

desired characteristics in the model
Desired Characteristics in the Model
  • The model should provide the best data access
  • The model should be query-centric
  • The model must be optimized for queries and analyses
  • The model must show that the dimension tables interact with the fact table
  • It must be structured in such a way that every dimension can interact equally with the fact table
  • The model should allow drill down and roll up along dimension hierarchies

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

the star schema
The Star Schema

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

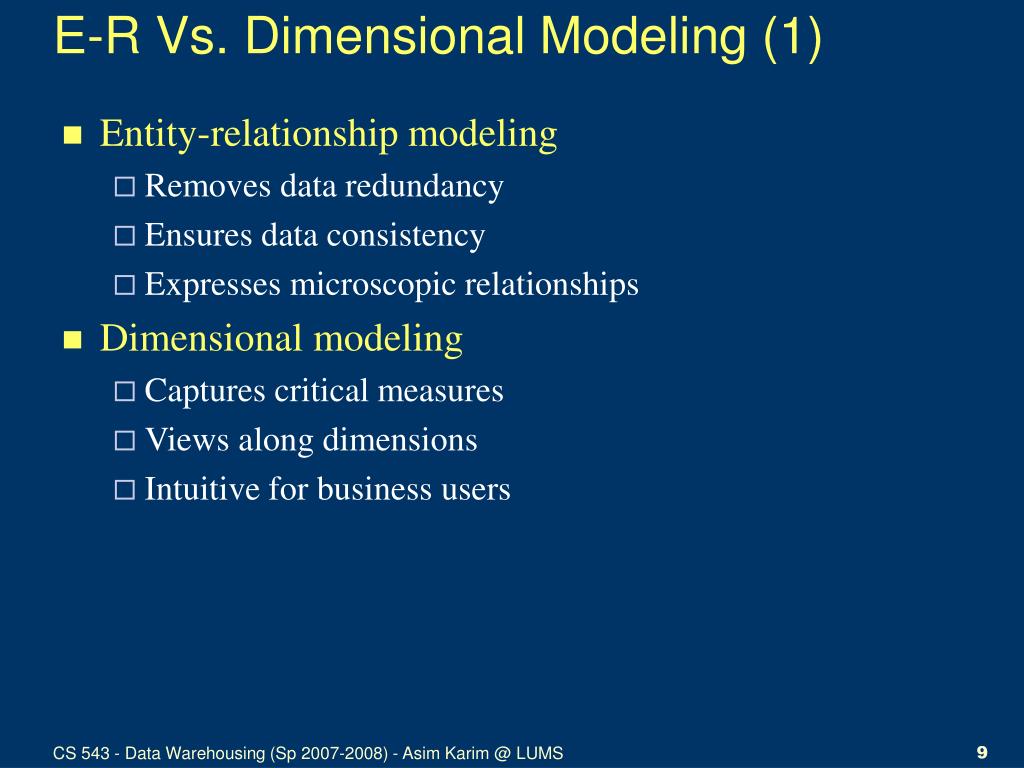

e r vs dimensional modeling 1
E-R Vs. Dimensional Modeling (1)
  • Entity-relationship modeling
    • Removes data redundancy
    • Ensures data consistency
    • Expresses microscopic relationships
  • Dimensional modeling
    • Captures critical measures
    • Views along dimensions
    • Intuitive for business users

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

e r vs dimensional modeling 2

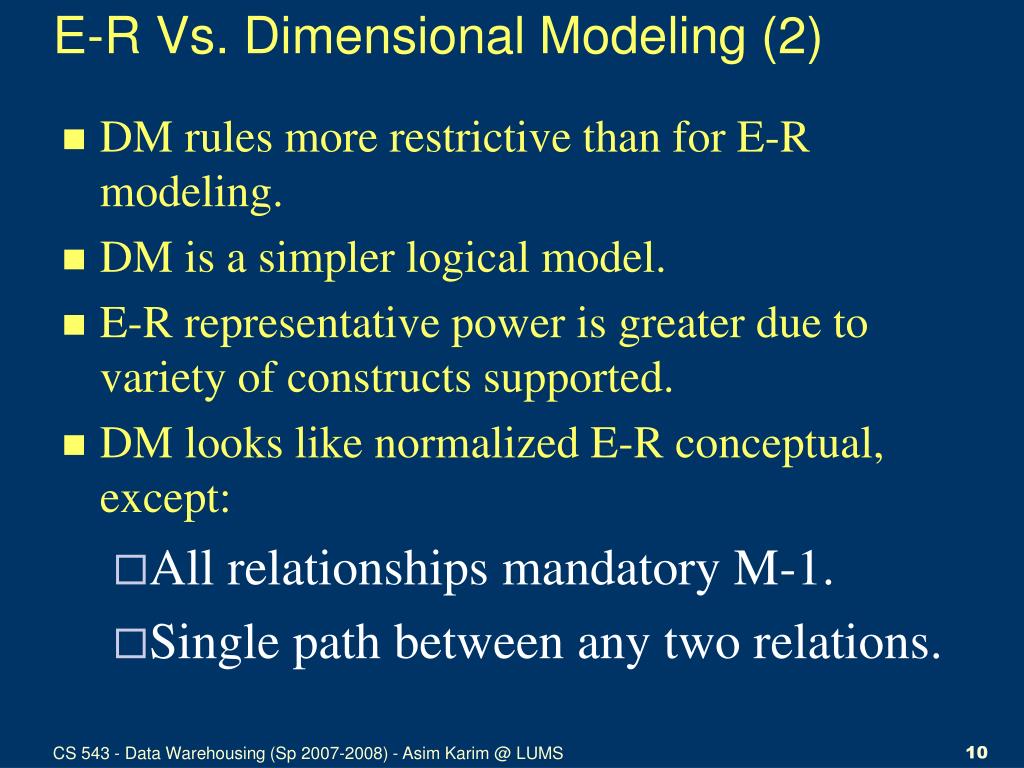

E-R Vs. Dimensional Modeling (2)
  • DM rules more restrictive than for E-R modeling.
  • DM is a simpler logical model.
  • E-R representative power is greater due to variety of constructs supported.
  • DM looks like normalized E-R conceptual, except:
    • All relationships mandatory M-1.
    • Single path between any two relations.

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

another example retail dimensions
Another Example: Retail Dimensions

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

star schema
Star Schema

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

querying against a star schema
Querying Against a Star Schema

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

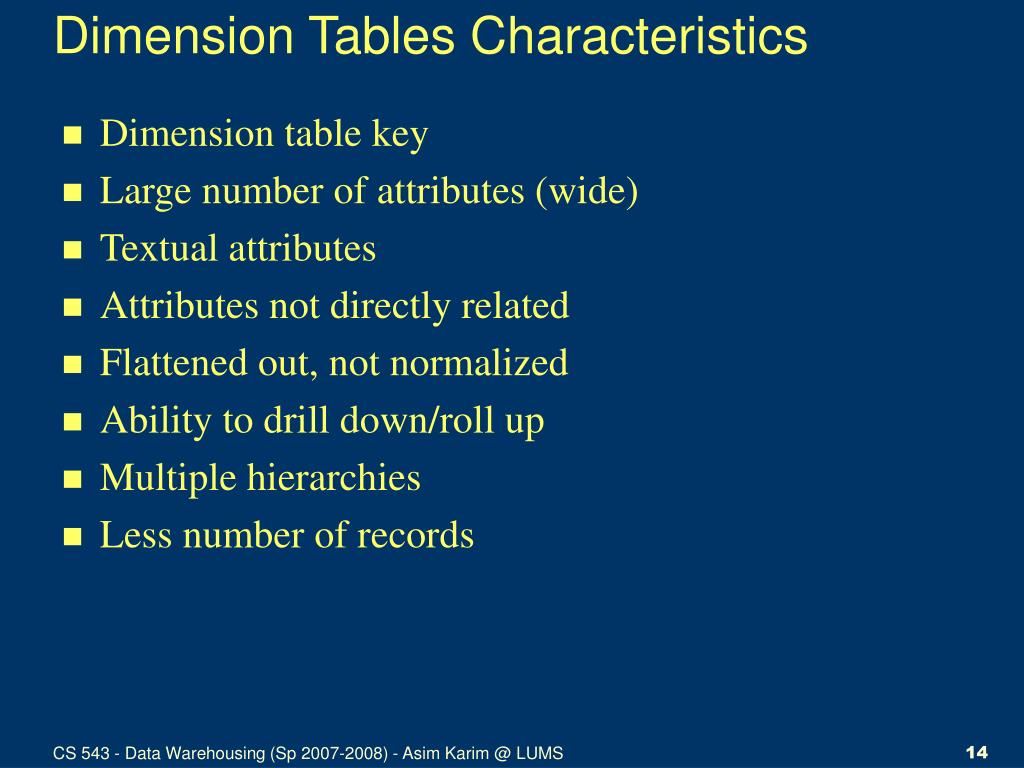

dimension tables characteristics
Dimension Tables Characteristics
  • Dimension table key
  • Large number of attributes (wide)
  • Textual attributes
  • Attributes not directly related
  • Flattened out, not normalized
  • Ability to drill down/roll up
  • Multiple hierarchies
  • Less number of records

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

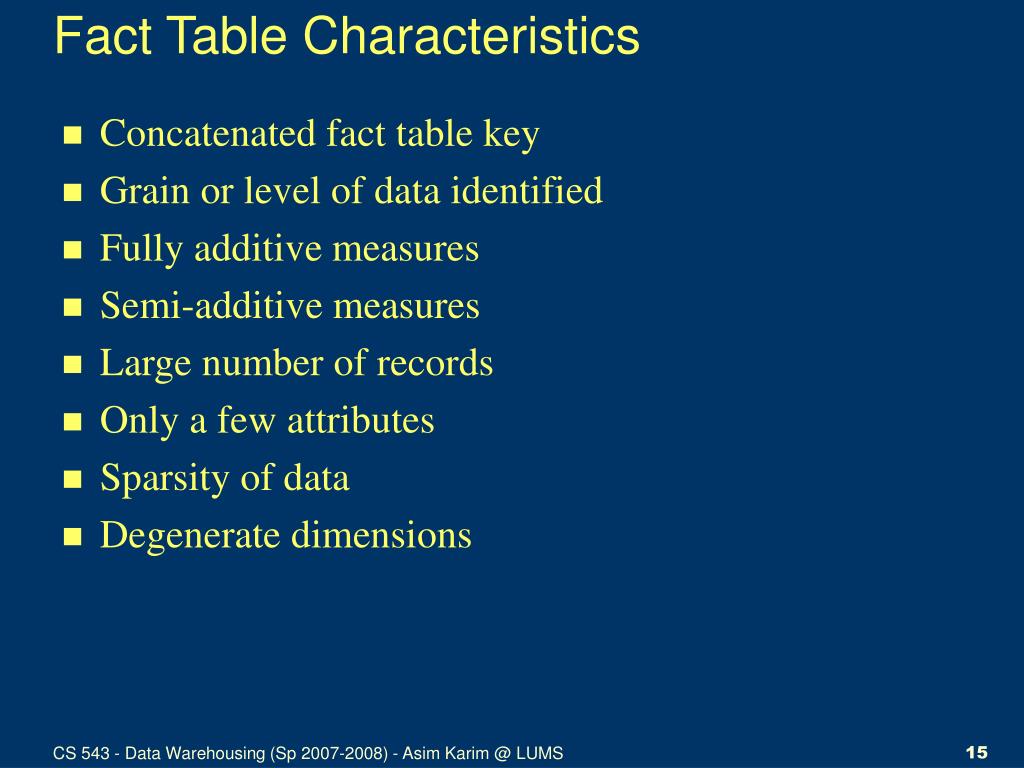

fact table characteristics
Fact Table Characteristics
  • Concatenated fact table key
  • Grain or level of data identified
  • Fully additive measures
  • Semi-additive measures
  • Large number of records
  • Only a few attributes
  • Sparsity of data
  • Degenerate dimensions

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

factless fact table
“Factless” Fact Table
  • If the metric or unit of analysis is occurrence or non-occurrence of an event, then the fact table will contain either 1 or nulls

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

data granularity 1
Data Granularity (1)
  • Actual events are tied to actual transactions (e.g., sales).
    • This corresponds to the lowest grain or highest detail
  • Accumulated events are the effect of accumulated transactions (e.g., inventory on hand).
    • This corresponds to a higher grain and lesser detail
  • Allowable events represent the “ability” to perform a transaction (e.g., carried products, a.k.a. plan-o-gram).
  • Actual events are typically more sparse than allowable events (e.g., a store carries more products than it sells each day).

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

data granularity 2
Data Granularity (2)
  • Low grain designs are easy to change (“graceful” change)
  • Low grain designs result in larger storage and maintenance costs

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

keys 1
Keys (1)
  • Be careful in picking and using operational system keys as keys for the dimension tables
    • Avoid built-in meanings in the primary keys of the dimension tables
    • Do not use operational system keys as primary keys of dimension tables
    • Use surrogate keys (system generated keys)
  • Keep a mapping between the surrogate and primary keys
    • Include the operational system primary key as an attribute in the dimension table

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

keys 2
Keys (2)

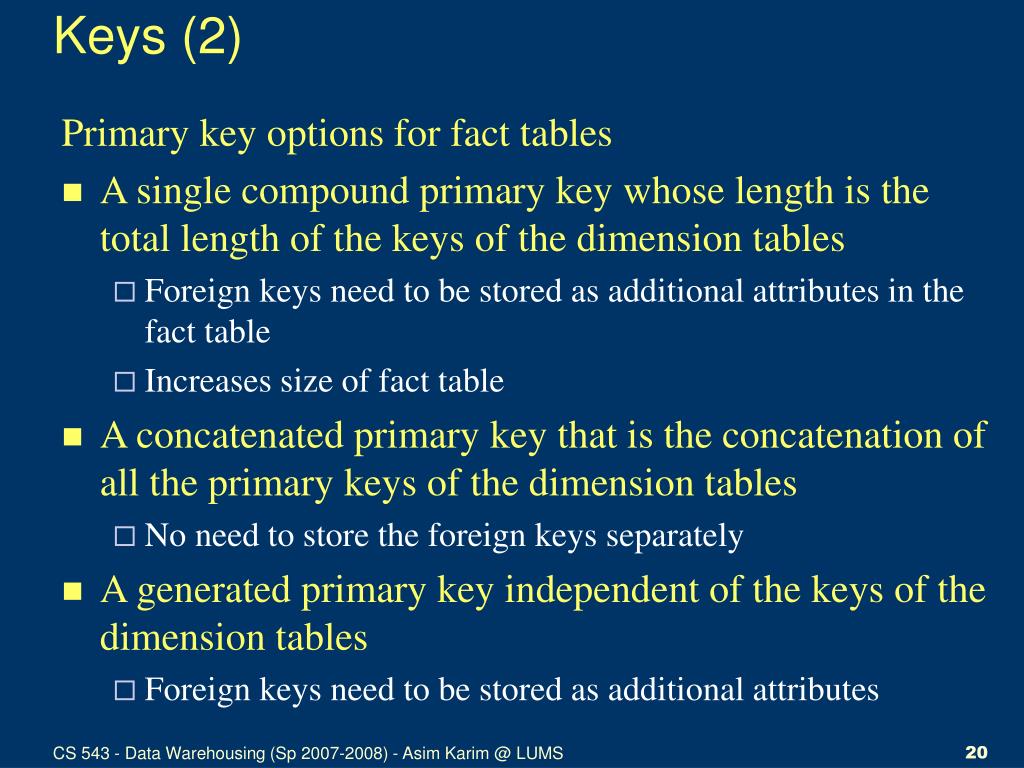

Primary key options for fact tables

  • A single compound primary key whose length is the total length of the keys of the dimension tables
    • Foreign keys need to be stored as additional attributes in the fact table
    • Increases size of fact table
  • A concatenated primary key that is the concatenation of all the primary keys of the dimension tables
    • No need to store the foreign keys separately
  • A generated primary key independent of the keys of the dimension tables
    • Foreign keys need to be stored as additional attributes

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

advantages of the star schema
Advantages of the Star Schema
  • Easy for users to understand
  • Optimizes navigation
  • More suitable for query processing
  • Star-join and star-index

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

updates

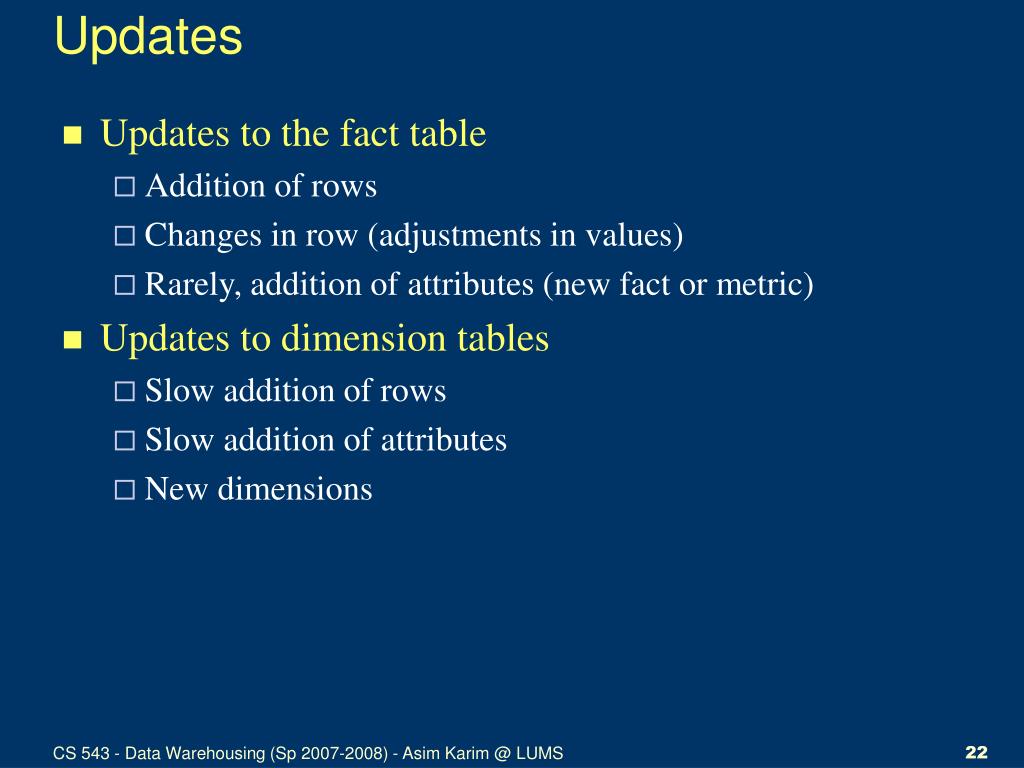

Updates
  • Updates to the fact table
    • Addition of rows
    • Changes in row (adjustments in values)
    • Rarely, addition of attributes (new fact or metric)
  • Updates to dimension tables
    • Slow addition of rows
    • Slow addition of attributes
    • New dimensions

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

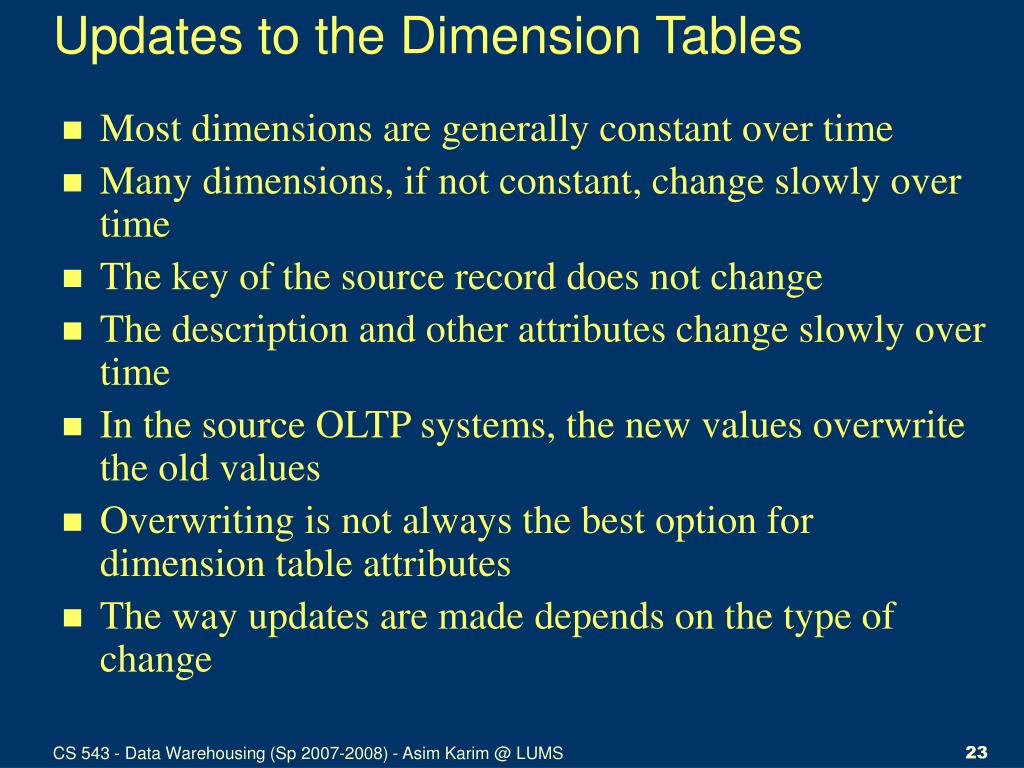

updates to the dimension tables
Updates to the Dimension Tables
  • Most dimensions are generally constant over time
  • Many dimensions, if not constant, change slowly over time
  • The key of the source record does not change
  • The description and other attributes change slowly over time
  • In the source OLTP systems, the new values overwrite the old values
  • Overwriting is not always the best option for dimension table attributes
  • The way updates are made depends on the type of change

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

type 1 changes correction of errors 2

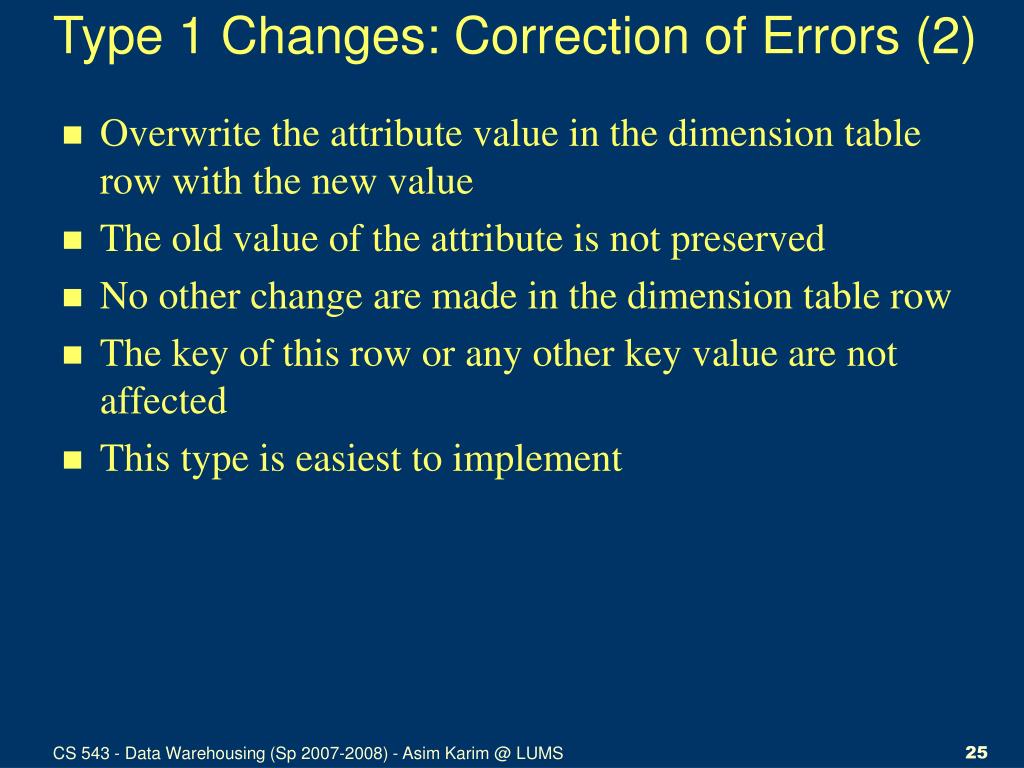

Type 1 Changes: Correction of Errors (2)
  • Overwrite the attribute value in the dimension table row with the new value
  • The old value of the attribute is not preserved
  • No other change are made in the dimension table row
  • The key of this row or any other key value are not affected
  • This type is easiest to implement

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

type 1 changes 2
Type 1 Changes (2)

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

type 2 changes preservation of history 1
Type 2 Changes: Preservation of History (1)
  • Properties
    • They usually relate to true changes in source systems
    • There is a need to preserve history in the data warehouse
    • This type of change partitions the history in the data warehouse
    • Every change for the same attribute must be preserved
  • Approach
    • Add a new dimension table row with the new value of the changed attribute
    • An effective data field may be added into the dimension table
    • There are no changes to the original row of the dimension table
    • The new row is inserted with a new surrogate key
    • The key of the original row is not affected

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

type 2 changes preservation of history 2
Type 2 Changes: Preservation of History (2)

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

type 3 changes tentative soft revisions 1
Type 3 Changes: Tentative Soft Revisions (1)
  • Properties
    • They usually apply to “soft” or tentative changes in the source systems
    • There is a need to keep track of history with old and new values of the changed attribute
    • They are used to compare performances across the transition
    • They provide the ability to track forward and backward
  • Approach
    • Add an “old” field in the dimension table for the affected attribute
    • Push down the existing value of the attribute from the “current” field to the “old” field
    • Keep the new value of the attribute in the “current” field
    • Also, you may add a “current” effective date field for the attribute
    • The key of the row is not affected
    • No new dimension row is needed

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

type 3 changes tentative soft revisions 2
Type 3 Changes: Tentative Soft Revisions (2)

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

large dimensions 1

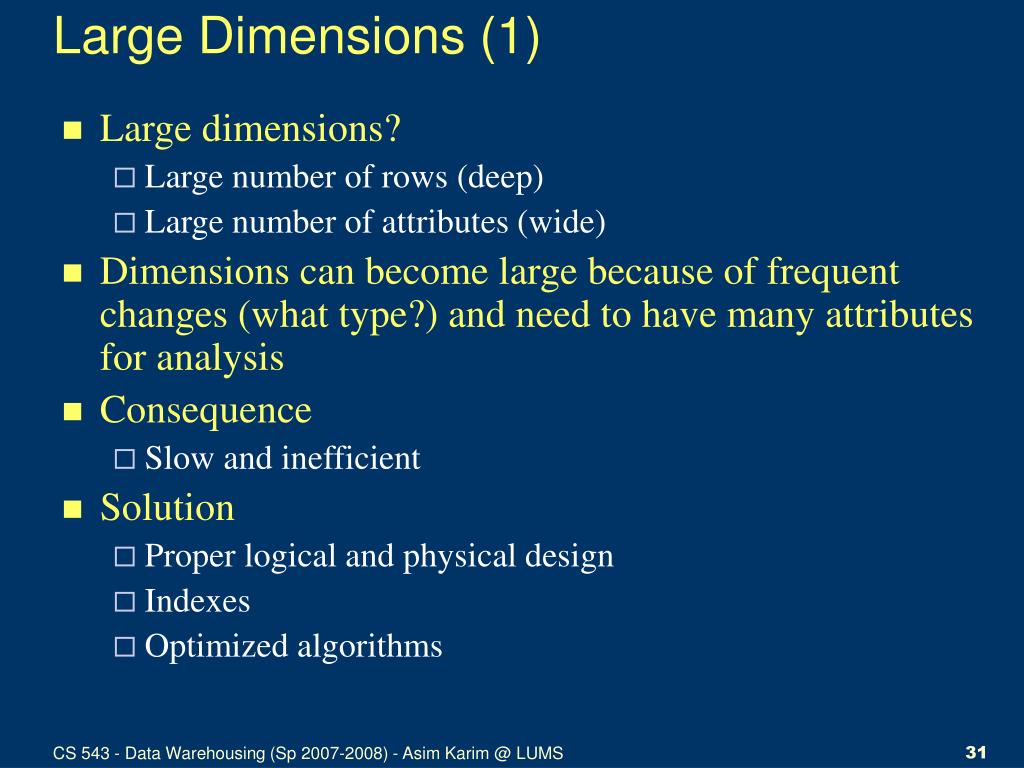

Large Dimensions (1)
  • Large dimensions?
    • Large number of rows (deep)
    • Large number of attributes (wide)
  • Dimensions can become large because of frequent changes (what type?) and need to have many attributes for analysis
  • Consequence
    • Slow and inefficient
  • Solution
    • Proper logical and physical design
    • Indexes
    • Optimized algorithms

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

large dimensions 2
Large Dimensions (2)

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

multiple hierarchies
Multiple Hierarchies

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

junk dimensions

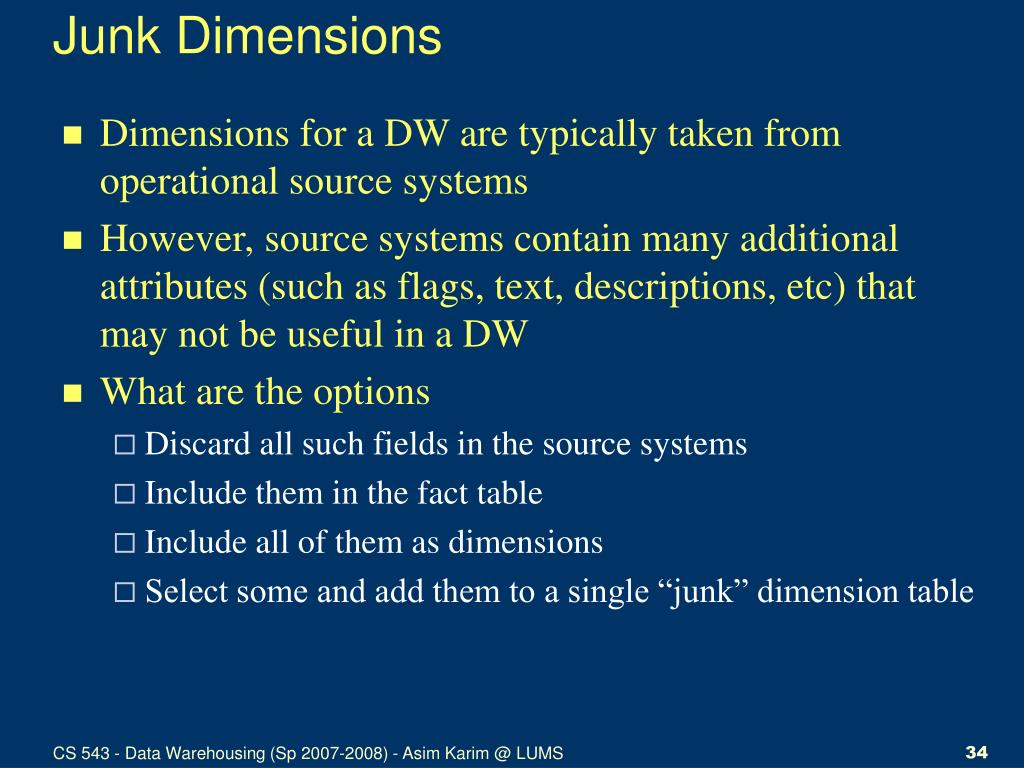

Junk Dimensions
  • Dimensions for a DW are typically taken from operational source systems
  • However, source systems contain many additional attributes (such as flags, text, descriptions, etc) that may not be useful in a DW
  • What are the options
    • Discard all such fields in the source systems
    • Include them in the fact table
    • Include all of them as dimensions
    • Select some and add them to a single “junk” dimension table

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS

the snowflake schema

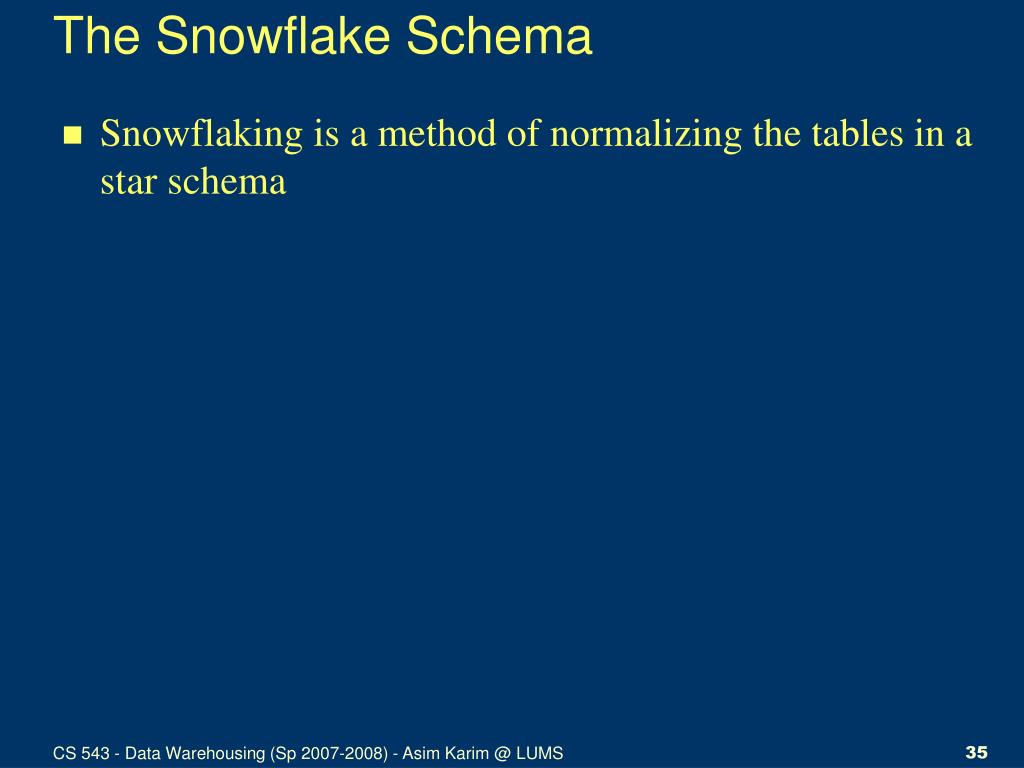

The Snowflake Schema
  • Snowflaking is a method of normalizing the tables in a star schema

CS 543 - Data Warehousing (Sp 2007-2008) - Asim Karim @ LUMS
