Presentation Transcript
outline
Outline
  • Countable and Uncountable Sets
outline3
Outline
  • Countable and Uncountable Sets
  • Algebraic Numbers
outline4
Outline
  • Countable and Uncountable Sets
  • Algebraic Numbers
  • Existence of Transcendental Numbers
outline5

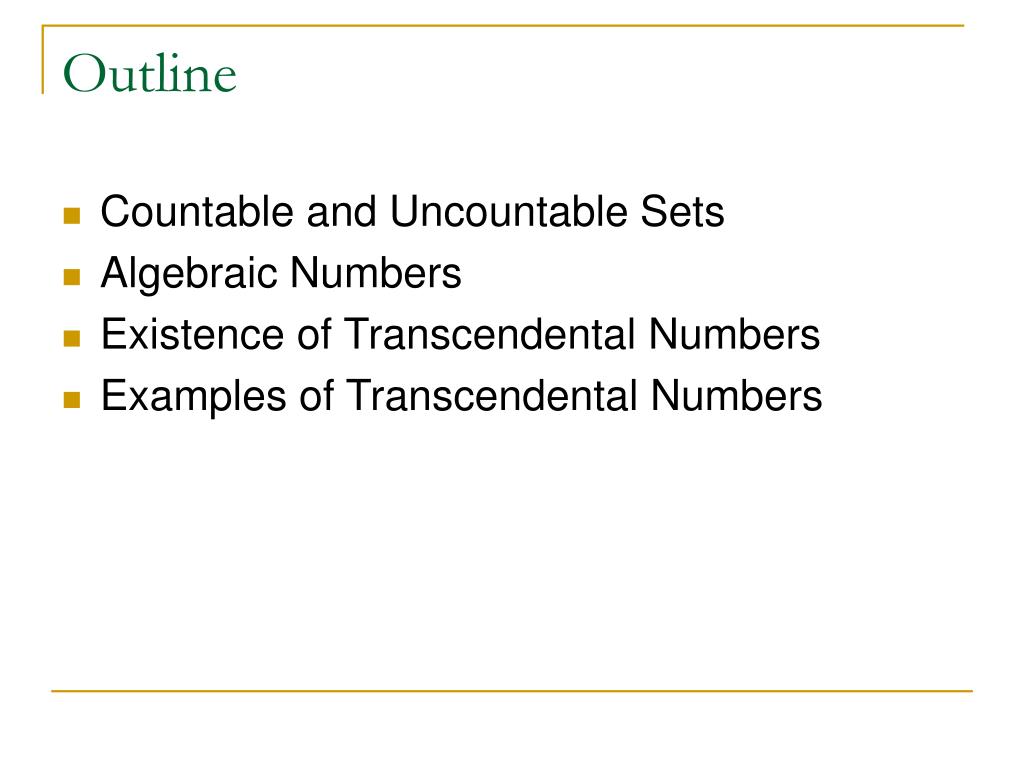

Outline
  • Countable and Uncountable Sets
  • Algebraic Numbers
  • Existence of Transcendental Numbers
  • Examples of Transcendental Numbers
outline6
Outline
  • Countable and Uncountable Sets
  • Algebraic Numbers
  • Existence of Transcendental Numbers
  • Examples of Transcendental Numbers
  • Constructible Numbers
number systems

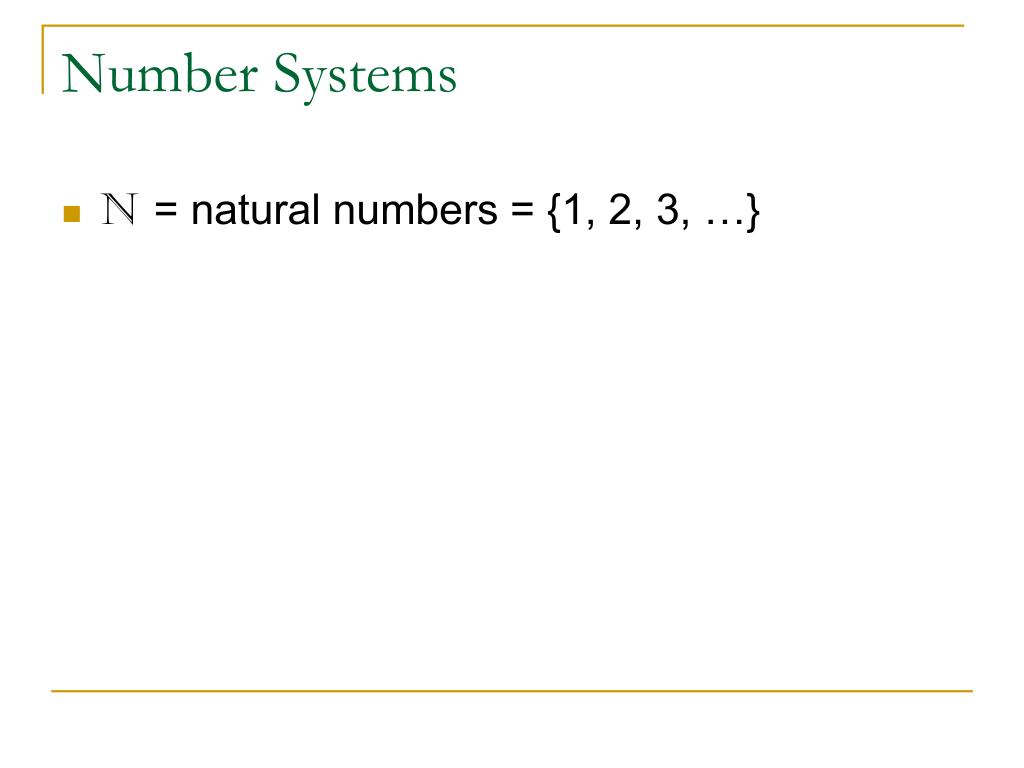

Number Systems
  • N = natural numbers = {1, 2, 3, …}
number systems8

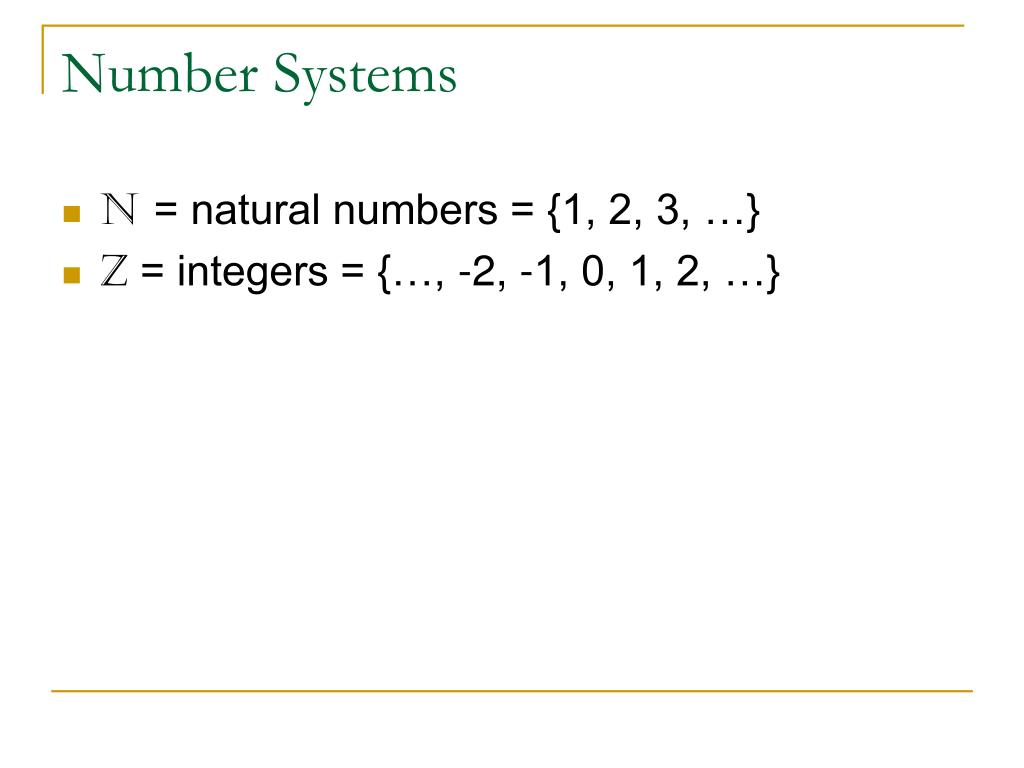

Number Systems
  • N = natural numbers = {1, 2, 3, …}
  • Z = integers = {…, -2, -1, 0, 1, 2, …}
number systems9

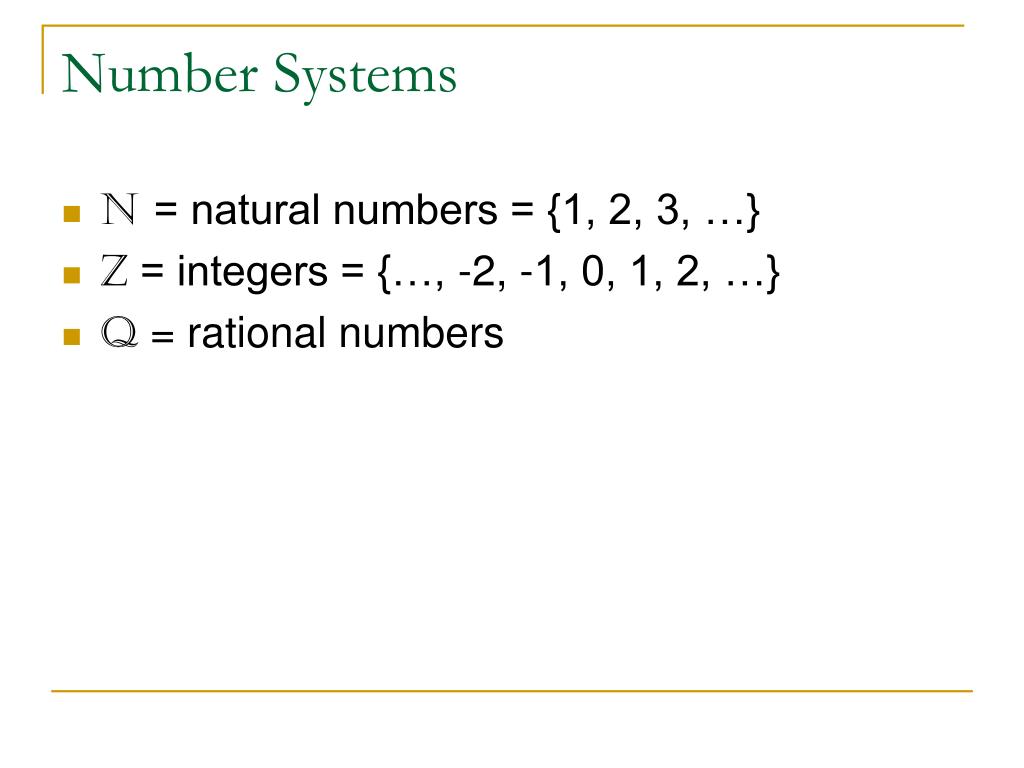

Number Systems
  • N = natural numbers = {1, 2, 3, …}
  • Z = integers = {…, -2, -1, 0, 1, 2, …}
  • Q = rational numbers
number systems10
Number Systems
  • N = natural numbers = {1, 2, 3, …}
  • Z = integers = {…, -2, -1, 0, 1, 2, …}
  • Q = rational numbers
  • R = real numbers
number systems11
Number Systems
  • N = natural numbers = {1, 2, 3, …}
  • Z = integers = {…, -2, -1, 0, 1, 2, …}
  • Q = rational numbers
  • R = real numbers
  • C = complex numbers
countable sets
Countable Sets
  • A set is countable if there is a one-to-one correspondence between the set and N, the natural numbers
countable sets13
Countable Sets
  • A set is countable if there is a one-to-one correspondence between the set and N, the natural numbers
countable sets14
Countable Sets
  • N, Z, and Q are all countable
countable sets15
Countable Sets
  • N, Z, and Q are all countable
uncountable sets
Uncountable Sets
  • R is uncountable
uncountable sets17
Uncountable Sets
  • R is uncountable
  • Therefore C is also uncountable
uncountable sets18
Uncountable Sets
  • R is uncountable
  • Therefore C is also uncountable
  • Uncountable sets are “bigger”
algebraic numbers
Algebraic Numbers
  • A complex number is algebraic if it is the solution to a polynomial equation

where the ai’s are integers.

algebraic number examples
Algebraic Number Examples
  • 51 is algebraic: x – 51 = 0
algebraic number examples21
Algebraic Number Examples
  • 51 is algebraic: x – 51 = 0
  • 3/5 is algebraic: 5x – 3 = 0
algebraic number examples22
Algebraic Number Examples
  • 51 is algebraic: x – 51 = 0
  • 3/5 is algebraic: 5x – 3 = 0
  • Every rational number is algebraic:

Let a/b be any element of Q. Then a/b is a solution to bx – a = 0.

algebraic number examples23
Algebraic Number Examples
  • is algebraic: x2 – 2 = 0
algebraic number examples24
Algebraic Number Examples
  • is algebraic: x2 – 2 = 0
  • is algebraic: x3 – 5 = 0
algebraic number examples25
Algebraic Number Examples
  • is algebraic: x2 – 2 = 0
  • is algebraic: x3 – 5 = 0
  • is algebraic: x2 – x – 1 = 0
algebraic number examples26
Algebraic Number Examples
  • is algebraic: x2 + 1 = 0
algebraic numbers27
Algebraic Numbers
  • Any number built up from the integers with a finite number of additions, subtractions, multiplications, divisions, and nth roots is an algebraic number
algebraic numbers28
Algebraic Numbers
  • Any number built up from the integers with a finite number of additions, subtractions, multiplications, divisions, and nth roots is an algebraic number
  • But not all algebraic numbers can be built this way, because not every polynomial equation is solvable by radicals
solvability by radicals
Solvability by Radicals
  • A polynomial equation is solvable by radicals if its roots can be obtained by applying a finite number of additions, subtractions, multiplications, divisions, and nth roots to the integers
solvability by radicals30
Solvability by Radicals
  • Every Degree 1 polynomial is solvable:
solvability by radicals31
Solvability by Radicals
  • Every Degree 1 polynomial is solvable:
solvability by radicals32
Solvability by Radicals
  • Every Degree 2 polynomial is solvable:
solvability by radicals33
Solvability by Radicals
  • Every Degree 2 polynomial is solvable:
solvability by radicals34
Solvability by Radicals
  • Every Degree 2 polynomial is solvable:

(Known by ancient Egyptians/Babylonians)

solvability by radicals35
Solvability by Radicals
  • Every Degree 3 and Degree 4 polynomial is solvable
solvability by radicals36
Solvability by Radicals
  • Every Degree 3 and Degree 4 polynomial is solvable

del Ferro Tartaglia Cardano Ferrari

(Italy, 1500’s)

solvability by radicals37
Solvability by Radicals
  • Every Degree 3 and Degree 4 polynomial is solvable

Cubic Formula

Quartic Formula

solvability by radicals38

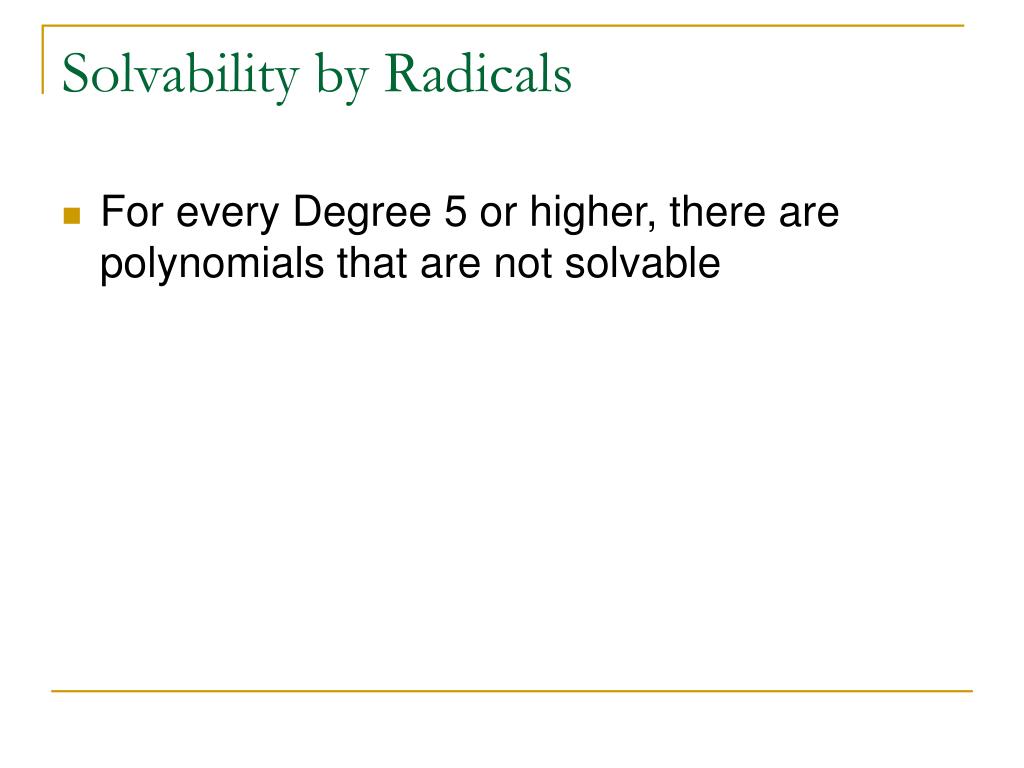

Solvability by Radicals
  • For every Degree 5 or higher, there are polynomials that are not solvable
solvability by radicals39

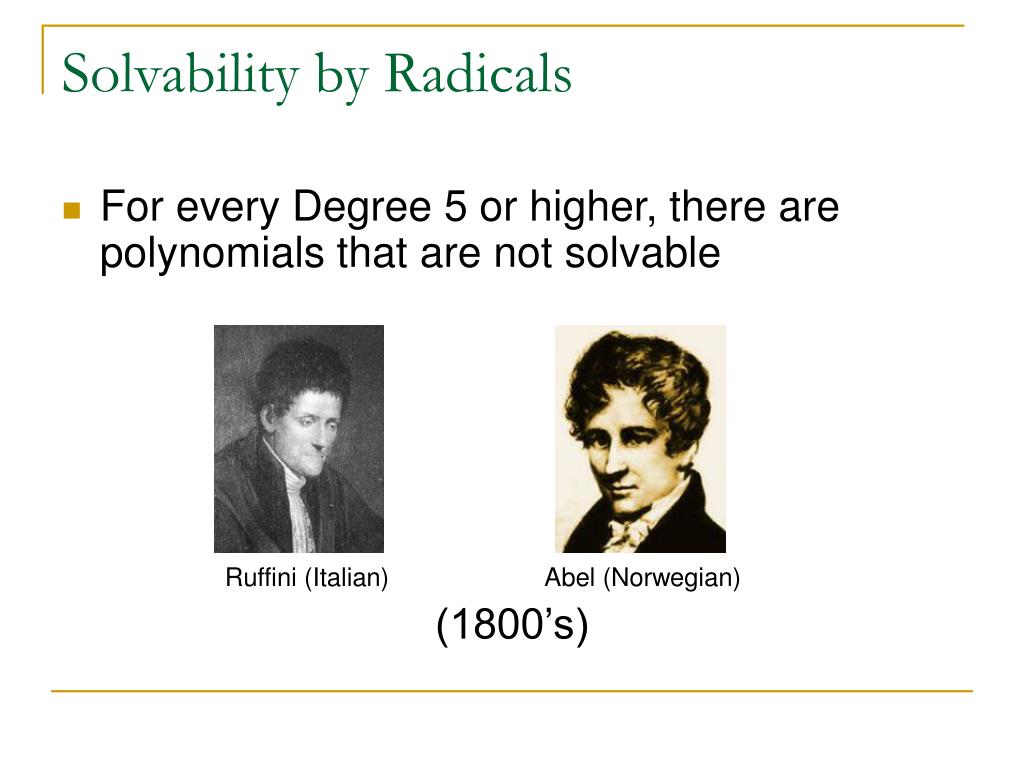

Solvability by Radicals
  • For every Degree 5 or higher, there are polynomials that are not solvable

Ruffini (Italian) Abel (Norwegian)

(1800’s)

solvability by radicals40
Solvability by Radicals
  • For every Degree 5 or higher, there are polynomials that are not solvable

is not solvable by radicals

solvability by radicals41
Solvability by Radicals
  • For every Degree 5 or higher, there are polynomials that are not solvable

is not solvable by radicals

The roots of this equation are algebraic

solvability by radicals42
Solvability by Radicals
  • For every Degree 5 or higher, there are polynomials that are not solvable

is solvable by radicals

algebraic numbers43
Algebraic Numbers
  • The algebraic numbers form a field, denoted by A
algebraic numbers44
Algebraic Numbers
  • The algebraic numbers form a field, denoted by A
  • In fact, A is the algebraic closure of Q
question
Question
  • Are there any complex numbers that are not algebraic?
question46
Question
  • Are there any complex numbers that are not algebraic?
  • A complex number is transcendental if it is not algebraic
question47
Question
  • Are there any complex numbers that are not algebraic?
  • A complex number is transcendental if it is not algebraic
  • Terminology from Leibniz
question48
Question
  • Are there any complex numbers that are not algebraic?
  • A complex number is transcendental if it is not algebraic
  • Terminology from Leibniz
  • Euler was one of the first to

conjecture the existence of

transcendental numbers

existence of transcendental numbers
Existence of Transcendental Numbers
  • In 1844, the French mathematician Liouville proved that some complex numbers are transcendental
existence of transcendental numbers50
Existence of Transcendental Numbers
  • In 1844, the French mathematician Liouville proved that some complex numbers are transcendental
existence of transcendental numbers51
Existence of Transcendental Numbers
  • His proof was not constructive, but in 1851, Liouville became the first to find an example of a transcendental number
existence of transcendental numbers52
Existence of Transcendental Numbers
  • His proof was not constructive, but in 1851, Liouville became the first to find an example of a transcendental number
existence of transcendental numbers53
Existence of Transcendental Numbers
  • Although only a few “special” examples were known in 1874, Cantor proved that there are infinitely-many more transcendental numbers than algebraic numbers
existence of transcendental numbers54
Existence of Transcendental Numbers
  • Although only a few “special” examples were known in 1874, Cantor proved that there are infinitely-many more transcendental numbers than algebraic numbers
existence of transcendental numbers55
Existence of Transcendental Numbers
  • Theorem (Cantor, 1874):A, the set of algebraic numbers, is countable.
existence of transcendental numbers56
Existence of Transcendental Numbers
  • Theorem (Cantor, 1874):A, the set of algebraic numbers, is countable.
  • Corollary: The set of transcendental numbers must be uncountable. Thus there are infinitely-many more transcendental numbers.
existence of transcendental numbers57
Existence of Transcendental Numbers
  • Proof: Let a be an algebraic number, a solution of
existence of transcendental numbers58
Existence of Transcendental Numbers
  • Proof: Let a be an algebraic number, a solution of

We may choose n of the smallest possible degree and assume that the coefficients are relatively prime

existence of transcendental numbers59
Existence of Transcendental Numbers
  • Proof: Let a be an algebraic number, a solution of

We may choose n of the smallest possible degree and assume that the coefficients are relatively prime

Then the height of a is the sum

existence of transcendental numbers60
Existence of Transcendental Numbers
  • Claim: Let k be a positive integer. Then the number of algebraic numbers that have height k is finite.
existence of transcendental numbers61
Existence of Transcendental Numbers
  • Claim: Let k be a positive integer. Then the number of algebraic numbers that have height k is finite.
  • Let a have height k. Let n be the degree of the polynomial for a in the definition of a’s height.
existence of transcendental numbers62
Existence of Transcendental Numbers
  • Claim: Let k be a positive integer. Then the number of algebraic numbers that have height k is finite.
  • Let a have height k. Let n be the degree of the polynomial for a in the definition of a’s height.
  • Then n cannot be bigger than k, by definition.
existence of transcendental numbers63
Existence of Transcendental Numbers
  • Claim: Let k be a positive integer. Then the number of algebraic numbers that have height k is finite.
  • Also,

implies that there are only finitely-many choices for the coefficients of the polynomial.

existence of transcendental numbers64
Existence of Transcendental Numbers
  • Claim: Let k be a positive integer. Then the number of algebraic numbers that have height k is finite.
  • So there are only finitely-many choices for the coefficients of each polynomial of degree n leading to a height of k.
existence of transcendental numbers65
Existence of Transcendental Numbers
  • Claim: Let k be a positive integer. Then the number of algebraic numbers that have height k is finite.
  • So there are only finitely-many choices for the coefficients of each polynomial of degree n leading to a height of k.
  • Thus there are finitely-many polynomials of degree n that lead to a height of k.
existence of transcendental numbers66
Existence of Transcendental Numbers
  • Claim: Let k be a positive integer. Then the number of algebraic numbers that have height k is finite.
  • This is true for every n less than or equal to k, so there are finitely-many polynomials that have roots with height k.
existence of transcendental numbers67
Existence of Transcendental Numbers
  • Claim: Let k be a positive integer. Then the number of algebraic numbers that have height k is finite.
  • This means there are finitely-many such roots to these polynomials, i.e., there are finitely-many algebraic numbers of height k.
existence of transcendental numbers68
Existence of Transcendental Numbers
  • Claim: Let k be a positive integer. Then the number of algebraic numbers that have height k is finite.
  • This means there are finitely-many such roots to these polynomials, i.e., there are finitely-many algebraic numbers of height k.
  • This proves the claim.
existence of transcendental numbers69
Existence of Transcendental Numbers
  • Back to the theorem: We want to show that A is countable.
existence of transcendental numbers70
Existence of Transcendental Numbers
  • Back to the theorem: We want to show that A is countable.
  • For each height, put the algebraic numbers of that height in some order
existence of transcendental numbers71
Existence of Transcendental Numbers
  • Back to the theorem: We want to show that A is countable.
  • For each height, put the algebraic numbers of that height in some order
  • Then put these lists together, starting with height 1, then height 2, etc., to put all of the algebraic numbers in order
existence of transcendental numbers72
Existence of Transcendental Numbers
  • Back to the theorem: We want to show that A is countable.
  • For each height, put the algebraic numbers of that height in some order
  • Then put these lists together, starting with height 1, then height 2, etc., to put all of the algebraic numbers in order
  • The fact that this is possible proves that A is countable.
existence of transcendental numbers73
Existence of Transcendental Numbers
  • Since A is countable but C is uncountable, there are infinitely-many more transcendental numbers than there are algebraic numbers
existence of transcendental numbers74
Existence of Transcendental Numbers
  • Since A is countable but C is uncountable, there are infinitely-many more transcendental numbers than there are algebraic numbers
  • “The algebraic numbers are spotted over the plane like stars against a black sky; the dense blackness is the firmament of the transcendentals.”

E.T. Bell, math historian

examples of transcendental numbers
Examples of Transcendental Numbers
  • In 1873, the French mathematician Charles Hermite proved that e is transcendental.
examples of transcendental numbers76
Examples of Transcendental Numbers
  • In 1873, the French mathematician Charles Hermite proved that e is transcendental.
examples of transcendental numbers77
Examples of Transcendental Numbers
  • In 1873, the French mathematician Charles Hermite proved that e is transcendental.
  • This is the first number proved to be transcendental that was not constructed for such a purpose
examples of transcendental numbers78
Examples of Transcendental Numbers
  • In 1882, the German mathematician Ferdinand von Lindemann proved that

is transcendental

examples of transcendental numbers79
Examples of Transcendental Numbers
  • In 1882, the German mathematician Ferdinand von Lindemann proved that

is transcendental

examples of transcendental numbers80
Examples of Transcendental Numbers
  • Still very few known examples of transcendental numbers:
examples of transcendental numbers81
Examples of Transcendental Numbers
  • Still very few known examples of transcendental numbers:
examples of transcendental numbers82
Examples of Transcendental Numbers
  • Still very few known examples of transcendental numbers:
examples of transcendental numbers83
Examples of Transcendental Numbers
  • Still very few known examples of transcendental numbers:
constructible numbers
Constructible Numbers
  • Using an unmarked straightedge and a collapsible compass, given a segment of length 1, what other lengths can we construct?
constructible numbers86
Constructible Numbers
  • For example, is constructible:
constructible numbers87
Constructible Numbers
  • For example, is constructible:
constructible numbers88
Constructible Numbers
  • The constructible numbers are the real numbers that can be built up from the integers with a finite number of additions, subtractions, multiplications, divisions, and the taking of square roots
constructible numbers89
Constructible Numbers
  • Thus the set of constructible numbers, denoted by K, is a subset of A.
constructible numbers90
Constructible Numbers
  • Thus the set of constructible numbers, denoted by K, is a subset of A.
  • K is also a field
constructible numbers92
Constructible Numbers

Most real numbers are not constructible

constructible numbers93
Constructible Numbers
  • In particular, the ancient question of squaring the circle is impossible
the end
The End!
  • References on Handout
