windows communication foundation wcf

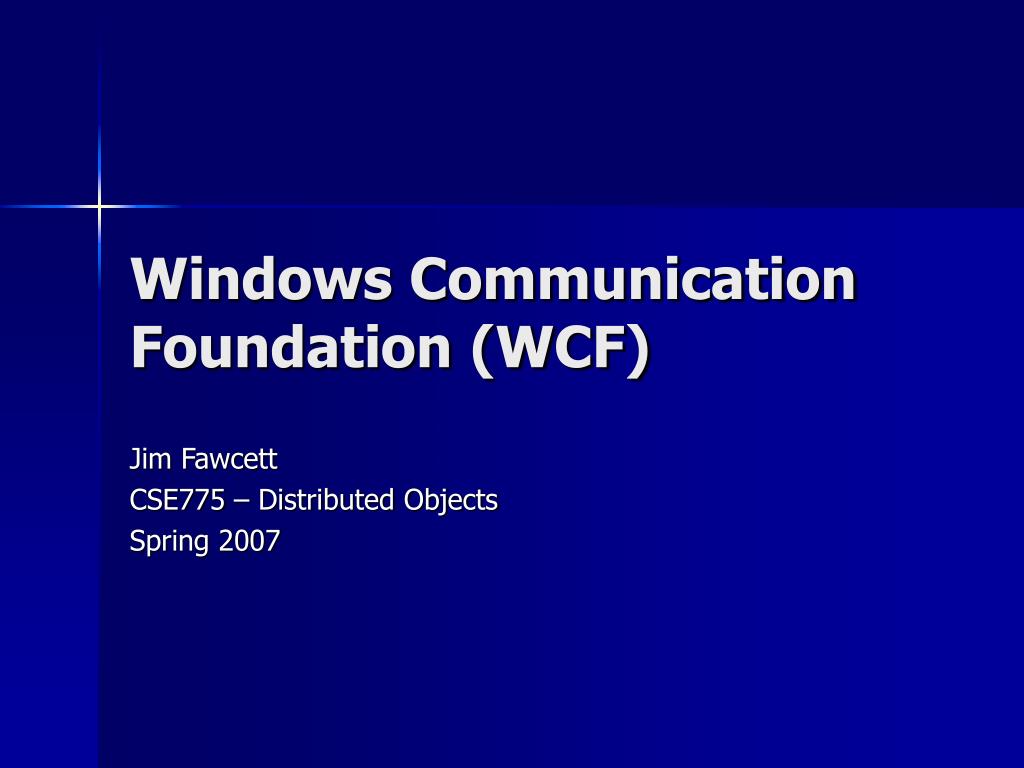

Windows Communication Foundation (WCF)

Jim Fawcett

CSE775 – Distributed Objects

Spring 2007

references
References
  • Introducing WCF, David Chappell, www.davidchappell.com/IntroducingWCFv1.2.1.pdf
    • Using three diagrams from this reference
  • Programming Indigo, David Pallmann, Microsoft Press, 2005
  • Pro WCF, Peiris and Mulder, Apress, 2007
what is wcf
What is WCF?
  • Integration of several Microsoft Technologies:
    • Web services (ASMX)
    • Web service extensions (WSE)
      • WS-Security
      • WS-Reliability
      • WS-Addressing
    • .Net Remoting
    • MSMQ messaging
    • COM+ Transactions
channel model

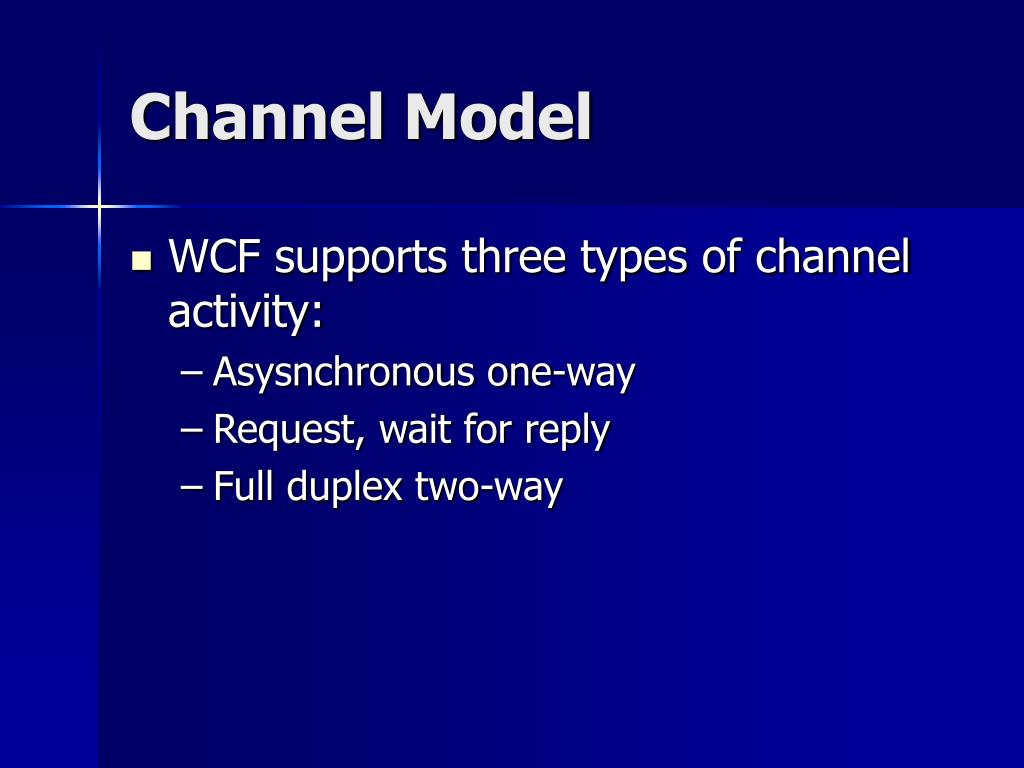

Channel Model
  • WCF supports three types of channel activity:
    • Asysnchronous one-way
    • Request, wait for reply
    • Full duplex two-way
structure
Structure
  • Service
    • Contract
      • Service contract – RPC Interface
      • Data contract – Type serialization
      • Message contract – Soap message
    • Binding
      • Transport – HTTP, TCP, MSMQ, …
      • Channel type – one-way, duplex, request-reply
      • Encoding – XML, binary, MTOM (msg trans optim mech)
      • WS-* protocols – WS-Security, …
    • Address
      • http://someURI
      • net.tcp://someOtherURI
      • net.msmq://stillAnotherURI
channel interfaces
Channel Interfaces
  • public interface IOutputChannel : IChannel{ void Send(Message msg); }
  • public interface IInputChannel : IChannel{ Message Receive(); }
  • public interface IDuplexChannel : IOutputChannel, IInputChannel {}
  • public interface IRequestChannel : IChannel{ Message Request(Message msg); }
  • public interface IReplyChannel : IChannel{ IRequestContext ReceiveRequest(); }
  • public interface IRequestContext : Idisposable{ Message RequestMessage { get; } void Reply(Message msg); }
service contract
Service Contract
  • <%@ ServiceHost Language=“C#” Service=“MyService” %>[ServiceContract]public interface IMyService{ [OperationContract] string Hello( string name);}public class MyService : IMyService{ public string Hello(string name) { return “Hello “ + name; }}
hosts
Hosts
  • WCF Services can be hosted in:
    • Internet Information Services (IIS)
      • Very similar to web services
    • Windows services
      • Exposing windows service in style of WS
    • Console and Winform applications
      • New style for socket like functionality
monitoring services
Monitoring Services
  • Message Logging
  • WCF Performance counters
    • Calls, CallsOutsantding, CallsErrored, …
    • SecurityCallsNotAuthenticated, …
    • TxCommitted, TxAborted, …
    • RMSessionsStarted, RMSessionsFaulted, …
  • Windows Management Instrumentation (WMI), a COM technology
other topics
Other Topics
  • WCF Security
    • Credentials and claims (evidence)
    • Transport-level security
    • Message-level security
    • Federated security model
    • Authorization
    • Auditing
reliable messaging

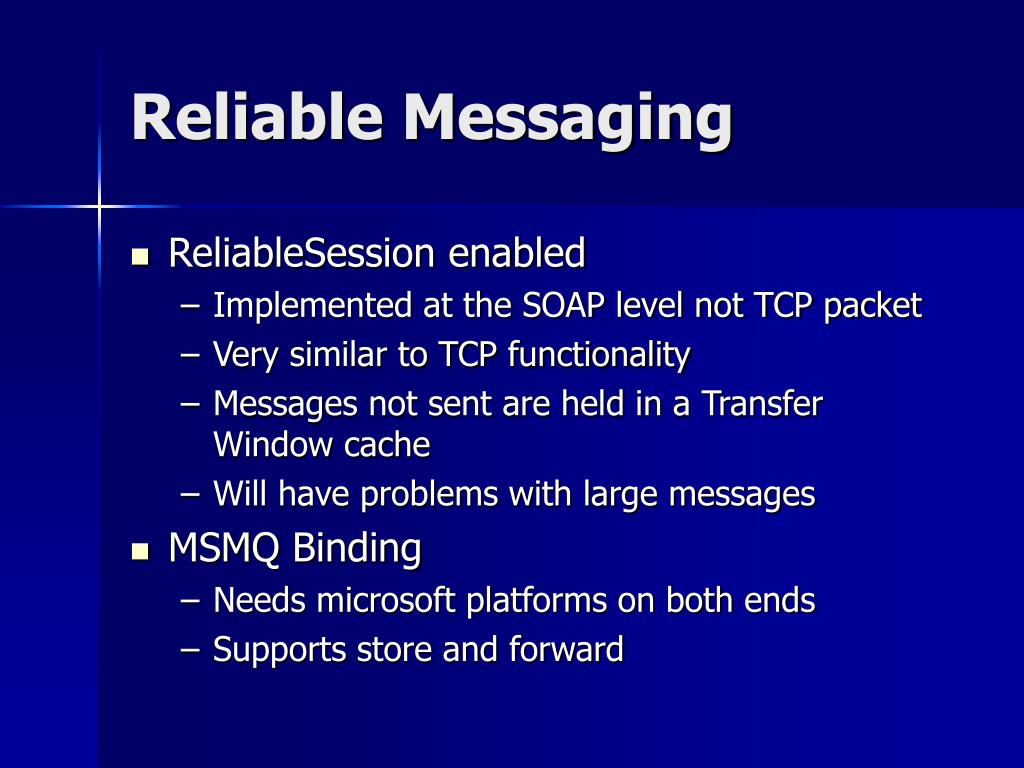

Reliable Messaging
  • ReliableSession enabled
    • Implemented at the SOAP level not TCP packet
    • Very similar to TCP functionality
    • Messages not sent are held in a Transfer Window cache
    • Will have problems with large messages
  • MSMQ Binding
    • Needs microsoft platforms on both ends
    • Supports store and forward
other features

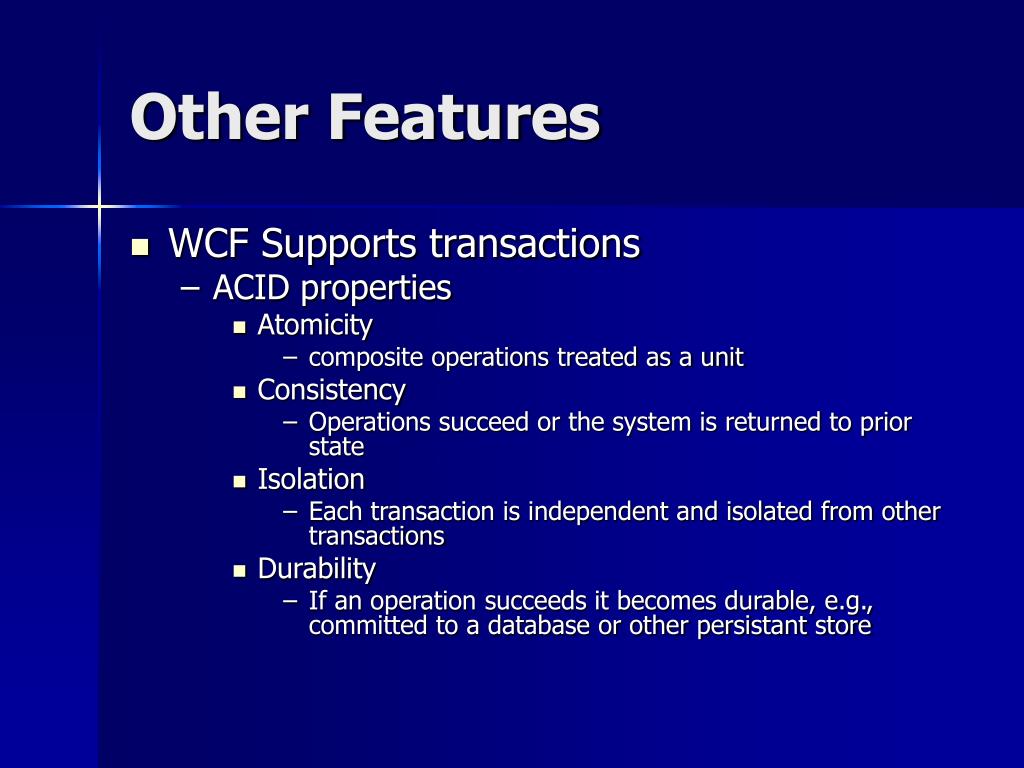

Other Features
  • WCF Supports transactions
    • ACID properties
      • Atomicity
        • composite operations treated as a unit
      • Consistency
        • Operations succeed or the system is returned to prior state
      • Isolation
        • Each transaction is independent and isolated from other transactions
      • Durability
        • If an operation succeeds it becomes durable, e.g., committed to a database or other persistant store
conclusion
Conclusion
  • Convergence of programming models
    • Desktop Application
    • Web Application
    • Windows Services
  • Flexible hosting options
  • Flexible abstractions
