background
Background
  • Filter term in “Digital image processing” is referred to the subimage
  • There are others term to call subimage such as mask, kernel, template, or window
  • The value in a filter subimage are referred as coefficients, rather than pixels.
basics of spatial filtering
Basics of Spatial Filtering
  • The concept of filtering has its roots in the use of the Fourier transform for signal processing in the so-called frequency domain.
  • Spatial filtering term is the filtering operations that are performed directly on the pixels of an image
mechanics of spatial filtering
Mechanics of spatial filtering
  • The process consists simply of moving the filter mask from point to point in an image.
  • At each point (x,y) the response of the filter at that point is calculated using a predefined relationship
linear spatial filtering

f(x-1,y-1)

f(x-1,y)

f(x-1,y+1)

f(x,y-1)

f(x,y)

f(x,y+1)

f(x+1,y-1)

f(x+1,y)

f(x+1,y+1)

w(-1,-1)

w(-1,-1)

w(-1,0)

w(-1,0)

w(-1,1)

w(-1,1)

w(0,-1)

w(0,-1)

w(0,0)

w(0,0)

w(0,1)

w(0,1)

w(1,-1)

w(1,-1)

w(1,0)

w(1,0)

w(1,1)

w(1,1)

Linear spatial filtering

Pixels of image

The result is the sum of products of the mask coefficients with the corresponding pixels directly under the mask

Mask coefficients

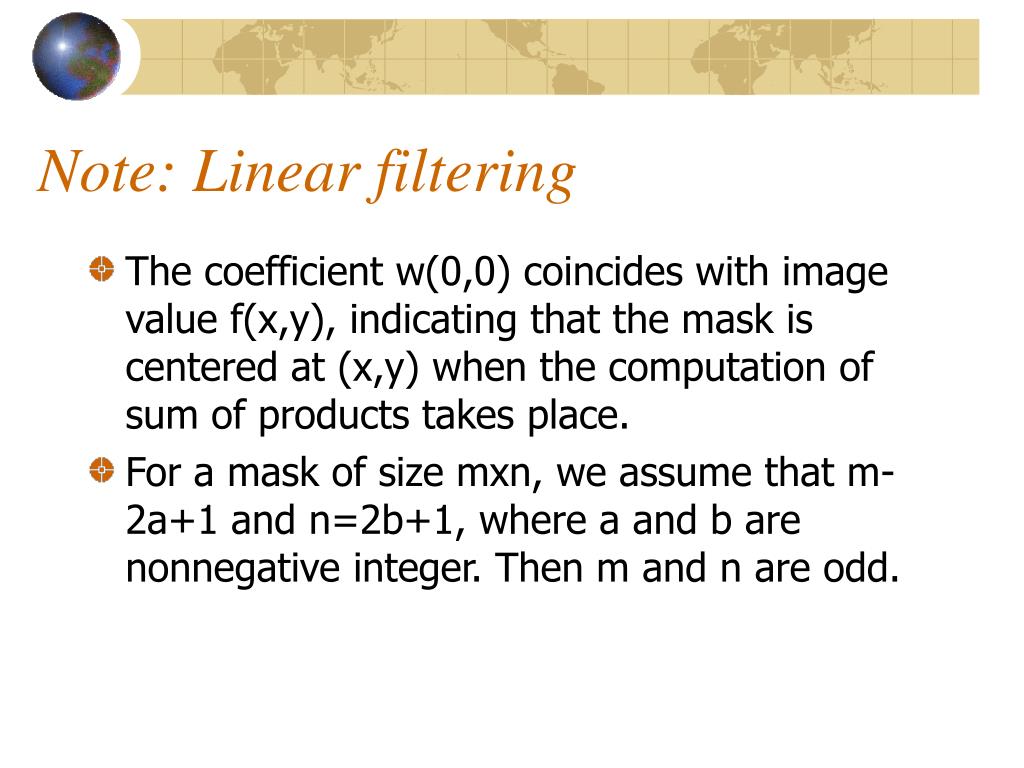

note linear filtering
Note: Linear filtering
  • The coefficient w(0,0) coincides with image value f(x,y), indicating that the mask is centered at (x,y) when the computation of sum of products takes place.
  • For a mask of size mxn, we assume that m-2a+1 and n=2b+1, where a and b are nonnegative integer. Then m and n are odd.

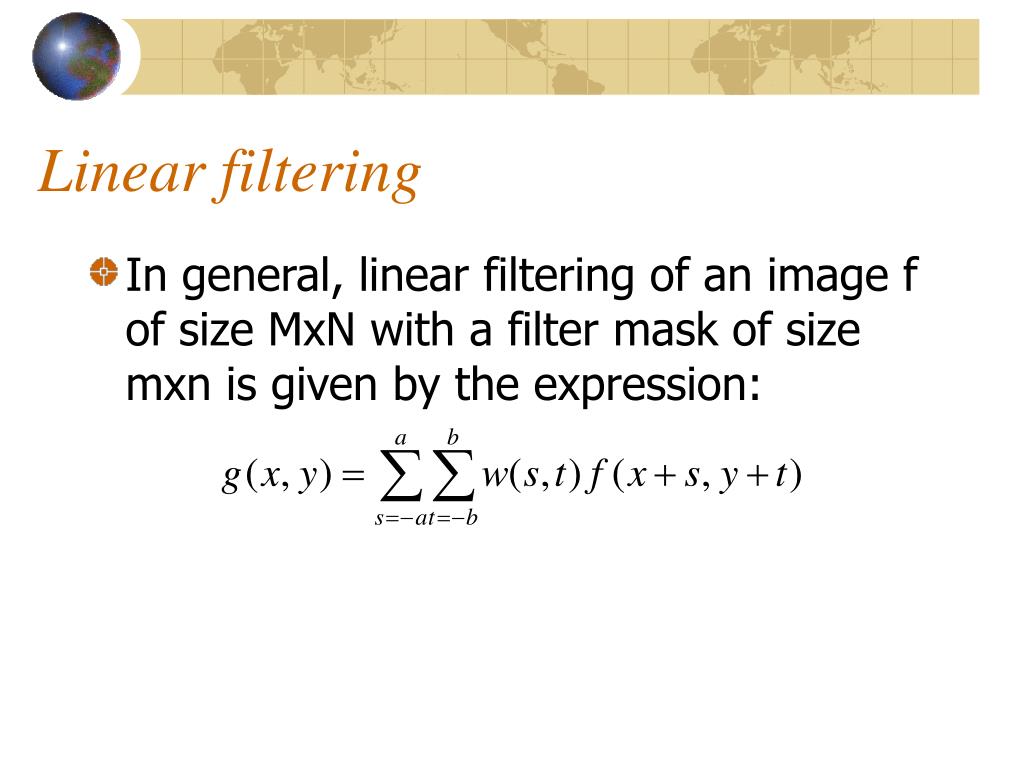

linear filtering
Linear filtering
  • In general, linear filtering of an image f of size MxN with a filter mask of size mxn is given by the expression:
discussion

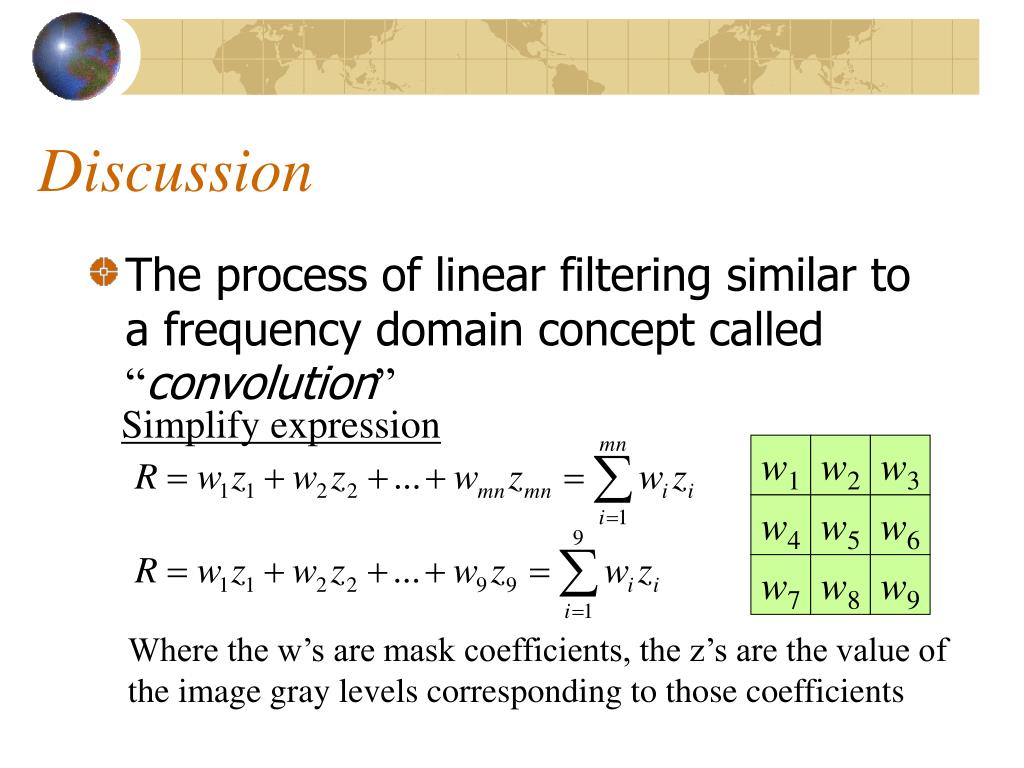

Discussion
  • The process of linear filtering similar to a frequency domain concept called “convolution”

Simplify expression

w1

w2

w3

w4

w5

w6

w7

w8

w9

Where the w’s are mask coefficients, the z’s are the value of the image gray levels corresponding to those coefficients

nonlinear spatial filtering
Nonlinear spatial filtering
  • Nonlinear spatial filters also operate on neighborhoods, and the mechanics of sliding a mask past an image are the same as was just outlined.
  • The filtering operation is based conditionally on the values of the pixels in the neighborhood under consideration
smoothing spatial filters
Smoothing Spatial Filters
  • Smoothing filters are used for blurring and for noise reduction.
    • Blurring is used in preprocessing steps, such as removal of small details from an image prior to object extraction, and bridging of small gaps in lines or curves
    • Noise reduction can be accomplished by blurring
type of smoothing filtering
Type of smoothing filtering
  • There are 2 way of smoothing spatial filters
    • Smoothing Linear Filters
    • Order-Statistics Filters
smoothing linear filters
Smoothing Linear Filters
  • Linear spatial filter is simply the average of the pixels contained in the neighborhood of the filter mask.
  • Sometimes called “averaging filters”.
  • The idea is replacing the value of every pixel in an image by the average of the gray levels in the neighborhood defined by the filter mask.
two 3x3 smoothing linear filters

1

1

1

1

2

1

1

1

1

2

4

2

1

1

1

1

2

1

Two 3x3 Smoothing Linear Filters

Standard average

Weighted average

5x5 smoothing linear filters

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

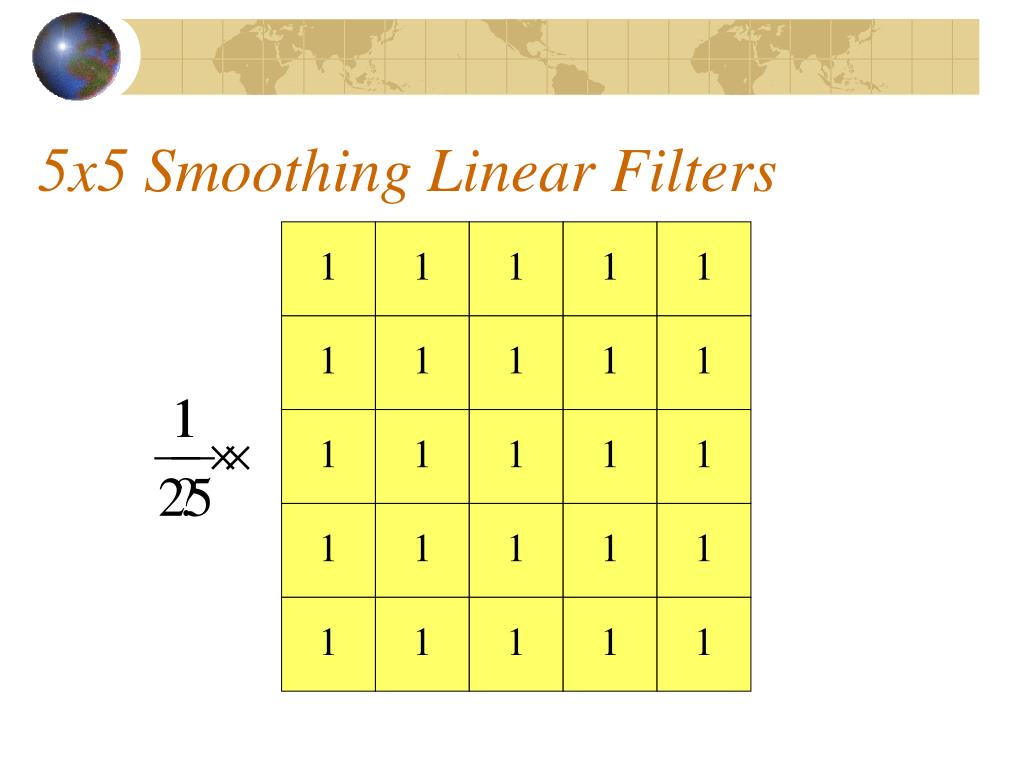

5x5 Smoothing Linear Filters
smoothing linear filters15
Smoothing Linear Filters
  • The general implementation for filtering an MxN image with a weighted averaging filter of size mxn is given by the expression
result of smoothing linear filters
Result of Smoothing Linear Filters

Original Image

[3x3]

[5x5]

[7x7]

order statistics filters

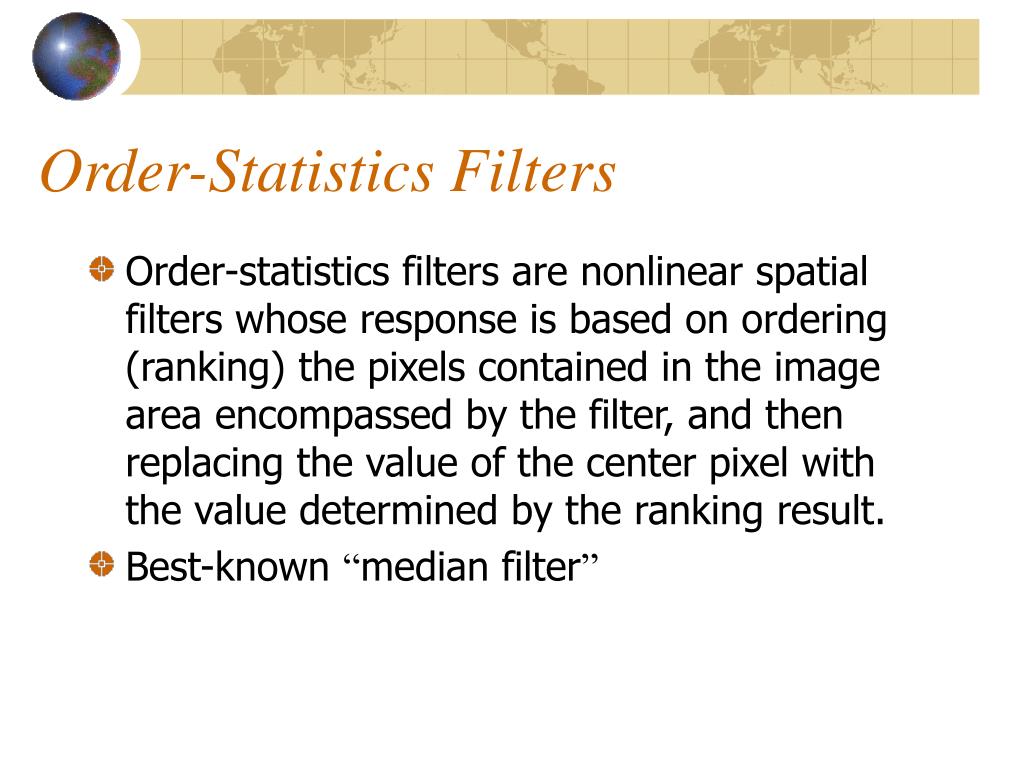

Order-Statistics Filters
  • Order-statistics filters are nonlinear spatial filters whose response is based on ordering (ranking) the pixels contained in the image area encompassed by the filter, and then replacing the value of the center pixel with the value determined by the ranking result.
  • Best-known “median filter”
process of median filter

10

15

20

20

100

20

20

20

25

Process of Median filter
  • Corp region of neighborhood
  • Sort the values of the pixel in our region
  • In the MxN mask the median is MxN div 2 +1

10, 15, 20, 20, 20, 20, 20, 25, 100

5th

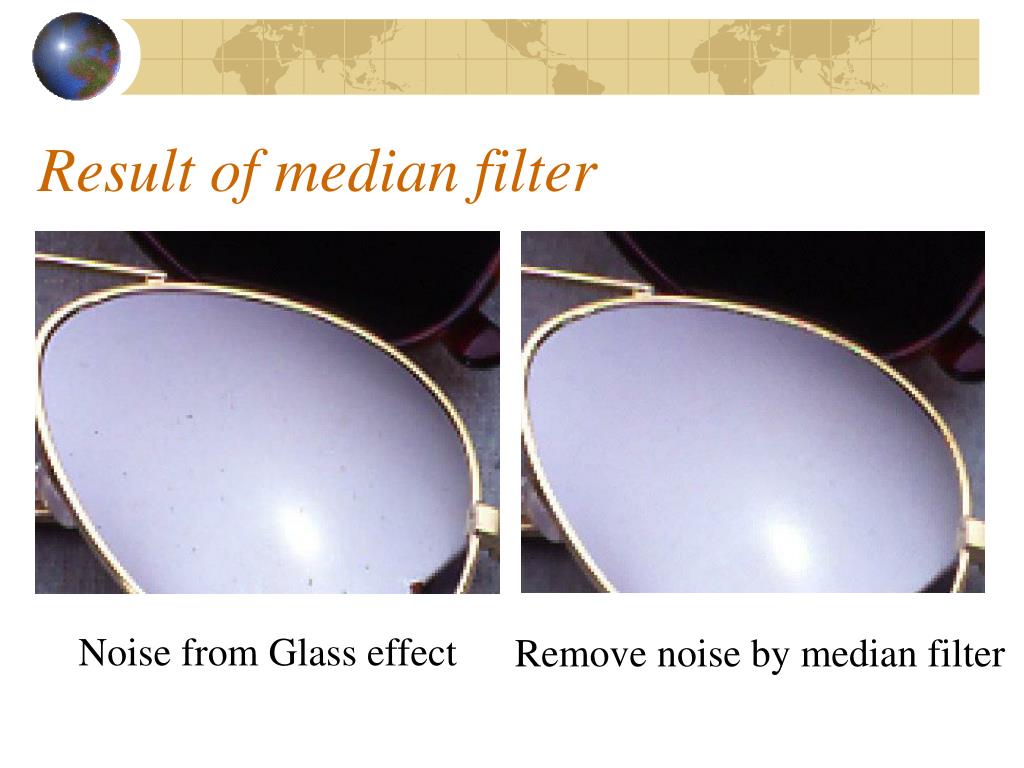

result of median filter
Result of median filter

Noise from Glass effect

Remove noise by median filter

homework
Homework
  • ลองนำภาพสี มาหา smoothing filter โดยใช้ mask standard ขนาด 3x3, 5x5, 7x7, 9x9 ส่งผลลัพธ์พร้อม source code
  • นำภาพสีมาหา median filter โดยใช้ mask 3x3, 5x5,7x7,9x9 ส่งผลลัพธ์พร้อม source code
  • ภาพที่นำมาทดสอบควรมีขนาดตั้งแต่ 100x100 ขึ้นไป
  • วัดความเร็วในการประมวลผลของแต่ละ filter ด้วยคะ
sharpening spatial filters
Sharpening Spatial Filters
  • The principal objective of sharpening is to highlight fine detail in an image or to enhance detail that has been blurred, either in error or as an natural effect of a particular method of image acquisition.
introduction

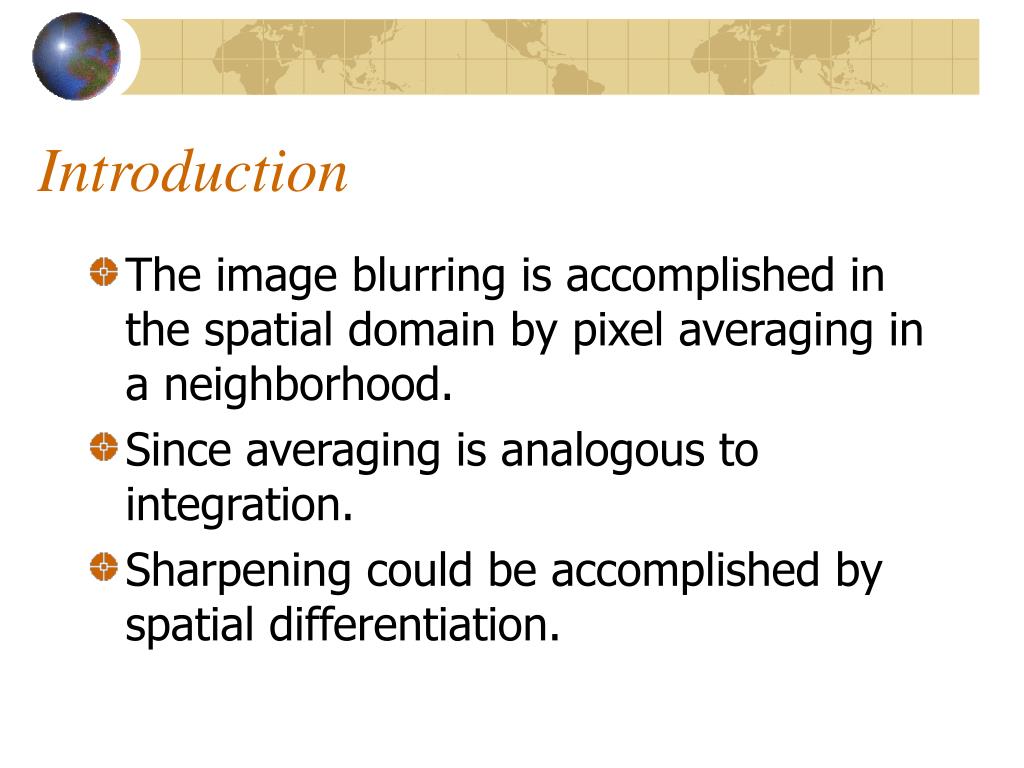

Introduction
  • The image blurring is accomplished in the spatial domain by pixel averaging in a neighborhood.
  • Since averaging is analogous to integration.
  • Sharpening could be accomplished by spatial differentiation.
foundation
Foundation
  • We are interested in the behavior of these derivatives in areas of constant gray level(flat segments), at the onset and end of discontinuities(step and ramp discontinuities), and along gray-level ramps.
  • These types of discontinuities can be noise points, lines, and edges.
definition for a first derivative

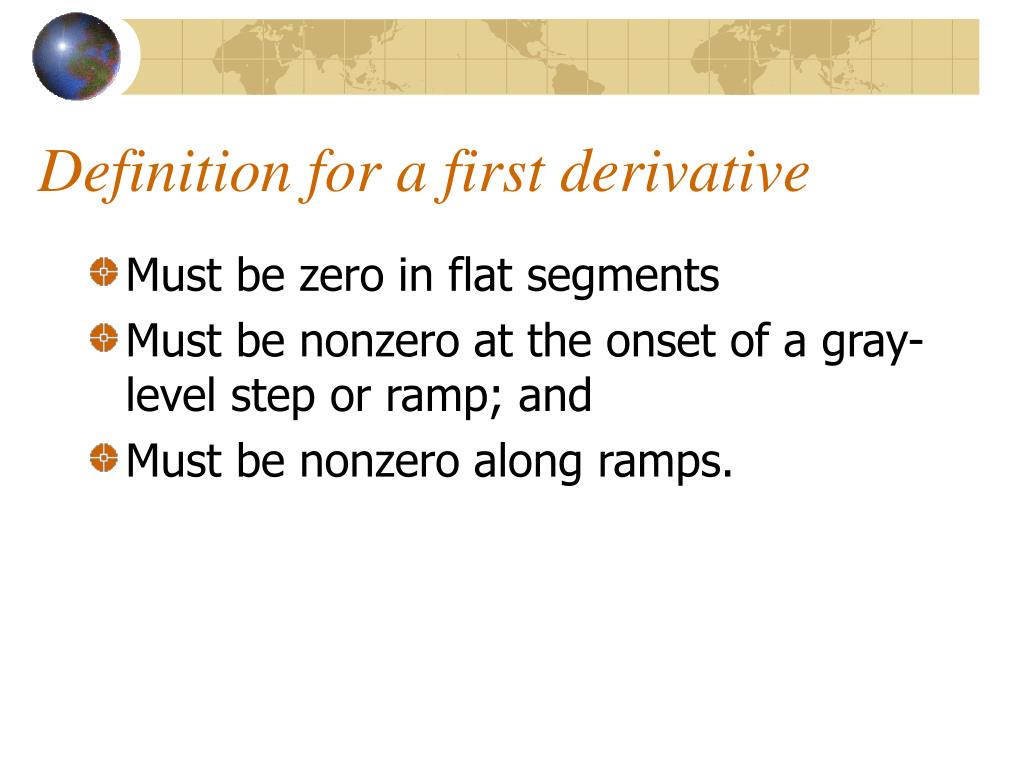

Definition for a first derivative
  • Must be zero in flat segments
  • Must be nonzero at the onset of a gray-level step or ramp; and
  • Must be nonzero along ramps.

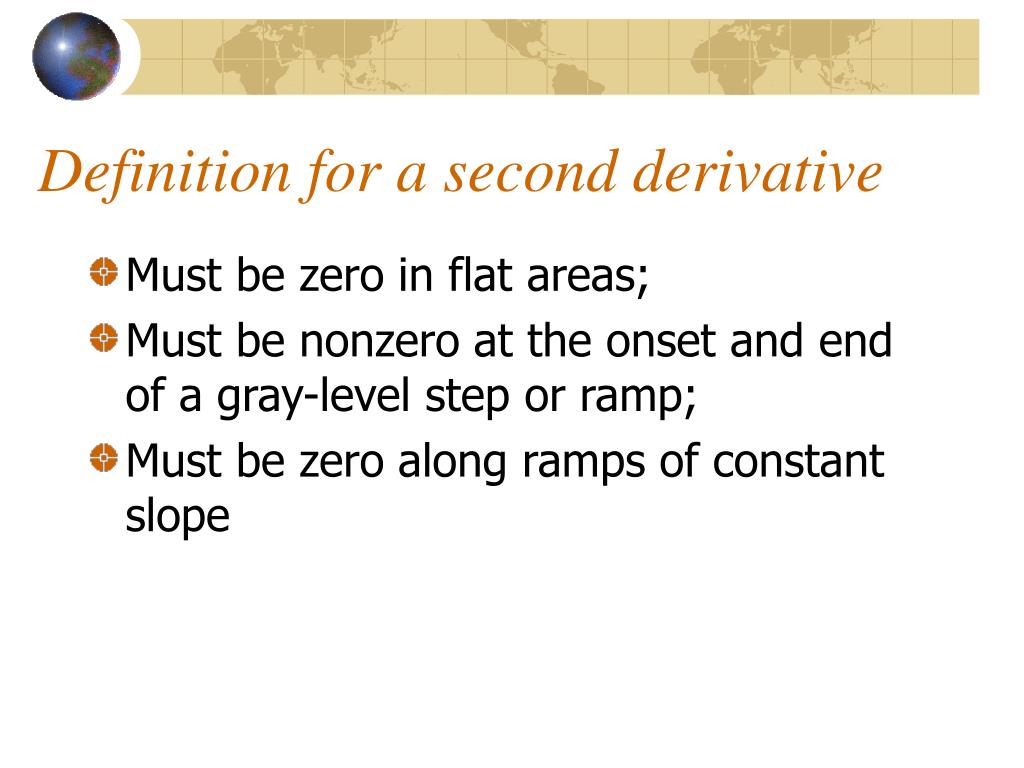

definition for a second derivative
Definition for a second derivative
  • Must be zero in flat areas;
  • Must be nonzero at the onset and end of a gray-level step or ramp;
  • Must be zero along ramps of constant slope

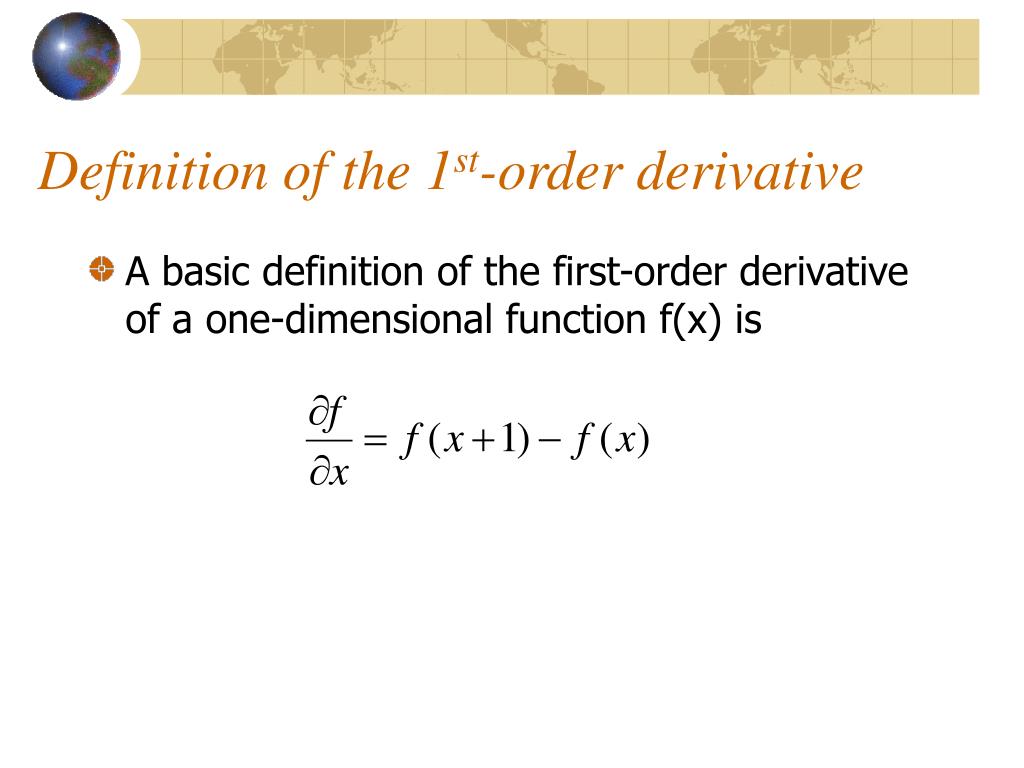

definition of the 1 st order derivative
Definition of the 1st-order derivative
  • A basic definition of the first-order derivative of a one-dimensional function f(x) is
definition of the 2 nd order derivative
Definition of the 2nd-order derivative
  • We define a second-order derivative as the difference
gray level profile

0

0

0

1

2

3

2

0

0

2

2

6

3

3

2

2

3

3

0

0

0

0

0

0

7

7

6

5

5

3

7

6

5

4

3

2

1

0

Gray-level profile
derivative of image profile
Derivative of image profile

0 0 0 1 2 3 2 0 0 2 2 6 3 3 2 2 3 3 0 0 0 0 0 0 7 7 6 5 5 3

first

0 0111-1-2 0 2 0 4-3 0-1 0 1 0-3 0 0 0 0 0-7 0-1-1 0-2

second

0-1 0 0-2-122-24-73-111-1-33 0 0 0 0-77-1 0 1-2

analyze
Analyze
  • The 1st-order derivative is nonzero along the entire ramp, while the 2nd-order derivative is nonzero only at the onset and end of the ramp.
  • The response at and around the point is much stronger for the 2nd- than for the 1st-order derivative

1st make thick edge and 2nd make thin edge

the laplacian 2 nd order derivative

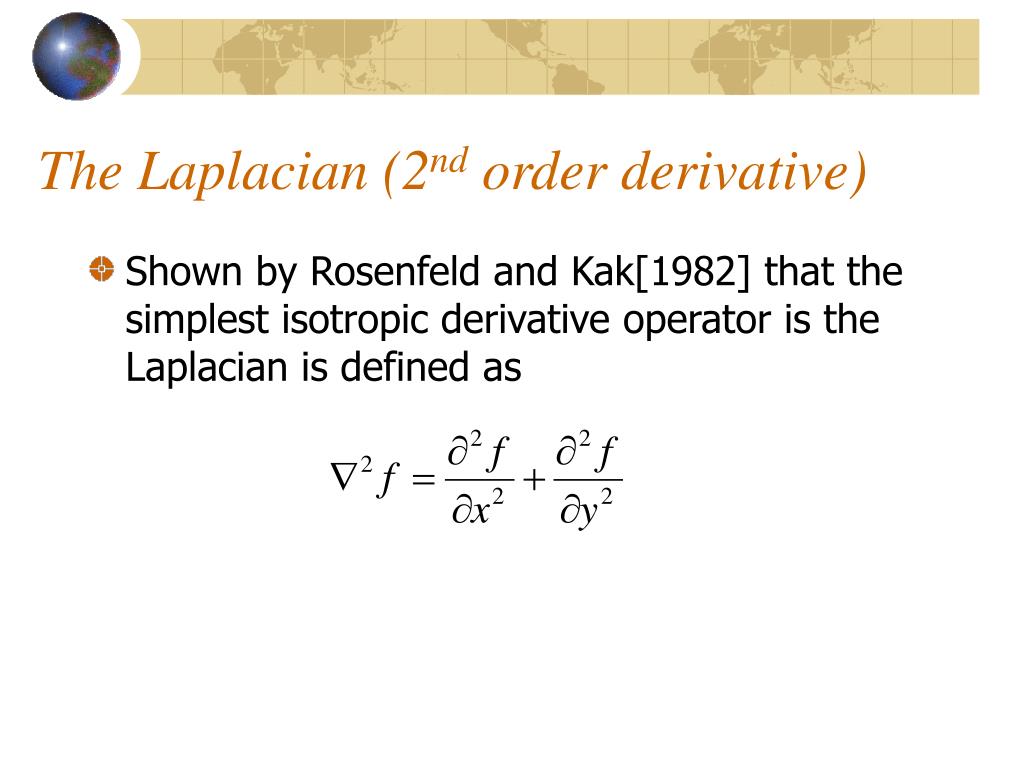

The Laplacian (2nd order derivative)
  • Shown by Rosenfeld and Kak[1982] that the simplest isotropic derivative operator is the Laplacian is defined as
discrete form of derivative
Discrete form of derivative

f(x-1,y)

f(x,y)

f(x+1,y)

f(x,y-1)

f(x,y)

f(x,y+1)

2 dimentional laplacian
2-Dimentional Laplacian
  • The digital implementation of the 2-Dimensional Laplacian is obtained by summing 2 components

1

1

-4

1

1

laplacian

0

1

1

0

1

1

0

1

1

1

1

0

-4

-8

-4

0

1

1

1

1

0

1

0

1

1

0

1

Laplacian
laplacian35

0

-1

-1

0

-1

-1

0

-1

-1

-1

-1

0

4

8

4

0

-1

-1

-1

-1

0

-1

0

-1

-1

0

-1

Laplacian

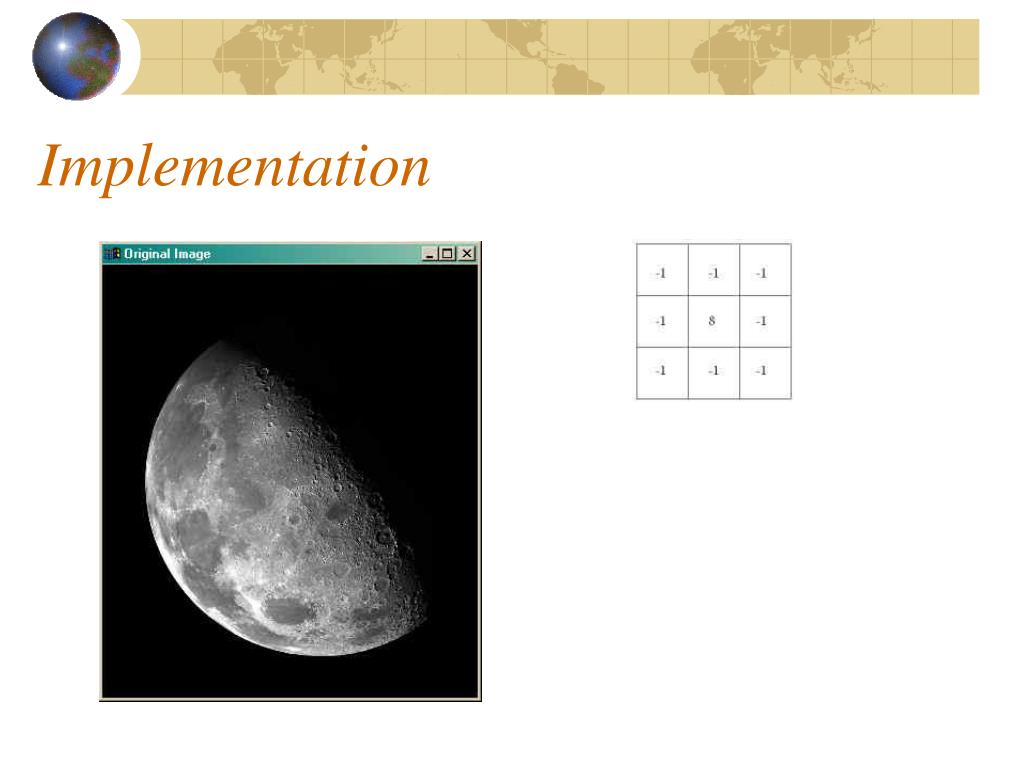

implementation

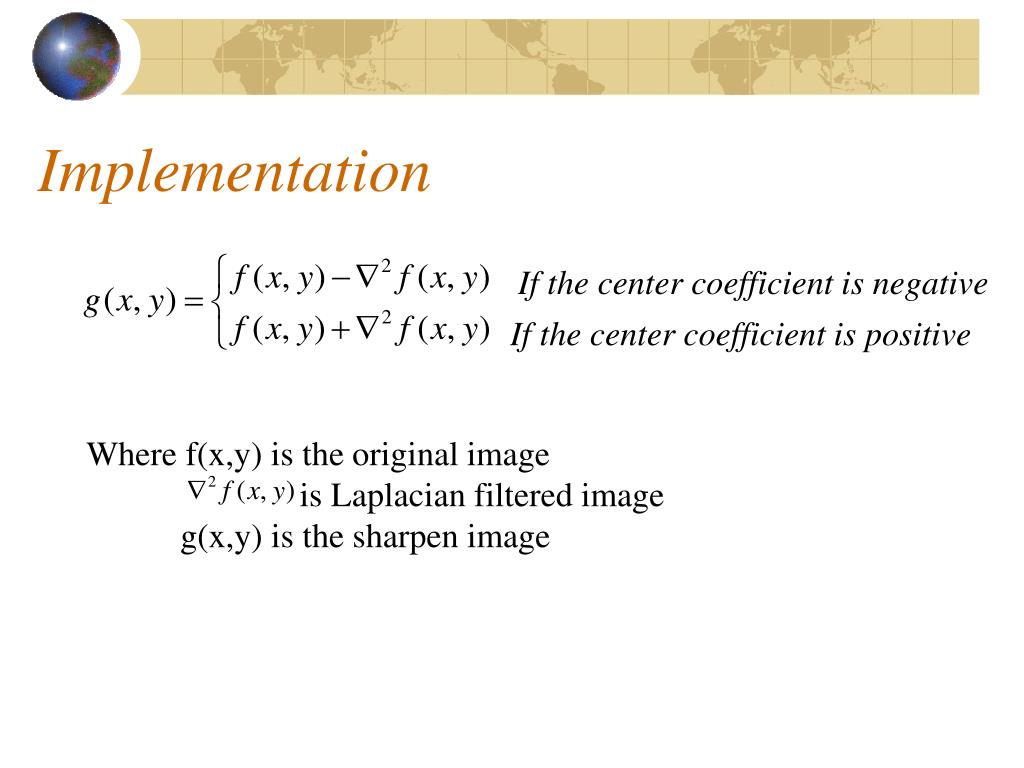

Implementation

If the center coefficient is negative

If the center coefficient is positive

Where f(x,y) is the original image

is Laplacian filtered image

g(x,y) is the sharpen image

implementation38

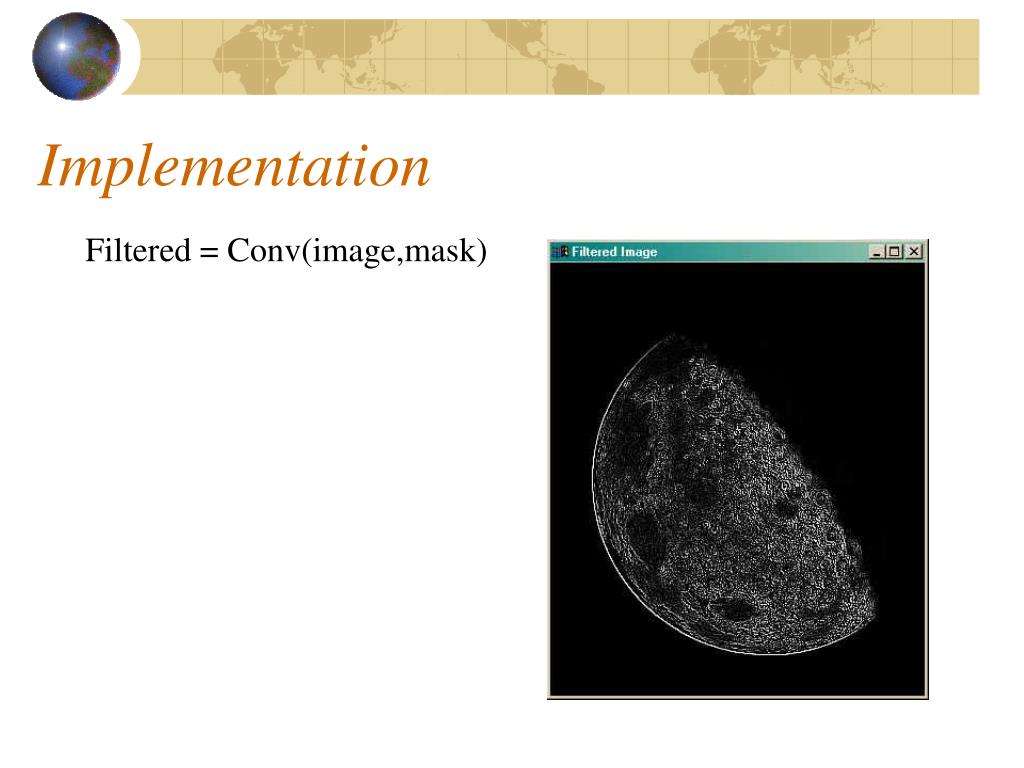

Implementation

Filtered = Conv(image,mask)

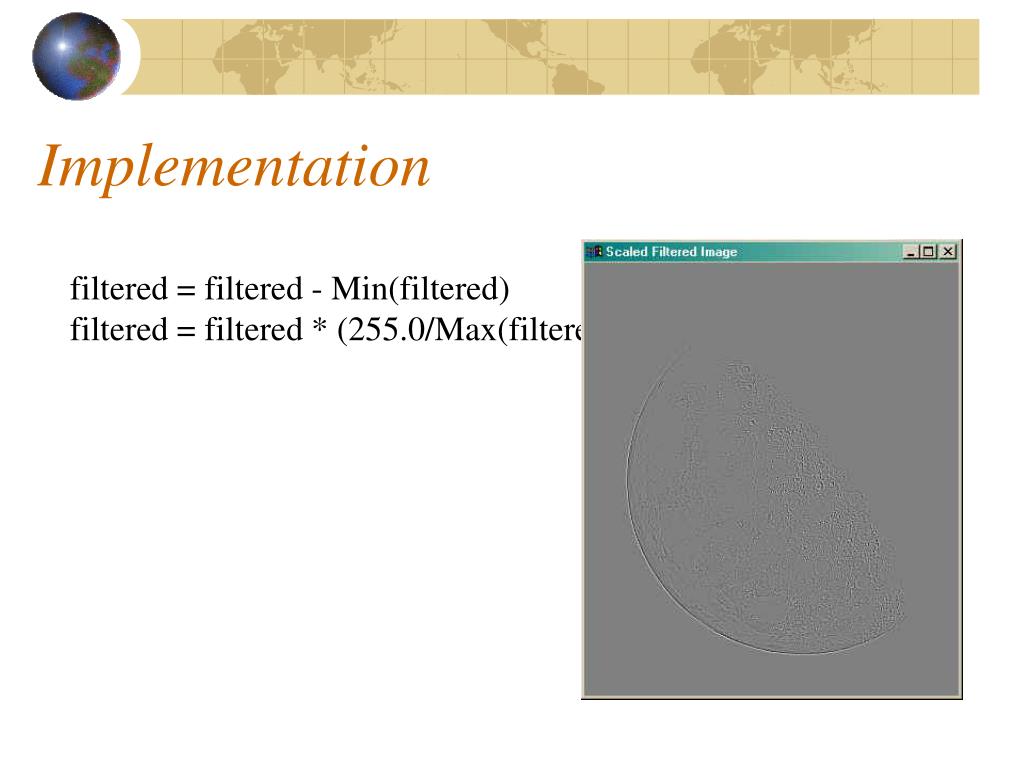

implementation39
Implementation

filtered = filtered - Min(filtered)

filtered = filtered * (255.0/Max(filtered))

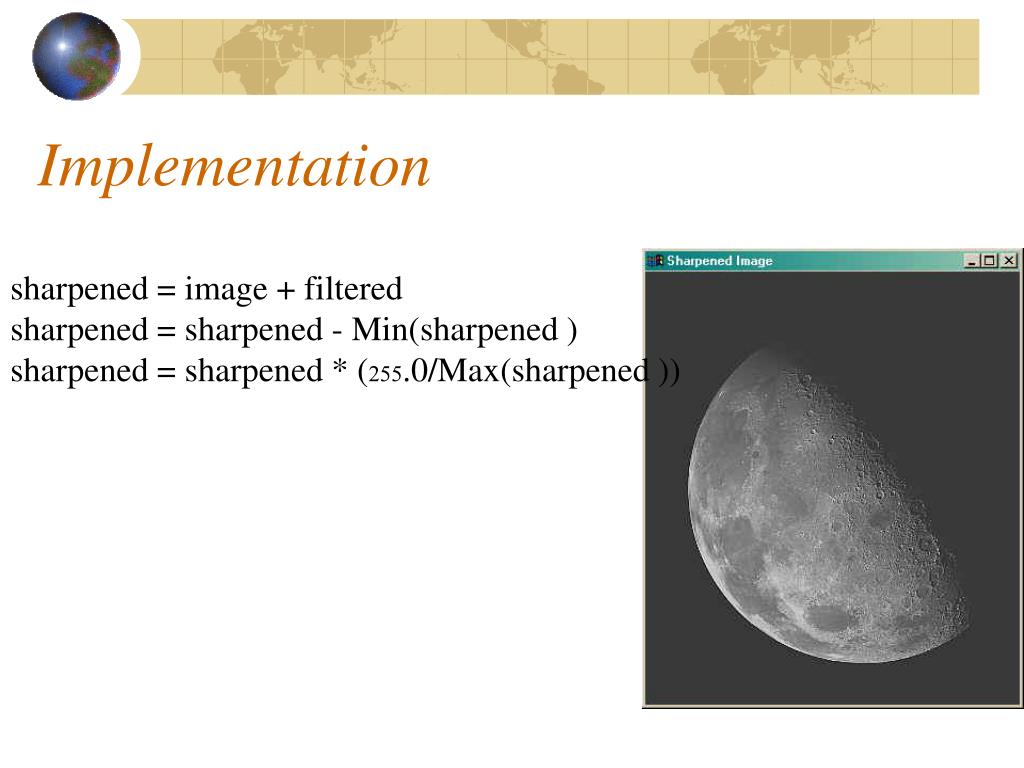

implementation40
Implementation

sharpened = image + filtered

sharpened = sharpened - Min(sharpened )

sharpened = sharpened * (255.0/Max(sharpened ))

algorithm
Algorithm
  • Using Laplacian filter to original image
  • And then add the image result from step 1 and the original image
simplification

0

-1

-1

-1

-1

0

-1

-1

9

5

-1

-1

0

-1

-1

-1

-1

0

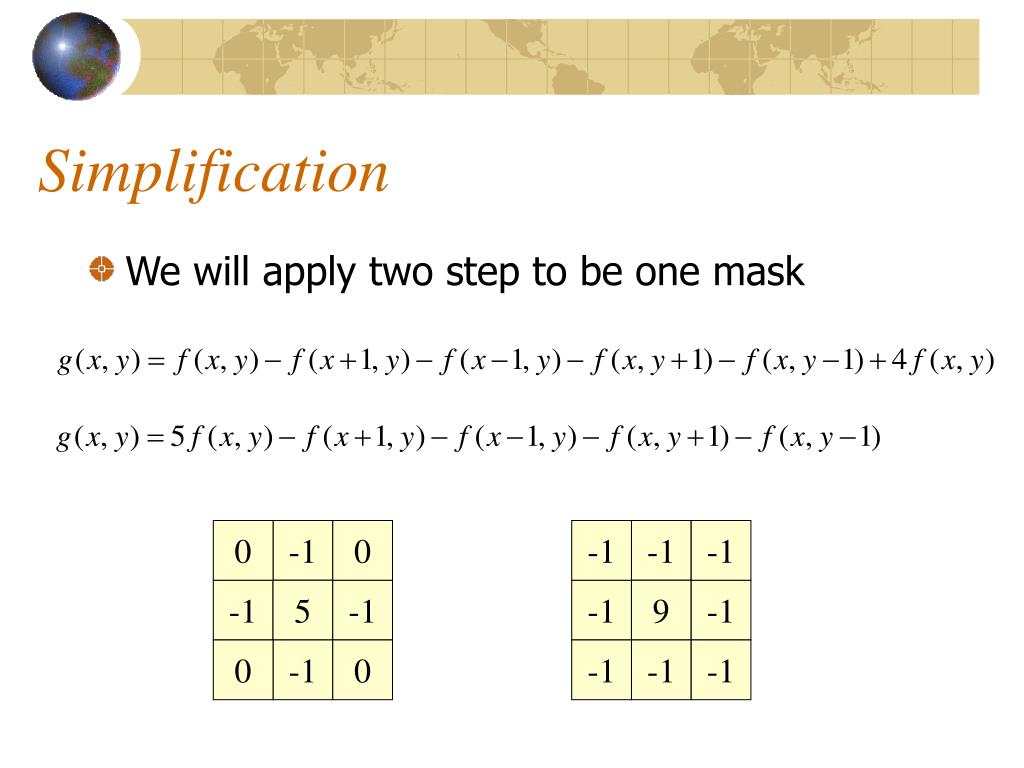

Simplification
  • We will apply two step to be one mask
unsharp masking
Unsharp masking
  • A process to sharpen images consists of subtracting a blurred version of an image from the image itself. This process, called unsharp masking, is expressed as

Where denotes the sharpened image obtained by unsharp masking, and is a blurred version of

high boost filtering
High-boost filtering
  • A high-boost filtered image, fhb is defined at any point (x,y) as

This equation is applicable general and does not state explicity how the sharp image is obtained

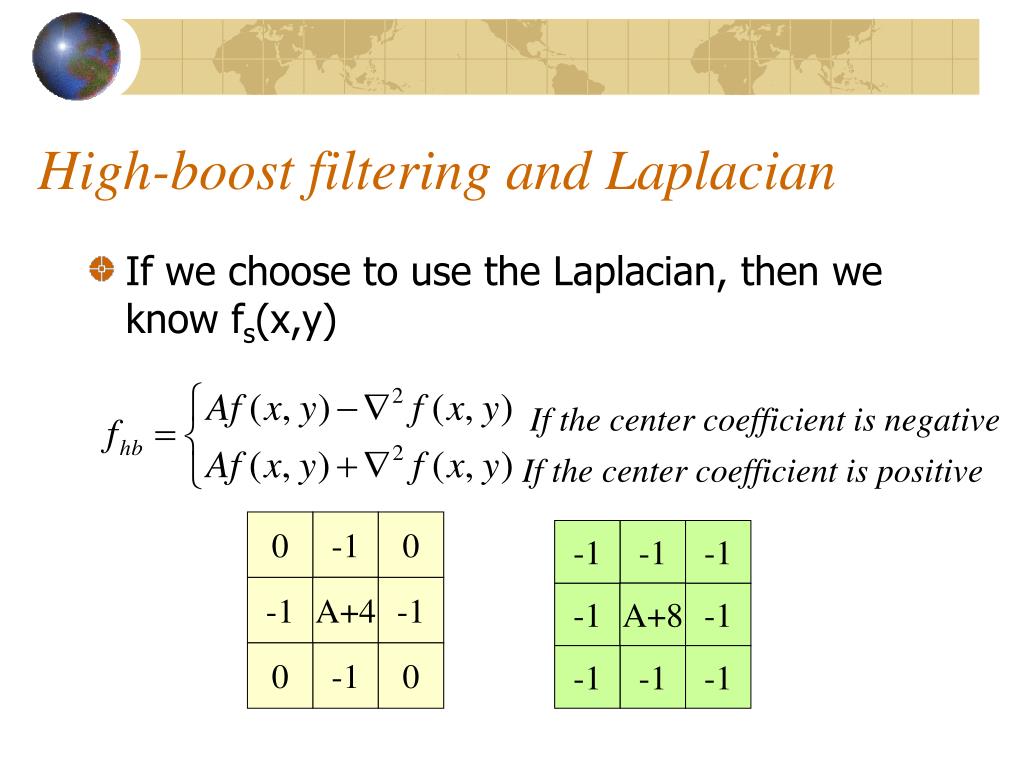

high boost filtering and laplacian

-1

0

-1

-1

0

-1

-1

-1

A+4

A+8

-1

-1

-1

0

-1

-1

-1

0

High-boost filtering and Laplacian
  • If we choose to use the Laplacian, then we know fs(x,y)

If the center coefficient is negative

If the center coefficient is positive

the gradient 1 st order derivative
The Gradient (1st order derivative)
  • First Derivatives in image processing are implemented using the magnitude of the gradient.
  • The gradient of function f(x,y) is
gradient
Gradient
  • The magnitude of this vector is given by

-1

1

This mask is simple, and no isotropic. Its result only horizontal and vertical.

Gx

1

Gy

-1

robert s method
Robert’s Method
  • The simplest approximations to a first-order derivative that satisfy the conditions stated in that section are

z1

z2

z3

Gx = (z9-z5) and Gy = (z8-z6)

z4

z5

z6

z7

z8

z9

robert s method49
Robert’s Method
  • These mask are referred to as the Roberts cross-gradient operators.

-1

0

0

-1

0

1

1

0

sobel s method

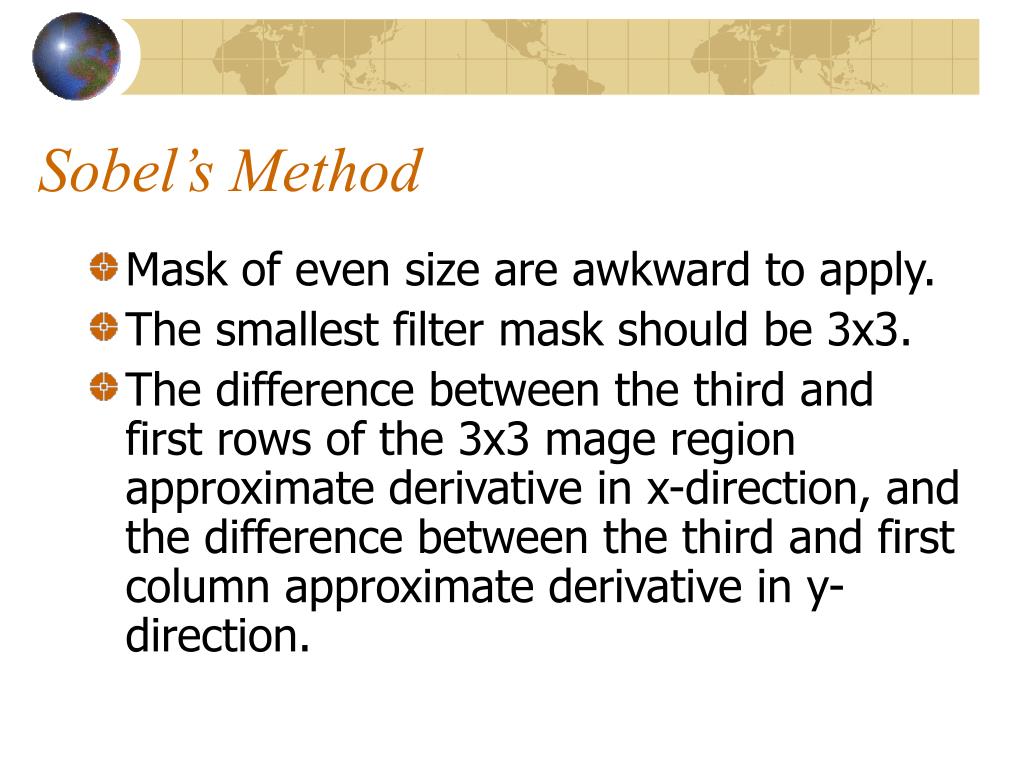

Sobel’s Method
  • Mask of even size are awkward to apply.
  • The smallest filter mask should be 3x3.
  • The difference between the third and first rows of the 3x3 mage region approximate derivative in x-direction, and the difference between the third and first column approximate derivative in y-direction.
sobel s method51
Sobel’s Method
  • Using this equation

-1

-2

-1

-1

0

1

0

0

0

-2

0

2

1

2

1

-1

0

1

homework52

-1

-1

-2

-2

-1

-1

-2

-2

-12

12

-2

-2

-1

-1

-2

-2

-1

-1

Homework
  • ลองนำภาพสีมาหา sharpening โดยใช้ filter
    • Laplacian
    • High-boost with laplacian
    • Gradient
    • Robert
    • Sobel
    • my mask
