slide1

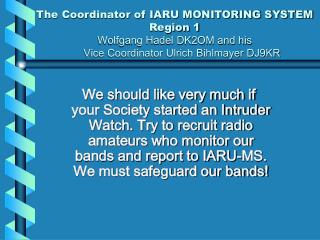

The Coordinator of IARU MONITORING SYSTEM Region 1 Wolfgang Hadel DK2OM and his Vice Coordinator Ulrich Bihlmayer DJ9KR

We should like very much if your Society started an Intruder Watch. Try to recruit radio amateurs who monitor our bands and report to IARU-MS. We must safeguard our bands!

slide2
IARU MONITORING SYSTEM Region 1Coordinator: Wolf Hadel DK2OM (left), Vice Coordinator: Ulrich Bihlmayer DJ9KR
how to cope with an intruder
How to cope with an Intruder
  • Listen carefully!
  • Write down the most important facts!
  • Make a Sound File!
  • Report to the Monitoring System

Listen carefully, do not jam the intruder!

how you can help too
How YOU can help too:
  • Perhaps you speak a foreign language to understand and identify the intruder
  • Perhaps you are a good CW operator
  • Perhaps you can listen at „impossible“ times
  • Perhaps you own a special Decoder to identify Digital Signals

Listen carefully, make a note, and report to the IARU Monitoring System Intruder Watch

how to make a report to the iaru monitoring system the 80 m band is not exclusive
How to make a report to the IARU MONITORING SYSTEM- the 80-m-Band is NOT exclusive!
  • Frequency (in kHz)
  • Mode
  • Time (in UTC)
  • Day, Month, Year
  • Call Sign of the Intruding Station, if known
  • Country, if known
  • Comments about the program, language, jingle (of a Broadcast Station)
hey this is my frequency disappear amateur
Hey! This is my frequency! Disappear, Amateur!
  • I have always been here, and you`ve never complained!
  • J‘ai été ici depuis longtemps, et tu n‘as jamais protesté!
how to read a frequency am a3e
How to read a Frequency: AM – A3E
  • Switch the receiver in position SSB, then tune to Zero-Beat and read the frequency!
how to read a frequency fm f3e

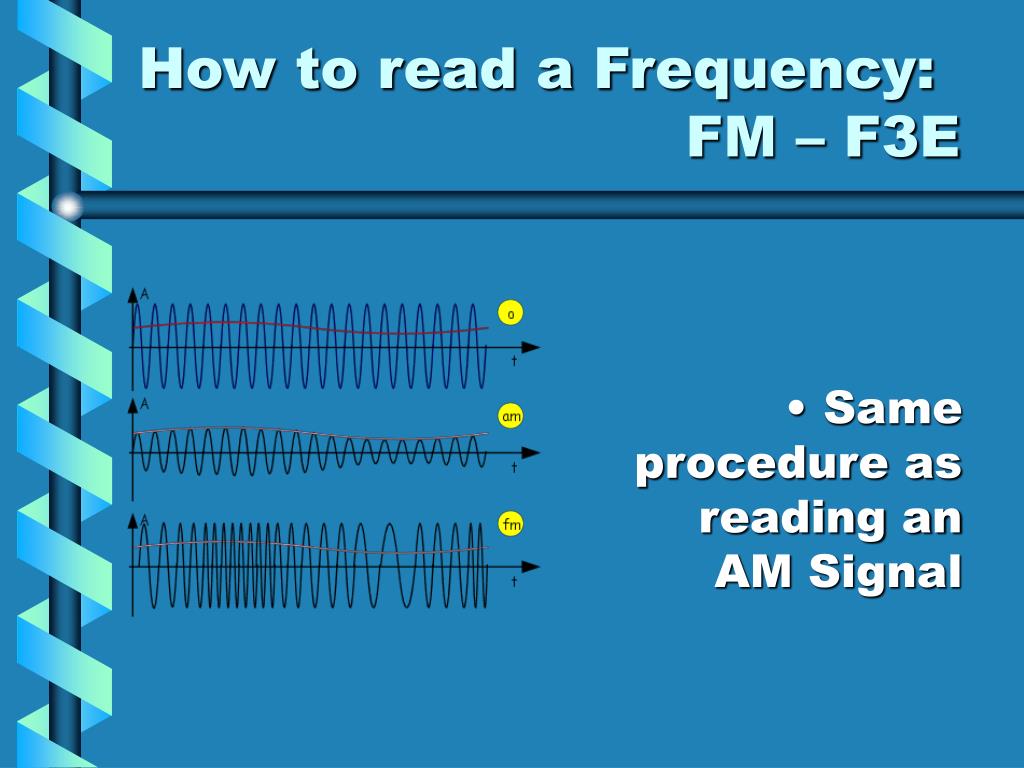

How to read a Frequency: FM – F3E
  • Same procedure as reading an AM Signal
if you suppose a transmitter harmonic
If you suppose a Transmitter Harmonic
  • Listen on the supposed Fundamental.
  • „Harmonics“ of 7120 kHz (e.g.) are 14240, 21360, 28480 kHz
  • Divide your „harmonic“ by 2, 3, 4, 5 etc. and listen on the supposed Fundamental!
what you should not report to your intruder watch
What you should NOT report to your Intruder Watch
  • Crackling noise from the pasture fence of your neighbour
  • Radio Amateurs using bad language
  • Radio Amateurs who do NOT follow the IARU Band Plan
  • TV Cable Interference and Pulses originating from Plasma-TV-Screens
reports of german bandwatch to the german telecoms authorities 40 m band may 2008 bc and digital

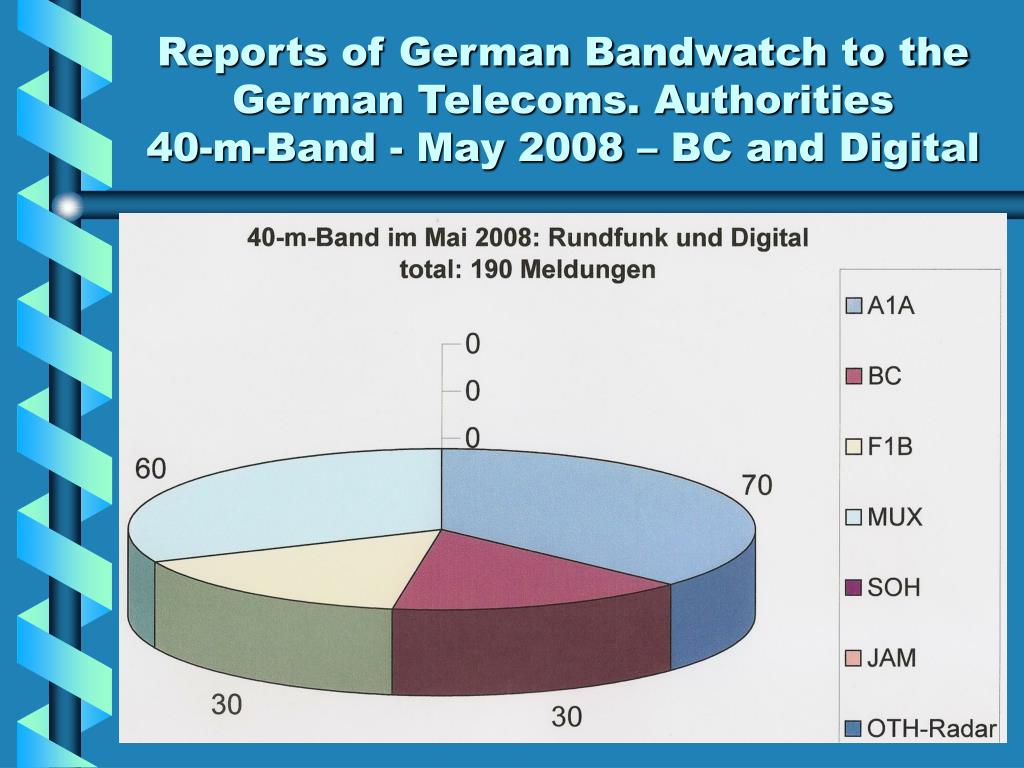

Reports of German Bandwatch to the German Telecoms. Authorities40-m-Band - May 2008 – BC and Digital
reports of german bandwatch to the german telecoms authorities 20 m band may 2008 bc and digital
Reports of German Bandwatch to the German Telecoms. Authorities 20-m-Band - May 2008 – BC and Digital
reports of german bandwatch to the german telecoms authorities 15 m band may 2008 bc and digital

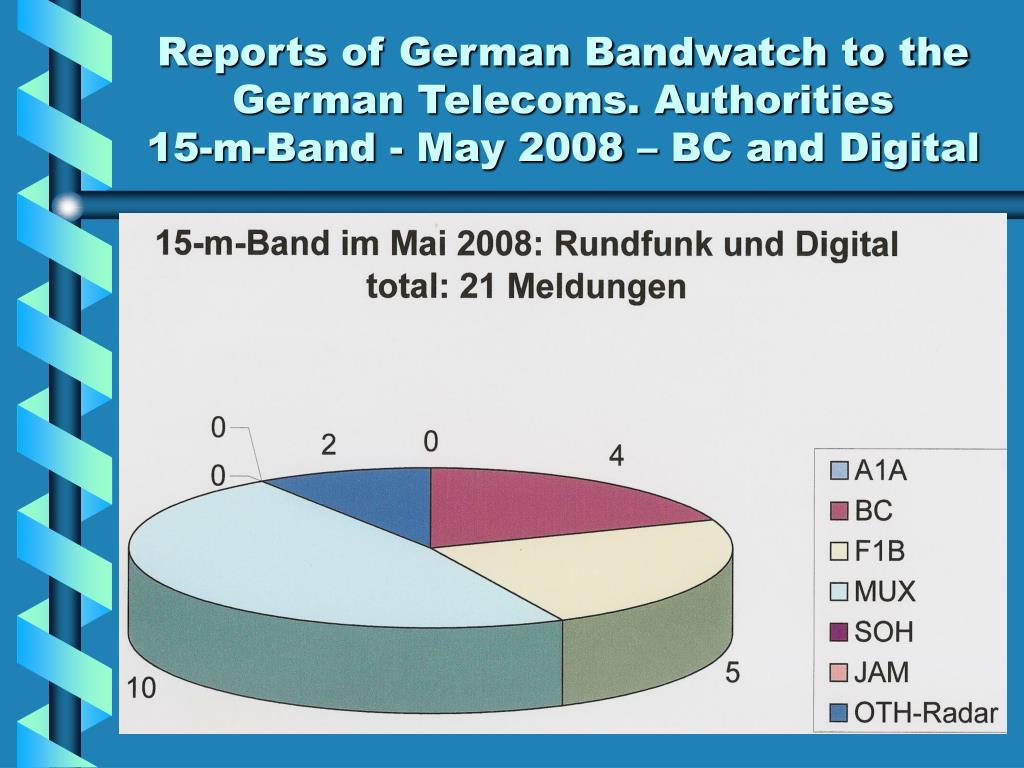

Reports of German Bandwatch to the German Telecoms. Authorities15-m-Band - May 2008 – BC and Digital
reports of german bandwatch to the german telecoms authorities 10 m band may 2008 illicit stations
Reports of German Bandwatch to the German Telecoms. Authorities 10-m-Band - May 2008 – illicit Stations
slide15
The so-called Firedrake-Music-Jammer of the PR of China and BC Propaganda Station „Sound of Hope“ from Taiwan
  • The Firedrake-Jammer from PR China jams the Propaganda-Tx-er Sound-of-Hope from Taiwan by transmitting overmodulated Chinese Temple Music
slide16
All Firedrake-Jammers get their Programs synchronously from CHINASAT-SatelliteInfo: www.satdirectory.com/firedrake.html
  • The music is transmitted from the 5th Minute till the end of the hour, then there is a 5 minutes break.
  • Sometimes you can hear „Sound-of-Hope“ in this break period
slide17
With his Wavecom Equipment Wolf Hadel DK2OM has made a Spectrogram of the Carriers of the Music-Jammer and Sound of Hope:
  • There is a difference of 26 Hz between the two carriers.
iaru monitoring system coordinator wolf dk2om and the group of 17 clever detectives in region 1
IARU Monitoring System Coordinator Wolf - DK2OM and the group of 17 clever „Detectives“ in Region 1
  • ARSK: 5Z4NU, Ted
  • ARI: DH7SA, Salvatore
  • DARC: DJ9KR, Uli
  • EARA: SU1KM, Mohamed
  • IRTS: EI4GXB, Ger
  • MARL: 9H1M, Dominic
  • MRASZ: HA7PL, Laszlo
  • NARS: 5N9AYM, Yusuf
  • OeVSV: OE3DMA, Alex
  • RAL: OD5RI, Rizkallah
  • REP: CT4AN, José
  • RSGB: G4BOH, Chris
  • SARL: ZS4SM, Malcolm
  • SRAL: OH2BLU, Pekka
  • URE: EA1AHO, Jose
  • USKA: HB9CET, Peter
  • VERON: PA0GRU, Dick
don t behave like an ostrich
Don‘t behave like an ostrich...

don‘t put your head ...

start an intruder watch in your national amateur radio society now
Start an Intruder Watch in your National Amateur Radio Society NOW !
  • Wolf Hadel DK2OM

Coordinator IARU-MS-1

Ulrich Bihlmayer DJ9KR

Vice Coordinator IARU-MS-1

For More Information hit: www. iarums-r1. org

catch the frequency thief
Catch the Frequency Thief!

Start an Intruder Watch

of your Society NOW!

Thank you for your interest!

Wolf, DK2OM & Uli, DJ9KR
