slide1

Tennessee Technological University

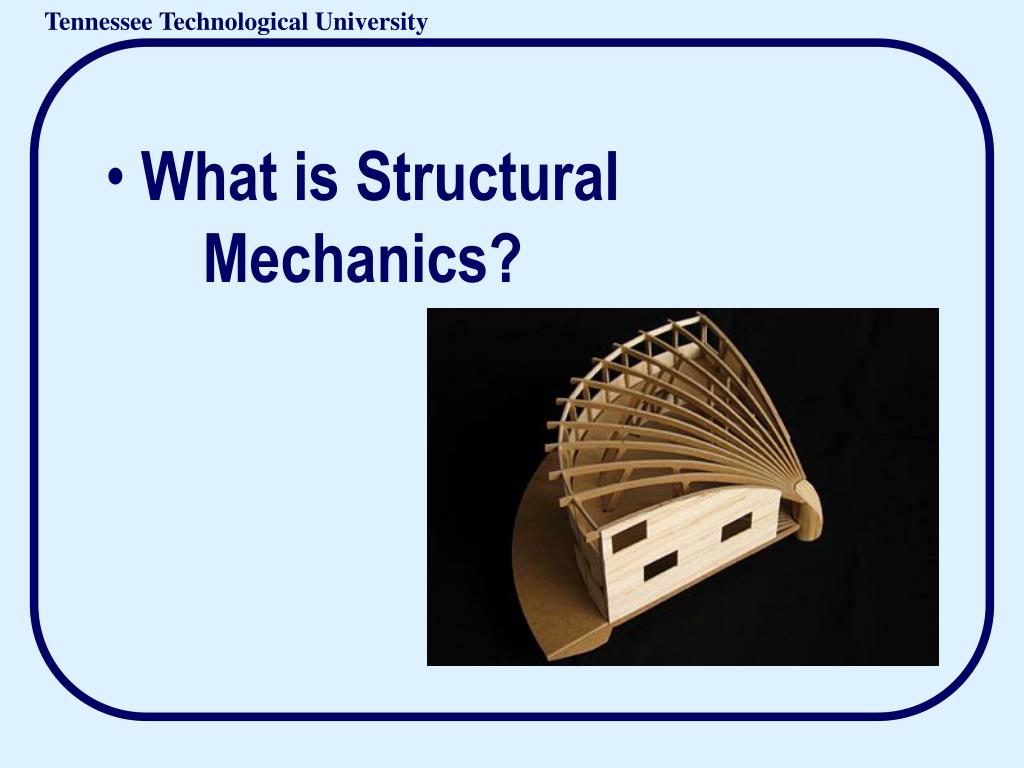

  • What is Structural Mechanics?
slide2

Tennessee Technological University

A General Picture

  • What is mechanics? And where are we?

Mechanics – the branch of physical

science which deals with the state

of rest or motion of bodies under

the action of forces

slide3

Tennessee Technological University

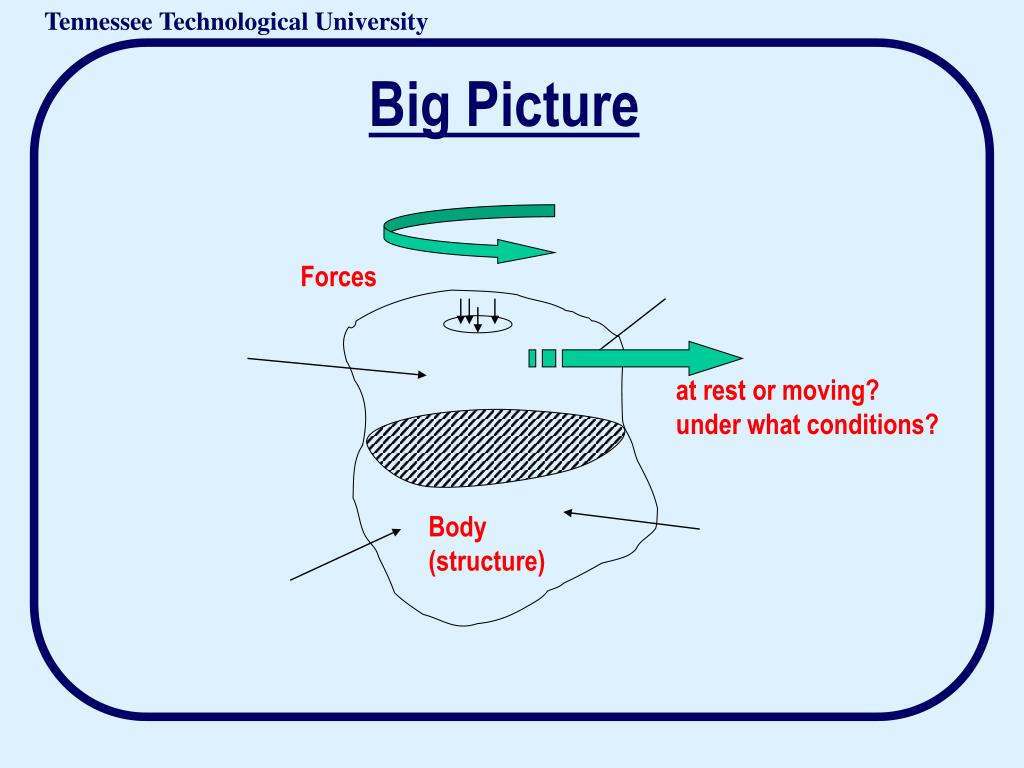

Big Picture

Forces

at rest or moving?

under what conditions?

Body (structure)

slide4

Where are we?

Physics

Calculus

Algebras

Rigid body

Statics

Dynamics

Solid Mechanics

Mechanics

Deformable body

Fluid Mechanics

Mechanics of materials

Structural Mechanics

Elasticity

Plasticity

Design classes

Concrete design

Steel design

Building design

Bridges design

Differential equations

Matrix analysis

Computer programming

Numerical methods

Structural Engineering in Civil Engineering

slide5

Tennessee Technological University

“What are Structures?”

Support loads

Perform functions

slide6

Timber Frames

Structural Engineering in Civil Engineering

slide7

Concrete Slab

Structural Engineering in Civil Engineering

slide8

University of Hawaii at Manoa

Jane Liu

Concrete Shell Structure

Structural Engineering in Civil Engineering

slide9

Steel Bridge

Structural Engineering in Civil Engineering

slide10

Steel Shell Structure

Structural Engineering in Civil Engineering

slide11

More Shell Structure

Structural Engineering in Civil Engineering

slide12

More Shell Structure

Structural Engineering in Civil Engineering

slide13

More Shell Structure

Structural Engineering in Civil Engineering

slide14

Tennessee Technological University

“A simple statics problem”

slide16

Tennessee Technological University

Structural Mechanics in CE Engineering

slide17

Tennessee Technological University

Structural Mechanics in CE Engineering

slide18

Tennessee Technological University

Structural Mechanics in CE Engineering

slide19

Tennessee Technological University

Structural Mechanics in CE Engineering

slide20

Tennessee Technological University

Structural Mechanics in CE Engineering

slide21

Tennessee Technological University

Structural Mechanics in CE Engineering

slide22

Tennessee Technological University

The rescue mission failed again!!!

The “big hammer” did not work either!?

Structural Mechanics in CE Engineering

slide23

Tennessee Technological University

W1

W2

f1

f2

N1

N2

L2

L1

L1

The over turning moment, W2L2 was larger than W1L1. W2L2> W1L1

A very simple statics problem!

Structural Mechanics in CE Engineering

slide24

Tennessee Technological University

Thank you for your attention

  • Big picture
  • Math tools
  • Your future study
