ted a language for modeling telecommunication networks

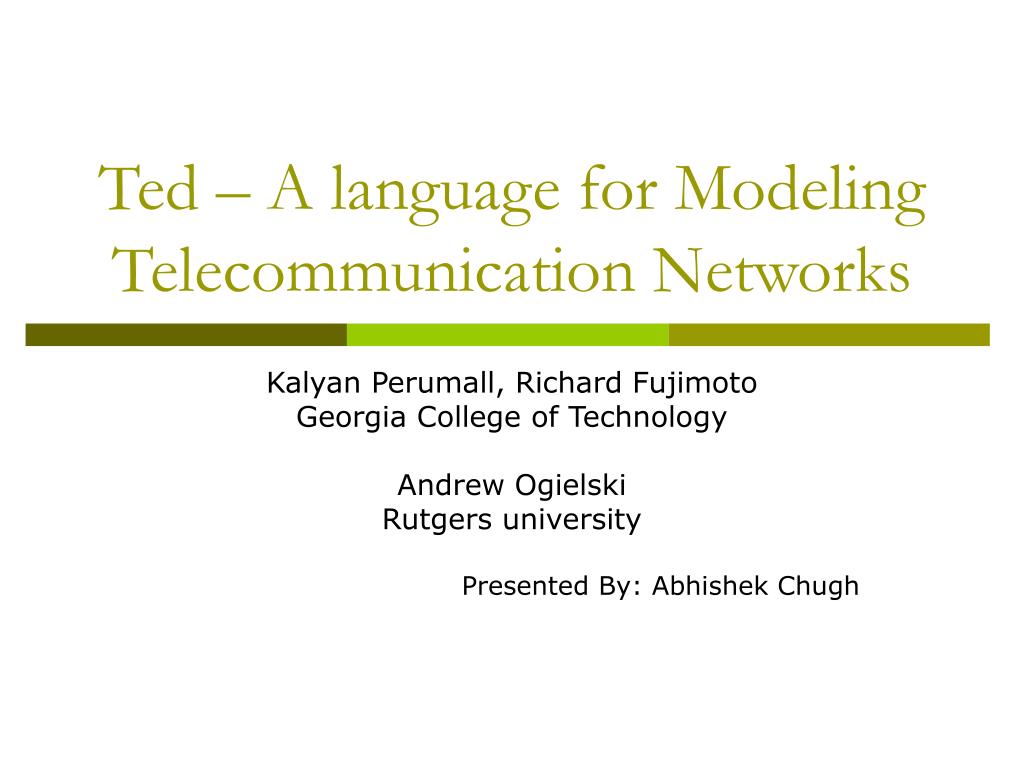

Ted – A language for Modeling Telecommunication Networks

Kalyan Perumall, Richard Fujimoto

Georgia College of Technology

Andrew Ogielski

Rutgers university

Presented By: Abhishek Chugh

introduction
Introduction
  • Designed mainly for modeling telecommunication networks
  • Language specification is split into two distinct parts –
    • MetaTed
    • External language
  • MetaTed – incomplete language – more appropriately called a framework.
  • When MetaData is combined with any programming language, say £, complete language is formed.
    • £ - flavor of TeD.
    • concept of outsourcing.
objectives in the design of ted language
Objectives in the design of TeD Language
  • General for modeling current as well as future telecommunication networks.
  • Should provide for specification, description as well as simulation.
  • Support object orientation – encapsulation, inheritance and polymorphism.
  • Should provide support for user-definable and extensible libraries.
fundamental concepts
Fundamental Concepts
  • Entity
  • Event
  • Channel
  • Architecture
    • State
    • Behavior
      • Process
      • Component
    • Result
concepts overview
Concepts Overview
  • Physical and conceptual objects are modeled as entities.
  • Entities interact through channels.
  • Events – Information units which flow through channels.
  • Entities are highly modular.
  • The entity construct describes the entity’s external input/output view.
concepts overview7
Concepts Overview
  • Architecture - Describes dynamic behavior of each entity.
    • Essentially describes the actions of entity on event arrival.
    • Processes are defined to act upon arriving events.
    • Components – Entities logically enclosed inside bigger entities.
  • Architecture construct describes the internal behavioral part of the object being modeled.
entity declaration
Entity Declaration
  • Defines the external view of a physical or conceptual object.
  • Essentially defines the input and output specifications.

Entity ATMMux ( int N )

{

channels

{

in ATMChannel A[$PARAM(N)$] ;

out ATMChannel B ;

}

}

event and channel declaration
Event and Channel Declaration
  • Channel – port of input or output.
  • An output channel of an entity can be mapped to an input channel of another entity.
  • A channel type is defined as a set of event types.
  • Two channels can be mapped only if they are compatible.
  • Declarations

Event ATMCell {$ char data[53]; $}

Channel ATMChannel { ATMCEll }

architecture declaration
Architecture Declaration
  • Mainly consists of following parts:
    • Deferred Constants: Items whose value could be different for different instances of entity.
    • State: Variables that together form a part of the abstract state of the model.
    • Channels: Set of channels used for communication among internal processes and components of an architecture.
    • Behavior Processes: Threads of computation that act on events arriving on interface and internal channels.
    • Behavior Components: Set of entities that ft logically form sub entities of an entity’s behavior.
    • Result: A set of values that are an abstraction of result.
architecture declaration13
Architecture Declaration

Declaration:

Architecture of ATMMux ( int N )

{

dconst{$ int S, K; double T; $}

state{$ int qlen, nsent, nlost; $ }

behavior

{

process#1 scan( A );

process#2 update;

}

result{$ int totsent, totlost; $ }

}

processes
Processes
  • Leaf elements in the behavior tree.
  • Acts on behalf of entities that own them.
  • Basic functionality consists of combination of two types of action:
    • Computation: using state variables.
    • Synchronization: using channels and time.
  • Processes can be categorized based on their channel-synchronization method:
    • Arrival-driven: Wait for activity on a set of channels and performcomputation actions upon arrival of events on that channels.
    • Self-Driven: Consists of combination of one or more computation and synchronization actions.
processes15
Processes
  • Computation actions are specified using action statements in the external language.
  • Synchronization actions are specified using wait statement.
    • Wait onchannel-vars causes process to wait until at least one event arrives on at least one channel.
    • Wait untilcondition makes the process to wait until the condition evaluates to true.
    • Wait forexpression causes the process to wait for amount of time given by the expression.
process declaration
Process Declaration

process #1 ATMMux : scan( A[ $0$ to $PARAM(N)-1$ ] )

{ \{

for( int i=0, n=ASETSZ(A); i<n; i++ )

{

if( STATE(qlen) < DCONST(S) ) STATE(qlen)++ ;

else STATE(nlost)++ ;

}

\} }

process #2 ATMMux : update

{

/{ if( STATE(qlen) > 0 ) { {

CHANNEL(B) << EVENT(ATMCell,() );

STATE(qlen)--;

STATE(nsent)++;

}

\}

}

external code block
External Code block
  • External language expressions and declarations are used for certain purposes.
  • External code blocks are any valid external language expressions enclosed between a pair of $ signs, or between \{ and \}.
