slide2

Progress in hashing cryptanalysis

Arjen K. Lenstra1,2

joint work with

Benne de Weger2

1 Lucent Technologies’ Bell Laboratories

2 Technische Universiteit Eindhoven

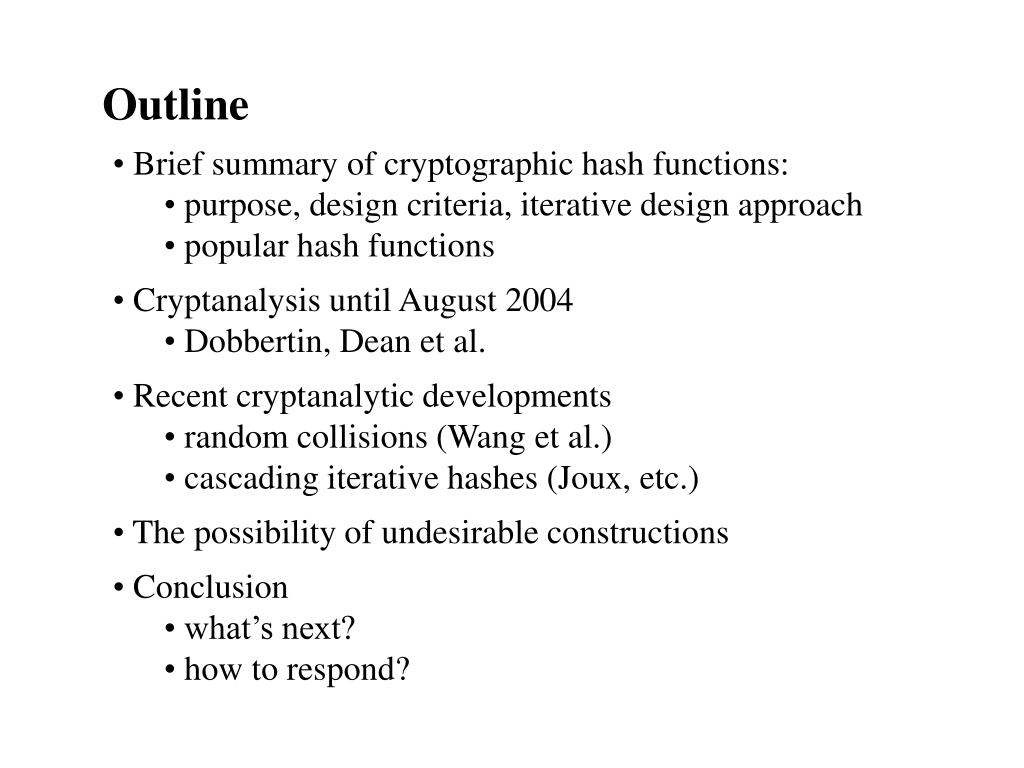

slide3

Outline

  • Brief summary of cryptographic hash functions:
    • purpose, design criteria, iterative design approach
    • popular hash functions
  • Cryptanalysis until August 2004
    • Dobbertin, Dean et al.
  • Recent cryptanalytic developments
    • random collisions (Wang et al.)
    • cascading iterative hashes (Joux, etc.)
  • The possibility of undesirable constructions

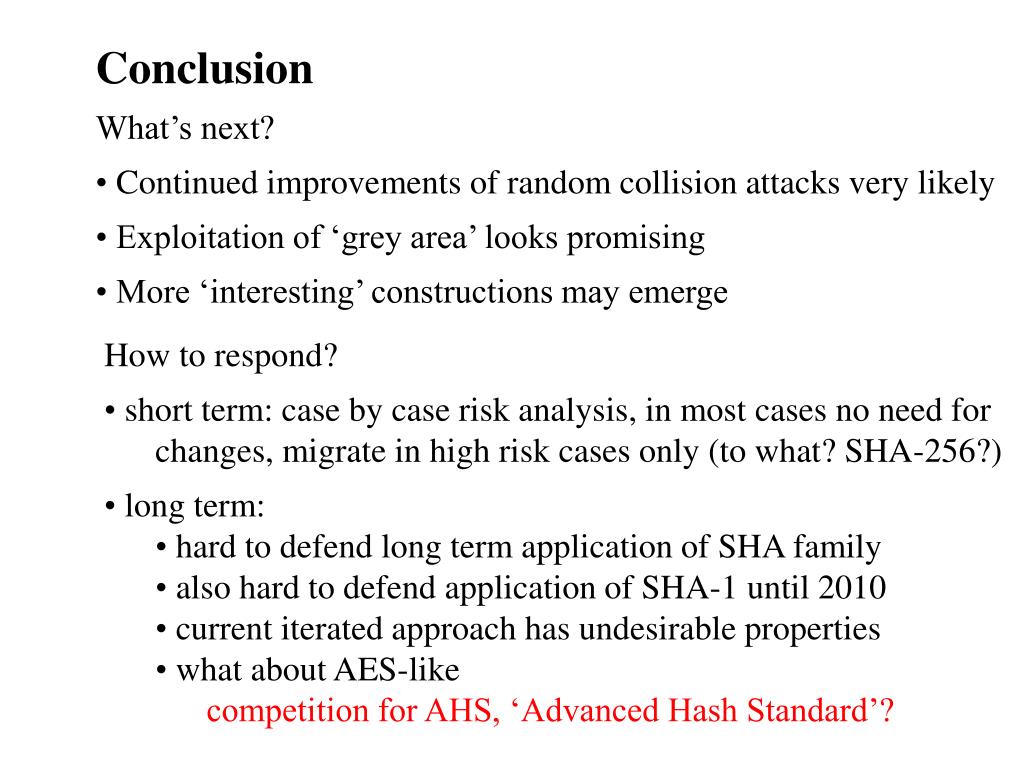

  • Conclusion
    • what’s next?
    • how to respond?

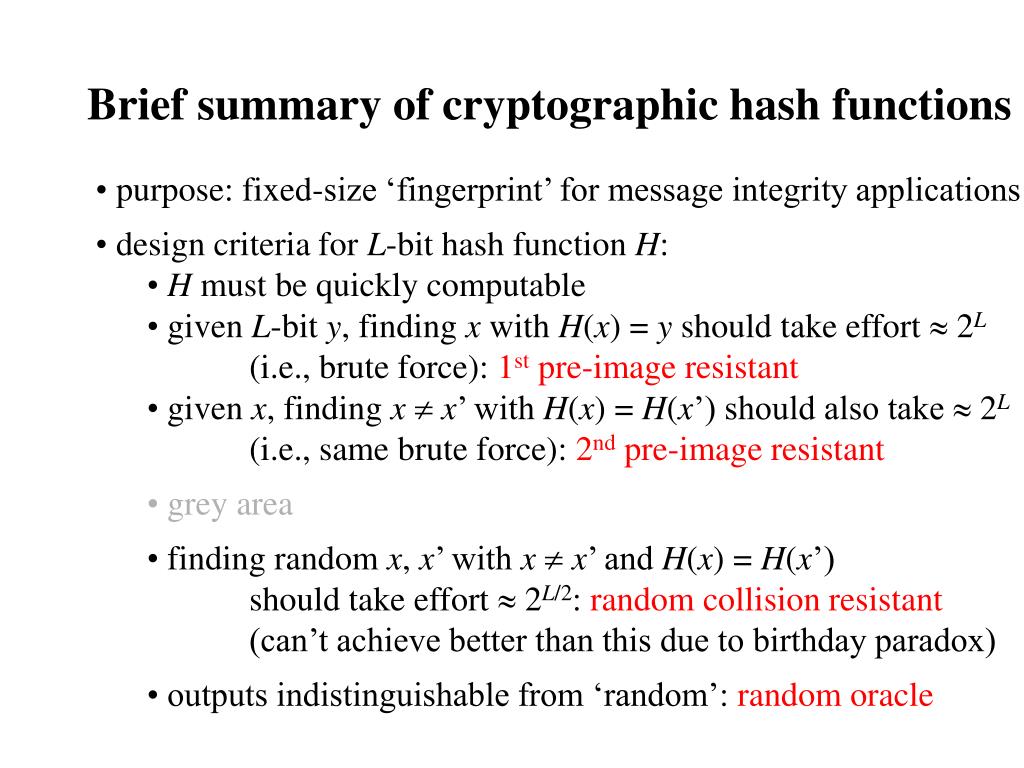

slide4

Brief summary of cryptographic hash functions

  • purpose: fixed-size ‘fingerprint’ for message integrity applications
  • design criteria for L-bit hash function H:
    • H must be quickly computable
    • given L-bit y, finding x with H(x) = y should take effort  2L
        • (i.e., brute force): 1st pre-image resistant
    • given x, finding xx’ with H(x) = H(x’) should also take  2L
        • (i.e., same brute force): 2nd pre-image resistant
    • grey area
    • finding random x, x’ with xx’ and H(x) = H(x’)
        • should take effort  2L/2: random collision resistant
        • (can’t achieve better than this due to birthday paradox)
    • outputs indistinguishable from ‘random’: random oracle

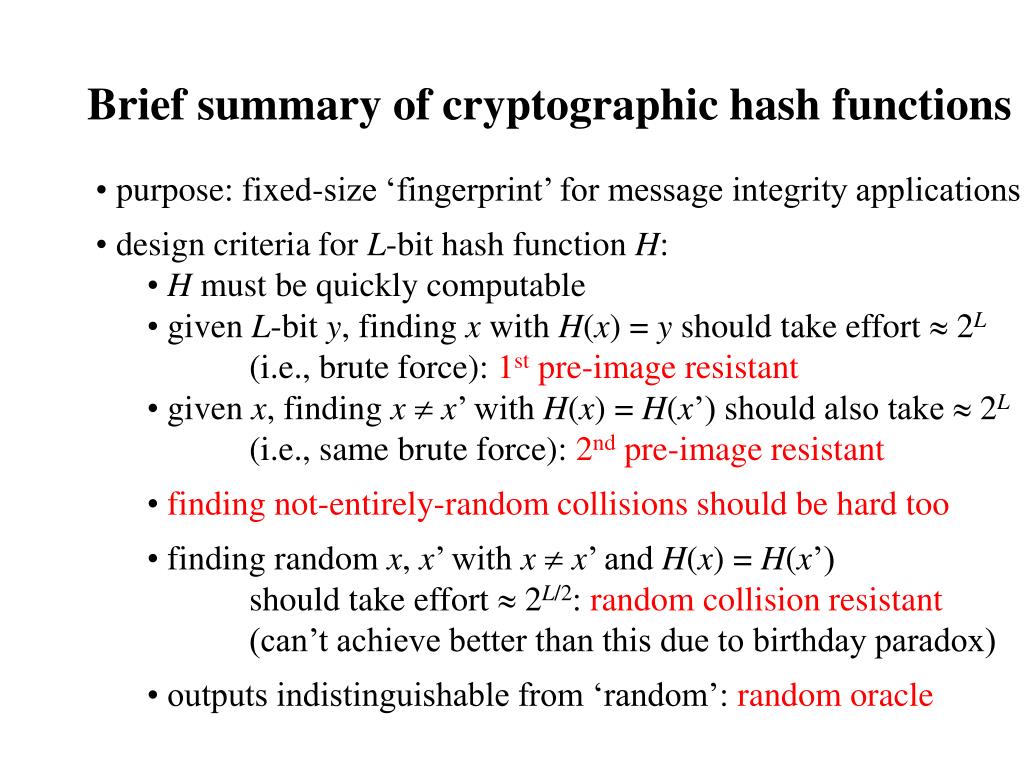

slide5

Brief summary of cryptographic hash functions

  • purpose: fixed-size ‘fingerprint’ for message integrity applications
  • design criteria for L-bit hash function H:
    • H must be quickly computable
    • given L-bit y, finding x with H(x) = y should take effort  2L
        • (i.e., brute force): 1st pre-image resistant
    • given x, finding xx’ with H(x) = H(x’) should also take  2L
        • (i.e., same brute force): 2nd pre-image resistant
    • finding not-entirely-random collisions should be hard too
    • finding random x, x’ with xx’ and H(x) = H(x’)
        • should take effort  2L/2: random collision resistant
        • (can’t achieve better than this due to birthday paradox)
    • outputs indistinguishable from ‘random’: random oracle
slide6

Iterative design of cryptographic hash functions

  • Iterative L-bit hash function H:
  • Compression function f:
      • maps pair (512-bit block, L-bit string) to L-bit string
  • Fixed L-bit string h0: initialization vector (IV)
  • Input x written as concatenation of 512-bit blocks:
      • x1 || x2 || x3 || … || xm
  • where xm contains padding and x’s length (MD-strengthening)
  • For i = 1, 2, …, m in succession, compute hi = f(xi,hi1)
  • Resulting hash H(x) of x equals final L-bit string hm
  • Nice property: if f is collision resistant, then H is collision resistant
    • But (2004): falling apart as soon as collisions can be found
slide7

Popular cryptographic hash functions

  • Most eggs in the Message Digest basket:
  • MD4, L = 128
  • tweaked version: MD5, L = 128
  • length extension: SHA-0, L = 160
  • surprise tweak: SHA-1, L = 160
  • more tweaks, more length extensions:
      • SHA-224/256/384/512, L = 224/256/384/512
  • all in the same family, all iterative
slide8

Hashing cryptanalysis until August 2004

  • MD4 considered broken: Den Boer, Bosselaers, and Dobbertin,
    • 1996, ‘meaningful’ collisions
  • MD5 considered weak: Dobbertin,
    • 1996, collisions in the MD5 compression function
  • Iterated hash functions for which compression function
    • fixed points can be found (i.e., all hashes in the SHA family):
    • Drew Dean et al. (1999) found 2nd preimage weakness
      • (hidden in Dean’s thesis, never published)
  • MD5 and up:
    • security of practical applications not seriously questioned
  • Strong belief in effectiveness of tweaks
slide9

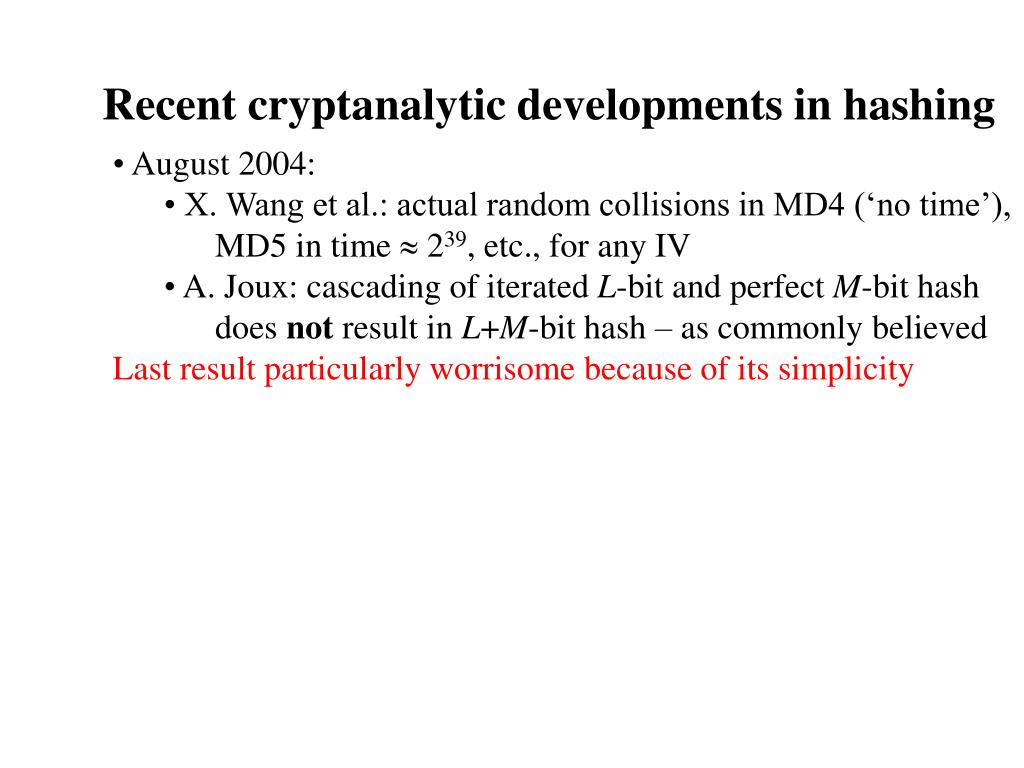

Recent cryptanalytic developments in hashing

  • August 2004:
    • X. Wang et al.: actual random collisions in MD4 (‘no time’),
      • MD5 in time  239, etc., for any IV
    • A. Joux: cascading of iterated L-bit and perfect M-bit hash
      • does not result in L+M-bit hash – as commonly believed

Last result particularly worrisome because of its simplicity

slide10

Intermezzo: Joux’s result

  • cascading of iterated L-bit and perfect M-bit hash does not result
    • in L+M-bit hash: collisions much faster than in time 2(L+M)/2

find y11, y12 with f(y11,h0) = f(y12,h0) = h1 in time  2L/2

find y21, y22 with f(y21,h1) = f(y22,h1) = h2 in time  2L/2

find yk1, yk2 with f(yk1,hk1) = f(yk2,hk1) = hk in time  2L/2

  • Then: y1u||y2v||…||ykw for all u, v, …, w {1,2} all collide
    •  2K- fold collision in time K2L/2
  • With K = M/2:
    • for any M-bit hash function there will be a pair among the
    • 2M/2-fold collision that collides for that M-bit hash as well

 simultaneous collision for L-bit hash and M-bit hash in time

(M/2)2L/2 + 2M/2, for iterated L-bit hash and any M-bit hash

slide11

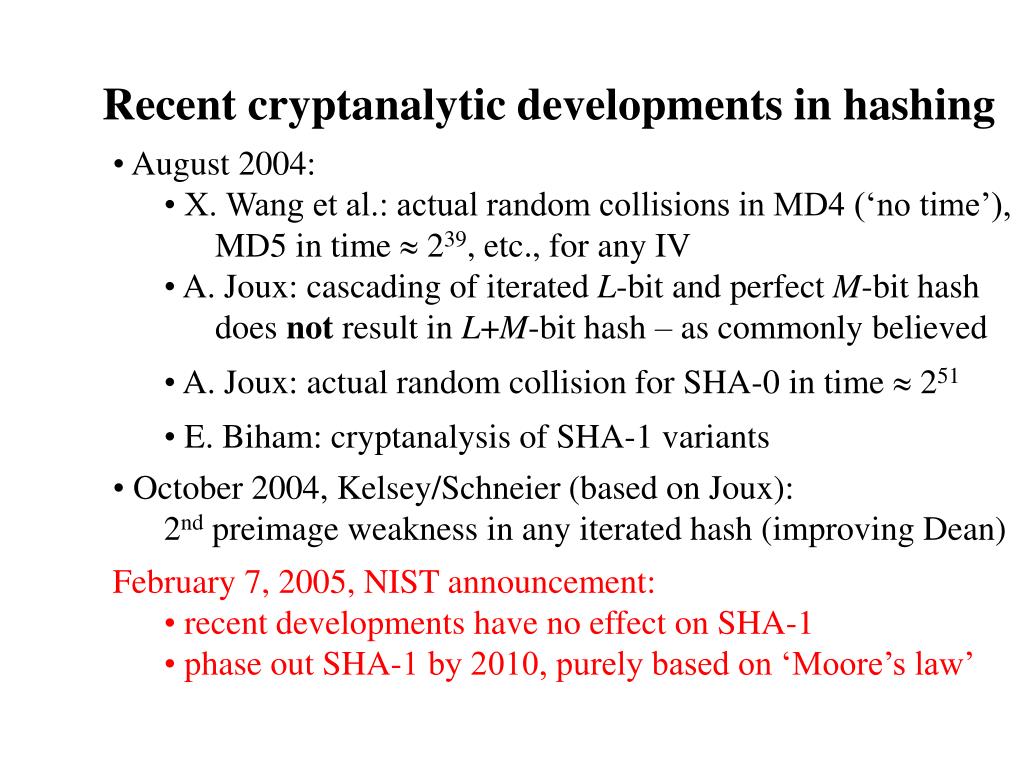

Recent cryptanalytic developments in hashing

  • August 2004:
    • X. Wang et al.: actual random collisions in MD4 (‘no time’),
      • MD5 in time  239, etc., for any IV
    • A. Joux: cascading of iterated L-bit and perfect M-bit hash
      • does not result in L+M-bit hash – as commonly believed
    • A. Joux: actual random collision for SHA-0 in time  251
    • E. Biham: cryptanalysis of SHA-1 variants
  • October 2004, Kelsey/Schneier (based on Joux):
    • 2nd preimage weakness in any iterated hash (improving Dean)
  • February 7, 2005, NIST announcement:
    • recent developments have no effect on SHA-1
    • phase out SHA-1 by 2010, purely based on ‘Moore’s law’

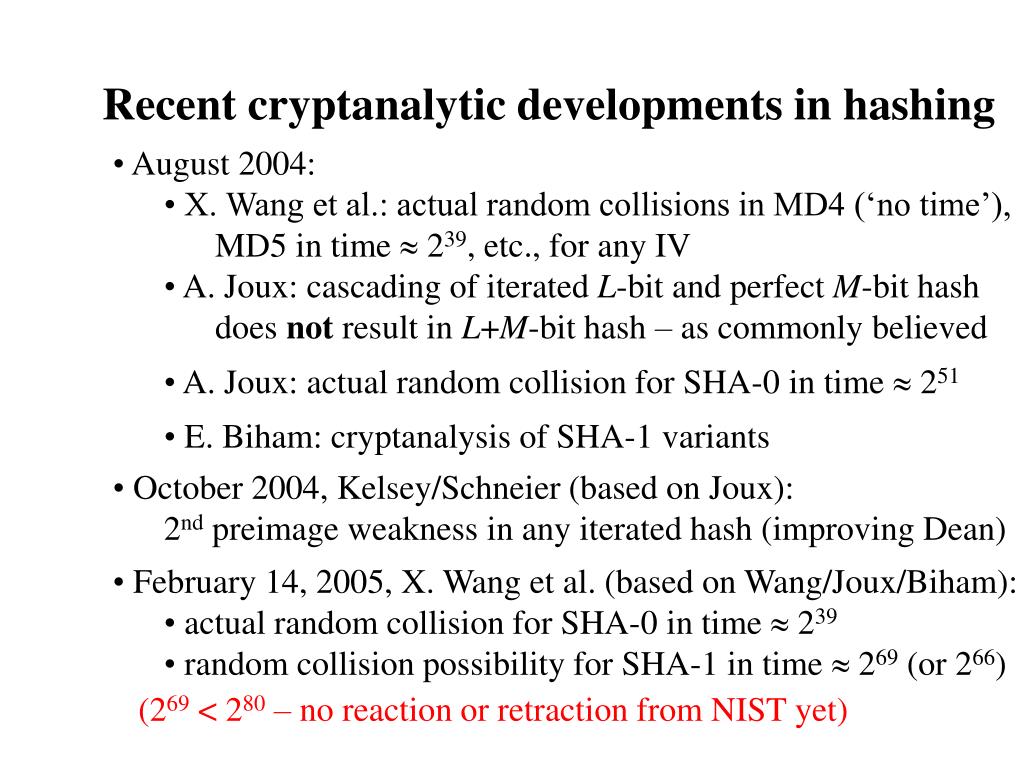

slide12

Recent cryptanalytic developments in hashing

  • August 2004:
    • X. Wang et al.: actual random collisions in MD4 (‘no time’),
      • MD5 in time  239, etc., for any IV
    • A. Joux: cascading of iterated L-bit and perfect M-bit hash
      • does not result in L+M-bit hash – as commonly believed
    • A. Joux: actual random collision for SHA-0 in time  251
    • E. Biham: cryptanalysis of SHA-1 variants
  • October 2004, Kelsey/Schneier (based on Joux):
    • 2nd preimage weakness in any iterated hash (improving Dean)
  • February 14, 2005, X. Wang et al. (based on Wang/Joux/Biham):
    • actual random collision for SHA-0 in time  239
    • random collision possibility for SHA-1 in time  269 (or 266)

(269 < 280 – no reaction or retraction from NIST yet)

slide13

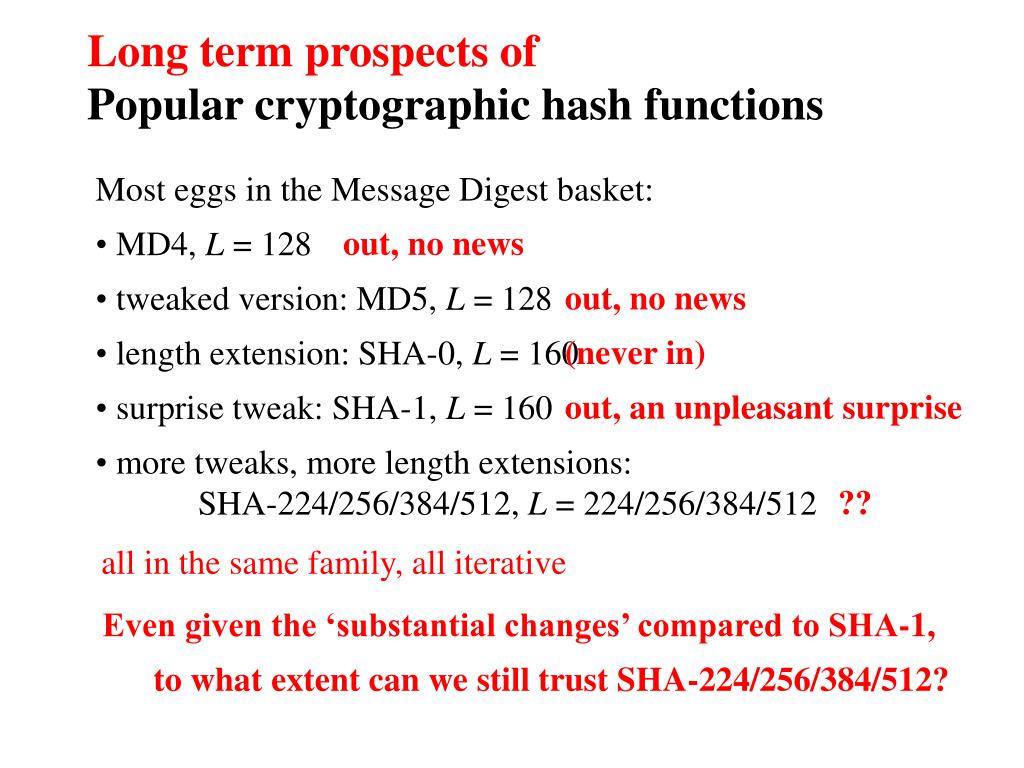

Long term prospects of

out, no news

out, no news

(never in)

out, an unpleasant surprise

??

Popular cryptographic hash functions

  • Most eggs in the Message Digest basket:
  • MD4, L = 128
  • tweaked version: MD5, L = 128
  • length extension: SHA-0, L = 160
  • surprise tweak: SHA-1, L = 160
  • more tweaks, more length extensions:
      • SHA-224/256/384/512, L = 224/256/384/512
  • all in the same family, all iterative

Even given the ‘substantial changes’ compared to SHA-1,

  • to what extent can we still trust SHA-224/256/384/512?
slide14

How do the Wang et al. collision attacks work?

  • Interestingly:
    • people are still trying to figure it out
    • V. Klima succeeded: improved the MD5 attack to  233
  • Very roughly speaking:
    • differential paths of compression function f are analysed
    • find M0 and low Hamming weight 1,in and out such that
      • f(M0,h0) = f(M0+ 1,in,h0) + out = h1 + out
    • MD4 is so weak that out = 0 for low Hamming weight 1,in  0
    • find M1 and low Hamming weight 2,in such that
      • f(M1,h1) = f(M1+ 2,in,h1 + out)
    • as a result M0||M1 and M0+ 1,in||M1+ 2,in collide
    • for SHA-0, 1,in = 0 (and thus out = 0) to get ‘convenient’ h1,
    • (later version omits M0 altogether: single block SHA-0 collision)
slide15

The possibility of undesirable constructions

  • Often repeated argument:
    • random collisions are not good for anything
    • all collisions so far are ‘random’, so we’re fine
  • Despite this argument:
    • published random collisions used for actual attack examples
      • involving integrity checks for downloadable files
      • (Tripwire etc.)
    • random collisions combined with iterative structure
      • suffice for interesting X.509 constructions
    • so far no truly ‘disastrous’ applications (imo)
slide16

X.509 certificate

  • X.509 allows following format of data
    • that will be hashed and signed:
          • p1|| m || p2
    • where:
    • p1 contains header, distinguished names, and
        • header of public key part,
        • may assume that p1 consists of whole number of blocks
    • m is an RSA modulus
    • p2 contains public exponent and
        • all other data until signature part
  • For collision purposes, the obvious place

to ‘hide’ random data would be the RSA modulus

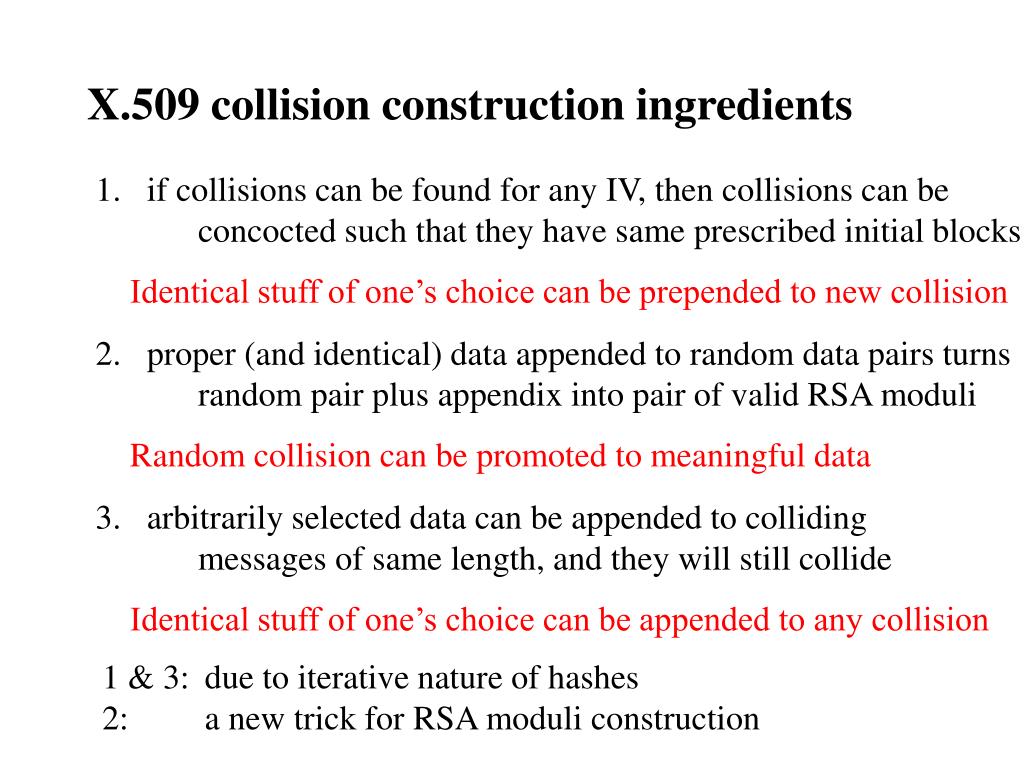

slide17

X.509 collision construction ingredients

  • if collisions can be found for any IV, then collisions can be
      • concocted such that they have same prescribed initial blocks
  • proper (and identical) data appended to random data pairs turns
      • random pair plus appendix into pair of valid RSA moduli
  • arbitrarily selected data can be appended to colliding
      • messages of same length, and they will still collide
  • Identical stuff of one’s choice can be prepended to new collision
  • Random collision can be promoted to meaningful data
  • Identical stuff of one’s choice can be appended to any collision

1 & 3: due to iterative nature of hashes

2: a new trick for RSA moduli construction

slide18

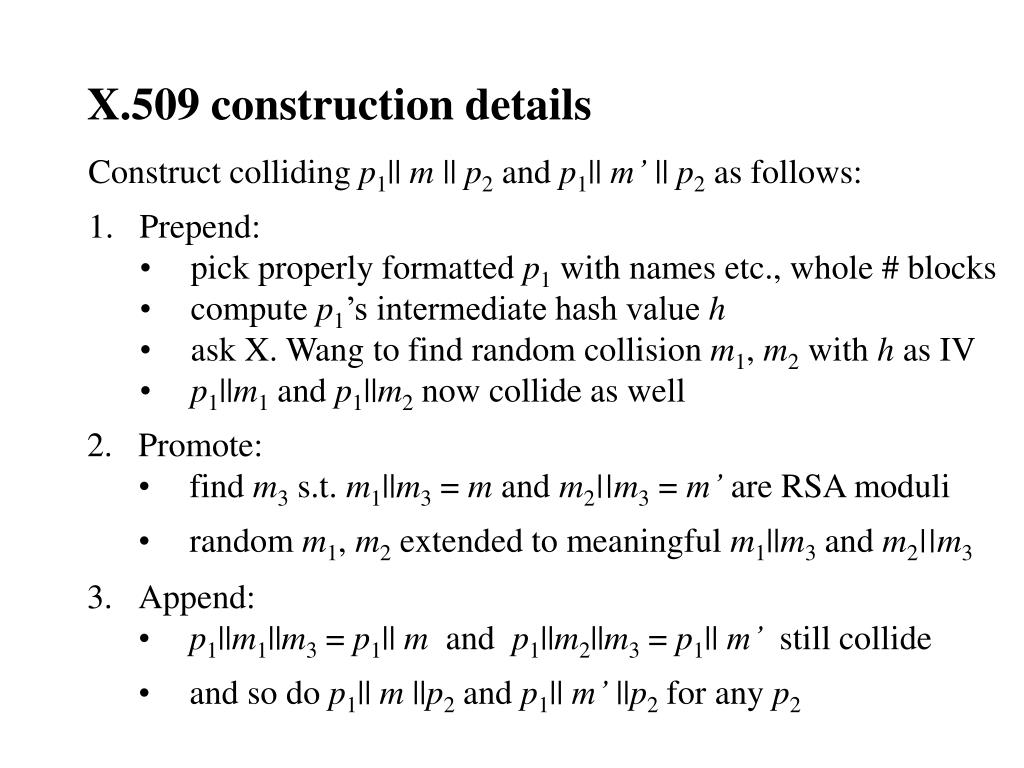

X.509 construction details

  • Construct colliding p1|| m || p2 and p1|| m’ || p2 as follows:
  • Prepend:
    • pick properly formatted p1 with names etc., whole # blocks
    • compute p1’s intermediate hash value h
    • ask X. Wang to find random collision m1, m2 with h as IV
    • p1||m1 and p1||m2 now collide as well
  • Promote:
    • find m3 s.t. m1||m3 = m and m2||m3 = m’ are RSA moduli
    • random m1, m2 extended to meaningful m1||m3 and m2||m3
  • Append:
    • p1||m1||m3 = p1|| m and p1||m2||m3 = p1|| m’ still collide
    • and so do p1|| m ||p2 and p1|| m’ ||p2 for any p2
slide19

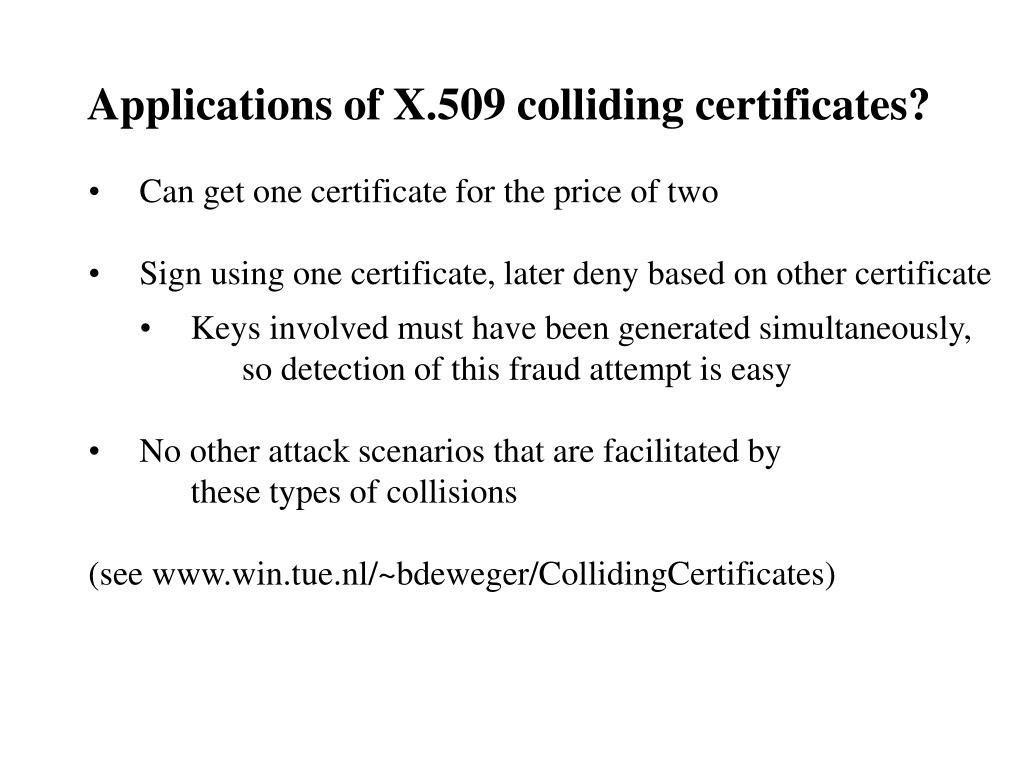

Applications of X.509 colliding certificates?

  • Can get one certificate for the price of two
  • Sign using one certificate, later deny based on other certificate
    • Keys involved must have been generated simultaneously,
        • so detection of this fraud attempt is easy
  • No other attack scenarios that are facilitated by
      • these types of collisions
  • (see www.win.tue.nl/~bdeweger/CollidingCertificates)
slide20

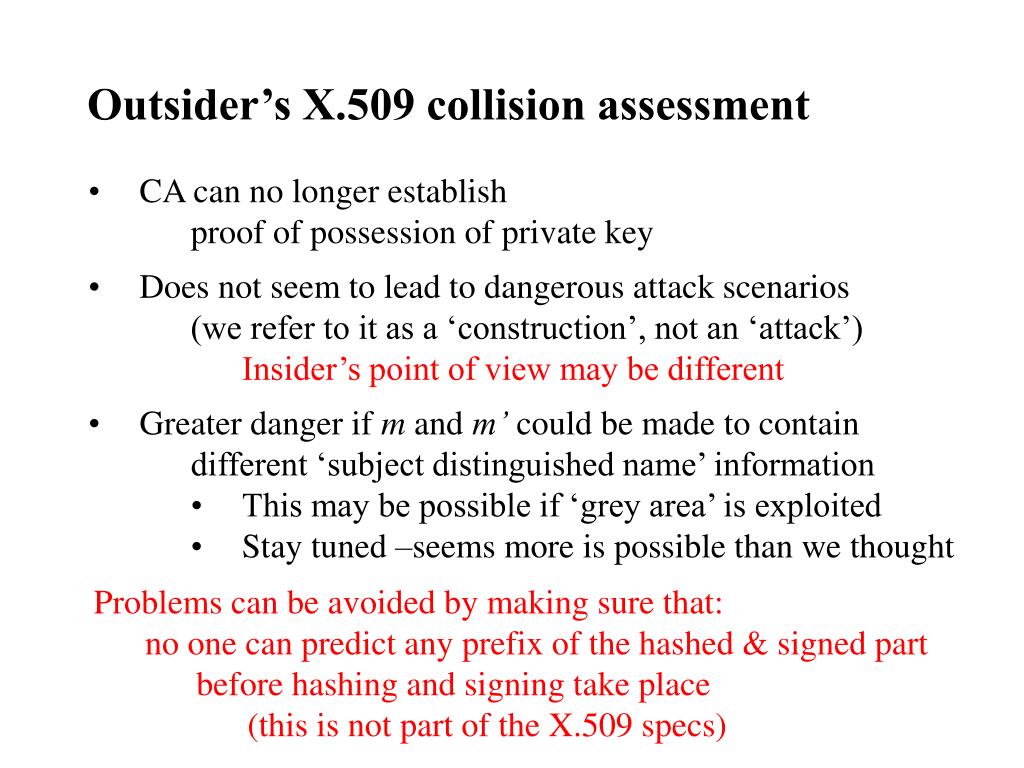

Outsider’s X.509 collision assessment

  • CA can no longer establish
      • proof of possession of private key
  • Does not seem to lead to dangerous attack scenarios
      • (we refer to it as a ‘construction’, not an ‘attack’)
        • Insider’s point of view may be different
  • Greater danger if m and m’ could be made to contain
      • different ‘subject distinguished name’ information
      • This may be possible if ‘grey area’ is exploited
      • Stay tuned –seems more is possible than we thought
  • Problems can be avoided by making sure that:
    • no one can predict any prefix of the hashed & signed part
      • before hashing and signing take place
        • (this is not part of the X.509 specs)
slide21

RSA moduli construction

  • The problem:
    • for any m1 and m2 of same length N,
    • find m3 such that m1||m3 and m2||m3 are secure RSA moduli
  • The solution (for ‘any’ M > 0):
    • repeatedly pick two M/2-bit primes p and q
    • use Chinese remaindering to find M-bit m3 such that
      • p divides m1||m3 and q divides m2||m3
    • until (m1||m3)/p and (m2||m3)/q are both prime

N = 1024, M = 1024, 2048-bit moduli, 512-bit smallest factors:

secure

N = 512, M = 512, 1024-bit moduli, 256-bit smallest factors:

not secure

slide22

Other strange RSA moduli

  • Variants of our new RSA moduli construction allow:
  • ‘Twin RSA’: RSA moduli (n, n+2), with factors of same size
  • ‘predetermined Twin RSA’: RSA moduli (n, n+2) with
    • fixed leading half bits, and factors of different sizes
slide23

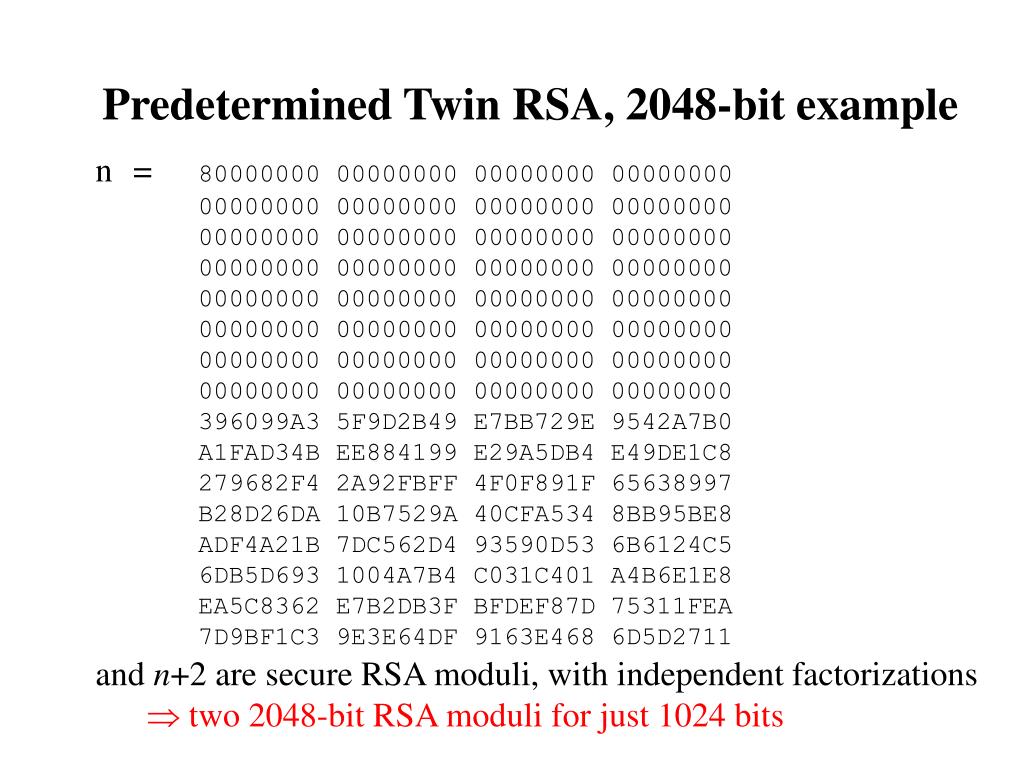

Predetermined Twin RSA, 2048-bit example

  • n= 80000000 00000000 00000000 00000000
  • 00000000 00000000 00000000 00000000
  • 00000000 00000000 00000000 00000000
      • 00000000 00000000 00000000 00000000
      • 00000000 00000000 00000000 00000000
      • 00000000 00000000 00000000 00000000
      • 00000000 00000000 00000000 00000000
      • 00000000 00000000 00000000 00000000
      • 396099A3 5F9D2B49 E7BB729E 9542A7B0
      • A1FAD34B EE884199 E29A5DB4 E49DE1C8
      • 279682F4 2A92FBFF 4F0F891F 65638997
      • B28D26DA 10B7529A 40CFA534 8BB95BE8
      • ADF4A21B 7DC562D4 93590D53 6B6124C5
      • 6DB5D693 1004A7B4 C031C401 A4B6E1E8
      • EA5C8362 E7B2DB3F BFDEF87D 75311FEA
      • 7D9BF1C3 9E3E64DF 9163E468 6D5D2711
  • and n+2 are secure RSA moduli, with independent factorizations
    •  two 2048-bit RSA moduli for just 1024 bits
slide24

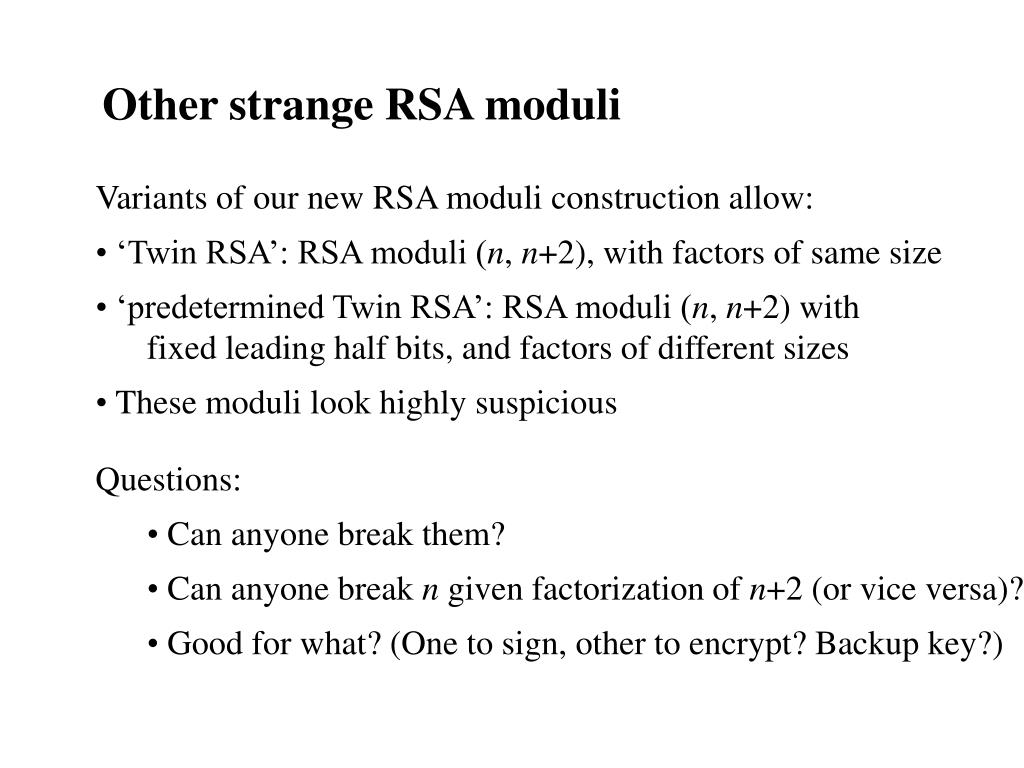

Other strange RSA moduli

  • Variants of our new RSA moduli construction allow:
  • ‘Twin RSA’: RSA moduli (n, n+2), with factors of same size
  • ‘predetermined Twin RSA’: RSA moduli (n, n+2) with
    • fixed leading half bits, and factors of different sizes
  • These moduli look highly suspicious
  • Questions:
    • Can anyone break them?
    • Can anyone break n given factorization of n+2 (or vice versa)?
    • Good for what? (One to sign, other to encrypt? Backup key?)
slide25

Conclusion

  • What’s next?
  • Continued improvements of random collision attacks very likely
  • Exploitation of ‘grey area’ looks promising
  • More ‘interesting’ constructions may emerge
  • How to respond?
  • short term: case by case risk analysis, in most cases no need for
    • changes, migrate in high risk cases only (to what? SHA-256?)
  • long term:
    • hard to defend long term application of SHA family
    • also hard to defend application of SHA-1 until 2010
    • current iterated approach has undesirable properties
    • what about AES-like
      • competition for AHS, ‘Advanced Hash Standard’?
