Chapter 9. Angular Motion in a Plane. ANGULAR DISPLACEMENT. Angular displacement ( q ) is usually expressed in radians, in degrees, or in revolutions. 6 segments gets to here. One radian is the angle subtended at the center of a circle by an arc equal in length to the radius of the circle.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Chapter 9' - Mercy


Download Now An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
chapter 9

Chapter 9

Angular Motion in a Plane

angular displacement
ANGULAR DISPLACEMENT
  • Angular displacement (q ) is usually expressed in radians, in degrees, or in revolutions.
slide4

6 segments gets

to here.

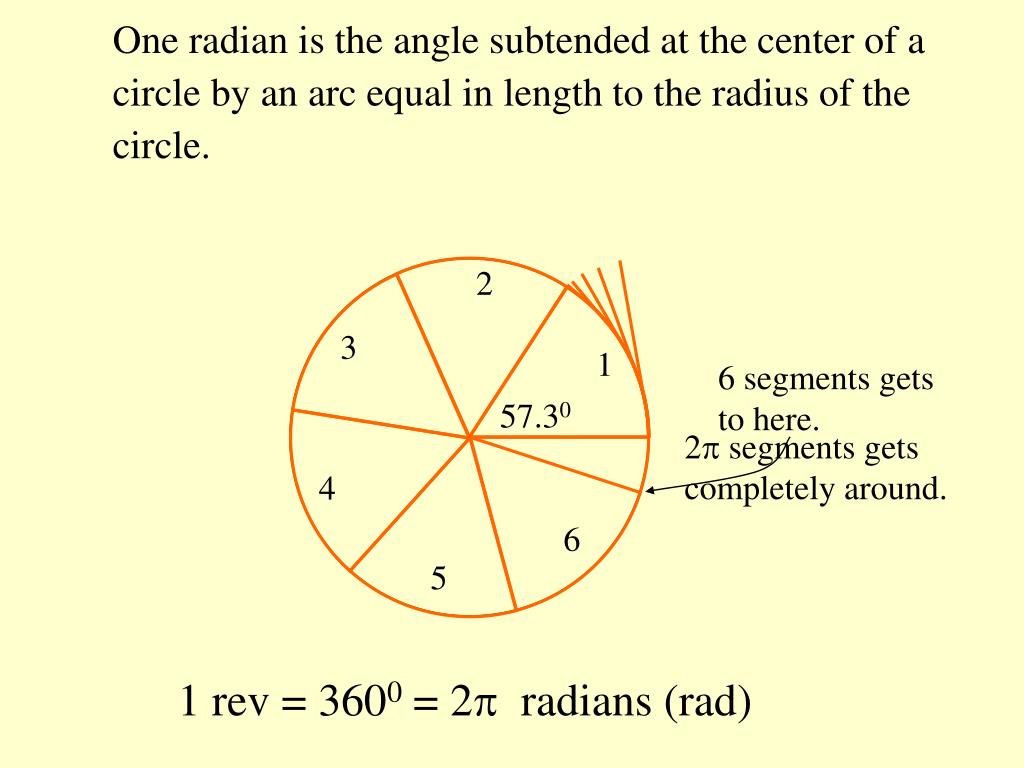

One radian is the angle subtended at the center of a circle by an arc equal in length to the radius of the circle.

2

3

1

57.30

2p segments gets completely around.

4

6

5

1 rev = 3600 = 2p radians (rad)

slide5
Thus the angle q in radians is given in terms of the arc length l it subtends on a circle of radius r by

The radian measure of an angle is a dimensionless number.

the angular speed
THE ANGULAR SPEED

The angular speed (w ) of an object whose axis of rotation is fixed is the rate at which its angular coordinate, the angular displacement q, changes with time. If q changes from qi to qf in a time t, then the average angular speed is

slide7
The units of are exclusively rad/s. Since each complete turn or cycle of a revolving system carries it through 2p rad

w = 2p f.

  • f is the frequency in revolutions per second, rotations per second, or cycles per second.
  • Accordingly, w is called the angular frequency. We can associate a direction with w and thereby create a vector quantity.
the angular acceleration
THE ANGULAR ACCELERATION
  • The angular acceleration (a ) of an object whose axis of rotation is fixed is the rate at which its angular speed changes with time.
  • If the angular speed changes uniformly from wi to wf in the time t, then the angular acceleration is constant and
slide9
The units of a are typically rad/s2, rev/min2, and such.

It is possible to associate a direction with w, and therefore with a, thereby specifying the angular acceleration vector a, but we will have no need to do so here.

slide10
Equations for uniformly accelerated angular motion are exactly analogous to those for uniformly accelerated linear motion. In the usual notation we have:
relations between angular and tangential quantities
RELATIONS BETWEEN ANGULAR AND TANGENTIAL QUANTITIES:
  • When a wheel of radius r rotates about an axis whose direction is fixed, a point on the rim of the wheel is described in terms of the circumferential distance l it has moved, its tangential speed v, and its tangential acceleration aT.
  • These quantities are related to the angular quantities q, w, and a, which describe the rotation of the wheel, through the relations:
slide14

If w gets bigger then v gets bigger.

aT is in the same direction of v.

If w gets smaller then v gets smaller.

aT is in the opposite direction of v.

q

r

w

slide15
provided radian measure is used for q, w, and a.
  • By simple reasoning, l can be shown to be the length of belt wound on the wheel or the distance the wheel would roll (without slipping) if free to do so.
  • In such cases, v and aT refer to the tangential speed and acceleration of a point on the belt or of the center of the wheel.
slide18

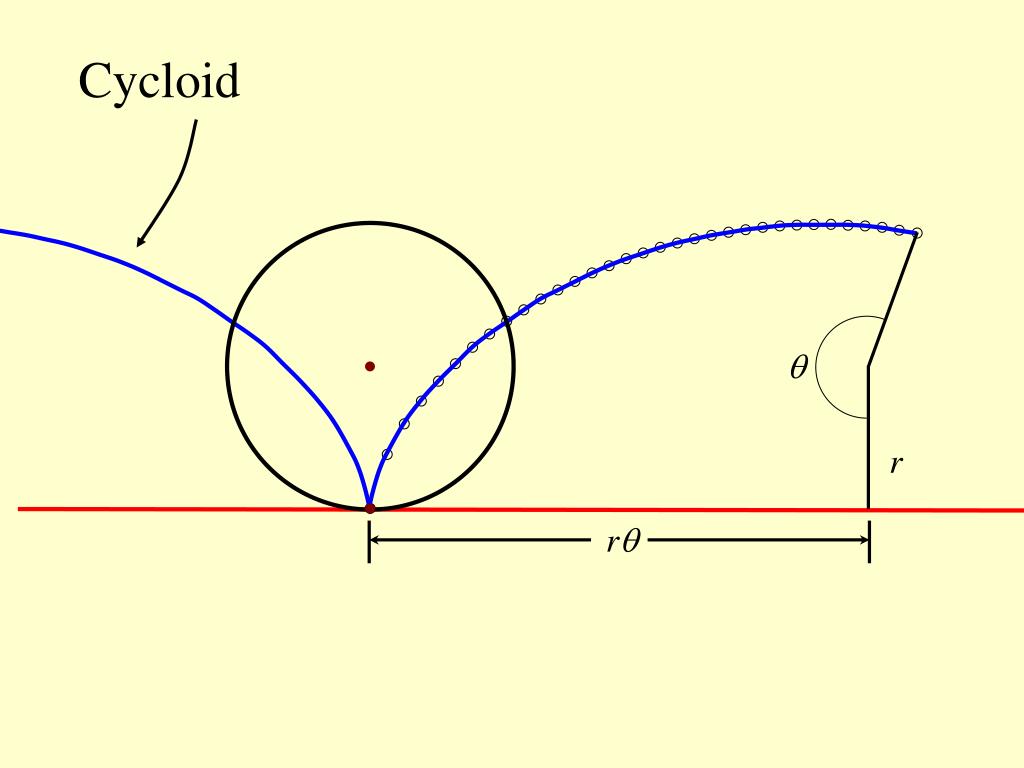

Cycloid

Remember this slide

q

r

rq

What is happening to the velocity of this point?

rotational inertia
ROTATIONAL INERTIA
  • Law of inertia for rotating systems

An object rotating about an axis tends to remain rotating at the same rate about the same axis unless interfered with by some external influence.

  • Examples: bullet, arrow, and earth
  • Demo – Football and spinning basketball
  • Demo - Whirly Tube (Zinger)
  • Demo – Whirly Shooter
  • Demo - Disc Gun
  • Demo - Rubber Bands
slide20
Demo - Inertia Bars
  • Moment of inertia (rotational inertia)

The sluggishness of an object to changes in its state of rotational motion

  • Distribution of mass is the key.
  • Example: Tightrope walker
centripetal acceleration
CENTRIPETAL ACCELERATION
  • Centripetal acceleration (ac):
  • A point mass m moving with constant speed v around a circle of radius r is undergoing acceleration.
  • The direction of the velocity is continually changing.
  • This gives rise to an acceleration ac of the mass, directed toward the center of the circle.
  • We call this acceleration the centripetal acceleration; its magnitude is given by
slide22

q

r

w

slide23

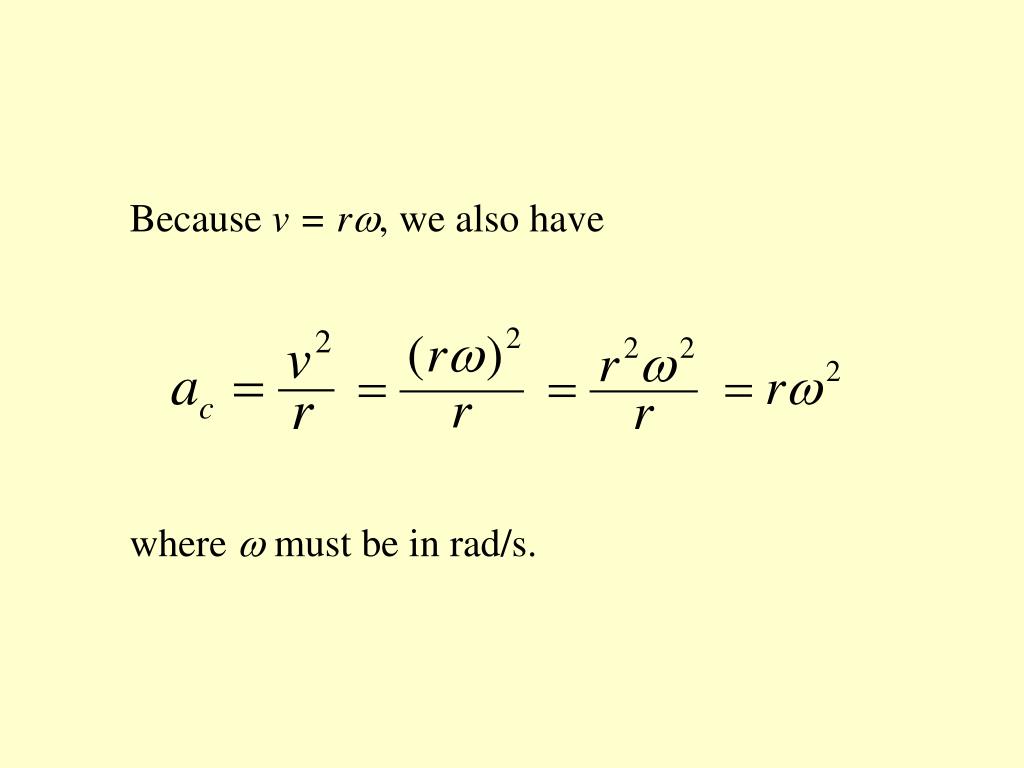

Because v = rw, we also have

where w must be in rad/s.

the centripetal force
THE CENTRIPETAL FORCE

The centripetal force (Fc) is the force that must act on a mass m moving in a circular path of radius r to give it the centripetal acceleration v2/r. From F = ma, we have

Where FC is directed toward the center of the circular path.

slide25
Centripetal force - center seeking force
  • Examples: tin can and string, sling, moon and earth, car on circular path
  • Demo - Coin on clothes hanger
  • Demo - String, ball, and tube
  • Demo - Loop the loop
centrifugal force

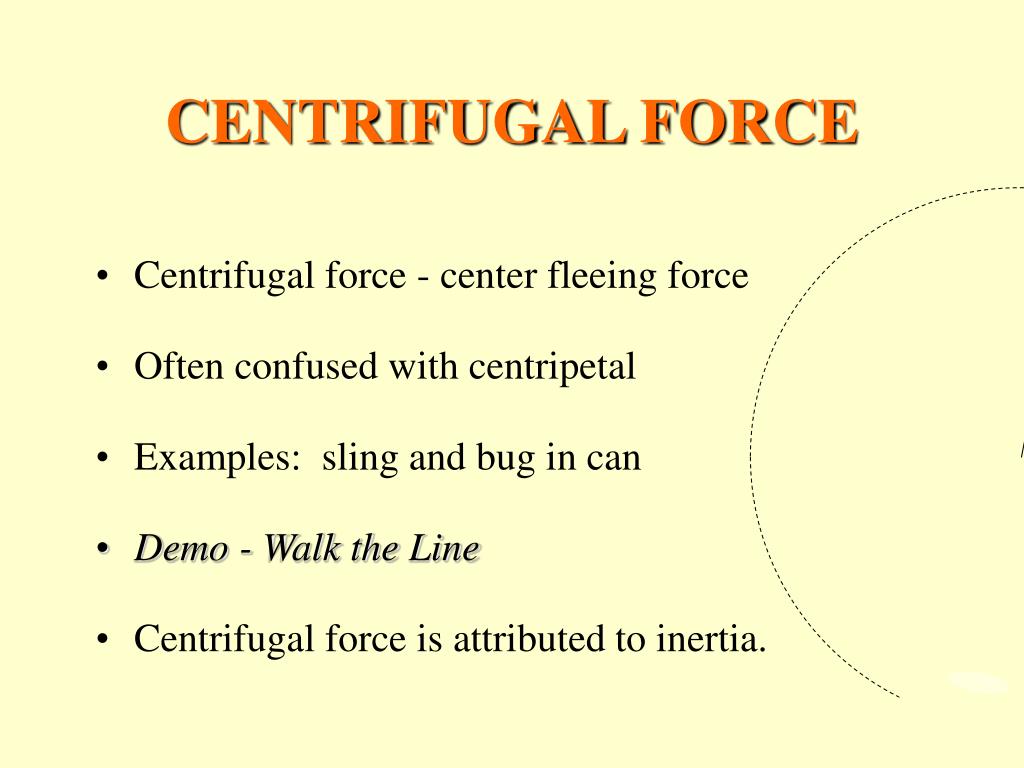

CENTRIFUGAL FORCE
  • Centrifugal force - center fleeing force
  • Often confused with centripetal
  • Examples: sling and bug in can
  • Demo - Walk the Line
  • Centrifugal force is attributed to inertia.
centrifugal force in a rotating reference frame
CENTRIFUGAL FORCE IN A ROTATING REFERENCE FRAME
  • A frame of reference can influence our view of nature.
  • For example: we observe a centrifugal force in a rotating frame of reference, yet it is a fictitious (pseudo) force.
  • Centrifugal force stands alone (there is no action-reaction pair) - it is a fictitious force.
