  1. 2 Bedroom / 2 Bath 1240 Sq. Ft. Floor Plan • Areas of Interest (#1) Hall Bath (#2) Kitchen (#3) Master Bath (#4) Air Conditioner (#5) Threshold Cedar Property Management(509) 489-4287 office@cedarpropertymgmt.com

  2. (#1)BEFORE • Hall Bathroom Back to Floor Plan Cedar Property Management(509) 489-4287 office@cedarpropertymgmt.com

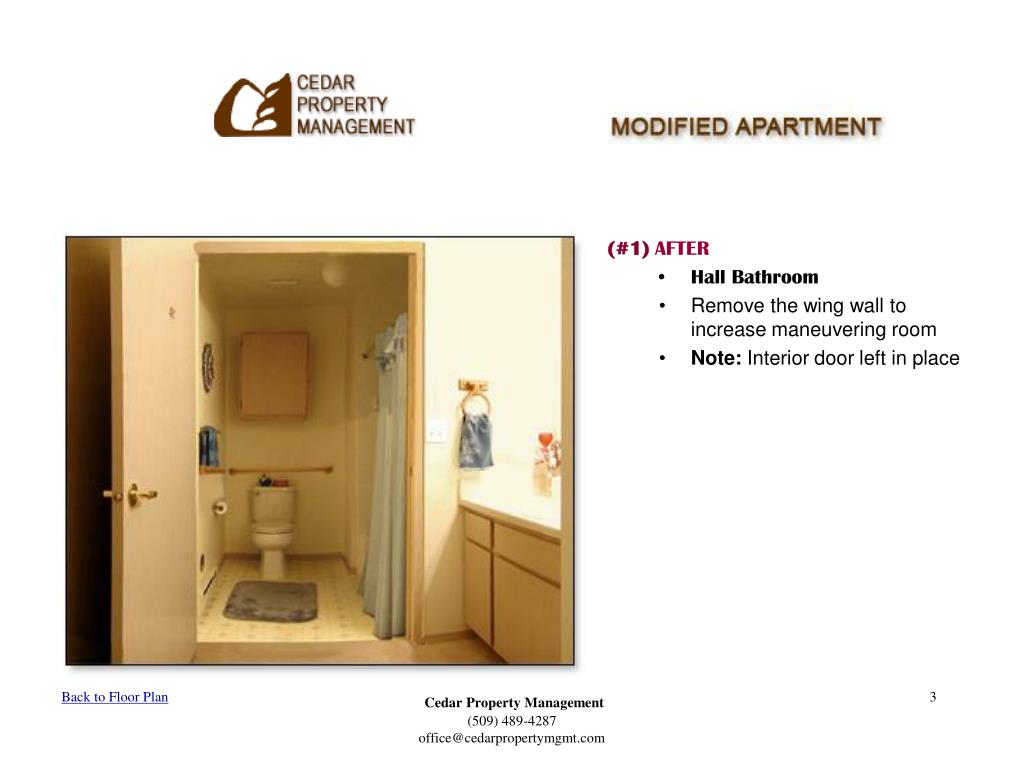

  3. (#1)AFTER • Hall Bathroom • Remove the wing wallto increase maneuvering room • Note: Interior door left in place Back to Floor Plan Cedar Property Management(509) 489-4287 office@cedarpropertymgmt.com

  4. (#1) AFTER • Hall Bathroom • Remove the wing wallto increase maneuvering room • Note: Interior door removed Back to Floor Plan Cedar Property Management(509) 489-4287 office@cedarpropertymgmt.com

  5. (#1) BEFORE • Tub Grab Bar Reinforcing Back to Floor Plan Cedar Property Management(509) 489-4287 office@cedarpropertymgmt.com

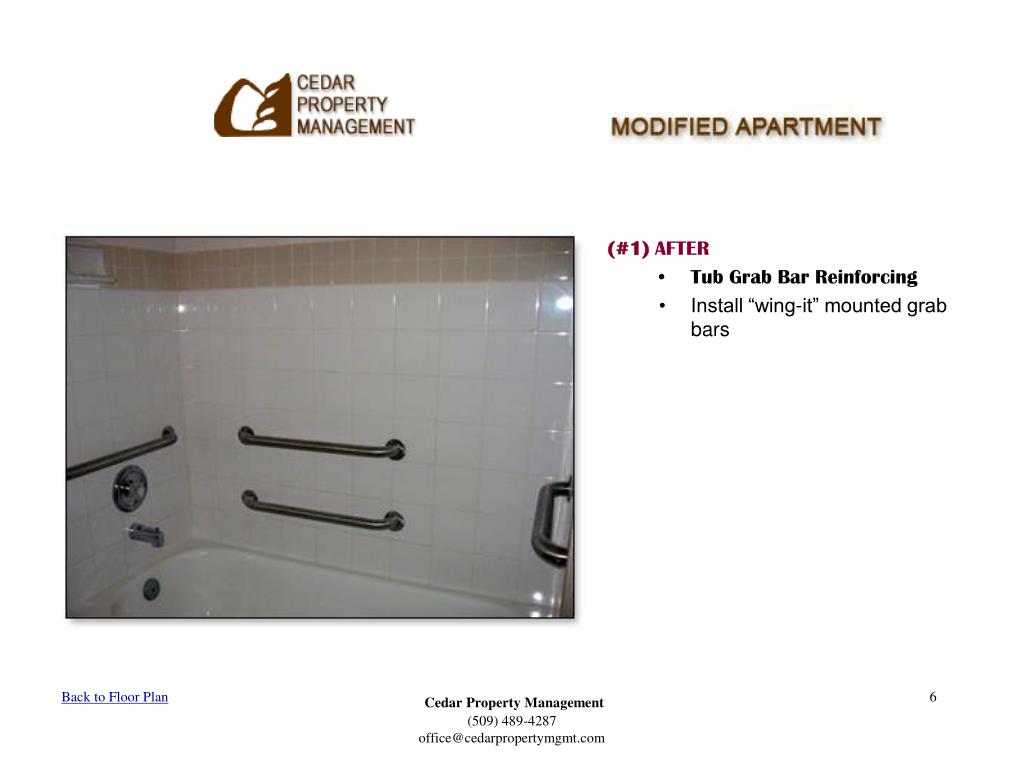

  6. (#1) AFTER • Tub Grab Bar Reinforcing • Install “wing-it” mounted grab bars Back to Floor Plan Cedar Property Management(509) 489-4287 office@cedarpropertymgmt.com

  7. (#1) BEFORE • Toilet Grab Bar Reinforcing Back to Floor Plan Cedar Property Management(509) 489-4287 office@cedarpropertymgmt.com

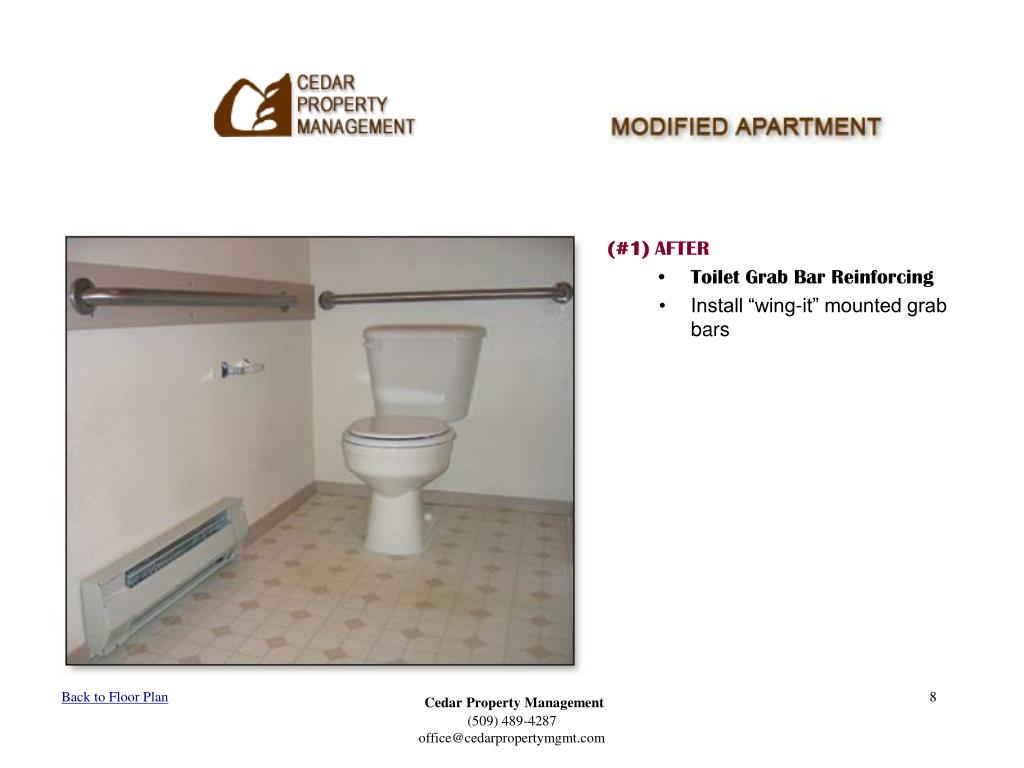

  8. (#1) AFTER • Toilet Grab Bar Reinforcing • Install “wing-it” mounted grab bars Back to Floor Plan Cedar Property Management(509) 489-4287 office@cedarpropertymgmt.com

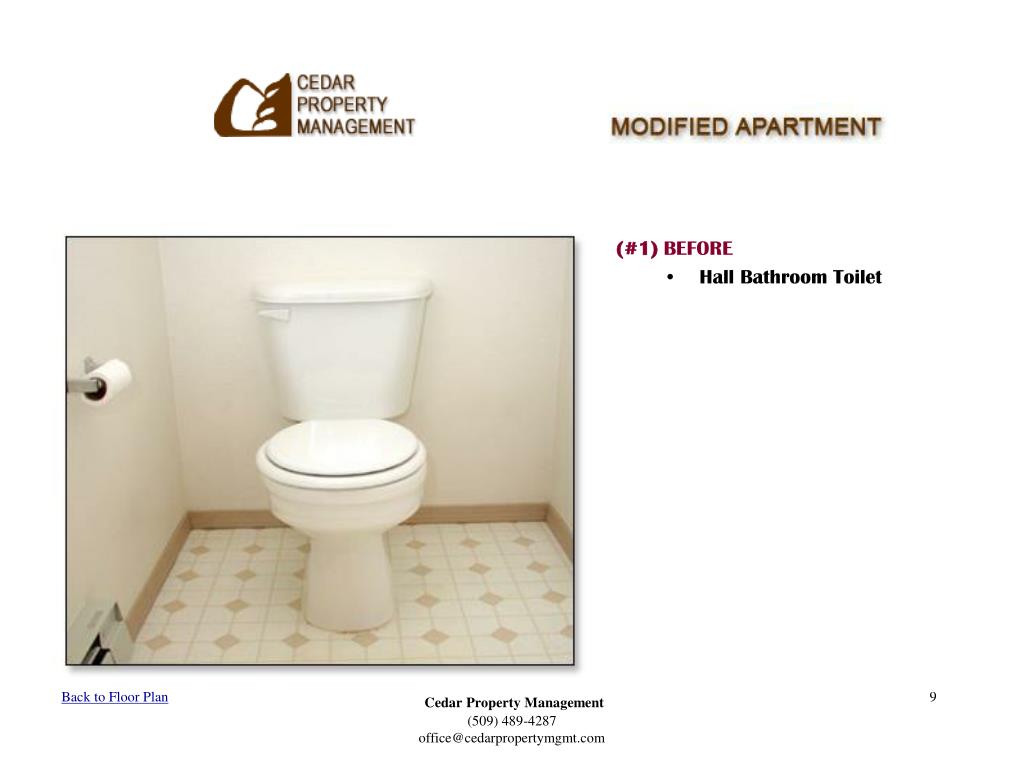

  9. (#1) BEFORE • Hall Bathroom Toilet Back to Floor Plan Cedar Property Management(509) 489-4287 office@cedarpropertymgmt.com

  10. (#1) AFTER • Hall Bathroom Toilet • Relocate the toilet using an offset toilet flange or furr-out grab bar Back to Floor Plan Cedar Property Management(509) 489-4287 office@cedarpropertymgmt.com

  11. (#2) – BEFORE • Kitchen Range • Note: Cabinet located to right of stove Back to Floor Plan Cedar Property Management(509) 489-4287 office@cedarpropertymgmt.com

  12. (#2) AFTER • Kitchen Range • Modify location of range and/or make adjacent cabinet removable to provide centered clear floor space • Note: Cabinet is left in place Back to Floor Plan Cedar Property Management(509) 489-4287 office@cedarpropertymgmt.com

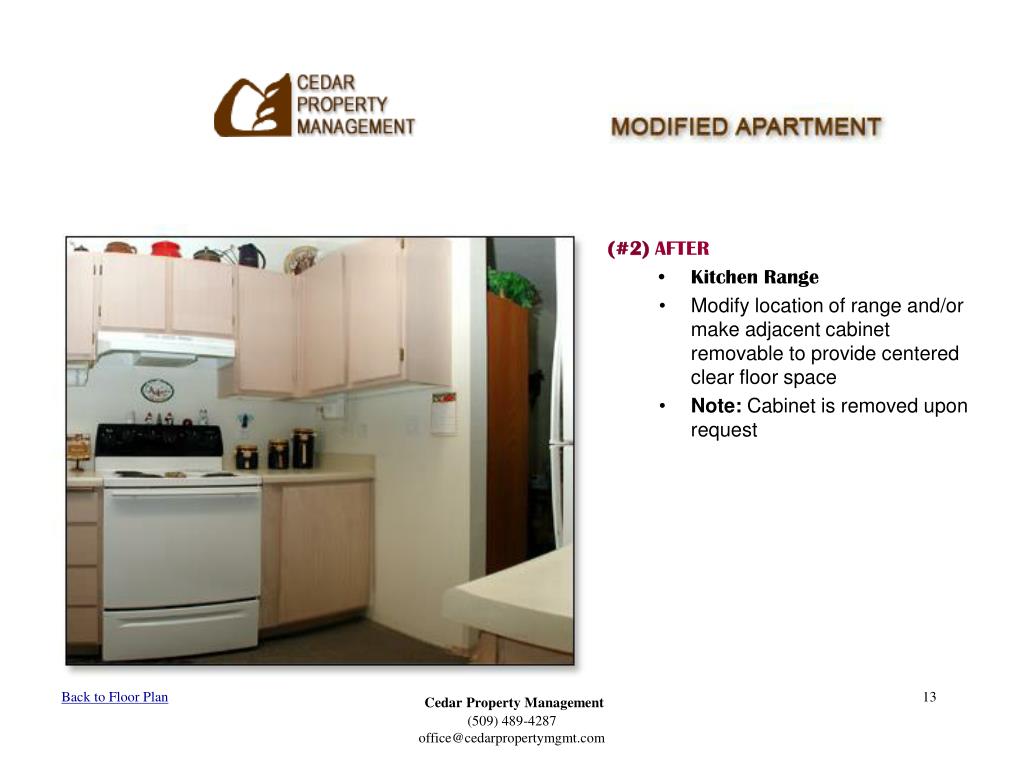

  13. (#2)AFTER • Kitchen Range • Modify location of range and/or make adjacent cabinet removable to provide centered clear floor space • Note: Cabinet is removed upon request Back to Floor Plan Cedar Property Management(509) 489-4287 office@cedarpropertymgmt.com

  14. (#2) BEFORE • Kitchen Counter Outlets • Standard outlet Back to Floor Plan Cedar Property Management(509) 489-4287 office@cedarpropertymgmt.com

  15. (#2) AFTER • Kitchen Counter Outlets • Provide a surface mounted outlet extender Back to Floor Plan Cedar Property Management(509) 489-4287 office@cedarpropertymgmt.com

  16. (#2) BEFORE • Framed Room Openings (Doors) - to Kitchen • Note: Trim on doorway Back to Floor Plan Cedar Property Management(509) 489-4287 office@cedarpropertymgmt.com

  17. (#2) AFTER • Framed Room Openings (Doors) - to Kitchen • Remove wood base trim to increase door width Back to Floor Plan Cedar Property Management(509) 489-4287 office@cedarpropertymgmt.com

  18. (#3) BEFORE • Framed Room Openings (Doors) - to Master Bath • Heater in place Back to Floor Plan Cedar Property Management(509) 489-4287 office@cedarpropertymgmt.com

  19. (#3) AFTER • Framed Room Openings (Doors) - to Master Bath • Relocate the baseboard heater unit away from the Master Bath entry to provide 32” nominal width Back to Floor Plan Cedar Property Management(509) 489-4287 office@cedarpropertymgmt.com

  20. (#4) AFTER • Bedroom Air Conditioner Controls • Install remote air conditioner Back to Floor Plan Cedar Property Management(509) 489-4287 office@cedarpropertymgmt.com

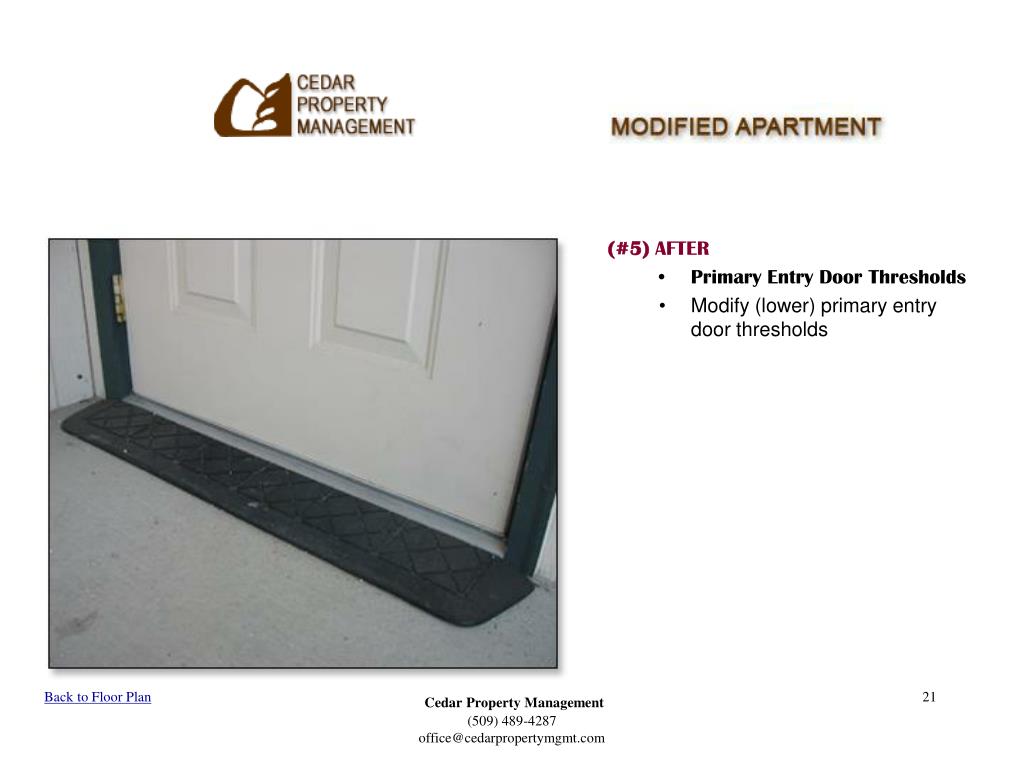

  21. (#5) AFTER • Primary Entry Door Thresholds • Modify (lower) primary entry door thresholds Back to Floor Plan Cedar Property Management(509) 489-4287 office@cedarpropertymgmt.com

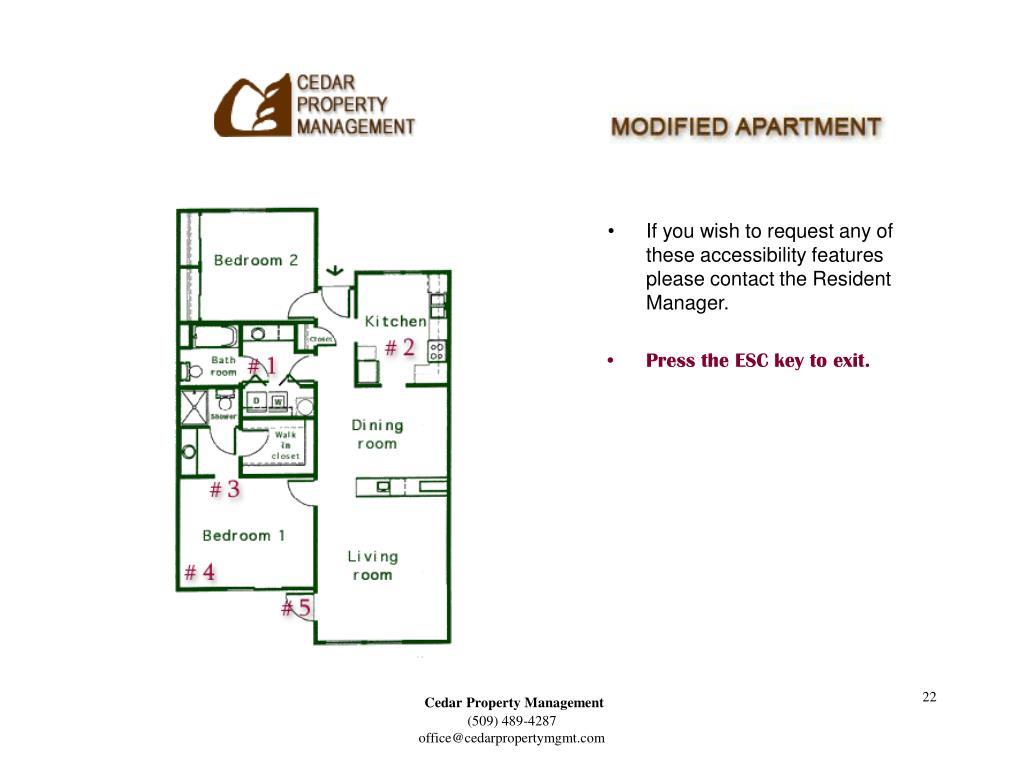

  22. If you wish to request any of these accessibility features please contact the Resident Manager. • Press the ESC key to exit. Cedar Property Management(509) 489-4287 office@cedarpropertymgmt.com
