Buy JBL Car Audio Speaker with Adjustable Edge Driven Tweeters System

1. BUY JBL CAR AUDIO SPEAKER WITH ADJUSTABLE EDGE DRIVEN TWEETERS SYSTEM MAXAUDIO.COM.MY

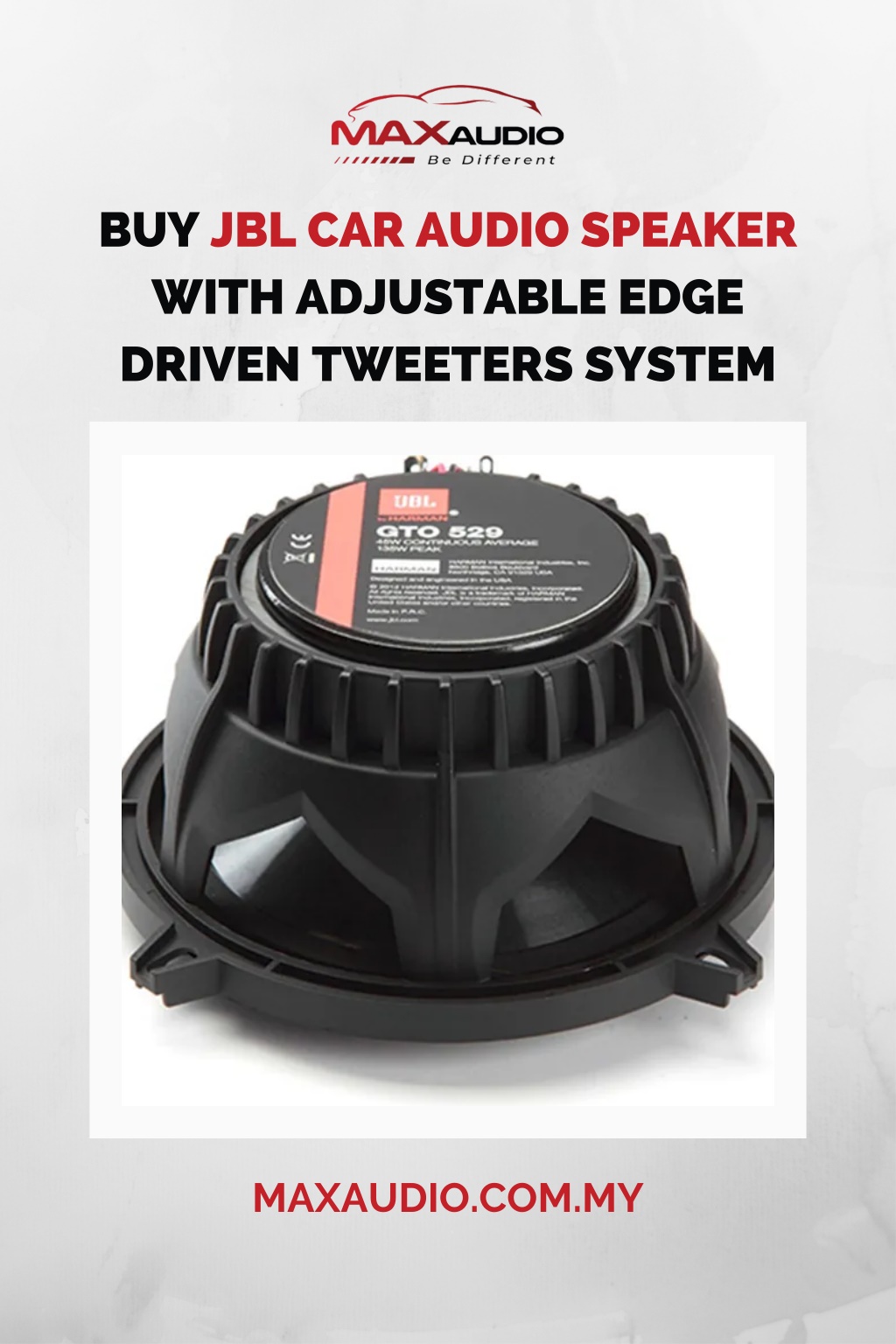

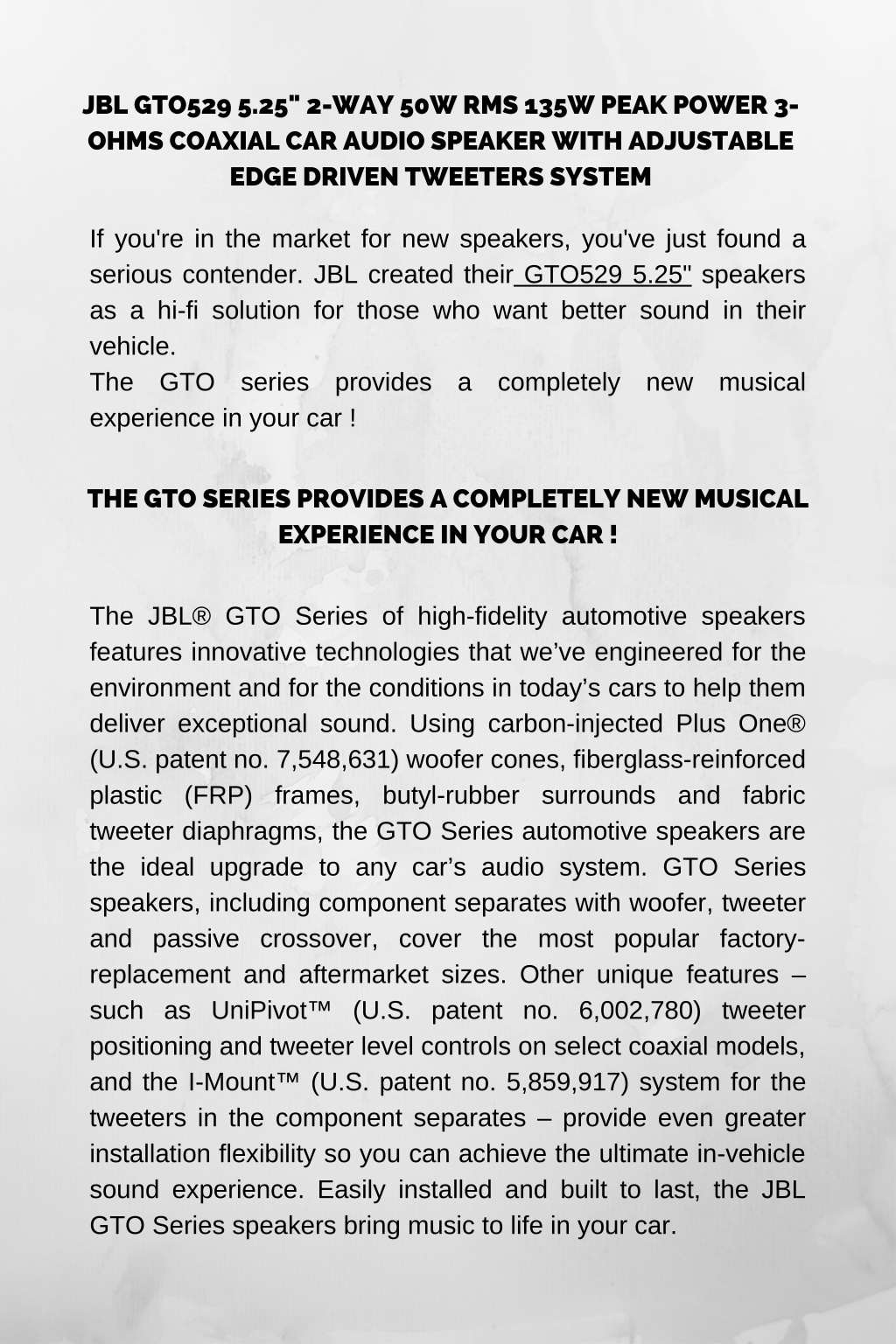

2. JBL GTO529 5.25" 2-WAY 50W RMS 135W PEAK POWER 3- OHMS COAXIAL CAR AUDIO SPEAKER WITH ADJUSTABLE EDGE DRIVEN TWEETERS SYSTEM If you're in the market for new speakers, you've just found a serious contender. JBL created their GTO529 5.25" speakers as a hi-fi solution for those who want better sound in their vehicle. The GTO series provides a completely new musical experience in your car ! THE GTO SERIES PROVIDES A COMPLETELY NEW MUSICAL EXPERIENCE IN YOUR CAR ! The JBL® GTO Series of high-fidelity automotive speakers features innovative technologies that we’ve engineered for the environment and for the conditions in today’s cars to help them deliver exceptional sound. Using carbon-injected Plus One® (U.S. patent no. 7,548,631) woofer cones, fiberglass-reinforced plastic (FRP) frames, butyl-rubber surrounds and fabric tweeter diaphragms, the GTO Series automotive speakers are the ideal upgrade to any car’s audio system. GTO Series speakers, including component separates with woofer, tweeter and passive crossover, cover the most popular factory- replacement and aftermarket sizes. Other unique features – such as UniPivot™ (U.S. patent no. 6,002,780) tweeter positioning and tweeter level controls on select coaxial models, and the I-Mount™ (U.S. patent no. 5,859,917) system for the tweeters in the component separates – provide even greater installation flexibility so you can achieve the ultimate in-vehicle sound experience. Easily installed and built to last, the JBL GTO Series speakers bring music to life in your car.

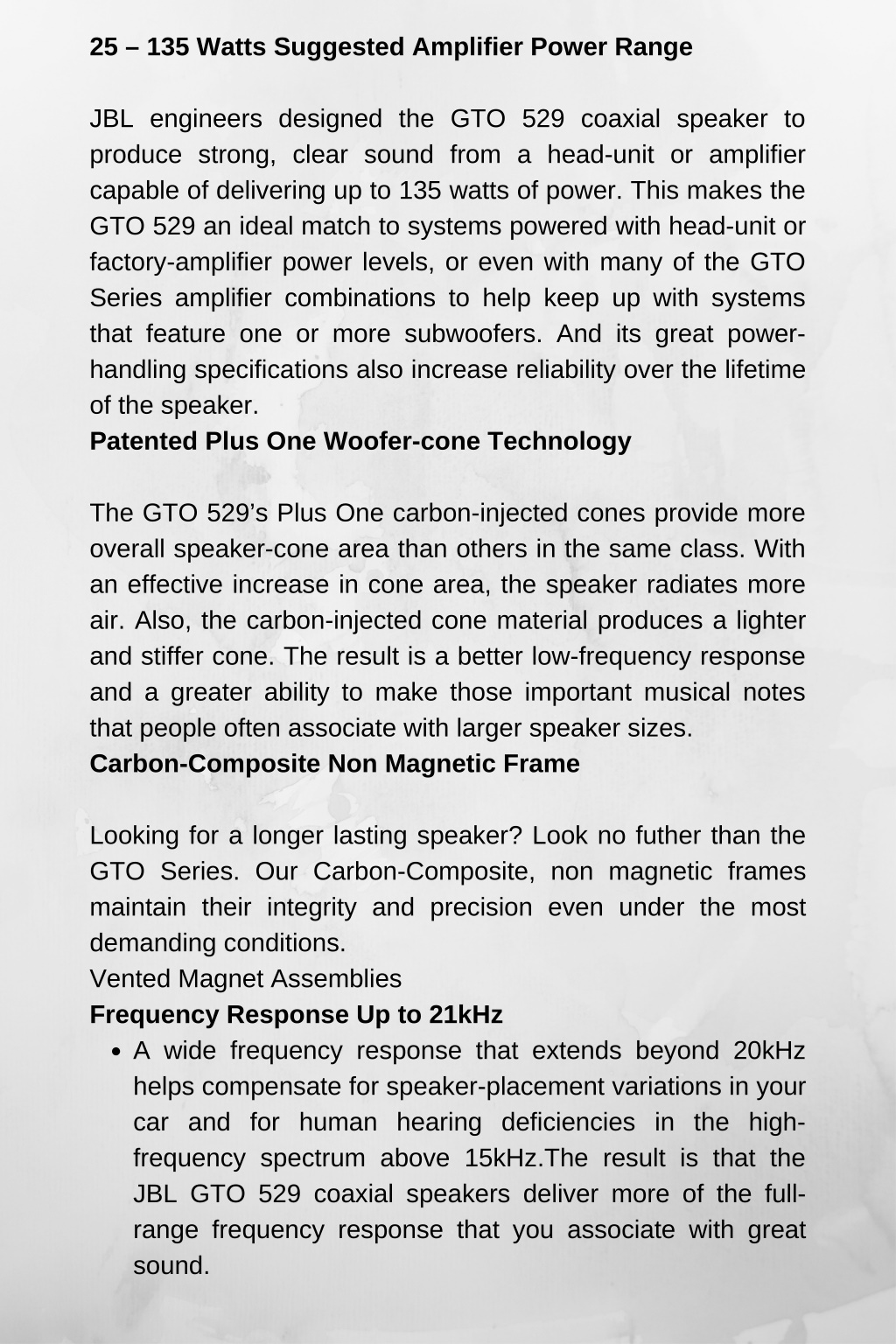

3. 25 – 135 Watts Suggested Amplifier Power Range JBL engineers designed the GTO 529 coaxial speaker to produce strong, clear sound from a head-unit or amplifier capable of delivering up to 135 watts of power. This makes the GTO 529 an ideal match to systems powered with head-unit or factory-amplifier power levels, or even with many of the GTO Series amplifier combinations to help keep up with systems that feature one or more subwoofers. And its great power- handling specifications also increase reliability over the lifetime of the speaker. Patented Plus One Woofer-cone Technology The GTO 529’s Plus One carbon-injected cones provide more overall speaker-cone area than others in the same class. With an effective increase in cone area, the speaker radiates more air. Also, the carbon-injected cone material produces a lighter and stiffer cone. The result is a better low-frequency response and a greater ability to make those important musical notes that people often associate with larger speaker sizes. Carbon-Composite Non Magnetic Frame Looking for a longer lasting speaker? Look no futher than the GTO Series. Our Carbon-Composite, non magnetic frames maintain their integrity and precision even under the most demanding conditions. Vented Magnet Assemblies Frequency Response Up to 21kHz A wide frequency response that extends beyond 20kHz helps compensate for speaker-placement variations in your car and for human hearing deficiencies in the high- frequency spectrum above 15kHz.The result is that the JBL GTO 529 coaxial speakers deliver more of the full- range frequency response that you associate with great sound.

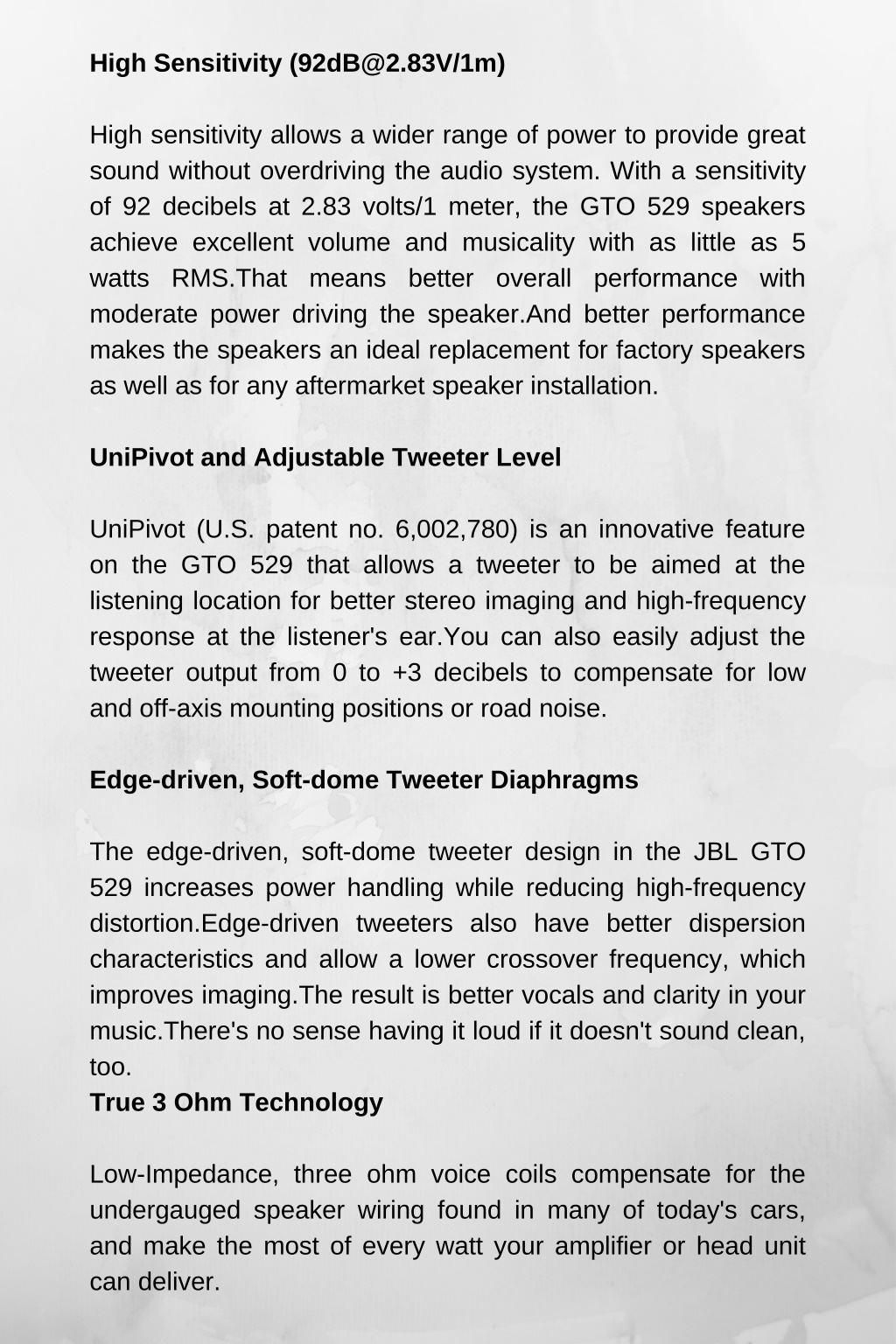

4. High Sensitivity (92dB@2.83V/1m) High sensitivity allows a wider range of power to provide great sound without overdriving the audio system. With a sensitivity of 92 decibels at 2.83 volts/1 meter, the GTO 529 speakers achieve excellent volume and musicality with as little as 5 watts RMS.That means better overall performance with moderate power driving the speaker.And better performance makes the speakers an ideal replacement for factory speakers as well as for any aftermarket speaker installation. UniPivot and Adjustable Tweeter Level UniPivot (U.S. patent no. 6,002,780) is an innovative feature on the GTO 529 that allows a tweeter to be aimed at the listening location for better stereo imaging and high-frequency response at the listener's ear.You can also easily adjust the tweeter output from 0 to +3 decibels to compensate for low and off-axis mounting positions or road noise. Edge-driven, Soft-dome Tweeter Diaphragms The edge-driven, soft-dome tweeter design in the JBL GTO 529 increases power handling while reducing high-frequency distortion.Edge-driven tweeters also have better dispersion characteristics and allow a lower crossover frequency, which improves imaging.The result is better vocals and clarity in your music.There's no sense having it loud if it doesn't sound clean, too. True 3 Ohm Technology Low-Impedance, three ohm voice coils compensate for the undergauged speaker wiring found in many of today's cars, and make the most of every watt your amplifier or head unit can deliver.

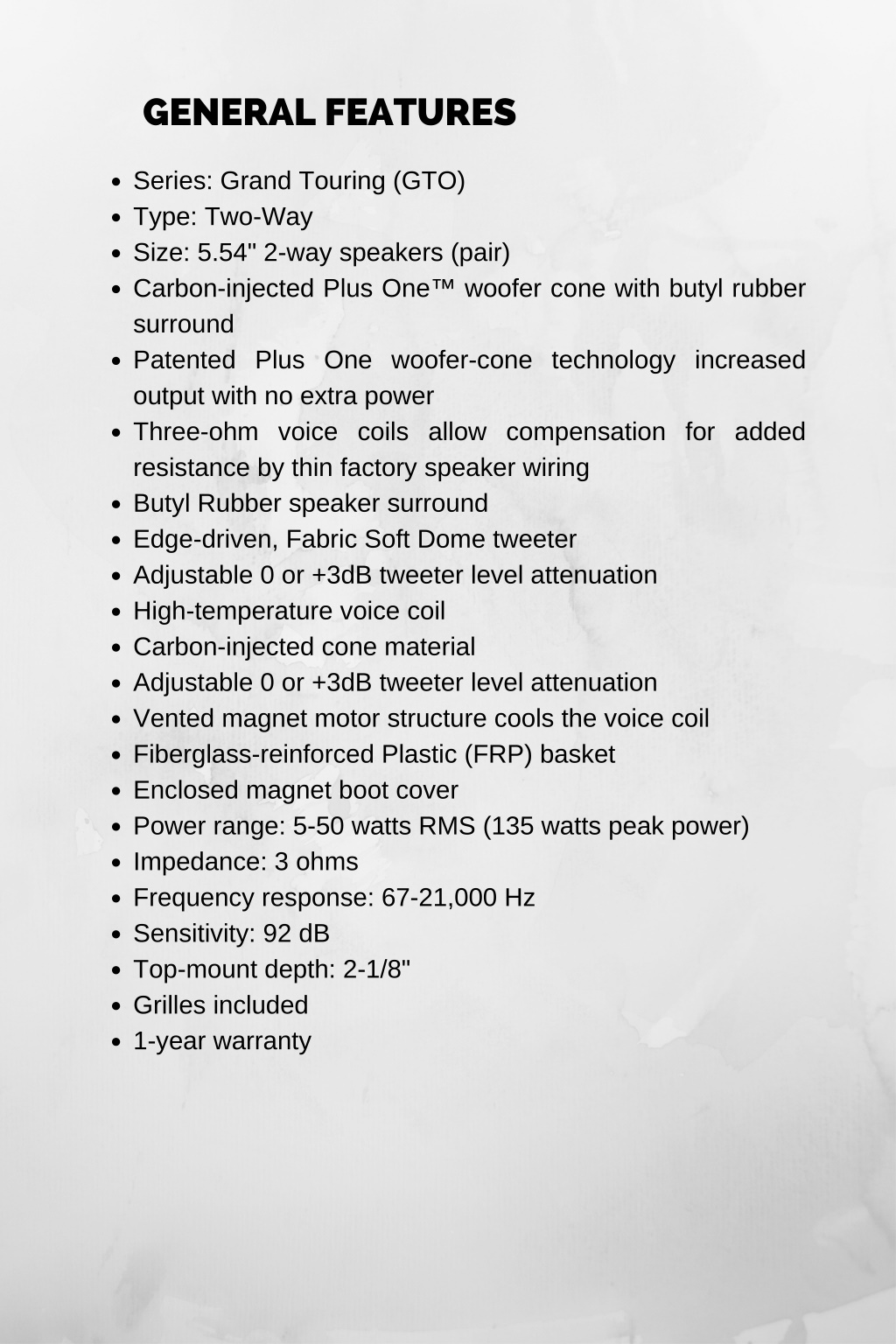

5. GENERAL FEATURES Series: Grand Touring (GTO) Type: Two-Way Size: 5.54" 2-way speakers (pair) Carbon-injected Plus One™ woofer cone with butyl rubber surround Patented Plus One woofer-cone technology increased output with no extra power Three-ohm voice coils allow compensation for added resistance by thin factory speaker wiring Butyl Rubber speaker surround Edge-driven, Fabric Soft Dome tweeter Adjustable 0 or +3dB tweeter level attenuation High-temperature voice coil Carbon-injected cone material Adjustable 0 or +3dB tweeter level attenuation Vented magnet motor structure cools the voice coil Fiberglass-reinforced Plastic (FRP) basket Enclosed magnet boot cover Power range: 5-50 watts RMS (135 watts peak power) Impedance: 3 ohms Frequency response: 67-21,000 Hz Sensitivity: 92 dB Top-mount depth: 2-1/8" Grilles included 1-year warranty

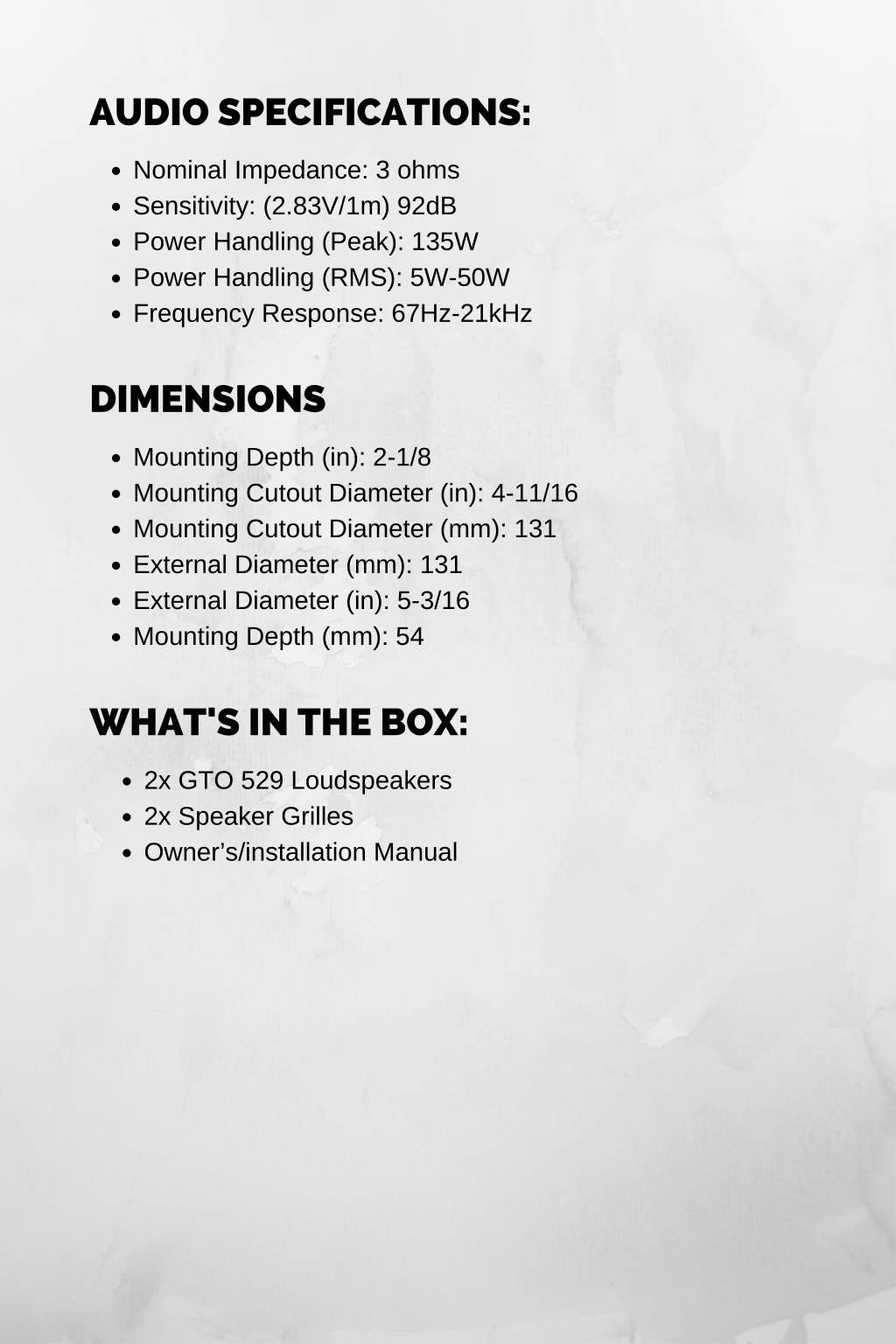

6. AUDIO SPECIFICATIONS: Nominal Impedance: 3 ohms Sensitivity: (2.83V/1m) 92dB Power Handling (Peak): 135W Power Handling (RMS): 5W-50W Frequency Response: 67Hz-21kHz DIMENSIONS Mounting Depth (in): 2-1/8 Mounting Cutout Diameter (in): 4-11/16 Mounting Cutout Diameter (mm): 131 External Diameter (mm): 131 External Diameter (in): 5-3/16 Mounting Depth (mm): 54 WHAT'S IN THE BOX: 2x GTO 529 Loudspeakers 2x Speaker Grilles Owner’s/installation Manual
