XRF-Ore-Analyzer-LB-55OR

The XRF Ore Analyzer is a cutting-edge instrument for rapid and non-destructive analysis of ore samples. <br>Employing X-ray fluorescence technology, it delivers precise elemental composition data, aiding mining <br>and metallurgical processes. Enhance ore exploration and processing efficiency with this advanced analytical <br>tool.

Mary238
Download Presentation

XRF-Ore-Analyzer-LB-55OR

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

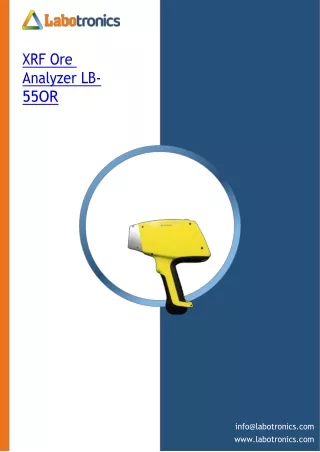

  1. XRF Ore Analyzer LB- 55OR info@labotronics.com www.labotronics.com

  2. Overview XRF ore analyzer is a handheld analyzer designed for analysis ore types and their elemental composition. It determines the chemistry of a sample by measuring the fluorescence X-rays emitted when excited by a primary-ray source. Configured with BOOST Si-Pin detector facilitating high accuracy elemental analysis. Specifications : Detector BOOST Si-pin detector K, Ca, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, As, Se, Rb, Sr, Y, Zr, Nb, Mo, Ag, Cd, Sn, Sb, Hf, Ta, W, Au, Hg Pb and Bi Detection range ( ppm ) Excitation source ( standard ) 50 kV / 200 µA Ag target Operating temperature ( -20 °C to 50 °C ) Operating humidity ≤ 90 % Pipe flow pressure Adjustable Digital pulse processor 80 MHz ADC digital pulse processor Heat dissipation system T-shaped radiator 4.3 inch industrial resistive touch screen Display panel Display brightness Automated adjustment Memory capacity 32 GB Data storage 32 GB, 300,000 spectral data Battery life 8 hours

  3. Dimensions ( W x H x D ) 79 x 280 x 254 mm Weight ( with battery ) 1.6 kgs Features : Non-destructive, accurate and rapid analysis of elements Automated altitude pressure adjustment Built-in GPS with latitude, longitude and altitude data ( optional ) Double beam technology for auto detection of sample front Rapid analysis of mineral reserves or geological disaster area Wide range ore analysis ( 30 standard elements ) Analysis of small diameter samples ( ppm range ) Real-time battery monitoring ( M-bus battery ) 50 kV / 200 µA Au, W, Rh target excitation source ( optional ) USB, Bluetooth and WiFi compatible Data exportable to EXCEL or PDF format Applications : Used in petrochemical and mining industry to test and identify ore grade, mineral hot spots, mineral composition, extraction and concentration efficiency Labotronics Ltd. Union House, 111 New Union Street, Coventry CV1 2NT, UK info@labotronics.com | www.labotronics.com
