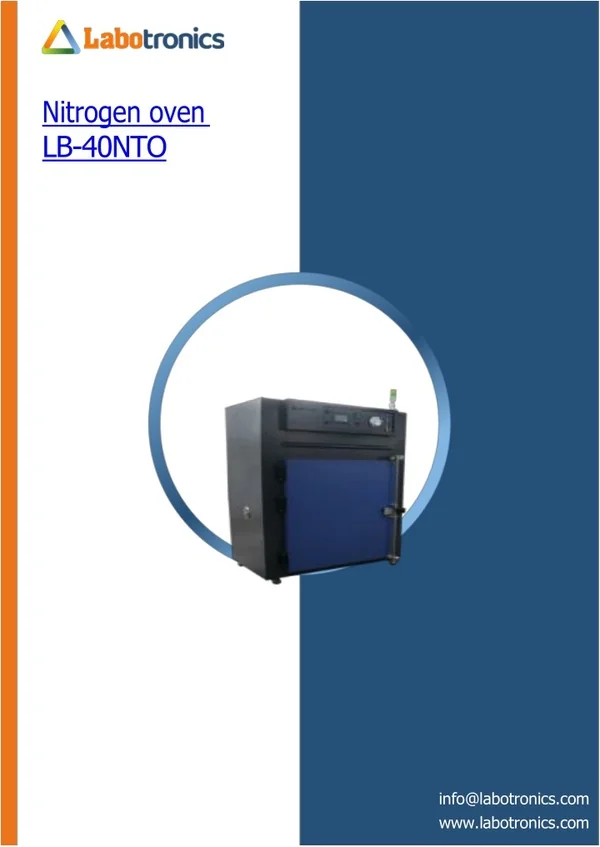

  1. Nitrogen oven LB-40NTO info@labotronics.com www.labotronics.com

  2. Overview Nitrogen oven is a standard medium for contamination-free storage. Being inert, it neither reacts with stored materials nor carries moisture, keeping the sample safe and contamination free. It features a temperature controller with PID controlled auto calculation and single segmentation control. Adjustable air throttle is directly connected to the air exhaust duct. High heat-resistant door and fiberglass wool insulation provides effective sealing. Specifications: Capacity 600 L Temperature range 10 ℃ ~ 200 ℃ Power supply AC 3 phase 380 V Interior dimensions ( W x H x D ) 1000 x 1000 x 600 mm Exterior dimensions ( W x H x D ) 1500 x 1700 x 750 mm Temperature fluctuation ± 0.3 °C Temperature uniformity 1 °C Load 20 kg per shelf Single door Explosion-proof lock Door Silicone gaskets Inner chamber material SUS#304 Stainless steel plate with powder coated finishing External chamber material

  3. Insulation Fiberglass wool Temperature controller, digital set mode, digital display, PID auto calculation, SSR control, single segmentation control Oval electrical heating ceramic tile Controller Heater Low radiation electrical heater Flow meter Nitrogen gas flow Control the pressure of the inner chamber Control the oxygen concentration in the chamber Motor with centrifugal fan for uniform wind Pressure meter Oxygen analyzer Wind cycling system Adjustable air throttle, directly connected with air exhaust duct Air ventilation system Surrounding temperature range 0 ℃ ~ 30 ℃ Surrounding relative humidity ≤ 85 % RH Atmospheric pressure 0.086 MPa ~ 0.106 MPa No high concentrations of dust, flammable and explosive gas, strong electromagnetic radiation source nearby Ambient air requirements

  4. Flammable explosive volatile material sample test or storage Corrosive substance sample test or store Prohibited items for the unit Biological sample test or store Strong electromagnetic emission source test or store Features : Temperature controller Digital set mode and display PID controlled auto calculation Single segmentation control Solid state relay control ( SSR control ) Low radiated oval electrical heating tile Nitrogen gas flow display Adjustable air throttle ( directly connected to air exhaust duct ) Overheating circuit-breaker, compressor and control system overload protection, humidifying system overheating protection, breakdown light indicator Optional appearance (Dual doors, dual layers, stainless steel shell, without viewing window) StandardAccessories: Accessory NoAccessory Quantity 1. 2. Electrical heater 1 piece Non fuse switch 2 piece

  5. 3. 4. 5. 3 meter power cord 1 piece Tray stand Timer 2 piece 1 piece Labotronics Ltd. Union House, 111 New Union Street, Coventry CV1 2NT, UK info@labotronics.com | www.labotronics.com
