2-–-Position-hotplate

The 2-position hotplate allows simultaneous heating <br>of two samples with independent temperature control. <br>It ensures uniform heating and is equipped with safety <br>features for reliable laboratory use.

Mary238
Download Presentation

2-–-Position-hotplate

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

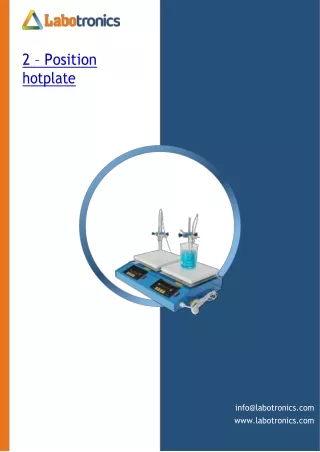

  1. 2 – Position hotplate info@labotronics.com www.labotronics.com

  2. Overview 2 - Position hotplate is a ceramic top hotplate with a PID controlled temperature of 400 °C for uniform heat distribution. Features a heating capacity for flasks ranging from 50 ml to 1000 ml. It offers digital temperature control and an outer thermocouple that measures and controls the liquid temperature value together with the front panel. The inner thermocouple controls and measures the hotplate stirrer temperature. Specifications : Heat capacity 50 ml̴1 L Ceramic plate dimension 140 mm × 140 mm Power 450 W Temperature 400 °C Temperature accuracy ± 1 °C Voltage 160 V̴240 V, 110 V̴120 V Weight 8.5 kgs Features : Continuous working time PID controlled temperature Digital display Applications : Used in laboratories to apply heat to containers , samples , for distillations

  3. that require high temperatures , health care and other fields Standard Accessories : Accessories NoAccessories Quantity A1 A2 Removable holder Clamp with screw 2 2 A3 A4 Inner thermocouple (4 spin) Outer thermocouple (4 spin) 2 2 A5 4 prong stainless steel clamp opens to 3 1/2" 2 Labotronics Ltd. Union House, 111 New Union Street, Coventry CV1 2NT, UK info@labotronics.com | www.labotronics.com
