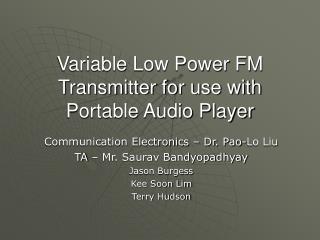

Variable Low Power FM Transmitter for use with Portable Audio Player

Communication Electronics – Dr. Pao-Lo Liu

TA – Mr. Saurav Bandyopadhyay

Jason Burgess

Kee Soon Lim

Terry Hudson


Objectives goals l.jpg
Objectives & Goals Audio Player

  • The device will function as a portable wireless FM transmitter with an input from the mini jack of a portable audio device.

  • The device will adhere to Title 47 of the Code of Federal Regulations (Part 15, subpart C), which states, “the power limit for unlicensed FM transmissions is a signal strength of 250 microvolts per meter, measured 3 meters from the transmitting antenna”


Design specifications l.jpg
Design Specifications Audio Player

  • Transmitter’s frequency range: 88-107Mhz

  • Effective Transmitter distance: 2-5 meters

  • Frequency Response: 10khz

  • Easily Portable

  • Variable Transmitted Frequency


Final design l.jpg
Final Design Audio Player

Fig 1. The schematic of the final design.


Bread boarded circuit l.jpg
Bread boarded Circuit Audio Player

The Pre-emphasis circuit

The amplifier circuit

The oscillator circuit

Fig 2. Picture of the bread boarded circuit.


Operation and analysis l.jpg
Operation and Analysis Audio Player

*The analysis was conducted with use of a Clarion DXZ735MP receiver, the specs are listed below.

  • FM frequency response 30-15kHz +0.0, -2.1 dB

  • SNR 74.4 dB mono, 71.2dB stereo

  • All measurements taken at 89.1 MHz carrier frequency.


Operation and analysis7 l.jpg
Operation and Analysis Audio Player

Fig 3. Output at 100 Hz

Fig 4. Output at 30 Hz


Slide8 l.jpg
SNR Audio Player

  • To measure the SNR an audio analysis file was acquired of a 1kHz sine wave.

  • The peak to peak voltage of a 1kHz sine wave was measured against the no signal noise level at different volumes of the input.

Fig 5. SNR data

SNR=20 log (Vs/Vn)


Effective transmitter distance l.jpg
Effective Transmitter Distance Audio Player

  • The same 1kHz sine wave was used as the input.

  • The output was measure by the receiver with three foot whip antenna attached.

  • A simple 18 in. long 20 gauge wire was used as the transmitter antenna.

  • The effective transmission distance was determined to be the straight line, antenna to antenna distance at which an attenuation of 3dB occurred.

  • The lab measurement was 6.4m (21 feet)


Frequency response l.jpg
Frequency Response Audio Player

Figure 6- The output from the transmitter with the pre-emphasis. The –3 dB points are 85Hz, 14.5 kHz. The bandwidth is then 14kHz.

Fig 6.

Figure 7- The output from the transmitter with out the pre-emphasis. The –3 dB points are 80 Hz, 9.3 kHz. The bandwidth is then 9.2 kHz.

Fig 7.


Possible improvements l.jpg
Possible Improvements Audio Player

  • Soldering to a printed circuit board

  • Making use of a better antenna

  • Indicating transmission frequency on dial

  • Indicating transmission frequency using 7 segment LED displays.


Slide12 l.jpg

Time Line Audio Player


Thank you any questions l.jpg
Thank You Audio PlayerAny Questions?
