ee5900 advanced algorithms for robust vlsi cad

EE5900 Advanced Algorithms for Robust VLSI CAD

Dr. Shiyan Hu

Office: EERC 731

shiyan@mtu.edu

The Inverter

Adapted and modified from Digital Integrated Circuits: A Design Perspective

by Jan M. Rabaey, Anantha Chandrakasan, and Borivoje Nikolic.

the cmos inverter a first glance

V

DD

S

D

V

V

in

out

D

C

L

S

The CMOS Inverter: A First Glance

Vin=Vdd,Vout=0

Vin=0,Vout=Vdd

cmos inverter first order dc analysis

V

V

DD

DD

R

p

V

out

V

out

R

n

V

V

V

0

in

DD

in

CMOS Inverter - First-Order DC Analysis
cmos inverter transient response

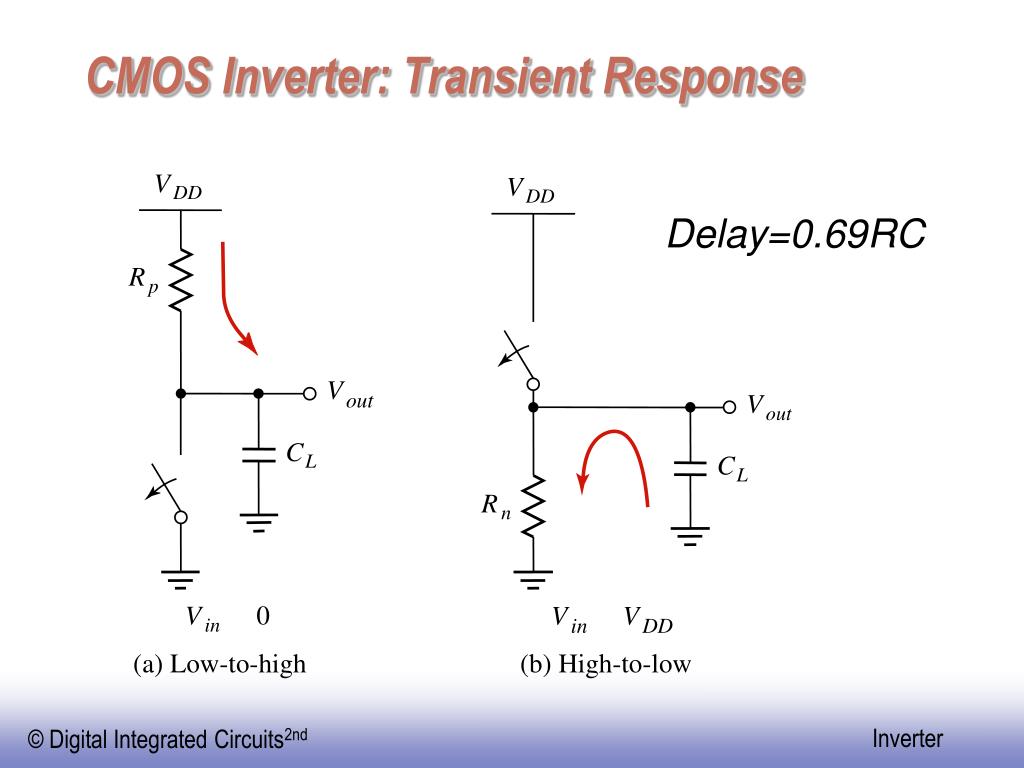

CMOS Inverter: Transient Response

V

V

DD

DD

Delay=0.69RC

R

p

V

out

V

out

C

L

C

L

R

n

V

0

V

V

in

DD

in

(a) Low-to-high

(b) High-to-low

nmos in inverter

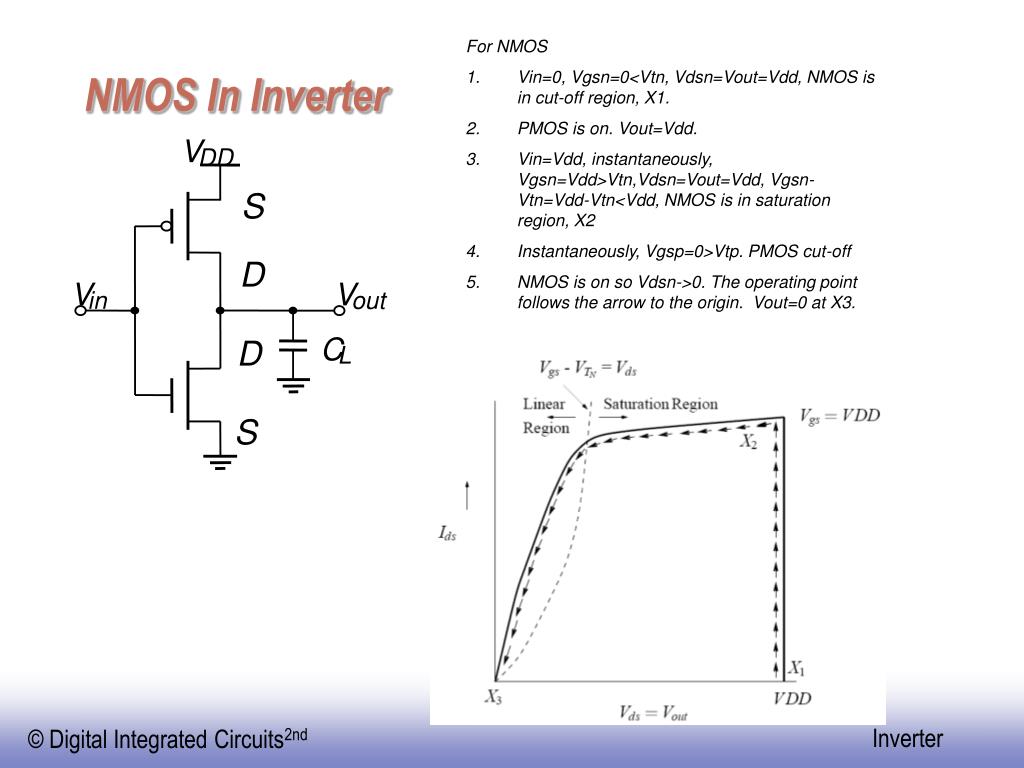

NMOS In Inverter

V

DD

S

D

V

V

in

out

D

C

L

S

  • For NMOS
  • Vin=0, Vgsn=0<Vtn, Vdsn=Vout=Vdd, NMOS is in cut-off region, X1.
  • PMOS is on. Vout=Vdd.
  • Vin=Vdd, instantaneously, Vgsn=Vdd>Vtn,Vdsn=Vout=Vdd, Vgsn-Vtn=Vdd-Vtn<Vdd, NMOS is in saturation region, X2
  • Instantaneously, Vgsp=0>Vtp. PMOS cut-off
  • NMOS is on so Vdsn->0. The operating point follows the arrow to the origin. Vout=0 at X3.
rising delay and falling delay

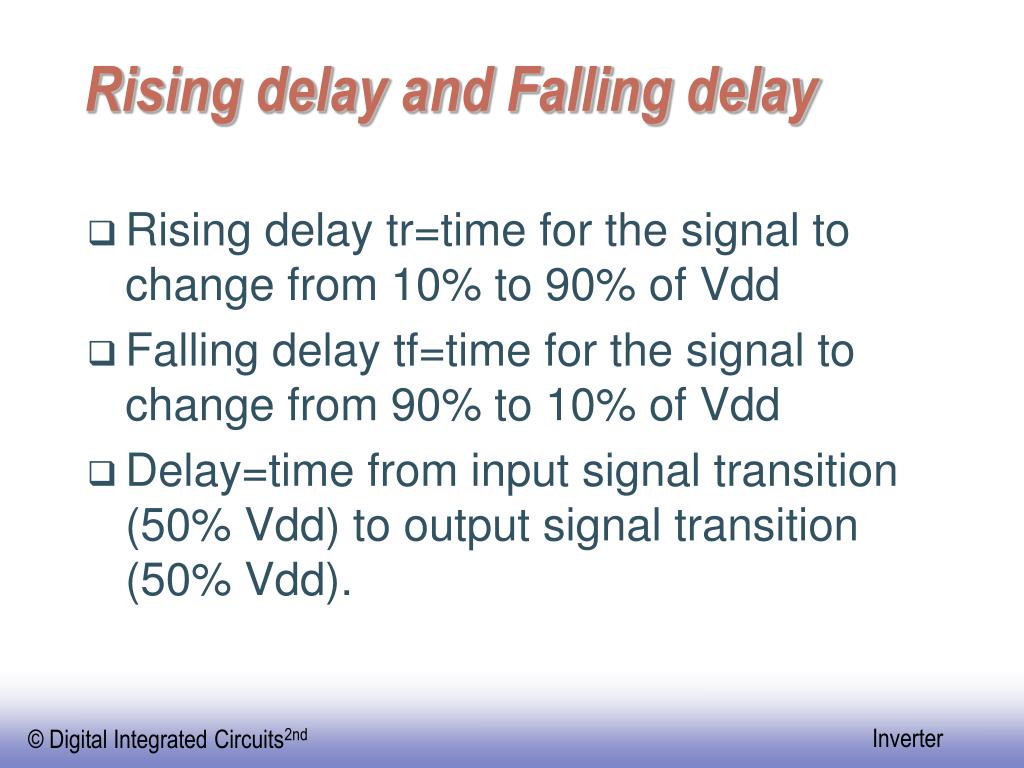

Rising delay and Falling delay

Rising delay tr=time for the signal to change from 10% to 90% of Vdd

Falling delay tf=time for the signal to change from 90% to 10% of Vdd

Delay=time from input signal transition (50% Vdd) to output signal transition (50% Vdd).

nmos falling time

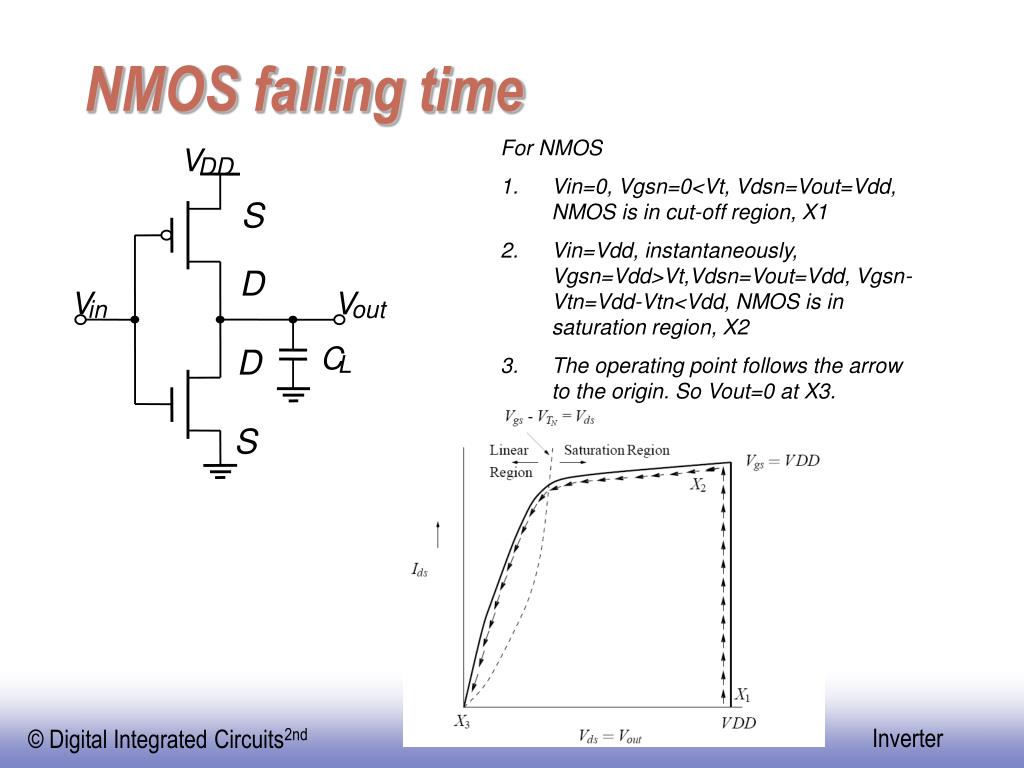

NMOS falling time

V

DD

S

D

V

V

in

out

D

C

L

S

  • For NMOS
  • Vin=0, Vgsn=0<Vt, Vdsn=Vout=Vdd, NMOS is in cut-off region, X1
  • Vin=Vdd, instantaneously, Vgsn=Vdd>Vt,Vdsn=Vout=Vdd, Vgsn-Vtn=Vdd-Vtn<Vdd, NMOS is in saturation region, X2
  • The operating point follows the arrow to the origin. So Vout=0 at X3.
nmos falling time12

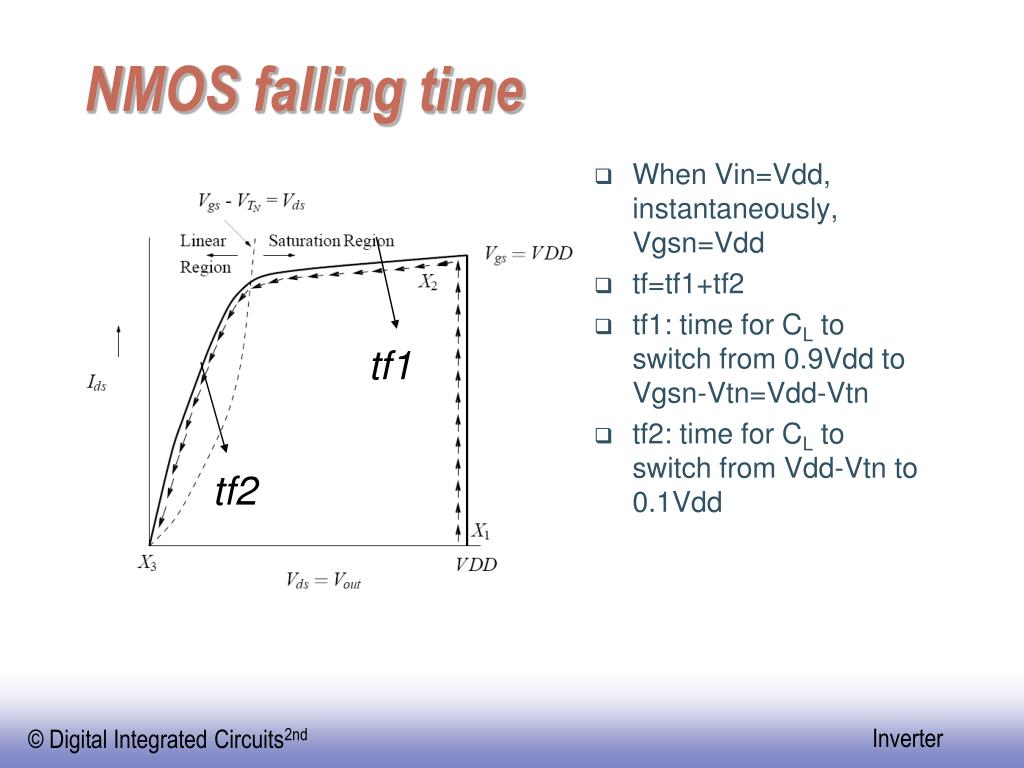

NMOS falling time

When Vin=Vdd, instantaneously, Vgsn=Vdd

tf=tf1+tf2

tf1: time for CL to switch from 0.9Vdd to Vgsn-Vtn=Vdd-Vtn

tf2: time for CL to switch from Vdd-Vtn to 0.1Vdd

tf1

tf2

nmos falling time13
NMOS falling time

For tf1:

Integrate Vout from 0.9Vdd to Vdd-Vt

For tf2, we have

Vgsn=Vdd

Vdsn=Vout

nmos falling time14

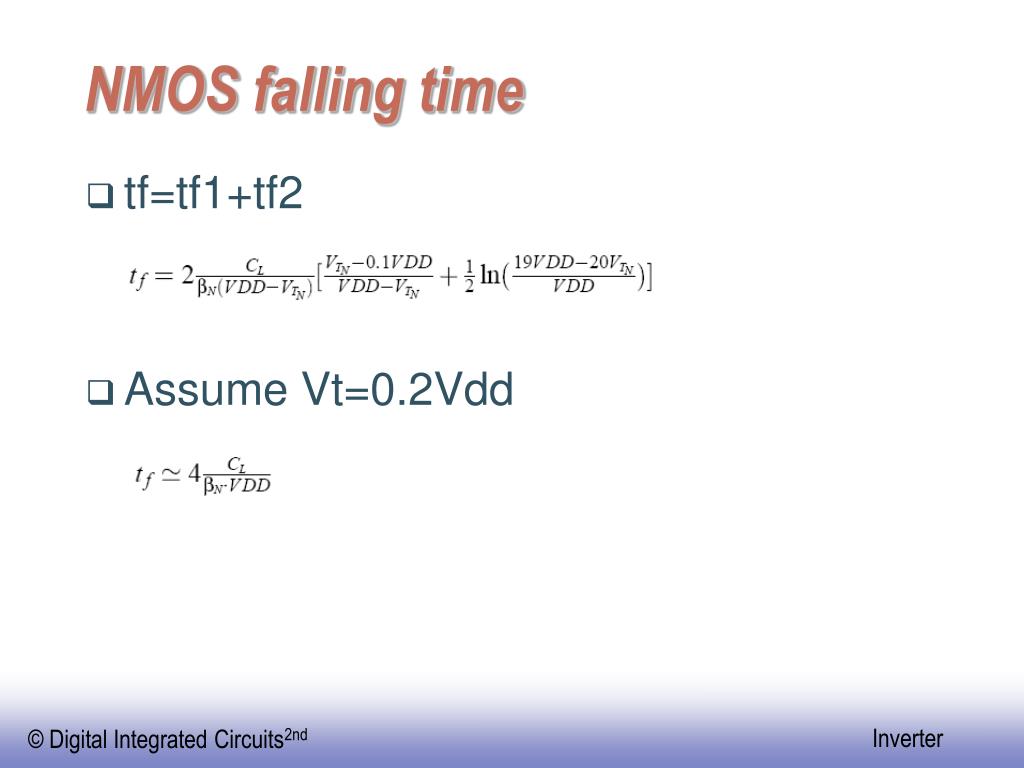

NMOS falling time

tf=tf1+tf2

Assume Vt=0.2Vdd

rising time
Rising time

Assume |Vtp|=0.2Vdd

falling and rising time

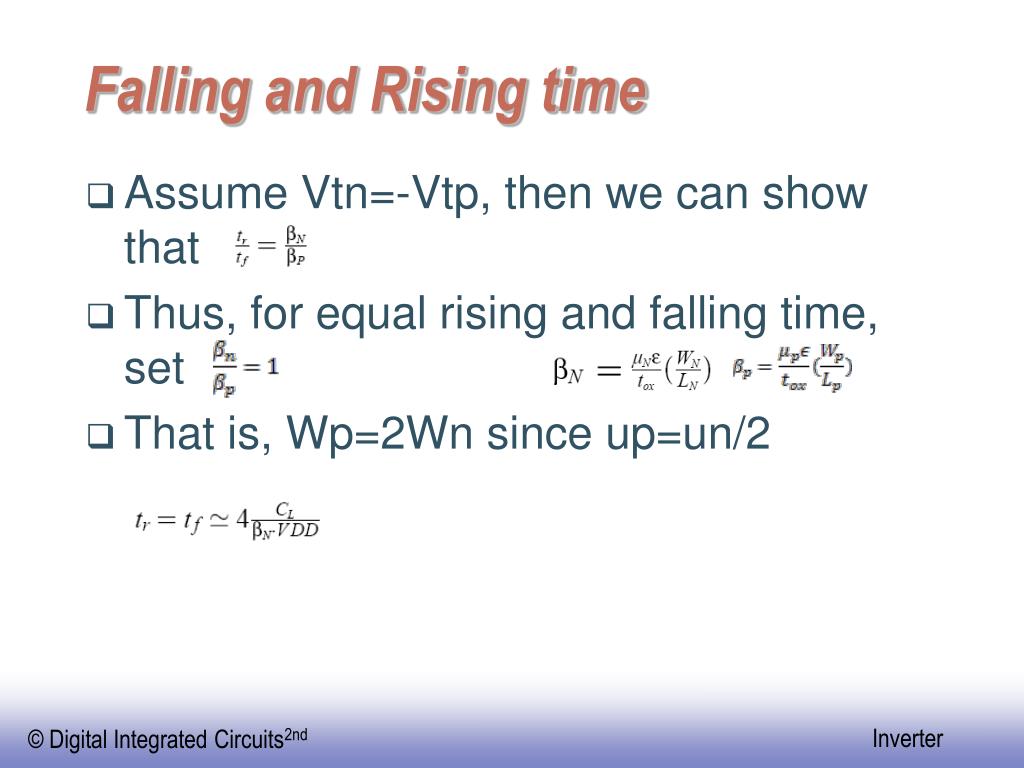

Falling and Rising time

Assume Vtn=-Vtp, then we can show that

Thus, for equal rising and falling time, set

That is, Wp=2Wn since up=un/2

dynamic power dissipation

Vdd

Vin

Vout

C

L

Dynamic Power Dissipation

2

Power =

C

* V

* f

L

dd

Not a function of transistor sizes

Need to reduce C

, V

, and

f

to reduce power.

L

dd

dynamic power
Dynamic Power

Dynamic power is due to charging/discharging load capacitor CL

In charging, CL is loaded with a charge CL Vdd which requires the energy of QVdd= CL Vdd2, and all the energy will be dissipated when discharging is done. Total power = CL Vdd2

If this is performed with frequency f, clearly, total power = CL Vdd2 f

dynamic power ii

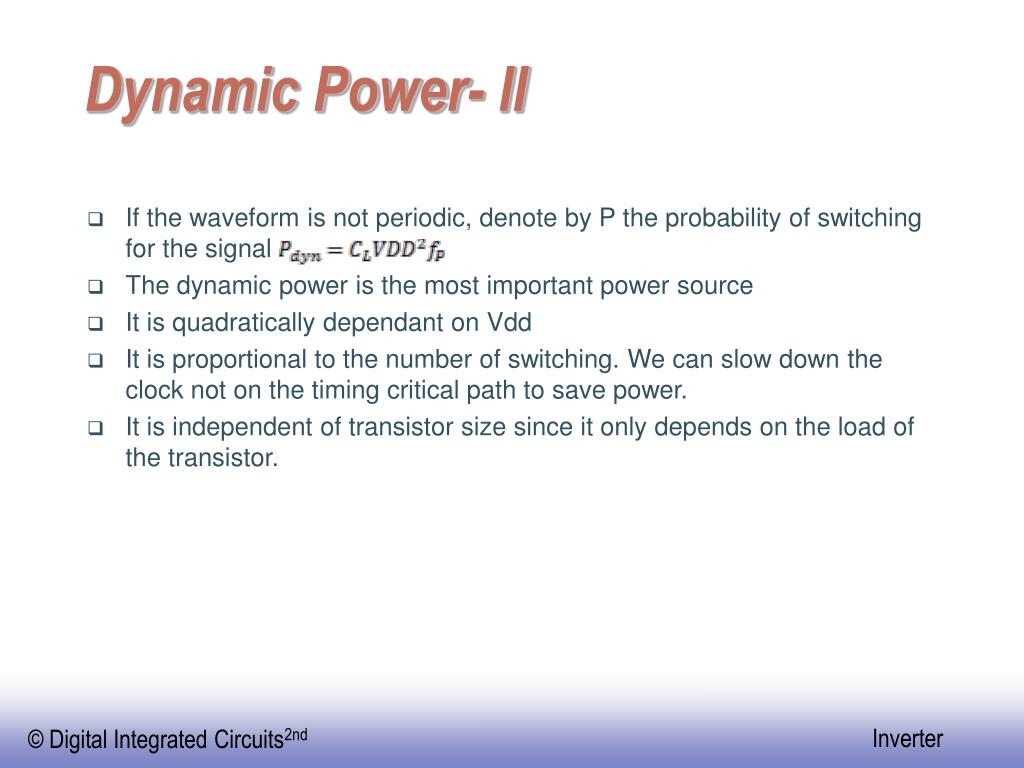

Dynamic Power- II
  • If the waveform is not periodic, denote by P the probability of switching for the signal
  • The dynamic power is the most important power source
  • It is quadratically dependant on Vdd
  • It is proportional to the number of switching. We can slow down the clock not on the timing critical path to save power.
  • It is independent of transistor size since it only depends on the load of the transistor.
slide22

Short Circuit Currents

Happens when both transistors are on.

If every switching is instantaneous, then no short circuits.

Longer delay -> larger short circuit power

slide24

Leakage

Sub-threshold current one of most compelling issues

in low-energy circuit design.

principles for power reduction

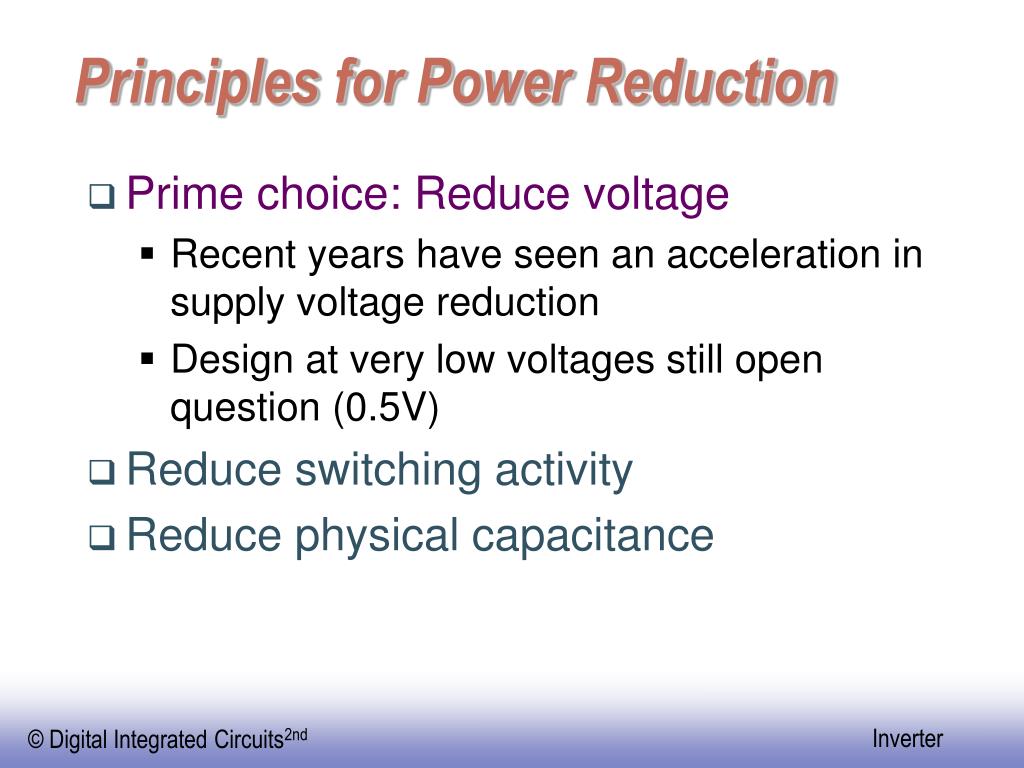

Principles for Power Reduction
  • Prime choice: Reduce voltage
    • Recent years have seen an acceleration in supply voltage reduction
    • Design at very low voltages still open question (0.5V)
  • Reduce switching activity
  • Reduce physical capacitance
goals of technology scaling

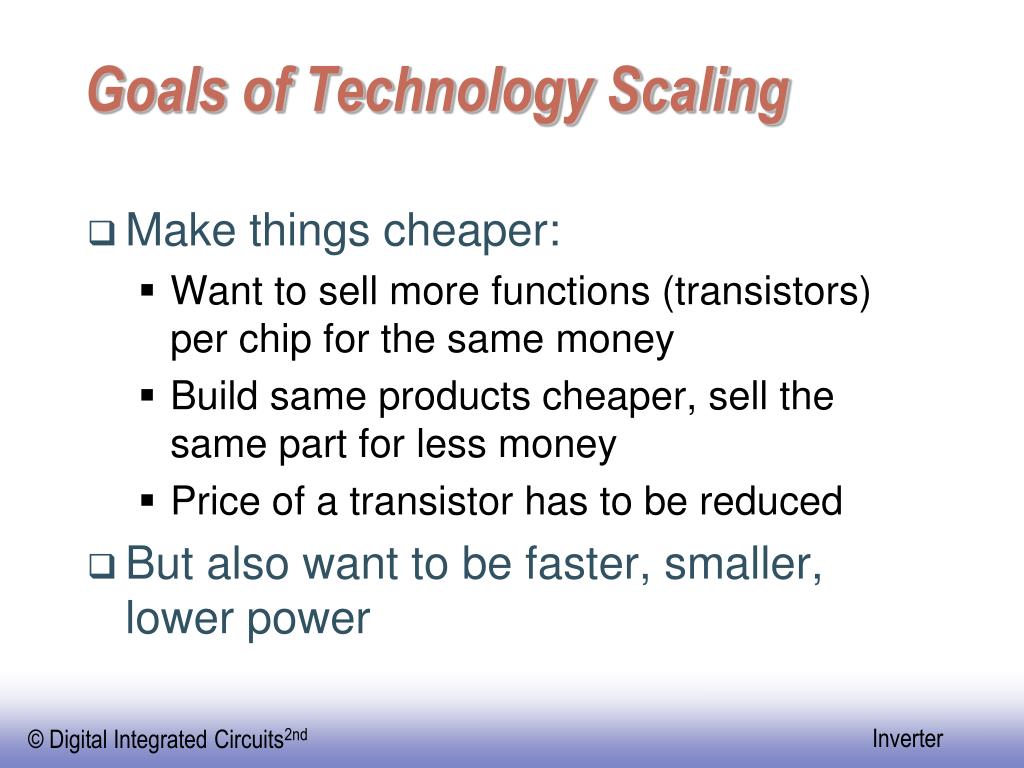

Goals of Technology Scaling
  • Make things cheaper:
    • Want to sell more functions (transistors) per chip for the same money
    • Build same products cheaper, sell the same part for less money
    • Price of a transistor has to be reduced
  • But also want to be faster, smaller, lower power
scaling
Scaling
  • Goals of scaling the dimensions by 30%:
    • Reduce gate delay by 30%
    • Double transistor density
  • Die size used to increase by 14% per generation
  • Technology generation spans 2-3 years
technology scaling

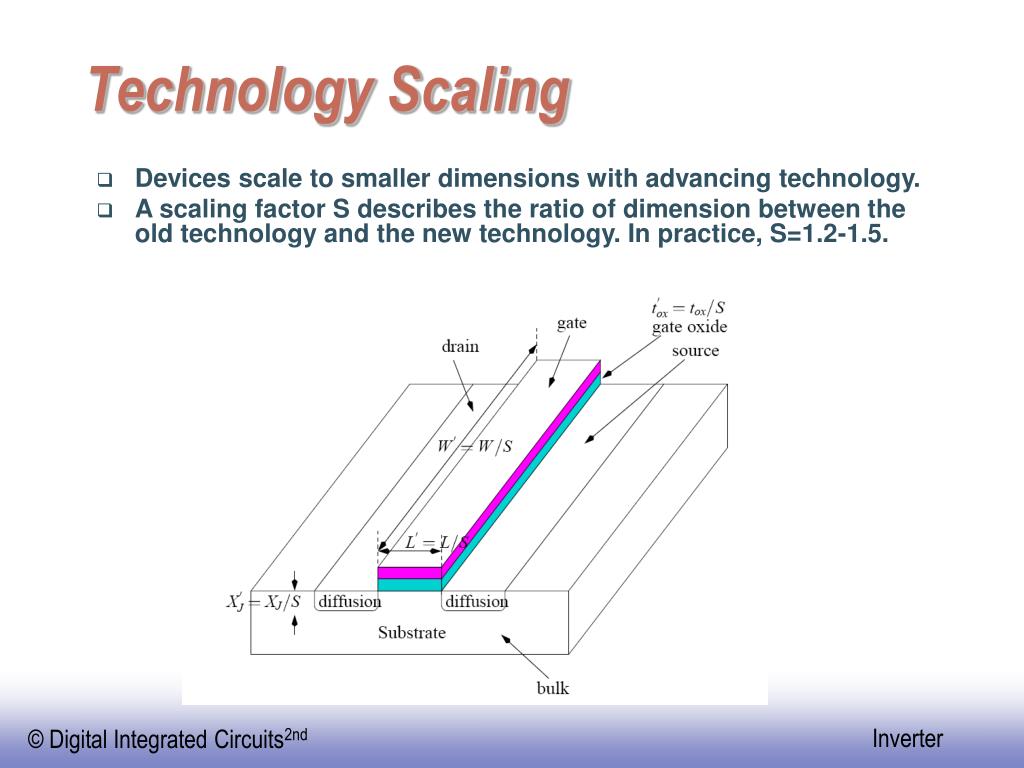

Technology Scaling
  • Devices scale to smaller dimensions with advancing technology.
  • A scaling factor S describes the ratio of dimension between the old technology and the new technology. In practice, S=1.2-1.5.
technology scaling ii
Technology Scaling - II
  • In practice, it is not feasible to scale voltage since different ICs in the system may have different Vdd. This may require extremely complex additional circuits. We can only allow very few different levels of Vdd.
  • In technology scaling, we often have fixed voltage scaling model.
  • W,L,tox scales down by 1/S
  • Vdd, Vt unchanged
  • Area scales down by 1/S2
  • Cox scales up by S due to tox
  • Gate capacitance = CoxWL scales down by 1/S
  • scales up by S
  • Linear and saturation region current scales up by S
  • Current density scales up by S3
  • P=Vdd*I, power density scales up by S3
  • Power consumption is a major design issue
summary

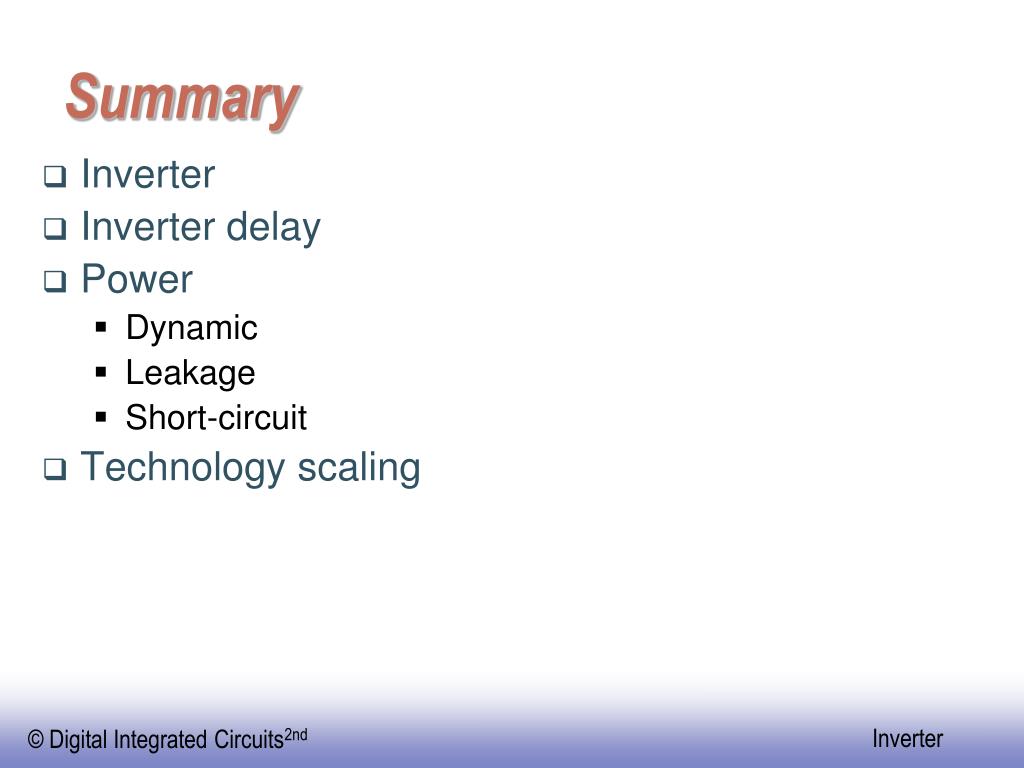

Summary

Inverter

Inverter delay

Power

Dynamic

Leakage

Short-circuit

Technology scaling
