How to Choose the Right battery management system for electric vehicle

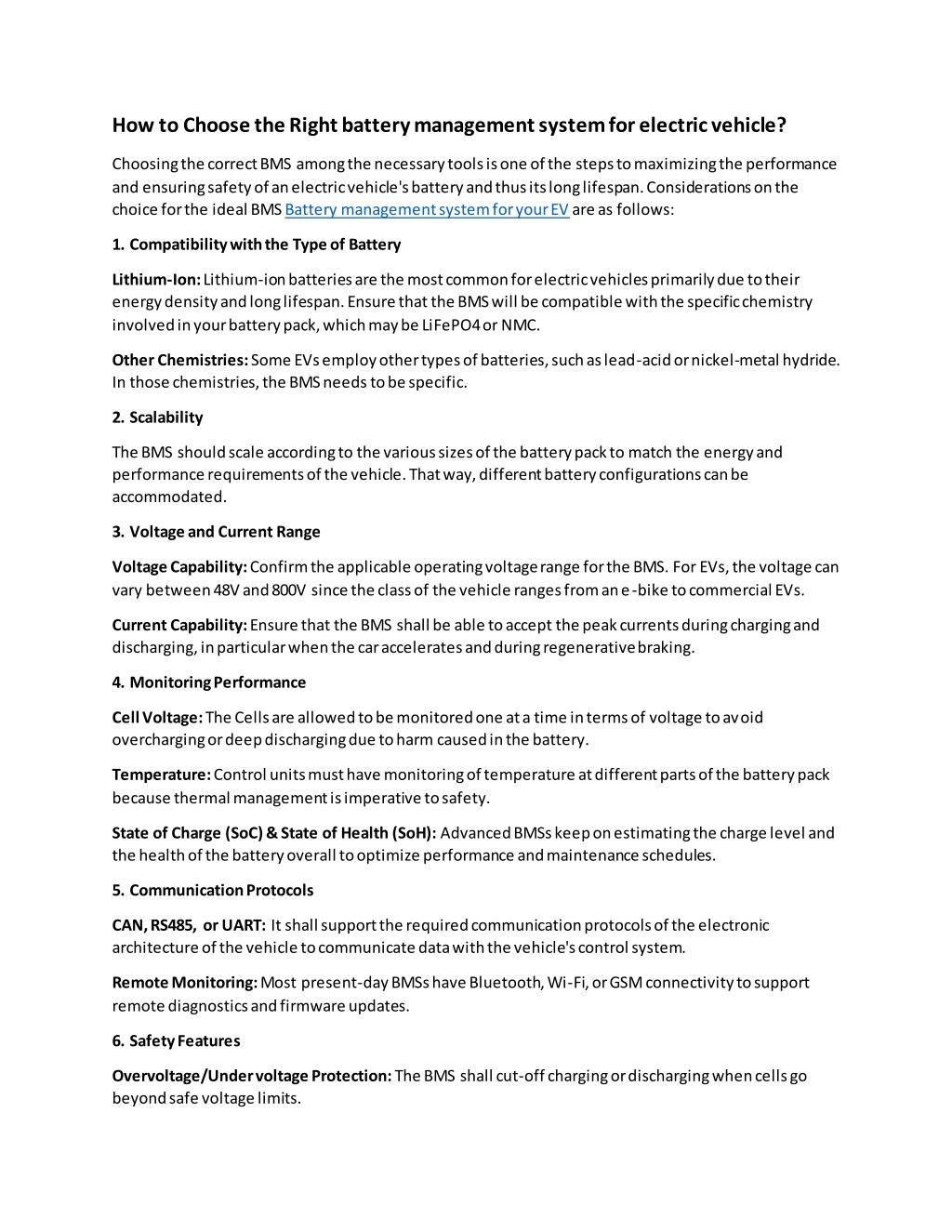

1. How to Choose the Right battery management system for electric vehicle? Choosing the correct BMS among the necessary tools is one of the steps to maximizing the performance and ensuring safety of an electric vehicle's battery and thus its long lifespan. Considerations on the choice for the ideal BMS Battery management system for your EV are as follows: 1. Compatibility with the Type of Battery Lithium-Ion: Lithium-ion batteries are the most common for electric vehicles primarily due to their energy density and long lifespan. Ensure that the BMS will be compatible with the specific chemistry involved in your battery pack, which may be LiFePO4 or NMC. Other Chemistries: Some EVs employ other types of batteries, such as lead-acid or nickel-metal hydride. In those chemistries, the BMS needs to be specific. 2. Scalability The BMS should scale according to the various sizes of the battery pack to match the energy and performance requirements of the vehicle. That way, different battery configurations can be accommodated. 3. Voltage and Current Range Voltage Capability: Confirm the applicable operating voltage range for the BMS. For EVs, the voltage can vary between 48V and 800V since the class of the vehicle ranges from an e-bike to commercial EVs. Current Capability: Ensure that the BMS shall be able to accept the peak currents during charging and discharging, in particular when the car accelerates and during regenerative braking. 4. Monitoring Performance Cell Voltage: The Cells are allowed to be monitored one at a time in terms of voltage to avoid overcharging or deep discharging due to harm caused in the battery. Temperature: Control units must have monitoring of temperature at different parts of the battery pack because thermal management is imperative to safety. State of Charge (SoC) & State of Health (SoH): Advanced BMSs keep on estimating the charge level and the health of the battery overall to optimize performance and maintenance schedules. 5. Communication Protocols CAN, RS485, or UART: It shall support the required communication protocols of the electronic architecture of the vehicle to communicate data with the vehicle's control system. Remote Monitoring: Most present-day BMSs have Bluetooth, Wi-Fi, or GSM connectivity to support remote diagnostics and firmware updates. 6. Safety Features Overvoltage/Under voltage Protection: The BMS shall cut-off charging or discharging when cells go beyond safe voltage limits.

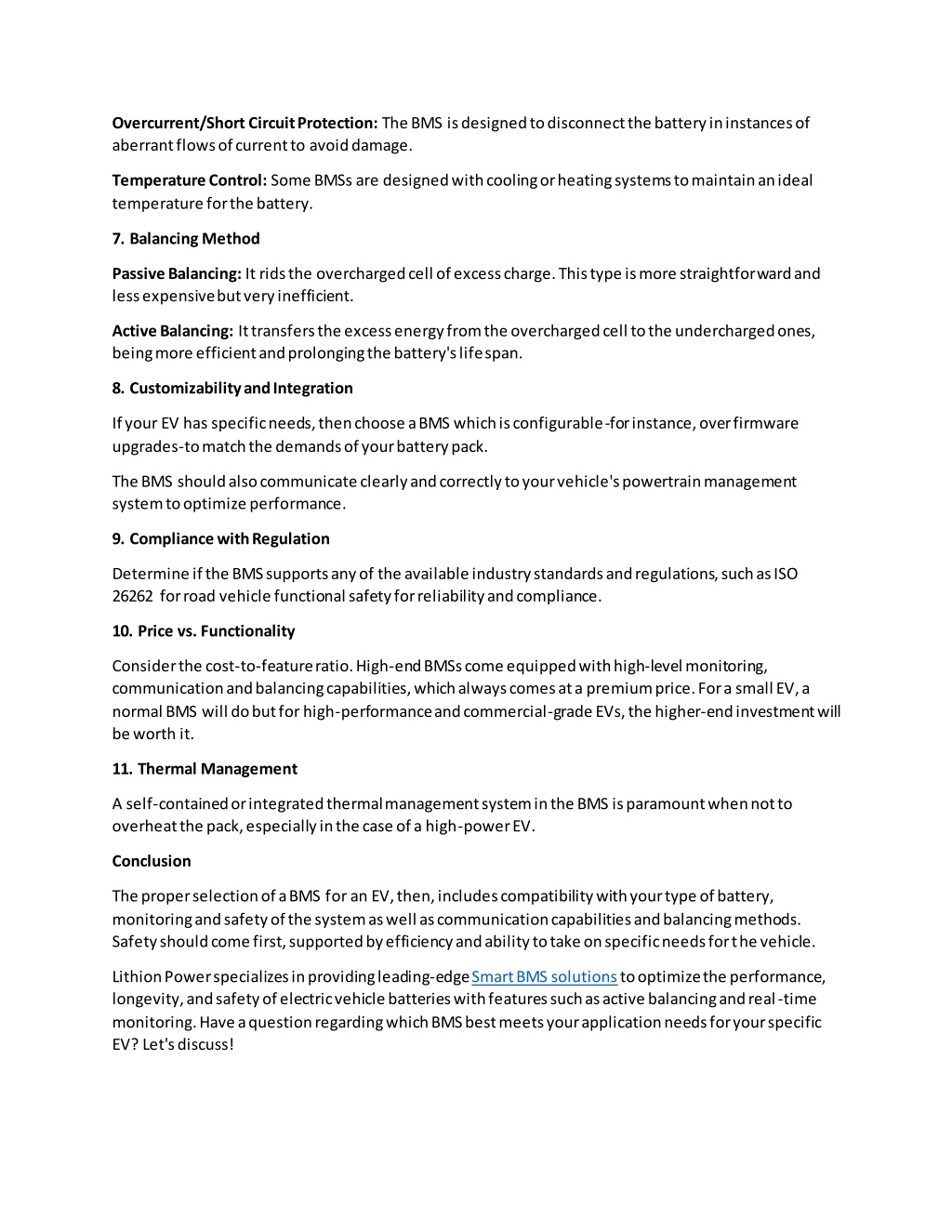

2. Overcurrent/Short Circuit Protection: The BMS is designed to disconnect the battery in instances of aberrant flows of current to avoid damage. Temperature Control: Some BMSs are designed with cooling or heating systems to maintain an ideal temperature for the battery. 7. Balancing Method Passive Balancing: It rids the overcharged cell of excess charge. This type is more straightforward and less expensive but very inefficient. Active Balancing: It transfers the excess energy from the overcharged cell to the undercharged ones, being more efficient and prolonging the battery's life span. 8. Customizability and Integration If your EV has specific needs, then choose a BMS which is configurable-for instance, over firmware upgrades-to match the demands of your battery pack. The BMS should also communicate clearly and correctly to your vehicle's powertrain management system to optimize performance. 9. Compliance with Regulation Determine if the BMS supports any of the available industry standards and regulations, such as ISO 26262 for road vehicle functional safety for reliability and compliance. 10. Price vs. Functionality Consider the cost-to-feature ratio. High-end BMSs come equipped with high-level monitoring, communication and balancing capabilities, which always comes at a premium price. For a small EV, a normal BMS will do but for high-performance and commercial-grade EVs, the higher-end investment will be worth it. 11. Thermal Management A self-contained or integrated thermal management system in the BMS is paramount when not to overheat the pack, especially in the case of a high-power EV. Conclusion The proper selection of a BMS for an EV, then, includes compatibility with your type of battery, monitoring and safety of the system as well as communication capabilities and balancing methods. Safety should come first, supported by efficiency and ability to take on specific needs for the vehicle. Lithion Power specializes in providing leading-edge Smart BMS solutions to optimize the performance, longevity, and safety of electric vehicle batteries with features such as active balancing and real-time monitoring. Have a question regarding which BMS best meets your application needs for your specific EV? Let's discuss!
