Battery Management System in Electric Vehicles

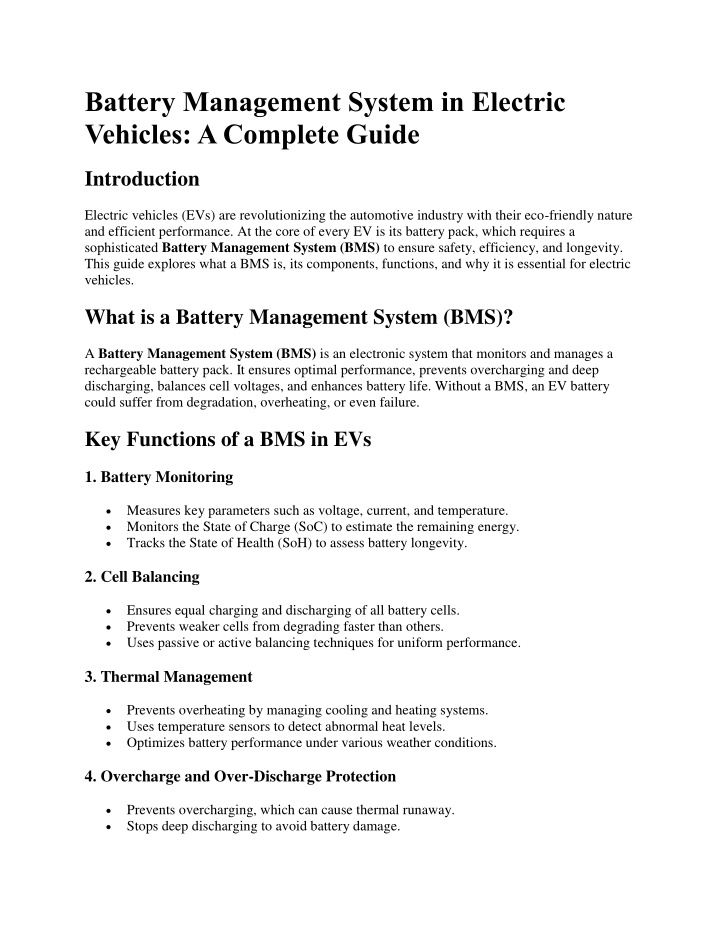

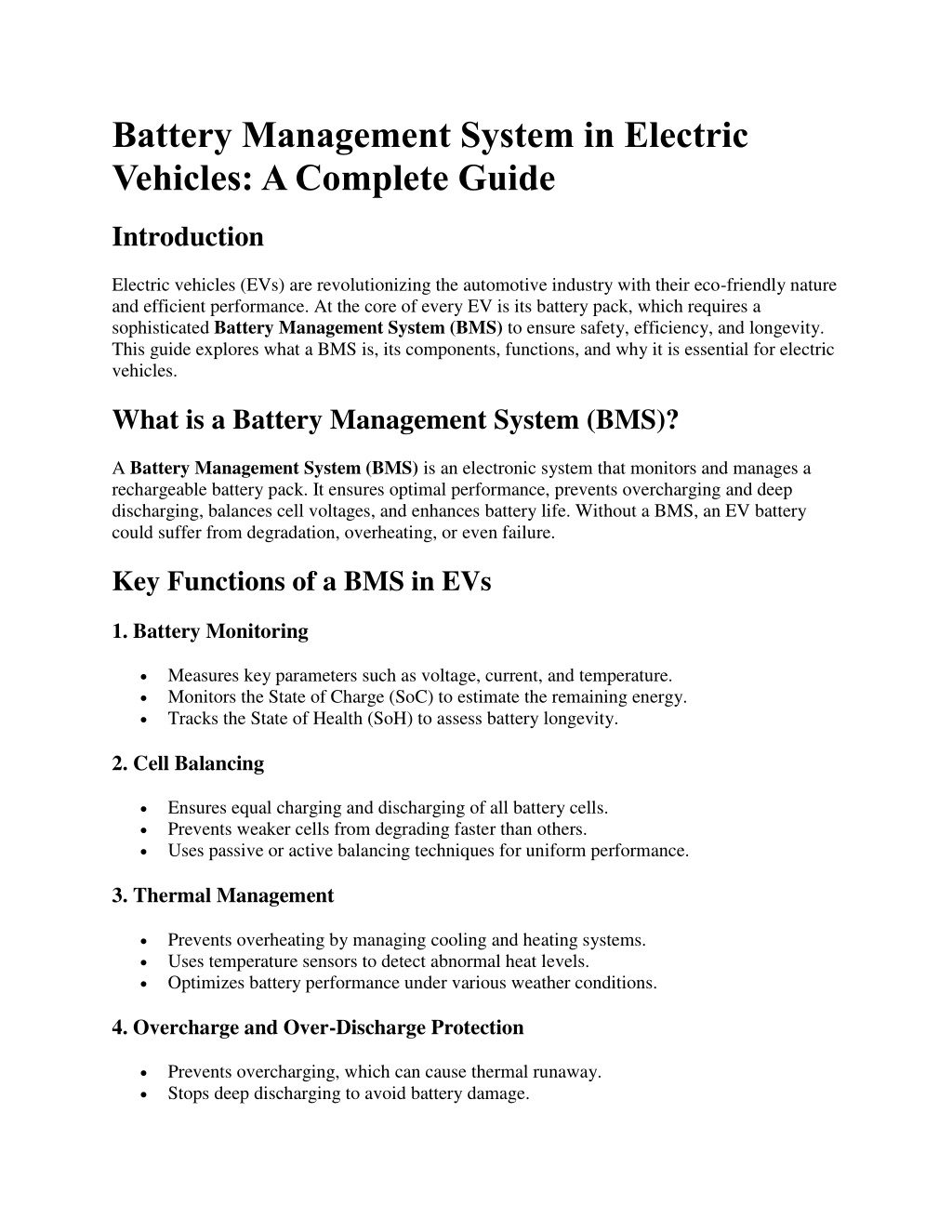

1. Battery Management System in Electric Vehicles: A Complete Guide Introduction Electric vehicles (EVs) are revolutionizing the automotive industry with their eco-friendly nature and efficient performance. At the core of every EV is its battery pack, which requires a sophisticated Battery Management System (BMS) to ensure safety, efficiency, and longevity. This guide explores what a BMS is, its components, functions, and why it is essential for electric vehicles. What is a Battery Management System (BMS)? A Battery Management System (BMS) is an electronic system that monitors and manages a rechargeable battery pack. It ensures optimal performance, prevents overcharging and deep discharging, balances cell voltages, and enhances battery life. Without a BMS, an EV battery could suffer from degradation, overheating, or even failure. Key Functions of a BMS in EVs 1. Battery Monitoring Measures key parameters such as voltage, current, and temperature. Monitors the State of Charge (SoC) to estimate the remaining energy. Tracks the State of Health (SoH) to assess battery longevity. 2. Cell Balancing Ensures equal charging and discharging of all battery cells. Prevents weaker cells from degrading faster than others. Uses passive or active balancing techniques for uniform performance. 3. Thermal Management Prevents overheating by managing cooling and heating systems. Uses temperature sensors to detect abnormal heat levels. Optimizes battery performance under various weather conditions. 4. Overcharge and Over-Discharge Protection Prevents overcharging, which can cause thermal runaway. Stops deep discharging to avoid battery damage.

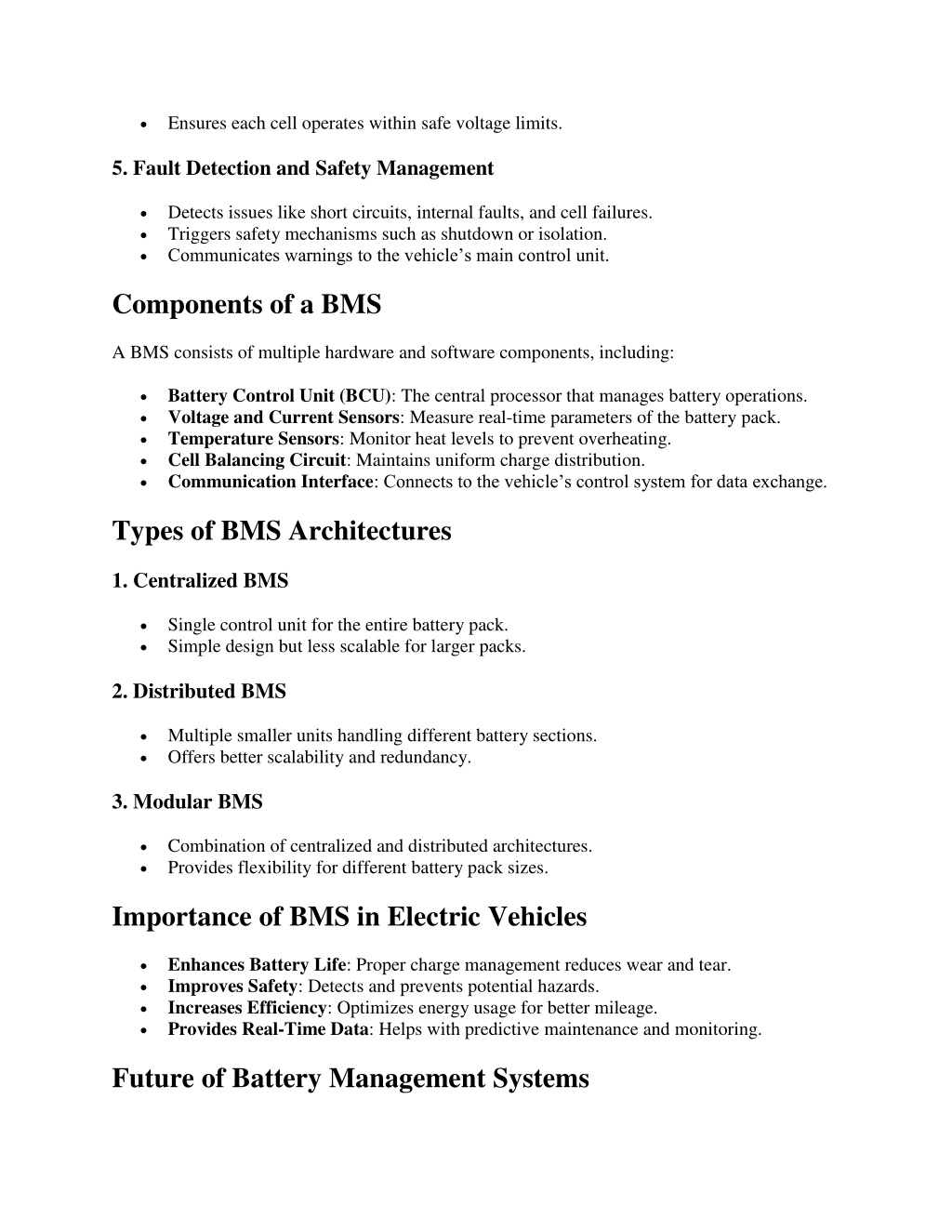

2. Ensures each cell operates within safe voltage limits. 5. Fault Detection and Safety Management Detects issues like short circuits, internal faults, and cell failures. Triggers safety mechanisms such as shutdown or isolation. Communicates warnings to the vehicle’s main control unit. Components of a BMS A BMS consists of multiple hardware and software components, including: Battery Control Unit (BCU): The central processor that manages battery operations. Voltage and Current Sensors: Measure real-time parameters of the battery pack. Temperature Sensors: Monitor heat levels to prevent overheating. Cell Balancing Circuit: Maintains uniform charge distribution. Communication Interface: Connects to the vehicle’s control system for data exchange. Types of BMS Architectures 1. Centralized BMS Single control unit for the entire battery pack. Simple design but less scalable for larger packs. 2. Distributed BMS Multiple smaller units handling different battery sections. Offers better scalability and redundancy. 3. Modular BMS Combination of centralized and distributed architectures. Provides flexibility for different battery pack sizes. Importance of BMS in Electric Vehicles Enhances Battery Life: Proper charge management reduces wear and tear. Improves Safety: Detects and prevents potential hazards. Increases Efficiency: Optimizes energy usage for better mileage. Provides Real-Time Data: Helps with predictive maintenance and monitoring. Future of Battery Management Systems

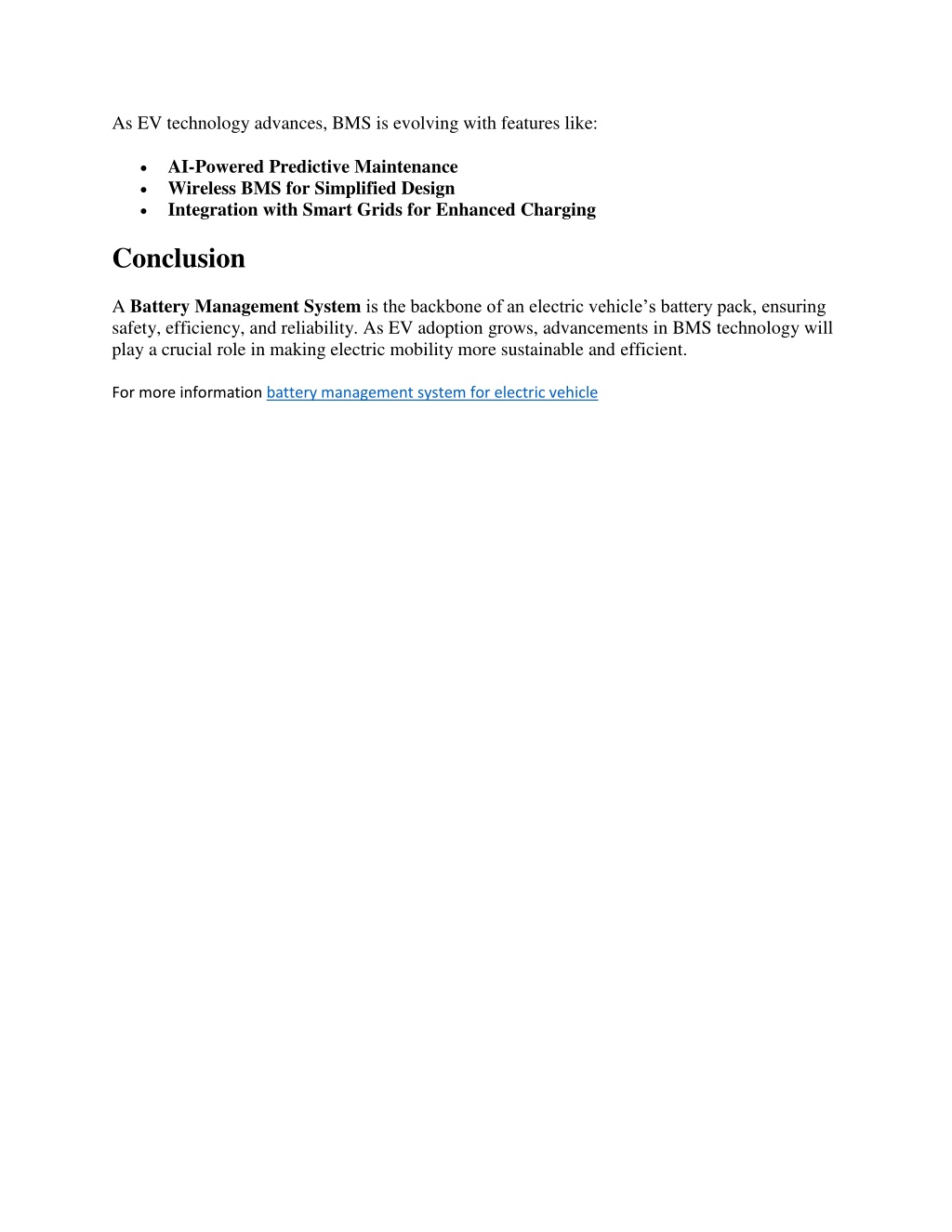

3. As EV technology advances, BMS is evolving with features like: AI-Powered Predictive Maintenance Wireless BMS for Simplified Design Integration with Smart Grids for Enhanced Charging Conclusion A Battery Management Systemis the backbone of an electric vehicle’s battery pack, ensuring safety, efficiency, and reliability. As EV adoption grows, advancements in BMS technology will play a crucial role in making electric mobility more sustainable and efficient. For more information battery management system for electric vehicle
