16S 40A BMS Module for E-Bikes, Solar Systems & Energy Storage

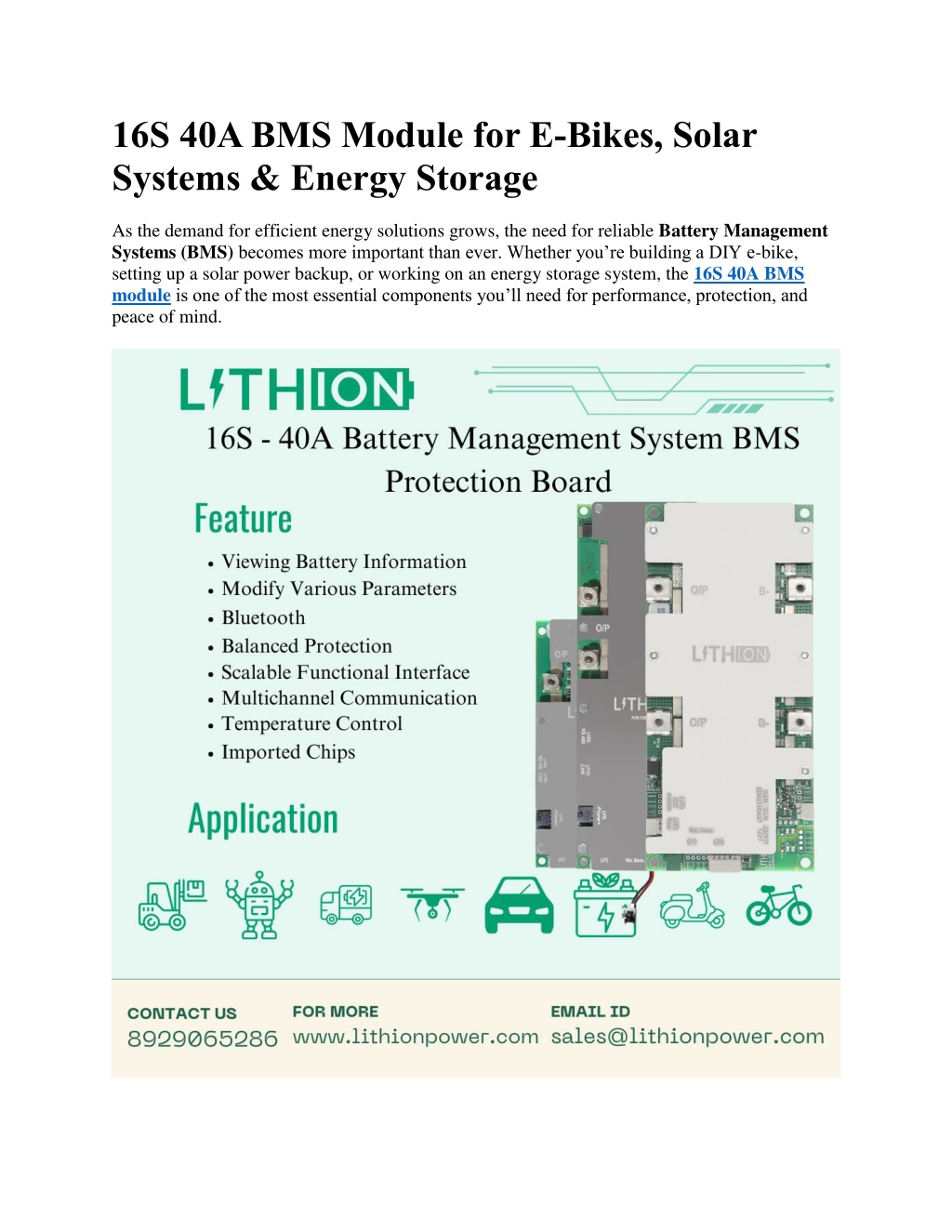

1. 16S 40A BMS Module for E-Bikes, Solar Systems & Energy Storage As the demand for efficient energy solutions grows, the need for reliable Battery Management Systems (BMS)becomes more important than ever. Whether you’re building a DIY e-bike, setting up a solar power backup, or working on an energy storage system, the 16S 40A BMS moduleis one of the most essential components you’ll need for performance, protection, and peace of mind.

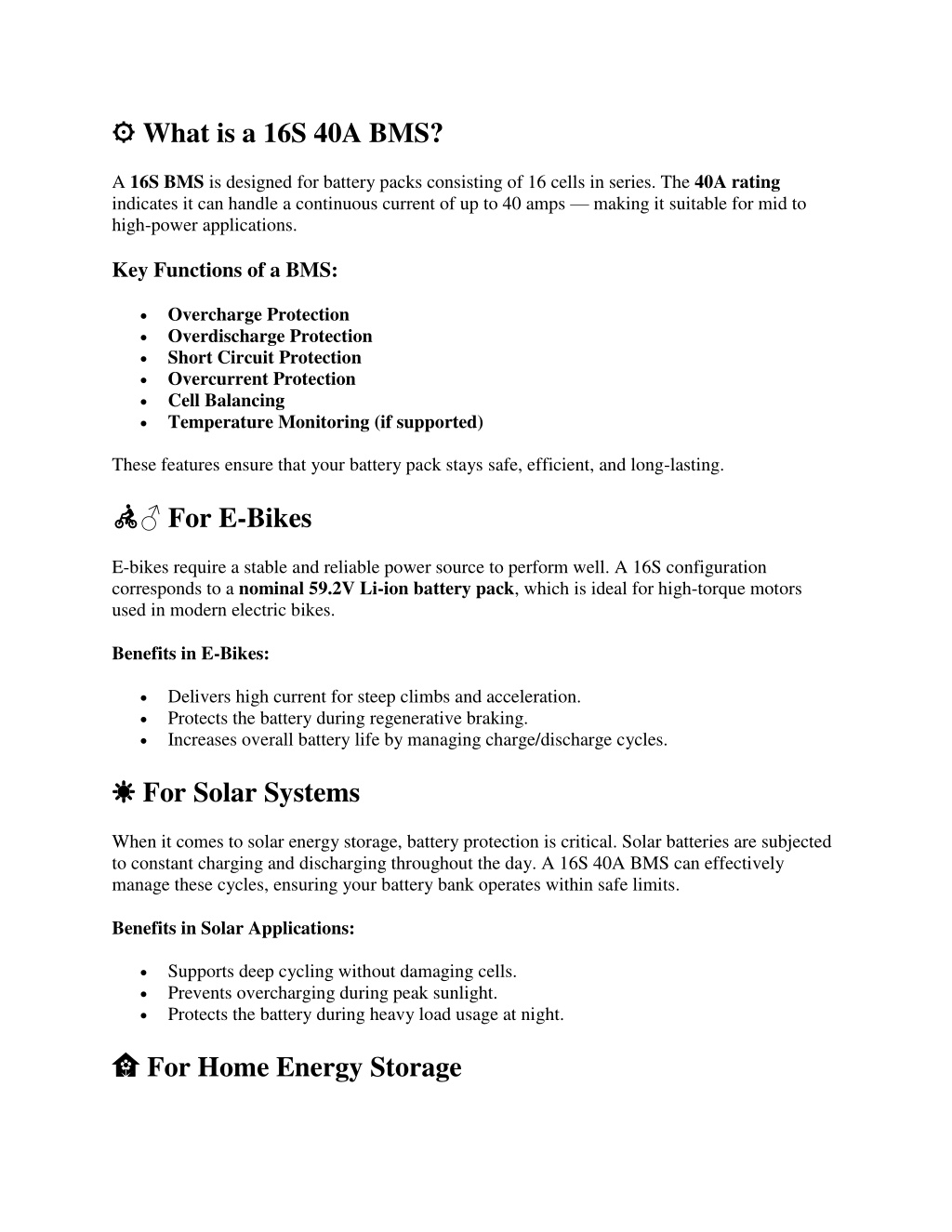

2. ⚙️ ⚙️ What is a 16S 40A BMS? A 16S BMS is designed for battery packs consisting of 16 cells in series. The 40A rating indicates it can handle a continuous current of up to 40 amps — making it suitable for mid to high-power applications. Key Functions of a BMS: Overcharge Protection Overdischarge Protection Short Circuit Protection Overcurrent Protection Cell Balancing Temperature Monitoring (if supported) These features ensure that your battery pack stays safe, efficient, and long-lasting. ? ?♂️ For E-Bikes E-bikes require a stable and reliable power source to perform well. A 16S configuration corresponds to a nominal 59.2V Li-ion battery pack, which is ideal for high-torque motors used in modern electric bikes. Benefits in E-Bikes: Delivers high current for steep climbs and acceleration. Protects the battery during regenerative braking. Increases overall battery life by managing charge/discharge cycles. ☀️ ☀️ For Solar Systems When it comes to solar energy storage, battery protection is critical. Solar batteries are subjected to constant charging and discharging throughout the day. A 16S 40A BMS can effectively manage these cycles, ensuring your battery bank operates within safe limits. Benefits in Solar Applications: Supports deep cycling without damaging cells. Prevents overcharging during peak sunlight. Protects the battery during heavy load usage at night. ? ? For Home Energy Storage

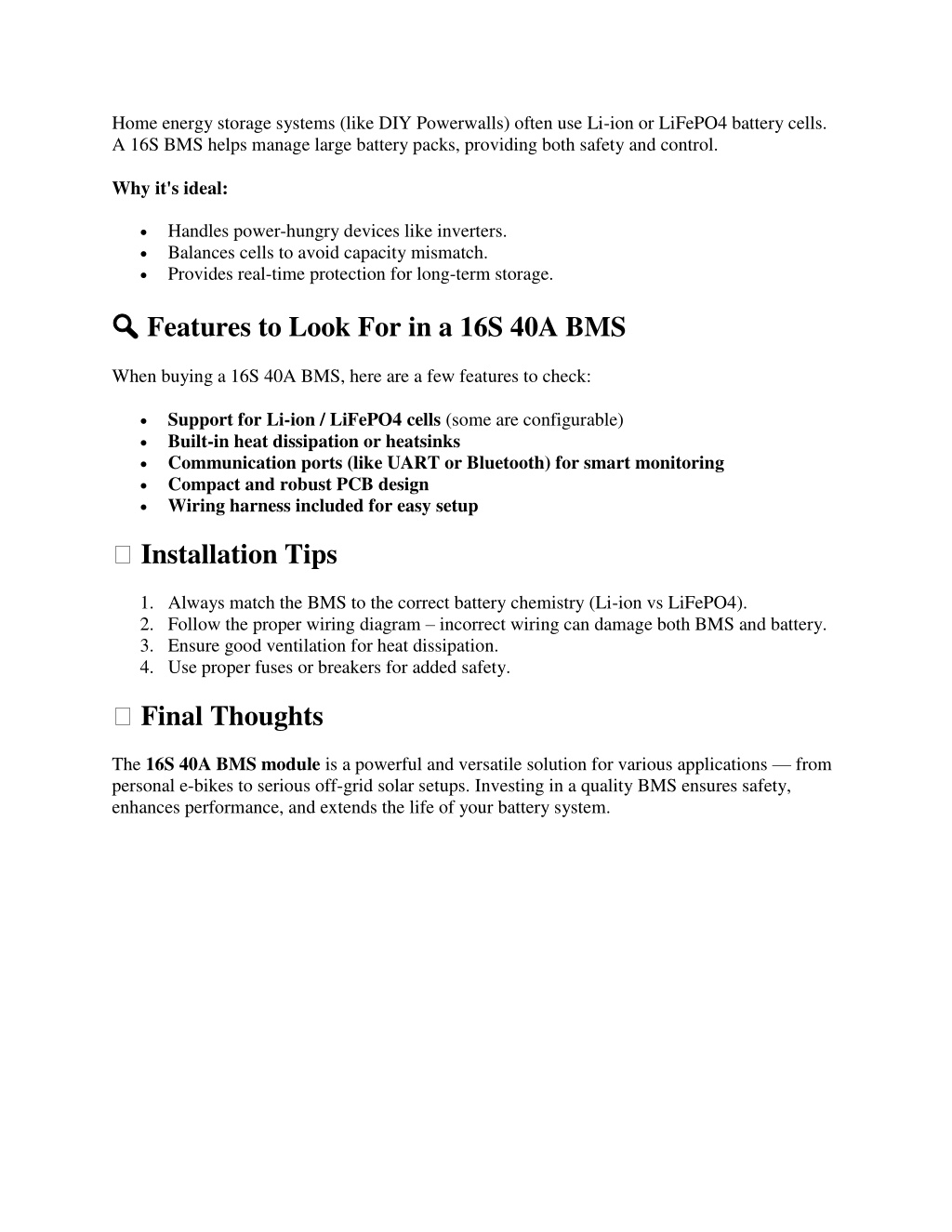

3. Home energy storage systems (like DIY Powerwalls) often use Li-ion or LiFePO4 battery cells. A 16S BMS helps manage large battery packs, providing both safety and control. Why it's ideal: Handles power-hungry devices like inverters. Balances cells to avoid capacity mismatch. Provides real-time protection for long-term storage. ? ? Features to Look For in a 16S 40A BMS When buying a 16S 40A BMS, here are a few features to check: Support for Li-ion / LiFePO4 cells (some are configurable) Built-in heat dissipation or heatsinks Communication ports (like UART or Bluetooth) for smart monitoring Compact and robust PCB design Wiring harness included for easy setup ? Installation Tips 1.Always match the BMS to the correct battery chemistry (Li-ion vs LiFePO4). 2.Follow the proper wiring diagram – incorrect wiring can damage both BMS and battery. 3.Ensure good ventilation for heat dissipation. 4.Use proper fuses or breakers for added safety. ? Final Thoughts The 16S 40A BMS module is a powerful and versatile solution for various applications — from personal e-bikes to serious off-grid solar setups. Investing in a quality BMS ensures safety, enhances performance, and extends the life of your battery system.
