Capsense Technology

Linepro Global is the leading manufacturer of custom design Industrial Keyboards/ keypads/ switches namely Membrane Switches, Capsense Keyboards, Metal keyboards & Silicon rubber keyboards.<br>

Lineproglobal
Download Presentation

Capsense Technology

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

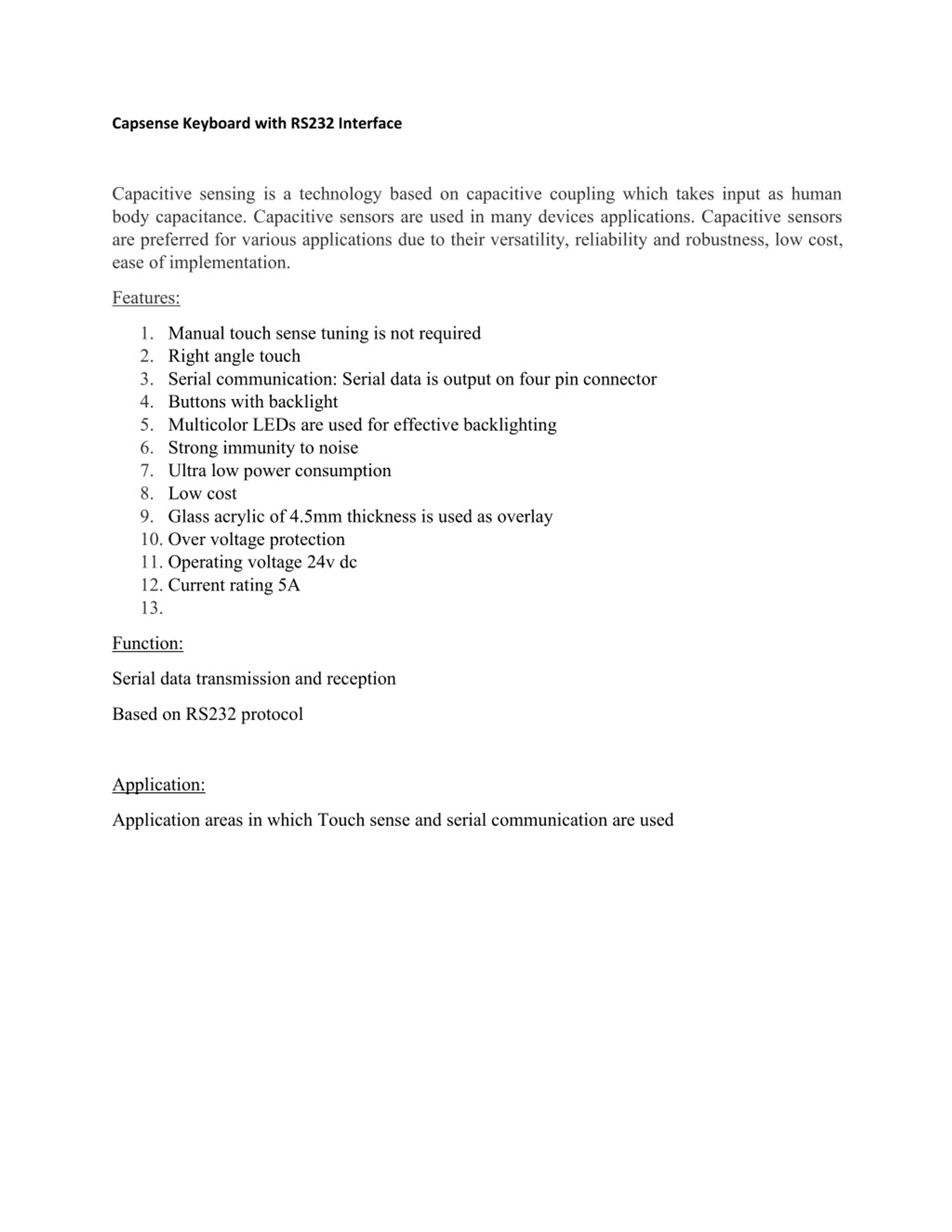

  1. Capsense Keyboard with RS232 Interface Capacitive sensing is a technology based on capacitive coupling which takes input as human body capacitance. Capacitive sensors are used in many devices applications. Capacitive sensors are preferred for various applications due to their versatility, reliability and robustness, low cost, ease of implementation. Features: 1. Manual touch sense tuning is not required 2. Right angle touch 3. Serial communication: Serial data is output on four pin connector 4. Buttons with backlight 5. Multicolor LEDs are used for effective backlighting 6. Strong immunity to noise 7. Ultra low power consumption 8. Low cost 9. Glass acrylic of 4.5mm thickness is used as overlay 10. Over voltage protection 11. Operating voltage 24v dc 12. Current rating 5A 13. Function: Serial data transmission and reception Based on RS232 protocol Application: Application areas in which Touch sense and serial communication are used
