The MPEG-7 Standard- A Brief Tutorial -

Ali Tabatabai

Sony US Research Laboratories

February 27, 2001

outline
Objectives of the MPEG-7 Standard

Main Elements of MPEG-7

Scope of MPEG-7

MPEG-7 Application Areas

MPEG 7’s relation with other standards

Outline
slide3

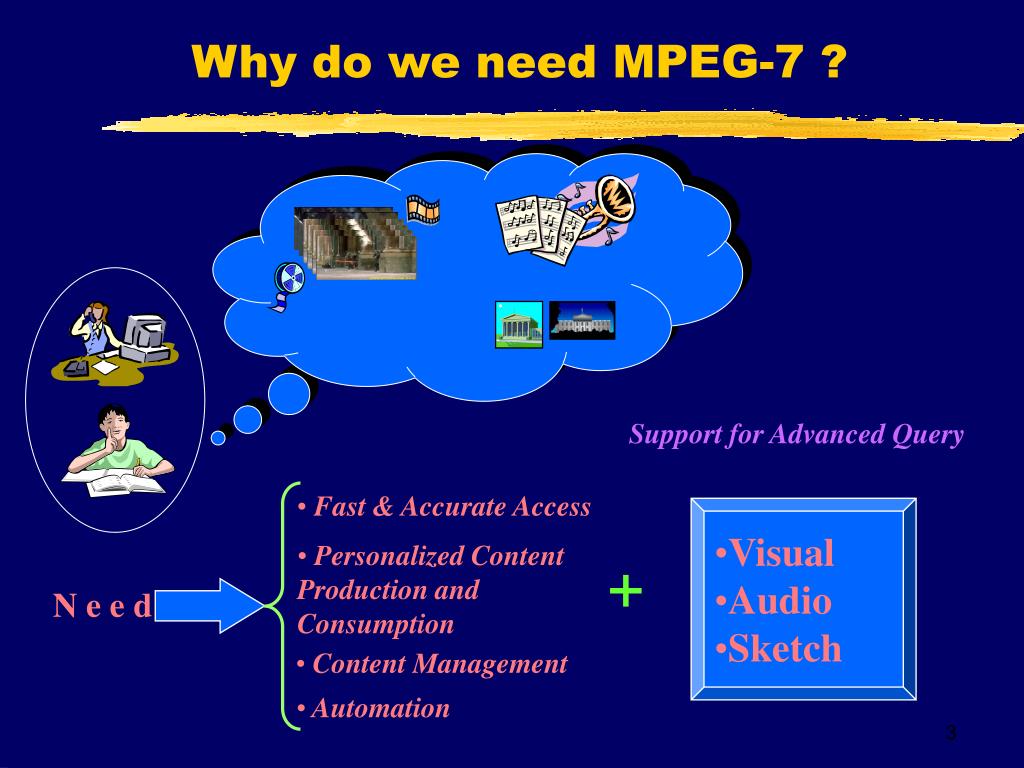

Fast & Accurate Access

Personalized Content Production and Consumption

Content Management

Automation

  • Why do we need MPEG-7 ?
  • Support for Advanced Query

Visual

Audio

Sketch

  • +
  • N e e d
mpeg a brief history 1

Established in 1988

  • A Working Group of ISO/IEC in charge of the Development of Standards for
  • Coded Representation of Digital Audio and Video
MPEG: A Brief History (1)
  • MPEG: Moving Picture Experts Group
  • ISO / IEC/JTC1/SC29/WG11
mpeg a brief history 2

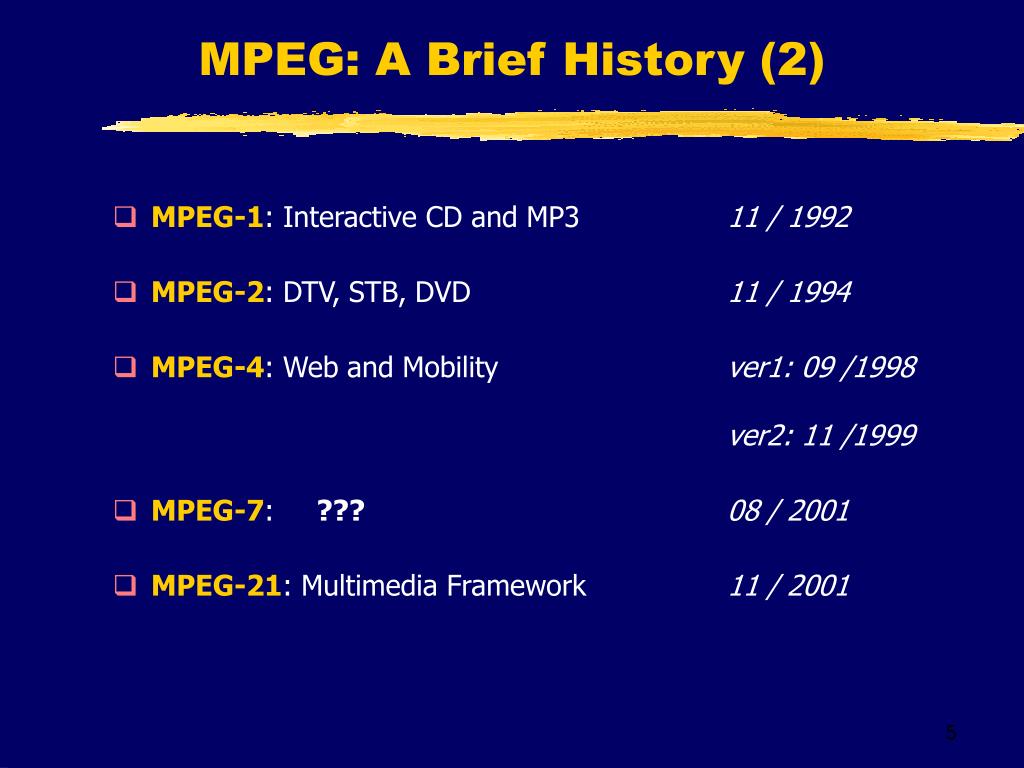

MPEG: A Brief History (2)
  • MPEG-1: Interactive CD and MP3 11 / 1992
  • MPEG-2: DTV, STB, DVD 11 / 1994
  • MPEG-4: Web and Mobility ver1: 09 /1998ver2: 11 /1999
  • MPEG-7: ??? 08 / 2001
  • MPEG-21: Multimedia Framework 11 / 2001
mpeg 7 what is it

IS NOT a COMPRESSION Standard

similar to MPEG-1/2/4 or their Extension

IS NOT a STANDARD for

FEATURE EXTRACTION/MATCHING

Content Description of Various Audio Visual Information

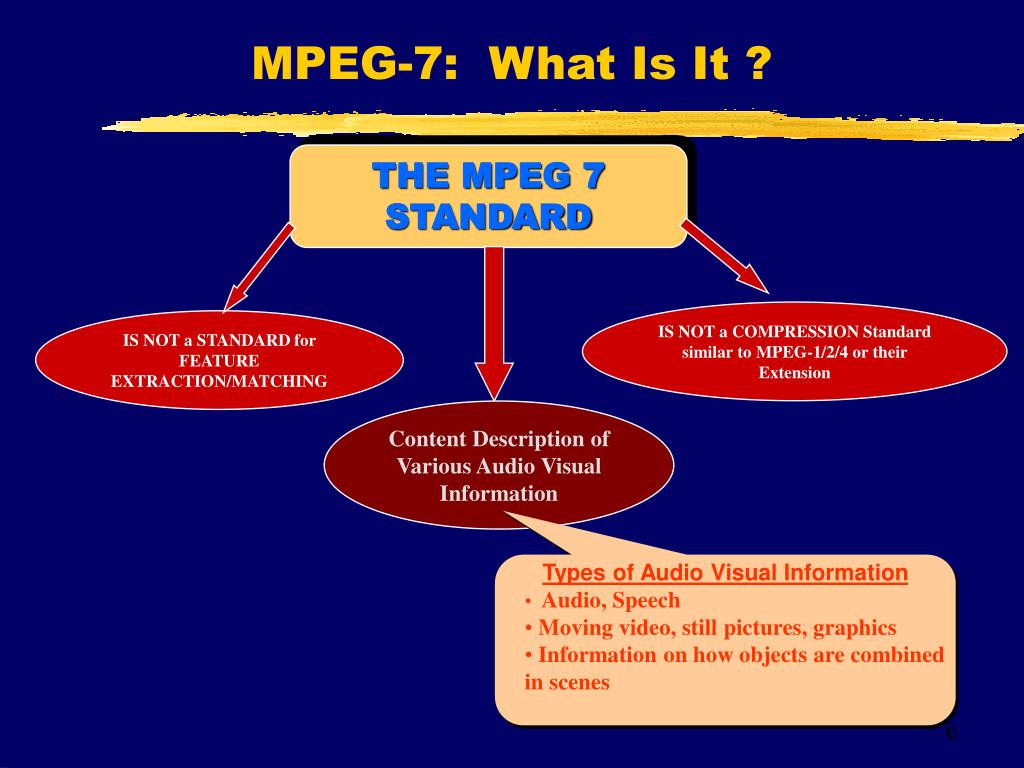

MPEG-7: What Is It ?

THE MPEG 7 STANDARD

Types of Audio Visual Information

  • Audio, Speech
  • Moving video, still pictures, graphics
  • Information on how objects are combined in scenes
mpeg 7 application areas

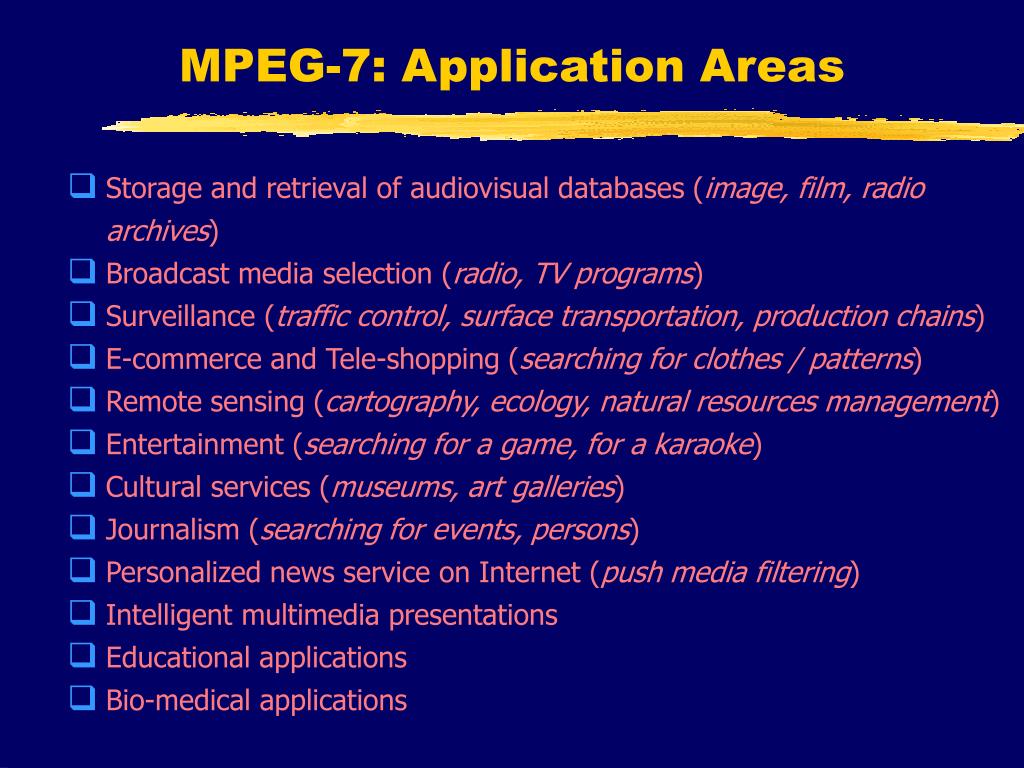

MPEG-7: Application Areas
  • Storage and retrieval of audiovisual databases (image, film, radio archives)
  • Broadcast media selection (radio, TV programs)
  • Surveillance (traffic control, surface transportation, production chains)
  • E-commerce and Tele-shopping (searching for clothes / patterns)
  • Remote sensing (cartography, ecology, natural resources management)
  • Entertainment (searching for a game, for a karaoke)
  • Cultural services (museums, art galleries)
  • Journalism (searching for events, persons)
  • Personalized news service on Internet (push media filtering)
  • Intelligent multimedia presentations
  • Educational applications
  • Bio-medical applications
mpeg 7 description scope for av content
MPEG-7Description Scope for AV Content
  • Description Granularity
    • Low-level
    • High-level
  • Form
  • Access
  • Classification
  • Link
  • Context
mpeg 7 main elements
MPEG-7: Main Elements
  • Descriptors (D)
    • syntax and semantics of each feature representation
  • Description Schemes (DS)
    • structure and semantics of the relationships between components
  • Description Definition Language (DDL)
    • creation of new DS’s
    • modification/extension of existing DS’s
mpeg 7 major functionalities
MPEG-7: Major Functionalities
  • Systems (ISO / IEC 15938 - 1)
  • Description Definition Language (ISO / IEC 15938 - 2)
  • Visual (ISO / IEC 15938 - 3)
  • Audio (ISO / IEC 15938 - 4)
  • Multimedia Description Schemes (ISO / IEC 15938 - 5)
  • Reference Software (ISO / IEC 15938 - 6)
slide11

DDL

  • <Object>
  • <Label/>
  • <Definition/>
  • .
  • .
  • </Object>
  • Instantiation
  • DS2
  • DS2
  • Systems
  • D1
  • D2
  • D3
  • 0001100
  • MPEG-7: Main Elements (2)
  • DS1
  • DS3
mpeg 7 systems

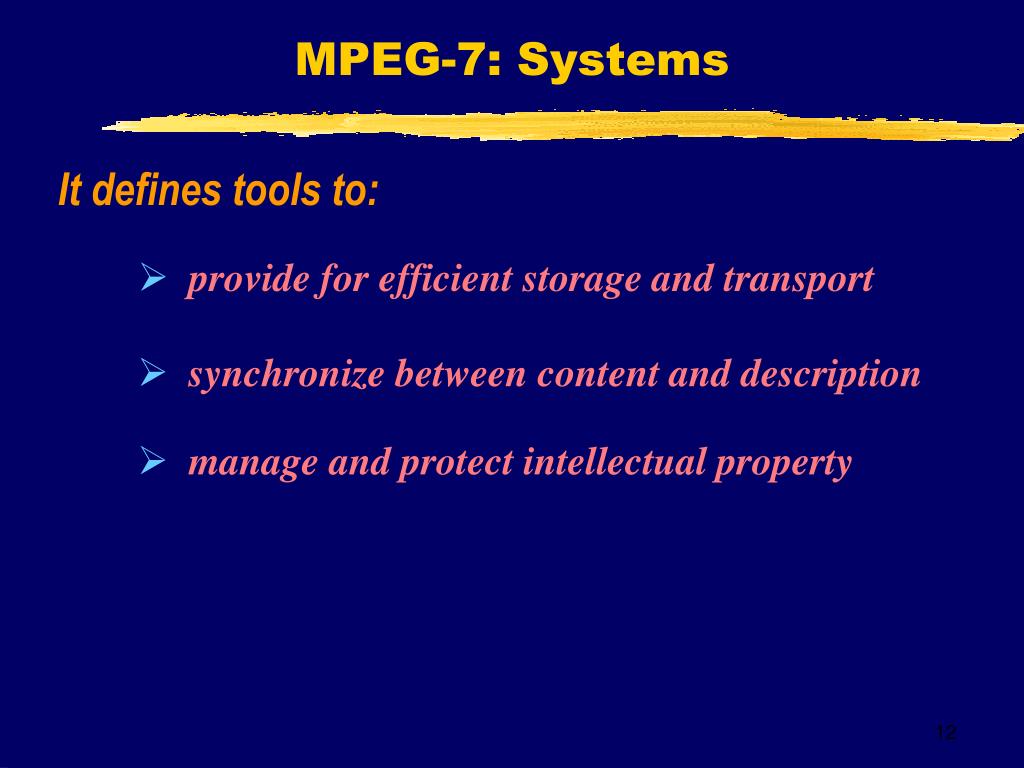

MPEG-7: Systems
  • It defines tools to:
  • provide for efficient storage and transport
  • synchronize between content and description
  • manage and protect intellectual property
mpeg 7 ddl and its components
MPEG-7: DDL and its Components
  • Description Definition Language:
    • Creation of the Ds and DS’s: XML Schema & MPEG-7 Extensions
    • Instantiation of XML
  • XML Schema:
    • Data types
    • Simple and Complex types
    • Elements, attributes
    • Inheritance, Abstract types
  • MPEG-7 extensions:
    • Array and Matrix data type
mpeg 7 audio
MPEG-7: Audio
  • Sound Effects
  • Music Instrument Timbre
  • Spoken Content
  • Melody Contour
mpeg 7 visual 1
MPEG-7: Visual (1)
  • Color
    • quantization, dominant, scalable, color-structure, layout, GoF/GoP
  • Texture
  • Shape
    • region-based, contour-based, 3D
  • Motion
    • camera motion, motion trajectory, parametric motion, motion activity
mpeg 7 visual 2

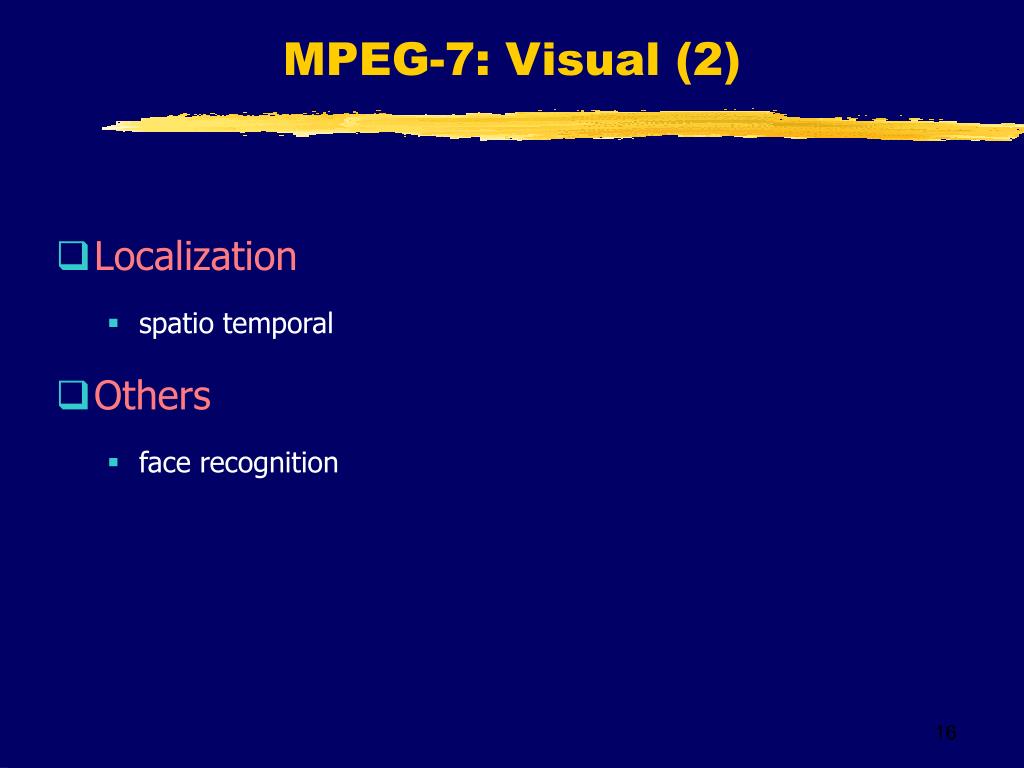

MPEG-7: Visual (2)
  • Localization
    • spatio temporal
  • Others
    • face recognition
mpeg 7 basic visual structures
MPEG-7: Basic Visual Structures
  • Grid Layout
  • 2D-3D Multiple View
  • Time Series
  • Spatial 2D Coordinates
  • Temporal Interpolation
low level audio visual descriptors

Video segments

Still regions

Moving regions

Audio segments

Low level Audio Visual descriptors

Color

Shape

Position

Texture

Color

Camera motion

Motion activity

Mosaic

Color

Motion trajectory

Parametric motion

Spatio-temporal shape

Spoken content

Spectral characterization

Music: timbre, melody

mpeg 7 mmds basic elements

Basic elements

Schema

Datatype &

Link & media

Basic DSs

tools

structures

localization

MPEG-7: MMDS Basic Elements

Root, Top-level elements,

Packages

Time, Duration,

Medialocators

Language

Annotation,Person, Place

mpeg 7 content management and description

Creation &

production

Media

Content

Usage

Content management

Content description

Structural

Conceptual

aspects

aspects

Basic elements

Schema

Datatype &

Link & media

Basic DSs

tools

structures

localization

MPEG 7: Content Management and Description

Title, Creator, Creation

location & date, Purpose,

Classification, Genre, Review, Parental guidance, etc. (Author generated)

Format, Coding, Instances,

Identification, Transcoding Hint, etc.

(Several instances)

Rights holder, Access rights,

Usage Record, Financial aspects, etc. (Evolution)

Viewpoint of the structure: Segments

  • Spatial / temporal structure
  • Audio, video low-level Ds
  • Elementary semantic information.

Viewpoint of conceptual notions

  • Events, objects, abstract concepts, and their relation
example of segment trees

SR1:

·

Creation,

Usage meta

information

·

Media

description

·

SR6:

Textual

annotation

·

·

Color

Histogram

Color

histogram,

Texture

·

Textual

annotation

SR2:

·

Shape

·

Color

Histogram

·

Textual

annotation

SR5:

·

Shape

·

Textual

annotation

SR3:

·

Shape

SR4:

·

Color

Histogram

·

Shape

·

Textual

annotation

·

Color

Histogram

·

Textual

annotation

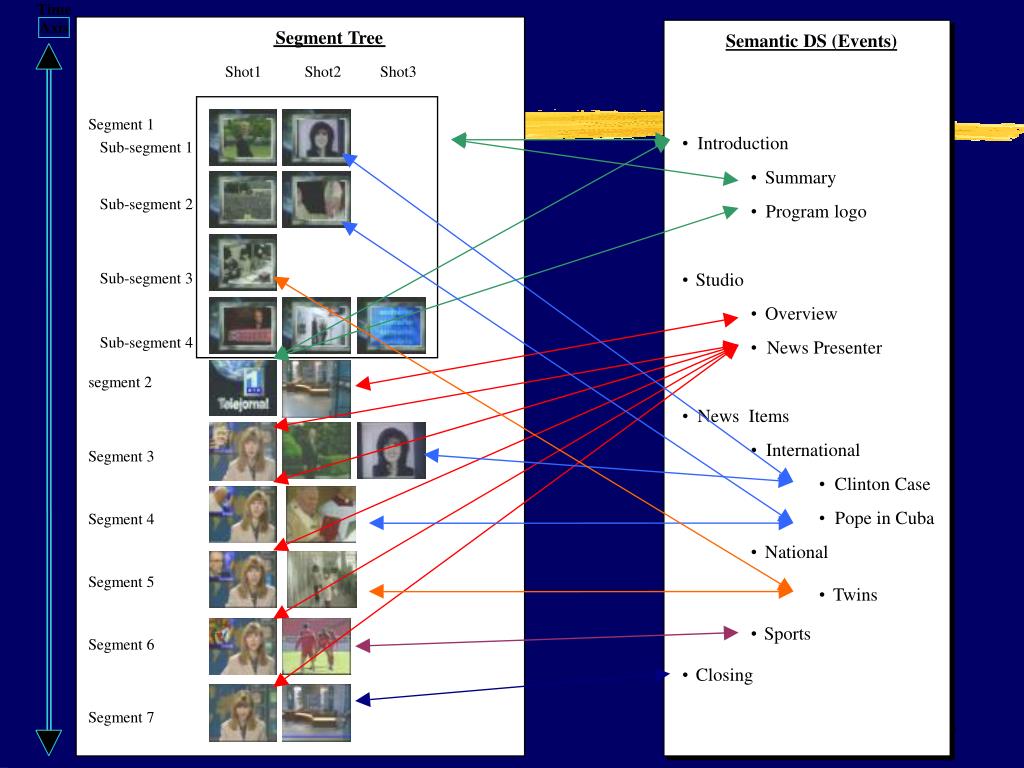

Example of Segment trees

Foreground

Background

slide22

Time

Semantic DS (Events)

Introduction

Summary

Program logo

Studio

Overview

News Presenter

News Items

International

Clinton Case

Pope in Cuba

National

Twins

Sports

Closing

Axis

Segment Tree

Shot1 Shot2

Shot3

Segment 1

Sub-segment 1

Sub-segment 2

Sub-segment 3

Sub-segment 4

segment 2

Segment 3

Segment 4

Segment 5

Segment 6

Segment 7

mpeg 7 navigation and access

Navigation &

Creation &

Access

production

Media

Content

Usage

Summary

Content management

Content description

Variation

Structural

Conceptual

aspects

aspects

Basic elements

Schema

Datatype &

Link & media

Basic DSs

tools

structures

localization

MPEG 7: Navigation and Access

Efficient support of:discovery,browsing, navigation, visualization

Substitution of the original content

Adaptation to terminal, network, or

user preferences

mpeg 7 hierarchical summary

Hierarchical

Summary

HighlightLevel

HighlightLevel

Highlight

Highlight

Highlight

Highlight

Highlight

Highlight

Highlight

Segment

Segment

Segment

Segment

Segment

Segment

Segment

A-V

Data

MPEG 7: Hierarchical summary

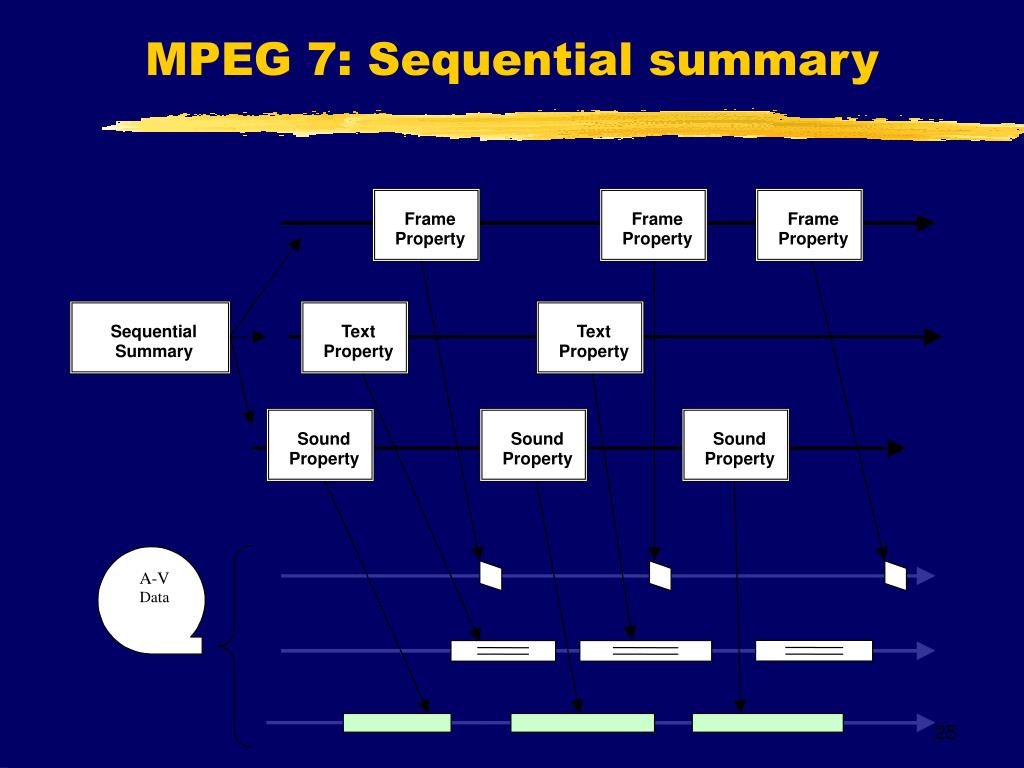

mpeg 7 sequential summary

Frame

Frame

Frame

Property

Property

Property

Sequential

Text

Text

Summary

Property

Property

Sound

Sound

Sound

Property

Property

Property

A-V

Data

MPEG 7: Sequential summary
mpeg 7 variation

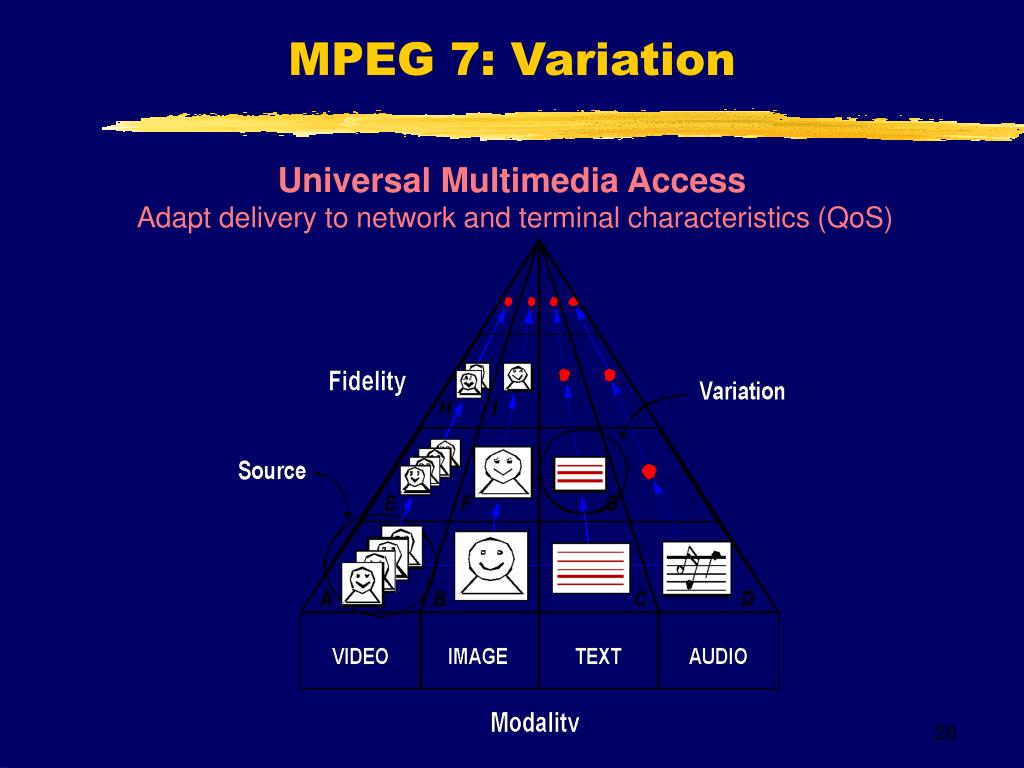

MPEG 7: Variation

Universal Multimedia Access

Adapt delivery to network and terminal characteristics (QoS)

mpeg 7 content organization

Analytic

Model

Content organization

Navigation &

Creation &

Access

production

Media

Content

Usage

Summary

Content management

Content description

Variation

Structural

Conceptual

aspects

aspects

Basic elements

Schema

Datatype &

Link & media

Basic DSs

tools

structures

localization

MPEG-7: Content Organization

Collection &

Classification

Description and organization of

collection of documents

mpeg 7 user interaction

Analytic

Model

Content organization

Navigation &

Creation &

Access

production

Media

Content

Usage

User

preferences

Summary

Content management

Content description

Variation

Structural

Conceptual

aspects

aspects

Basic elements

Schema

Datatype &

Link & media

Basic DSs

tools

structures

localization

MPEG 7: User Interaction

Collection &

Classification

User

Interaction

User identification and preferences:

Filtering, search and browsing

mpeg 7 its relation with other standards
MPEG-7 Its Relation with other standards
  • AHG on “Metadata harmonization”:
    • SMPTE: Metadata dictionary, KLV encoding
    • Dublin Core Metadata Initiative
    • European Broadcast Union
  • AHG on TV AnyTime Application
  • Large number of Liaisons:
    • SMPTE
    • Dublin Core
    • W3C (XML Schema)
    • etc.
mpeg 7 timeline the work plan
MPEG-7: TimeLine - The Work Plan
  • Divergence

Competition:

  • Individual work
  • Definition

scope and r

  • Convergence

1996

1998

1999

2000

2001

Call for proposals

Working draft

Committee draft

International

standard

Final committee

draft

Draft international

standard

conclusions on av content description and mpeg 7
MPEG-7:

AV content description for interoperable application

Description Definition Language:

XML Schema (flexibility) + Binary version (efficiency)

Description Schemes:

Library of description tools

Covers a wide range of generic needs

Conclusions on AV Content Description and MPEG-7
