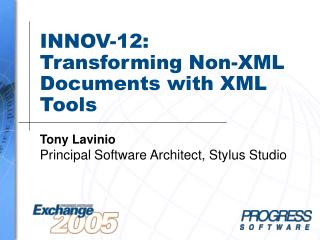

INNOV-12: Transforming Non‑XML Documents with XML Tools

Tony Lavinio

PrincipalSoftware Architect, Stylus Studio

let s use stylus studio
Let’s use Stylus Studio!

It’s what all the cool people are using

  • eWEEK 5th Annual Excellence Awards Finalist
  • Integrated with:
    • Saxon 6.5.3 and 8.4 from Saxonica
    • Xalan-J from the Apache Xerces project
    • MSXML 3 and 4
    • System.XML XSLT from .Net
    • Sleepycat Berkeley DB XML
    • Mark Logic XDMS

INNOV-12 Transforming Non-XML Documents with XML Tools

build on standards
XSLT 1.0 and 2.0

XQuery

XPath 1.0 and 2.0

DTD

W3C XML Schema

SQL/XML

JDBC and ODBC

SOAP, WSDL, UDDI

OASIS Catalogs

Java™

JSP

JAXP (formerly TrAX)

JAXB

HTTP[S]

FTP

[X]HTML

EDIFACT/CEFACT

X12

Build on Standards

Everything-but-the-kitchen sink

INNOV-12 Transforming Non-XML Documents with XML Tools

xml or not xml who cares
XML or Not XML, Who Cares?

Stylus Studio can treat non-XML data as XML

  • XQuery and XSLT only act on XML
    • CSV, EDI, etc. are not XML
    • What can we do?
  • Batch convert? — No!
  • On-the-fly conversions
    • Convert-to-XML feature
    • Native adapters

INNOV-12 Transforming Non-XML Documents with XML Tools

agenda
Agenda
  • Convert-to-XML feature
  • The Architecture
  • XQuery and XSLT on non-XML
  • Deploying
  • Running

INNOV-12 Transforming Non-XML Documents with XML Tools

convert to xml user interface
Convert-to-XML User Interface

Maps flat input data to XML output data

Properties Pane

Schema Pane

XML Output Preview

Input Canvas

INNOV-12 Transforming Non-XML Documents with XML Tools

convert to xml features
Convert-to-XML Features
  • Maps text or binary formats
    • CSV, TSV, EDI — even xBase
  • Gobs of encodings
  • Fixed or variable-length fields
  • Variety of data types supported
  • Regular expression matching
  • Streaming engine supports large input files

INNOV-12 Transforming Non-XML Documents with XML Tools

demonstration of convert to xml ui
Demonstration of Convert-to-XML UI
  • Let’s build a CSV converter!
  • Let’s build an EDI converter!

(Sample of X12 EDI data)

<Demonstration/>

INNOV-12 Transforming Non-XML Documents with XML Tools

agenda9
Agenda
  • Convert-to-XML feature
  • The Architecture
  • XQuery and XSLT on non-XML
  • Deploying
  • Running

INNOV-12 Transforming Non-XML Documents with XML Tools

extensible file system support
Extensible File System Support

Lets us treat any type of resource as a URI

  • Traditional file systems
    • file:, ftp: and http[s]: (WebDAV) schemes
  • Web Service Call Composer
    • wscc: scheme
  • SQL/XML for Relational Databases
    • db: scheme
  • Sleepycat Berkeley DB XML
    • dbxml: scheme

INNOV-12 Transforming Non-XML Documents with XML Tools

the adapter url syntax
The Adapter URL Syntax

Two forms:

  • Convert-to-XML:

adapter:map.conv?url

  • Native XML Adapters:

adapter:name:[option=value:…]?url

INNOV-12 Transforming Non-XML Documents with XML Tools

implementation
Implementation

What’s under the hood

  • Convert-to-XML has two parts
    • User interface
    • Runtime engine
  • The runtime engine is just one of many native converters that can be plugged into the Adapter File System.
  • Designed as a streaming engine for low footprint

INNOV-12 Transforming Non-XML Documents with XML Tools

adapter file system
Adapter File System

Stylus Studio

file:

http: and https: (WebDAV)

*.d

db:

*.txt*.csv*.html*.xslt*.???

custom file system driver

java:

user:

adapter:

CtoXML

CSV

dBase

.d

It plugs in – and supports its own plug-ins

INNOV-12 Transforming Non-XML Documents with XML Tools

agenda14
Agenda
  • Convert-to-XML feature
  • The Architecture
  • XQuery and XSLT on non-XML
  • Deploying
  • Running

INNOV-12 Transforming Non-XML Documents with XML Tools

a simple confluence of ideas
A Simple Confluence of Ideas

1 + 1 + 1 > 3

+ If we combine the idea that adapters convert non-XML to XML,

+ With the idea that adapters can be addressed with URLs,

+ With the idea that XQuery and XSLT work on URL-addressable XML,

= We have an integration tool

INNOV-12 Transforming Non-XML Documents with XML Tools

design xslt or xquery
Design XSLT or XQuery

Take the non-XML and manipulate it as XML

  • Build an XSLT transformation
  • Input is EDI
  • Desired output is CSV

<Demonstration/>

INNOV-12 Transforming Non-XML Documents with XML Tools

agenda17
Agenda
  • Convert-to-XML feature
  • The Architecture
  • XQuery and XSLT on non-XML
  • Deploying
  • Running

INNOV-12 Transforming Non-XML Documents with XML Tools

assembling the building blocks
Assembling the Building Blocks

Here’s what we’ve done:

  • Used the Convert-to-XML map we built earlier for input
  • Used a CSV file via adapter as the target
  • Built XSLT from and to representative non-XML documents

And here’s what we’re about to do:

  • Build a Java program to call XSLT
  • Call the Java program from the 4GL

INNOV-12 Transforming Non-XML Documents with XML Tools

the runtime
The Runtime
  • We use Saxon 6.5.3 or 8.4, or Xalan-J as the XSLT engine, or Saxon 8.4 as the XQuery engine
  • The Stylus Studio runtime adds the missing pieces, such as our URL resolver and adapter libraries
  • We’ll even generate the code for you

INNOV-12 Transforming Non-XML Documents with XML Tools

calling our transform
Calling Our Transform

This is just plain standard JAXP code

// This is the “before” version…

String xslURL = "file:///c:/temp/EXCHANGE.xsl";

String xmlURL = "file:///c:/temp/EXCHANGE.xml";

Source xsl = new StreamSource(new URL(xslURL).openStream(), xslURL);

Source xml = new StreamSource(new URL(xmlURL).openStream(), xmlURL);

Result out = new StreamResult(System.out);

TransformerFactory factory = TransformerFactory.newInstance();

Transformer t = factory.newTransformer(xsl);

t.transform(xml, out);

INNOV-12 Transforming Non-XML Documents with XML Tools

same but with stylus url resolver
Same, But with Stylus URL Resolver

Add two property settings, and use the new factory

System.setProperty(STYLUS_ROOTDIR, ".");

System.setProperty(STYLUS_APPDATA, ".");

String xslURL = "file:///c:/temp/EXCHANGE.xsl";

String xmlURL = "adapter:EXCHANGE.conv?file:///c:/temp/EXCHANGE.edi";

Source xsl = StylusFileFactory.getFactory().resolve(xslURL, null);

Source xml = StylusFileFactory.getFactory().resolve(xmlURL, null);

Result out = new StreamResult(System.out);

TransformerFactory factory = TransformerFactory.newInstance();

Transformer t = factory.newTransformer(xsl);

t.transform(xml, out);

INNOV-12 Transforming Non-XML Documents with XML Tools

uri resolvers are for writing too
URI Resolvers are for Writing Too

Non-XML to XML

XML to Non-XML

Both Ways

Since adapters can go either way or go both ways, so can the URI resolver.

INNOV-12 Transforming Non-XML Documents with XML Tools

agenda23
Agenda
  • Convert-to-XML feature
  • The Architecture
  • XQuery and XSLT on non-XML
  • Deploying
  • Running

INNOV-12 Transforming Non-XML Documents with XML Tools

finishing up
Finishing up…
  • Compile the .java
  • Move things into the proper locations
  • Set up the 4GL
  • Go for it!

INNOV-12 Transforming Non-XML Documents with XML Tools

slide25

Let’s See It All Work Together

EDI  XML  XSLT  CSV  4GL

=

+

<Demonstration/>

INNOV-12 Transforming Non-XML Documents with XML Tools

resources
Resources
  • Stylus Studio Web Sitehttp://www.stylusstudio.com
  • Stylus Scoop Newsletterhttp://www.stylusstudio.com/scoop
  • The W3C XSLT and XPath Standardshttp://www.w3.org/Style/XSL/
  • The W3C XQuery Standardhttp://www.w3.org/XML/Query#specs

INNOV-12 Transforming Non-XML Documents with XML Tools

in summary
In Summary
  • Stylus Studio lets you treat non-XML data sources as XML
  • Nothing beats XSLT/XQuery for transforming XML
  • The XSLT/XQuery Mappers make standards-based integration simpler

INNOV-12 Transforming Non-XML Documents with XML Tools

questions
Questions?

INNOV-12 Transforming Non-XML Documents with XML Tools

thank you for your time
Thank you for your time!

INNOV-12 Transforming Non-XML Documents with XML Tools
