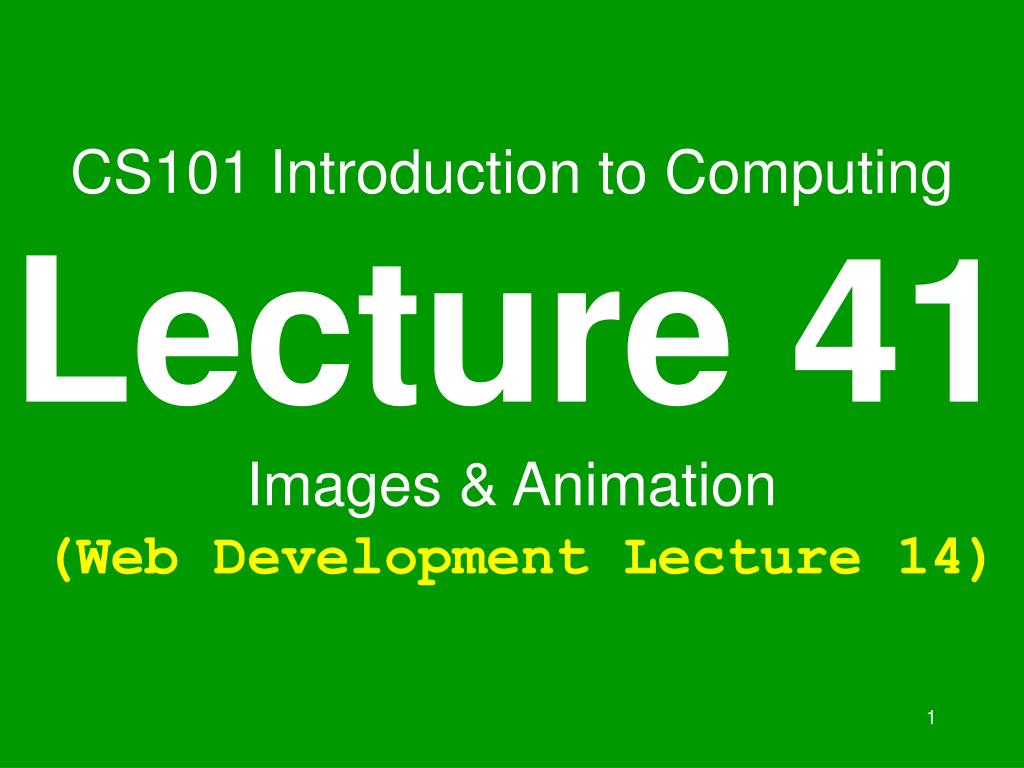

CS101 Introduction to ComputingLecture 41Images & Animation(Web Development Lecture 14)

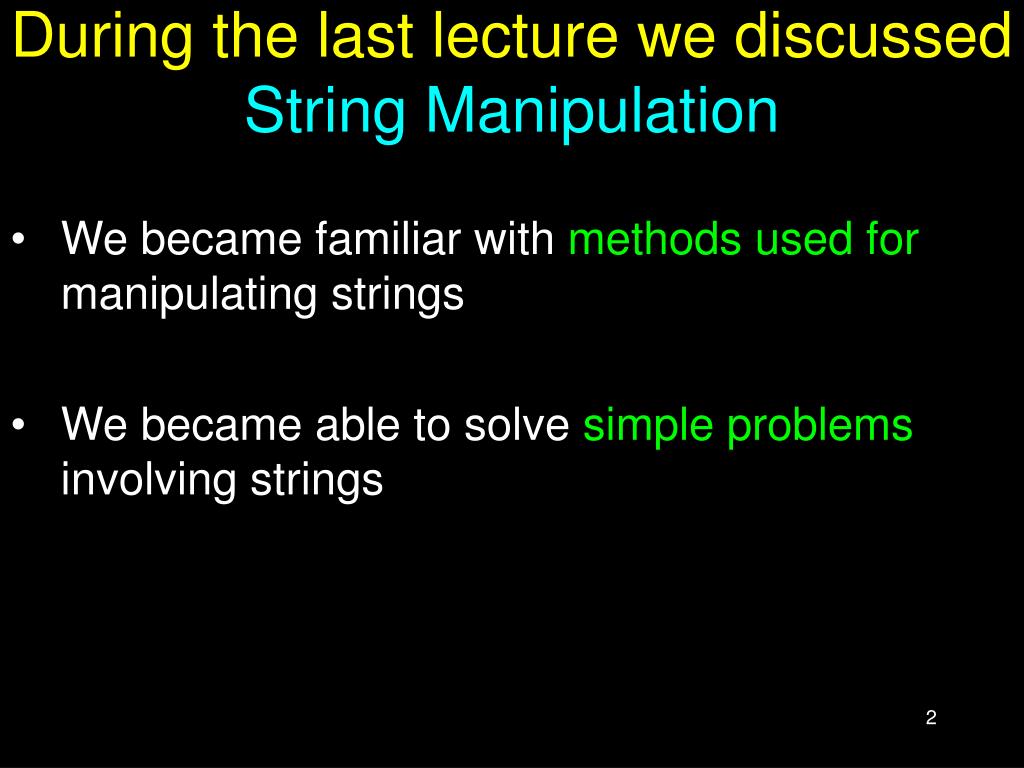

During the last lecture we discussed String Manipulation
• We became familiar with methods used for manipulating strings
• We became able to solve simple problems involving strings
String Manipulation in JavaScript
• In addition to the concatenation operator (+) JavaScript supports several advanced string operations as well
• Notationaly, these functions are accessed by referring to various methods of the String object
• Moreover, this object also contains the ‘length’ property
String Methods

FORMAT

string.methodName( )

EXAMPLE:

name = “Bhola” ;

document.write( name.toUpperCase( ) ) ;

document.write( name.bold( ) ) ;

BHOLABhola

Two Types of String Methods
• HTML Shortcuts
• All Others
String Methods: HTML Shortcuts

big( )

small( )

fontsize( n )

bold( )

italics( )

strike( )

sub( )

sup( )

fixed( )

fontcolor( color )

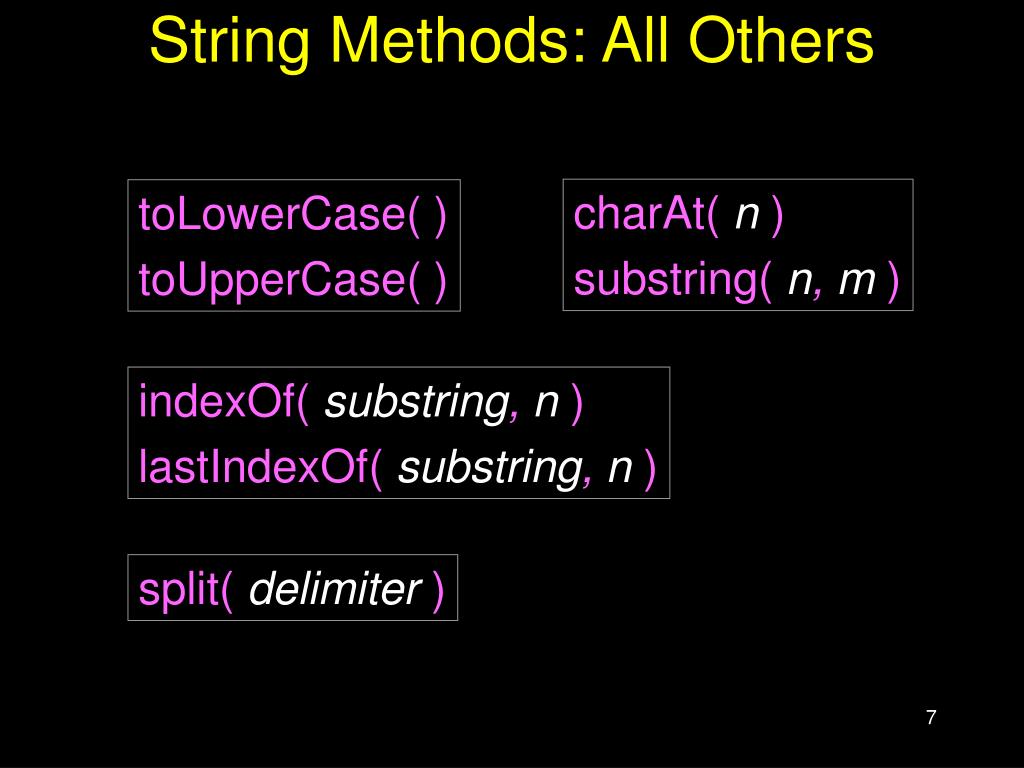

String Methods: All Others

charAt( n )

substring( n, m )

toLowerCase( )

toUpperCase( )

split( delimiter )

indexOf( substring, n )

lastIndexOf( substring, n )

Automatic Conversion to Strings
• Whenever a non-string is used where JavaScript is expecting a string, it converts that non-string into a string
• Example:
• The document.write( ) method expects a string (or several strings, separated by commas) as its argument
• When a number or a Boolean is passed as an argument to this method, JavaScript automatically converts it into a string before writing it onto the document
The ‘+’ Operator
• When ‘+’ is used with numeric operands, it adds them
• When it is used with string operands, it concatenates them
• When one operand is a string, and the other is not, the non-string will first be converted to a string and then the two strings will be concatenated

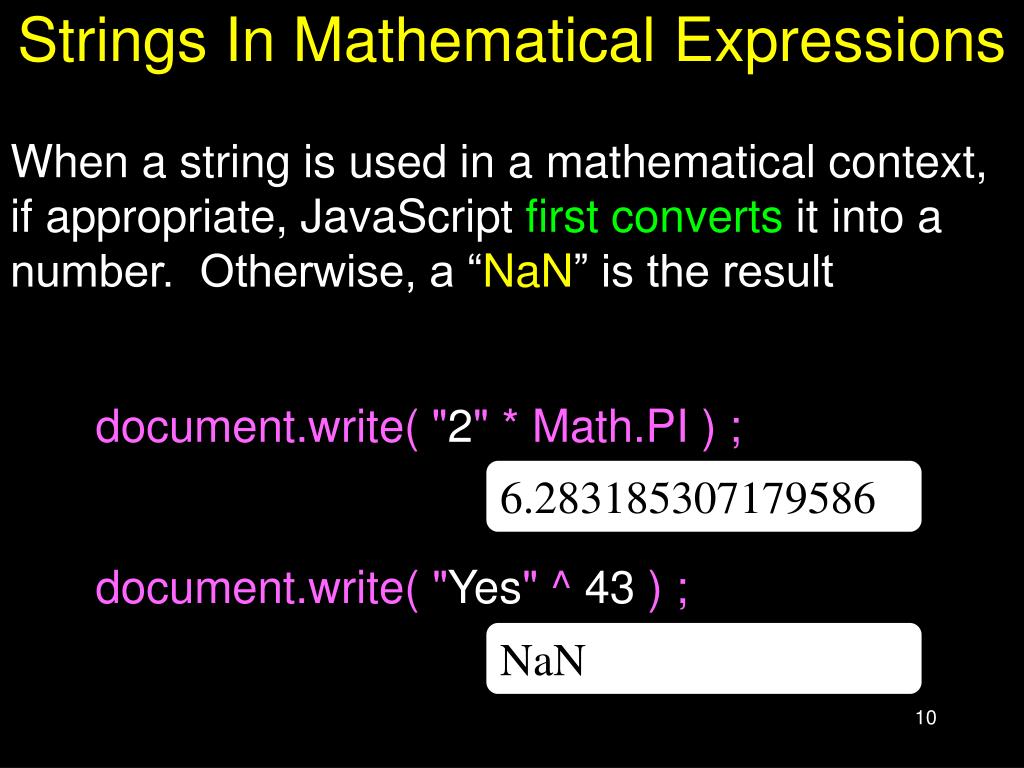

Strings In Mathematical Expressions

When a string is used in a mathematical context, if appropriate, JavaScript first converts it into a number. Otherwise, a “NaN” is the result

document.write("2"* Math.PI ) ;

document.write( "Yes" ^ 43 ) ;

6.283185307179586

NaN

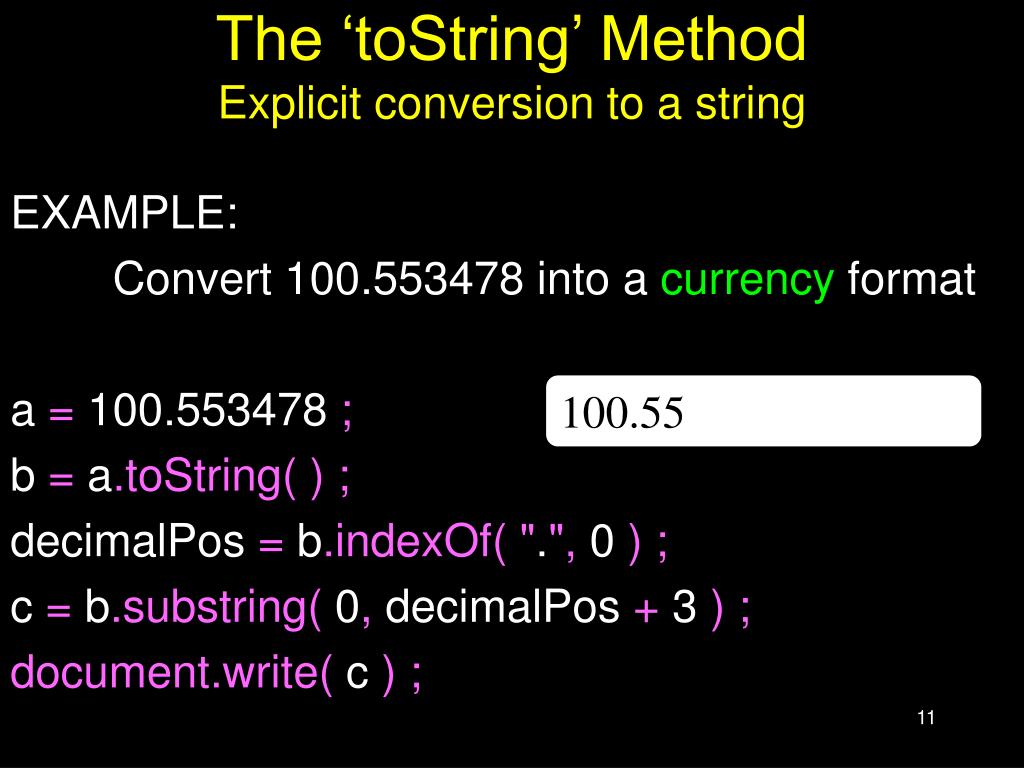

The ‘toString’ MethodExplicit conversion to a string

EXAMPLE:

Convert 100.553478 into a currency format

a = 100.553478 ;

b = a.toString( ) ;

decimalPos = b.indexOf(".", 0 ) ;

c = b.substring( 0, decimalPos + 3 ) ;

document.write( c ) ;

100.55

Today’s Goal(Images & Animation)
• To become able to add and manipulate images and simple animations to a Web page
Images in HTML
• It is quite straight forward to include gif and jpg images in an html Web page using the <IMG> tag
• Format: <IMGsrc=URL, alt=text

height=pixelswidth=pixels

align="bottom|middle|top">

• Plea: Don’t use images just for the sake of it!

<TITLE>Image Demo</TITLE>

<H1>Image Demo</H1>

Here is an image <IMGsrc="die5.gif">

<IMG src="die5.gif" height="63" width="126"> <P>

Here is another <IMG align="middle"src= "http://www.vu.edu.pk/images/logo/logotop.jpg">

</BODY></HTML>

Images in JavaScript
• Images in JavaScript can be manipulated in many ways using the built-in object Image
• Properties: name, border, complete, height, width, hspace, vspace, lowsrc, src
• Methods: None
• Event handlers:onAbort, onError, onLoad, etc.
• The primary use for an Image object is to download an image into the cache before it is actually needed for display
• This technique can be used to create smooth animations or to display one of several images based on the requirement
• An instance of the Image object is created using the new keyword
• The src property of this instance is set equal to the filename of the image to be pre-loaded
• That step starts the down-loading of the image into the cache without actually displaying it
• When a pre-loaded image is required to be displayed, the src property of the displayed image is set to the src property of the pre-fetched image







<HTML>

<TITLE>Roll the Die</TITLE>

<SCRIPT>

JavaScript Code

</SCRIPT>

<BODY >

HTML Code

</BODY>

</HTML>

<IMG name="die"src="die6.gif">

<FORM>

<INPUT type="button" value="Roll the Die"

onClick="rollDie( )">

</FORM>

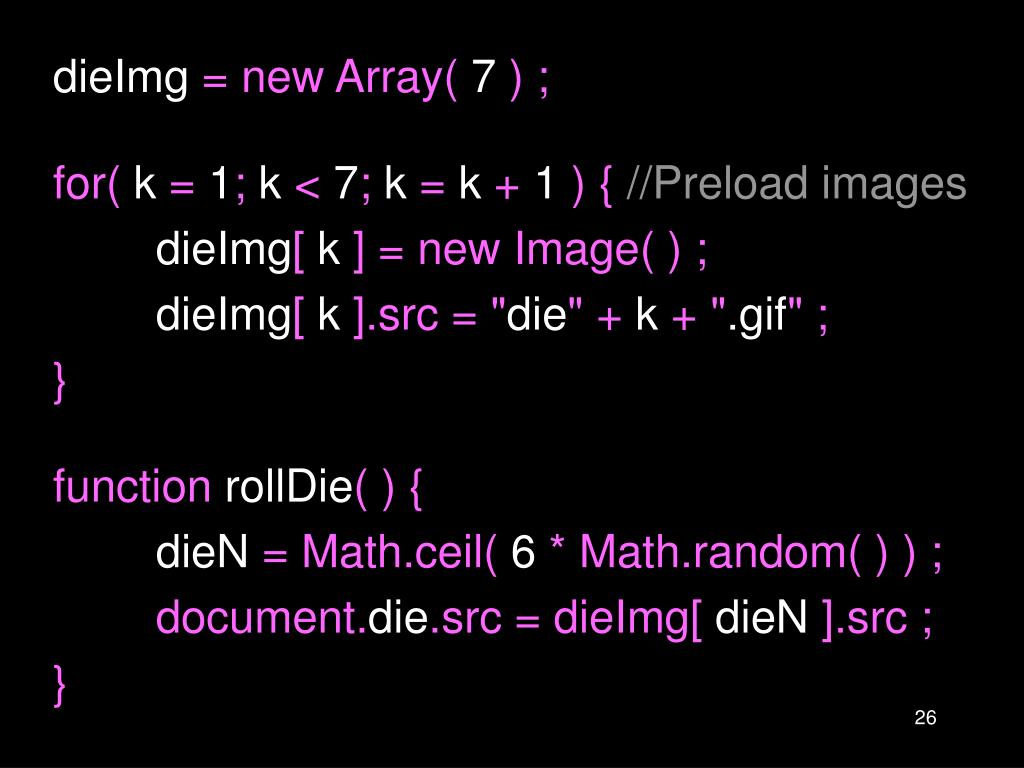

dieImg = new Array( 7 ) ;

for( k = 1; k < 7; k = k + 1 ) { //Preload images

dieImg[ k ] = new Image( ) ;

dieImg[ k ].src = "die" + k + ".gif" ;

}

function rollDie( ) {

dieN = Math.ceil( 6 * Math.random( ) ) ;

document.die.src = dieImg[ dieN ].src ;

}

Another Example
• Develop a Web page that displays six thumbnail images and a main image
• The main image should change to a larger version of the thumbnail as soon as the mouse moves over on a thumbnail image

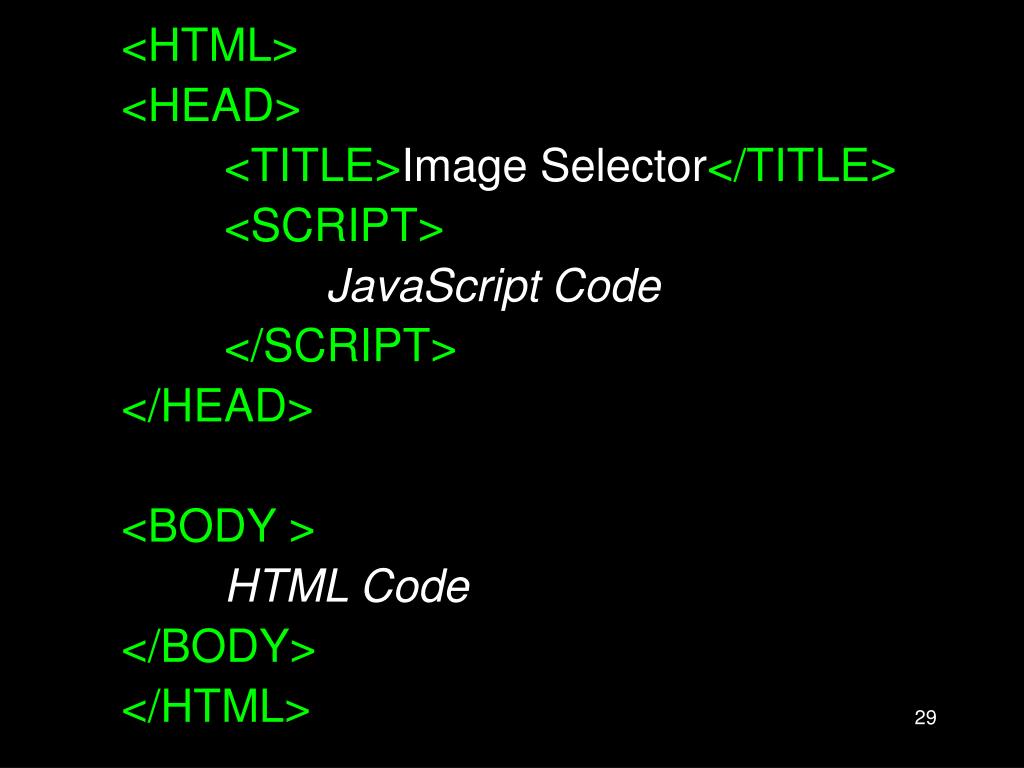

<HTML>

<TITLE>Image Selector</TITLE>

<SCRIPT>

JavaScript Code

</SCRIPT>

<BODY >

HTML Code

</BODY>

</HTML>

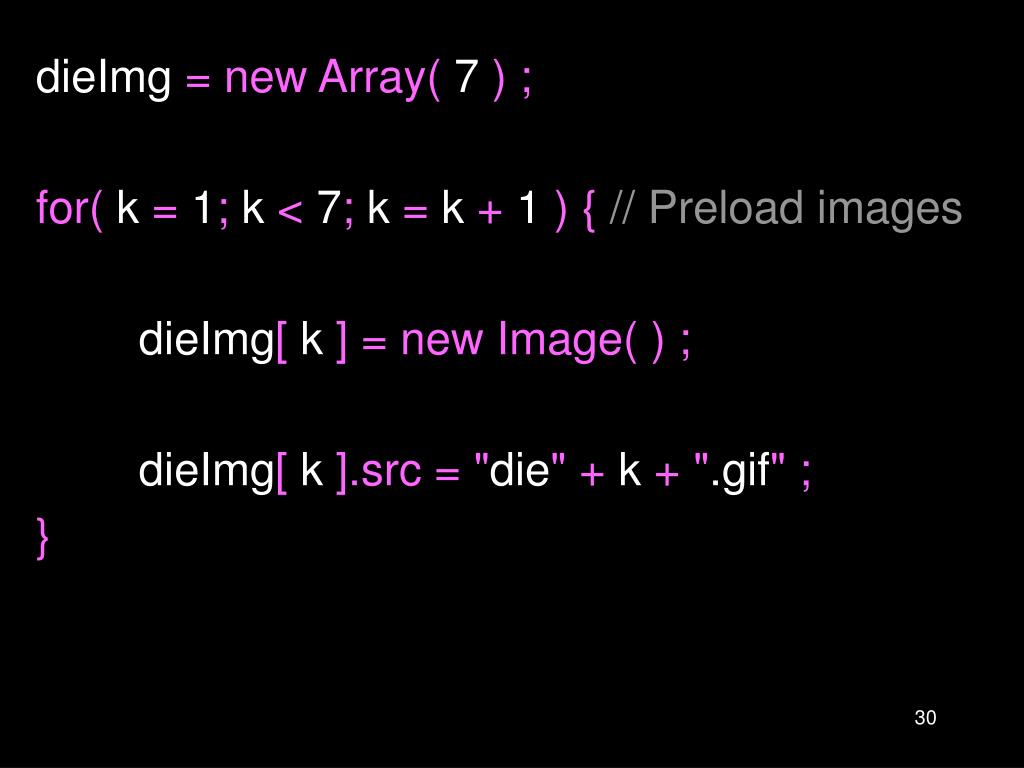

dieImg = new Array( 7 ) ;

for( k = 1; k < 7; k = k + 1 ) { // Preload images

dieImg[ k ] = new Image( ) ;

dieImg[ k ].src = "die" + k + ".gif" ;

}

<IMGname="big" src="die6.gif"width="252" height="252"><P>

<IMGsrc="die1.gif" width="63" height="63"

onMouseOver=

"document.big.src=dieImg[ 1 ].src">

<IMGsrc="die6.gif" width="63" height="63"

onMouseOver=

"document.big.src=dieImg[ 6 ].src">

Where Else Can We Use This?
• Automobile Web site
• ???
Animation Example 1
• Take 16 images and cycle through them to create an animation effect

2

4

1

3

6

8

5

7

10

12

9

11

14

16

13

15

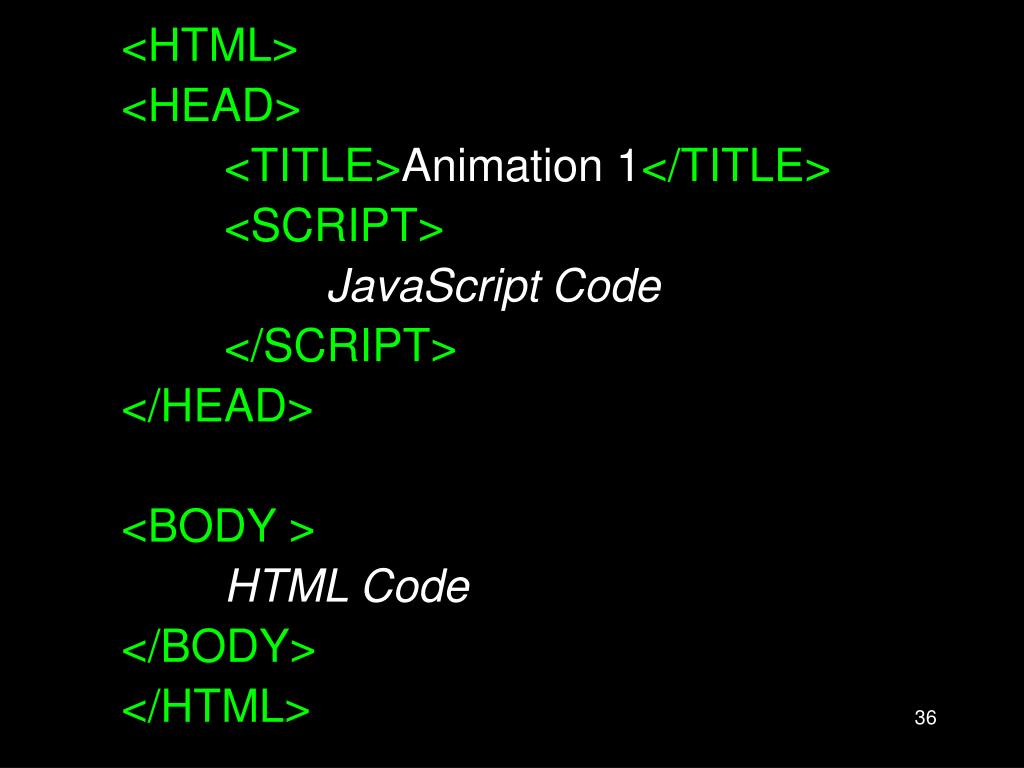

<HTML>

<TITLE>Animation 1</TITLE>

<SCRIPT>

JavaScript Code

</SCRIPT>

<BODY >

HTML Code

</BODY>

</HTML>

setTimeout( ) executes circulate( ) once after a delay of gap milliseconds

<CENTER>

</CENTER>

gap = 100 ;

imageN = 1 ;

circImg = new Array( 17 ) ;

for( k = 1; k < 17; k = k + 1 ) { // Preload images

circImg[ k ] = new Image( ) ;

circImg[ k ].src = "circle" + k + ".gif" ;

}

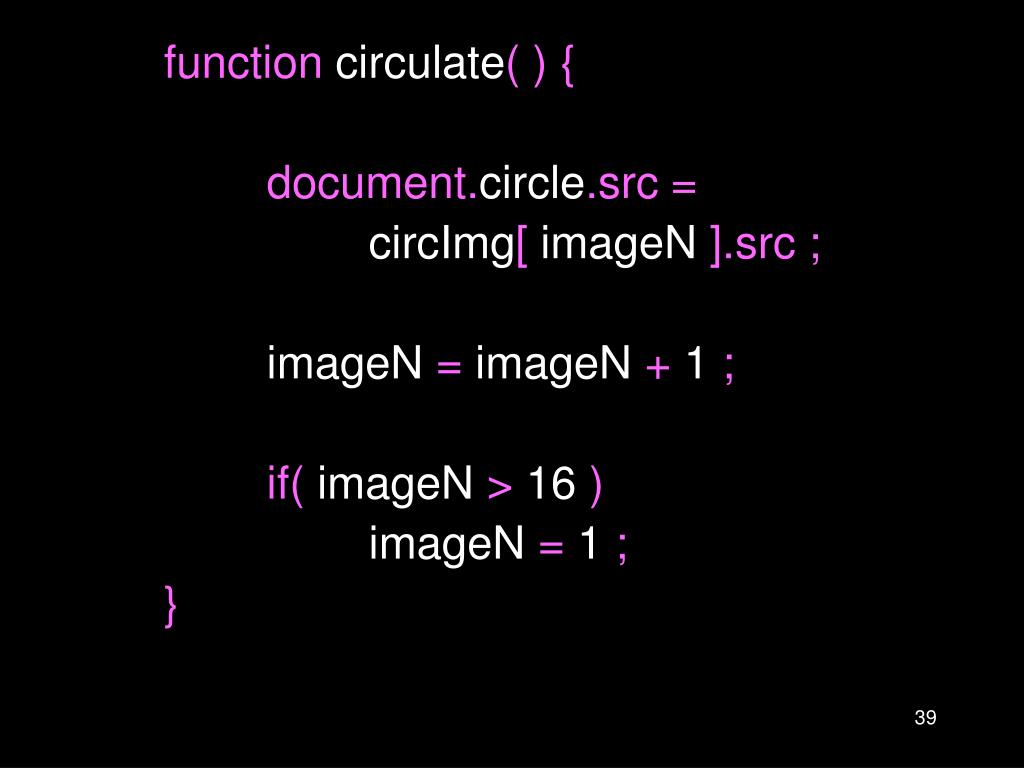

function circulate( ) {

document.circle.src =

circImg[ imageN ].src ;

imageN = imageN + 1 ;

if( imageN > 16 )

imageN = 1 ;

}

Animated Gifs
• We could have saved the 16 gif images of the previous example in a single file in the form of an animated gif, and then used it in a regular <IMG> tag to display a moving image
• However, JavaScript provides better control over the sequencing and the gap between the individual images
Animation Example 2
• Take 16 images and cycle through them to create an animation effect
• Provide buttons to slow down or speed up the animation
<HTML>

<TITLE>Animation 2</TITLE>

<SCRIPT>

JavaScript Code

</SCRIPT>

<BODY >

HTML Code

</BODY>

</HTML>

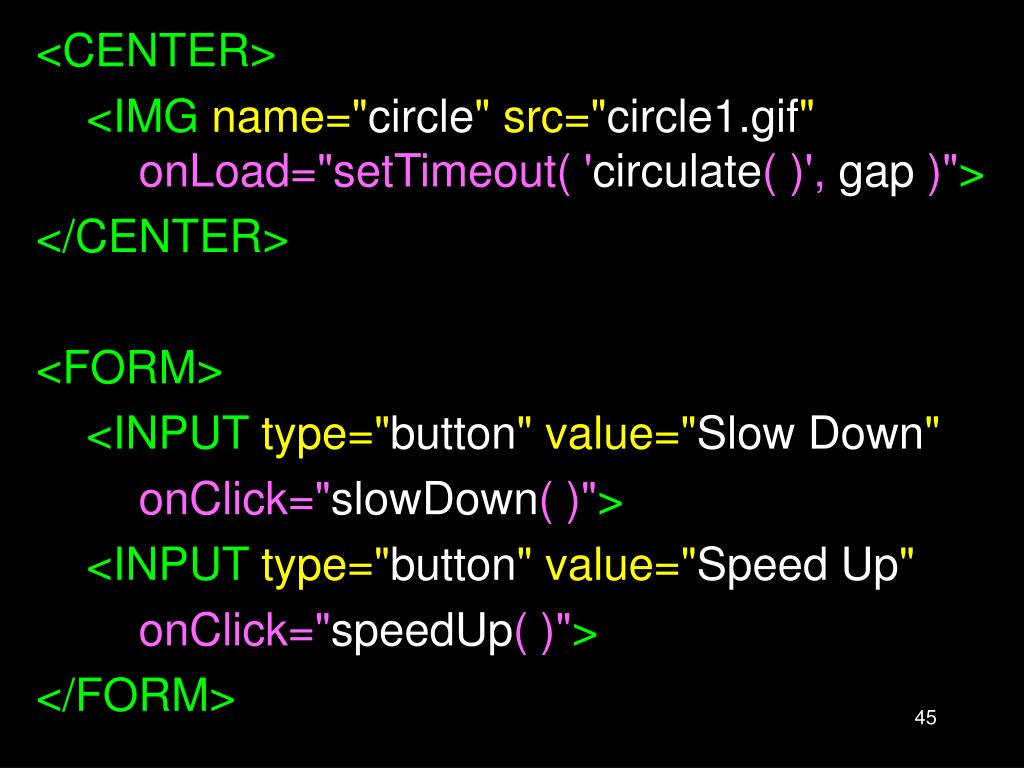

<CENTER>

</CENTER>

<FORM>

<INPUT type="button" value="Slow Down"

onClick="slowDown( )">

<INPUT type="button" value="Speed Up"

onClick="speedUp( )">

</FORM>

No change

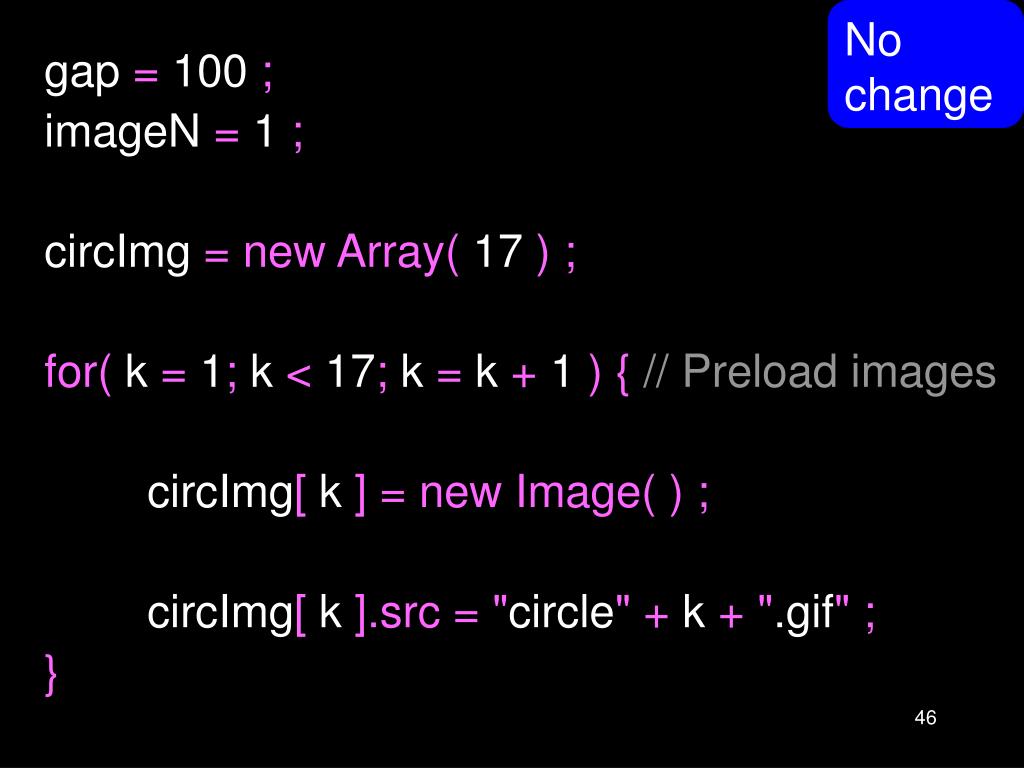

gap = 100 ;

imageN = 1 ;

circImg = new Array( 17 ) ;

for( k = 1; k < 17; k = k + 1 ) { // Preload images

circImg[ k ] = new Image( ) ;

circImg[ k ].src = "circle" + k + ".gif" ;

}

No change

function circulate( ) {

document.circle.src =

circImg[ imageN ].src ;

imageN = imageN + 1 ;

if( imageN > 16 )

imageN = 1 ;

}

Two new functions

function slowDown( ) {

gap = gap + 20 ;

if( gap > 4000 )

gap = 4000 ;

}

function speedUp( ) {

gap = gap - 20 ;

if( gap < 0 )

gap = 0 ;

}

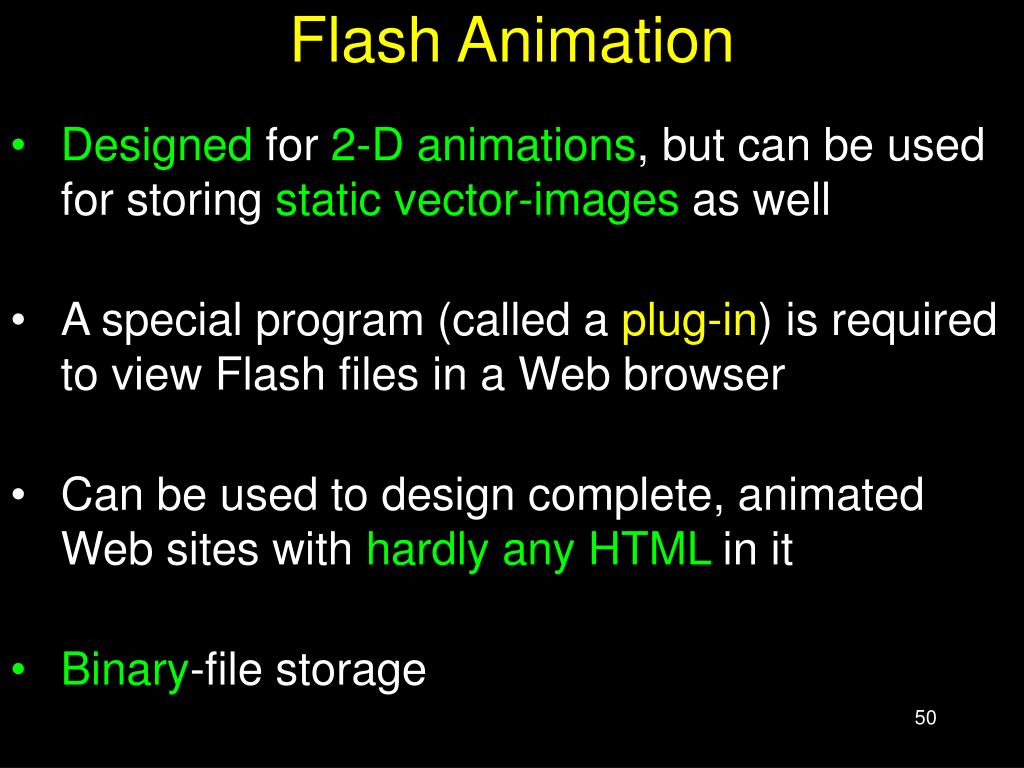

Flash Animation
• Designed for 2-D animations, but can be used for storing static vector-images as well
• A special program (called a plug-in) is required to view Flash files in a Web browser
• Can be used to design complete, animated Web sites with hardly any HTML in it
• Binary-file storage
Structured Vector Graphics
• New format; may become more popular than Flash
• Plug-in required
• Text-file storage; search engine friendly
During Today’s Lecture …
• We became able to add and manipulate images and simple animations to a Web page
Our 15th & Final Web Dev Lecture:(Programming Methodology)
• To understand effective programming practices that result in the development of correct programs with minimum effort
• To become familiar with simple debugging techniques
