Presentation Transcript

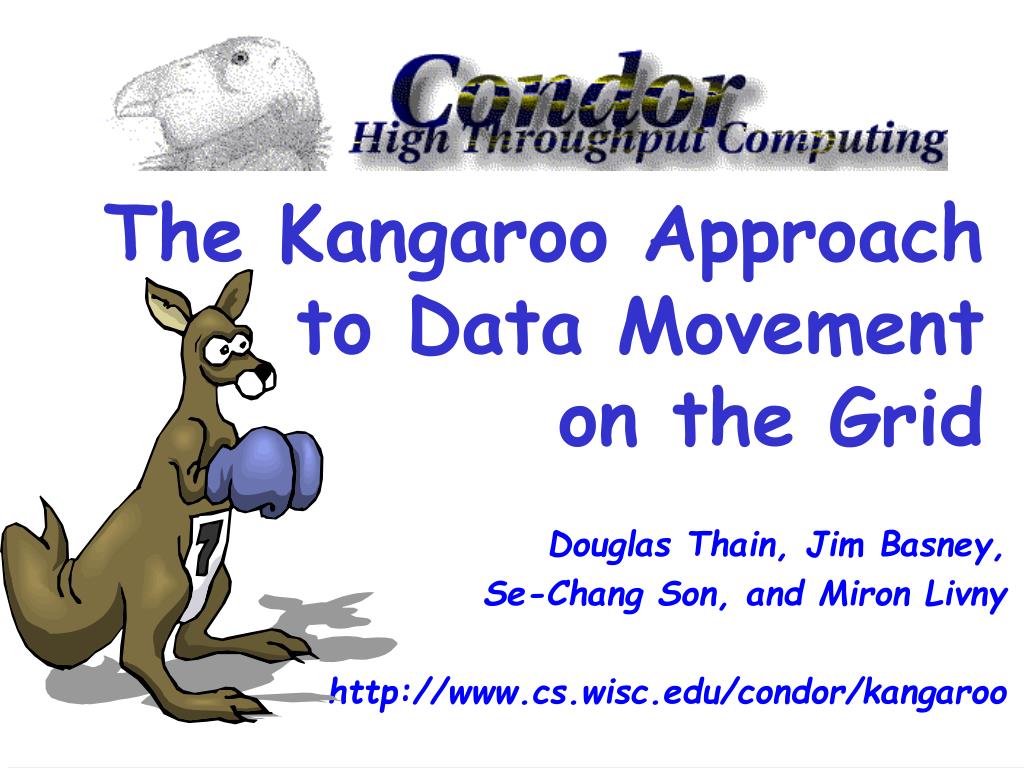

the kangaroo approach to data movement on the grid

The Kangaroo Approach to Data Movementon the Grid

Douglas Thain, Jim Basney,

Se-Chang Son, and Miron Livny

http://www.cs.wisc.edu/condor/kangaroo

half interactive jobs on the grid
“Half-Interactive” Jobson the Grid
  • The “Grid” is a vision of an international, highly available, robust, shared computation service.
  • Grid applications generally…
    • ..are half-interactive.
    • ..are brittle wrt errors.
    • ..have weak consistency requirements.
  • Can we perform on-line data access without subjecting apps to unexpected errors?

App

Unreliable

Network

slide3

The Kangaroo Approach

To Data Movement

  • Make a third party responsible for executing each application’s I/O operations.
  • Use all available resources to hide latencies.
  • Never return an error to the application.
    • (Maybe tell the user or scheduler.)
  • Benefits: Fault tolerance, higher throughput.
  • Cost: Weaker consistency.
the vision a data grid

App

File

System

File

System

File

System

File

System

The Vision: A Data Grid

K

K

K

Data Movement

System

K

K

K

K

Disk

kangaroo prototype
Kangaroo Prototype

An application may contact any node in the system and perform partial-file reads and writes.

The node may then execute or buffer operations as conditions warrant.

K

K

K

App

Buffer

Buffer

Disk

user interface
User Interface
  • An interposition agent converts POSIX operations into the Kangaroo protocol.

% vi /kangaroo/coral.cs.wisc.edu/etc/hosts

% gcc -c /gsiftp/ftp.cs.wisc.edu/test.c -o

/kangaroo/coral/tmp/test.o

K

Agent

App

read, write

get, put

Kangaroo

POSIX

macrobenchmark image processing
Macrobenchmark:Image Processing
  • Post-processing of satellite image data: Need to compute various enhancements and produce output for each.
    • Read input image
    • For I=1 to N
      • Compute transformation of image
      • Write output image
  • Example:
    • Image size about 5 MB
    • Compute time about 6 sec
    • IO-cpu ratio about 0.9 MB/s
i o models compared
I/O Models Compared

CPU Released

Task Done

Offline I/O:

INPUT

CPU

CPU

CPU

CPU

OUTPUT

OUTPUT

OUTPUT

OUTPUT

CPU Released

Online I/O:

INPUT

CPU

OUTPUT

CPU

OUTPUT

CPU

OUTPUT

CPU

OUTPUT

CPU Released

Task Done

Task Done

Kangaroo:

INPUT

CPU

CPU

CPU

CPU

PUSH

OUTPUT

OUTPUT

OUTPUT

OUTPUT
