Presentation Transcript

Storage media l.jpg
Storage Media

  • Data an programs must be stored on nonvolatile medium

    • Data is retained even when not powered

    • Programs are copied from storage media into the computer’s memory

  • Storage devices differ in technology used to maintain data and physical structure

  • Early PCs had a single floppy drive

  • Storage media versus storage device


Important characteristics of storage devices media l.jpg
Important Characteristics of Storage Devices/Media

  • Mode of access

    • Sequential

    • Direct

  • Representation of bits

    • Magnetic ( iron oxide dots magnetized two ways)

    • Optical (surface reflects light in two ways

    • IBM’s Millepede technology (pits are burned in plastic to represent a 1, no pit a zero; heat the plastic and you erase the pit)

    • Electronic (current flowing/current not flowing)


Modes of access l.jpg
Modes of Access

Figure 4.6: Sequential and direct access

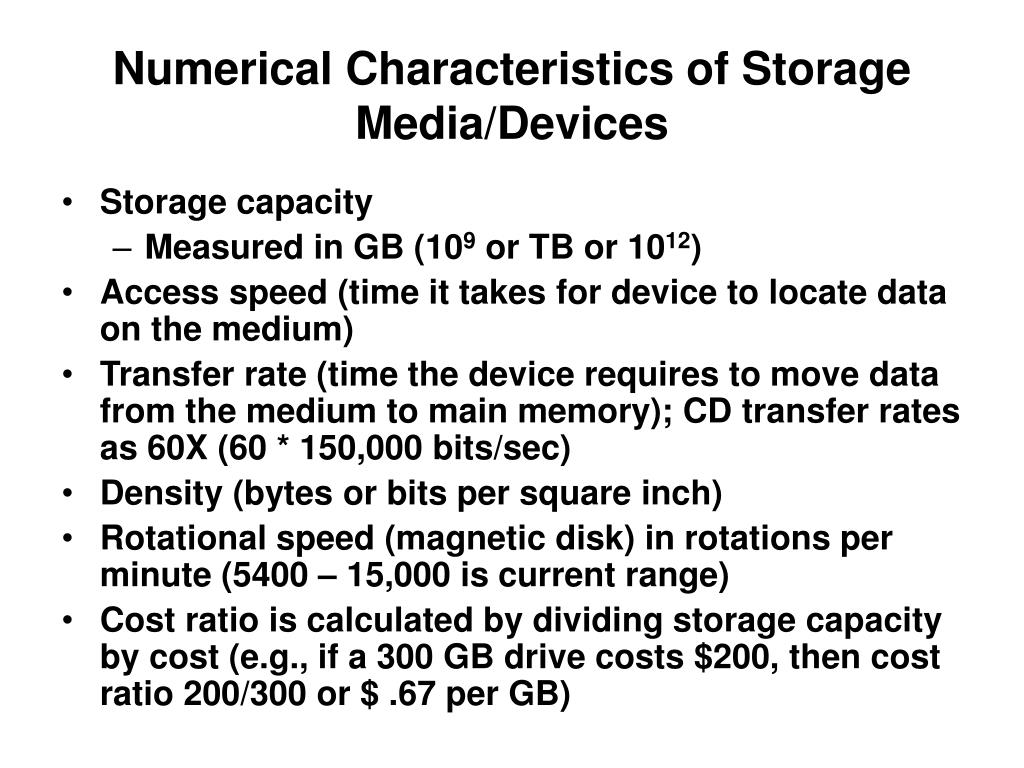

Numerical characteristics of storage media devices l.jpg
Numerical Characteristics of Storage Media/Devices

  • Storage capacity

    • Measured in GB (109 or TB or 1012)

  • Access speed (time it takes for device to locate data on the medium)

  • Transfer rate (time the device requires to move data from the medium to main memory); CD transfer rates as 60X (60 * 150,000 bits/sec)

  • Density (bytes or bits per square inch)

  • Rotational speed (magnetic disk) in rotations per minute (5400 – 15,000 is current range)

  • Cost ratio is calculated by dividing storage capacity by cost (e.g., if a 300 GB drive costs $200, then cost ratio 200/300 or $ .67 per GB)


Types of media devices l.jpg
Types of Media & Devices

  • Magnetic tape

  • Magnetic disk

  • Optical tape

  • Optical disk

    • CD-ROM, CD-R, and CD-RW

    • DVD-R and DVD-RW

  • Flash memory

    • Cards

    • Thumb drives or USB flash drive


Magnetic tapes l.jpg
Magnetic Tapes

  • Magnetic tapes: similar to tape recorders and VCRs

    • Provide lowest cost (bytes per dollar)

    • Can backup all data

    • Takes long time to copy from tape

    • Unreliable after a long period of time

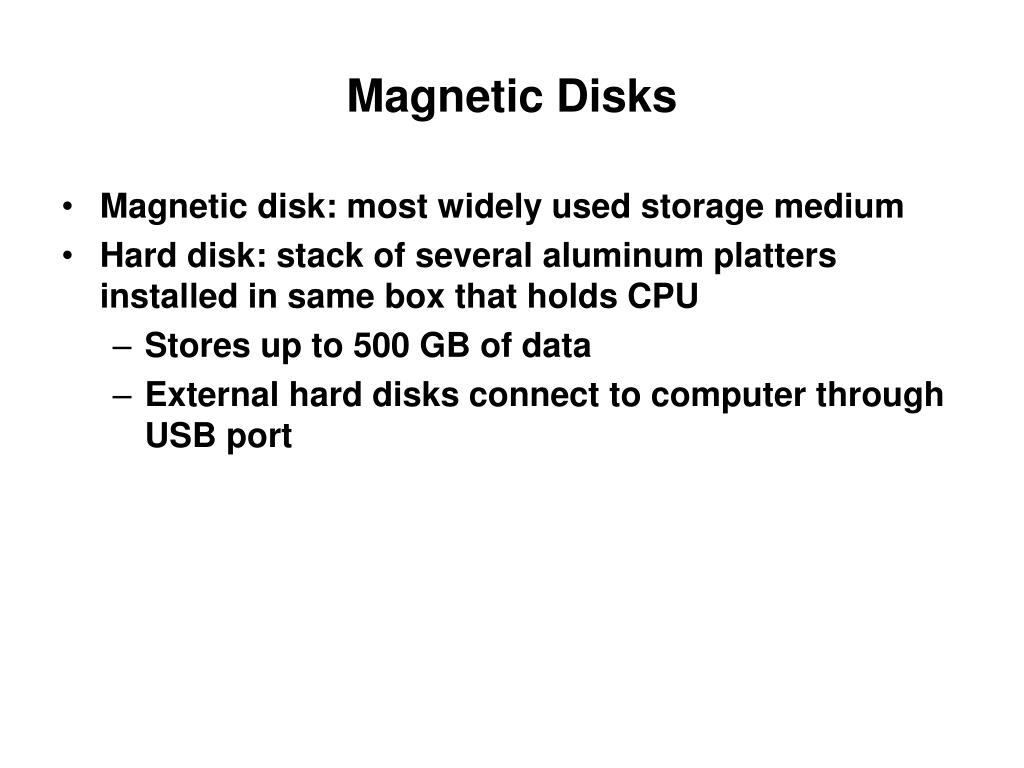

Magnetic disks l.jpg
Magnetic Disks

  • Magnetic disk: most widely used storage medium

  • Hard disk: stack of several aluminum platters installed in same box that holds CPU

    • Stores up to 500 GB of data

    • External hard disks connect to computer through USB port


Optical discs l.jpg
Optical Discs

  • Optical disc: recorded by treating disc surface to reflect light in different ways

  • Compact discs: available as read-only, recordable, and rewritable

  • DVDs: store 4.7 GB per side

  • Optical discs are slower than hard disks

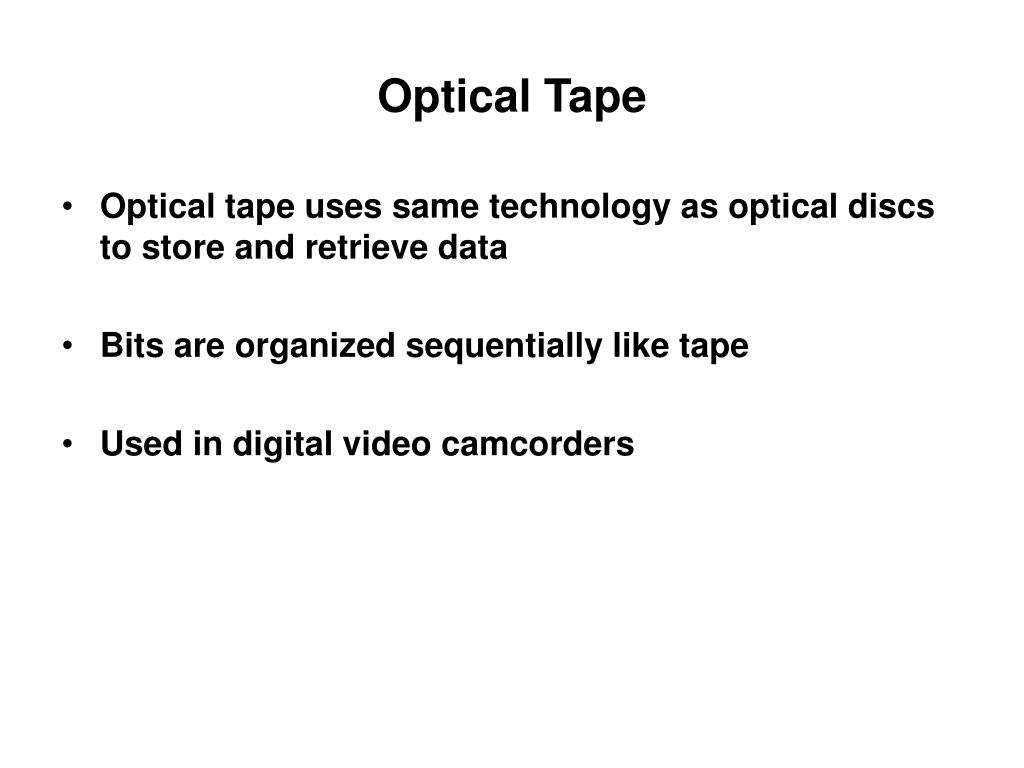

Optical tape l.jpg
Optical Tape

  • Optical tape uses same technology as optical discs to store and retrieve data

  • Bits are organized sequentially like tape

  • Used in digital video camcorders


Flash memory l.jpg
Flash Memory

  • Flash memory: memory chip that can be rewritten and holds content without power

  • Available as memory card and USB drive

  • Solid state disk: storage media that does not have latency time


Business considerations in evaluating storage media l.jpg
Business Considerations in Evaluating Storage Media

  • When purchasing storage devices managers must consider:

    • How the data is used

    • Capacity of the device

    • Speed and cost

    • Reliability and portability


Business considerations in evaluating storage media13 l.jpg
Business Considerations In Evaluating Storage Media

Figure 4.7: Characteristics of storage media for business purposes
