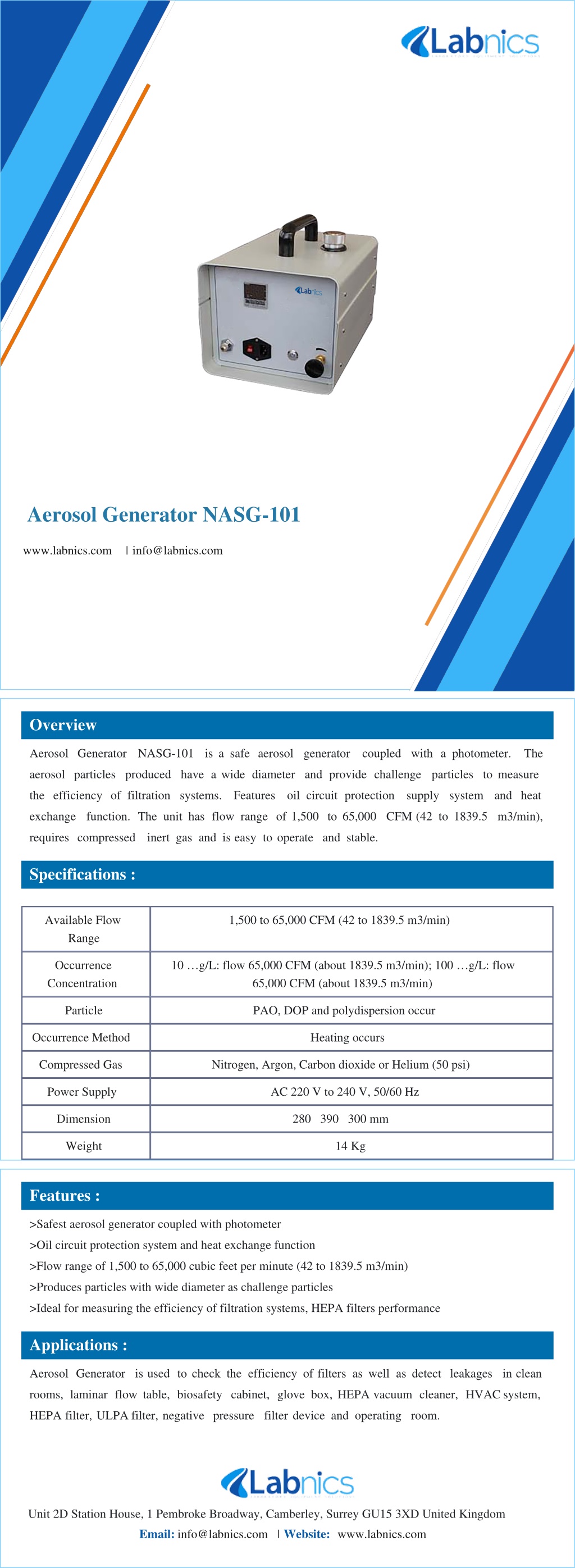

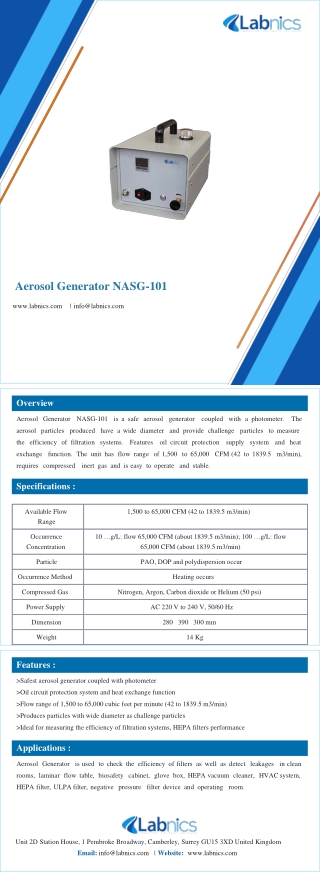

1. Aerosol Generator NASG-101 www.labnics.com | info@labnics.com Overview Aerosol Generator NASG-101 is a safe aerosol generator coupled with a photometer. The aerosol particles produced have a wide diameter and provide challenge particles to measure the efficiency of filtration systems. Features oil circuit protection supply system and heat exchange function. The unit has flow range of 1,500 to 65,000 CFM (42 to 1839.5 m3/min), requires compressed inert gas and is easy to operate and stable. Specifications : Available Flow Range 1,500 to 65,000 CFM (42 to 1839.5 m3/min) Occurrence Concentration 10 …g/L: flow 65,000 CFM (about 1839.5 m3/min); 100 …g/L: flow 65,000 CFM (about 1839.5 m3/min) Particle PAO, DOP and polydispersion occur Occurrence Method Heating occurs Compressed Gas Nitrogen, Argon, Carbon dioxide or Helium (50 psi) Power Supply AC 220 V to 240 V, 50/60 Hz Dimension 280 ? 390 ? 300 mm Weight 14 Kg Features : >Safest aerosol generator coupled with photometer >Oil circuit protection system and heat exchange function >Flow range of 1,500 to 65,000 cubic feet per minute (42 to 1839.5 m3/min) >Produces particles with wide diameter as challenge particles >Ideal for measuring the efficiency of filtration systems, HEPA filters performance Applications : Aerosol Generator is used to check the efficiency of filters as well as detect leakages in clean rooms, laminar flow table, biosafety cabinet, glove box, HEPA vacuum cleaner, HVAC system, HEPA filter, ULPA filter, negative pressure filter device and operating room. Unit 2D Station House, 1 Pembroke Broadway, Camberley, Surrey GU15 3XD United Kingdom Email: info@labnics.com Website: www.labnics.com |
