Hybrid Inverter

Indiau2019s most Compact 5th Generation & Highly intelligent Smart Hybrid Inverter.<br>Cost-effective.<br>The ideal solution for BLACK-OUT & BROWN-OUTS with GRID Exports<br>Improve your energy with a Zero u2013 Electricity bill.

Ksolare
Download Presentation

Hybrid Inverter

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Smart Hybrid Solar Inverter

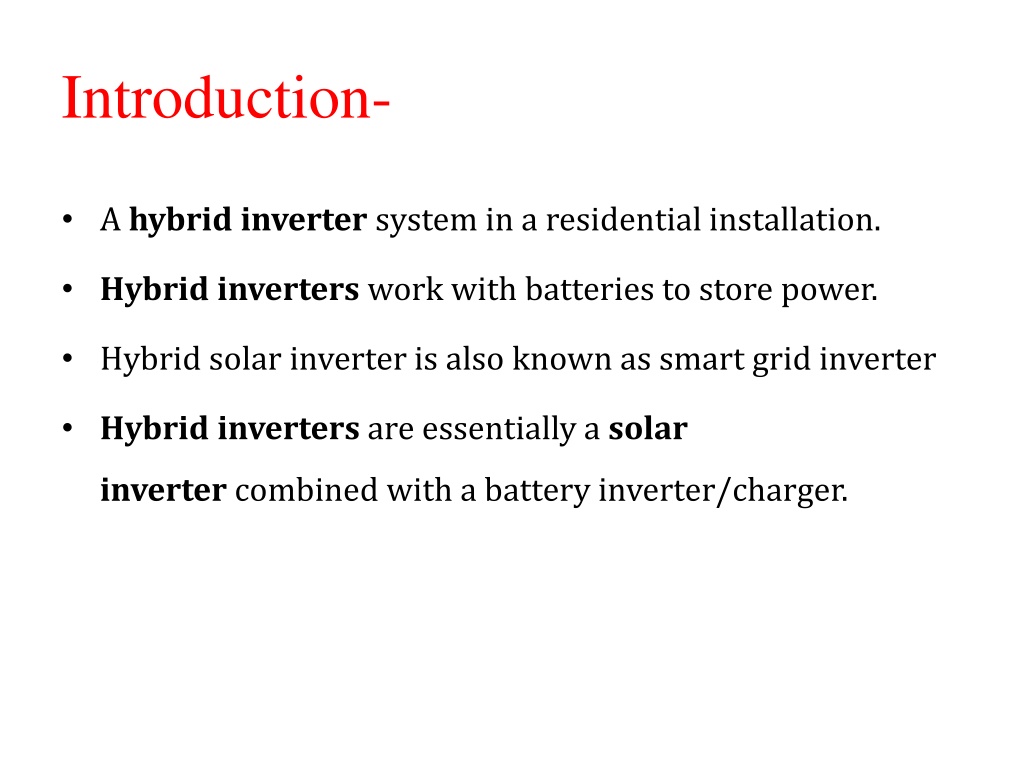

  2. Introduction- • A hybrid inverter system in a residential installation.  • Hybrid inverters work with batteries to store power. • Hybrid solar inverter is also known as smart grid inverter • Hybrid inverters are essentially a solar inverter combined with a battery inverter/charger.

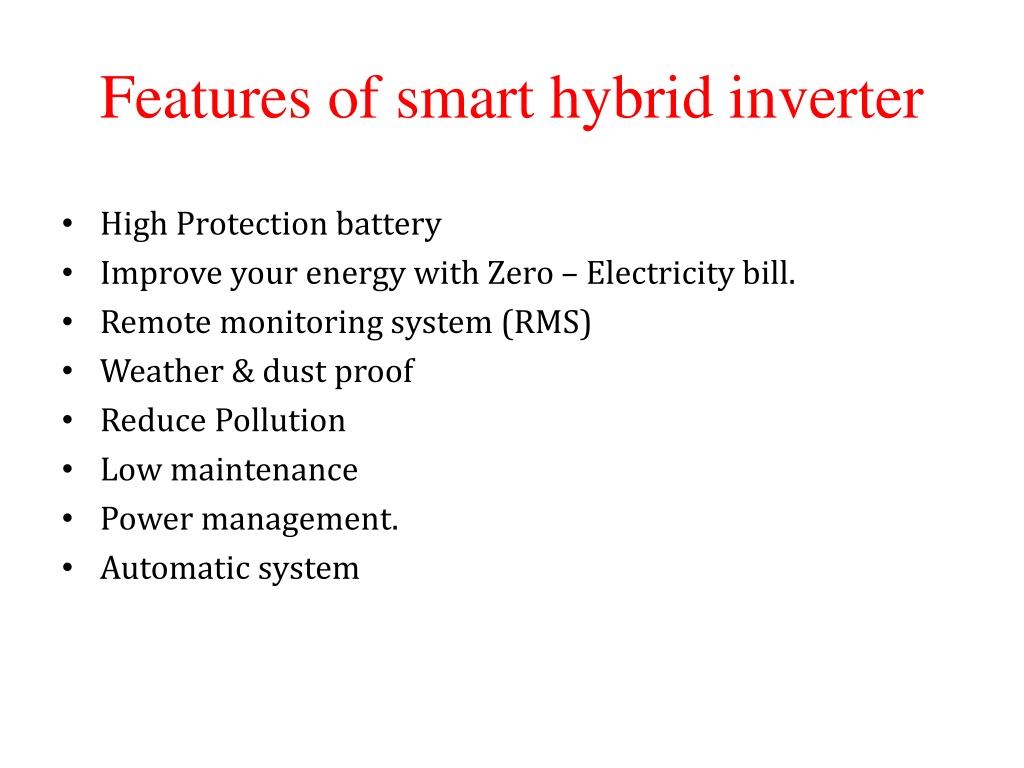

  3. Features of smart hybrid inverter • High Protection battery • Improve your energy with Zero – Electricity bill. • Remote monitoring system (RMS) • Weather & dust proof • Reduce Pollution • Low maintenance • Power management. • Automatic system

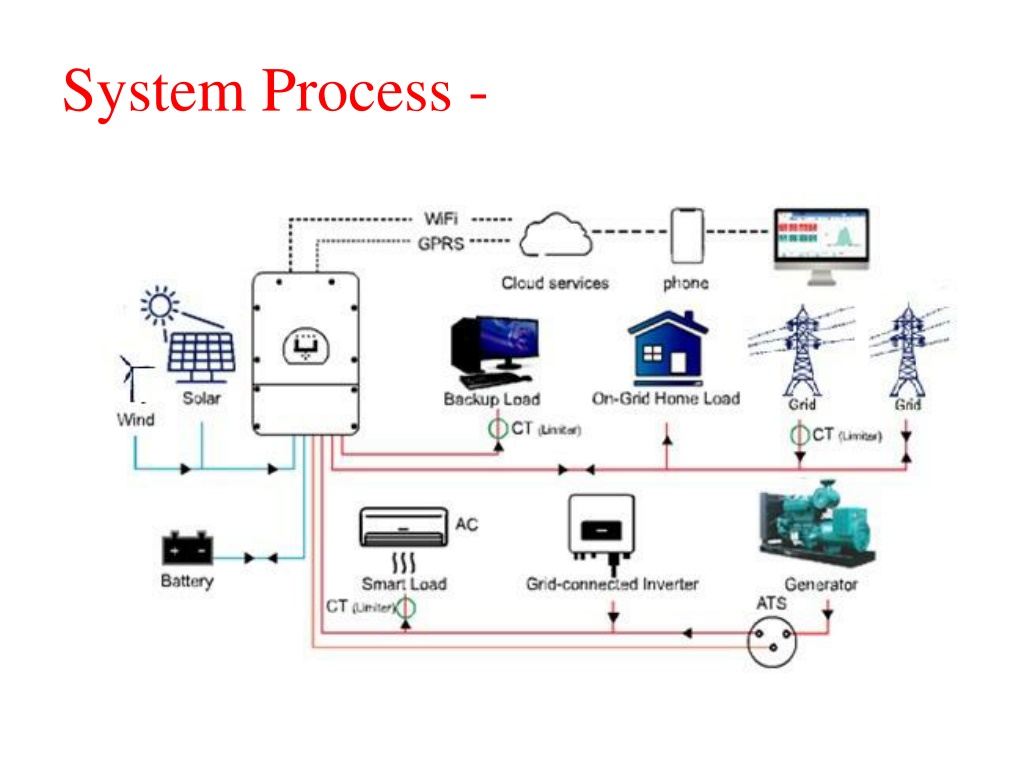

  4. System Process -

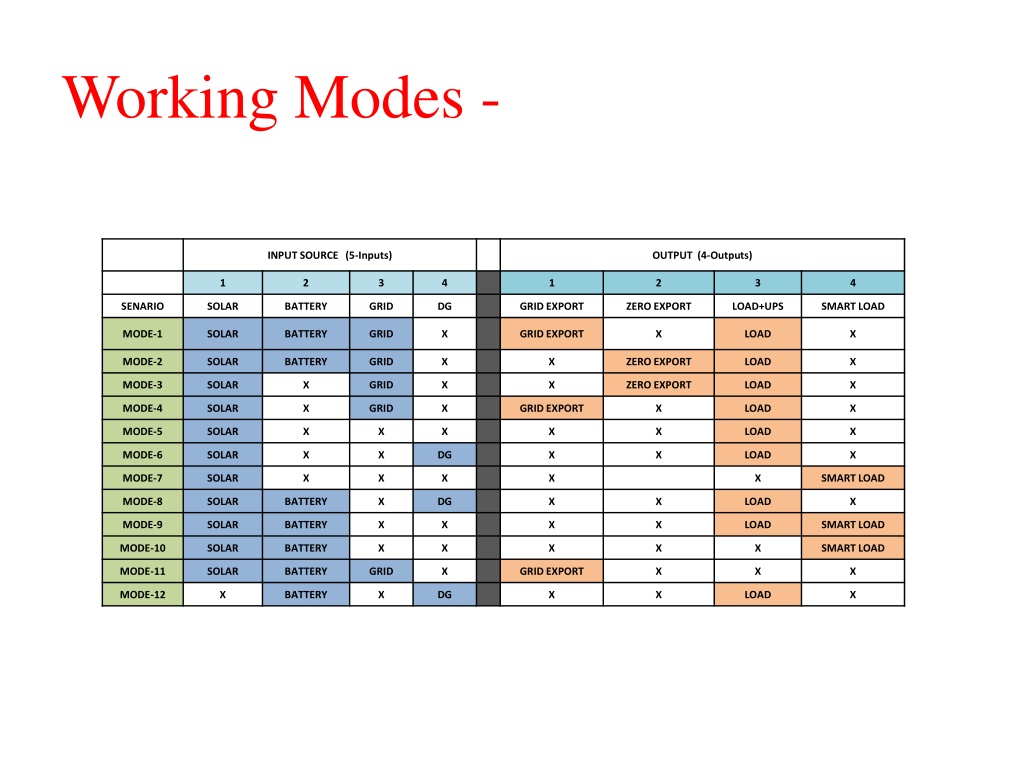

  5. Working Modes -

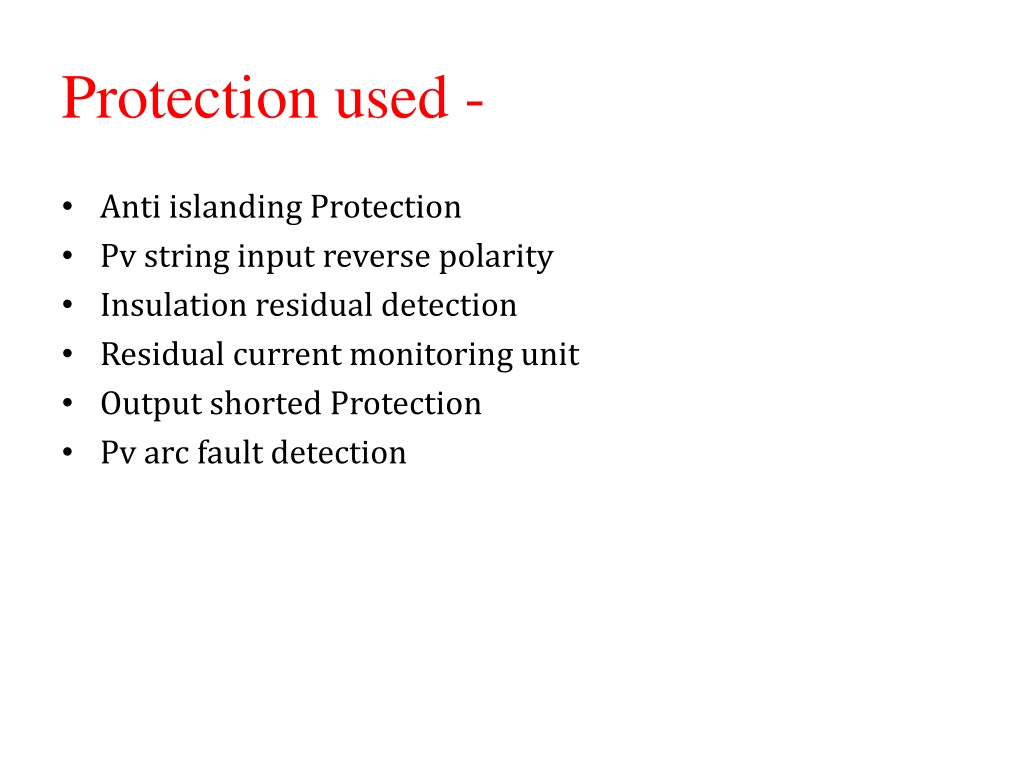

  6. Protection used - • Anti islanding Protection • Pv string input reverse polarity • Insulation residual detection • Residual current monitoring unit • Output shorted Protection • Pv arc fault detection

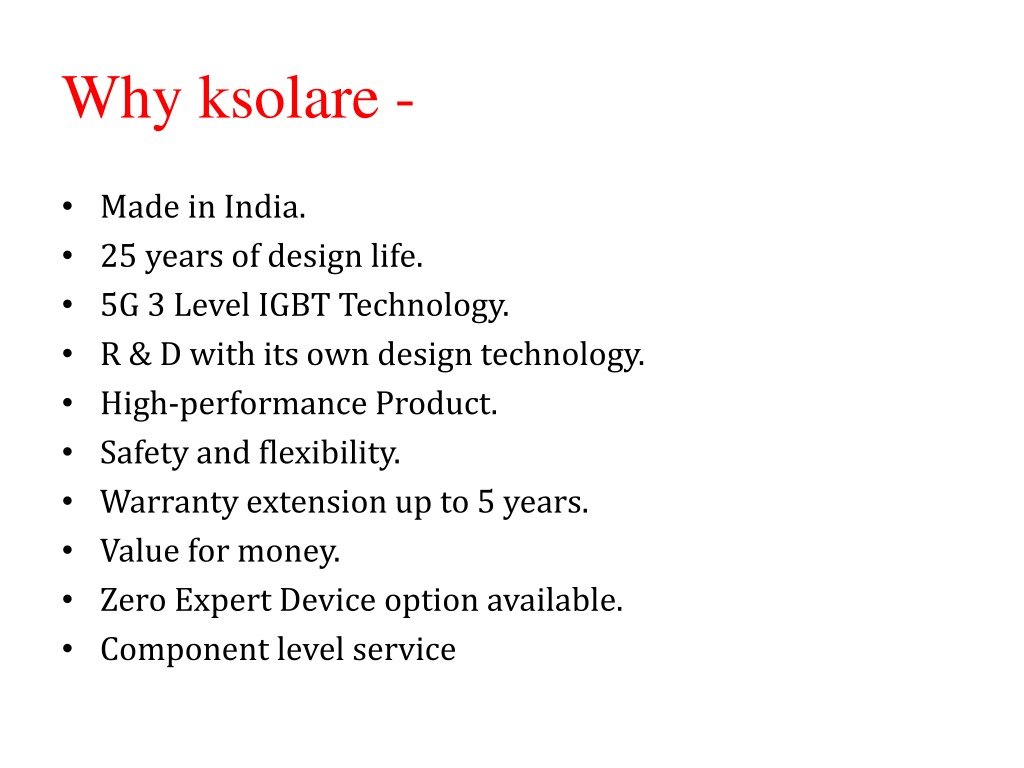

  7. Why ksolare - • Made in India. • 25 years of design life. • 5G 3 Level IGBT Technology. • R & D with its own design technology. • High-performance Product. • Safety and flexibility. • Warranty extension up to 5years. • Value for money. • Zero Expert Device option available. • Component level service

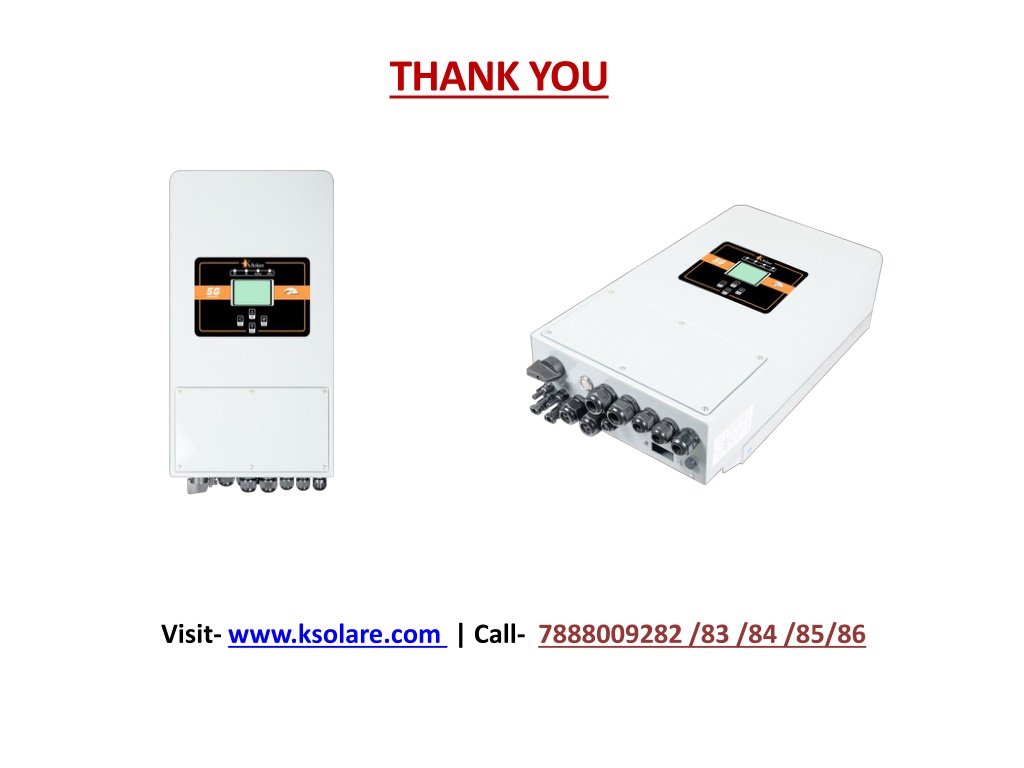

  8. THANK you Visit- www.ksolare.com | Call- 7888009282 /83 /84 /85/86
