  1. Vertical Pulse Vacuum Autoclave BZPV-601 www.Labzee.com |info@Labzee.com

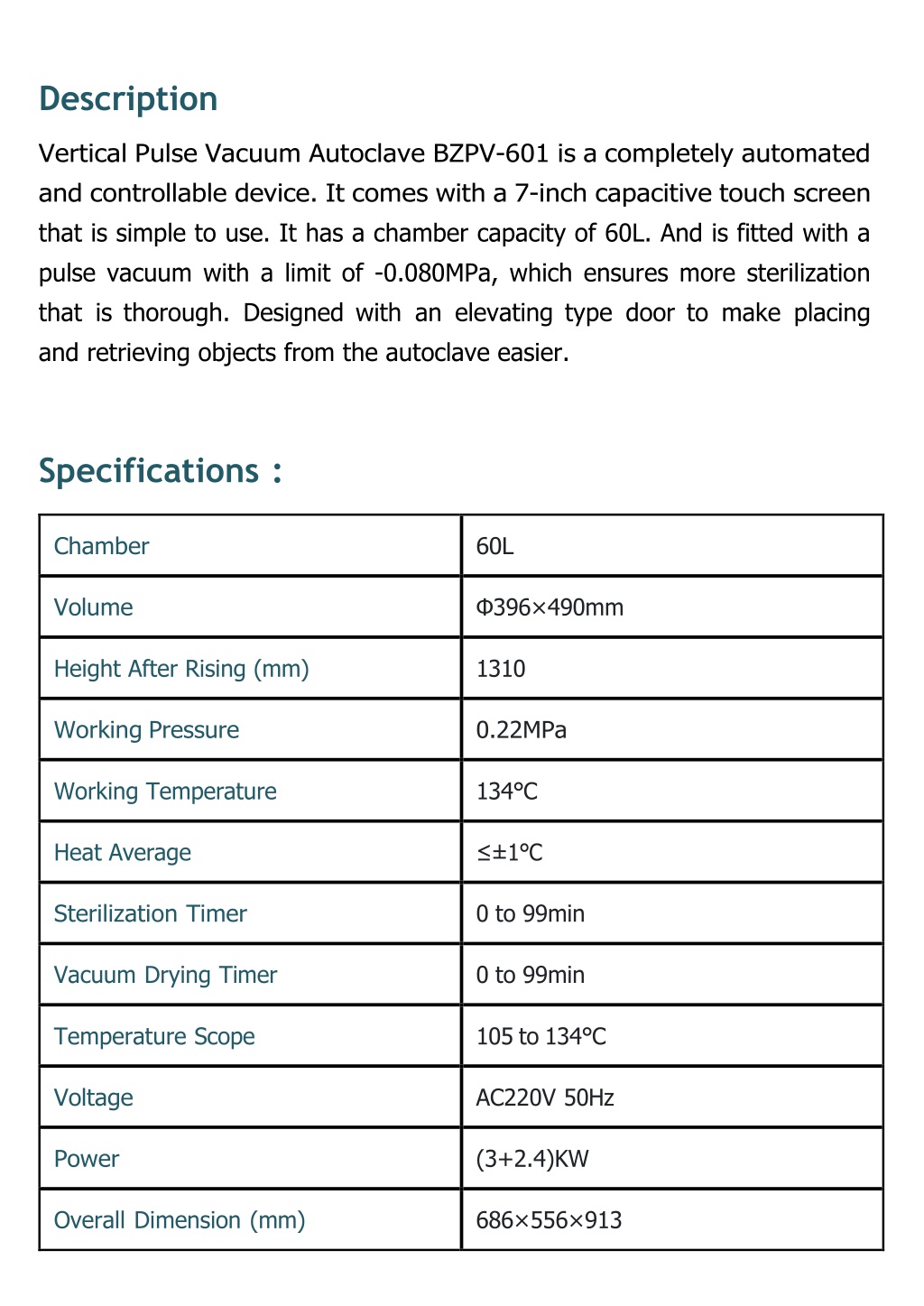

  2. Description Vertical Pulse Vacuum Autoclave BZPV-601 is a completely automated and controllable device. It comes with a 7-inch capacitive touch screen that is simple to use. It has a chamber capacity of 60L. And is fitted with a pulse vacuum with a limit of -0.080MPa, which ensures more sterilization that is thorough. Designed with an elevating type door to make placing and retrieving objects from the autoclave easier. Specifications : Chamber 60L Volume Φ396×490mm Height After Rising (mm) 1310 Working Pressure 0.22MPa Working Temperature 134℃ Heat Average ≤±1℃ Sterilization Timer 0 to 99min Vacuum Drying Timer 0 to 99min Temperature Scope 105 to 134℃ Voltage AC220V 50Hz Power (3+2.4)KW Overall Dimension (mm) 686×556×913

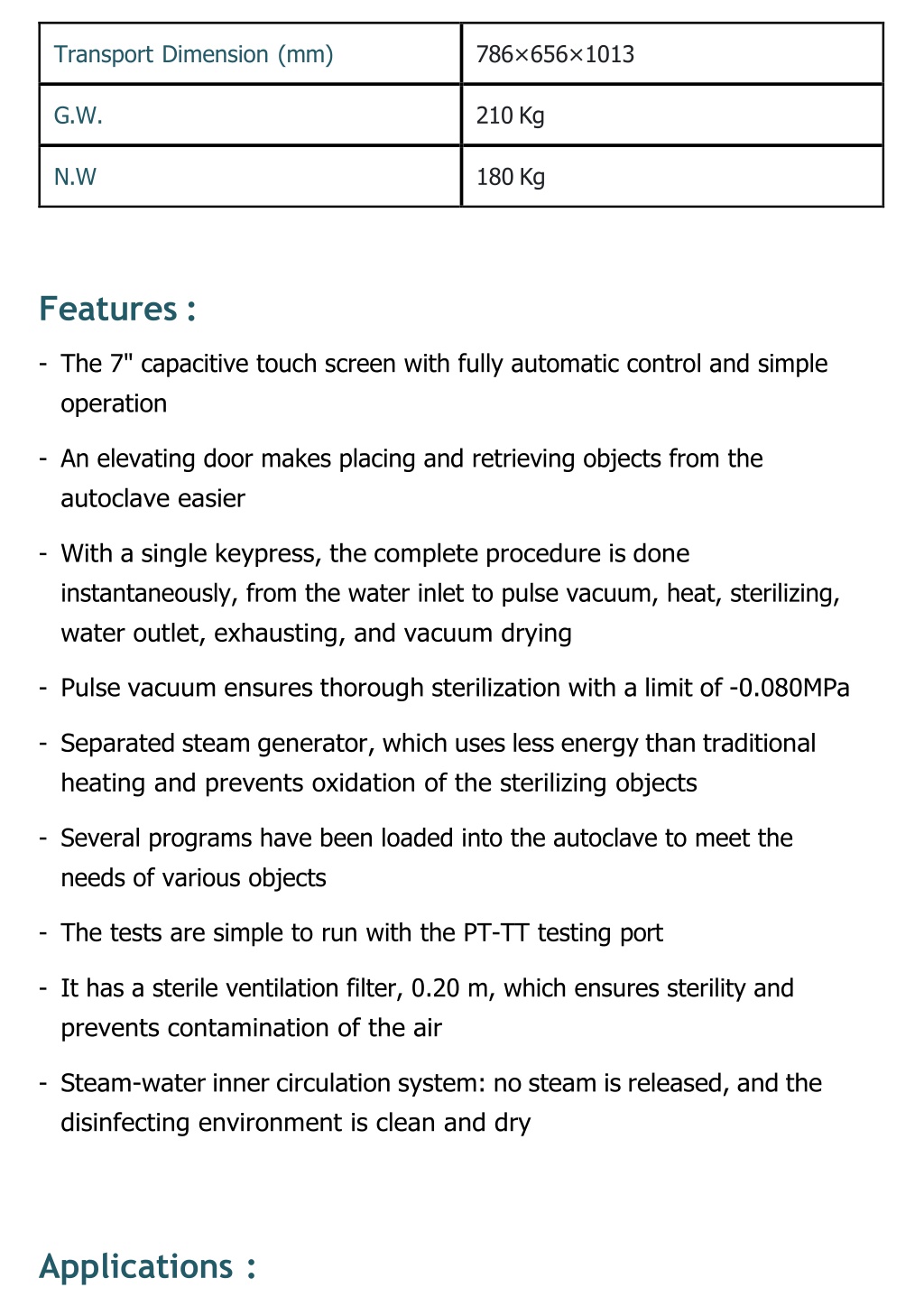

  3. Transport Dimension (mm) 786×656×1013 G.W. 210 Kg N.W 180 Kg Features : -The 7" capacitive touch screen with fully automatic control and simple operation -An elevating door makes placing and retrieving objects from the autoclave easier -With a single keypress, the complete procedure is done instantaneously, from the water inlet to pulse vacuum, heat, sterilizing, water outlet, exhausting, and vacuum drying -Pulse vacuum ensures thorough sterilization with a limit of -0.080MPa -Separated steam generator, which uses less energy than traditional heating and prevents oxidation of the sterilizing objects -Several programs have been loaded into the autoclave to meet the needs of various objects -The tests are simple to run with the PT-TT testing port -It has a sterile ventilation filter, 0.20 m, which ensures sterility and prevents contamination of the air -Steam-water inner circulation system: no steam is released, and the disinfecting environment is clean and dry Applications :

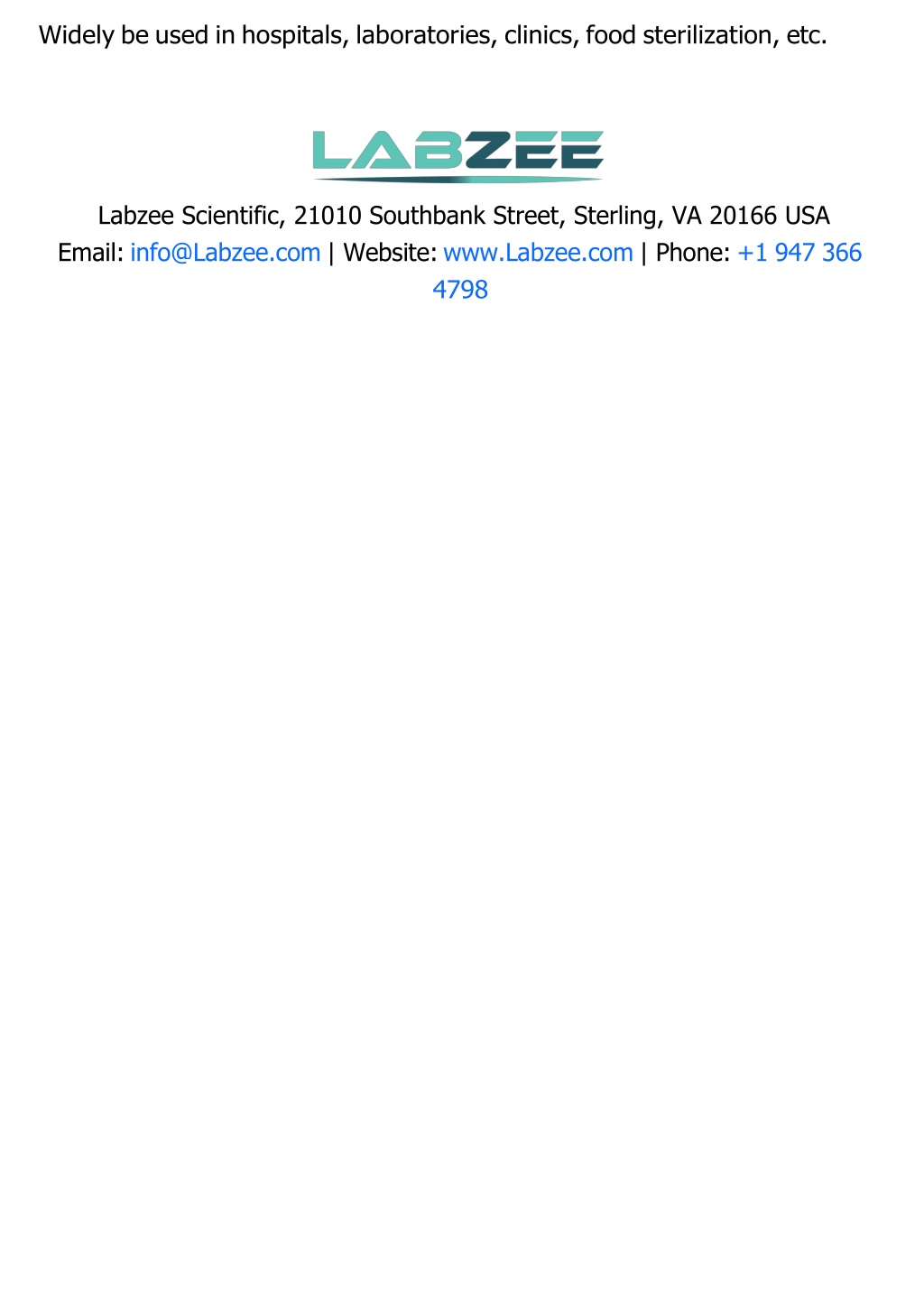

  4. Widely be used in hospitals, laboratories, clinics, food sterilization, etc. Labzee Scientific, 21010 Southbank Street, Sterling, VA 20166 USA Email: info@Labzee.com | Website: www.Labzee.com | Phone: +1 947 366 4798
