Pulse Vacuum Autoclaves

Labzee Pulse Vacuum Autoclave is a microcomputer-controlled unit with a 100L capacity offering automatic sterilization control, an integrated steam generator, adjustable sterilizing plates, a safety valve, 0.22 MPa pressure, 115 to 134u00b0C temperature range, and 0 to 99 min sterilization time.

Krystal7
Download Presentation

Pulse Vacuum Autoclaves

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

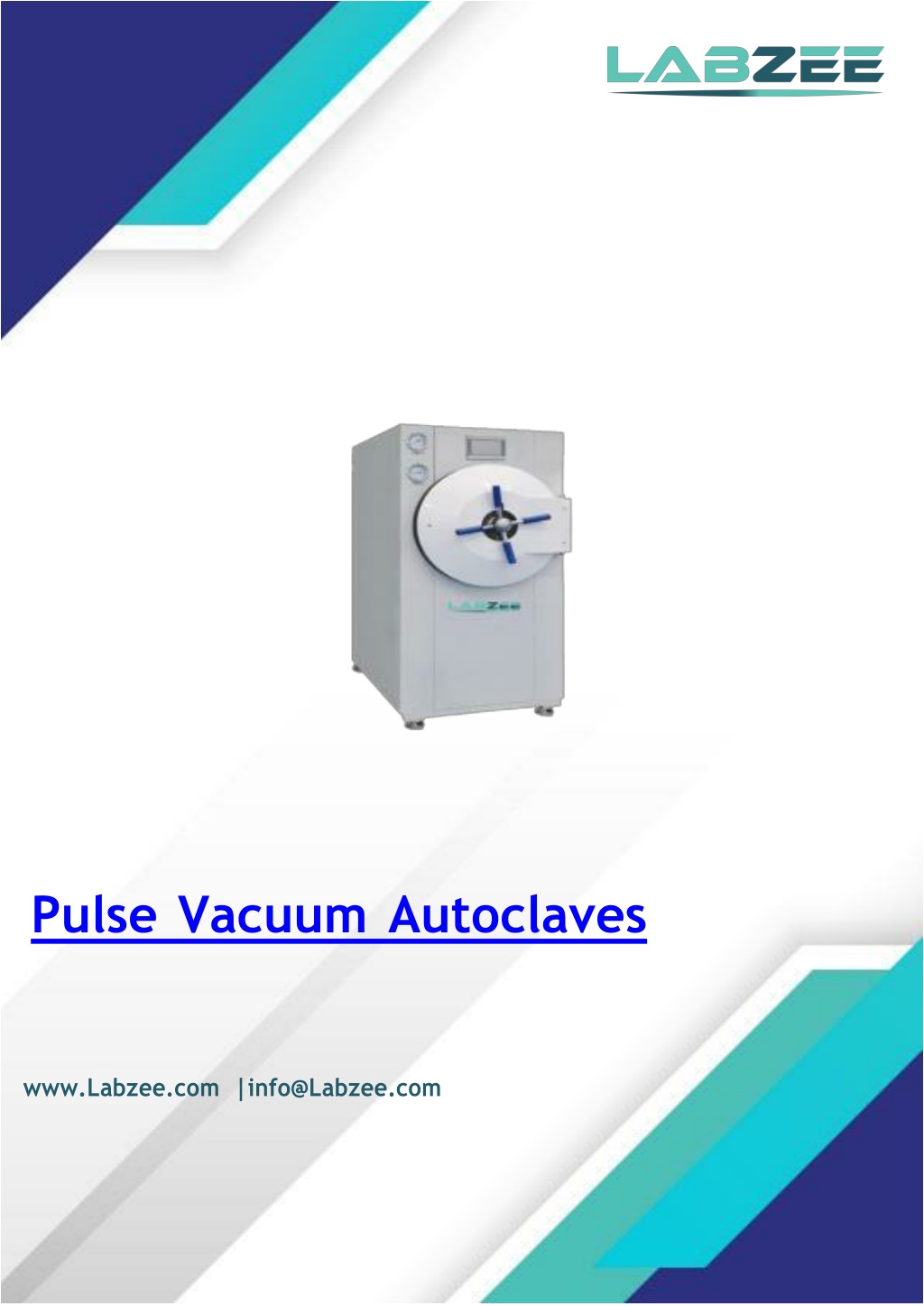

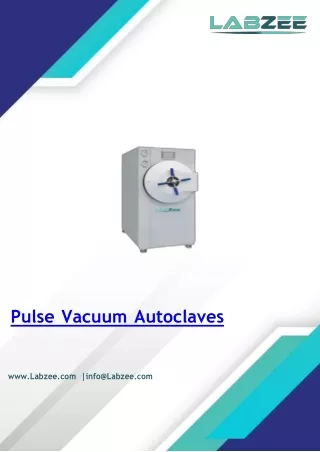

  1. Pulse Vacuum Autoclaves www.Labzee.com |info@Labzee.com

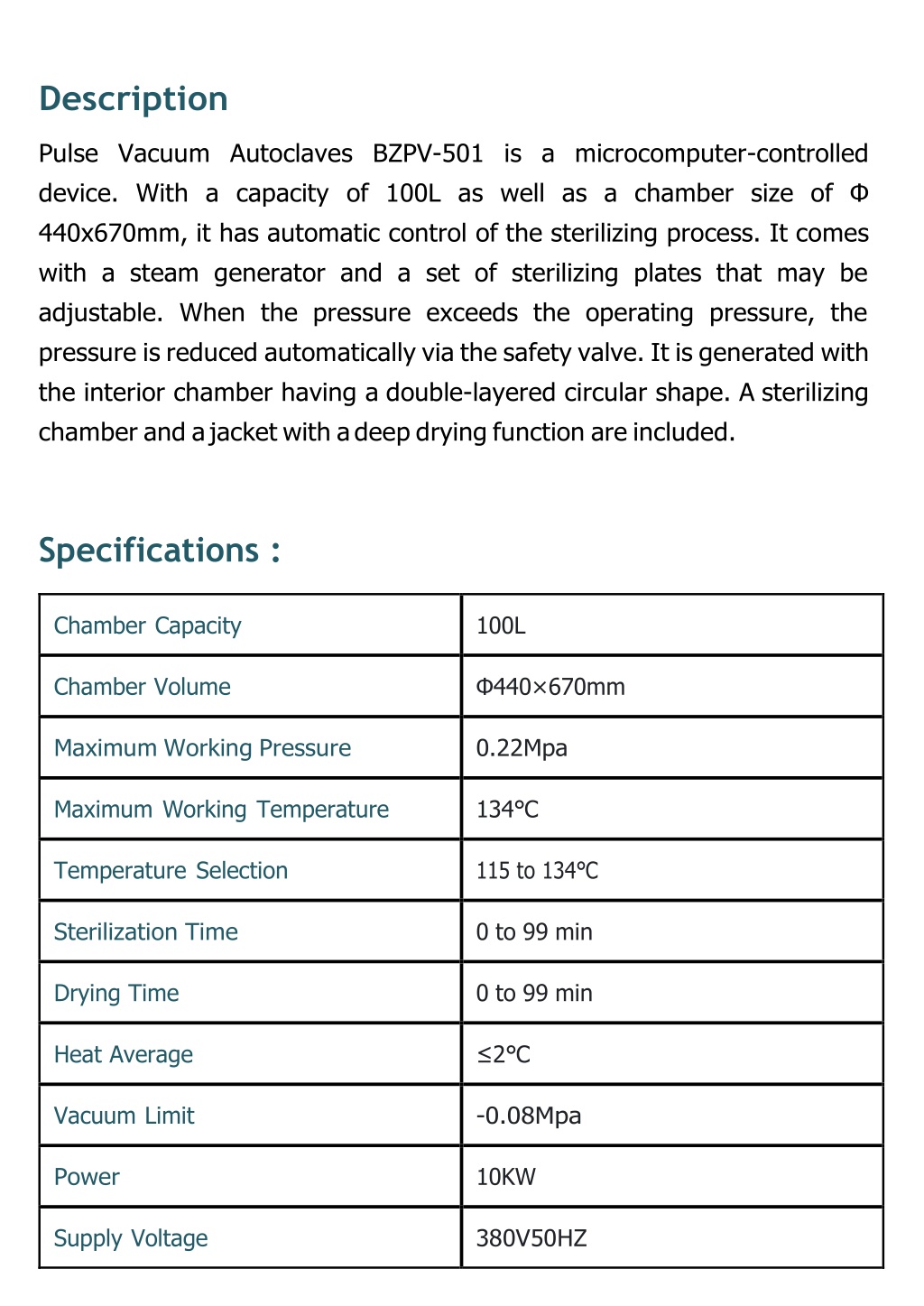

  2. Description Pulse Vacuum Autoclaves BZPV-501 is a microcomputer-controlled device. With a capacity of 100L as well as a chamber size of Φ 440x670mm, it has automatic control of the sterilizing process. It comes with a steam generator and a set of sterilizing plates that may be adjustable. When the pressure exceeds the operating pressure, the pressure is reduced automatically via the safety valve. It is generated with the interior chamber having a double-layered circular shape. A sterilizing chamber and a jacket with a deep drying function are included. Specifications : Chamber Capacity 100L Chamber Volume Φ440×670mm Maximum Working Pressure 0.22Mpa Maximum Working Temperature 134℃ Temperature Selection 115 to 134℃ Sterilization Time 0 to 99 min Drying Time 0 to 99 min Heat Average ≤2℃ Vacuum Limit -0.08Mpa Power 10KW Supply Voltage 380V50HZ

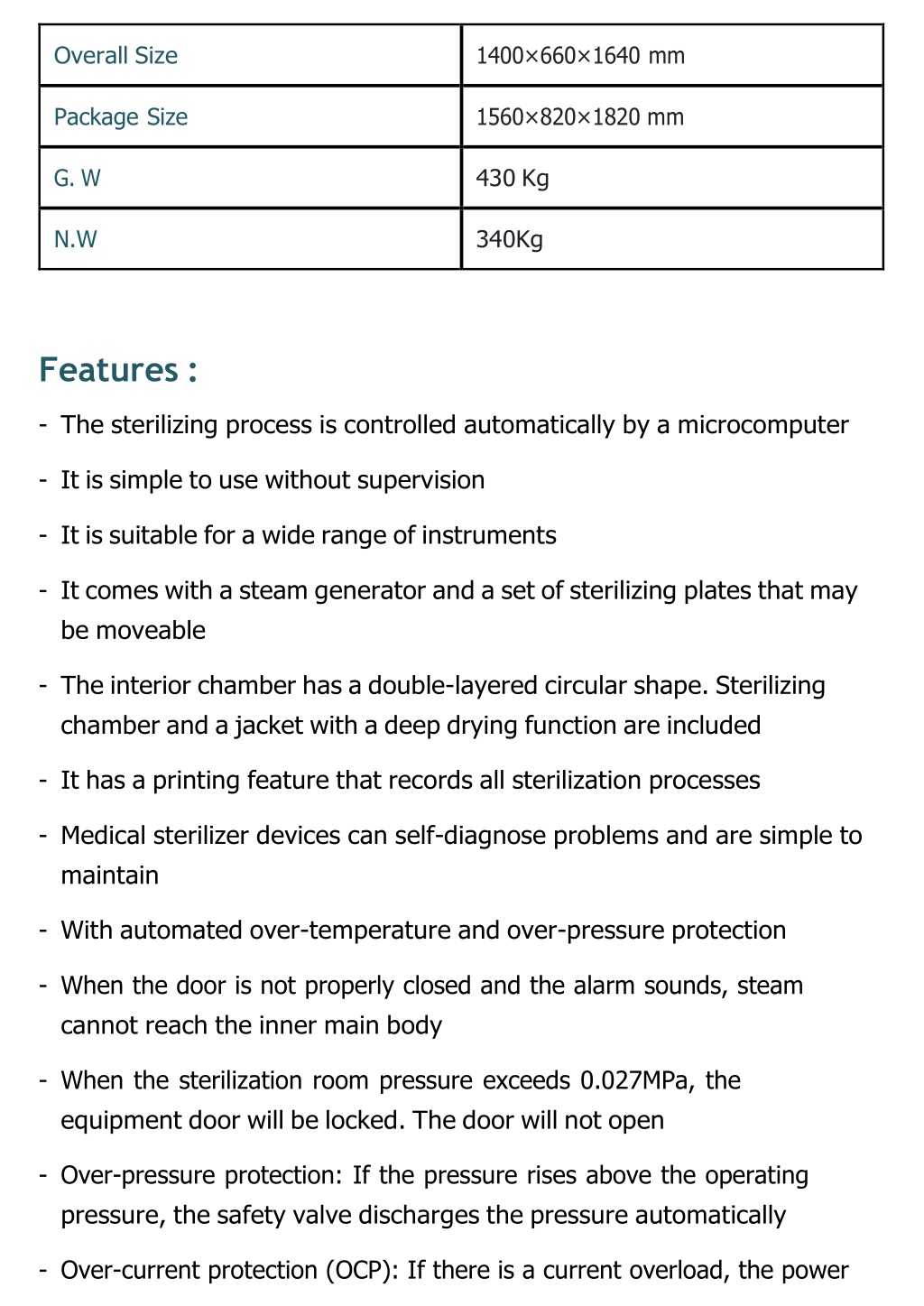

  3. Overall Size 1400×660×1640 mm Package Size 1560×820×1820 mm G. W 430 Kg N.W 340Kg Features : -The sterilizing process is controlled automatically by a microcomputer -It is simple to use without supervision -It is suitable for a wide range of instruments -It comes with a steam generator and a set of sterilizing plates that may be moveable -The interior chamber has a double-layered circular shape. Sterilizing chamber and a jacket with a deep drying function are included -It has a printing feature that records all sterilization processes -Medical sterilizer devices can self-diagnose problems and are simple to maintain -With automated over-temperature and over-pressure protection -When the door is not properly closed and the alarm sounds, steam cannot reach the inner main body -When the sterilization room pressure exceeds 0.027MPa, the equipment door will be locked. The door will not open -Over-pressure protection: If the pressure rises above the operating pressure, the safety valve discharges the pressure automatically -Over-current protection (OCP): If there is a current overload, the power

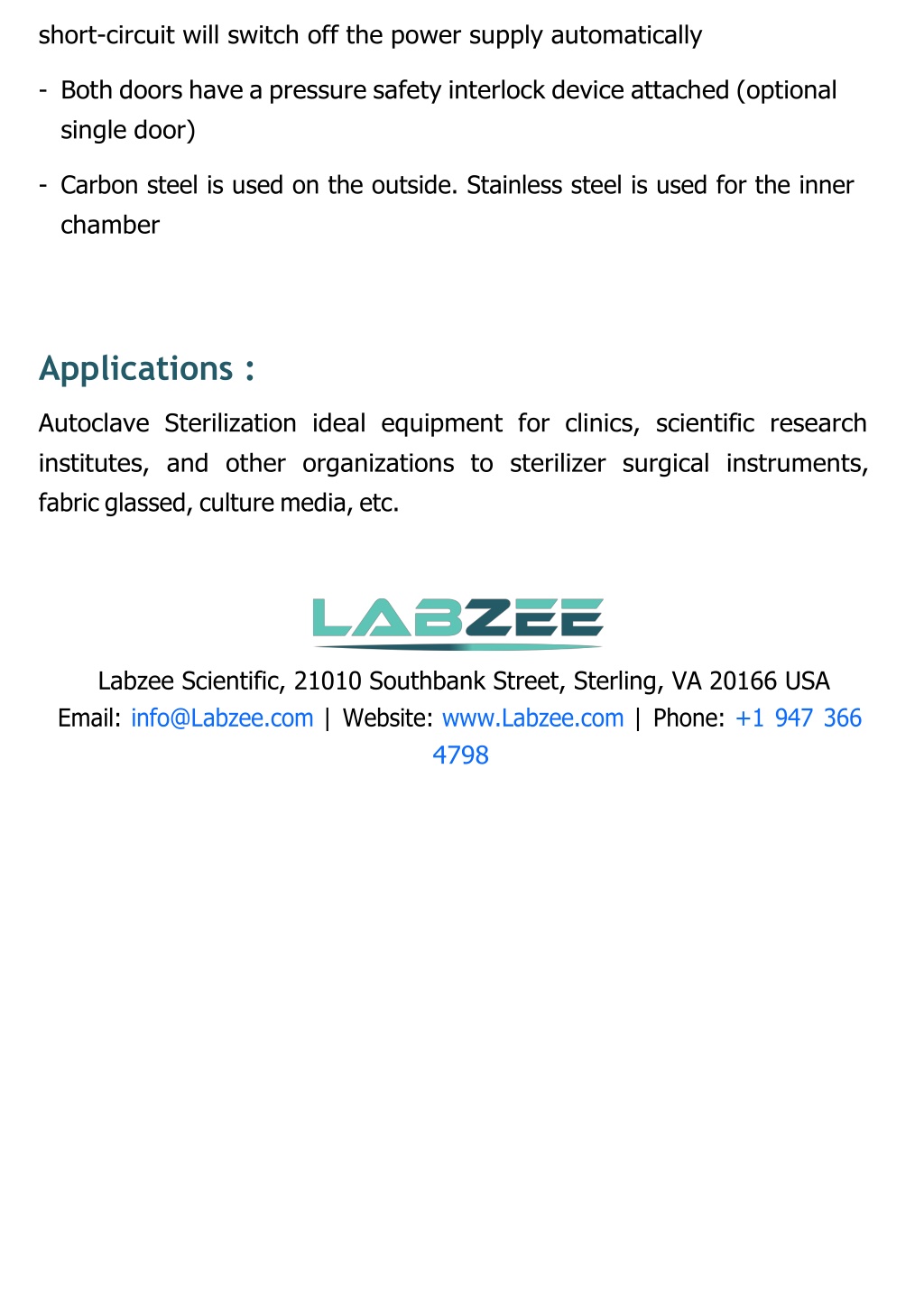

  4. short-circuit will switch off the power supply automatically -Both doors have a pressure safety interlock device attached (optional single door) -Carbon steel is used on the outside. Stainless steel is used for the inner chamber Applications : Autoclave Sterilization ideal equipment for clinics, scientific research institutes, and other organizations to sterilizer surgical instruments, fabric glassed, culture media, etc. Labzee Scientific, 21010 Southbank Street, Sterling, VA 20166 USA Email: info@Labzee.com | Website: www.Labzee.com | Phone: +1 947 366 4798
