Bench Top High-Capacity Centrifuge BZHB-501

Labzee Bench Top High-Capacity Centrifuge is a microprocessor-controlled device with a brushless motor, offering 10 acceleration speeds and a capacity of 4 u00d7 800 ml. It operates at a max speed of 6000 RPM with 4730 u00d7 g RCF, features a low noise level under 58 dB, and has alarms for overspeeding.

Krystal7
Download Presentation

Bench Top High-Capacity Centrifuge BZHB-501

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

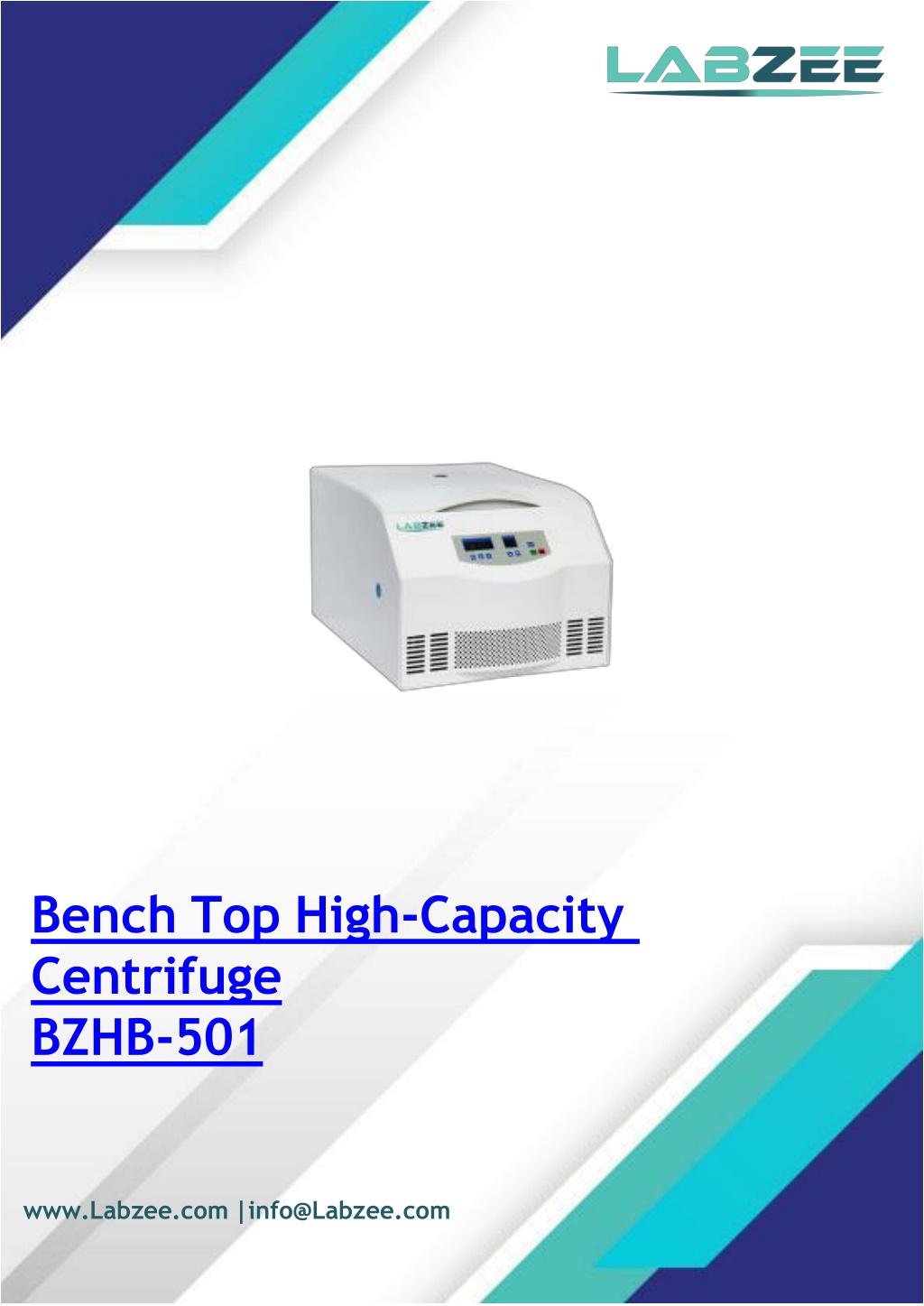

  1. Bench Top High-Capacity Centrifuge BZHB-501 www.Labzee.com |info@Labzee.com

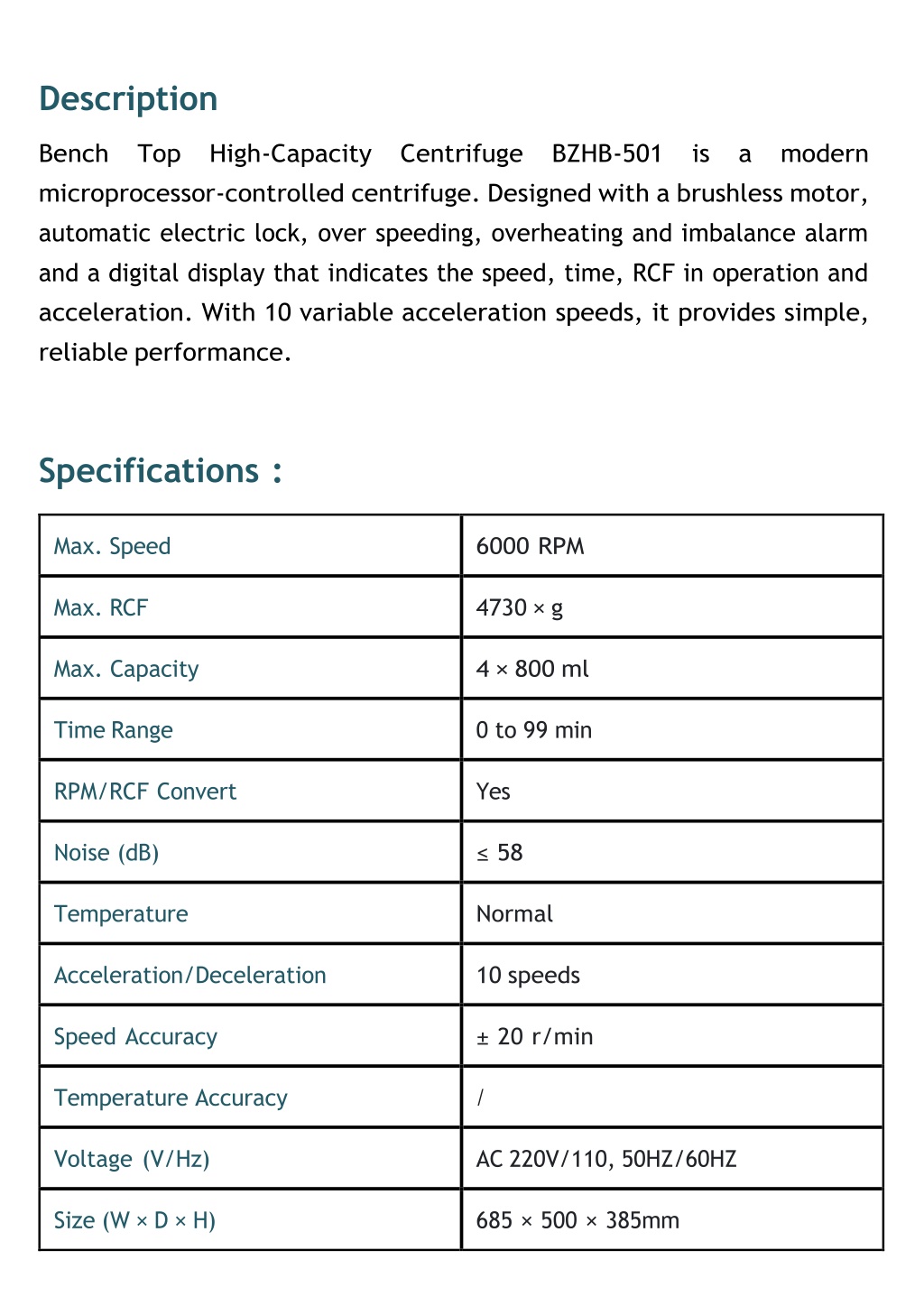

  2. Description Bench Top High-Capacity Centrifuge BZHB-501 is a modern microprocessor-controlled centrifuge. Designed with a brushless motor, automatic electric lock, over speeding, overheating and imbalance alarm and a digital display that indicates the speed, time, RCF in operation and acceleration. With 10 variable acceleration speeds, it provides simple, reliable performance. Specifications : Max. Speed 6000 RPM Max. RCF 4730 × g Max. Capacity 4 × 800 ml Time Range 0 to 99 min RPM/RCF Convert Yes Noise (dB) ≤ 58 Temperature Normal Acceleration/Deceleration 10 speeds Speed Accuracy ± 20 r/min Temperature Accuracy / Voltage (V/Hz) AC 220V/110, 50HZ/60HZ Size (W × D × H) 685 × 500 × 385mm

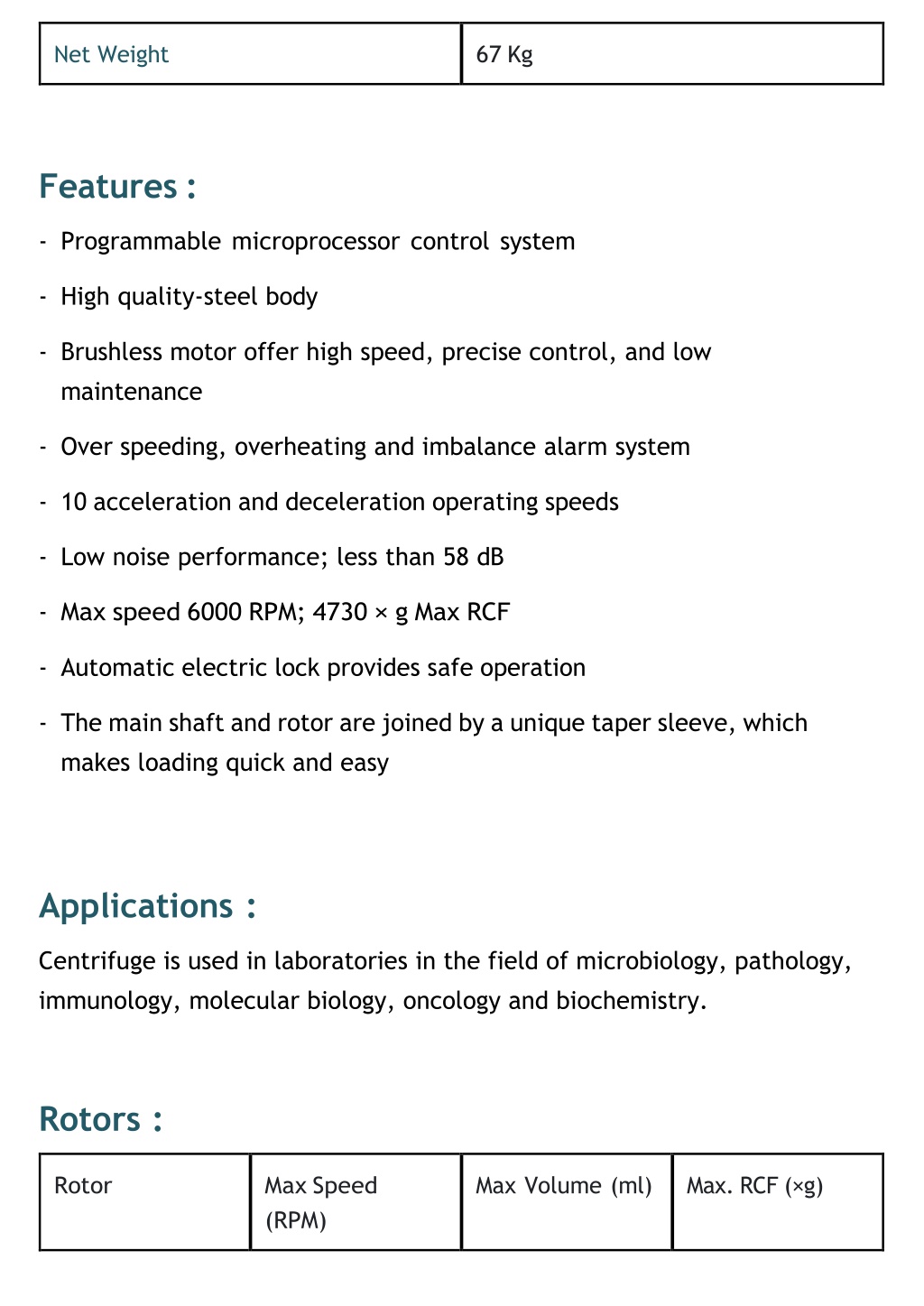

  3. Net Weight 67 Kg Features : -Programmable microprocessor control system -High quality-steel body -Brushless motor offer high speed, precise control, and low maintenance -Over speeding, overheating and imbalance alarm system -10 acceleration and deceleration operating speeds -Low noise performance; less than 58 dB -Max speed 6000 RPM; 4730 × g Max RCF -Automatic electric lock provides safe operation -The main shaft and rotor are joined by a unique taper sleeve, which makes loading quick and easy Applications : Centrifuge is used in laboratories in the field of microbiology, pathology, immunology, molecular biology, oncology and biochemistry. Rotors : Rotor Max Speed (RPM) Max Volume (ml) Max. RCF (×g)

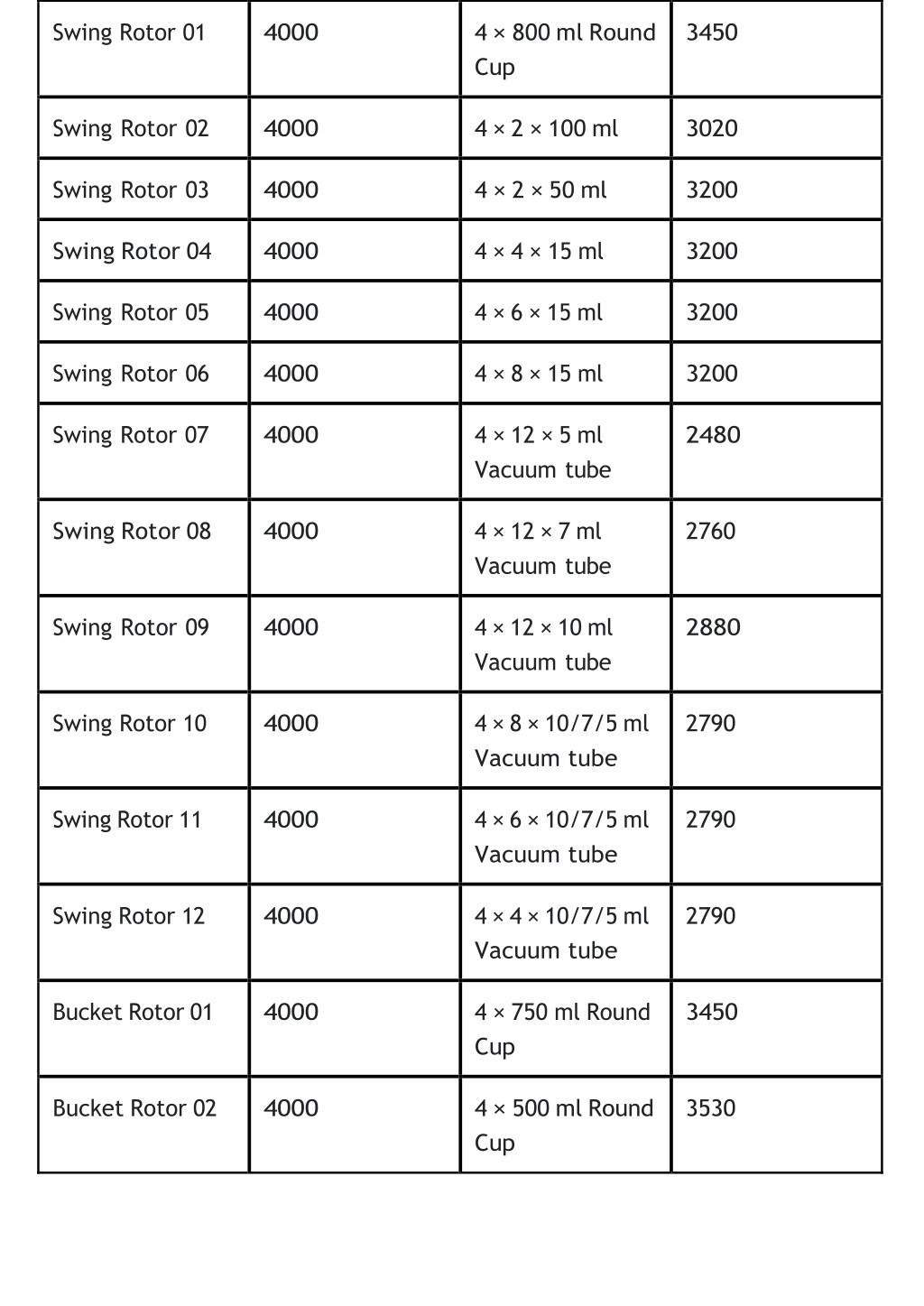

  4. Swing Rotor 01 4000 4 × 800 ml Round Cup 3450 Swing Rotor 02 4000 4 × 2 × 100 ml 3020 Swing Rotor 03 4000 4 × 2 × 50 ml 3200 Swing Rotor 04 4000 4 × 4 × 15 ml 3200 Swing Rotor 05 4000 4 × 6 × 15 ml 3200 Swing Rotor 06 4000 4 × 8 × 15 ml 3200 Swing Rotor 07 4000 4 × 12 × 5 ml Vacuum tube 2480 Swing Rotor 08 4000 4 × 12 × 7 ml Vacuum tube 2760 Swing Rotor 09 4000 4 × 12 × 10 ml Vacuum tube 2880 Swing Rotor 10 4000 4 × 8 × 10/7/5 ml Vacuum tube 2790 Swing Rotor 11 4000 4 × 6 × 10/7/5 ml Vacuum tube 2790 Swing Rotor 12 4000 4 × 4 × 10/7/5 ml Vacuum tube 2790 Bucket Rotor 01 4000 4 × 750 ml Round Cup 3450 Bucket Rotor 02 4000 4 × 500 ml Round Cup 3530

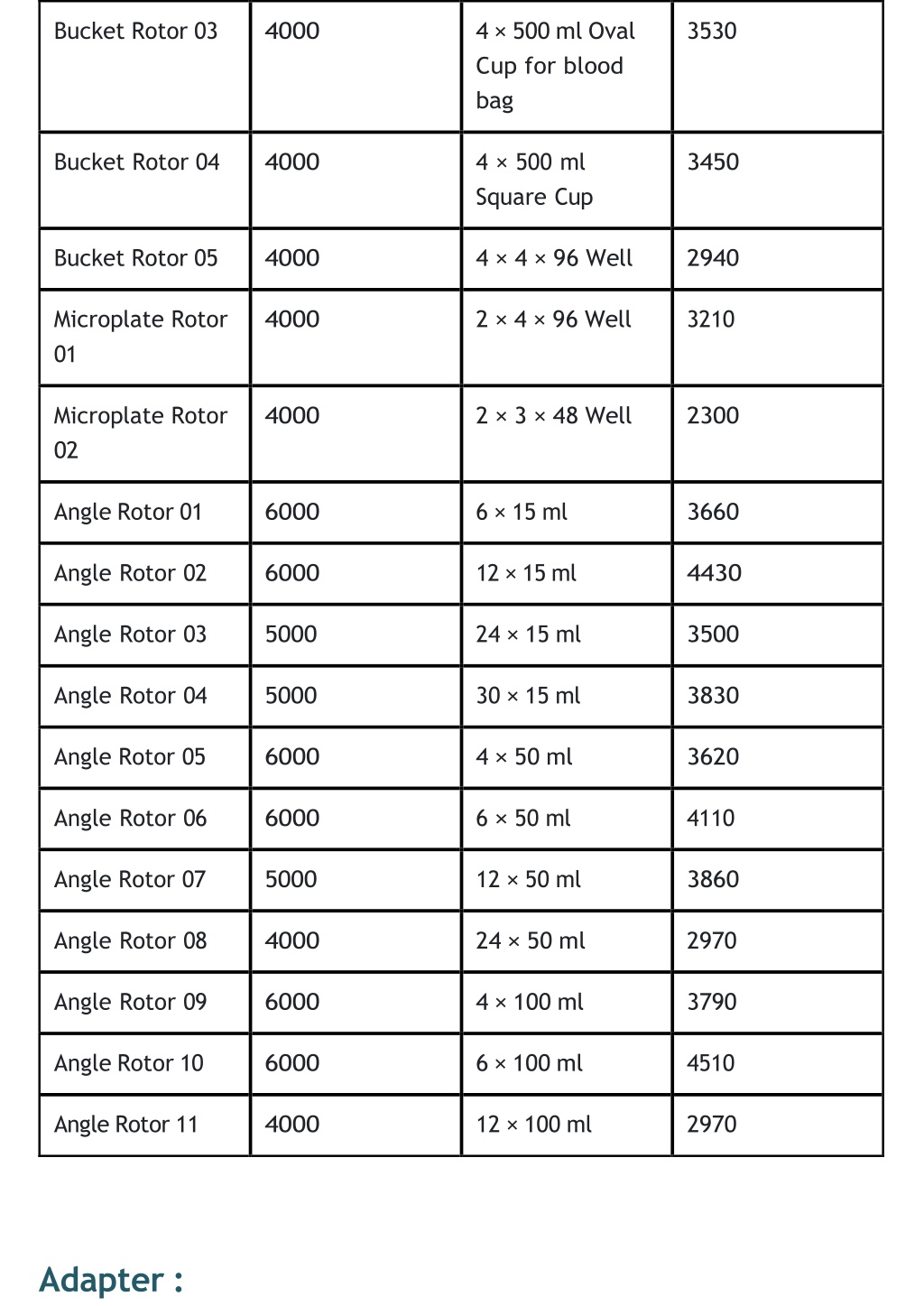

  5. Bucket Rotor 03 4000 4 × 500 ml Oval Cup for blood bag 3530 Bucket Rotor 04 4000 4 × 500 ml Square Cup 3450 Bucket Rotor 05 4000 4 × 4 × 96 Well 2940 Microplate Rotor 01 4000 2 × 4 × 96 Well 3210 Microplate Rotor 02 4000 2 × 3 × 48 Well 2300 Angle Rotor 01 6000 6 × 15 ml 3660 Angle Rotor 02 6000 12 × 15 ml 4430 Angle Rotor 03 5000 24 × 15 ml 3500 Angle Rotor 04 5000 30 × 15 ml 3830 Angle Rotor 05 6000 4 × 50 ml 3620 Angle Rotor 06 6000 6 × 50 ml 4110 Angle Rotor 07 5000 12 × 50 ml 3860 Angle Rotor 08 4000 24 × 50 ml 2970 Angle Rotor 09 6000 4 × 100 ml 3790 Angle Rotor 10 6000 6 × 100 ml 4510 Angle Rotor 11 4000 12 × 100 ml 2970 Adapter :

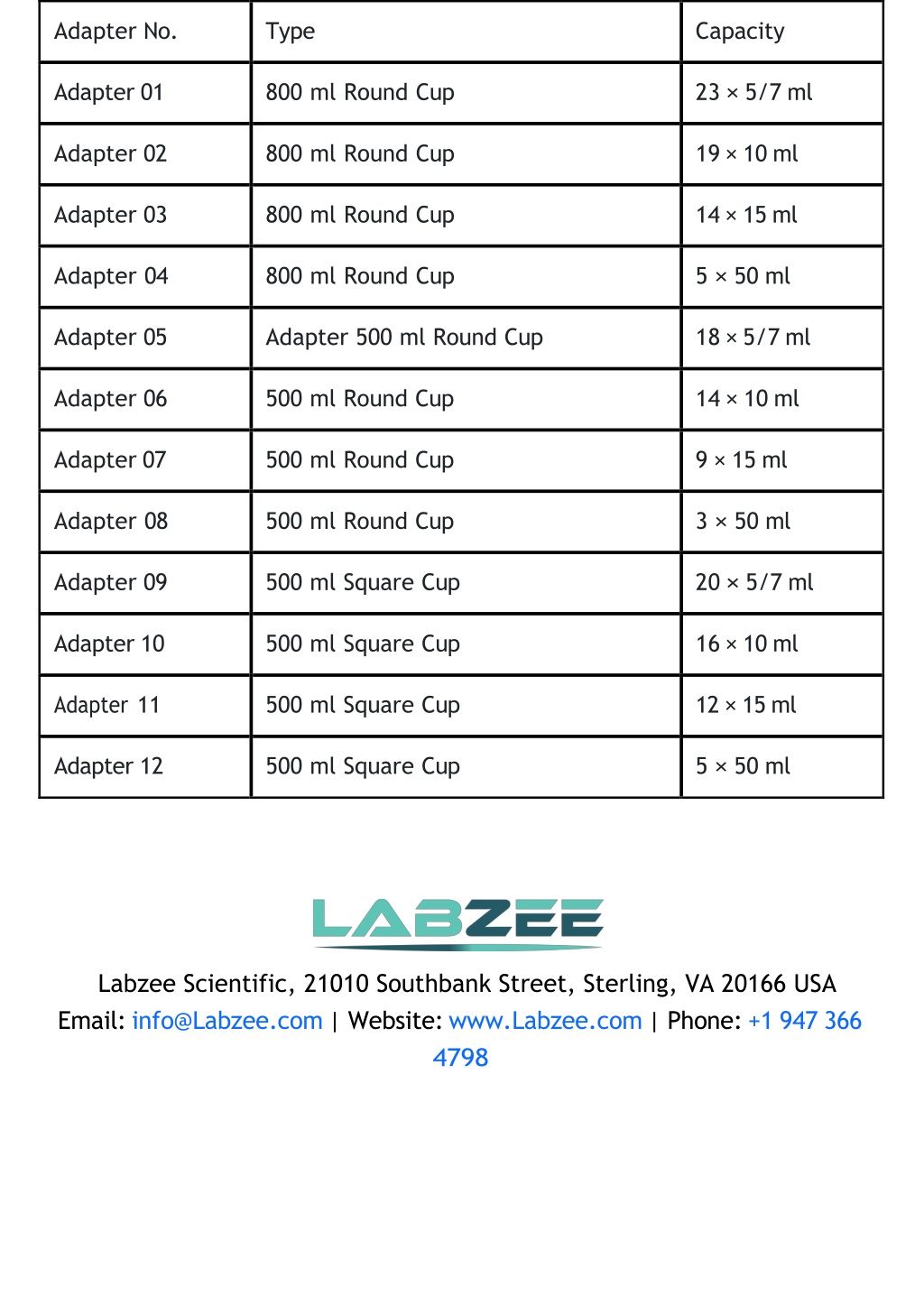

  6. Adapter No. Type Capacity Adapter 01 800 ml Round Cup 23 × 5/7 ml Adapter 02 800 ml Round Cup 19 × 10 ml Adapter 03 800 ml Round Cup 14 × 15 ml Adapter 04 800 ml Round Cup 5 × 50 ml Adapter 05 Adapter 500 ml Round Cup 18 × 5/7 ml Adapter 06 500 ml Round Cup 14 × 10 ml Adapter 07 500 ml Round Cup 9 × 15 ml Adapter 08 500 ml Round Cup 3 × 50 ml Adapter 09 500 ml Square Cup 20 × 5/7 ml Adapter 10 500 ml Square Cup 16 × 10 ml Adapter 11 500 ml Square Cup 12 × 15 ml Adapter 12 500 ml Square Cup 5 × 50 ml Labzee Scientific, 21010 Southbank Street, Sterling, VA 20166 USA Email: info@Labzee.com | Website: www.Labzee.com | Phone: +1 947 366 4798
