Test Sieve Shaker

<br>Test Sieve Shaker featured with 1 to 8 sieve working layers which rotate at speed of 1400 rpm for fine particle distribution analysis. Equipped with sieve of <br>diameter 200 mm which can test about 50 to 150 g of sample material. Determines particle size distribution of raw and finished materials in the form of particles,<br>powder, and liquid.

Kimber4
Download Presentation

Test Sieve Shaker

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

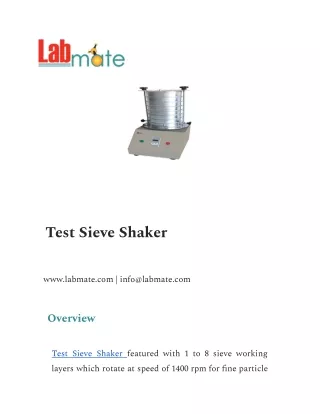

  1. Test Sieve Shaker www.labmate.com | info@labmate.com Overview Test Sieve Shaker featured with 1 to 8 sieve working layers which rotate at speed of 1400 rpm for fine particle

  2. distribution analysis. Equipped with sieve of diameter 200 mm which can test about 50 to 150 g of sample material. Determines particle size distribution of raw and finished materials in the form of particles, powder, and liquid. Specifications : Working layers 1 to 8 layers Screen mesh size 10, 20, 50, 80, 100 mesh etc. required Diameter 200 mm Material Stainless steel 304 Timing range 1 to 99 hours

  3. Speed 1400 rpm Power consumption 120 W External dimension 400 × 330 × 370 mm (W×D×H) Packaging dimension 540 × 490 × 460 mm (W×D×H) Gross weight 55 kg Features : - Size of screen mesh ranges from 4 to 500 mesh - Stainless steel 304 for enhancing device’s durability

  4. - Features 1 to 8 sieve working layers which rotates at speed of 1400 rpm for fine particle distribution analysis. - Time can be easily set from seconds to hours as per user’s convenience - Diameter of sieve 200 mm to test about 50 to 150g of sample - Compatible with 10, 20, 50, 80, 100 mesh etc. size screen mesh Standard Accessories : Lid and Base Optional Accessories : Accessori Sieve type Specification es no

  5. 1 Sieve diameter 200 6 mesh to 3000 mm µm 2 Sieve diameter 200 9 mesh to 2000 mm µm 3 Sieve diameter 200 14 mesh to mm 1200 µm 4 Sieve diameter 200 20 mesh to 900 mm µm Applications : Test Sieve Shaker is widely used for particle size distribution of raw materials, finished products across laboratory and quality control testing units.

  6. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
