Gradient thermal cycler

<br>Gradient thermal cycler enabled with Peltier heating units which can process more than 100 cycles and store data in the internal flash memory. It can accommodate <br>96u00d70.2 ml sample in wells. User-friendly programming is achieved via 8-inches TFT color touch-screen with graphical display and windows operations system. <br>This device can be applied across a temperature range of 0 to 100 u00b0C with maximum. ramping rate is 4.5 u00b0C/s. It is advantageous to use pre-installed 11 <br>standard protocols and secure his data using password Login method. The files can be transferred via USB, printer support.

Kimber4
Download Presentation

Gradient thermal cycler

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

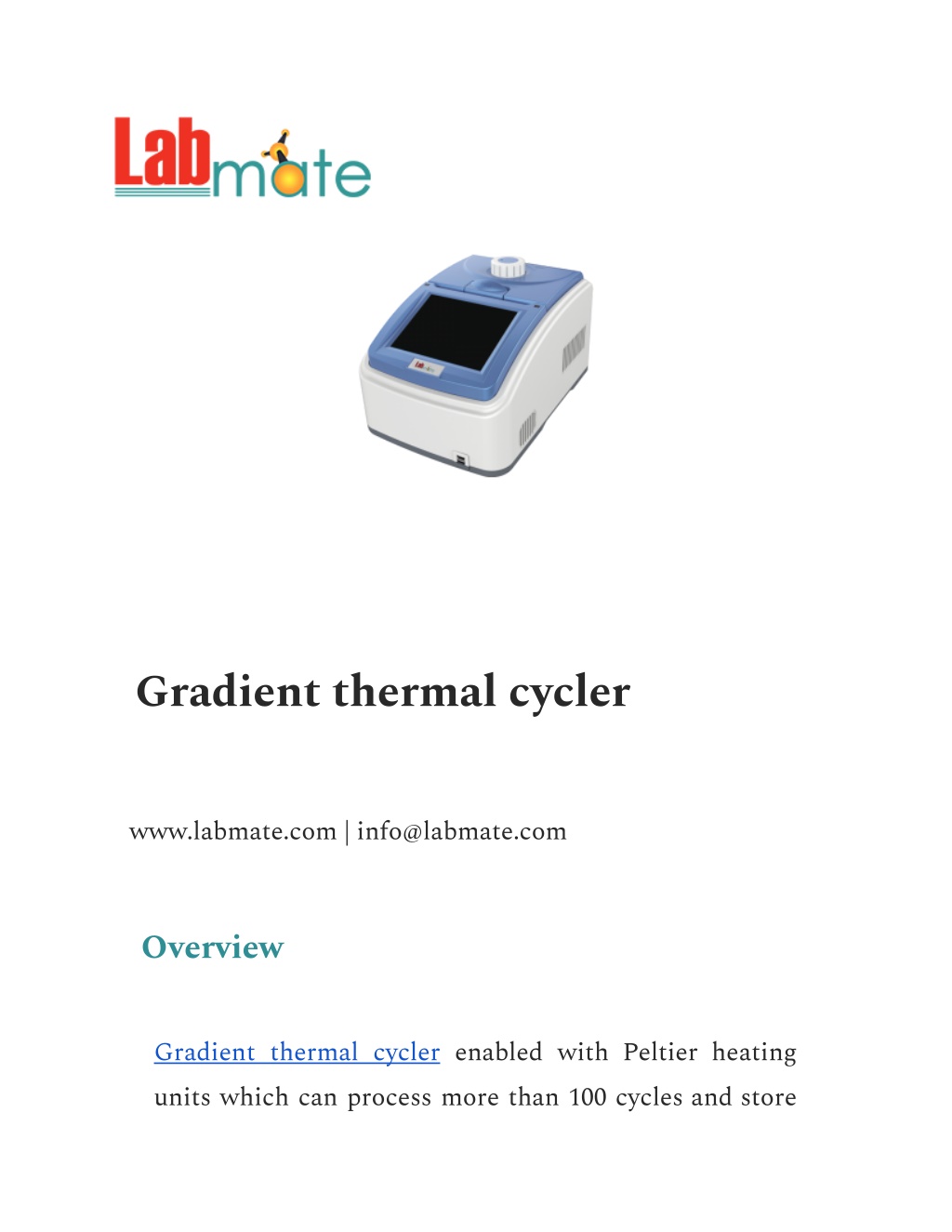

  1. Gradient thermal cycler www.labmate.com | info@labmate.com Overview Gradient thermal cycler enabled with Peltier heating units which can process more than 100 cycles and store

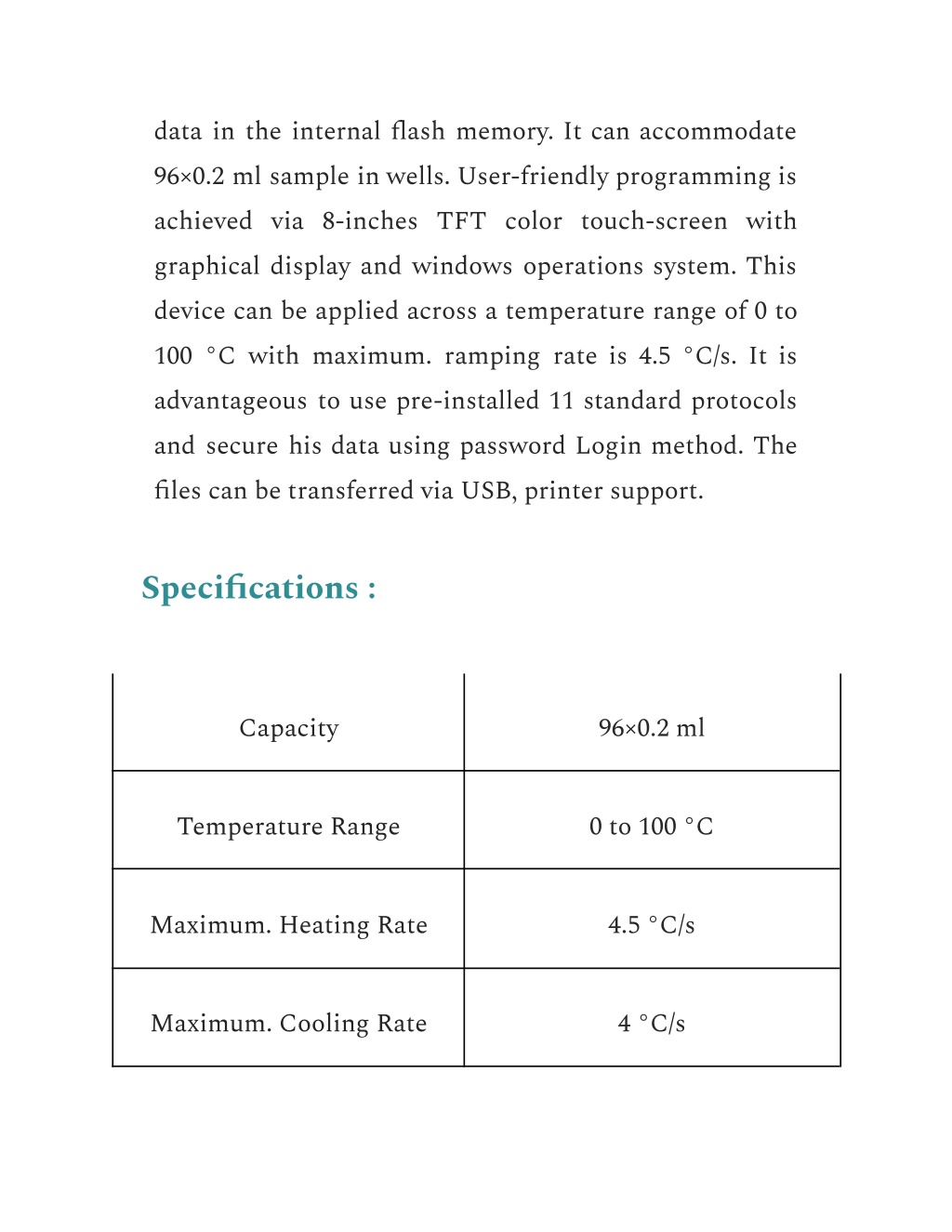

  2. data in the internal flash memory. It can accommodate 96×0.2 ml sample in wells. User-friendly programming is achieved via 8-inches TFT color touch-screen with graphical display and windows operations system. This device can be applied across a temperature range of 0 to 100 °C with maximum. ramping rate is 4.5 °C/s. It is advantageous to use pre-installed 11 standard protocols and secure his data using password Login method. The files can be transferred via USB, printer support. Specifications : Capacity 96×0.2 ml Temperature Range 0 to 100 °C Maximum. Heating Rate 4.5 °C/s Maximum. Cooling Rate 4 °C/s

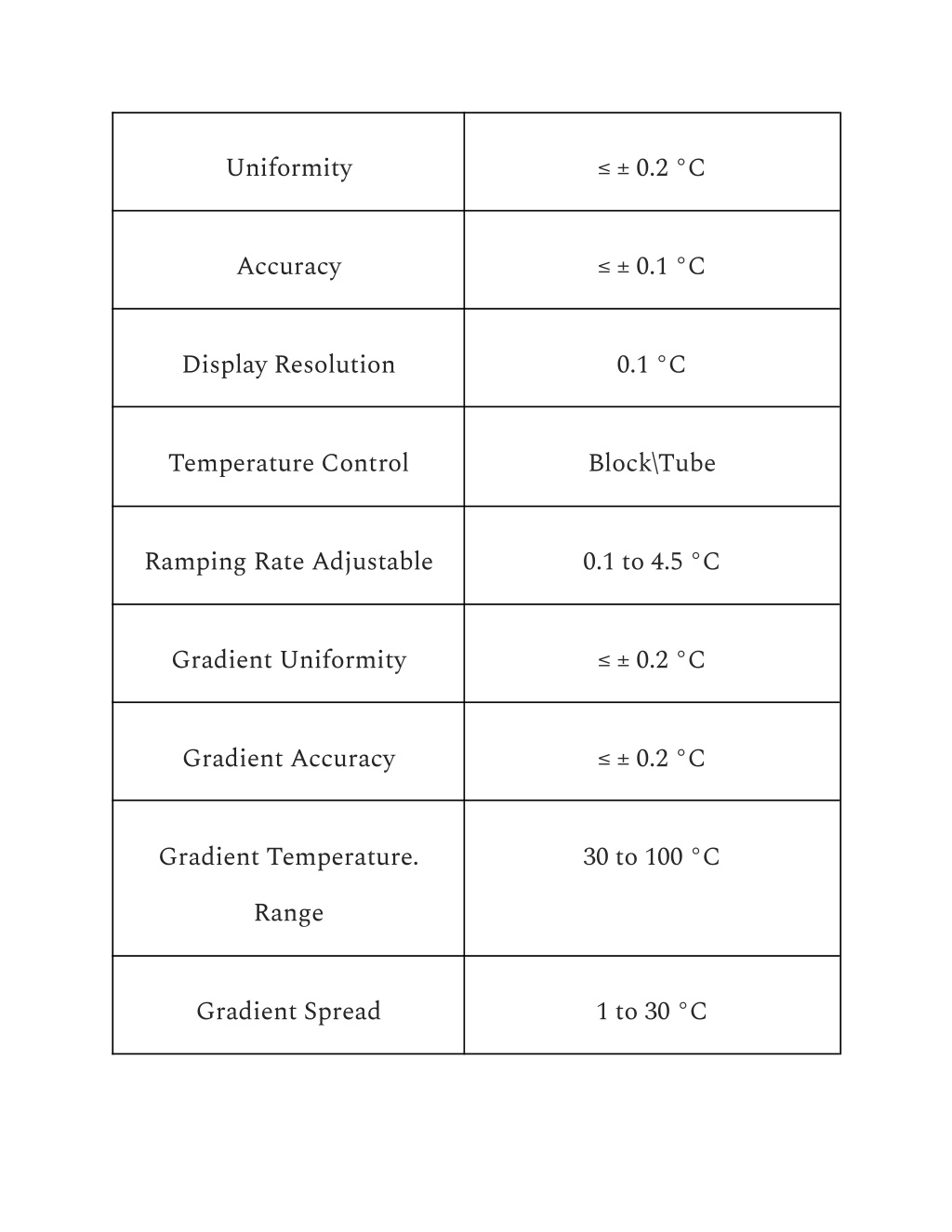

  3. Uniformity ≤ ± 0.2 °C Accuracy ≤ ± 0.1 °C Display Resolution 0.1 °C Temperature Control Block\Tube Ramping Rate Adjustable 0.1 to 4.5 °C Gradient Uniformity ≤ ± 0.2 °C Gradient Accuracy ≤ ± 0.2 °C Gradient Temperature. 30 to 100 °C Range Gradient Spread 1 to 30 °C

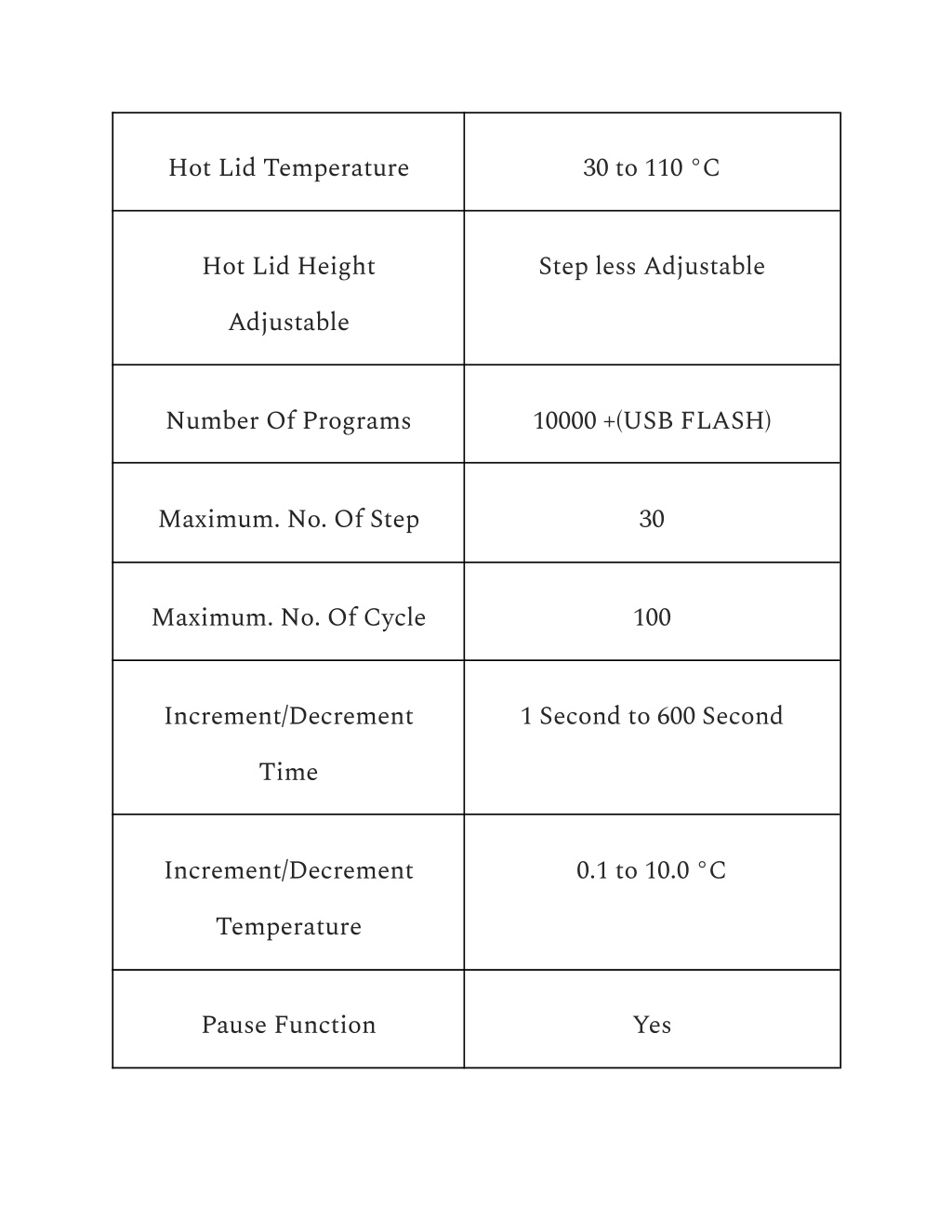

  4. Hot Lid Temperature 30 to 110 °C Hot Lid Height Step less Adjustable Adjustable Number Of Programs 10000 +(USB FLASH) Maximum. No. Of Step 30 Maximum. No. Of Cycle 100 Increment/Decrement 1 Second to 600 Second Time Increment/Decrement 0.1 to 10.0 °C Temperature Pause Function Yes

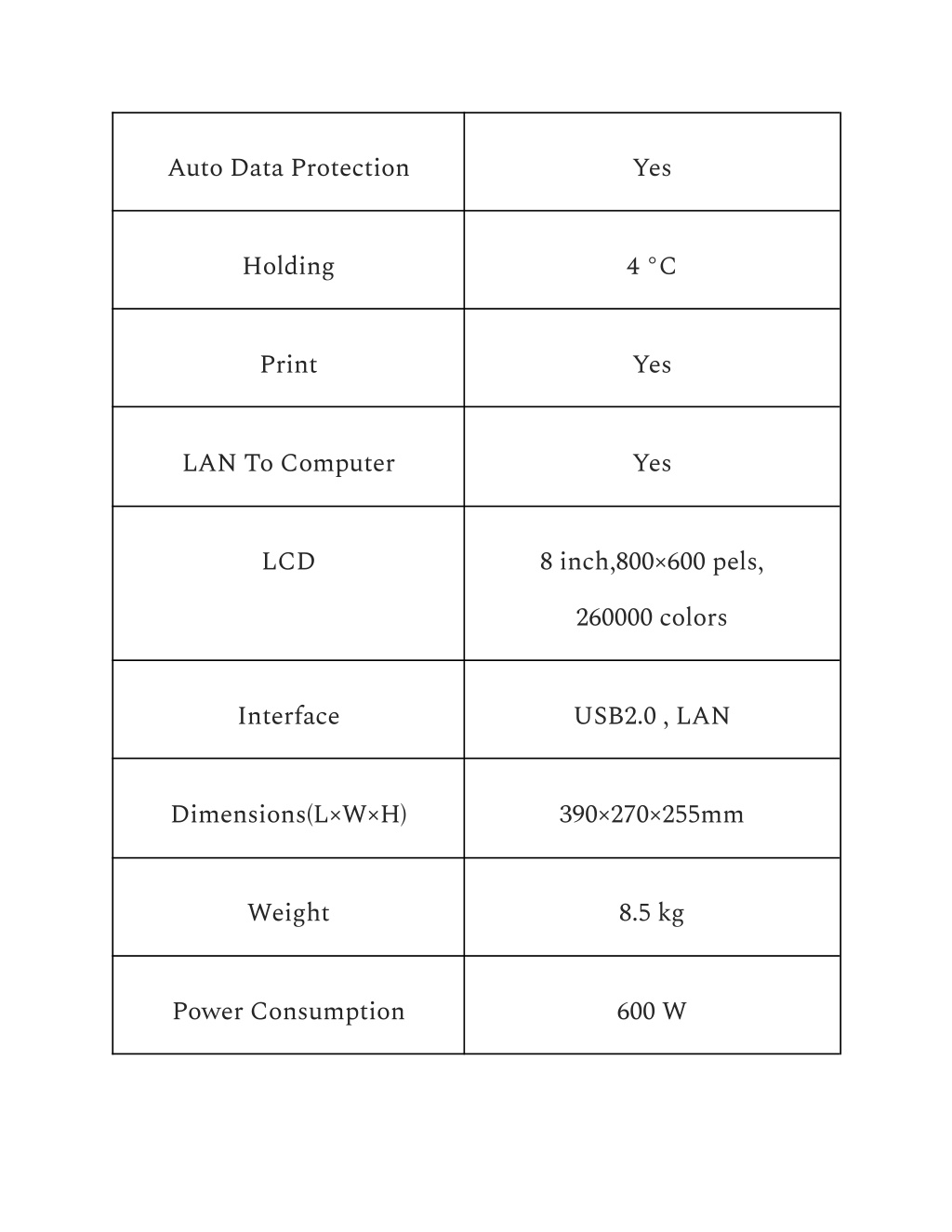

  5. Auto Data Protection Yes Holding 4 °C Print Yes LAN To Computer Yes LCD 8 inch,800×600 pels, 260000 colors Interface USB2.0 , LAN Dimensions(L×W×H) 390×270×255mm Weight 8.5 kg Power Consumption 600 W

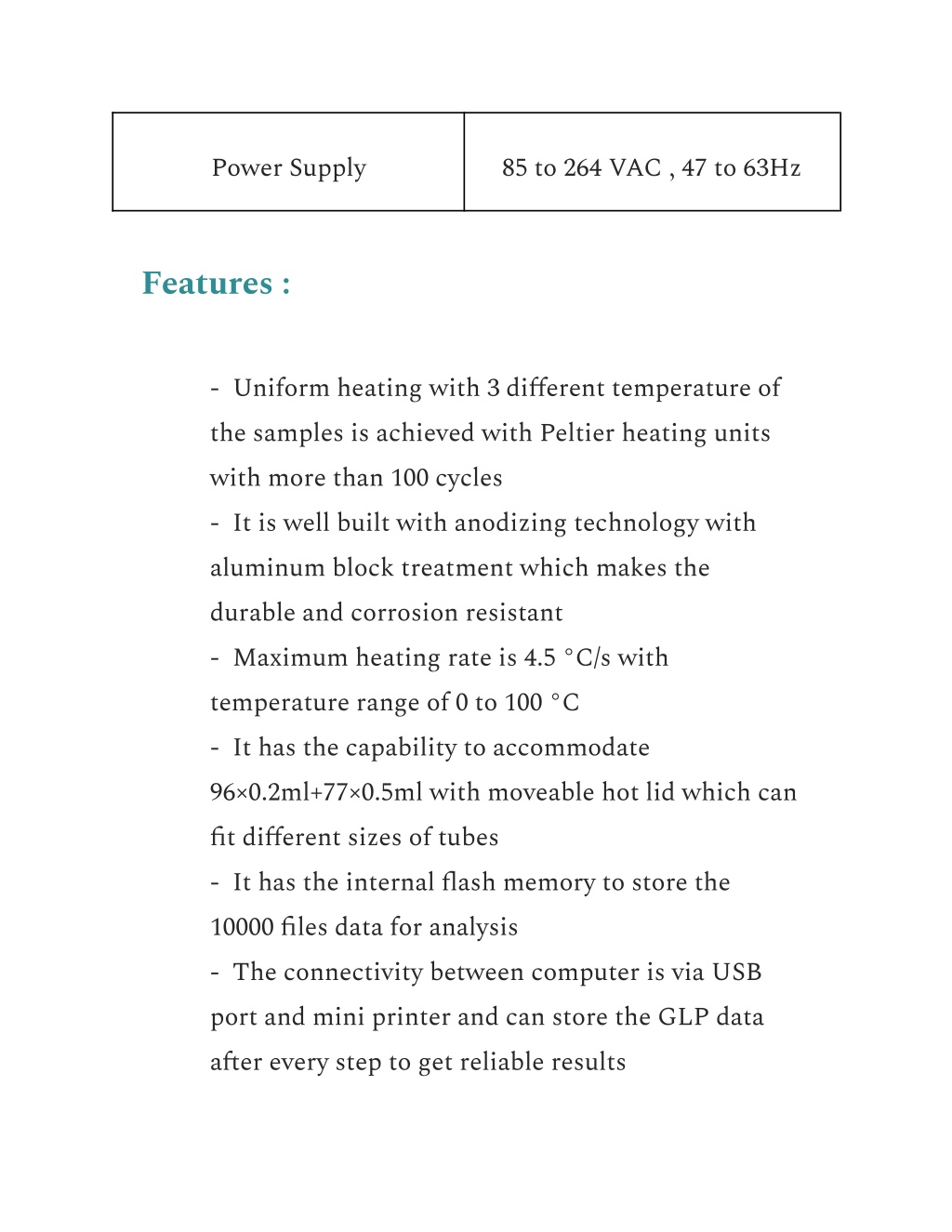

  6. Power Supply 85 to 264 VAC , 47 to 63Hz Features : - Uniform heating with 3 different temperature of the samples is achieved with Peltier heating units with more than 100 cycles - It is well built with anodizing technology with aluminum block treatment which makes the durable and corrosion resistant - Maximum heating rate is 4.5 °C/s with temperature range of 0 to 100 °C - It has the capability to accommodate 96×0.2ml+77×0.5ml with moveable hot lid which can fit different sizes of tubes - It has the internal flash memory to store the 10000 files data for analysis - The connectivity between computer is via USB port and mini printer and can store the GLP data a?er every step to get reliable results

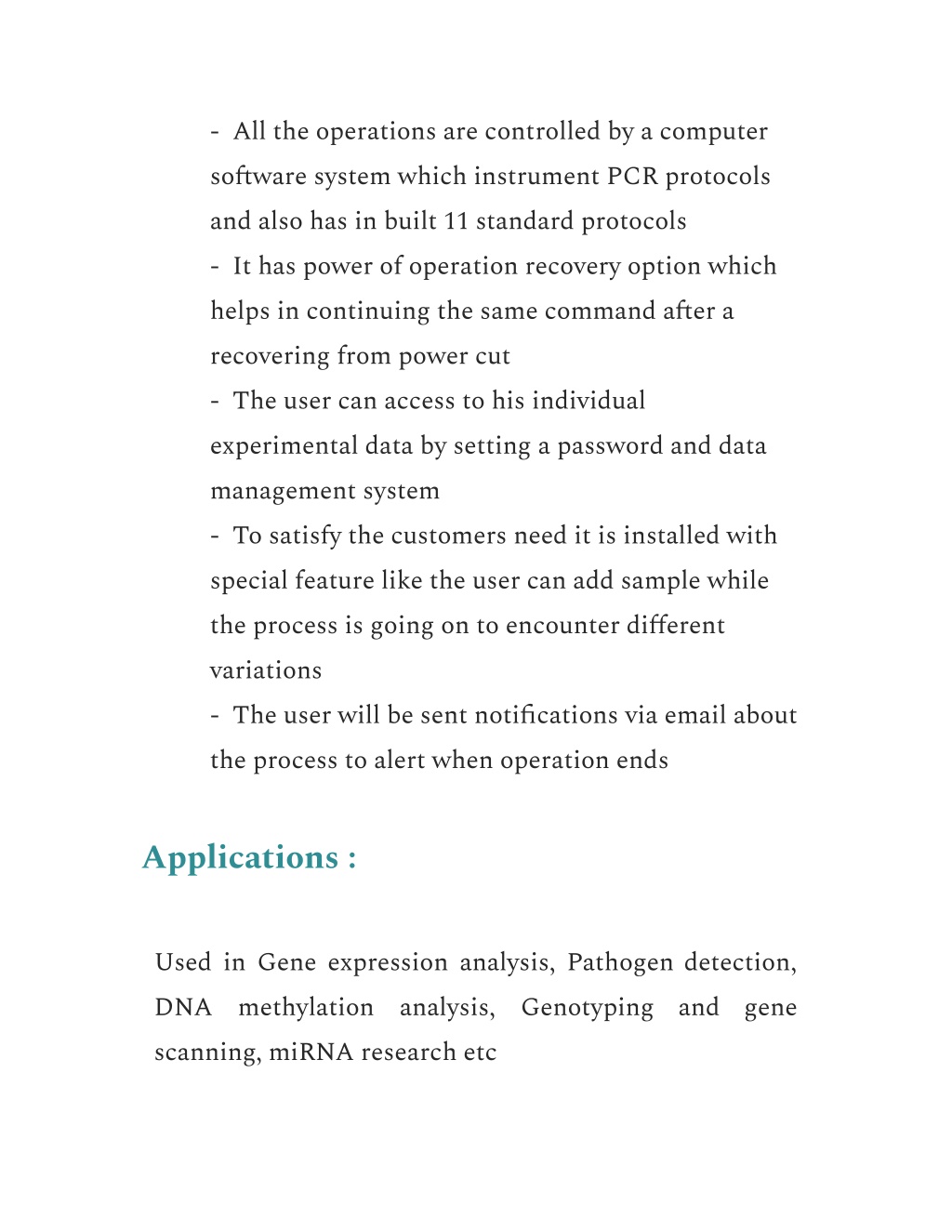

  7. - All the operations are controlled by a computer so?ware system which instrument PCR protocols and also has in built 11 standard protocols - It has power of operation recovery option which helps in continuing the same command a?er a recovering from power cut - The user can access to his individual experimental data by setting a password and data management system - To satisfy the customers need it is installed with special feature like the user can add sample while the process is going on to encounter different variations - The user will be sent notifications via email about the process to alert when operation ends Applications : Used in Gene expression analysis, Pathogen detection, DNA scanning, miRNA research etc methylation analysis, Genotyping and gene

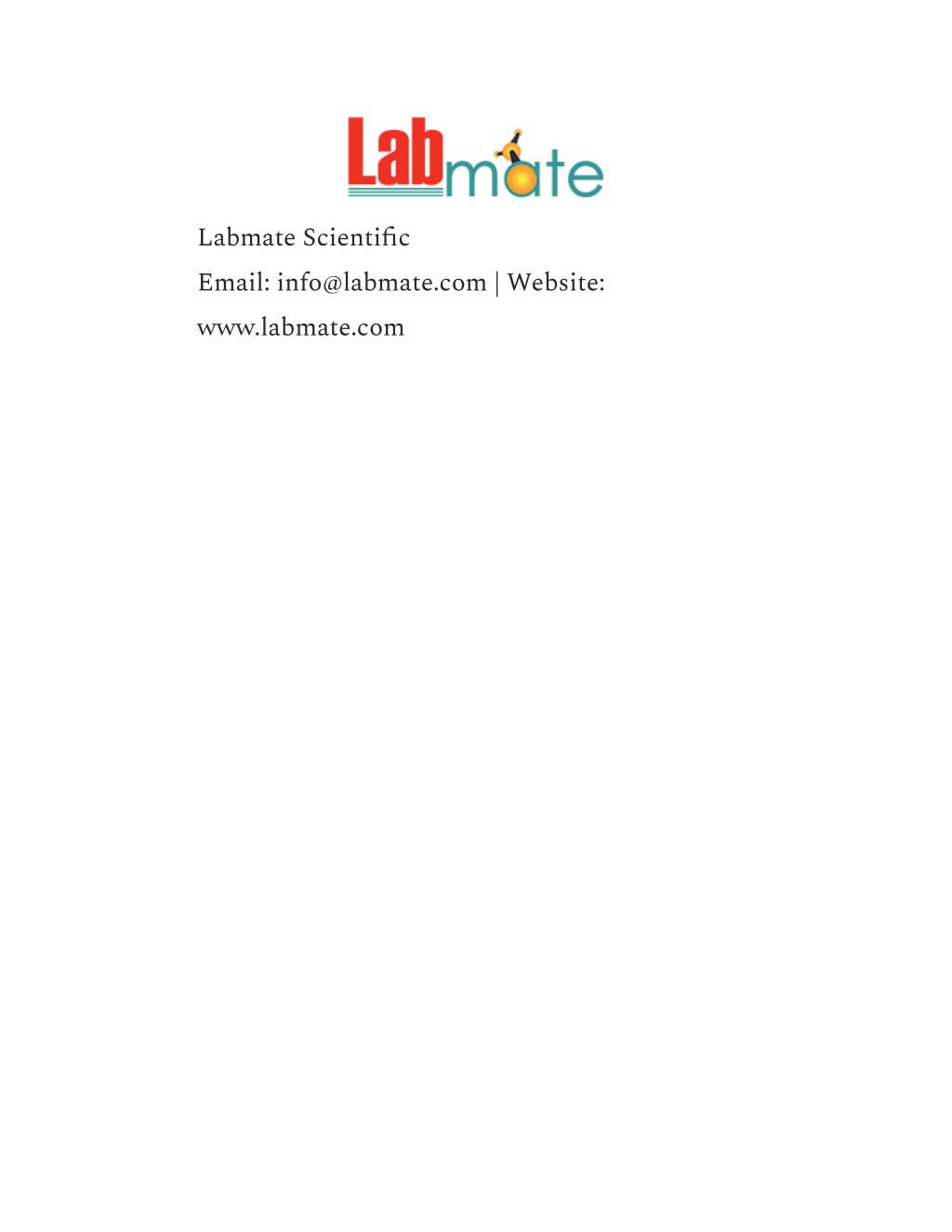

  8. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
