Ferrous Debris Monitor

Ferrous Debris Monitor offers a swift and straightforward analytical method to detect ferromagnetic wear particles within lubricants. It utilizes the PQ index ranging<br>from 0 to 15000 in conjunction with elemental analysis to enhance the efficiency of fault detection. Its real-time monitoring processes enable the easy visualization<br>of detection results.

Kimber4
Download Presentation

Ferrous Debris Monitor

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

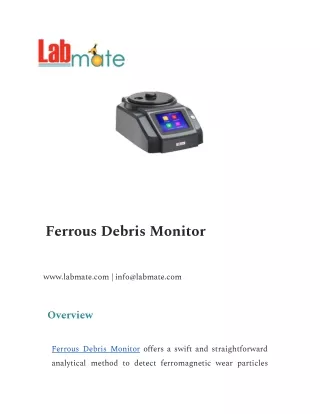

  1. Ferrous Debris Monitor www.labmate.com | info@labmate.com Overview Ferrous Debris Monitor offers a swi? and straightforward analytical method to detect ferromagnetic wear particles

  2. within lubricants. It utilizes the PQ index ranging from 0 to 15000 in conjunction with elemental analysis to enhance the efficiency of fault detection. Its real-time monitoring processes enable the easy visualization of detection results. Specifications : Detection Range 0 to 15000 PQ Particle Range > 1μm Ambient 15 ℃ to 30 ℃ Temperature Working 30% to 80% Environment Humidity Power Connection IEC 6A 3PIN power cord

  3. USB Connection Type-A2.0 (only for connecting USB flash disk) Data RS232 serial communication port Communication Measurement 1PQ (average resolution 0.1PQ) Resolution Repeatability ±0.5% or ±3PQ Turntable Speed 11 S / turn Display 5.6 inches TFT color LCD display Power Supply AC 100V to 240V 50Hz /60Hz Power Consumption < 15 W

  4. Dimensions 402 × 266 × 186 mm Weight <5 kg Features : - Features an integrated human-computer interaction interface - Offers real-time display for precise, instant feedback - Ensures efficient and accurate measurement of the PQ index - Incorporates improved mechanisms for detecting device faults - Allows customization of measurement settings and detection methods - Default settings enable rapid detection of oil samples without extensive adjustments - Capable of self-calibration, ensuring consistent and reliable performance - Designed for ease of use, providing high sensitivity while maintaining user-friendliness

  5. - Delivers test results swi?ly, within a mere 10-second timeframe Standard Accessories : Standard oil samples 100 pcs Oil box Power adapter Applications : It is utilized in oil analysis laboratories, as well as industries such as wind energy, power generation, aerospace, and military, for detecting debris and wear particles. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
